Why (N)GFLCGÖU Flat Flexible Rubber-Sheathed Cables Are Ideal for Cranes, Elevators, and Festoon Applications in Demanding Industries

Understanding the Engineering Behind Specialized Flat Cable Design

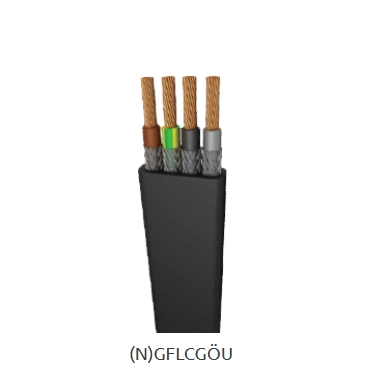

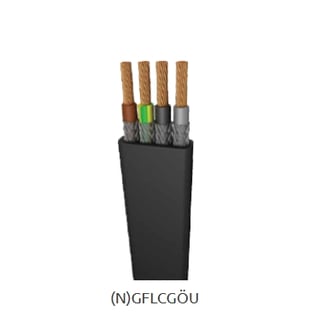

The industrial world demands cables that can perform reliably under extreme conditions while occupying minimal space. The (N)GFLCGÖU flat flexible rubber-sheathed control and power cable represents a sophisticated engineering solution designed specifically for applications where conventional round cables simply cannot deliver the required performance. This specialized cable combines the robustness needed for heavy-duty industrial use with the flexibility essential for dynamic applications, all while maintaining excellent electromagnetic compatibility characteristics.

To understand why this cable design has become indispensable in modern industrial applications, we need to examine how its unique flat geometry and carefully selected materials work together to solve complex engineering challenges. Unlike traditional round cables, the flat configuration allows for significantly tighter bending radii while distributing mechanical stress more evenly across the cable structure. This fundamental design principle makes the (N)GFLCGÖU cable particularly valuable in space-constrained environments where every millimeter matters.

The cable's development reflects decades of engineering experience in addressing the specific challenges faced by lifting equipment, material handling systems, and mobile industrial applications. Each component of the cable construction has been optimized to contribute to the overall performance, creating a solution that exceeds the capabilities of standard cable designs in demanding operational environments.

Critical Application Scenarios Where Flat Cable Design Excels

Lifting Equipment Applications

In elevator systems, port cranes, and hoisting machines, cables must withstand constant movement while maintaining reliable electrical connections. The (N)GFLCGÖU cable's flat profile allows it to follow the natural movement patterns of these systems without creating excessive stress concentrations that could lead to premature failure. The cable's design accommodates the repetitive flexing cycles inherent in lifting operations while maintaining its electrical integrity over extended service periods.

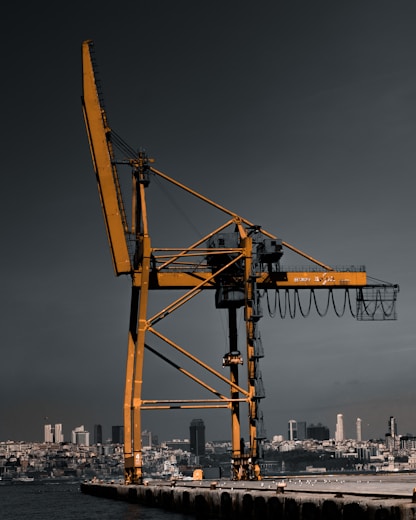

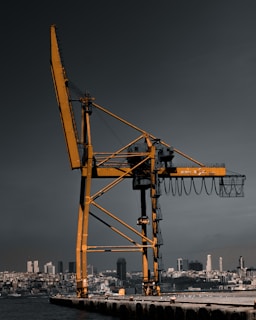

Port cranes present particularly challenging environments where cables must handle both the mechanical stresses of heavy lifting operations and the corrosive effects of marine atmospheres. The specialized rubber compounds used in the (N)GFLCGÖU construction provide excellent resistance to environmental factors while maintaining the flexibility needed for the complex movement patterns typical of crane operations. The flat geometry also simplifies cable management systems, allowing for more efficient routing and reduced space requirements in cramped machinery compartments.

Elevator applications demand cables that can reliably operate through millions of cycles while maintaining passenger safety standards. The (N)GFLCGÖU cable's construction addresses these requirements through its optimized conductor arrangement and superior insulation system, which work together to ensure consistent performance throughout the elevator's operational life.

Material Handling System Integration

Floor conveyors and automated storage and retrieval systems represent some of the most demanding applications for industrial cables. These systems operate continuously, often twenty-four hours a day, creating conditions where cable reliability directly impacts overall system productivity. The (N)GFLCGÖU cable's flat design allows for integration into conveyor systems where space constraints make traditional round cables impractical.

In automated storage systems, cables must navigate complex pathways while maintaining signal integrity for control systems. The electromagnetic shielding provided by the tinned copper braid ensures that power and control signals remain isolated from each other and from external interference sources. This characteristic becomes particularly important in warehouses where multiple automated systems operate simultaneously, potentially creating significant electromagnetic interference challenges.

The flat cable configuration also simplifies maintenance procedures in material handling systems. The reduced profile allows maintenance personnel to access cable runs more easily, and the robust construction minimizes the frequency of maintenance interventions required.

Mobile and Festoon Applications

Festoon systems and trailing cable applications create unique challenges that traditional cable designs struggle to address effectively. The constant movement and frequent direction changes in these applications require cables that can maintain their electrical and mechanical integrity under dynamic loading conditions. The (N)GFLCGÖU cable's design specifically addresses these challenges through its optimized construction and material selection.

The cable's ability to operate at travel speeds up to 180 meters per minute makes it suitable for high-speed material handling applications where productivity demands push equipment to its operational limits. This performance capability results from the careful balance between flexibility and structural integrity achieved through the flat design and specialized rubber compounds.

In festoon applications, the cable's flat profile also contributes to improved aerodynamic characteristics, reducing wind resistance and minimizing the mechanical stress on support systems. This advantage becomes particularly significant in outdoor applications where wind loading can create substantial additional stresses on cable systems.

Technical Specifications and Engineering Parameters

Conductor Design and Performance Characteristics

The conductor system in (N)GFLCGÖU cables utilizes high-quality copper construction with specific flexibility classifications that optimize performance for dynamic applications. For conductors up to 25 square millimeters, Class 6 stranding provides maximum flexibility while maintaining adequate current-carrying capacity. For larger conductors of 25 square millimeters and above, Class 5 stranding offers the optimal balance between flexibility and mechanical strength needed for higher power applications.

The option for tinned copper conductors provides additional protection against corrosion in marine or chemically aggressive environments. This feature becomes particularly valuable in applications where cables may be exposed to moisture, salt spray, or industrial chemicals that could degrade standard copper over time. The tinning process creates a protective barrier that extends cable life while maintaining excellent electrical conductivity.

Understanding conductor classification helps explain why these specific choices were made for the (N)GFLCGÖU design. Class 6 conductors contain the highest number of individual wire strands for a given cross-sectional area, maximizing flexibility but requiring careful balance with mechanical strength requirements. The transition to Class 5 for larger conductors recognizes that absolute flexibility becomes less critical as conductor size increases, while mechanical robustness becomes more important for handling the increased current loads.

Insulation and Separation Systems

The 3GI3 rubber compound used for insulation represents a carefully formulated material designed to provide excellent electrical properties while maintaining flexibility across a wide temperature range. This compound offers superior dielectric strength, ensuring reliable insulation performance even under the elevated voltages that can occur during system transients or fault conditions.

The tape separator system provides additional mechanical stability within the cable structure while maintaining the flexibility needed for dynamic applications. This separator system prevents individual conductors from migrating within the cable during flexing cycles, maintaining consistent electrical spacing and preventing the development of stress concentrations that could lead to premature failure.

The insulation system design also contributes to the cable's electromagnetic compatibility characteristics by providing consistent dielectric properties that minimize signal distortion and crosstalk between conductors. This aspect becomes particularly important in control cable applications where signal integrity directly affects system performance.

Electromagnetic Shielding and Interference Protection

The tinned copper braid shield with minimum 80 percent coverage provides comprehensive protection against electromagnetic interference while maintaining the flexibility required for dynamic applications. This shielding system effectively attenuates both incoming interference that could affect sensitive control circuits and outgoing emissions that could interfere with nearby equipment.

The 80 percent coverage specification ensures adequate protection while maintaining mechanical flexibility. Higher coverage percentages would provide marginally better shielding but at the cost of significantly reduced flexibility, making the cable unsuitable for dynamic applications. The engineering balance achieved in the (N)GFLCGÖU design optimizes performance for its intended applications.

Understanding how electromagnetic shielding works helps explain why this design is so effective. The copper braid creates a conductive enclosure around the cable's conductors, providing a low-impedance path for electromagnetic currents that would otherwise couple into the cable's circuits. The tinning on the braid strands ensures reliable electrical contact between individual wires in the braid, maintaining shielding effectiveness even under mechanical stress.

Outer Sheath Protection and Environmental Resistance

The 5GM3 rubber compound outer sheath provides comprehensive protection against environmental factors while maintaining the flexibility needed for dynamic applications. This compound offers excellent resistance to oils, chemicals, and abrasion, making it suitable for the harsh conditions typical of industrial environments.

The flame-retardant properties of the 5GM3 compound contribute to overall system safety by limiting fire propagation in the event of an electrical fault or external fire exposure. This characteristic becomes particularly important in confined spaces where fire safety regulations may require the use of flame-retardant materials.

The temperature rating of the outer sheath, capable of operating from minus 30 degrees Celsius in mobile applications to plus 90 degrees Celsius in fixed installations, demonstrates the versatility of this material system. This wide temperature range ensures reliable performance across diverse climatic conditions and application environments.

Voltage Ratings and Electrical Performance Parameters

Understanding Voltage Classifications

The (N)GFLCGÖU cable is available in two voltage ratings: 300/500 V and 0.6/1 kV, providing flexibility for different application requirements. The 300/500 V rating suits most control and low-power applications, while the 0.6/1 kV rating accommodates higher-power requirements typical of motor drives and primary power distribution.

The AC test voltage of 3.5 kV demonstrates the cable's ability to withstand electrical stress well beyond its rated voltage, providing a substantial safety margin for reliable operation. This test voltage represents the level at which the cable's insulation system is tested during manufacturing to ensure consistent quality and performance.

Understanding these voltage ratings helps engineers select the appropriate cable for specific applications. The dual voltage rating system allows for optimization of cable cost and size while ensuring adequate electrical performance for the intended application.

Current-Carrying Capacity and Thermal Performance

The current-carrying capacity determination according to VDE 0298-4 ensures that the cable can safely handle its rated electrical load without exceeding safe operating temperatures. This standard takes into account factors such as ambient temperature, installation method, and grouping with other cables to provide accurate derating factors for real-world installations.

The maximum operating temperature of 90 degrees Celsius for the conductor provides substantial thermal capacity for handling electrical loads while maintaining insulation integrity. This temperature rating reflects the thermal characteristics of the insulation system and ensures long-term reliability under normal operating conditions.

The short-circuit temperature rating of 250 degrees Celsius maximum demonstrates the cable's ability to survive fault conditions without catastrophic failure. This rating provides time for protective devices to operate and clear faults before cable damage occurs, contributing to overall system safety and reliability.

Mechanical Performance and Installation Parameters

The bending radius specifications defined by VDE 0298-3 ensure that the cable can be installed and operated without exceeding the mechanical limits of its construction. These specifications take into account the cable's flat geometry and the mechanical properties of its components to establish safe bending limits for both installation and operational conditions.

The maximum tensile stress rating of 15 N/mm² for static applications provides guidelines for cable support and routing to prevent mechanical damage during installation and operation. The prohibition against torsional loading recognizes that the flat cable geometry is not designed to withstand twisting forces, requiring careful attention to cable routing and support systems.

Understanding these mechanical limitations helps ensure proper cable installation and prevents premature failure due to excessive mechanical stress. The flat cable design provides significant advantages in terms of bending radius and space utilization, but requires careful attention to mechanical loading conditions.

Addressing Common Technical Concerns and Performance Questions

Electromagnetic Interference Management

Industrial environments often contain multiple sources of electromagnetic interference that can affect sensitive control systems and communication networks. The (N)GFLCGÖU cable's shielding system effectively addresses these concerns by providing a comprehensive barrier against both incoming and outgoing electromagnetic energy.

The tinned copper braid shield creates a Faraday cage effect around the cable's conductors, intercepting electromagnetic fields before they can couple into the cable's circuits. The minimum 80 percent coverage ensures that this protection remains effective even when the cable is subjected to the flexing and movement typical of dynamic applications.

The effectiveness of this shielding system becomes particularly apparent in applications where multiple cables run in close proximity, such as in cable trays or conduit systems. Without adequate shielding, crosstalk between cables can cause erratic system behavior and reduced performance. The (N)GFLCGÖU cable's shielding system prevents these problems while maintaining the flexibility needed for dynamic applications.

Mechanical Durability Under Dynamic Loading

The concern about mechanical durability under repeated flexing cycles is addressed through the cable's specialized construction and material selection. The flat geometry distributes mechanical stress more evenly than round cable designs, reducing the peak stresses that can lead to fatigue failures.

The rubber compounds used in both the insulation and outer sheath are specifically formulated to maintain their mechanical properties through millions of flexing cycles. These materials resist the degradation that can occur in conventional cable designs when subjected to repeated mechanical stress.

The conductor stranding classifications are selected to optimize flexibility while maintaining adequate mechanical strength for the intended applications. This balance ensures that the conductors can withstand the mechanical stresses of dynamic operation without developing fatigue cracks that could lead to electrical failures.

Environmental Resistance and Longevity

Industrial environments expose cables to a wide range of potentially damaging conditions, including temperature extremes, chemical exposure, and mechanical abuse. The (N)GFLCGÖU cable's construction addresses these challenges through its specialized material system and robust design.

The 5GM3 rubber compound outer sheath provides excellent resistance to oils, chemicals, and abrasion while maintaining flexibility across a wide temperature range. This resistance ensures that the cable maintains its protective properties even when exposed to the harsh conditions typical of industrial environments.

The temperature rating from minus 30 degrees Celsius to plus 90 degrees Celsius covers the range of conditions encountered in most industrial applications. This wide temperature range ensures reliable performance regardless of climatic conditions or operational environment.

High-Speed Dynamic Applications

Modern industrial systems increasingly demand higher operational speeds to improve productivity and efficiency. The (N)GFLCGÖU cable's design specifically addresses these requirements through its optimized construction and material selection.

The ability to operate at travel speeds up to 180 meters per minute in festoon applications represents a significant performance advantage over conventional cable designs. This capability results from the cable's flat geometry, which reduces wind resistance and minimizes the mechanical stresses associated with high-speed operation.

The cable's construction also addresses the dynamic loading conditions that occur during acceleration and deceleration cycles in high-speed applications. The flexible conductor stranding and specialized rubber compounds ensure that the cable maintains its electrical and mechanical integrity even under the demanding conditions of high-speed operation.

Fault Tolerance and Safety Performance

The cable's ability to withstand short-circuit conditions without catastrophic failure contributes significantly to overall system safety. The maximum short-circuit temperature rating of 250 degrees Celsius provides time for protective devices to operate and clear faults before permanent cable damage occurs.

The flame-retardant properties of the outer sheath material help prevent fire propagation in the event of an electrical fault or external fire exposure. This characteristic becomes particularly important in confined spaces where fire safety is a critical concern.

The cable's robust construction also provides protection against mechanical damage that could lead to electrical faults. The flat geometry and specialized materials work together to create a cable that can withstand the mechanical abuse typical of industrial environments while maintaining its electrical integrity.

Conclusion: The Engineering Excellence of Specialized Cable Design

The (N)GFLCGÖU flat flexible rubber-sheathed control and power cable represents a sophisticated engineering solution that addresses the complex challenges of modern industrial applications. Through its specialized flat geometry, carefully selected materials, and optimized construction, this cable delivers performance capabilities that exceed those of conventional cable designs in demanding operational environments.

The cable's success in lifting equipment, material handling systems, and festoon applications demonstrates the value of engineering solutions that are specifically designed for their intended applications rather than adapted from general-purpose designs. The attention to detail in every aspect of the cable's construction, from conductor stranding to outer sheath formulation, creates a product that delivers reliable performance under conditions that would challenge conventional cables.

For engineers and system designers working on projects that involve dynamic cable applications, space constraints, or demanding environmental conditions, the (N)GFLCGÖU cable offers a proven solution that can enhance system reliability while simplifying installation and maintenance requirements. The combination of technical performance, mechanical durability, and environmental resistance makes this cable an optimal choice for applications where standard cables cannot deliver the required performance.

Understanding the engineering principles behind specialized cable designs like the (N)GFLCGÖU helps engineers make informed decisions about cable selection and system design. The investment in specialized cables often pays dividends through improved system reliability, reduced maintenance requirements, and enhanced operational performance that more than justifies the initial cost difference compared to standard cable alternatives.
