Why Is ÜNFLEX TROMMEL PUR – HF the Best Port Crane Cable for High-Stress Reeling Applications?
Looking for a durable port crane cable? Discover how the ÜNFLEX TROMMEL PUR – HF cable excels in reeling systems under high mechanical stress. Engineered with a polyurethane sheath, anti-twist structure, and marine-grade performance, it's the ideal choice for port cranes and offshore lifting equipment.
BLOGS
6/18/202512 min read
Introduction: What Makes Drum Reeling Cables Critical in Marine Operations?
In the demanding world of marine operations, where equipment must withstand corrosive saltwater, extreme weather conditions, and continuous mechanical stress, the selection of appropriate electrical cables becomes a mission-critical decision. Drum reeling cables serve as the electrical lifelines that power and control essential equipment across ports, offshore platforms, and shipboard crane systems. These specialized cables must deliver reliable performance while enduring constant winding and unwinding motions, exposure to harsh marine environments, and significant mechanical loads.
The marine industry presents unique challenges that standard industrial cables simply cannot handle. Consider the container crane at a busy port terminal that operates 24 hours a day, cycling through thousands of loading operations while exposed to salt spray and varying weather conditions. Or think about the complex cable management systems on offshore drilling platforms, where cables must maintain electrical integrity while supporting their own weight in vertical installations and resisting the corrosive effects of oil and saline air.

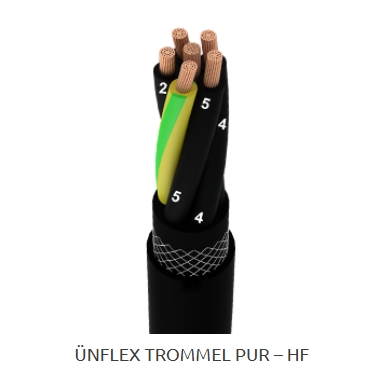

ÜNFLEX TROMMEL PUR – HF represents a specialized engineering solution developed specifically for these high-stress marine reeling applications. This heavy-duty, flexible cable combines advanced polyurethane technology with intelligent mechanical design to address the most challenging aspects of marine electrical installations. Its development reflects a deep understanding of the marine environment's unique demands, where failure is not merely inconvenient but can result in significant operational downtime, safety hazards, and substantial financial losses.
The cable's design philosophy centers on three fundamental principles that are essential for marine applications: exceptional mechanical durability to withstand continuous flexing and torsional stress, superior chemical resistance to combat the corrosive marine environment, and reliable electrical performance under varying load conditions and environmental extremes. These characteristics make it an ideal choice for engineers and procurement professionals who understand that initial cost considerations must be balanced against long-term reliability and total cost of ownership in marine applications.
Application Scenarios: Where Does the ÜNFLEX TROMMEL PUR – HF Excel?
Understanding the specific application scenarios where ÜNFLEX TROMMEL PUR – HF excels helps engineers and procurement professionals make informed decisions about cable selection for their marine projects. Each application presents distinct challenges that this specialized cable is engineered to address.
Marine Ports & Container Terminals
Container cranes and loading bridges represent one of the most demanding applications for reeling cables in the marine environment. These massive structures must handle containers weighing up to 40 tons while operating at high speeds to maintain port efficiency. The electrical systems powering these cranes require cables that can withstand continuous reeling operations, often exceeding 200 cycles per hour during peak operations.
The ÜNFLEX TROMMEL PUR – HF excels in these applications due to its ability to handle high-speed drum reeling performance while maintaining electrical integrity. The cable's polyurethane construction provides excellent resistance to the salt spray and moisture that are constant factors in port environments. Additionally, the integrated anti-twisting elements prevent the internal cable structure from degrading under the repetitive rotational stresses that are inherent in crane operations.
Port terminals also benefit from the cable's resistance to hydraulic oils and other industrial fluids commonly encountered in these environments. The robust construction ensures that accidental contact with these substances does not compromise cable performance, reducing maintenance requirements and extending operational life.
Offshore Platforms
Offshore platforms present perhaps the most challenging environment for electrical cables, combining extreme weather exposure with the corrosive effects of saltwater and hydrocarbon exposure. Cable management systems on these platforms must support significant vertical loads while maintaining electrical continuity in systems that are critical for safety and production operations.
The ÜNFLEX TROMMEL PUR – HF addresses these challenges through its integrated textile strength member, which provides additional tensile support for vertical installations. This feature is particularly important in offshore applications where cables may need to support their own weight over considerable distances while maintaining electrical performance. The cable's resistance to oil and hydrocarbon exposure ensures reliable operation in environments where contact with these substances is inevitable.
The temperature performance of the cable, ranging from -50°C to +90°C in fixed installations, accommodates the extreme temperature variations commonly encountered in offshore environments. This thermal stability ensures consistent electrical performance regardless of seasonal weather changes or the heat generated by industrial processes on the platform.
Shipboard Equipment
Modern vessels rely heavily on automated systems and sophisticated hoisting mechanisms that require reliable electrical connections through reeling cable systems. Shipboard applications present unique challenges, including space constraints, vibration from ship movement, and the need for cables that can perform reliably in both horizontal and vertical reeling configurations.
The ÜNFLEX TROMMEL PUR – HF's compact design and superior flexibility make it ideal for shipboard installations where space is at a premium. The cable's ability to handle both horizontal and vertical reeling applications provides design flexibility for ship engineers who must integrate electrical systems into complex vessel layouts. The anti-twisting construction is particularly valuable in marine applications where ship movement can introduce additional torsional stresses on cable systems.
The halogen-free, flame-retardant properties of the cable align with strict maritime safety standards, providing peace of mind for vessel operators who must comply with international safety regulations. This characteristic is especially important in enclosed spaces where fire safety is paramount.
Industrial Reeling Systems
Beyond traditional marine applications, the ÜNFLEX TROMMEL PUR – HF serves effectively in specialized industrial reeling systems that may be located in coastal or marine-adjacent environments. These applications include festoon systems and winding applications where travel speeds can reach up to 200 meters per minute.
The cable's high-speed performance characteristics make it suitable for applications requiring rapid cable deployment and retrieval. The robust construction ensures that the mechanical stresses associated with high-speed operations do not compromise electrical performance or cable longevity. This capability is particularly valuable in applications such as marine research equipment deployment, where rapid cable handling is essential for operational efficiency.




Electrical and Mechanical Characteristics: What Should You Know?
A thorough understanding of the ÜNFLEX TROMMEL PUR – HF's electrical and mechanical characteristics is essential for engineers and procurement professionals to properly specify and apply this cable in marine environments. These specifications represent the culmination of extensive testing and development specifically focused on marine reeling applications.
Voltage Ratings and Electrical Performance
The electrical specifications of the ÜNFLEX TROMMEL PUR – HF reflect its design for robust industrial and marine applications. With a rated voltage of 0.6/1 kV, the cable is suitable for a wide range of marine electrical systems, from control circuits to moderate power applications. The maximum operating voltage ratings of 0.7/1.2 kV for AC applications and 0.9/1.8 kV for DC applications provide adequate safety margins for typical marine electrical systems.
These voltage ratings are particularly important in marine applications where electrical systems may experience voltage fluctuations due to varying load conditions or generator performance. The cable's ability to handle these variations without degradation ensures consistent performance in dynamic marine environments.
The electrical design also considers the unique requirements of reeling applications, where conductor flexibility and electrical integrity must be maintained through thousands of flexing cycles. The Class 5 fine-stranded copper conductors, manufactured to IEC 60228 standards, provide optimal flexibility while maintaining excellent electrical conductivity. This conductor design is critical for applications where the cable experiences continuous flexing, as solid or larger-strand conductors would be prone to fatigue failure under these conditions.
Advanced Construction Features

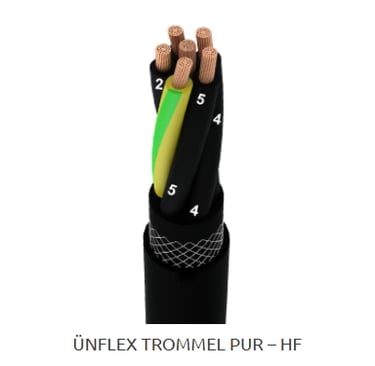

The construction of the ÜNFLEX TROMMEL PUR – HF represents a sophisticated approach to addressing the multiple challenges present in marine reeling applications. The halogen-free, flame-retardant polyurethane used for both inner and outer sheaths provides several critical advantages over traditional cable materials.
Polyurethane offers superior resistance to hydrolysis compared to PVC or rubber compounds, making it ideal for marine environments where moisture exposure is constant. This resistance extends cable life significantly in applications where traditional materials would degrade rapidly. The flame-retardant properties ensure compliance with maritime safety standards while the halogen-free formulation eliminates the production of toxic gases in the event of fire.
The integrated textile strength member represents a key innovation in reeling cable design. This component provides additional tensile support that is essential for vertical reeling applications and helps distribute mechanical loads throughout the cable structure. The strength member works in conjunction with the anti-twisting element to maintain cable integrity under the complex mechanical stresses encountered in marine reeling applications.
The anti-twisting element deserves particular attention, as it addresses one of the most common failure modes in reeling cables. Traditional cables without this feature are prone to internal conductor displacement and eventual failure when subjected to repetitive torsional stresses. The anti-twisting design maintains conductor geometry and prevents the accumulation of twist that can lead to premature failure.
Durability and Environmental Resistance
The durability characteristics of the ÜNFLEX TROMMEL PUR – HF directly address the harsh conditions encountered in marine environments. The cable's resistance to oil, hydrolysis, solvents, and alkalis ensures reliable performance in environments where exposure to these substances is inevitable.
Oil resistance is particularly important in marine applications where hydraulic systems are common and accidental contact with petroleum products is likely. The polyurethane construction maintains its integrity when exposed to these substances, preventing degradation that could compromise electrical performance or mechanical strength.
Hydrolysis resistance is critical for any cable intended for marine use, as the combination of moisture and salt creates conditions that rapidly degrade many polymer materials. The specialized polyurethane formulation used in the ÜNFLEX TROMMEL PUR – HF maintains its properties even under prolonged exposure to these conditions.
The temperature performance range of -50°C to +90°C for fixed installations and -40°C to +90°C for mobile applications accommodates the extreme temperature variations encountered in marine environments. This range ensures reliable performance from arctic conditions to tropical climates, providing flexibility for global marine operations.
Mechanical Performance Specifications
The mechanical ratings of the ÜNFLEX TROMMEL PUR – HF reflect its design for high-stress applications. The maximum tensile load rating of 20 N/mm² provides adequate strength for vertical installations while maintaining the flexibility necessary for reeling operations. This specification is particularly important for offshore applications where cables must support their own weight over considerable distances.
The torsion rating of ±25°/m indicates the cable's ability to withstand rotational stresses without internal damage. This characteristic is essential for reeling applications where the cable experiences twisting forces during winding and unwinding operations. The anti-twisting construction works in conjunction with this torsion rating to prevent accumulation of twist that could lead to failure.
Bending radius specifications of 6xD for fixed installations and 8xD for mobile applications provide guidance for proper cable routing and installation. These relatively tight bending radii allow for compact installations while ensuring that mechanical stresses remain within acceptable limits. The difference between fixed and mobile specifications reflects the additional mechanical considerations required for applications where the cable experiences repeated flexing.
The festoon and reeling speed capability of up to 200 m/min represents exceptional performance for this type of cable. This specification enables the cable to support high-speed applications while maintaining mechanical and electrical integrity. The ability to operate at these speeds is essential for modern marine equipment that prioritizes operational efficiency.
Technical FAQ: What Challenges Might You Encounter at Sea—and How Does This Cable Solve Them?
Marine engineers and procurement professionals frequently encounter specific technical challenges when selecting cables for marine reeling applications. Understanding how the ÜNFLEX TROMMEL PUR – HF addresses these challenges provides valuable insight into its suitability for demanding marine environments.
Saltwater Exposure and Chemical Attack Resistance
One of the most frequent concerns in marine applications involves the cable's ability to withstand saltwater exposure and chemical attack from various marine and industrial substances. The marine environment is inherently corrosive, with salt spray, direct seawater contact, and chemical exposure from cleaning agents and industrial processes creating a challenging environment for electrical cables.
The ÜNFLEX TROMMEL PUR – HF addresses this challenge through its specialized polyurethane compound outer sheath, which provides exceptional resistance to hydrolysis, solvents, oils, and alkalis. This formulation was developed specifically for maritime and coastal installations where chemical exposure is inevitable. The polyurethane material maintains its physical and electrical properties even under prolonged exposure to saltwater, which would rapidly degrade many traditional cable materials.
The hydrolysis resistance is particularly important because the combination of moisture and salt creates conditions that accelerate the breakdown of many polymer materials. Traditional PVC and rubber compounds often fail prematurely in these conditions, leading to costly replacements and potential safety hazards. The polyurethane construction of the ÜNFLEX TROMMEL PUR – HF maintains its integrity under these conditions, providing reliable long-term performance.
Vertical Reeling Under High Tension
Vertical reeling applications present unique challenges because the cable must support its own weight while maintaining electrical continuity and mechanical integrity. This is particularly critical in offshore applications where cables may extend over considerable vertical distances, creating significant tensile loads that must be managed without compromising performance.
The ÜNFLEX TROMMEL PUR – HF addresses this challenge through its integrated central textile strength member, which provides additional tensile support beyond what the copper conductors alone could handle. This strength member is designed to carry the primary tensile loads, protecting the electrical conductors from mechanical stress that could cause failure or performance degradation.
The strength member works in conjunction with the cable's overall construction to distribute loads evenly throughout the cable structure. This design approach prevents stress concentration that could lead to premature failure and ensures that the cable can handle the dynamic loads associated with acceleration and deceleration in vertical reeling applications.
The maximum tensile load rating of 20 N/mm² provides adequate capacity for most marine vertical reeling applications while maintaining the flexibility necessary for reeling operations. This specification ensures that the cable can support its own weight plus reasonable additional loads without exceeding its design limits.
Core Twisting and Internal Fatigue Prevention
One of the most common failure modes in reeling cables involves core twisting and internal fatigue that occurs over time due to repetitive mechanical stresses. Traditional cables without anti-twisting features are prone to internal conductor displacement, which can lead to electrical failures and premature cable replacement.
The ÜNFLEX TROMMEL PUR – HF incorporates anti-twisting textile braiding and a short lay-up design that maintains internal stability under torsional loads and frequent directional changes. The anti-twisting element prevents the accumulation of twist that would otherwise cause conductors to migrate within the cable structure, maintaining proper conductor geometry throughout the cable's service life.
The short lay-up design refers to the tight, uniform arrangement of conductors within the cable core, which provides mechanical stability while maintaining flexibility. This design approach ensures that individual conductors maintain their relative positions even under the complex mechanical stresses encountered in reeling applications.
The combination of these design features ensures that the cable maintains its electrical performance characteristics throughout its service life, even under the demanding conditions of marine reeling applications. This reliability is essential for applications where cable failure could result in significant operational disruption or safety hazards.
High-Speed Dynamic Applications
Modern marine equipment increasingly demands cables that can perform reliably in high-speed dynamic applications where rapid cable deployment and retrieval are essential for operational efficiency. These applications present challenges related to mechanical stress, heat generation, and maintaining electrical integrity at high operating speeds.
The ÜNFLEX TROMMEL PUR – HF is designed to handle reeling speeds up to 200 m/min while maintaining both mechanical and electrical integrity. This capability is achieved through careful attention to conductor design, insulation materials, and overall cable construction. The Class 5 fine-stranded copper conductors provide the flexibility necessary for high-speed applications while maintaining excellent electrical performance.
The polyurethane insulation and jacketing materials are selected for their ability to withstand the mechanical stresses associated with high-speed operations without degrading or generating excessive heat. The material properties ensure that the cable maintains its flexibility and electrical characteristics even under the dynamic conditions of high-speed reeling.
The minimum direction change distance specification of 20xD provides guidance for proper installation of high-speed reeling systems. This specification ensures that the mechanical stresses associated with direction changes remain within acceptable limits, preventing premature failure and ensuring reliable long-term performance.
Fire Safety Standards Compliance
Fire safety is a critical concern in marine applications, where enclosed spaces and limited evacuation options make fire prevention and suppression paramount. Marine installations must comply with strict international safety standards that govern cable materials and their behavior in fire conditions.
The ÜNFLEX TROMMEL PUR – HF meets these requirements through its halogen-free and flame-retardant construction. The cable complies with IEC 60332-1 standards for flame retardance and multiple DIN VDE standards for fire and safety performance. This compliance ensures that the cable is suitable for use in marine environments where fire safety is critical.
The halogen-free characteristic is particularly important because it eliminates the production of toxic and corrosive gases in the event of fire. Traditional cables containing halogenated materials can produce dangerous gases that pose additional hazards to personnel and equipment. The halogen-free construction of the ÜNFLEX TROMMEL PUR – HF eliminates this risk while maintaining excellent electrical and mechanical performance.
The flame-retardant properties ensure that the cable will not contribute to fire propagation, providing additional safety margin in marine installations. This characteristic is essential for compliance with maritime safety regulations and provides peace of mind for vessel operators and offshore facility managers.
Conclusion: A Future-Ready Reeling Cable for Harsh Marine Realities
The ÜNFLEX TROMMEL PUR – HF represents a comprehensive solution to the complex challenges faced by marine electrical installations requiring reliable reeling cable performance. Its robust design addresses the fundamental requirements of torsion resistance, tensile strength, and environmental durability that are essential for successful operation in harsh marine environments.
The cable's sophisticated construction combines advanced materials science with intelligent mechanical design to create a product that exceeds the performance requirements of traditional marine applications. The integration of polyurethane technology, textile strength members, and anti-twisting elements creates a synergistic effect that delivers superior performance across multiple challenging applications.
For engineers and procurement professionals working in marine environments, the ÜNFLEX TROMMEL PUR – HF offers a future-ready solution that addresses both current needs and evolving requirements. Its proven performance in shipboard applications, offshore platforms, and port crane installations demonstrates its versatility and reliability across the full spectrum of marine electrical applications.
The cable's ability to handle high-speed operations, extreme environmental conditions, and demanding mechanical requirements makes it an ideal choice for modern marine operations where performance under stress is non-negotiable. The long-term reliability and reduced maintenance requirements translate to lower total cost of ownership, making it an economically sound choice for budget-conscious procurement decisions.
As marine operations continue to evolve toward greater automation and higher operational speeds, the demands placed on electrical infrastructure will only increase. The ÜNFLEX TROMMEL PUR – HF is engineered to meet these evolving demands while maintaining the safety and reliability standards that are essential for marine operations. Its comprehensive approach to addressing marine electrical challenges makes it an intelligent investment for organizations committed to operational excellence in demanding marine environments.
The combination of technical excellence, proven performance, and forward-looking design makes the ÜNFLEX TROMMEL PUR – HF the ideal choice for marine professionals who understand that cable selection is not merely about meeting minimum specifications, but about ensuring reliable, long-term performance in applications where failure is simply not an option.
