Why Is ÜNFLEX S'PUR the Preferred Energy and Control Cable for Harsh Marine Motion Systems?

Introduction: Meeting the Demands of Harsh and Mobile Environments

Marine and port environments present some of the most challenging conditions for electrical infrastructure. Equipment operating in these settings must withstand not only the corrosive effects of saltwater and extreme weather conditions but also the constant mechanical stress of dynamic motion systems. Whether we examine the towering cranes that orchestrate container movements in busy ports or the sophisticated reeling systems that power mobile offshore equipment, the common denominator is the need for cables that can endure relentless mechanical stress while maintaining electrical integrity.

Traditional cables often fall short in these demanding applications, suffering from premature failure due to torsional fatigue, environmental degradation, or inadequate flexibility under dynamic loading conditions. The consequences of cable failure in marine operations extend far beyond simple replacement costs, potentially leading to equipment downtime, safety hazards, and significant operational disruptions that can affect entire supply chains.

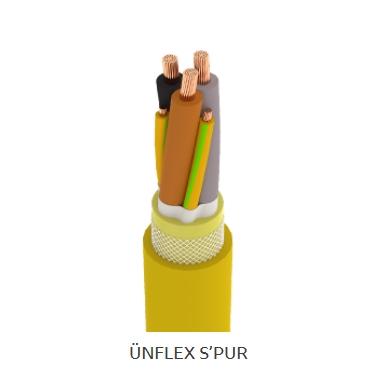

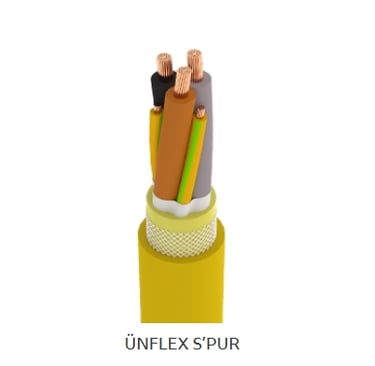

ÜNFLEX S'PUR represents a specialized engineering solution designed specifically to address these challenges. This energy and control cable incorporates advanced materials science and construction techniques to deliver reliable performance under the extreme dynamic stress conditions characteristic of marine motion systems. Understanding why this cable has become the preferred choice for marine engineers and procurement professionals requires examining both its technical specifications and real-world performance characteristics.

The development of ÜNFLEX S'PUR reflects a deep understanding of the unique stresses encountered in marine applications. Unlike stationary installations where cables remain relatively static, marine motion systems subject cables to continuous flexing, twisting, and environmental exposure. This creates a perfect storm of mechanical and environmental challenges that demand a cable engineered from the ground up for these specific conditions.

Application Overview: Where Does ÜNFLEX S'PUR Perform Best?

The versatility of ÜNFLEX S'PUR becomes apparent when examining its primary application domains within marine and port operations. Festoon systems represent one of the most demanding applications, where cables must travel along predetermined paths while supplying continuous power to moving equipment. In crane operations, these systems enable the smooth movement of trolleys and hoists while maintaining uninterrupted electrical supply. The cable experiences constant acceleration, deceleration, and directional changes that would quickly fatigue conventional cables.

Port machinery presents particularly challenging scenarios where festoon systems must operate reliably in environments characterized by salt spray, temperature fluctuations, and mechanical vibration. Container handling cranes, ship-to-shore gantries, and automated guided vehicles all depend on festoon systems that can deliver consistent power delivery while enduring thousands of operational cycles daily. The ÜNFLEX S'PUR design specifically addresses these requirements through its robust construction and specialized materials that resist both mechanical fatigue and environmental degradation.

Drum reeling systems represent another critical application area where ÜNFLEX S'PUR demonstrates superior performance. These systems wind and unwind cables around rotating drums, subjecting them to complex stress patterns including bending, tension, and torsion. In horizontal drum applications, the cable must maintain its integrity while being repeatedly coiled and uncoiled, often under significant tension loads. Vertical reeling systems add gravitational forces to the equation, creating additional challenges for cable design and performance.

Mobile ergonomic handling equipment in harsh marine environments benefits significantly from the specialized construction of ÜNFLEX S'PUR. This equipment category includes everything from portable cranes and winches to specialized material handling devices that must operate reliably in conditions where traditional cables would quickly fail. The combination of mobility, environmental exposure, and operational demands creates a unique set of requirements that ÜNFLEX S'PUR addresses through its comprehensive design approach.

The environments where ÜNFLEX S'PUR excels share common characteristics that highlight the importance of high torsional strength. Marine operations frequently involve equipment that must rotate, pivot, or change orientation while maintaining electrical connections. This creates torsional stress patterns that can quickly compromise cables not specifically designed to handle such loads. The anti-twisting properties of ÜNFLEX S'PUR ensure that these operations can proceed without concern for cable integrity.

Resistance to abrasion becomes particularly critical in marine environments where cables may contact metal surfaces, experience vibration against mounting hardware, or encounter debris common in port operations. The specialized sheathing materials used in ÜNFLEX S'PUR provide superior abrasion resistance compared to standard cable constructions, extending operational life significantly in these challenging conditions.

Oil resistance represents another crucial performance characteristic given the prevalence of hydraulic systems, lubricants, and fuel spillage common in marine operations. Many standard cables experience rapid degradation when exposed to petroleum products, but ÜNFLEX S'PUR maintains its integrity even with prolonged exposure to oils and hydraulic fluids.

Hydrolysis resistance becomes essential in marine environments where cables face constant exposure to moisture, whether from rain, sea spray, or condensation. This chemical degradation process can compromise cable insulation and sheathing materials over time, but the specialized polyurethane construction of ÜNFLEX S'PUR provides excellent resistance to this type of environmental damage.

Electrical and Mechanical Parameters: What Makes ÜNFLEX S'PUR Technically Superior?

The electrical performance characteristics of ÜNFLEX S'PUR reflect careful engineering optimization for marine applications. The rated voltage of 0.6/1 kV provides adequate capacity for most marine equipment while maintaining safety margins appropriate for dynamic applications. This voltage rating means the cable can safely operate with line-to-line voltages up to 1000V, which accommodates the majority of marine equipment including motors, control systems, and lighting circuits.

Understanding the distinction between rated voltage and maximum operating voltage proves crucial for proper application. The maximum operating AC voltage of 0.7/1.2 kV allows for voltage variations common in marine electrical systems while maintaining safe operation. Similarly, the maximum operating DC voltage of 0.9/1.8 kV accommodates DC systems that may experience voltage fluctuations during operation, particularly important for battery-powered equipment and variable frequency drive applications.

The AC test voltage of 3.5 kV demonstrates the cable's dielectric strength and ability to withstand voltage surges common in marine electrical environments. This high test voltage provides confidence that the cable insulation system can handle transient overvoltages that may occur due to switching operations, lightning strikes, or electrical faults in connected equipment.

The conductor system utilizes Class 5 stranded plain annealed copper conforming to IEC 60228 standards. This specification ensures optimal flexibility while maintaining excellent electrical conductivity. Class 5 stranding provides the fine wire construction necessary for applications involving repeated flexing, as the individual wire strands can move relative to each other without creating stress concentrations that could lead to conductor failure.

Plain annealed copper offers the best combination of conductivity and flexibility for dynamic applications. The annealing process removes work hardening from the copper, ensuring that repeated bending and flexing do not cause the conductor to become brittle over time. This treatment proves particularly important in applications where the cable experiences thousands of flex cycles during normal operation.

The XLPE (Cross-Linked Polyethylene) insulation system provides superior thermal and dielectric performance compared to conventional insulation materials. Cross-linking creates chemical bonds between polymer chains, resulting in improved thermal stability, chemical resistance, and mechanical properties. This insulation system maintains its properties across the full operating temperature range while providing excellent dielectric strength.

XLPE insulation offers several advantages specifically relevant to marine applications. Its moisture resistance exceeds that of many alternative insulation materials, important given the high humidity and potential water exposure common in marine environments. The material also demonstrates excellent resistance to ozone and UV radiation, factors that can degrade other insulation types in outdoor marine applications.

The dual polyurethane sheath system represents one of the most critical design elements of ÜNFLEX S'PUR. Polyurethane provides exceptional resistance to oil, hydrolysis, and mechanical wear while maintaining flexibility across a wide temperature range. The inner sheath protects the cable core from environmental contaminants, while the outer sheath provides the primary defense against abrasion and chemical exposure.

Oil resistance becomes particularly important in marine applications where hydraulic fluids, lubricants, and fuel spillage are common. Many cable sheathing materials experience swelling, softening, or chemical degradation when exposed to petroleum products, but polyurethane maintains its integrity even with prolonged exposure to these substances.

Hydrolysis resistance proves equally critical given the constant moisture exposure in marine environments. This chemical process can cause polymer degradation over time, but polyurethane formulations used in ÜNFLEX S'PUR resist this type of chemical attack, ensuring long-term performance reliability.

The flame retardant properties meeting IEC 60332-1 standards provide essential safety characteristics for marine applications. This standard ensures that the cable will not propagate flame when exposed to ignition sources, critical for preventing fire spread in confined spaces common aboard ships and in port facilities.

Textile braiding reinforcement serves a dual purpose in the ÜNFLEX S'PUR construction. The braiding provides mechanical protection for the cable core while also contributing to anti-twisting performance. This reinforcement distributes torsional loads across the cable structure, preventing localized stress concentrations that could lead to premature failure.

The central aramid (Kevlar) element represents a crucial innovation in the cable design. Aramid fibers provide exceptional tensile strength while maintaining flexibility, allowing the cable to support its own weight in vertical applications while resisting the tensile loads imposed by dynamic motion systems. This central strength member also helps maintain cable geometry under load, preventing deformation that could affect electrical performance.

Thermal performance characteristics reflect the demanding conditions encountered in marine applications. The operating temperature range of -40°C to +80°C for fixed installations encompasses the extreme conditions found in maritime environments, from Arctic operations to tropical ports. The mobile application range of -30°C to +80°C acknowledges the additional thermal stresses imposed by dynamic motion.

Conductor temperature ratings provide important guidance for electrical design. The normal operating temperature of +90°C allows for significant current-carrying capacity while maintaining safety margins. The short-circuit temperature rating of +250°C ensures that the cable can withstand fault conditions without catastrophic failure, important for maintaining system safety during electrical faults.

The mechanical strength parameters define the cable's ability to withstand the physical stresses common in marine applications. The maximum tensile load of 25 N/mm² provides guidance for vertical installations and applications where the cable must support significant weight. This specification ensures that the cable structure can handle these loads without compromising electrical performance or mechanical integrity.

Torsional capability represents one of the most distinctive features of ÜNFLEX S'PUR. The maximum torsion rating of ±25°/m allows the cable to accommodate significant twisting motion without damage. This specification proves particularly important in applications where equipment must rotate or change orientation while maintaining electrical connections.

Minimum bending radius specifications provide critical installation and operational guidance. The fixed installation radius of 6xD (six times the cable diameter) ensures that permanent installations do not impose excessive stress on the cable structure. The mobile application radius of 8xD acknowledges the additional stresses imposed by dynamic motion and provides appropriate safety margins for these applications.

Dynamic motion capabilities distinguish ÜNFLEX S'PUR from conventional cables. The travel speed ratings of up to 200 m/min for festoon applications and 120 m/min for reeling systems demonstrate the cable's ability to handle high-speed dynamic operations. These specifications reflect extensive testing and validation in real-world marine applications.

FAQ: What Should Marine and Port Professionals Know About ÜNFLEX S'PUR?

Can ÜNFLEX S'PUR handle frequent torsion and bending in dynamic applications?

The torsional performance of ÜNFLEX S'PUR represents one of its most significant advantages in marine applications. The cable's ability to withstand ±25°/m of torsion results from a comprehensive design approach that addresses the root causes of torsional failure in conventional cables. The anti-twisting textile braiding works in conjunction with the central aramid strength member to distribute torsional loads throughout the cable structure, preventing the stress concentrations that typically lead to premature failure.

The flexible XLPE insulation system maintains its dielectric properties even under repeated torsional stress, ensuring that electrical performance remains consistent throughout the cable's operational life. This combination of mechanical resilience and electrical stability makes ÜNFLEX S'PUR particularly suitable for applications where equipment must rotate, pivot, or change orientation while maintaining power and control connections.

Real-world testing in marine environments has demonstrated that ÜNFLEX S'PUR can exceed one million torsional cycles while maintaining full electrical and mechanical integrity. This performance level far exceeds that of conventional cables and provides marine operators with confidence in long-term reliability.

Is this cable suitable for outdoor or marine environments with high oil and water exposure?

The polyurethane jacket system of ÜNFLEX S'PUR provides exceptional performance in marine environments characterized by oil, water, and chemical exposure. Unlike many conventional sheathing materials that may swell, soften, or degrade when exposed to petroleum products, the specialized polyurethane formulation maintains its properties even with prolonged exposure to hydraulic fluids, lubricants, and fuel spillage common in marine operations.

Hydrolysis resistance proves equally important given the constant moisture exposure in marine environments. The polyurethane sheathing resists chemical degradation from water exposure, preventing the formation of micro-cracks and maintaining barrier properties that protect the internal cable components. This resistance extends to salt water exposure, particularly important for offshore and coastal marine applications.

UV resistance ensures that cables exposed to sunlight maintain their properties over extended periods. The polyurethane formulation includes UV stabilizers that prevent polymer degradation from solar radiation, important for topside marine installations where cables may experience direct sun exposure for years.

Temperature cycling resistance allows the cable to maintain its properties despite the thermal expansion and contraction cycles common in marine environments. The polyurethane sheathing accommodates these dimensional changes without cracking or losing its protective properties.

What certifications and standards does this cable comply with?

ÜNFLEX S'PUR compliance with IEC 60502 construction standards ensures that the cable meets internationally recognized requirements for power cables with extruded insulation. This standard covers critical aspects including conductor design, insulation system performance, and overall cable construction requirements. Compliance provides assurance that the cable will perform reliably in power transmission applications within its specified ratings.

VDE 0250-1 requirements address specific performance criteria relevant to flexible cables in dynamic applications. This German standard provides rigorous testing protocols for cables subjected to repeated flexing, ensuring that ÜNFLEX S'PUR can withstand the mechanical stresses common in marine motion systems. The standard includes specific requirements for conductor design, insulation performance, and sheath integrity under dynamic loading conditions.

IEC 60332-1 flame retardancy certification ensures that the cable will not propagate flame when exposed to ignition sources. This safety characteristic proves particularly important in marine environments where fire prevention and containment are critical safety considerations. The standard includes specific test protocols that simulate real-world fire exposure conditions.

Oil resistance certification per HD/EN/IEC 60811-2-1 provides documented evidence of the cable's ability to withstand petroleum product exposure. This testing includes exposure to various oils and hydraulic fluids under controlled conditions, measuring changes in material properties over time. The certification process ensures that the cable maintains its protective properties even with prolonged chemical exposure.

These certifications provide marine professionals with confidence that ÜNFLEX S'PUR has undergone rigorous testing and meets established industry standards for safety and performance. The combination of international and European standards ensures broad acceptance across different maritime jurisdictions and regulatory frameworks.

What is the typical installation scenario—festoon vs reeling?

Festoon system applications represent one of the most demanding installation scenarios for ÜNFLEX S'PUR. In these systems, cables travel along predetermined paths using trolley systems or cable carriers, supplying power to moving equipment while accommodating horizontal, vertical, and sometimes compound motion patterns. The high-speed capability of up to 200 m/min makes ÜNFLEX S'PUR particularly suitable for modern automated port equipment where rapid movement is essential for operational efficiency.

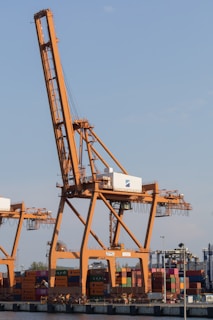

Container handling cranes exemplify typical festoon applications where ÜNFLEX S'PUR excels. These systems must supply power to trolley-mounted equipment that travels the length of crane booms while maintaining reliable electrical connections. The cable experiences constant acceleration and deceleration forces, directional changes, and environmental exposure that would quickly fatigue conventional cables.

Drum reeling systems present different challenges where ÜNFLEX S'PUR demonstrates superior performance. These installations wind and unwind cables around rotating drums, subjecting them to complex stress patterns including bending, tension, and torsion. The travel speed capability of up to 120 m/min for reeling applications acknowledges the different stress patterns and safety considerations associated with drum-based systems.

Horizontal drum reeling systems are common in marine applications where equipment must move along predetermined paths while maintaining electrical connections. Mobile cranes, conveyor systems, and automated guided vehicles often employ these systems to manage cable routing while accommodating equipment movement.

The selection between festoon and reeling systems depends on specific application requirements including travel distance, speed requirements, environmental conditions, and space constraints. ÜNFLEX S'PUR's versatility allows it to perform effectively in both scenarios, providing marine professionals with flexibility in system design and installation approaches.

Can this cable endure extreme cold during winter port operations?

The low-temperature performance of ÜNFLEX S'PUR addresses one of the most challenging aspects of marine operations in northern climates. The operating temperature range extending to -40°C for fixed installations encompasses the extreme conditions encountered in Arctic ports and cold-weather marine operations. This capability results from careful material selection and formulation optimization to maintain flexibility and electrical properties at low temperatures.

Polyurethane sheathing maintains its flexibility and protective properties across the full temperature range, preventing the brittleness that affects many cable materials at low temperatures. This flexibility proves crucial for dynamic applications where cables must continue to flex and move even in extreme cold conditions.

XLPE insulation maintains its dielectric properties and mechanical flexibility throughout the specified temperature range. Unlike some insulation materials that become brittle or lose their electrical properties at low temperatures, XLPE continues to provide reliable insulation performance even in Arctic conditions.

The distinction between fixed installation (-40°C) and mobile application (-30°C) temperature limits reflects the additional stresses imposed by dynamic motion at low temperatures. Mobile applications require slightly higher minimum temperatures to account for the thermal shock effects of rapid motion and the potential for stress concentrations during flexing at extremely low temperatures.

Practical experience in Arctic marine operations has demonstrated that ÜNFLEX S'PUR continues to provide reliable service even in the harsh conditions of ice-breaking operations, Arctic cargo handling, and cold-weather offshore activities. This performance capability allows marine equipment to maintain full operational capability regardless of seasonal temperature variations.

Conclusion: Choosing a Cable Engineered for Reliability and Safety

The selection of appropriate cabling for marine motion systems represents a critical decision that affects both operational reliability and safety performance. ÜNFLEX S'PUR stands out in this demanding application space through its comprehensive approach to addressing the multiple challenges inherent in marine operations. The cable's robust construction reflects a deep understanding of the unique stresses encountered in marine environments, from the corrosive effects of salt water to the mechanical demands of continuous dynamic motion.

The flexibility of ÜNFLEX S'PUR extends beyond its physical characteristics to encompass its versatility across different marine applications. Whether powering festoon systems in automated port facilities or providing reliable connections in drum reeling systems aboard offshore vessels, the cable demonstrates consistent performance across diverse operational scenarios. This versatility simplifies inventory management for marine operators while providing confidence that a single cable type can meet multiple application requirements.

Performance in environments requiring mechanical durability becomes apparent when examining the cable's torsional capabilities, abrasion resistance, and tensile strength. These characteristics work together to ensure that the cable can withstand the harsh realities of marine operations while maintaining electrical integrity. The ability to handle ±25°/m of torsion, combined with superior abrasion resistance, provides the mechanical robustness necessary for long-term reliability in demanding applications.

Thermal stability across the wide temperature range from -40°C to +80°C demonstrates the cable's suitability for global marine operations. This temperature capability encompasses everything from Arctic shipping routes to tropical port operations, ensuring that equipment performance remains consistent regardless of geographical location or seasonal variations. The thermal performance characteristics also provide appropriate safety margins for the higher ambient temperatures common in enclosed marine spaces.

Electrical safety represents another critical consideration addressed through the comprehensive design of ÜNFLEX S'PUR. The voltage ratings, dielectric strength, and flame retardant properties work together to provide multiple layers of protection against electrical hazards. These safety characteristics prove particularly important in marine environments where the combination of moisture, salt air, and confined spaces can create challenging conditions for electrical safety.

The chemical resistance properties of ÜNFLEX S'PUR address the reality of marine operations where exposure to oils, hydraulic fluids, and cleaning chemicals is unavoidable. The cable's ability to maintain its protective properties despite prolonged chemical exposure ensures that operational reliability is not compromised by the working environment.

Environmental resistance encompasses not only chemical exposure but also the effects of UV radiation, moisture, and temperature cycling common in marine applications. The comprehensive approach to environmental protection ensures that ÜNFLEX S'PUR maintains its properties throughout extended service life, providing excellent value for marine operators concerned with total cost of ownership.

The proven performance of ÜNFLEX S'PUR in real-world marine applications provides confidence for engineers and procurement professionals responsible for equipment reliability. The cable's track record in demanding applications ranging from container terminals to offshore vessels demonstrates its ability to deliver consistent performance under the most challenging conditions.

For marine professionals evaluating cable options for motion system applications, ÜNFLEX S'PUR represents a comprehensive solution that addresses the multiple challenges inherent in marine operations. The cable's combination of mechanical durability, electrical performance, and environmental resistance provides the foundation for reliable marine equipment operation while supporting the safety requirements critical to maritime activities.

The investment in high-quality cabling like ÜNFLEX S'PUR pays dividends through reduced maintenance requirements, extended equipment life, and improved operational reliability. In marine operations where equipment downtime can have significant cost implications, the proven performance of ÜNFLEX S'PUR provides both peace of mind and measurable economic benefits.

As marine operations continue to evolve with increasing automation and higher performance requirements, the importance of reliable cable systems becomes even more critical. ÜNFLEX S'PUR's comprehensive design approach and proven performance characteristics position it as the preferred choice for marine professionals who cannot afford to compromise on reliability, safety, or performance in their critical motion system applications.
