Introduction: The Foundation of Reliable Mobile Power Systems
In the demanding world of industrial automation and mobile machinery, the reliability of electrical infrastructure can make the difference between seamless operations and costly downtime. At the heart of these critical systems lies a specialized category of electrical cables known as flexible reeling cables, engineered specifically to withstand the constant motion, stress, and environmental challenges that characterize modern industrial applications.
The NSHTÖU 0.6/1 (1.2) kV cable represents a pinnacle of engineering achievement in this specialized field. This designation refers to a highly flexible, multi-core cable designed for continuous reeling applications where traditional fixed installation cables would fail within days or weeks. The "NSHTÖU" nomenclature indicates its specific construction standard, while the voltage rating of 0.6/1 kV (with a maximum system voltage of 1.2 kV) defines its electrical capabilities for medium-voltage applications.
These cables serve as the vital nervous system for mobile power and control systems across diverse industries. From the towering container cranes that define Singapore's bustling port skyline to the heavy-duty mining equipment operating in Australia's remote territories, NSHTÖU cables enable the seamless transfer of both power and control signals in environments where flexibility, durability, and reliability are not optional features but absolute necessities.
The importance of cable durability in industrial environments cannot be overstated. Unlike residential or commercial electrical installations where cables remain stationary for decades, industrial mobile applications subject cables to millions of flexing cycles, extreme temperatures, chemical exposure, and mechanical stresses that would destroy conventional wiring within months. Understanding why the NSHTÖU cable excels in these challenging conditions requires examining its sophisticated construction and the engineering principles that guide its design.

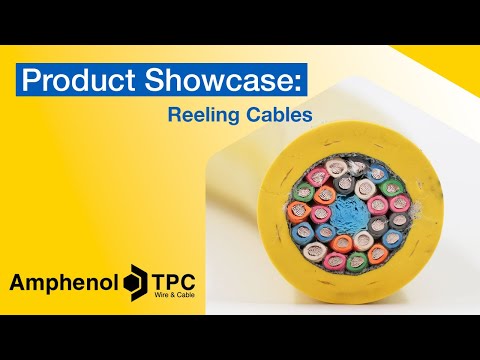

Construction Features That Enhance Durability
The exceptional performance of NSHTÖU cables begins with their conductor design, which adheres to the stringent requirements of IEC 60228 Class 5 and Class 6 specifications. These high-flexibility conductors utilize either tinned or bare copper strands arranged in a specific configuration that maximizes flexibility while maintaining excellent electrical conductivity. The tinning process, where applicable, provides additional protection against corrosion and oxidation, particularly important in marine environments like those found in Singapore's port facilities.
The conductor stranding follows a precise mathematical arrangement where individual copper strands are twisted together in multiple layers, creating a structure that can bend repeatedly without work-hardening or breaking. Class 5 conductors contain numerous fine strands suitable for flexible installations, while Class 6 conductors feature even finer stranding for applications requiring extreme flexibility. This careful attention to conductor design ensures that the cable can withstand millions of bending cycles while maintaining its electrical integrity.
Moving outward from the conductor, the insulation system represents another critical engineering achievement. NSHTÖU cables typically employ either Ethylene Propylene Rubber (EPR) or specialized rubber compounds that provide excellent dielectric properties across a wide temperature range. EPR insulation offers superior resistance to heat aging, ozone exposure, and electrical stress, making it ideal for outdoor applications where UV radiation and temperature cycling are constant challenges. The insulation thickness is carefully calculated to ensure reliable performance at the rated voltage while maintaining flexibility.
The cable's protection system features a sophisticated dual-layer approach that sets it apart from conventional flexible cables. The inner sheath, typically made from a specialized rubber compound, provides the first line of defense against mechanical damage and environmental infiltration. This inner sheath is designed to move independently of the outer layers during flexing, reducing stress concentration and extending cable life.
Above the inner sheath lies an anti-torsion braid, often constructed from high-strength synthetic fibers or steel wires arranged in a specific pattern. This braid serves multiple critical functions: it provides tensile strength to support the cable's own weight during vertical installations, distributes mechanical stress evenly across the cable's cross-section, and most importantly, prevents the cable from developing a corkscrew effect during reeling operations. The anti-torsion design is particularly crucial in applications like tower cranes where the cable must support its own weight while maintaining proper orientation.
The outer sheath materials represent the final barrier against environmental hazards, with two primary options available depending on application requirements. Chloroprene rubber (commonly known by the trade name Neoprene) offers excellent resistance to oils, chemicals, and weather exposure, making it suitable for general industrial applications. Polyurethane (PUR) sheaths provide superior abrasion resistance and maintain flexibility at lower temperatures, making them ideal for applications involving frequent dragging across rough surfaces or operation in cold climates.
The anti-corkscrew design benefits extend far beyond preventing cable twisting. This feature ensures that control signals remain properly oriented throughout the cable's length, preventing signal degradation that could lead to equipment malfunction. In container handling operations at Singapore's port, where precise control of crane movements is essential for safety and efficiency, this design feature proves invaluable for maintaining operational reliability.
Electrical and Mechanical Performance Specifications
The electrical performance characteristics of NSHTÖU cables reflect their sophisticated engineering and specialized application requirements. The voltage rating of 0.6/1 kV AC represents the cable's ability to safely operate at 600 volts between conductor and ground, and 1000 volts between conductors under normal operating conditions. Additionally, these cables can handle DC applications up to 1.8 kV, making them suitable for specialized industrial equipment that operates on high-voltage DC power systems.
Temperature performance represents one of the most impressive aspects of NSHTÖU cable design. The operational temperature range extends from -40°C to +90°C, encompassing virtually every climate condition encountered in industrial applications worldwide. This wide temperature range is achieved through careful selection of insulation and sheath materials that maintain their mechanical and electrical properties across these extremes. During short-circuit conditions, the cable can withstand conductor temperatures up to 250°C for brief periods, providing an important safety margin during fault conditions.
The mechanical endurance characteristics of these cables are equally impressive and directly relate to their intended applications. High tensile strength, often exceeding 500 kg for typical multi-core configurations, allows the cables to support their own weight in vertical installations while maintaining electrical integrity. The excellent bending radius characteristics, typically 7.5 to 10 times the cable diameter for dynamic applications, enable tight routing around equipment while ensuring long service life.
Reeling speed capabilities of 120 meters per minute or higher make these cables suitable for high-speed crane operations and other applications where rapid cable deployment and retraction are required. This specification is particularly relevant in container port operations where crane cycle times directly impact terminal throughput and efficiency. The ability to maintain these speeds repeatedly without degradation demonstrates the sophisticated engineering incorporated into the cable's construction.
Torsional resistance up to ±50° per meter allows the cable to accommodate the twisting forces inherent in many mobile applications without developing permanent deformation or electrical problems. This specification is crucial for applications like rotating crane booms or equipment that must operate while suspended from a cable that may experience rotational forces.
Compliance with rigorous test standards ensures reliable performance in real-world applications. The 2500V test voltage, applied during manufacturing quality control, verifies the insulation system's ability to withstand electrical stress well above normal operating levels. Adherence to VDE (Association for Electrical, Electronic & Information Technologies) and IEC (International Electrotechnical Commission) standards provides assurance that the cable meets internationally recognized safety and performance criteria.
Resistance Properties and Environmental Suitability
The comprehensive resistance properties of NSHTÖU cables make them exceptionally well-suited for the harsh environmental conditions typical of industrial applications. Flame retardancy, certified to IEC 60332-1-2 standards, ensures that the cable will not propagate flames in the event of a fire, providing crucial safety protection in industrial facilities where fire hazards may be present. This characteristic is particularly important in confined spaces like ship holds or underground mining operations where fire spread must be minimized.
Chemical resistance encompasses a broad spectrum of industrial substances commonly encountered in various applications. Oil resistance protects the cable in applications involving hydraulic fluids, lubricating oils, and fuel oils commonly found in mobile equipment. Ozone resistance ensures long-term performance in outdoor applications where atmospheric ozone, particularly concentrated in industrial areas, can cause rubber degradation in non-resistant materials.
UV resistance provides protection against the deteriorating effects of solar radiation, crucial for outdoor installations in locations like Singapore where intense tropical sunlight can rapidly degrade unprotected materials. Acid resistance protects against industrial chemical exposure, while general chemical resistance provides protection against a wide range of solvents, cleaning agents, and industrial chemicals that may be encountered during normal operations.
The cable's suitability for wet, dry, and hazardous locations reflects its comprehensive environmental protection. Wet location suitability means the cable can operate safely when exposed to moisture, rain, or even temporary submersion without compromising electrical safety or performance. This capability is essential for port applications where equipment may be exposed to sea spray or rain during operations.
Hazardous location adaptability extends the cable's utility to environments where explosive gases or dust may be present. While the cable itself does not provide explosion-proof protection, its robust construction and reliable performance make it suitable for use with properly rated equipment in classified areas. This capability is particularly valuable in petrochemical facilities, grain handling operations, and underground mining where explosive atmospheres may exist.
Long service life in harsh outdoor environments represents perhaps the most important practical benefit of these comprehensive resistance properties. The combination of UV, ozone, chemical, and mechanical resistance allows NSHTÖU cables to provide reliable service for many years in applications where conventional cables would require frequent replacement, reducing both maintenance costs and operational disruptions.
Real-World Applications and Performance Examples

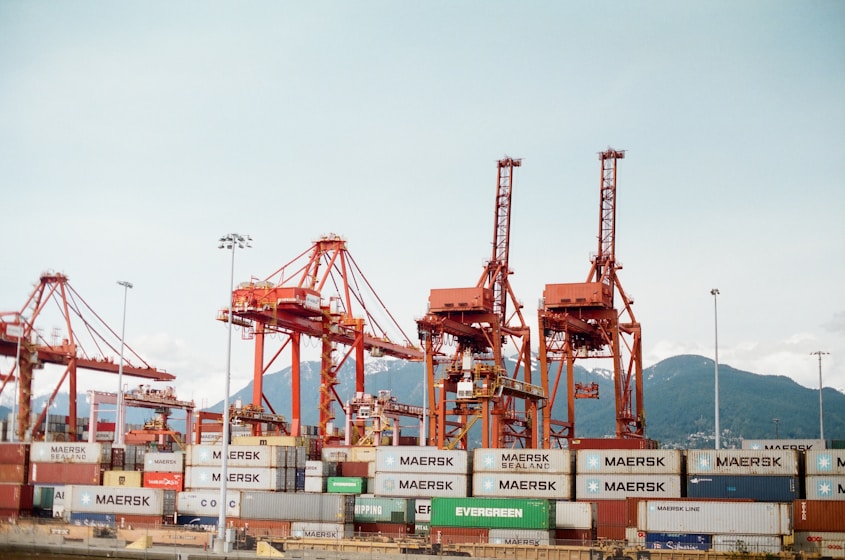

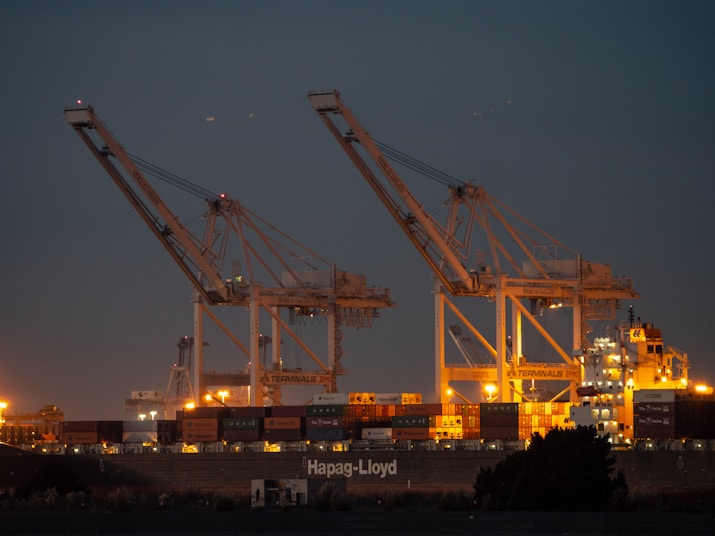

The practical applications of NSHTÖU cables span numerous industries where mobile power and control systems are essential for operations. Port cranes and gantry cranes represent perhaps the most visible and demanding applications for these specialized cables. In Singapore's port facilities, these cables enable the precise control and power delivery required for container handling operations that operate around the clock in challenging maritime environments.
Container handling systems place unique demands on electrical infrastructure, requiring cables that can support their own weight over spans of 50 meters or more while maintaining precise control signal integrity. The anti-torsion design prevents the cable from twisting during crane operations, ensuring that control signals for precise positioning remain stable throughout the handling cycle. The chemical resistance properties protect against salt spray and cleaning chemicals used in port maintenance operations.
Mining equipment applications present a different set of challenges, including exposure to rock dust, mineral-laden water, and extreme mechanical abuse. Underground mining operations add the complexity of explosive atmospheres where equipment reliability is not just an economic concern but a safety imperative. NSHTÖU cables provide the durability needed to withstand the constant vibration, impact, and flexing associated with mobile mining equipment while maintaining the electrical integrity required for safe operation.
Construction sites represent another demanding application environment where equipment mobility and harsh conditions combine to create challenging operating conditions. Mobile cranes, concrete pumps, and other construction equipment rely on flexible cables that can withstand dragging across rough surfaces, exposure to construction materials, and the frequent repositioning required for efficient job site operations.
Shipyard applications combine many of the challenges found in other industries, including exposure to marine environments, heavy mechanical loads, and the need for reliable operation in confined spaces. The flame retardant properties become particularly important in shipyard applications where fire safety is paramount, while the chemical resistance protects against the various oils, solvents, and cleaning agents used in ship construction and repair.
Reeling systems and movable machinery across all industries benefit from the specialized design features that make NSHTÖU cables ideal for dynamic applications. The high-speed reeling capability enables rapid equipment positioning, while the excellent bending characteristics allow for compact reel designs that minimize space requirements. The anti-corkscrew design ensures that cables maintain proper orientation regardless of reeling speed or direction changes.
Selection Considerations for Engineers and Buyers
Proper cable selection requires careful consideration of multiple factors that affect both initial performance and long-term reliability. Matching bending radius requirements with application needs represents a fundamental design consideration that directly impacts cable life. Dynamic applications require larger bending radii than static installations, and failure to provide adequate bending radius can result in premature cable failure regardless of other design factors.
Tensile stress evaluation must account for not only the cable's own weight but also any additional loads imposed by the installation. Vertical installations place the greatest tensile stress on cables, while horizontal reeling applications primarily stress the cable through bending and flexing. Understanding the complete mechanical environment allows engineers to select cables with appropriate tensile strength margins.
The choice between PUR and rubber sheath materials depends on specific environmental conditions and mechanical requirements. PUR sheaths excel in applications involving abrasion resistance and low-temperature flexibility, making them ideal for outdoor applications in cold climates or situations where the cable must be dragged across rough surfaces. Rubber sheaths provide superior chemical resistance and are often more cost-effective for general industrial applications.
Torsional stress and speed requirements in reeling setups require careful evaluation to ensure proper cable selection. High-speed applications or those involving significant rotational forces may require specialized anti-torsion designs or upgraded mechanical protection. The interaction between reeling speed, cable weight, and installation geometry must be considered to ensure reliable long-term performance.
Environmental factors including temperature extremes, chemical exposure, and UV radiation levels must be evaluated against cable specifications to ensure adequate protection margins. Applications in tropical climates like Singapore require particular attention to UV resistance and high-temperature performance, while cold climate applications focus on low-temperature flexibility and mechanical properties.
Conclusion: Excellence in Dynamic Industrial Applications
The NSHTÖU 0.6/1 (1.2) kV cable represents a sophisticated engineering solution specifically designed to meet the demanding requirements of high-demand mobile applications across diverse industrial sectors. Its combination of advanced conductor design, robust insulation systems, comprehensive environmental protection, and specialized mechanical features creates a product uniquely suited for applications where conventional cables would fail.
The cable's advantages in dynamic, heavy-duty applications stem from the careful integration of multiple design elements, each optimized to contribute to overall system reliability. The high-flexibility conductors ensure electrical integrity through millions of bending cycles, while the dual-layer protection system provides mechanical durability in harsh environments. The anti-torsion design prevents operational problems that could lead to equipment malfunction or safety hazards.
In the context of modern industrial operations, particularly in facilities like Singapore's world-class port infrastructure, the reliability and longevity provided by NSHTÖU cables translate directly into operational efficiency and cost savings. The ability to maintain consistent performance in challenging environmental conditions, combined with extended service life compared to conventional alternatives, makes these cables an essential component in the infrastructure that supports global commerce and industrial production.
The safety aspects of NSHTÖU cable design, including flame retardancy and reliable operation in hazardous environments, provide peace of mind for facility operators and maintenance personnel. The comprehensive resistance properties ensure that the cables continue to perform reliably even when exposed to the chemical, mechanical, and environmental stresses that characterize modern industrial operations.
As industrial automation continues to advance and the demands on mobile power systems increase, the specialized engineering incorporated into NSHTÖU cables positions them as an essential enabling technology. Their proven performance in port operations, mining equipment, construction sites, and other demanding applications demonstrates the value of investing in properly engineered cable solutions for critical industrial infrastructure. The combination of immediate operational benefits and long-term reliability makes NSHTÖU cables an intelligent choice for engineers and facility managers seeking to optimize both performance and cost-effectiveness in their mobile power systems.
