Why H07VVH6-F and H05VVH6-F Flat Cables Are Essential for Maritime Festoon and Hoisting Applications

Introduction

In the demanding world of maritime operations, where massive container cranes tower over bustling ports and sophisticated lifting systems handle thousands of tons of cargo daily, the reliability of electrical infrastructure becomes paramount. Among the critical components that enable these operations are specialized flat cables designed specifically for dynamic applications where traditional round cables would fail under the constant stress of movement and suspension.

H07VVH6-F and H05VVH6-F flat cables represent a specialized category of electrical conductors engineered specifically for festoon systems, hoisting applications, and vertical suspension installations. These cables serve as the electrical lifelines for overhead cranes in shipyards, automated handling equipment in ports, and elevator systems in maritime loading facilities. Understanding their unique design characteristics and proper application is essential for procurement specialists, marine engineers, and facility managers who must ensure reliable power transmission and control in these critical systems.

The significance of selecting appropriate cables for control and power transmission in dynamic maritime systems cannot be overstated. Unlike static installations where cables remain fixed in position, festoon and hoisting applications subject cables to continuous mechanical stress through repeated bending, stretching, and suspension forces. The flat geometry of H07VVH6-F and H05VVH6-F cables addresses these challenges through their specialized construction, which prevents torsional stress while maintaining excellent electrical performance under dynamic conditions.

These cables are specifically designed to handle the unique demands of maritime environments, where exposure to salt air, temperature fluctuations, oil contamination, and mechanical stress would quickly degrade standard electrical cables. Their engineering reflects decades of experience in understanding how cables behave under the specific conditions found in ports, shipyards, and offshore installations.

Application Scenarios: Where Maritime Operations Depend on H07VVH6-F and H05VVH6-F Cables

To understand why these flat cables are indispensable in maritime applications, we must examine the specific scenarios where their unique properties provide critical advantages over conventional round cables. The maritime industry presents some of the most challenging environments for electrical infrastructure, combining mechanical stress with environmental exposure that would quickly compromise lesser cables.

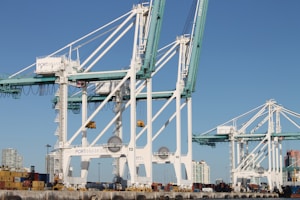

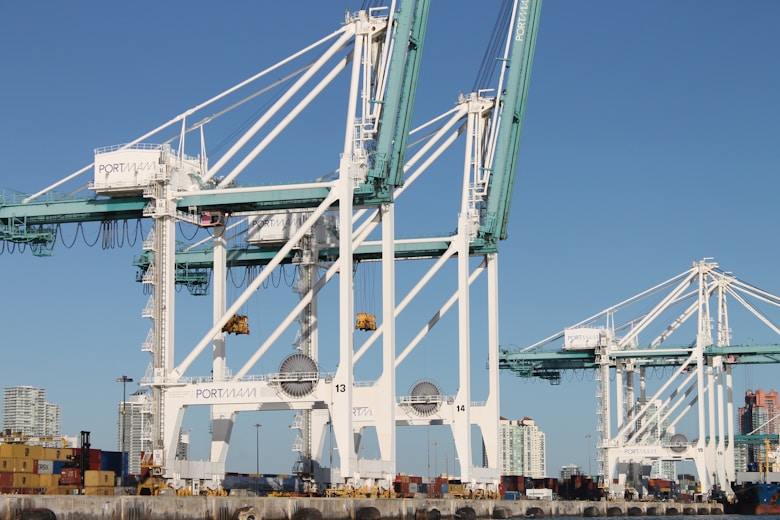

Festoon Systems on Overhead Cranes in Ports and Shipyards

The most prominent application for these flat cables is in the festoon systems that power massive overhead cranes in container terminals and shipbuilding facilities. These cranes, which can span hundreds of meters and lift containers weighing up to 65 tons, require continuous electrical power and control signals as they traverse their rails. The festoon system allows the crane to maintain electrical connection while moving freely along its track, but this creates unique challenges for cable design.

In these applications, the flat geometry of H07VVH6-F and H05VVH6-F cables provides several critical advantages. The flat profile creates a more compact hanging loop system compared to round cables, reducing wind resistance and mechanical stress on the support structure. More importantly, the flat design prevents the cables from twisting during crane movement, which would otherwise create torsional stress that could lead to conductor breakage and insulation failure over time.

These festoon systems must operate reliably in harsh maritime conditions, including exposure to salt spray, temperature variations from sub-zero conditions to extreme heat from welding operations, and potential contamination from hydraulic fluids and cutting oils. The specialized PVC compounds used in these cables' construction provide the necessary resistance to these environmental challenges while maintaining electrical integrity.

Lifts, Elevators, and Vertical Conveyor Systems in Maritime Loading Facilities

Modern port facilities increasingly rely on automated vertical transport systems to move cargo between different levels of storage and loading areas. These systems present unique challenges for electrical cables, as they must support their own weight while suspended vertically and withstand the constant acceleration and deceleration forces of the moving platform.

H07VVH6-F and H05VVH6-F cables excel in these vertical applications due to their ability to handle suspended lengths up to 35 meters without exceeding their mechanical stress limits. The flat geometry distributes the suspension load more evenly across the cable structure compared to round cables, reducing stress concentration points that could lead to premature failure. This characteristic is particularly important in maritime applications where safety regulations require extremely high reliability standards for lifting equipment.

The cables' construction with Class 5 fine-stranded copper conductors provides the flexibility necessary to handle the constant bending and stretching that occurs as elevator platforms move up and down. This flexibility, combined with the cable's ability to operate at speeds up to 120 meters per minute, makes them ideal for high-throughput cargo handling systems where rapid vertical movement is essential for operational efficiency.

Control and Signal Transmission in Automated Handling Equipment

Modern ports increasingly rely on automated systems for container handling, cargo sorting, and vessel loading operations. These systems require precise control signals and power transmission to numerous sensors, actuators, and control devices distributed throughout the facility. The reliability of these control systems directly impacts operational efficiency and safety, making cable selection critical.

H07VVH6-F and H05VVH6-F cables provide excellent signal integrity for control applications due to their construction quality and shielding from electromagnetic interference. The flat geometry helps minimize crosstalk between adjacent conductors while maintaining consistent impedance characteristics essential for reliable signal transmission. In maritime environments where radio frequency interference from ship communications and radar systems is common, these characteristics become even more important.

The cables' oil resistance makes them particularly suitable for use in areas where hydraulic systems are prevalent, such as around container handling equipment and ship-to-shore cranes. Accidental exposure to hydraulic fluid, which is common in these environments, will not compromise the cable's electrical or mechanical properties, ensuring continued reliable operation.

Understanding the Mechanical Limits: Vertical Suspension and Speed Capabilities

The specification that these cables can handle vertical suspensions up to 35 meters represents a carefully calculated engineering limit based on the tensile strength of the conductors and the overall cable construction. This capability is crucial in maritime applications where crane booms, elevator shafts, and vertical conveyor systems often require significant cable lengths to reach full operational height.

The maximum operating speed of 1.6 meters per second (120 meters per minute) reflects the balance between mechanical durability and operational efficiency. This speed capability makes the cables suitable for most maritime handling equipment while ensuring that the mechanical stress from acceleration and deceleration forces remains within acceptable limits for long-term reliability.

Electrical and Mechanical Characteristics: The Engineering Behind Maritime Reliability

Understanding the technical specifications of H07VVH6-F and H05VVH6-F cables requires examining how each design element contributes to their exceptional performance in maritime applications. These cables represent a sophisticated engineering solution where every component has been optimized for the specific challenges of dynamic marine environments.

Conductor Design: Class 5 Fine-Stranded Plain Annealed Copper

The heart of any electrical cable is its conductor, and these flat cables utilize Class 5 fine-stranded plain annealed copper conductors conforming to IEC 60228 standards. This specification represents one of the most flexible conductor classes available, achieved through the use of very fine individual copper strands that can bend repeatedly without work-hardening and eventual breakage.

The annealing process, which involves heating the copper to remove internal stresses and increase its ductility, is particularly important for maritime applications where cables experience thousands of bending cycles throughout their service life. Plain copper, without additional plating or coating, provides the lowest electrical resistance while maintaining excellent corrosion resistance in most maritime environments.

The fine stranding of Class 5 conductors creates a conductor that behaves almost like a liquid under bending stress, distributing mechanical forces across hundreds of individual strands rather than concentrating stress in a few larger wires. This characteristic is essential for festoon applications where the cable must maintain electrical continuity while undergoing constant flexing as cranes and elevators move through their operating cycles.

Insulation System: TI2-Grade Flexible PVC for Electrical Protection

The insulation surrounding each conductor serves multiple critical functions in maritime applications. The TI2-grade flexible PVC used in these cables provides excellent dielectric properties to prevent electrical breakdown while maintaining flexibility under mechanical stress. This grade of PVC is specifically formulated to resist the oils and chemicals commonly found in maritime environments while providing flame retardant properties essential for safety in confined spaces aboard ships and in port facilities.

The flexibility of TI2-grade PVC is particularly important in dynamic applications where the insulation must stretch and compress with conductor movement without cracking or losing its dielectric properties. Standard rigid PVC would quickly fail under the constant flexing experienced in festoon systems, but the flexible formulation maintains its integrity through millions of bending cycles.

The flame retardant properties of TI2-grade PVC provide critical safety benefits in maritime applications where fire prevention is paramount. The material is formulated to resist ignition and self-extinguish if exposed to flame, helping to prevent fire propagation along cable runs in the event of an electrical fault or external fire source.

Core Identification: Clarity in Complex Installations

The core identification system used in these cables reflects the practical requirements of maritime electrical installations, where technicians must quickly and accurately identify individual conductors in challenging working conditions. For cables with five cores or fewer, the standard color coding system specified in DIN VDE 0293-308 provides immediate visual identification using internationally recognized color combinations.

For six-core configurations, the system switches to white conductors with black numbering, which provides superior visibility in the often dimly lit environments of ship holds and crane operator cabins. This numbering system eliminates the potential confusion that could arise from trying to distinguish between similar colors under poor lighting conditions or when wearing safety equipment that might affect color perception.

The reliability of core identification becomes critical in maritime applications where incorrect connections could result in equipment damage, operational delays, or safety hazards. The clear, durable marking system used in these cables helps ensure that maintenance and installation work can be performed accurately even under challenging conditions.

Outer Sheath: TM2-Grade PVC for Environmental Protection

The outer sheath of H07VVH6-F and H05VVH6-F cables serves as the primary defense against the harsh maritime environment. TM2-grade PVC provides excellent resistance to oils, chemicals, and mechanical abrasion while maintaining flexibility under temperature extremes. This material formulation is specifically designed for applications where exposure to hydraulic fluids, lubricants, and cleaning solvents is inevitable.

The oil resistance specification, meeting EN 60811-2-1 standards, ensures that accidental contact with hydraulic fluid from crane systems or lubricants from mechanical equipment will not cause the sheath material to swell, crack, or lose its protective properties. This characteristic is essential in maritime environments where such exposures are routine rather than exceptional.

The mechanical protection provided by the TM2-grade sheath extends beyond chemical resistance to include protection against physical damage from contact with metal structures, chains, and other equipment commonly found in maritime applications. The material's toughness helps prevent cuts and abrasions that could compromise the cable's electrical integrity or allow moisture ingress.

Standards Compliance: Meeting International Maritime Requirements

The comprehensive standards compliance of these cables reflects their suitability for use in international maritime operations where equipment must meet multiple regulatory requirements. The construction standards TS/DIN EN 50214, HD 359 S2, and IEC 227-6 ensure that the cables meet European and international requirements for flexible cables in industrial applications.

Flame retardancy compliance with IEC 60332-1 provides assurance that the cables will not contribute to fire propagation in the event of an electrical fault or external fire source. This characteristic is mandated by maritime safety regulations for cables used aboard ships and in port facilities where fire prevention is critical for personnel safety and asset protection.

The oil resistance certification to EN 60811-2-1 standards provides quantitative assurance of the cable's ability to withstand exposure to the petroleum-based fluids commonly found in maritime operations. This testing involves extended exposure to specific oil types under controlled temperature conditions to verify that the cable materials maintain their properties after contamination.

Voltage Ratings: Matching Electrical Requirements to Applications

The dual voltage ratings of H07VVH6-F (450/750 V) and H05VVH6-F (300/500 V) provide flexibility in matching cable specifications to specific application requirements. The higher voltage rating of H07VVH6-F makes it suitable for main power distribution systems in large cranes and industrial equipment, while H05VVH6-F is ideal for control circuits and lower power applications.

The test voltage specifications of 2500 V for H07VVH6-F and 2000 V for H05VVH6-F provide substantial safety margins above the rated voltages, ensuring reliable operation even under temporary overvoltage conditions that might occur during electrical system transients. These test voltages represent the minimum voltage that the cable insulation must withstand without breakdown during routine testing.

Current Capacity: Thermal Management in Maritime Environments

The current carrying capacity of these cables, determined according to DIN VDE 0298-4 standards, takes into account the specific installation conditions commonly found in maritime applications. The calculation methods specified in this standard consider factors such as ambient temperature, installation method, grouping with other cables, and thermal resistance of the surrounding environment.

In maritime applications where cables may be installed in cable trays exposed to direct sunlight, enclosed in conduits with limited ventilation, or bundled with other power cables, proper current capacity calculation becomes critical for both safety and performance. The DIN VDE 0298-4 methodology ensures that cables can carry their rated current without exceeding safe operating temperatures under these challenging conditions.

Bending Radius: Preventing Mechanical Failure Through Proper Installation

The specified bending radius requirements represent critical parameters for ensuring long-term cable reliability in dynamic applications. The free bending radius of 5 times the cable diameter (5×D) applies to installations where the cable bends under its own weight without external constraint, while the minimum radius of 10×D for pulley and festoon applications accounts for the additional mechanical stress imposed by guided movement.

Understanding these bending radius requirements is essential for proper system design. Attempting to bend the cable to smaller radii will create stress concentrations in the conductors and insulation that will lead to premature failure. In maritime applications where cable replacement often requires significant system downtime and may involve working at dangerous heights, adhering to proper bending radius specifications is essential for operational reliability.

The flat geometry of these cables actually provides advantages in meeting bending radius requirements compared to round cables of equivalent cross-sectional area. The flat profile distributes bending stress more evenly across the cable structure, reducing the tendency for individual conductors to migrate within the cable during repeated bending cycles.

Temperature Range: Operating Reliability in Maritime Climate Extremes

The temperature specifications for these cables reflect the challenging thermal environments encountered in maritime operations. The fixed installation range of -40°C to +60°C covers the extreme conditions that might be encountered in cargo holds, engine rooms, and outdoor installations in arctic or tropical climates.

The mobile application range of -25°C to +60°C recognizes that cables in dynamic applications generate internal heat through conductor resistance and mechanical flexing, requiring a more conservative low-temperature limit to ensure that the insulation and sheath materials maintain their flexibility and mechanical properties.

These temperature specifications are particularly important in maritime applications where equipment must operate reliably regardless of geographic location or seasonal conditions. A container crane that functions properly in the heat of a Middle Eastern port must also operate reliably when the same ship calls at a northern European port in winter.

Tensile Load and Suspended Height: Engineering for Vertical Applications

The maximum tensile load specification of 15 N/mm² represents the mechanical stress limit that the cable can withstand without permanent deformation or failure. This specification is particularly important for vertical applications where the cable must support its own weight plus any additional loads from connector hardware or cable management systems.

The maximum suspended height of 35 meters represents a carefully calculated limit based on the cable's weight, tensile strength, and safety factors required for maritime applications. This specification ensures that even under worst-case loading conditions, including dynamic forces from acceleration and deceleration, the cable will not exceed its mechanical limits.

In practical terms, this suspended height capability makes these cables suitable for most maritime crane applications, including ship-to-shore cranes, mobile harbor cranes, and shipyard gantry cranes. The ability to handle these suspension lengths without intermediate support reduces system complexity and maintenance requirements while improving operational reliability.

Frequently Asked Questions: Addressing Common Maritime Application Concerns

The practical application of H07VVH6-F and H05VVH6-F cables in maritime environments raises several common questions among engineers, procurement specialists, and maintenance personnel. Understanding these concerns and their technical solutions is essential for successful cable selection and installation.

Can these cables be overlaid in festoon installations to save space?

The question of cable overlaying in festoon systems represents one of the most critical installation considerations for these flat cables. While the space-saving appeal of overlaying multiple cable runs might seem attractive, this practice fundamentally compromises the design advantages that make flat cables superior for dynamic applications.

The flat geometry of these cables is specifically engineered to prevent torsional stress and twisting during movement. When cables are overlaid, the natural tendency of the system is for individual cable runs to shift and rotate relative to each other during crane or elevator movement. This relative motion creates several destructive mechanisms that will significantly reduce cable life.

First, overlaying creates abrasion points where the outer sheaths of adjacent cables rub against each other during movement. Even with the oil-resistant TM2-grade PVC sheath, repeated abrasion will eventually wear through the protective covering, exposing the underlying insulation to environmental contamination and mechanical damage.

Second, the overlaid configuration prevents the natural stress distribution that occurs when flat cables hang freely. Instead of distributing mechanical loads evenly across the flat profile, overlaying creates stress concentration points where cables contact each other. These stress concentrations lead to accelerated fatigue in both the conductors and insulation materials.

Third, overlaying cables can create thermal problems by reducing heat dissipation from the cable surfaces. In maritime applications where ambient temperatures may already be elevated, this thermal effect can push cable operating temperatures beyond their design limits, accelerating insulation degradation and reducing current carrying capacity.

The proper approach for multiple cable runs in festoon systems is to provide separate support systems for each cable run, maintaining the recommended spacing to allow free movement and heat dissipation. While this approach requires more complex support hardware, it ensures maximum cable life and system reliability.

Are these cables suitable for marine environments with oil exposure?

The oil resistance of H07VVH6-F and H05VVH6-F cables represents one of their most important characteristics for maritime applications. The outer sheath material is specifically formulated and tested to resist the effects of petroleum-based fluids commonly encountered in marine environments, including hydraulic oils, lubricating oils, diesel fuel, and various cleaning solvents.

The oil resistance specification compliance with HD/EN/IEC 60811-2-1 involves rigorous testing where cable samples are immersed in specified oil types at elevated temperatures for extended periods. The cables must demonstrate that their mechanical and electrical properties remain within acceptable limits after this exposure. This testing provides quantitative assurance that accidental oil exposure will not compromise cable performance.

In shipyard environments, cables routinely encounter hydraulic fluid from crane systems, cutting oils from metalworking operations, and various lubricants from mechanical equipment. The oil-resistant sheath prevents these substances from penetrating into the cable structure where they could attack the insulation materials or cause conductor corrosion.

However, oil resistance does not mean that cables should be deliberately installed in areas where they will be continuously submerged in oil. The specification covers accidental exposure and cleaning operations, not permanent immersion. For applications where continuous oil exposure is expected, additional protective measures such as conduit systems or specialized cable designs may be necessary.

The oil resistance also extends to resistance against swelling and softening effects that can occur when non-resistant materials are exposed to petroleum products. These effects can compromise the mechanical properties of cable sheaths, leading to increased susceptibility to abrasion and impact damage.

Will the cables maintain flexibility in cold temperatures on offshore platforms?

The low-temperature performance of these cables is critical for offshore and arctic maritime operations where ambient temperatures can drop well below freezing. The specified operating range down to -25°C for mobile applications and -40°C for fixed installations covers the vast majority of maritime operating conditions, including offshore platforms in northern waters.

The low-temperature capability is achieved through careful selection of PVC compounds that maintain their flexibility and mechanical properties at these temperature extremes. Standard PVC becomes brittle at low temperatures, but the flexible grades used in these cables are formulated with plasticizers and additives that prevent this brittleness.

In practical terms, this means that crane operators on offshore platforms in the North Sea can rely on these cables to maintain electrical continuity and mechanical flexibility even during winter storms when temperatures drop to extreme lows. The cables will continue to flex properly through their festoon systems without cracking or losing their electrical properties.

The temperature specifications also account for the thermal cycling that occurs in maritime environments, where equipment may be exposed to extreme cold during night operations and then warm rapidly when exposed to sunlight or heated indoor environments. The cable materials are designed to withstand these thermal cycles without degradation.

For applications in extremely cold environments that exceed the specified temperature limits, such as arctic research vessels or polar supply operations, special cold-weather cable variants may be necessary. These typically use different insulation and sheath materials optimized for extreme cold performance.

How does the flat design benefit vertical installations?

The flat geometry of these cables provides several critical advantages for vertical installations that make them superior to round cables for suspended applications. Understanding these benefits requires examining how mechanical forces act on suspended cables and how cable geometry affects stress distribution.

When a cable is suspended vertically, the primary mechanical load is the tensile force created by the cable's own weight. In a round cable, this tensile load is carried entirely by the conductors, creating stress concentration at the points where conductors are supported within the cable structure. Over time, this concentrated stress can cause conductor breakage, particularly in the fine-stranded conductors used for flexibility.

The flat geometry distributes this tensile load more evenly across the cable structure. Instead of concentrating stress in individual conductors, the flat profile allows the load to be shared across the entire cable cross-section, including the insulation and sheath materials. This load distribution significantly reduces stress on individual conductors, extending cable life in vertical applications.

The flat profile also provides better stability in vertical installations by reducing the tendency for the cable to rotate or twist under load. Round cables suspended vertically often develop a natural twist due to slight imbalances in conductor positioning or installation forces. This twisting motion creates additional mechanical stress and can cause problems with connector interfaces at the top and bottom of the cable run.

In festoon applications where the cable must move horizontally while suspended vertically, the flat geometry provides a more compact and aerodynamically stable profile. This reduces wind loading on the cable and support structure, which is particularly important for outdoor crane installations where wind forces can create significant additional loads.

The flat design also facilitates easier installation and maintenance in vertical applications. The stable, predictable shape makes it easier to guide the cable through support structures and reduces the likelihood of the cable becoming tangled or twisted during installation.

Is it necessary to use pulleys or guides to install these cables on festoon systems?

The use of pulleys and guides in festoon systems represents a critical design consideration that directly impacts cable life and system reliability. While it might seem that allowing cables to hang freely would reduce mechanical stress, properly designed pulley systems actually provide several important benefits for cable longevity.

Pulleys serve to control and limit the bending radius of the cable as it transitions from the vertical hanging section to the horizontal support structure. Without pulleys, cables would be forced to make sharp bends at support points, creating stress concentrations that could lead to premature failure. The specified minimum bending radius of 10 times the cable diameter for pulley applications ensures that these transition points do not exceed the cable's mechanical limits.

Properly designed pulley systems also help distribute mechanical loads more evenly across the cable structure. Rather than having all the cable weight supported at a single point, pulleys allow the load to be distributed across the curved section of the cable, reducing stress concentrations.

The pulley system also provides better control of cable movement during crane or elevator operation. Free-hanging cables can develop dynamic oscillations or pendulum motions that create additional mechanical stress and can interfere with equipment operation. Guided systems maintain better cable position control and reduce these dynamic effects.

However, pulley design and installation must be carefully executed to provide these benefits. Pulleys must be properly sized to maintain the minimum bending radius, constructed from materials that will not damage the cable sheath, and properly lubricated to minimize friction. Sharp edges, undersized pulleys, or excessive friction can actually increase cable stress rather than reducing it.

The choice between free-hanging and pulley-guided systems should be based on the specific application requirements, including cable length, operating speed, environmental conditions, and space constraints. In most maritime festoon applications, properly designed pulley systems provide superior performance and cable life compared to free-hanging installations.

Conclusion: Engineering Excellence for Maritime Reliability

The technical excellence embodied in H07VVH6-F and H05VVH6-F flat cables represents the culmination of decades of engineering experience in understanding the unique challenges of maritime electrical systems. These cables are not merely electrical conductors but sophisticated engineering solutions that address the complex interplay of mechanical, electrical, and environmental factors that characterize modern maritime operations.

The mechanical durability of these cables, achieved through their flat geometry and Class 5 fine-stranded copper conductors, ensures reliable performance under the constant mechanical stress of festoon and hoisting applications. This durability translates directly into reduced maintenance costs, improved system uptime, and enhanced safety for maritime operations where equipment failure can have serious consequences.

The oil and flame resistance properties provide critical safety and reliability benefits in maritime environments where exposure to petroleum products and fire hazards are inherent aspects of the operating environment. These characteristics ensure that cables continue to perform reliably even when exposed to the challenging conditions routinely encountered in ports, shipyards, and aboard vessels.

The wide operating temperature range makes these cables suitable for global maritime operations, from arctic shipping routes to tropical ports, ensuring that equipment performs consistently regardless of climatic conditions. This global applicability is essential for the modern maritime industry where vessels and equipment must operate reliably across all geographic regions.

Perhaps most importantly, the suitability of these cables for dynamic marine systems ensures that they can meet the demanding requirements of modern automated port equipment, sophisticated crane systems, and advanced cargo handling facilities. As the maritime industry continues to evolve toward greater automation and higher efficiency, the reliability of electrical infrastructure becomes increasingly critical.

However, realizing these benefits requires strict adherence to proper installation guidelines and application parameters. The prohibition against overlaying cables in festoon systems, the importance of maintaining proper bending radii, and the need to select the appropriate voltage rating for specific applications are not merely recommendations but essential requirements for safe and reliable operation.

The engineering excellence of H07VVH6-F and H05VVH6-F cables serves as a foundation for the continued advancement of maritime technology, providing the reliable electrical infrastructure necessary to support increasingly sophisticated and automated marine operations. Their proven performance in the demanding maritime environment makes them an indispensable component of modern port and shipyard operations, contributing to the efficiency and safety of global maritime commerce.

For procurement specialists, engineers, and maritime professionals, understanding the technical capabilities and proper application of these specialized cables is essential for making informed decisions that support safe, efficient, and reliable maritime operations. The investment in proper cable selection and installation pays dividends through reduced maintenance costs, improved system reliability, and enhanced operational safety in the challenging maritime environment.
