Introduction: The Invisible Foundation of Maritime Operations

In the demanding world of marine and offshore operations, where equipment faces relentless assault from saltwater, extreme temperatures, mechanical stress, and electromagnetic interference, the cables that carry vital signals often determine the difference between operational success and catastrophic failure. These seemingly simple components serve as the nervous system of complex installations, transmitting critical data that controls everything from navigation systems to drilling operations.

The RigFlex-125 Type P Signal Cable represents a specialized engineering solution designed specifically for these unforgiving environments. Unlike standard industrial cables that might suffice in controlled conditions, this cable system addresses the unique challenges faced by marine vessels, offshore drilling platforms, and floating production facilities where failure is not an option.

This comprehensive analysis targets industry professionals, procurement specialists, and engineers who must make informed decisions about cable selection for critical applications. Understanding the technical specifications, performance characteristics, and compliance requirements of the RigFlex-125 Type P will enable you to specify the right solution for your most demanding projects.

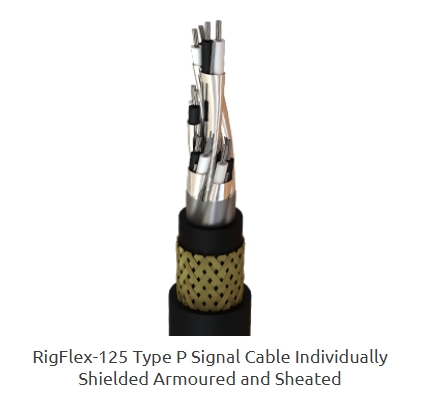

Understanding the Engineering Excellence: Dissecting the RigFlex-125 Type P Construction

To truly appreciate why the RigFlex-125 Type P excels in harsh environments, we must examine each component of its sophisticated construction. Think of this cable as a precisely engineered protective system, where each layer serves a specific purpose in defending the signal-carrying conductors from environmental threats.

The Foundation: Advanced Conductor Technology

The heart of any signal cable lies in its conductor system, and the RigFlex-125 Type P employs soft annealed flexible stranded tinned copper wire that meets the exacting requirements of IEEE 1580 Table 11 and ASTM B 33 standards. This choice represents a careful balance between electrical performance and mechanical durability.

The soft annealing process creates copper conductors with enhanced flexibility, crucial for installations where the cable must navigate tight bends or experience continuous flexing during operation. Picture a cable installation on a floating platform where constant wave motion creates ongoing mechanical stress – rigid conductors would quickly fatigue and fail under these conditions.

More importantly, the tinning process coats each copper strand with a thin layer of tin, providing exceptional corrosion resistance. In marine environments where salt spray and moisture are constant threats, untreated copper conductors would gradually corrode, increasing resistance and ultimately leading to signal degradation or complete failure. The tin coating acts as a sacrificial barrier, protecting the underlying copper for decades of reliable service.

Insulation Excellence: Cross-Linked Polyolefin Technology

Surrounding each conductor is cross-linked polyolefin insulation that complies with IEEE 1580 Type P and UL 1309/CSA C22.2 No.245 Type X110 specifications. This material choice demonstrates sophisticated materials engineering, as cross-linked polyolefin offers superior dielectric properties compared to standard thermoplastic insulations.

The cross-linking process creates molecular bonds between polymer chains, resulting in insulation that maintains its electrical properties across extreme temperature ranges. Consider the thermal cycling experienced by cables in offshore installations – from scorching engine room temperatures exceeding 100°C to frigid arctic conditions below -40°C. Standard insulation materials would become brittle in cold conditions or soften excessively in heat, but cross-linked polyolefin maintains consistent performance throughout these extremes.

The dielectric strength of this insulation ensures reliable signal transmission even under high voltage conditions, while its chemical resistance prevents degradation when exposed to the various petrochemical fluids common in offshore environments.

Individual Shielding: The Key to Signal Integrity

Perhaps the most critical feature distinguishing the RigFlex-125 Type P from standard cables is its individual pair shielding system. Each signal pair is wrapped with aluminum/polyester tape providing 100% coverage, complete with a dedicated drain wire for proper grounding.

To understand why individual shielding matters, imagine a multi-pair cable carrying signals from various sensors and control systems. Without proper shielding, electromagnetic interference from nearby power cables, radio transmissions, or electrical equipment could corrupt these signals, leading to false readings or control system malfunctions. In offshore drilling operations, such interference could result in incorrect pressure readings, navigation errors, or safety system failures.

The aluminum/polyester tape construction provides an optimal balance of shielding effectiveness and mechanical flexibility. Pure aluminum tape offers excellent electromagnetic shielding but can crack under repeated flexing. The polyester backing provides mechanical support and flexibility while the aluminum layer blocks electromagnetic interference. The drain wire ensures that any induced currents in the shield can be safely directed to ground, preventing them from affecting the signal conductors.

Environmental Protection: The CPE Jacket System

The primary environmental barrier protecting the cable's internal components is the thermoset chlorinated polyethylene (CPE) compound jacket, which meets IEEE 1580 and UL 1309/CSA C22.2 No.245 requirements. This material selection represents decades of marine cable development, as CPE offers unparalleled resistance to the specific threats encountered in maritime environments.

Oil resistance is particularly crucial in offshore applications where hydraulic fluids, crude oil, and various petroleum products are omnipresent. Standard PVC or rubber jackets would swell, crack, or dissolve when exposed to these substances, but CPE maintains its integrity and protective properties. The jacket also provides excellent abrasion resistance, protecting against the constant scraping and wear that occurs as cables move against metal structures during platform operations.

Moisture resistance is equally important, as marine environments subject cables to everything from occasional spray to complete submersion. The CPE jacket creates an effective moisture barrier, preventing water ingress that could lead to insulation failure or conductor corrosion. Saltwater presents an even greater challenge due to its high conductivity and corrosive properties, but CPE's chemical resistance prevents salt-induced degradation.

Mechanical Protection: The Armor System

Beyond environmental protection, the RigFlex-125 Type P incorporates basket weave bronze or tinned copper wire armor that complies with IEEE 1580 and UL 1309/CSA C22.2 No.245 standards. This armor system addresses the significant mechanical stresses encountered in marine and offshore installations.

The basket weave construction provides multidirectional mechanical protection while maintaining cable flexibility. Unlike rigid armor systems that might protect against crushing but prevent bending, the interwoven wire structure allows the cable to flex while distributing mechanical loads across the entire armor circumference. This design proves essential for installations where cables must navigate around corners, through cable trays, or along moving structures.

Bronze armor offers excellent corrosion resistance in marine environments, while tinned copper armor provides enhanced conductivity for applications requiring the armor to serve as an equipment grounding conductor. The choice between materials depends on specific installation requirements and local electrical codes.

Final Protection: The Outer Sheath

The outermost layer consists of another thermoset CPE sheath, providing additional environmental protection for the entire cable assembly. This dual-layer approach creates redundant protection – if the outer sheath suffers damage, the inner jacket continues protecting the cable's electrical components.

Performance Characteristics: Engineering for Extreme Conditions

Understanding the construction is only part of the equation; the true measure of the RigFlex-125 Type P lies in its performance under real-world conditions. The cable's specifications reflect careful engineering to meet the extreme demands of marine and offshore environments.

Environmental Resistance: Built for Harsh Realities

The cable's environmental resistance capabilities address the full spectrum of threats encountered in marine applications. Oil resistance prevents degradation when exposed to hydraulic fluids, lubricants, and crude oil – substances that would quickly destroy standard cables. This resistance extends to various petrochemical fluids commonly found in offshore installations, ensuring reliable operation even after accidental spills or routine equipment maintenance.

Abrasion resistance protects against the constant mechanical wear inherent in maritime operations. As vessels roll and platforms flex with wave action, cables experience continuous movement against metal surfaces, cable trays, and other structures. The CPE jacket materials resist this wear, maintaining their protective properties throughout the cable's service life.

Moisture and saltwater resistance represent perhaps the most critical environmental protections. Saltwater's combination of high conductivity and corrosive properties creates a perfect storm for cable failure. The RigFlex-125 Type P's multi-layer protection system prevents moisture ingress while resisting the chemical attack of salt spray and direct seawater exposure.

UV resistance ensures reliable performance even when cables are exposed to intense sunlight during installation or in above-deck applications. Many marine installations include cable runs across open decks or external structures where prolonged UV exposure would degrade standard cable jackets, leading to cracking and eventual failure.

Temperature Performance: Reliable Across Extremes

Temperature ratings provide crucial insight into the cable's operational envelope. The IEEE 1580 rating of 100°C (125°C for single core applications) ensures reliable operation in high-temperature environments such as engine rooms, process equipment areas, and enclosed electrical spaces where heat buildup is common.

The UL 1309 rating of 110°C (125°C for single core) reflects slightly different testing methodologies but confirms the cable's ability to operate safely at elevated temperatures. These ratings represent continuous operating temperatures, not short-term exposure limits, ensuring that the cable maintains its electrical properties and mechanical integrity throughout its service life.

Equally important is the cable's cold performance, tested according to CSA C22.2 standards. Cold bend testing at -40°C ensures that the cable remains flexible and won't crack during installation or operation in arctic conditions. Cold impact testing at -35°C verifies that the cable can withstand mechanical shock even at extremely low temperatures, crucial for installations in northern waters or winter operations.

Electrical Performance: Ensuring Signal Integrity

The cable's 600/1000V voltage rating demonstrates its capability for various signal and low-voltage power applications. This rating indicates that the cable can safely operate with 600V between conductors and ground, or 1000V between conductors, providing flexibility for different installation requirements.

The individually shielded pair construction ensures optimal signal integrity by preventing crosstalk between signal pairs and blocking external electromagnetic interference. In complex offshore installations with numerous power cables, radio transmitters, and electrical equipment, this shielding proves essential for maintaining accurate data transmission.

Flame propagation characteristics meeting IEEE 1202 and IEC 60332-3 standards ensure that the cable won't contribute to fire spread in the event of an incident. These standards require that flames won't propagate along the cable length, helping to contain fires and provide time for emergency response.

Standards Compliance: A Framework for Safety and Reliability

The RigFlex-125 Type P's compliance with multiple industry standards provides assurance of its suitability for critical applications. Each standard addresses specific aspects of cable performance and safety, creating a comprehensive framework for reliable operation.

IEEE 1580: Marine Cable Best Practices

IEEE 1580 represents the definitive standard for marine cables used on fixed or floating facilities. This standard addresses the unique challenges of marine environments, specifying requirements for materials, construction, testing, and performance that standard industrial cable standards don't adequately cover.

The standard's conductor requirements ensure adequate current-carrying capacity and mechanical flexibility for marine applications. Insulation specifications address the need for reliable electrical performance under varying temperature and humidity conditions. Shielding requirements recognize the electromagnetic interference challenges common in marine installations with multiple radio systems, radar equipment, and power systems operating in close proximity.

Jacket and armor requirements in IEEE 1580 specifically address the environmental and mechanical challenges of marine service. The standard recognizes that marine cables must withstand not only normal environmental conditions but also emergency situations such as fire, flooding, or mechanical damage from equipment failure.

UL 1309 and CSA C22.2 No.245: Safety First

UL 1309 and its Canadian equivalent CSA C22.2 No.245 focus on safety aspects of marine cable installations. These standards emphasize fire safety, electrical safety, and mechanical protection requirements that ensure cables won't contribute to hazardous situations.

Fire safety requirements include flame propagation testing, smoke generation limits, and toxic gas emission restrictions. In the confined spaces common on vessels and offshore platforms, these characteristics can mean the difference between a manageable incident and a catastrophic emergency.

Electrical safety requirements ensure that cables maintain their insulation properties and don't create shock or electrocution hazards even when damaged. Mechanical protection requirements verify that cables can withstand the physical stresses of marine installations without creating safety hazards.

IEEE 45: Shipboard Electrical Standards

IEEE 45 provides recommended practices for electrical installations on shipboard, addressing the unique challenges of vessel-based electrical systems. Compliance with this standard ensures compatibility with shipboard electrical systems and installation practices.

The standard addresses issues such as grounding practices, cable routing requirements, and protection coordination that are specific to maritime electrical installations. Cables meeting IEEE 45 requirements integrate seamlessly with shipboard electrical systems without creating compatibility or safety issues.

Supporting Standards: The Complete Picture

Additional standards such as ASTM B 33 for conductor specifications, IEEE 1202 for flame testing, and IEC 60332-3 for international flame propagation requirements complete the compliance picture. Each standard contributes specific expertise to ensure comprehensive cable performance.

ASTM B 33 ensures conductor quality and consistency, critical for reliable electrical performance throughout the cable's service life. IEEE 1202 and IEC 60332-3 provide rigorous flame testing that simulates real-world fire scenarios, ensuring that cables won't contribute to fire spread or generate excessive smoke and toxic gases.

sailing ship
sailing ship

Applications: Where Excellence Matters Most

The RigFlex-125 Type P finds its ideal applications in environments where standard cables simply cannot provide adequate reliability and performance. Understanding these applications helps illustrate why the cable's sophisticated construction and compliance with multiple standards is essential rather than merely desirable.

Shipboard Systems: The Nerve Center of Maritime Operations

Modern vessels rely on complex networks of sensors, control systems, and communication equipment that require reliable signal transmission under challenging conditions. Navigation systems must provide accurate position data even when subjected to electromagnetic interference from radar systems and radio transmitters. Engine monitoring systems need precise sensor readings to ensure safe and efficient operation while the vessel experiences constant vibration and temperature variations.

Fire detection and suppression systems represent life-safety applications where signal integrity is absolutely critical. False alarms due to electromagnetic interference or signal degradation can lead to unnecessary emergency responses, while failure to detect actual fires could result in catastrophic losses. The RigFlex-125 Type P's individual shielding and robust construction ensure reliable operation of these critical systems.

Communication systems aboard vessels must maintain clear signal transmission despite the electromagnetic noise generated by various shipboard equipment. The cable's shielding effectiveness prevents interference from affecting voice communications, data transmission, or emergency communication systems that could be vital during crisis situations.

Offshore Oil Rigs and Platforms: Mission-Critical Infrastructure

Offshore drilling and production platforms represent some of the most demanding environments for electrical and instrumentation cables. These installations combine extreme environmental conditions with critical safety requirements and enormous economic consequences for equipment failure.

Drilling control systems require precise control of drilling parameters based on real-time sensor data. Pressure sensors monitoring wellhead pressure, temperature sensors tracking drilling fluid conditions, and position sensors controlling drilling equipment all depend on accurate signal transmission. Signal corruption or loss could result in equipment damage, environmental incidents, or personnel safety hazards.

Production monitoring systems track the flow of oil and gas through complex processing equipment, ensuring safe and efficient operation while meeting environmental compliance requirements. These systems integrate data from hundreds of sensors and control points, requiring reliable signal transmission throughout the platform's infrastructure.

Safety systems on offshore platforms include fire and gas detection, emergency shutdown systems, and personnel safety monitoring. These systems must operate reliably under all conditions, as equipment failure in offshore environments can quickly escalate to life-threatening emergencies. The RigFlex-125 Type P's compliance with fire safety standards and reliable performance under extreme conditions make it ideal for these critical applications.

Additional Industrial Applications: Expanding the Envelope

Beyond traditional marine and offshore applications, the RigFlex-125 Type P serves other harsh industrial environments where standard cables cannot provide adequate reliability. Chemical processing plants with corrosive atmospheres, high-temperature environments, and strict safety requirements benefit from the cable's environmental resistance and safety compliance.

Mining operations, particularly those in challenging environments, require cables that can withstand mechanical abuse, environmental extremes, and electromagnetic interference from heavy equipment. The cable's armor protection and robust construction make it suitable for these demanding applications.

Power generation facilities, especially those in coastal locations or harsh climates, face many of the same challenges as offshore installations. Salt air, temperature extremes, and high electromagnetic interference levels require cables with the sophisticated protection systems found in the RigFlex-125 Type P.

The Value Proposition: Why RigFlex-125 Type P Represents Smart Engineering

When evaluating cable options for critical applications, the decision extends far beyond initial purchase price. The total cost of ownership includes installation costs, maintenance requirements, replacement frequency, and the consequences of failure. The RigFlex-125 Type P's design provides compelling advantages in each of these areas.

Enhanced Safety: Beyond Compliance

While meeting industry standards represents the minimum acceptable performance level, the RigFlex-125 Type P often exceeds these requirements, providing additional safety margins for critical applications. The cable's fire safety characteristics go beyond preventing flame propagation to minimize smoke generation and toxic gas emissions, crucial factors in the confined spaces common on vessels and offshore platforms.

The robust construction and multiple protection layers provide redundant safety systems that continue protecting personnel and equipment even when individual components experience degradation. This defense-in-depth approach ensures that single-point failures don't cascade into major incidents.

Reliable signal transmission contributes directly to safety by ensuring that monitoring and control systems receive accurate data for decision-making. In emergency situations, the difference between accurate and corrupted sensor readings can determine whether response systems activate appropriately or fail when needed most.

Extended Service Life: Engineering for Longevity

The cable's construction using premium materials and sophisticated protection systems results in service life measured in decades rather than years. The tinned copper conductors resist corrosion throughout the cable's service life, maintaining electrical performance and preventing the gradual degradation common with standard copper conductors in marine environments.

The cross-linked polyolefin insulation maintains its electrical properties and mechanical flexibility across extreme temperature cycles, preventing the cracking and hardening that plague standard insulation materials. The CPE jacket system provides long-term environmental protection that doesn't degrade with UV exposure, chemical contact, or temperature cycling.

Individual shielding systems maintain their effectiveness throughout the cable's service life, ensuring that signal integrity doesn't degrade as the installation ages. This longevity proves particularly valuable in installations where cable replacement requires expensive shutdowns or poses safety risks.

Reliable Performance: Consistency Under Pressure

The sophisticated shielding system ensures consistent signal transmission even in electromagnetically noisy environments. This reliability translates directly to operational efficiency by preventing false alarms, reducing troubleshooting time, and eliminating the productivity losses associated with intermittent signal problems.

Temperature stability means that sensor readings and control signals maintain their accuracy across the full range of operating conditions. This consistency eliminates the need for temperature compensation or frequent calibration that might be required with inferior cables.

Mechanical durability ensures that cables continue performing reliably despite the vibration, flexing, and occasional abuse common in industrial environments. This durability reduces maintenance requirements and eliminates unexpected failures that could disrupt operations.

Economic Benefits: The True Cost of Quality

While premium cables like the RigFlex-125 Type P require higher initial investment, the total cost of ownership typically favors quality construction. Reduced replacement frequency, lower maintenance requirements, and improved reliability combine to provide significant long-term savings.

Installation costs represent a major component of cable system expenses, particularly in challenging environments like offshore platforms where access requires specialized equipment and personnel. The extended service life of premium cables amortizes these installation costs over longer periods, improving the economic equation.

Downtime costs in critical applications often exceed the cost of the equipment itself. Production facilities losing thousands of dollars per hour during unplanned shutdowns benefit enormously from the improved reliability provided by premium cable systems. The cost of a few premium cables pales in comparison to the cost of even a single unplanned shutdown.

Risk mitigation represents another economic benefit that's difficult to quantify but enormously valuable. The robust construction and compliance with multiple standards reduce the likelihood of incidents that could result in regulatory penalties, environmental cleanup costs, or legal liability.

Conclusion: Investing in Operational Excellence

The RigFlex-125 Type P Signal Cable represents more than just another cable option – it embodies a commitment to operational excellence in environments where failure is not acceptable. Its sophisticated construction addresses the full spectrum of challenges encountered in marine and offshore applications, from basic environmental protection to complex electromagnetic interference scenarios.

The cable's compliance with multiple industry standards provides assurance that it will integrate seamlessly with existing systems while meeting current and future regulatory requirements. This compliance represents not just technical adequacy but a commitment to safety and reliability that extends throughout the cable's service life.

For industry professionals responsible for specifying cables for critical applications, the RigFlex-125 Type P offers the peace of mind that comes from knowing your signal transmission systems will perform reliably under the most demanding conditions. The cable's proven performance in harsh environments, combined with its comprehensive compliance with industry standards, makes it the logical choice for applications where reliability matters most.

The investment in premium cable technology pays dividends throughout the system's operational life through improved reliability, reduced maintenance requirements, and enhanced safety. In environments where the cost of failure far exceeds the cost of quality equipment, the RigFlex-125 Type P represents not just good engineering but sound business judgment.

As offshore operations push into increasingly challenging environments and vessels become more complex and automated, the demands on signal transmission systems will only increase. The RigFlex-125 Type P's robust design and sophisticated protection systems position it to meet these evolving challenges, ensuring that your critical systems continue operating reliably for decades to come.

For procurement specialists, engineers, and project managers responsible for specifying cables for marine and offshore applications, we encourage further investigation of how the RigFlex-125 Type P can enhance the reliability and safety of your critical systems. The comprehensive technical specifications, proven performance record, and extensive compliance documentation provide the foundation for confident specification decisions that will serve your operations well into the future.
