Why Are Pendant Cables Essential for Reliable Operation in Marine Hoisting and Suspension Systems?
Explore how pendant cables deliver dependable power and control for marine hoists, cranes, and vertical suspension systems. Understand their technical specifications, load-bearing design, and why they are vital for shipyard, port, and offshore lifting operations.
BLOGS
6/19/202511 min read
Introduction: Understanding Pendant Cables in Marine Operations

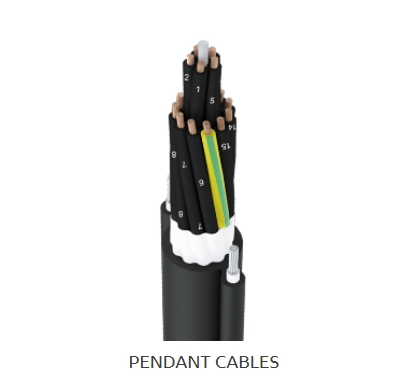

Pendant cables represent a specialized category of electrical cables designed specifically for vertical suspension applications where traditional cable designs would fail under mechanical stress. These cables serve as the lifeline for power transmission and control signals in marine environments, where equipment must operate reliably while suspended at significant heights above decks, water, or cargo areas.
The fundamental principle behind pendant cable design centers on distributing mechanical loads away from the electrical conductors themselves. Unlike standard cables that rely on their outer sheath for minimal mechanical protection, pendant cables incorporate dedicated load-bearing elements that handle the entire weight and dynamic forces encountered in vertical installations. This separation of electrical and mechanical functions ensures that the cable's primary purpose—conducting electricity safely and reliably—remains uncompromised even when subjected to the harsh conditions typical of marine environments.
In marine and port operations, pendant cables serve as the critical link between fixed electrical infrastructure and mobile or suspended equipment. They enable the seamless operation of heavy machinery that must move vertically through substantial distances while maintaining constant electrical connectivity. The marine environment presents unique challenges that make pendant cables not just beneficial but essential for safe and efficient operations.
Application Scenarios in Marine and Port Settings
The maritime industry demands electrical solutions that can withstand not only the mechanical stresses of vertical suspension but also the corrosive effects of salt air, temperature fluctuations, and exposure to various petroleum products and chemicals. Pendant cables excel in these demanding environments across several critical applications.
Shipyard hoists represent one of the most common applications for pendant cables in marine settings. These massive lifting systems must transport heavy components, from engine blocks to entire vessel sections, across vertical distances that can exceed 50 meters. The pendant cable must deliver both the power required to operate the hoist motors and the control signals that ensure precise positioning and safe operation. Traditional cables would experience conductor fatigue and potential failure under such conditions, but pendant cables maintain their integrity through their specialized suspension system.
Container gantry cranes present another crucial application where pendant cables demonstrate their value. These towering structures, often reaching heights of 70 meters or more, require reliable electrical connections for their trolley systems that move containers from ship to shore. The pendant cables must accommodate not only the vertical movement of the trolley but also the dynamic forces created by wind, the movement of suspended containers, and the vibrations inherent in crane operations. The ability to maintain electrical continuity while managing these complex mechanical forces makes pendant cables indispensable for modern port operations.
Offshore lift platforms represent perhaps the most demanding application for pendant cables in marine environments. These platforms must operate in conditions where salt spray, extreme temperatures, and constant motion create an environment hostile to most electrical equipment. Pendant cables used in these applications must maintain their electrical and mechanical integrity while suspended over open water, where failure could result not only in equipment damage but also serious safety hazards for personnel.
The suitability of pendant cables for environments requiring vertical suspension stems from their unique construction that provides high mechanical stability while maintaining electrical performance. The integration of load-bearing steel wire ropes parallel to the electrical conductors creates a system where mechanical forces are handled independently of the electrical components. This design philosophy ensures that the cable can withstand the tensile forces, vibrations, and environmental stresses common in marine applications without compromising its primary electrical function.
However, it's crucial to understand the limitations of pendant cables to avoid misapplication that could lead to premature failure or safety hazards. These cables are specifically not designed for drum reeling installations, where the cable must be wound and unwound repeatedly around a drum. The construction features that make pendant cables excellent for vertical suspension—particularly the integrated steel wire ropes—make them unsuitable for the repeated bending and flexing required in drum reeling applications. Attempting to use pendant cables in such applications can result in core misalignment, conductor fatigue, and eventual cable failure.


Marine Cable Challenges and Solutions: Addressing Real-World Concerns
The marine environment presents unique challenges that require specialized solutions, and pendant cables have been developed to address these challenges effectively. Understanding these challenges and their solutions is crucial for successful implementation of pendant cable systems in marine applications.
The question of whether pendant cables can handle harsh marine conditions touches on fundamental design principles that differentiate these cables from standard electrical cables. The marine environment combines multiple stressors that can quickly degrade standard cables: salt spray that accelerates corrosion, temperature extremes that stress materials, UV radiation that degrades polymers, and exposure to petroleum products and chemicals that can attack cable sheaths and insulation.
Pendant cables address these challenges through their flame-retardant outer sheath that complies with IEC 60332-1 standards. This specification ensures that the cable will not propagate flame if exposed to a fire source, a critical safety feature in marine environments where fire hazards are always present. The oil resistance, verified through testing according to HD/EN/IEC 60811-2-1 standards, provides protection against the various petroleum products commonly found in marine environments, including fuel oil, hydraulic fluids, and lubricants.
The salt mist resistance of pendant cables stems from their specialized material selection and construction techniques. The galvanized steel wire ropes resist corrosion even under continuous exposure to salt spray, while the outer sheath provides a barrier against salt penetration. The XLPE insulation maintains its dielectric properties even when exposed to salt-contaminated moisture, ensuring reliable electrical performance throughout the cable's service life.
Mechanical failure prevention in vertical cable applications represents one of the most critical aspects of pendant cable design. Traditional cables rely on their outer sheath and internal structure to provide limited mechanical support, but this approach fails when cables are suspended vertically over significant distances. The dynamic forces created by wind, equipment movement, and vibration can quickly exceed the mechanical limits of standard cables, leading to conductor fatigue, insulation damage, and eventual failure.
Pendant cables solve this problem through their integrated dual steel support rope system that provides the mechanical strength needed to support suspended lengths up to 80 meters. These steel ropes are designed to handle not only the static weight of the cable but also the dynamic forces encountered during operation. By isolating tensile forces from the electrical conductors, the steel ropes ensure that the conductors remain in their optimal configuration throughout the cable's service life.
The engineering behind this mechanical isolation is sophisticated and deserves detailed explanation. The steel wire ropes are positioned parallel to the electrical conductors but mechanically separated from them. This separation ensures that tensile forces are transmitted directly through the steel ropes to the cable's attachment points, bypassing the electrical components entirely. The result is a cable system where the electrical conductors operate in a virtually stress-free environment, dramatically extending their service life and reliability.
Flexibility in cold-weather marine environments presents particular challenges that pendant cables are specifically designed to address. Cold temperatures can dramatically reduce the flexibility of cable materials, leading to cracking, conductor breakage, and insulation failure. Marine environments compound this problem because cold temperatures often occur in combination with high humidity, salt spray, and dynamic loading.
The use of XLPE insulation in pendant cables provides exceptional low-temperature flexibility while maintaining excellent electrical properties. XLPE retains its flexibility at temperatures well below the freezing point of water, ensuring that the cable can accommodate movement and vibration even in Arctic conditions. The high-quality PVC compounds used in the outer sheath are similarly formulated to maintain flexibility at low temperatures while providing protection against environmental stresses.
The temperature specifications for pendant cables reflect real-world testing under marine conditions. The fixed installation temperature range of -40°C to +70°C has been validated through extensive testing that simulates the thermal cycling encountered in marine environments. The mobile use range of -25°C to +70°C accounts for the additional thermal stresses created by movement and flexing during operation.
Safe installation practices for pendant cables require careful attention to the unique features of these specialized cables. The supporting steel elements can be separated from the main sheath and anchored independently, allowing for stress-free fixation that doesn't compromise the cable jacket. This installation approach is fundamentally different from standard cable installation practices and requires specialized training and equipment.
The independent anchoring of steel support ropes serves multiple purposes beyond simple mechanical support. It allows for precise control of cable sag and tension, ensuring optimal performance under varying load conditions. It also provides redundancy in the support system, so that failure of one support element doesn't immediately compromise the entire installation.
Proper installation also requires attention to the cable's bending radius specifications and the routing path from the fixed connection point to the suspended equipment. The installation team must ensure that the cable's path doesn't include sharp edges or abrasive surfaces that could damage the outer sheath during operation. Additionally, the mounting hardware must be selected and installed to accommodate the dynamic forces that will be encountered during operation.
Common installation mistakes in shipyards often stem from misunderstanding the intended application of pendant cables. The most frequent error involves attempting to use pendant cables in drum reeling systems, where the cable must be wound and unwound repeatedly around a drum. This application is fundamentally incompatible with pendant cable design and can result in rapid mechanical failure.
The steel wire ropes that provide pendant cables with their superior vertical suspension capability become a liability in drum reeling applications. The repeated bending and flexing required in drum reeling can cause fatigue failure of the steel ropes, leading to sudden loss of mechanical support. Additionally, the relatively large diameter and stiff construction of pendant cables can cause uneven winding on drums, leading to cable damage and potential safety hazards.
Core misalignment represents another common failure mode when pendant cables are misapplied in drum reeling systems. The mechanical forces created during winding and unwinding can cause the individual conductors to shift within the cable, leading to uneven stress distribution and potential conductor breakage. This type of failure is often difficult to detect until it results in complete electrical failure, making it particularly dangerous in marine applications where equipment failure can have serious safety implications.
Understanding these limitations and ensuring proper application of pendant cables is essential for successful marine installations. When used in their intended applications—vertical suspension systems—pendant cables provide unmatched reliability and performance. However, attempting to use them outside their design parameters can lead to premature failure and potential safety hazards.
The marine industry's demanding requirements for reliability, safety, and performance make pendant cables an indispensable component of modern marine electrical systems. Their specialized design addresses the unique challenges of marine environments while providing the mechanical strength and electrical performance required for critical lifting and positioning applications. As marine operations continue to evolve toward larger, more complex systems, the importance of properly designed and applied pendant cables will only continue to grow.
Through careful attention to their technical specifications, proper installation practices, and appropriate application selection, pendant cables deliver the reliable performance that marine operations demand. Their ability to maintain electrical integrity while handling significant mechanical loads makes them essential components in the complex systems that drive modern marine commerce and offshore operations.

Technical and Electrical Parameters: Engineering Excellence for Marine Environments
The technical specifications of pendant cables reflect decades of engineering refinement aimed at optimizing performance in challenging marine environments. Each component of these cables serves a specific purpose in ensuring reliable operation under conditions that would quickly degrade standard electrical cables.
The conductor system forms the electrical heart of pendant cables and employs Class 6 stranded plain annealed copper conforming to IEC 60228 standards. This specification ensures maximum flexibility while maintaining excellent electrical conductivity. The choice of Class 6 stranding, with its high strand count and fine wire diameter, provides the flexibility necessary to accommodate the dynamic movements encountered in marine lifting applications. The plain annealed copper offers superior conductivity compared to harder copper alloys, ensuring efficient power transmission with minimal resistive losses.
The annealing process used in conductor preparation deserves particular attention in marine applications. This heat treatment process removes internal stresses in the copper, resulting in a more flexible and fatigue-resistant conductor. In marine environments where cables experience constant movement and vibration, this enhanced fatigue resistance translates directly into extended service life and reduced maintenance requirements.
Insulation technology in pendant cables typically employs cross-linked polyethylene (XLPE) as the primary material, with PVC available as an alternative for specific applications. XLPE provides exceptional thermal resistance and dielectric strength, crucial properties for marine applications where temperature variations can be extreme. The cross-linking process creates a three-dimensional molecular network that enhances the material's resistance to thermal degradation, chemical attack, and mechanical stress.
The superior dielectric properties of XLPE become particularly important in marine environments where moisture and salt contamination can compromise insulation integrity. XLPE's low moisture absorption rate and excellent dielectric strength ensure reliable insulation performance even in high-humidity conditions typical of marine environments. Additionally, the material's resistance to oils and chemicals commonly found in marine settings—including fuel oil, hydraulic fluids, and cleaning solvents—prevents degradation that could lead to insulation failure.
Core identification in pendant cables follows a systematic approach using black cores with white numbering. This color scheme provides excellent visibility against the typical backgrounds found in marine environments while ensuring that the numbering remains clearly legible even after extended exposure to salt spray and UV radiation. The clear identification system facilitates rapid troubleshooting and maintenance, critical factors in marine operations where downtime can result in significant economic losses.
The suspension system represents the most distinctive feature of pendant cables and incorporates several sophisticated elements working in concert. The textile tape wrap applied over the laid-up cores provides mechanical protection and helps maintain the cable's structural integrity during installation and operation. This wrap serves as a barrier against moisture infiltration while providing a smooth surface for the application of the outer sheath.
The dual torsion-free galvanized steel wire ropes integrated parallel to the sheath constitute the primary load-bearing elements of pendant cables. These steel ropes are engineered to handle the entire tensile load of the suspended cable, effectively isolating the electrical conductors from mechanical stress. The galvanized coating provides excellent corrosion resistance, essential for marine applications where exposure to salt water and salt-laden air is constant.
The torsion-free design of these steel ropes is particularly important in marine applications where the cable may experience rotational forces due to equipment movement or wind effects. Traditional steel cables can develop significant torsional stress under load, which can transfer to the electrical conductors and cause premature failure. The torsion-free design eliminates this risk, ensuring that the cable maintains its electrical integrity regardless of the rotational forces encountered in service.
The outer sheath of pendant cables employs a specially formulated PVC compound designed to resist both oil and flame. This outer protection serves as the first line of defense against the harsh marine environment, protecting the internal components from moisture, chemicals, and physical damage. The oil resistance is particularly important in marine applications where exposure to fuel oil, hydraulic fluids, and lubricants is common. The flame-resistant properties provide an additional safety margin in environments where fire hazards may be present.
Voltage ratings for pendant cables are carefully selected to provide adequate safety margins while maintaining practical applicability. The rated voltage of 300/500 V accommodates the majority of marine lifting and control applications while ensuring safe operation with appropriate safety factors. The test voltage of 2000 V (AC) provides confidence that the cable will maintain its insulation integrity under the electrical stresses encountered in service, including those caused by switching transients and voltage surges common in marine electrical systems.
The mechanical properties of pendant cables reflect their specialized design for vertical suspension applications. The minimum bending radius specifications of 10 times the cable diameter for fixed installations and 20 times for mobile applications ensure that the cable can be installed and operated without exceeding the mechanical limits of its components. These specifications are particularly important in marine environments where space constraints may tempt installers to exceed recommended bending radii.
The maximum tensile load specification of 15 N/mm² provides a clear guideline for safe loading while maintaining adequate safety factors. This specification takes into account not only the static weight of the cable but also the dynamic forces that may be encountered during operation, including those caused by wind loading, equipment acceleration, and vibration.
The maximum suspended height limitation of 80 meters reflects the practical limits of the cable's mechanical design while providing adequate capability for the vast majority of marine applications. This height capability covers virtually all shipyard cranes, gantry cranes, and offshore platforms currently in operation.
The pulling force specification of 2100 N per steel core provides installers with clear guidelines for cable handling during installation. This specification ensures that the mechanical integrity of the cable is maintained during the installation process, preventing damage that could lead to premature failure in service.
Temperature range specifications account for the extreme conditions encountered in marine environments. The fixed installation range of -40°C to +70°C accommodates the thermal extremes found in marine applications, from Arctic operations to tropical ports. The mobile use range of -25°C to +70°C reflects the additional thermal stresses encountered during movement and operation.
