Which Cable Standard Is Best for Outdoor Installations: BS5467 or BS6622?

Introduction

Power cables represent the vital arteries of our electrical infrastructure, silently transferring energy across vast distances to power our homes, industries, and cities. When it comes to outdoor installations, armoured power cables play a particularly crucial role as they must withstand not just electrical demands but also environmental challenges including moisture, temperature fluctuations, mechanical stress, and UV exposure.

The British Standards BS5467 and BS6622 represent two of the most widely adopted specifications for armoured cables, each designed with specific applications and environmental conditions in mind. Selecting the appropriate standard isn't merely a technical decision—it directly impacts installation safety, operational lifespan, maintenance requirements, and ultimately, the total cost of ownership.

This article aims to provide a comprehensive comparison between BS5467 and BS6622 cables specifically for outdoor installations, helping engineers and project managers make informed decisions based on their particular requirements and environmental conditions.

Typical Application Scenarios

BS5467 Applications

BS5467 cables are primarily designed for low voltage applications, typically rated at 0.6/1kV, and occasionally up to 3.3kV. These cables find their home in numerous applications including:

• Industrial power distribution systems where low voltage is sufficient

• Control circuits for outdoor machinery and equipment

• Direct burial installations in trenches or underground conduits

• External wall-mounted installations on industrial buildings

• Installations embedded in concrete structures such as bridges or tunnels

• Commercial buildings requiring robust power distribution

The versatility of BS5467 makes it a popular choice for many standard outdoor applications where extreme environmental conditions are not a concern.

BS6622 Applications

BS6622 cables are engineered for medium voltage applications, typically rated at 6.35/11kV, positioning them in more demanding electrical environments:

• Medium voltage distribution networks for utilities and large industrial complexes

• Power transmission for critical infrastructure including airports, hospitals, and data centers

• Underground installations requiring enhanced electrical insulation and protection

• Ducted systems where cables may be exposed to water or chemical ingress

• Partially marine environments when fitted with MDPE (Medium Density Polyethylene) sheaths

• High-risk installations where enhanced safety features are required

BS6622 cables are designed to handle greater electrical stresses while providing additional protection against environmental factors, making them suitable for more critical and demanding applications.

Technical Parameter Comparison

Understanding the technical differences between these standards helps illuminate their suitability for various outdoor installations:

BS5467 Summary

• Voltage rating: 0.6/1kV (occasionally 3.3kV)

• Conductor: Copper (Class 2) or Aluminum (Class 1)

• Insulation: XLPE (Cross-linked Polyethylene)

• Armour: AWA (Aluminum Wire Armour) for single core, SWA (Steel Wire Armour) for multi-core

• Sheath: PVC (Polyvinyl Chloride)

• Maximum operating temperature: 90°C

• Maximum short circuit temperature: 250°C

• Installation suitability: Direct burial, outdoor, indoor

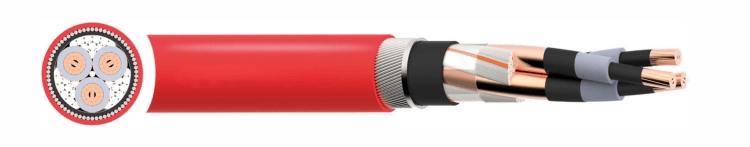

BS6622 Summary

• Voltage rating: 6.35/11kV

• Conductor: Copper (Class 2) or Aluminum (Class 1/2)

• Insulation: XLPE or EPR (Ethylene Propylene Rubber)

• Armour: AWA for single core, SWA for multi-core

• Sheath: PVC or MDPE (Medium Density Polyethylene)

• Maximum operating temperature: 90°C

• Maximum short circuit temperature: 250°C

• Installation suitability: Direct burial, ducted, outdoor

A critical distinction lies in the voltage ratings and sheathing options. While both standards utilize similar conductor materials and armour types, BS6622 offers enhanced insulation systems designed to handle the increased electrical stress associated with medium voltage applications.

Outdoor Use Suitability

When evaluating these cable standards specifically for outdoor applications, several factors come into play including UV resistance, moisture protection, and temperature stability.

BS5467 Outdoor Performance

BS5467 cables have established themselves as reliable performers in standard outdoor environments:

• The PVC sheathing provides good resistance to UV radiation, preventing degradation from sun exposure

• Steel wire armour offers robust mechanical protection against physical damage

• Waterproof design prevents moisture ingress in typical rain and groundwater conditions

• Temperature rating allows operation across normal outdoor temperature ranges

• Proven track record in direct burial applications without additional protection

However, BS5467 cables do have limitations for outdoor use:

• Limited to low voltage applications, restricting their use in larger power distribution networks

• Standard PVC sheathing may degrade faster in especially harsh environments

• May require additional protection in chemically aggressive soils or areas with high salinity

BS6622 Outdoor Performance

BS6622 cables offer enhanced protection for more demanding outdoor environments:

• Designed specifically for medium voltage applications with enhanced insulation and screening

• When specified with MDPE sheathing, these cables demonstrate superior resistance to moisture, chemicals, and marine exposure

• The enhanced insulation systems provide better long-term stability under electrical stress

• Suitable for more demanding outdoor environments including partial submersion

• Better performance in areas with chemical or saline contamination

The superior environmental protection of BS6622 cables, particularly those with MDPE sheaths, makes them more suitable for demanding outdoor installations near coastlines or in chemically challenging environments.

Maritime and Coastal Considerations: FAQ

Q1: Can either standard be used in marine-adjacent environments?

A1: Yes, both standards can be used in marine-adjacent environments, but with important distinctions. BS5467 with standard PVC sheathing provides adequate protection for moderate marine exposure but may show accelerated degradation in areas with heavy salt spray. BS6622 with MDPE sheathing offers substantially better resistance to salt spray, high moisture, and chemical corrosion, making it the preferred choice for installations near coastlines or in environments with similar challenges. The enhanced moisture and chemical resistance of MDPE significantly extends the operational life expectancy in these environments.

Q2: What about direct burial in coastal soils?

A2: Direct burial in coastal soils presents unique challenges due to higher salt content, potential groundwater intrusion, and often more corrosive soil chemistry. While both cable types are designed for direct burial, BS6622 with MDPE sheathing demonstrates superior resistance to moisture ingress and chemical attack from soil contaminants. The enhanced sheathing provides a more effective barrier against the corrosive elements typically found in coastal soils. For critical installations in coastal areas, BS6622 with MDPE sheathing represents a more reliable long-term solution despite the higher initial investment.

Q3: Which is more UV resistant?

A3: Both PVC (used in BS5467) and MDPE (optional in BS6622) offer good UV resistance, but there are differences in their long-term performance. Standard PVC sheathing provides adequate UV protection for many outdoor applications but may become brittle and develop surface cracking after extended exposure to intense sunlight. MDPE sheathing, available with BS6622 cables, maintains its physical properties better under prolonged UV exposure, resulting in a longer operational lifespan in high-sunlight environments. For installations in regions with intense solar radiation, BS6622 with MDPE sheathing offers superior long-term UV resistance.

Q4: Are there grounding or interference concerns near marine facilities?

A4: Yes, marine facilities often present unique electromagnetic interference challenges due to various electrical equipment, communication systems, and sometimes even radar installations. BS6622 includes metallic screening specifically designed to manage electromagnetic interference, making it particularly valuable in sensitive installations where signal integrity is crucial. The enhanced screening not only protects the cable itself from external interference but also prevents the cable from becoming a source of interference to nearby sensitive equipment. This feature is especially important in complex marine environments where various electronic systems must operate harmoniously.

Q5: Is cost a factor in selection?

A5: Cost is indeed a significant factor in cable selection. BS5467 cables are typically less expensive due to their simpler construction and lower voltage rating, making them an economical choice for low-voltage outdoor applications. However, this initial cost advantage must be weighed against potential long-term benefits. BS6622 cables, while more expensive initially, may reduce long-term maintenance and replacement costs in harsh environments due to their enhanced durability. In critical installations where failure would result in significant downtime or where replacement would be exceptionally difficult or costly, the higher initial investment in BS6622 cables often represents better value over the full life cycle of the installation.

Conclusion

The selection between BS5467 and BS6622 cables for outdoor installations should be guided by specific project requirements, environmental conditions, and long-term operational considerations:

Choose BS5467 when:

• Your application requires low voltage (0.6/1kV) distribution

• The installation environment presents moderate environmental challenges

• The project budget favors lower initial costs

• Replacement or maintenance access is relatively straightforward

• The installation is in stable, non-corrosive conditions

Choose BS6622 when:

• Medium voltage (6.35/11kV) capacity is required

• The installation will face harsh environmental conditions including coastal exposure

• Long-term reliability outweighs initial cost considerations

• The installation location makes maintenance or replacement particularly difficult

• Enhanced electromagnetic interference protection is necessary

• The installation may be exposed to chemical contaminants or partial submersion

Each standard has been developed to meet specific needs within the electrical distribution landscape. While there is some overlap in their capabilities, understanding the distinct advantages of each allows for more informed decision-making tailored to the specific requirements of your outdoor installation project.

Always consult with qualified cable manufacturers or electrical engineers for project-specific requirements, as local regulations, specific environmental factors, or unique application needs may influence the final selection beyond the general guidelines presented here.
