Which BS Cable Withstands Vibration and Repeated Bending in Port Crane Applications?

Introduction:

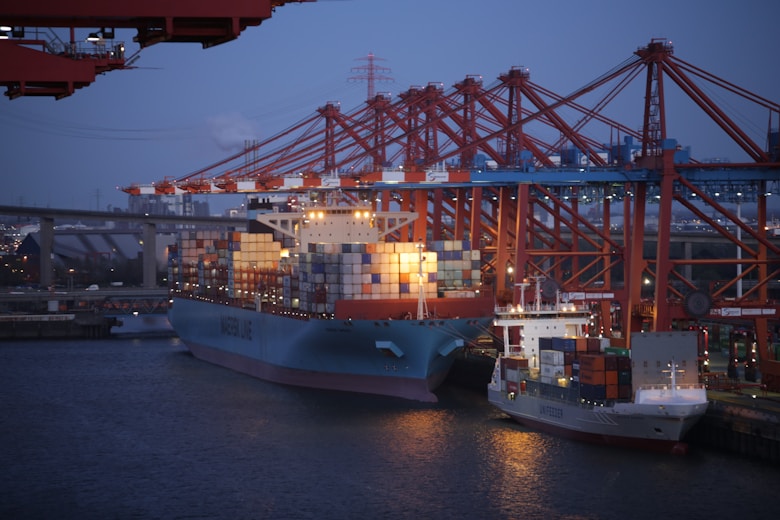

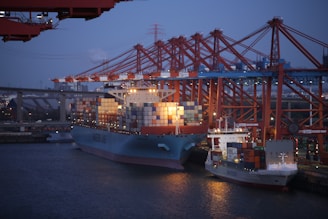

Port cranes represent one of the most demanding applications for electrical cables in industrial settings. These towering machines operate continuously in harsh coastal environments, subjecting cables to extreme mechanical stress through constant movement, vibration, and repeated bending cycles. The wrong cable selection can lead to premature failure, costly downtime, and potential safety hazards.

British Standard (BS) cables are widely used in industrial applications across the UK and internationally, but not all BS-designated cables are created equal when it comes to withstanding the specific challenges posed by port crane operations. This article examines which BS cable types truly deliver the performance needed for these dynamic applications.

The Unique Challenges of Port Crane Cable Systems

Before diving into specific cable standards, it's important to understand the extraordinary demands placed on cables in port crane environments:

Mechanical Stress Factors

Port crane cables experience stress far beyond typical industrial applications:

• Continuous flexing cycles: Cables on reeling drums and festoon systems undergo thousands of bending cycles daily

• Multi-directional movement: Cables must handle torsion as cranes rotate and travel in multiple directions

• Vibration: Constant vibration from motors, gears, and operational movement accelerates material fatigue

• Tension variations: Cables experience varying tension loads during extension and retraction

A typical shipping port crane cable might undergo more than one million flex cycles during its operational lifetime—a demand that would quickly destroy cables designed for static installations.

Environmental Challenges

Port environments compound these mechanical stresses with harsh environmental conditions:

• Salt-laden atmosphere: Corrosive salt mist accelerates degradation of exposed metal components

• UV radiation: Continuous exposure to sunlight breaks down many cable materials

• Temperature extremes: Cables may experience temperatures from below freezing to over 70°C

• Chemical exposure: Oils, fuels, and cleaning compounds can attack cable jackets and insulation

These combined factors create a uniquely challenging environment that requires specialized cable solutions.

Evaluating BS Cable Standards for Port Crane Applications

When selecting cables for port cranes, engineers often consider various British Standards. Let's examine the three most commonly referenced standards and assess their suitability:

BS 6346: Fixed Installation Cable

BS 6346 covers PVC-insulated, PVC-sheathed cables with optional wire armoring for fixed power and control applications.

Construction details:

• Conductor: Class 1 solid annealed copper

• Insulation/Sheath: PVC compounds

• Optional galvanized steel wire armor

Performance specifications:

• Voltage rating: 0.6/1kV

• Operating temperature: -15°C to +70°C

• Short-circuit temperature: up to +160°C

• Minimum bending radius: 6× overall diameter

Suitability assessment: While BS 6346 cables offer good durability for fixed installations, they fundamentally lack the flexibility required for dynamic port crane applications. The solid Class 1 conductors will quickly suffer from metal fatigue when subjected to repeated bending, potentially leading to conductor breakage and system failure. The PVC compounds used also harden over time when exposed to UV and temperature variations, further reducing flexibility.

Verdict: NOT SUITABLE for moving port crane components.

BS 5467: Armored XLPE Cable

BS 5467 specifies requirements for armored power cables with thermosetting insulation for fixed installations.

Construction details:

• Conductor: Class 2 stranded copper or solid aluminum

• Insulation: Cross-linked polyethylene (XLPE)

• Bedding/Sheath: PVC

• Armor: Steel Wire Armor (SWA) for multicore; Aluminum Wire Armor (AWA) for single-core

Performance specifications:

• Voltage rating: 0.6/1kV and 1.9/3.3kV options

• Operating temperature: -25°C to +90°C

• Short-circuit temperature: up to +250°C

• Minimum bending radius: 6-8× overall diameter, depending on size

Suitability assessment: BS 5467 cables offer excellent mechanical protection and higher temperature ratings than BS 6346, making them more durable in some respects. However, they remain fundamentally designed for fixed installations. The Class 2 stranded conductors offer slightly improved flexibility compared to solid conductors, but still fall far short of the flexibility needed for continuous movement applications. The armor, while providing excellent protection against crushing and impact, actually reduces flexibility and increases the minimum bending radius.

Verdict: NOT SUITABLE for dynamic port crane applications.

BS EN 50525 Series: Flexible Cable Options

Unlike the previous two standards, the BS EN 50525 series (particularly parts 2-21, 2-22, and 2-83) specifically addresses flexible cables designed for mobile applications and environments requiring repeated flexing.

Key cable types within this standard:

• H07RN-F: Heavy rubber-insulated flexible cable

• H07BQ-F: Polyurethane-sheathed flexible cable

• H07BN4-F: Special rubber-insulated flexible cable

Construction details:

• Conductor: Class 5 or 6 fine-stranded copper (extremely flexible)

• Insulation: EPR (Ethylene Propylene Rubber) or similar elastomeric compounds

• Sheath: Chloroprene rubber, polyurethane, or special rubber compounds

Performance specifications:

• Voltage rating: 450/750V

• Operating temperature: -25°C to +90°C (varies by specific type)

• Flex life: Tested for more than 1 million flex cycles

• Oil/UV resistance: Excellent for most types

• Minimum bending radius: As low as 4× diameter for reeling applications

Suitability assessment: These cables are specifically engineered for high-flex applications with fine-stranded conductors that resist fatigue from repeated bending. The elastomeric or TPU (thermoplastic polyurethane) outer sheaths maintain flexibility over time, even when exposed to environmental stressors. Many types offer excellent resistance to oil, UV radiation, and salt water, making them ideal for maritime port environments.

Verdict: HIGHLY SUITABLE for dynamic port crane applications.

Making the Right Selection: Key Considerations for Port Crane Cables

When selecting cables for port crane applications, consider these critical factors:

1. Conductor Flexibility Class

The single most important factor for flex resistance is conductor construction:

• Class 1 (solid): No flexibility, will break under repeated bending

• Class 2 (standard stranded): Limited flexibility, suitable only for occasional movement

• Class 5/6 (fine/extra-fine stranded): Essential for continuous flexing applications

For port cranes, nothing less than Class 5 conductors should be considered for moving parts.

2. Sheath Material Properties

The outer jacket material dramatically affects durability in maritime environments:

• PVC: Becomes brittle with UV exposure and low temperatures

• Rubber compounds: Maintain flexibility across temperature ranges

• Polyurethane: Excellent abrasion and oil resistance

Look for materials specifically formulated to resist UV degradation and maintain flexibility in temperature extremes.

3. Flex Life Testing

Quality cables for dynamic applications should have verified flex life testing:

• Minimum acceptable: 100,000 flex cycles

• Recommended: 1,000,000+ flex cycles for critical applications

4. Environmental Resistance

Port environments present multiple chemical challenges:

• Salt spray resistance: Essential for maritime applications

• Oil resistance: Important where hydraulic systems are present

• UV stability: Critical for outdoor installations

Implementation Strategy: The Hybrid Approach

A cost-effective strategy for port crane installations is a hybrid approach:

1. Use BS 5467 or BS 6346 cables for fixed sections where flexibility is not required

2. Use BS EN 50525-compliant flexible cables (e.g., H07RN-F) for all moving sections

3. Ensure proper transition junction boxes between fixed and flexible sections

This approach optimizes both cost and performance while ensuring system reliability.

Common Failure Modes When Using Incorrect Cables

Using fixed-installation cables like BS 5467 or BS 6346 in dynamic applications frequently leads to predictable failure modes:

1. Conductor fatigue and breakage: The most common failure occurs when inflexible conductors crack after repeated bending

2. Insulation cracking: Rigid insulation materials develop small cracks that allow moisture ingress

3. Sheath abrasion: Inflexible outer jackets wear through from repeated movement against guides and supports

4. Armor deformation: Armored cables can "bird-cage" when the armor wires separate during bending

These failures often begin internally and may not be visible until complete electrical failure occurs, resulting in costly emergency repairs and downtime.

Conclusion: Clear Winners for Dynamic Port Applications

After examining the BS cable standards available, the conclusion is clear:

• BS 6346 and BS 5467 cables are NOT suitable for the moving parts of port cranes due to their limited flexibility and unsuitable construction for repeated bending.

• BS EN 50525 series cables (particularly H07RN-F, H07BQ-F types) are the appropriate choice for dynamic port crane applications, offering the necessary flexibility, environmental resistance, and proven performance.

For critical port infrastructure, cable selection should never be an afterthought. The modest premium paid for properly specified flexible cables returns enormous value through extended service life, reduced maintenance costs, and prevention of costly downtime.

When in doubt, always consult with specialists who understand the unique demands of port crane applications and can recommend cables specifically engineered for these challenging environments.
