What Type of Shielded BS Cable Should Be Used in Hazardous Port Zones Like Oil and Gas Loading Areas?

Introduction: Electrical Safety in Hazardous Port Zones

Port facilities that handle oil, gas, and chemical products present some of the most challenging environments for electrical systems. These hazardous zones—including oil and gas terminals, chemical loading areas, and fuel storage facilities—combine potentially explosive atmospheres with harsh environmental conditions that can quickly compromise standard electrical installations. In these settings, cable selection isn't merely a technical consideration—it's a critical safety matter.

The presence of flammable vapors, gases, and liquids creates environments where a single spark or excessive heat from an electrical cable could trigger catastrophic consequences. This reality underscores the importance of using specially designed fire-resistant and shielded cables that can prevent ignition while maintaining operational integrity even under extreme conditions.

British Standard (BS) cables have emerged as industry-leading solutions for these hazardous environments. These cables are engineered to exacting specifications that address the unique challenges of maritime and industrial hazardous zones while ensuring compliance with stringent international regulations. The correct selection and implementation of BS cables form a cornerstone of safety protocols in port facilities handling dangerous goods.

Application Scenarios: Cable Requirements in Oil & Gas Loading Areas

Electrical systems in oil and gas loading areas face a perfect storm of environmental challenges. These include exposure to flammable gases that can ignite with minimal energy input, corrosive atmospheres from both chemical products and salt spray, intense UV radiation in open port settings, temperature extremes, and significant mechanical stress from equipment operation and vessel movement.

The functional demands placed on cables in these environments are equally rigorous. Most installations require fixed wiring systems designed for continuous, uninterrupted operation over many years. Many serve critical control and emergency systems where failure isn't an option—fire detection networks, emergency shutdown systems, and communication infrastructure must remain operational even during emergency scenarios.

Safety standards for these installations reflect these realities. Regulations typically require halogen-free, low-smoke, flame-retardant cable systems in EX-rated (explosive) zones. When a cable burns, the absence of halogens prevents the formation of toxic and corrosive gases, while low-smoke properties maintain visibility during evacuations. The flame-retardant characteristics help prevent fire propagation along cable runs, potentially containing incidents before they escalate.

Recommended BS Shielded Cable Types for Hazardous Zones

BS 6883 – Armoured Marine Power and Control Cable

BS 6883 cables represent the gold standard for fixed installations on ships, offshore platforms, and open deck areas in port facilities. These cables are specifically engineered for marine environments where exposure to the elements, mechanical damage, and potentially explosive atmospheres create unique challenges.

Key features of BS 6883 cables include:

• Voltage Rating: 0.6/1kV, making them suitable for main power distribution systems and substantial electrical equipment

• Temperature Range: Exceptional performance from -40°C to +90°C, accommodating both extreme winter conditions and high-temperature environments near machinery

• Shielding: Galvanized steel wire braid that provides dual benefits—robust mechanical protection against impacts and crushing while also offering effective electromagnetic interference (EMI) protection for sensitive control systems

• Sheath Material: HOFR (Halogen-Free, Oil-Resistant) elastomer that prevents cable degradation even with prolonged exposure to hydrocarbon products and industrial chemicals

• Fire Performance: Flame-retardant properties that prevent the cable from propagating fire along cable trays and through bulkheads

The combination of these features makes BS 6883 cables particularly well-suited for power distribution, lighting systems, and control applications in hazardous port zones where mechanical durability and chemical resistance are primary concerns.

BS 7629-1 – Enhanced Fire-Resistant Screened Cable

While BS 6883 excels in general marine applications, BS 7629-1 cables serve a more specialized but equally critical function—ensuring that emergency systems remain operational during fire incidents. These cables are essential for emergency circuits such as fire detection systems, alarm networks, emergency lighting, and evacuation guidance systems.

Key features of BS 7629-1 cables include:

• Voltage Rating: 300/500V, optimized for instrumentation and control systems rather than main power

• Fire-Resistant Construction: Sophisticated layering of mica/glass tape combined with silicone rubber insulation that maintains circuit integrity even when exposed directly to flames

• Screen Design: Aluminum/polyester (Al/PET) foil combined with a tinned copper circuit protective conductor that provides excellent electromagnetic interference protection for sensitive electronic signals

• Sheath Material: LSZH (Low Smoke, Zero Halogen) compound that minimizes smoke production and eliminates toxic halogen emissions during fire exposure

• Circuit Integrity: Maintains full functionality during prolonged fire exposure, ensuring that critical safety systems continue to operate during evacuation procedures

The exceptional fire performance of BS 7629-1 cables makes them indispensable for safety-critical circuits in hazardous zones where system operation must be maintained even under catastrophic conditions.

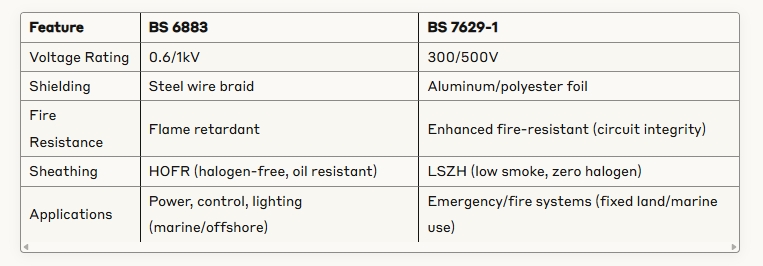

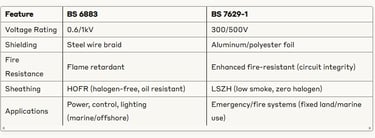

Technical Comparison: BS 6883 vs. BS 7629-1

Understanding the technical differences between these two cable types helps facility engineers make appropriate selections for specific applications within hazardous port zones:

This comparison illustrates how these cable types complement each other in comprehensive hazardous zone installations. BS 6883 cables provide robust service for everyday systems, while BS 7629-1 cables ensure that emergency systems remain operational when they're needed most.

Common Maritime Cable Challenges – FAQ

Q1: Can industrial-grade shielded cables be used in explosive port zones?

No. Only marine- and fire-rated BS-certified cables should be used in explosive port zones. Standard industrial cables lack the specialized construction features—including halogen-free, flame-retardant protection, appropriate shielding, and chemical resistance—necessary to operate safely in these environments. Using non-compliant cables not only violates regulations but creates significant safety risks, as these cables may fail prematurely or contribute to incident escalation during emergencies.

Q2: What type of shielding is required to prevent EMI in control systems?

For control and data transmission applications in hazardous port zones, foil shields (Al/PET) are generally effective at preventing electromagnetic interference while maintaining cable flexibility. However, for power circuits or mixed-use cables installed in areas with high mechanical stress, steel wire braid or copper braid shielding offers dual benefits—both EMI protection and substantial mechanical reinforcement. The selection depends on the specific application, with emergency systems typically favoring foil shields for their fire performance and power systems utilizing braided shields for durability.

Q3: How do BS 6883 and BS 7629-1 complement each other?

BS 6883 is ideal for power and control circuits continuously exposed to harsh marine environments, particularly where mechanical strength and chemical resistance are primary concerns. BS 7629-1, meanwhile, is specially designed for emergency and fire-critical systems that must remain operational during fire situations. A comprehensive installation in a hazardous port zone typically employs both cable types—BS 6883 for general power distribution and everyday operations, and BS 7629-1 for dedicated safety circuits that must maintain integrity during emergency scenarios.

Conclusion

Selecting the appropriate BS shielded cable for hazardous port zones requires careful consideration of both the application environment and the system's function. For general power and control applications in harsh environments, BS 6883 armored marine cables offer the ideal combination of durability, chemical resistance, and electrical performance. For emergency systems where operation during fire incidents is critical, BS 7629-1 enhanced fire-resistant cables provide the necessary circuit integrity under extreme conditions.

This differentiation highlights an important principle in hazardous area cable selection: the most appropriate cable isn't necessarily the most robust or expensive, but rather the one specifically engineered for the application's unique requirements. Power distribution systems benefit from the mechanical strength and higher voltage ratings of BS 6883, while emergency systems need the specialized fire performance of BS 7629-1.

For port facilities handling oil, gas, and chemical products, partnering with certified marine-grade cable manufacturers and installation specialists is essential. These experts can provide guidance on cable selection for specific applications within EX-rated zones, ensuring both regulatory compliance and operational safety in these challenging environments.

Example of a fire incident caused by non-compliant cable installation in a public facility. In hazardous port zones, using fire-resistant and shielded BS cables is essential to prevent similar risks.
