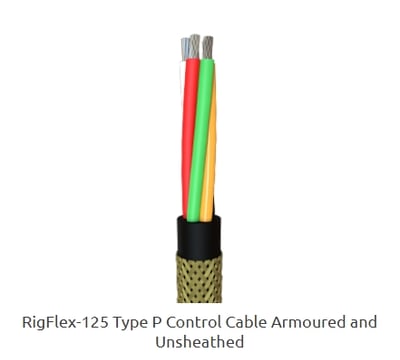

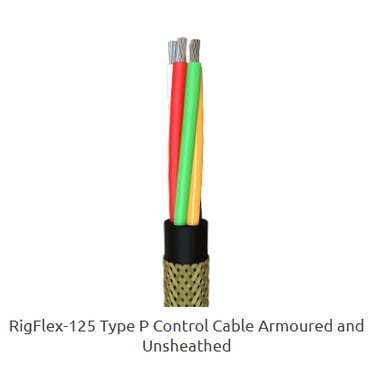

What Makes the RigFlex-125 Type P Control Cable Armoured and Unsheathed Ideal for Marine and Offshore Control Systems?

Explore why the RigFlex-125 Type P Armoured and Unsheathed Control Cable is the preferred choice for marine and offshore environments. Discover key specs, oil and saltwater resistance, flame ratings, and international compliance standards.

BLOGS

6/12/202512 min read

red and white ship on sea during daytime
red and white ship on sea during daytime

Understanding the Critical Foundation of Marine Control Systems

In the unforgiving environment of marine and offshore operations, where saltwater spray meets extreme temperatures and mechanical stress challenges every component, the reliability of control cables becomes paramount to operational safety and efficiency. These cables serve as the nervous system of complex vessels and offshore platforms, carrying vital control signals that govern everything from propulsion systems to emergency safety protocols. When failure is not an option, engineers and procurement specialists turn to specialized solutions designed specifically for these demanding conditions.

The RigFlex-125 Type P represents a sophisticated engineering solution tailored for these harsh marine environments. This armoured, unsheathed control cable combines advanced materials science with proven construction techniques to deliver reliable performance where conventional cables would fail. Understanding its design philosophy requires examining how each component addresses specific challenges encountered in marine and offshore applications.

What sets the RigFlex-125 Type P apart is its comprehensive compliance with multiple industry standards, including IEEE 1580, UL 1309, and CSA C22.2 No. 245. This multi-standard compliance demonstrates not just meeting minimum requirements, but exceeding them across different regulatory frameworks. For procurement professionals, this translates to reduced risk and simplified specification processes when dealing with international projects or multi-jurisdictional operations.

Electrical Performance Parameters: The Foundation of Reliable Control

Voltage Rating and Application Scope

The RigFlex-125 Type P operates at a rated voltage of 600/1000 V, a specification that merits careful consideration in the context of marine control applications. The dual voltage rating indicates the cable's versatility in handling both lower voltage control circuits at 600V and higher voltage applications up to 1000V. This flexibility proves invaluable in complex marine installations where multiple voltage levels may be present within the same cable routing system.

Understanding this voltage rating helps engineers properly size and specify cables for different control functions. Lower voltage applications might include instrumentation signals, communication circuits, and basic control logic, while the higher voltage capability accommodates motor control circuits, larger solenoid operations, and power distribution to auxiliary equipment. The robust insulation system ensures reliable operation across this entire voltage range, even under the stress of marine environmental conditions.

Temperature Performance Characteristics

Temperature management in marine environments presents unique challenges that the RigFlex-125 Type P addresses through carefully engineered thermal ratings. The cable achieves different temperature ratings depending on its configuration and the governing standard. Under IEEE 1580, multi-core configurations are rated for 100°C continuous operation, while single-core cables can handle 125°C. The UL 1309 standard provides ratings of 110°C for multi-core and 125°C for single-core configurations.

These temperature variations between standards reflect different testing methodologies and safety factors, but the practical implication remains clear: the cable maintains electrical and mechanical integrity even under thermal stress that would degrade conventional cables. In marine engine rooms, where ambient temperatures can soar and additional heat radiates from machinery, this thermal resilience prevents insulation breakdown and maintains signal integrity.

The higher temperature rating for single-core cables acknowledges their superior heat dissipation characteristics compared to multi-core designs. When multiple conductors are bundled together, heat accumulation becomes more challenging, necessitating the more conservative temperature rating for multi-core configurations. Engineers can leverage this understanding to optimize cable selection based on specific installation requirements and thermal environments.

Conductor Design and Electrical Properties

The conductor system employs soft annealed flexible stranded tinned copper wire, manufactured according to IEEE 1580 Table 11 and ASTM B 33 specifications. This seemingly simple description encompasses sophisticated engineering decisions that directly impact cable performance and longevity in marine environments.

Soft annealing of the copper provides maximum flexibility while maintaining excellent electrical conductivity. The annealing process relieves internal stresses in the copper, making it more pliable and less prone to work hardening during installation and service. This flexibility becomes crucial when cables must navigate tight bends around bulkheads, through cable trays, and around machinery in cramped marine spaces.

The stranded construction further enhances flexibility while providing redundancy against conductor failure. If individual strands break due to vibration or mechanical stress, the remaining strands continue to carry current, preventing complete circuit failure. This redundancy proves especially valuable in marine applications where continuous vibration and movement are constant operational realities.

Tinning of the copper strands provides critical corrosion protection in marine environments. The thin tin coating acts as a barrier against moisture and salt exposure, preventing the formation of copper oxides that would increase resistance and eventually lead to conductor failure. This protection extends cable life significantly compared to bare copper conductors in similar environments.

Insulation System Engineering

The cross-linked polyolefin compound insulation represents advanced polymer technology specifically chosen for marine applications. Designated as Type P under IEEE 1580 and Type X110 under UL 1309/CSA C22.2 No. 245, this insulation system provides exceptional dielectric strength while maintaining flexibility and environmental resistance.

Cross-linking creates three-dimensional polymer chains that maintain their properties even under thermal stress. Unlike thermoplastic materials that soften with heat, cross-linked materials maintain their shape and electrical properties across the entire operating temperature range. This thermal stability ensures consistent performance whether the cable operates in arctic conditions or tropical engine rooms.

The polyolefin base provides inherent resistance to moisture, chemicals, and UV radiation, all common challenges in marine environments. The material's low dielectric constant maintains signal integrity in control circuits, while its high dielectric strength prevents electrical breakdown even under voltage transients common in marine electrical systems.

Mechanical Protection Through Advanced Armour Design

Basket Weave Construction Benefits

The basket weave bronze or tinned copper wire armour represents a sophisticated approach to mechanical protection that balances flexibility with strength. Unlike tape armour or solid sheath protection, the basket weave design allows the cable to flex and bend while maintaining continuous mechanical protection around its entire circumference.

The basket weave pattern distributes mechanical loads across multiple crossing points, preventing stress concentration that could damage the underlying insulation. When the cable experiences crushing forces, impact, or abrasion, the armour spreads these forces across its woven structure rather than transmitting them directly to the conductors and insulation.

This construction proves particularly valuable in marine applications where cables may be dragged across deck plates, subjected to impact from equipment, or compressed by heavy machinery. The armour maintains its protective function even after repeated flexing cycles that would cause rigid protection systems to crack or separate.

Material Selection Considerations

The choice between bronze and tinned copper armour wire reflects different performance priorities in marine environments. Bronze armour provides superior strength and corrosion resistance, making it ideal for applications with high mechanical stress and extended exposure to seawater. The alloy composition resists stress corrosion cracking and maintains mechanical properties even after extended salt exposure.

Tinned copper armour offers excellent electrical conductivity along with good corrosion resistance, making it suitable for applications where the armour might serve as an electrical path for grounding or shielding. The tin coating provides corrosion protection while maintaining the copper's electrical properties, creating a dual-function protective system.

Current Carrying Capacity and Thermal Management

Understanding current carrying capacity requires referencing IEEE 45.8, which provides derating factors and calculation methods specific to marine installations. Unlike terrestrial applications, marine cables must account for higher ambient temperatures, restricted ventilation, and bundling effects common in shipboard installations.

The current carrying capacity directly relates to thermal management within the cable and its installation environment. Heat generated by current flow must be dissipated to prevent insulation degradation and conductor damage. The cable's construction facilitates heat transfer while the installation method affects the surrounding thermal environment.

Engineers must consider not just the cable's inherent current carrying capacity, but also the specific installation conditions aboard ship or offshore platform. Cables routed through machinery spaces face different thermal challenges than those in air-conditioned control rooms, requiring careful analysis to ensure safe operation throughout the cable's service life.

Testing Standards and Quality Assurance

Electrical Integrity Verification

The test voltage requirements specified in IEEE 1580 Table 19 ensure electrical integrity under stress conditions that exceed normal operating voltages. These tests verify that the insulation system can withstand voltage transients, switching surges, and other electrical stresses common in marine electrical systems.

High potential testing applies voltages significantly above the rated voltage to identify insulation weaknesses before they cause failure in service. This testing philosophy prevents premature failures that could compromise critical control systems during operation.

Mechanical Performance Validation

The minimum bending radius specification of 6 times the cable diameter (6 x D) represents careful engineering analysis of the cable's mechanical limits. This specification ensures that installation bends do not damage the conductor, insulation, or armour systems while maintaining long-term reliability.

Understanding bending radius limitations helps installers avoid damage during cable pulling and routing. Exceeding these limits can cause conductor stretching, insulation cracking, or armour deformation that compromises the cable's protective capabilities.

red and black ship on sea during daytime
red and black ship on sea during daytime

Marine and Offshore Applications

Shipboard Control Systems

Aboard modern vessels, RigFlex-125 Type P cables serve critical functions in propulsion control systems where reliability directly impacts vessel safety and maneuverability. These systems require precise control signals that must maintain integrity despite engine vibration, temperature variations, and electrical interference from high-power equipment.

Navigation and steering systems rely on these cables to transmit position feedback, control commands, and safety interlocks that ensure proper vessel operation. The armoured construction protects these vital signals from mechanical damage while the advanced insulation maintains signal quality under electrical stress.

Communication systems aboard ship depend on control cables for antenna positioning, equipment switching, and signal routing. The cable's EMI resistance and signal integrity characteristics ensure clear communication even in the electrically noisy environment of a modern vessel.

Emergency and safety systems represent perhaps the most critical application, where cable failure could have catastrophic consequences. Fire detection systems, emergency lighting, and alarm circuits must function reliably even under extreme conditions, making the robust construction of RigFlex-125 Type P essential for life safety systems.

Offshore Platform Applications

Fixed and floating offshore platforms present unique challenges that extend beyond typical marine environments. Drilling equipment control requires cables that can withstand continuous vibration from drilling operations while maintaining precise control signal integrity. The mechanical protection provided by the armour system prevents damage from the constant movement and vibration inherent in drilling operations.

Process control and instrumentation systems on offshore platforms monitor and control complex hydrocarbon processing equipment where reliability is paramount. Control cable failure could result in process upsets, equipment damage, or safety incidents, making the proven reliability of properly specified cables essential.

Safety systems including fire detection, gas monitoring, and emergency shutdown systems require cables that maintain functionality even under extreme conditions. The environmental resistance and mechanical protection of RigFlex-125 Type P ensure these critical systems remain operational when needed most.

Environmental Resistance Characteristics

Chemical and Fluid Resistance

The cable's resistance to oil and petrochemical fluids addresses one of the most challenging aspects of offshore environments. Hydrocarbon exposure can rapidly degrade conventional cable materials, but the carefully selected jacket and insulation materials maintain their properties even after extended exposure to crude oil, refined products, and process chemicals.

This chemical resistance extends beyond simple hydrocarbon exposure to include resistance to hydraulic fluids, lubricants, and cleaning solvents commonly used in marine maintenance operations. The comprehensive chemical resistance ensures long service life even in environments where chemical exposure is unavoidable.

Mechanical Durability

Abrasion resistance becomes critical during both installation and service life in marine environments. Cables may be dragged across steel deck plates, pulled through tight spaces, and subjected to constant rubbing against support structures. The armour system provides primary mechanical protection while the jacket material offers secondary protection against wear.

The combination of flexible construction and robust protection allows the cable to withstand mechanical abuse that would quickly destroy conventional control cables. This durability translates to reduced maintenance costs and improved system reliability over the cable's service life.

Environmental Sealing

Moisture and salt water resistance protects the cable's electrical integrity in marine environments where high humidity, spray, and direct water contact are common. The jacket and insulation materials prevent moisture ingress that would cause insulation breakdown and conductor corrosion.

UV resistance ensures that cables exposed to sunlight maintain their properties over extended periods. While many marine cables are installed in protected areas, those with outdoor exposure benefit from the inherent UV stability of the jacket material.

cargo ship in ocean
cargo ship in ocean

Frequently Asked Questions: Addressing Critical Concerns

Understanding the Unsheathed Design Philosophy

The question of why an armoured cable would be unsheathed reflects a common misconception about marine cable construction. The RigFlex-125 Type P utilizes a robust thermoset chlorinated polyethylene (CPE) jacket as its primary environmental barrier. This jacket provides excellent resistance to oil, moisture, chemicals, and mechanical wear while maintaining the flexibility essential for marine installations.

The basket weave armour then provides mechanical protection over this jacket, creating a dual-layer protection system that eliminates the need for a separate outer sheath. This design philosophy reduces cable diameter and weight while maintaining environmental protection, making it ideal for applications where space and flexibility are at a premium.

The CPE jacket material offers superior performance compared to many traditional sheath materials, providing better chemical resistance and maintaining flexibility across a wider temperature range. Combined with the mechanical protection of the armour, this system delivers environmental protection equivalent to or better than conventional sheathed designs.

Vibration Resistance in Dynamic Environments

Marine vessels and offshore platforms experience continuous vibration from engines, generators, and wave action that can fatigue cable components over time. The flexible stranded conductor construction allows the cable to flex with mechanical movement rather than resisting it, reducing stress concentrations that could lead to conductor breakage.

The armour system distributes mechanical stress across its woven structure, preventing localized loading that could damage the underlying conductors or insulation. This stress distribution mechanism allows the cable to absorb and dissipate vibrational energy rather than transmitting it directly to the electrical components.

Compliance with IEEE 1580 ensures that the cable design has been validated for marine service conditions, including the vibration profiles typical of shipboard and offshore installations. This standard specifically addresses the dynamic loading conditions unique to marine environments.

Fire Safety Performance

Fire safety in marine environments requires careful consideration of flame propagation, smoke generation, and toxic gas emission. The RigFlex-125 Type P demonstrates excellent flame propagation characteristics as verified by compliance with IEEE 1202 and IEC 60332-3 standards.

These standards test the cable's ability to resist flame spread when subjected to sustained ignition sources. Limited flame propagation prevents fires from using cables as a pathway to spread throughout a vessel or platform, containing fire damage to the area of origin.

The thermoset insulation and jacket materials contribute to reduced smoke and toxic gas generation compared to many thermoplastic alternatives. In confined marine spaces where evacuation may be limited, reduced smoke and toxicity can be critical for personnel safety during fire incidents.

Water Immersion Limitations

While RigFlex-125 Type P offers excellent resistance to moisture and salt water exposure, it is important to understand the distinction between water resistance and submersion rating. The cable excels in applications involving spray, splash, and high humidity conditions typical of marine environments.

For applications requiring continuous submersion, specialized submarine cables with different sealing technologies and pressure resistance characteristics would be more appropriate. The RigFlex-125 Type P is optimized for above-water marine applications where environmental protection focuses on moisture exclusion rather than pressure resistance.

Understanding this distinction helps engineers select the appropriate cable type for specific applications, ensuring optimal performance and avoiding over-specification that increases project costs unnecessarily.

Standards Comparison and Compliance

The compliance with multiple standards (IEEE 1580, UL 1309, CSA C22.2 No. 245) reflects the global nature of marine operations and the need for cables that meet different regulatory requirements. IEEE 1580 specifically addresses marine cable applications, making it the primary standard for the intended use.

UL 1309 and CSA C22.2 No. 245 represent North American standards for shipboard cables, ensuring acceptance in vessels and platforms operating under US and Canadian regulations. The slight differences in temperature ratings and test methods between standards reflect different approaches to ensuring cable reliability.

Engineers can specify with confidence knowing that the cable meets or exceeds requirements across multiple jurisdictions, simplifying approval processes and ensuring regulatory compliance regardless of the operating location or flag state.

Cold Weather Performance

The cold bend rating of -40°C and cold impact rating of -35°C address the challenges of operating in arctic or winter conditions where conventional cables might become brittle and prone to damage. These ratings ensure that the cable maintains flexibility and impact resistance even in extremely cold environments.

Cold weather performance becomes critical during installation operations that might occur in winter conditions, as well as for platforms operating in northern waters where ambient temperatures can reach extreme lows. The ability to remain flexible and damage-resistant at these temperatures prevents installation problems and ensures long-term reliability.

Conclusion: Engineering Excellence for Critical Applications

The RigFlex-125 Type P represents the convergence of advanced materials science, proven construction techniques, and comprehensive standards compliance to address the unique challenges of marine and offshore control applications. Its sophisticated design philosophy balances competing requirements for flexibility, durability, environmental resistance, and electrical performance to deliver a cable system optimized for the most demanding conditions.

For procurement professionals and engineers responsible for specifying control cables in marine and offshore applications, the RigFlex-125 Type P offers a proven solution backed by comprehensive testing and multi-standard compliance. The cable's track record in service, combined with its robust construction and careful attention to the environmental challenges of marine operations, positions it as a preferred choice for critical control applications.

The investment in quality control cables pays dividends through reduced maintenance costs, improved system reliability, and enhanced safety performance. In environments where cable failure can have serious operational and safety consequences, the proven performance and robust construction of RigFlex-125 Type P provide the reliability and peace of mind that marine and offshore operations demand.

Understanding the technical aspects of this cable system enables informed decision-making that considers not just initial cost, but total cost of ownership over the cable's service life. When reliability cannot be compromised, RigFlex-125 Type P delivers the performance and durability that critical marine and offshore applications require.
