What Are the Most Common Causes of Harbor Crane Cable Failure? A Comprehensive Guide to Prevention and Solutions

Introduction: The Critical Role of Cables in Modern Port Operations

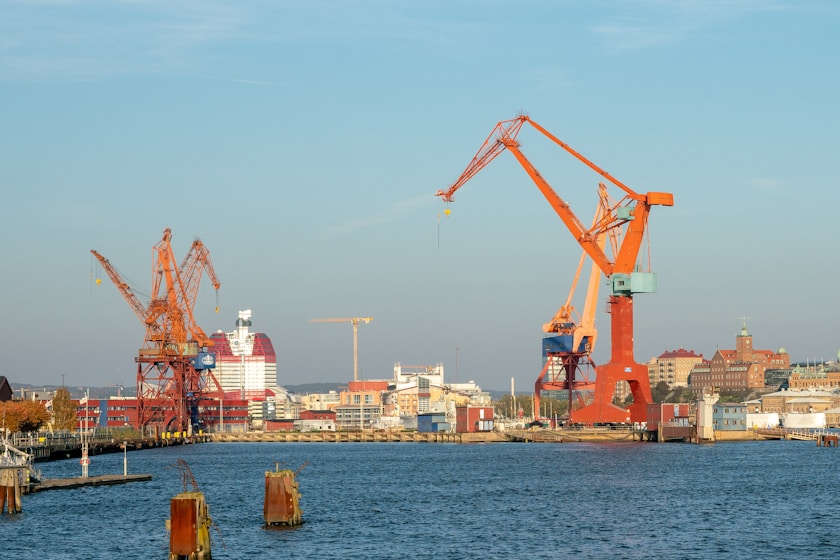

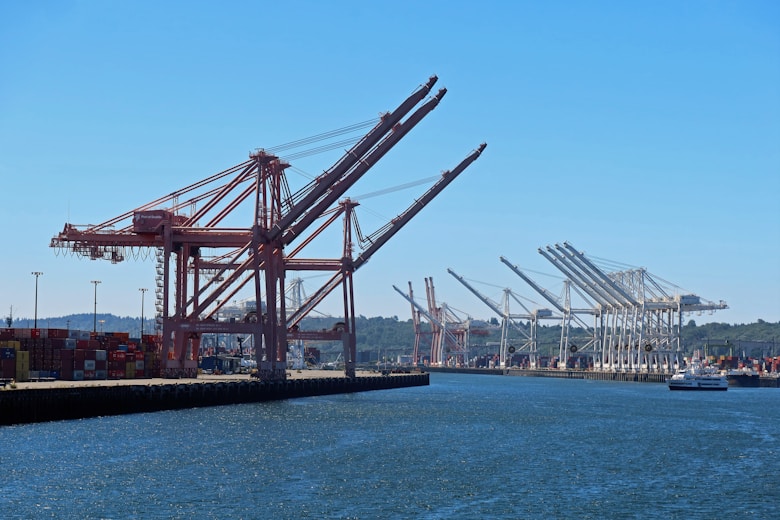

Harbor cranes represent the backbone of global maritime commerce, handling millions of tons of cargo annually across ports and terminals worldwide. These sophisticated mechanical systems rely heavily on a complex network of power, control, and signal cables that enable their precise operation. From the towering Ship-to-Shore (STS) cranes that unload massive container vessels to the nimble Rubber-Tyred Gantry (RTG) cranes that organize container yards, each piece of equipment depends on reliable electrical connections to function safely and efficiently.

The cable systems in harbor cranes serve multiple critical functions that extend far beyond simple power transmission. Power cables deliver the substantial electrical energy required to operate heavy lifting mechanisms, traverse motors, and hydraulic systems. Control cables carry the precise electrical signals that coordinate complex movements, ensuring that operators can manipulate multi-ton loads with millimeter accuracy. Signal cables transmit data between control systems, sensors, and monitoring equipment, providing real-time feedback that enables automated operations and safety systems.

Rail-Mounted Gantry (RMG) cranes, which operate on fixed rail systems in container yards, require specially designed cable management systems that can accommodate their linear movement patterns while maintaining electrical continuity. These systems must handle the constant stress of extension and retraction as the crane moves along its designated tracks. The reliability of these cable systems directly impacts not only operational efficiency but also the safety of port workers and the protection of valuable cargo.

When cable failures occur in harbor crane operations, the consequences extend far beyond simple equipment downtime. Port terminals operate on tight schedules with vessels arriving and departing according to precise timetables. A single crane failure can create cascading delays that affect shipping schedules, increase operational costs, and potentially compromise safety protocols. Understanding the root causes of cable failures therefore becomes essential for maintaining the continuous operation that modern global commerce demands.

Application Environment and Operational Challenges

The marine environment presents one of the most challenging operational contexts for electrical cables in industrial applications. Port and harbor conditions create a perfect storm of factors that can accelerate cable degradation and failure. The high salinity content in coastal air creates a corrosive atmosphere that attacks metallic components, while the constant presence of moisture from sea spray and high humidity levels can penetrate cable jackets and compromise insulation systems.

Mechanical stress represents another significant challenge in harbor crane cable applications. These cables must endure continuous cycles of bending, twisting, and tension as cranes perform their lifting and traversing operations. The repetitive nature of these movements, often occurring thousands of times per day, creates fatigue stress that gradually weakens conductor strands and insulation materials. This mechanical stress is particularly intense in reeled cable applications, where cables are wound and unwound around drums as the crane moves, creating repeated bending cycles at relatively tight radii.

The exposure to ultraviolet radiation from intense sunlight adds another layer of complexity to cable durability challenges. Many harbor operations occur in regions with high solar radiation levels, and cable jackets that are not properly formulated for UV resistance can experience rapid degradation. This UV damage often manifests as cracking, hardening, or discoloration of the outer sheath, which can eventually lead to moisture ingress and electrical failures.

Chemical exposure represents an often-overlooked but significant threat to cable integrity in port environments. Diesel fuel, hydraulic fluids, cleaning solvents, and various cargo-related chemicals can come into contact with cables during routine operations. Without proper chemical resistance in the cable jacket materials, these substances can cause swelling, softening, or chemical breakdown of the protective layers.

The three primary cable movement configurations in harbor crane applications each present unique challenges. Festoon systems, where cables are supported by trolleys that move along tracks, must accommodate horizontal movement while maintaining proper cable support and preventing excessive sagging. Reeled applications require cables that can withstand the constant winding and unwinding action without developing memory effects or premature fatigue. Trailing cable systems, where cables are dragged across surfaces, face the additional challenge of abrasion resistance while maintaining flexibility.

Electrical and Construction Parameters: Engineering for Reliability

The electrical specifications of harbor crane cables must be carefully matched to the demanding requirements of port operations. Most crane power circuits operate at voltage ratings of 0.6/1 kV, which provides an optimal balance between power transmission capability and safety considerations. This voltage level allows for efficient power delivery while remaining within manageable safety parameters for maintenance personnel.

The conductor construction in harbor crane cables represents a critical engineering decision that directly impacts both performance and longevity. Flexible Class 5 or Class 6 tinned copper conductors are typically specified for these applications, providing the high flexibility required for continuous motion applications while offering superior corrosion resistance compared to bare copper. The tinning process creates a protective barrier that prevents the formation of copper oxides and chlorides that would otherwise develop in marine environments.

Class 6 conductors, with their finer strand construction, offer enhanced flexibility that becomes crucial in applications involving tight bending radii or high-frequency movement cycles. The increased number of smaller strands distributes mechanical stress more evenly, reducing the likelihood of individual strand breakage that can lead to eventual conductor failure. This fine-strand construction also provides better electrical characteristics in high-frequency applications, as it reduces skin effect losses and improves signal transmission quality.

Insulation materials must withstand not only the electrical stresses of normal operation but also the thermal cycling that occurs in outdoor marine environments. Cross-linked polyethylene (XLPE) has become a preferred choice for many applications due to its excellent thermal stability, moisture resistance, and long-term aging characteristics. The cross-linking process creates a three-dimensional molecular structure that maintains its properties even under prolonged exposure to elevated temperatures.

Ethylene propylene rubber (EPR) insulation offers superior flexibility and maintains its properties across a wider temperature range, making it particularly suitable for applications where cables experience significant temperature variations. EPR also provides excellent resistance to ozone and UV radiation, both of which are present in significant concentrations in marine environments.

The outer sheath construction represents the first line of defense against environmental hazards. Halogen-free, flame-retardant compounds have become standard for marine applications, with thermoplastic polyurethane (TPU), thermoplastic elastomers (TPE), and low-smoke zero-halogen (LSZH) compounds being commonly specified. These materials provide excellent mechanical properties while meeting stringent fire safety requirements that are essential in port environments where evacuation might be difficult.

Armoring options, including tinned copper braid or steel wire armor, provide additional mechanical protection while also serving electromagnetic compatibility (EMC) functions. The armoring layer distributes mechanical loads across the cable structure, preventing localized stress concentrations that could lead to jacket penetration or conductor damage. In control and signal applications, metallic armoring also provides shielding against electromagnetic interference that could disrupt sensitive electronic systems.

Most Common Causes of Harbor Crane Cable Failure

Mechanical Fatigue: The Silent Killer of Cable Systems

Mechanical fatigue represents the most prevalent cause of harbor crane cable failure, accounting for a significant percentage of premature cable replacements in port operations. This phenomenon occurs when cables are subjected to repeated bending, twisting, and tension cycles that gradually weaken the conductor strands and insulation materials. Unlike sudden mechanical damage, fatigue develops progressively over time, often without obvious external signs until failure occurs.

The continuous bending and torsion experienced during crane operations create microscopic stress concentrations within the conductor strands. Each movement cycle causes slight deformation of the copper strands, and over thousands of cycles, these deformations accumulate to the point where individual strands begin to fracture. The failure typically begins with the finest strands in the outer layers of the conductor, gradually progressing inward until sufficient conductors have failed to cause circuit interruption.

One of the most critical factors in preventing mechanical fatigue is maintaining proper bending radius during both installation and operation. Cable manufacturers specify minimum bending radii based on extensive testing, and these specifications must be rigorously followed. When cables are bent beyond their designed limits, the stress concentration increases exponentially, dramatically reducing the expected service life. This is particularly important in reeled applications where the cable repeatedly bends around the drum circumference.

The cable support system design plays a crucial role in managing mechanical stress. Inadequate support can cause cables to experience excessive tension or uneven stress distribution, accelerating fatigue development. Proper cable guides, strain relief systems, and support intervals help distribute loads evenly across the cable length, reducing stress concentrations that could lead to premature failure.

Abrasion and Sheath Damage: External Threats to Cable Integrity

Abrasion damage occurs when cables are dragged across rough surfaces, rub against structural components, or pass through inadequately designed pulley systems. This type of damage is particularly common in trailing cable applications where the cable must be dragged across dock surfaces or through cable trenches. The constant friction gradually wears away the protective outer sheath, eventually exposing the underlying armor or insulation layers.

The severity of abrasion damage depends on several factors, including the surface roughness of contact areas, the pressure applied during movement, and the abrasion resistance of the cable jacket material. Concrete surfaces, steel edges, and poorly maintained pulley systems create particularly aggressive abrasion conditions that can rapidly destroy cable jackets.

Poor cable guidance systems represent a major contributor to abrasion-related failures. When cables are not properly supported or guided during movement, they tend to find the path of least resistance, which often involves contact with sharp edges or rough surfaces. Cable guides should be designed with smooth surfaces, appropriate sizing, and strategic placement to minimize contact pressure while maintaining proper cable positioning.

The selection of appropriate jacket materials becomes critical in abrasion-prone applications. Polyurethane-based jackets typically offer superior abrasion resistance compared to PVC or rubber compounds, but they may sacrifice other properties such as low-temperature flexibility or chemical resistance. The choice of jacket material requires careful consideration of the specific operating environment and the relative importance of different performance characteristics.

Corrosion: The Long-Term Enemy of Electrical Connections

Corrosion in harbor crane cables represents a insidious form of degradation that often goes unnoticed until catastrophic failure occurs. The marine environment provides ideal conditions for corrosion development, with high chloride concentrations, elevated humidity, and temperature cycling creating aggressive conditions for metallic components. This corrosion can affect conductor strands, armor layers, and termination hardware, leading to increased resistance, reduced current-carrying capacity, and eventual circuit failure.

The corrosion process typically begins when moisture penetrates the cable jacket and comes into contact with metallic components. In marine environments, this moisture contains dissolved salts that accelerate the electrochemical reactions responsible for corrosion. Bare copper conductors are particularly susceptible to this type of attack, forming copper chlorides and oxides that increase electrical resistance and create brittle, non-conductive surface layers.

Tinned copper conductors provide significantly improved corrosion resistance by creating a protective barrier between the copper substrate and the corrosive environment. The tin coating acts as a sacrificial layer that preferentially corrodes, protecting the underlying copper from attack. However, this protection is only effective if the tin coating remains intact and the cable jacket prevents moisture ingress.

The quality and integrity of the cable jacket play a crucial role in preventing corrosion-related failures. Jackets with poor moisture resistance or physical damage that allows water ingress can lead to rapid corrosion development. Even small punctures or cracks in the jacket can allow moisture to enter and travel along the cable length through capillary action, potentially affecting large sections of the cable.

Electrical Overload and Voltage Spikes: Exceeding Design Limits

Electrical overload conditions occur when cables are required to carry currents beyond their rated capacity, either due to inadequate sizing during design or unexpected operational demands. Harbor cranes often experience high inrush currents during motor starting, load switching, or fault conditions that can exceed the normal operating parameters of the cable system. These overload conditions generate excessive heat within the conductors, leading to thermal degradation of insulation materials and potential conductor damage.

The sizing of crane cables must account for not only the normal operating current but also the peak demand conditions that occur during heavy lifting operations or simultaneous activation of multiple motors. Inadequate conductor sizing can result in voltage drop issues that affect motor performance and create additional stress on the electrical system. This voltage drop can cause motors to draw higher currents to maintain performance, creating a cascading effect that further stresses the cable system.

Voltage spikes and transient conditions represent another significant threat to cable integrity. These can occur during load switching operations, fault conditions, or lightning strikes. The rapid voltage rise can exceed the dielectric strength of the insulation system, causing partial discharge or complete breakdown. Even if immediate failure does not occur, repeated exposure to voltage spikes can cause cumulative damage to the insulation that eventually leads to failure.

Surge protection systems become essential components in harbor crane installations to protect cable systems from transient conditions. These systems must be properly coordinated with the cable specifications to ensure adequate protection without interfering with normal operation. The selection and placement of surge protection devices require careful consideration of the cable impedance characteristics and the expected transient levels.

Thermal Degradation: The Cumulative Effect of Heat

Thermal degradation represents a cumulative failure mechanism that occurs when cables are operated beyond their rated temperature limits or are subjected to repeated thermal cycling. The insulation materials used in cable construction are designed to operate within specific temperature ranges, and exposure to excessive heat can cause irreversible changes in their molecular structure. This degradation typically manifests as reduced dielectric strength, increased brittleness, and eventual insulation failure.

The thermal conditions in harbor crane applications can be particularly challenging due to the combination of high ambient temperatures, solar heating, and internal heat generation from current flow. Cables installed in direct sunlight or confined spaces without adequate ventilation can experience temperatures well above their rated limits. The dark colors typically used for cable jackets can exacerbate this problem by absorbing additional solar radiation.

Cable bundling practices significantly impact thermal performance by restricting heat dissipation and creating localized hot spots. When multiple cables are bundled together, the internal cables cannot dissipate heat effectively, leading to temperature buildup that can exceed the rating of individual cables. Proper spacing and ventilation become essential to prevent thermal degradation in bundled installations.

The cyclic nature of crane operations creates repeated heating and cooling cycles that can accelerate thermal degradation. Each thermal cycle causes expansion and contraction of the cable materials, creating mechanical stress that can lead to cracking or delamination of insulation layers. This thermal cycling effect is particularly pronounced in outdoor installations where daily temperature variations can be significant.

UV and Chemical Exposure: Environmental Degradation Factors

Ultraviolet radiation from sunlight represents a significant long-term threat to cable jacket materials, particularly in tropical and subtropical port locations where UV intensity is high. The photochemical reactions induced by UV exposure can cause polymer degradation, leading to cracking, hardening, and eventual loss of protective properties. This degradation is often accompanied by color changes and surface chalking that serve as early indicators of UV damage.

The rate of UV degradation depends on several factors, including the intensity and duration of exposure, the specific polymer formulation, and the presence of UV stabilizers in the compound. Cable jackets that are not properly formulated for outdoor exposure can experience rapid degradation, with significant property changes occurring within months of installation. This degradation compromises the jacket's ability to protect the underlying cable components from moisture and mechanical damage.

Chemical exposure in port environments can occur through various pathways, including direct contact with spilled fluids, atmospheric contamination, and cleaning operations. Diesel fuel, hydraulic fluids, and various cargo-related chemicals can cause swelling, softening, or chemical breakdown of cable jacket materials. The compatibility of jacket materials with expected chemical exposures must be carefully evaluated during cable selection.

The cumulative effect of multiple environmental stressors often accelerates degradation beyond what would be expected from individual factors. UV exposure can increase the susceptibility of jacket materials to chemical attack, while chemical exposure can reduce UV resistance. This synergistic effect emphasizes the importance of selecting cable materials that are resistant to all expected environmental conditions.

Frequently Asked Questions: Troubleshooting Harbor Crane Cable Issues

Why do my crane cables keep cracking after only a few months of service?

Premature cable cracking typically results from inadequate flexibility in the cable construction or improper installation practices that exceed the cable's mechanical limits. The most common cause is the use of cables with insufficient flexibility ratings for the specific application. Harbor cranes require cables with highly flexible Class 6 conductors that can withstand the constant bending and movement inherent in crane operations. Standard industrial cables with Class 2 or Class 5 conductors often cannot handle the mechanical stress of crane applications, leading to rapid degradation and cracking.

Installation practices play an equally important role in preventing premature cracking. Cables must be installed with proper bending radii maintained throughout the system, and support systems must be designed to prevent excessive tension or stress concentration. The use of appropriate cable guides, strain relief systems, and support intervals helps distribute mechanical loads evenly, reducing the likelihood of stress-related cracking.

The outer sheath material selection also significantly impacts crack resistance. Thermoplastic polyurethane (TPU) jackets typically offer superior crack resistance compared to PVC or standard rubber compounds, particularly in applications involving frequent movement and temperature variations. Reinforced jacket constructions with embedded strength members can provide additional protection against mechanical stress.

How can I effectively prevent corrosion in marine environments?

Corrosion prevention in marine environments requires a multi-faceted approach that addresses both material selection and maintenance practices. The most effective strategy begins with the selection of cables featuring tinned copper conductors, which provide superior corrosion resistance compared to bare copper. The tin coating creates a protective barrier that prevents the formation of copper chlorides and oxides that would otherwise develop in saltwater environments.

The cable jacket must provide excellent moisture resistance to prevent water ingress that could lead to corrosion of internal components. Halogen-free, UV-resistant compounds specifically formulated for marine applications offer the best long-term protection. These materials not only resist moisture penetration but also maintain their protective properties under prolonged exposure to salt spray and high humidity conditions.

Regular inspection and maintenance of cable terminations represent critical aspects of corrosion prevention. Cable ends and connection points are particularly vulnerable to moisture ingress, and proper sealing with marine-grade compounds helps prevent corrosion development. The use of stainless steel or corrosion-resistant termination hardware further enhances system reliability in marine environments.

Environmental controls, such as proper drainage systems and ventilation, help reduce the corrosive potential of the installation environment. Cable routing should avoid areas where saltwater accumulation is likely, and protective measures such as cable trays or conduits can provide additional protection from direct salt spray exposure.

Can standard industrial cables be used for harbor crane applications?

Standard industrial cables are generally not suitable for harbor crane applications due to the unique combination of mechanical, electrical, and environmental demands present in port operations. Harbor cranes require specially engineered cables that are designed specifically for reeling, festoon, or trailing applications with enhanced mechanical endurance and marine-grade materials.

The mechanical requirements of crane applications far exceed those of typical industrial installations. Standard cables typically use Class 2 or Class 5 conductors that lack the flexibility required for continuous movement applications. The insulation and jacket materials in standard industrial cables are not formulated to withstand the combination of mechanical stress, UV exposure, and marine environment conditions that characterize harbor operations.

The electrical characteristics of crane cables must also be optimized for the specific demands of crane control systems. This includes considerations for electromagnetic compatibility, signal integrity, and the ability to handle the high inrush currents associated with motor starting and load switching operations. Standard industrial cables may not provide adequate performance in these applications.

Specialized crane cables undergo extensive testing to verify their performance under simulated operating conditions, including accelerated aging tests, repeated bending cycles, and exposure to marine environments. This testing ensures that the cables can meet the demanding performance requirements of harbor crane applications throughout their expected service life.

What cable features ensure effective electromagnetic compatibility protection?

Electromagnetic compatibility (EMC) protection in harbor crane cables requires careful attention to both shielding design and grounding practices. Tinned copper braided shields provide excellent EMC protection by creating a low-impedance path for electromagnetic interference currents. The braid construction offers superior flexibility compared to solid metallic shields, making it ideal for dynamic applications while maintaining effective shielding performance.

The coverage percentage of the braid shield significantly impacts its effectiveness, with higher coverage percentages providing better protection against electromagnetic interference. Quality marine-grade cables typically feature braid shields with coverage percentages of 85% or higher, ensuring adequate protection even in high-interference environments typical of port operations.

Proper grounding of the shield becomes crucial for effective EMC protection. The shield must be connected to an effective ground system at appropriate points to provide a low-impedance path for interference currents. However, care must be taken to avoid ground loops that could introduce additional interference or safety hazards.

The use of twisted pair construction in control and signal cables provides additional EMC protection by reducing susceptibility to electromagnetic interference. The twisting action helps cancel out induced currents from external electromagnetic fields, improving signal integrity in noise-prone environments.

What international standards should harbor crane cables comply with?

Harbor crane cables should comply with several international standards that address both marine environment requirements and the specific demands of crane applications. IEC 60092 represents the primary international standard for marine electrical cables, providing comprehensive requirements for materials, construction, and testing of cables used in marine environments. This standard addresses the unique challenges of saltwater exposure, temperature cycling, and mechanical stress that characterize maritime applications.

VDE 0281 and VDE 0295 standards provide additional specifications for flexible cables used in dynamic applications, including the bending test requirements and conductor flexibility classifications that are essential for crane applications. These standards ensure that cables can withstand the mechanical stresses associated with continuous movement and bending.

NEK 606 offers specific requirements for offshore and marine applications, including enhanced fire resistance and low-smoke characteristics that are important for safety in confined spaces typical of port operations. This standard also addresses the need for halogen-free materials that reduce toxic gas emissions in fire situations.

Many port authorities and crane manufacturers also maintain their own specifications that may exceed the requirements of international standards. These specifications often address specific operational conditions or safety requirements unique to particular installations. Compliance with these local requirements is essential for ensuring compatibility with existing systems and meeting operational approval requirements.

Conclusion: Ensuring Reliable Harbor Crane Operations

The reliability of harbor crane cable systems directly impacts the efficiency, safety, and economic viability of port operations worldwide. Understanding the common causes of cable failure provides the foundation for implementing effective prevention strategies that can significantly extend cable service life and reduce operational disruptions. The complex interplay of mechanical, electrical, and environmental factors in marine environments requires careful consideration of cable selection, installation practices, and maintenance procedures.

The selection of appropriate cable types represents the most critical decision in ensuring long-term reliability. Cables must be specifically engineered for the demanding conditions of harbor crane applications, with careful attention to conductor flexibility, insulation materials, and jacket compounds that can withstand the unique combination of stresses present in marine environments. The additional cost of premium marine-grade cables is invariably justified by their superior performance and extended service life.

Preventive maintenance programs play an equally important role in maximizing cable reliability. Regular inspection procedures can identify potential problems before they lead to catastrophic failures, allowing for planned maintenance activities that minimize operational disruptions. These programs should include visual inspections, electrical testing, and mechanical assessments that can detect the early signs of degradation.

The economic impact of cable failures extends far beyond the cost of replacement materials. Crane downtime can create cascading delays that affect vessel schedules, increase operational costs, and potentially compromise safety protocols. Port operators who invest in quality cable systems and comprehensive maintenance programs typically experience lower total cost of ownership and improved operational reliability.

As port operations continue to evolve with increasing automation and higher throughput demands, the importance of reliable cable systems will only continue to grow. The integration of advanced monitoring systems, predictive maintenance technologies, and improved cable designs will further enhance the reliability and performance of harbor crane operations. Consulting with certified marine cable manufacturers and experienced installation contractors ensures that cable systems are properly designed, installed, and maintained to meet the demanding requirements of modern port operations.

The future of harbor crane cable systems lies in the continued development of advanced materials, improved designs, and comprehensive system approaches that address the full spectrum of operational challenges. Port operators who embrace these technologies and maintain rigorous quality standards will be best positioned to meet the growing demands of global maritime commerce while ensuring the safety and reliability of their operations.
