Unveiling the Masterpiece: How High-Performance Cables Are Forged Under BS 7870

Introduction: The Unsung Heroes of Power Distribution

In the intricate web of modern civilization, few components are as fundamental yet overlooked as power cables. These engineered marvels silently carry the electrical lifeblood that illuminates our cities, powers our industries, and connects our digital world. From the simple act of flipping a light switch in your home to the complex operations of manufacturing plants and data centers, power cables form the invisible backbone of our electrical infrastructure.

At the heart of this critical infrastructure lies BS 7870, the quintessential UK standard that governs the design, construction, and performance of utility power cables. Far more than a mere technical specification, BS 7870 represents decades of engineering wisdom distilled into a comprehensive framework that ensures every cable meeting its requirements can deliver power safely, reliably, and efficiently across diverse applications and environments.

This exploration will take you deep into the technical realm of BS 7870, revealing how its rigorous requirements forge cables capable of withstanding extreme conditions while maintaining unwavering performance. We'll uncover the sophisticated materials science, precise electrical parameters, and real-world applications that make these cables the trusted workhorses of our electrical grid.

Anatomy of Excellence: Deconstructing BS 7870 Cable Design

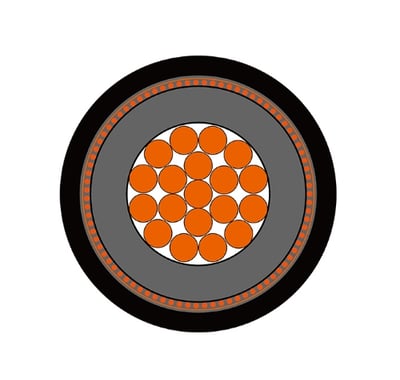

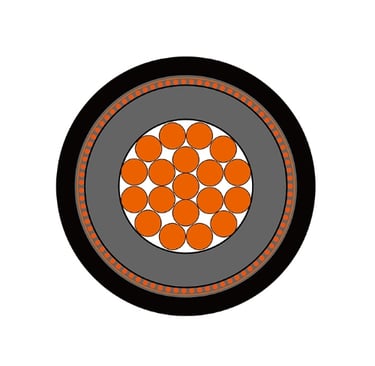

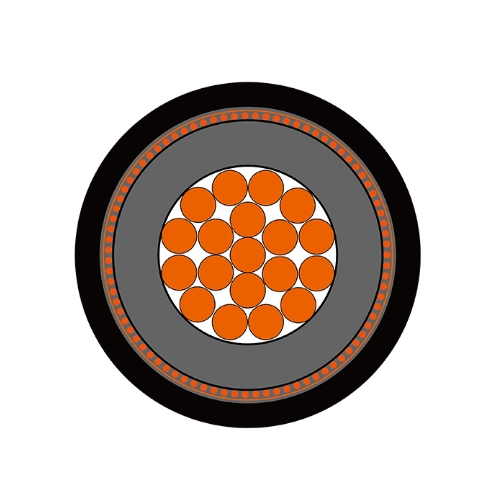

Understanding a BS 7870 cable requires appreciating its multilayered construction, where each component serves a specific purpose in the overall performance envelope. Think of it as an engineered ecosystem where materials science meets electrical engineering to create a product capable of operating flawlessly for decades.

The Conductive Heart: Copper and Aluminum Cores

At the center of every power cable lies the conductor, the pathway through which electrical current flows. BS 7870 specifications recognize two primary conductor materials, each with distinct advantages. Copper conductors offer superior electrical conductivity, allowing more current to flow with less resistance and heat generation. This makes copper ideal for applications where space is limited or maximum current-carrying capacity is essential. The excellent ductility of copper also enables the formation of stranded conductors that maintain flexibility while carrying substantial current loads.

Aluminum conductors, while having lower conductivity than copper, provide significant weight and cost advantages, particularly in larger cable sizes. The lower density of aluminum makes it especially valuable in overhead applications where cable weight directly impacts support structure requirements. Modern aluminum alloys used in BS 7870 cables incorporate carefully controlled additions of magnesium and silicon to enhance mechanical properties while maintaining good electrical performance.

XLPE Insulation: The Dielectric Guardian

Surrounding the conductor is perhaps the most critical component in terms of long-term reliability: the insulation system. BS 7870 cables predominantly employ Cross-linked Polyethylene (XLPE) insulation, a material that represents a quantum leap in cable technology compared to traditional thermoplastic insulations.

The cross-linking process transforms ordinary polyethylene into a three-dimensional molecular network that exhibits remarkable properties. Unlike thermoplastic materials that soften when heated, XLPE maintains its structural integrity at elevated temperatures, allowing cables to operate continuously at conductor temperatures up to 90°C under normal conditions and even higher during emergency overload situations.

The dielectric properties of XLPE are equally impressive. Its low dielectric constant and exceptionally low dissipation factor minimize electrical losses and heat generation within the insulation itself. This translates directly into higher current-carrying capacity and improved energy efficiency. The material's outstanding resistance to electrical treeing, a degradation mechanism that can lead to insulation failure over time, ensures reliable operation spanning decades.

Water resistance represents another crucial advantage of XLPE. Unlike paper-insulated cables that require complex oil-filled systems to exclude moisture, XLPE cables can tolerate some moisture ingress without immediate degradation, though proper sealing remains important for long-term performance.

Bedding Layer: The Protective Interface

Between the insulation and armour lies the bedding layer, often overlooked but essential for cable integrity. This layer, typically composed of PVC compound or similar material, serves multiple functions. It provides a smooth, uniform surface over the insulation that prevents the armour wires from creating stress concentrations that could damage the underlying insulation. The bedding also acts as a barrier against moisture migration along the cable length and provides additional mechanical cushioning.

In some cable designs, the bedding incorporates water-blocking compounds or tapes that swell when exposed to moisture, creating an effective seal against longitudinal water ingress. This feature becomes particularly important in underground installations where cables may encounter groundwater or in applications where temporary flooding might occur.

Steel Wire Armour: Mechanical Protection Redefined

The armour layer transforms a basic insulated cable into a robust system capable of withstanding significant mechanical stresses. Steel Wire Armour (SWA) consists of galvanized steel wires helically applied over the bedding layer, creating a flexible yet incredibly strong protective barrier.

The engineering behind SWA design involves careful consideration of wire diameter, lay angle, and galvanizing specifications. Smaller diameter wires provide greater flexibility, crucial for installation in tight bends or where the cable must conform to irregular surfaces. The helical lay angle is optimized to provide maximum protection against crushing forces while maintaining adequate flexibility for installation.

Galvanizing serves dual purposes: it protects the steel wires from corrosion and provides a barrier against electrochemical reactions that could occur between dissimilar metals in the cable construction. The zinc coating sacrificially corrodes before the underlying steel, extending the armor's service life significantly.

For applications where ferrous materials might be problematic due to magnetic effects or corrosion concerns, Aluminum Wire Armour (AWA) provides an alternative. AWA offers excellent corrosion resistance and non-magnetic properties while maintaining good mechanical protection, though with somewhat reduced strength compared to steel.

Outer Sheath: The Environmental Shield

The outermost layer of a BS 7870 cable serves as the primary defense against environmental hazards. The choice of sheath material significantly impacts the cable's suitability for specific applications and environments.

Polyvinyl Chloride (PVC) sheaths offer excellent general-purpose protection with good resistance to oils, chemicals, and moderate temperature variations. PVC formulations for cable sheaths incorporate stabilizers and plasticizers carefully selected to maintain flexibility across a wide temperature range while providing flame retardancy.

Medium Density Polyethylene (MDPE) sheaths excel in applications requiring superior moisture resistance and chemical inertness. MDPE exhibits lower water absorption than PVC and demonstrates excellent resistance to environmental stress cracking, making it ideal for direct burial applications or exposure to aggressive chemical environments.

Low Smoke Zero Halogen (LSZH) sheaths represent the pinnacle of fire safety technology in cable construction. When exposed to fire, LSZH materials produce minimal smoke and no halogen gases, critical factors in enclosed spaces where smoke obscuration and toxic gas evolution could impede evacuation or cause additional harm. The development of LSZH compounds required sophisticated polymer chemistry to achieve flame retardancy without halogen-containing additives, typically relying on aluminum trihydrate or magnesium hydroxide as flame retardant fillers.

Material Science and Performance Imperatives

The selection and formulation of materials for BS 7870 cables involves complex tradeoffs between competing requirements. Flame retardancy must be balanced against mechanical properties, environmental resistance against cost, and electrical performance against manufacturing complexity.

Modern flame retardant systems in cable materials operate through multiple mechanisms. Endothermic decomposition of additives like aluminum trihydrate absorbs heat from the combustion process while releasing water vapor that dilutes combustible gases. Intumescent systems create protective char layers that insulate the underlying material from heat. The synergistic effects of combining different flame retardant approaches allow formulators to achieve superior fire performance while maintaining other essential properties.

Mechanical resilience requirements drive careful attention to polymer molecular weight distributions and cross-linking density in XLPE insulation. Higher molecular weights generally improve mechanical properties but can complicate processing, while cross-linking density affects both mechanical strength and electrical properties. The optimization of these parameters requires extensive testing and validation to ensure cables meet the demanding requirements of utility applications.

Environmental protection capabilities stem from both material selection and cable design features. UV stabilizers in sheath compounds prevent polymer degradation from solar exposure, while antioxidants protect against oxidative degradation over the cable's service life. Water-blocking systems may incorporate superabsorbent polymers that expand dramatically when exposed to moisture, creating effective seals against water ingress.

The Electrifying Core: Understanding Electrical Parameters and Performance

The electrical performance of power cables represents one of the most precisely engineered aspects of their design, where theoretical calculations meet practical testing requirements to ensure reliable operation under all specified conditions.

Voltage Ratings and Insulation Coordination

The voltage rating of a cable, expressed as Uo/U (where Uo is the rated voltage between conductor and earth, and U is the rated voltage between conductors), defines the fundamental design parameters for the insulation system. For low voltage applications, common ratings include 0.6/1 kV, suitable for most commercial and residential distribution systems. Medium voltage cables operate at ratings such as 6.35/11 kV, 12.7/22 kV, and 19/33 kV, serving industrial facilities and utility distribution networks.

The insulation thickness required to achieve these voltage ratings follows precise calculations based on the electric field distribution within the cable. For single-core cables, the radial electric field varies inversely with radius, creating maximum stress at the conductor surface. This necessitates careful attention to conductor smoothness and the interface between conductor and insulation to prevent field enhancement that could lead to partial discharge inception.

Impulse withstand voltage capability represents another critical design parameter, particularly for medium voltage cables. Lightning strikes and switching operations can create voltage surges far exceeding normal operating levels, and cables must withstand these transient overvoltages without failure. The test procedures specified in BS 7870 subject cables to standardized impulse waveforms that simulate these real-world conditions.

Current-Carrying Capacity and Thermal Considerations

The ampacity, or current-carrying capacity, of a power cable represents the maximum continuous current it can carry without exceeding its thermal rating. This seemingly simple parameter actually involves complex heat transfer calculations considering multiple thermal resistances in the current path.

Heat generation within the cable occurs primarily due to resistive losses in the conductor, though dielectric losses in the insulation become significant at higher voltages. This heat must be conducted through the insulation, bedding, armour, and sheath before being dissipated to the surrounding environment. Each layer presents a thermal resistance that limits heat flow, and the temperature rise across each thermal barrier must be calculated to ensure the conductor temperature remains within acceptable limits.

The thermal resistivity of XLPE insulation, typically around 3.5 K⋅m/W, represents a significant thermal barrier that often determines the cable's current rating. Advanced XLPE formulations incorporate thermally conductive fillers to reduce this thermal resistivity, enabling higher current ratings in space-constrained installations.

Installation conditions dramatically affect thermal performance. Cables installed in air benefit from convective cooling, while buried cables rely primarily on conduction through the surrounding soil. The thermal resistivity of soil varies significantly with moisture content, temperature, and composition, requiring careful consideration during installation design. Duct installations present intermediate conditions, with heat transfer depending on air circulation within the duct system.

Comprehensive Electrical Testing Regimes

The electrical testing requirements for BS 7870 cables reflect decades of experience with cable failures and the development of predictive test methods that can identify potential problems before they occur in service.

Insulation resistance testing provides a fundamental assessment of insulation integrity. This test applies a DC voltage to the cable and measures the resulting leakage current, typically expressed as resistance per unit length. High insulation resistance indicates effective moisture exclusion and absence of conductive contaminants within the insulation system. The test voltage and minimum resistance requirements are carefully specified to ensure meaningful results without causing damage to the insulation.

Partial discharge testing represents one of the most sophisticated diagnostic techniques applied to medium voltage cables. Partial discharges are localized electrical discharges that occur within the insulation due to voids, contamination, or other defects. These discharges don't immediately cause cable failure but gradually degrade the insulation through chemical and thermal effects, eventually leading to complete breakdown.

Modern partial discharge testing employs sensitive electronic instrumentation capable of detecting discharge events as small as a few picocoulombs. The test procedure involves applying voltages above the partial discharge inception level while monitoring for discharge activity. Cables meeting BS 7870 requirements must demonstrate partial discharge levels below specified thresholds at test voltages significantly higher than operating levels.

Dielectric strength testing subjects the cable insulation to voltages well above normal operating levels to verify adequate safety margins. These tests may employ either AC or DC voltages, with each providing different information about insulation performance. AC tests better simulate operating conditions and stress the insulation similarly to normal service, while DC tests can reveal certain types of defects more effectively.

The test voltages and durations specified in BS 7870 result from statistical analysis of insulation performance and field experience with cable failures. The safety factors incorporated ensure that cables passing these tests will operate reliably throughout their intended service life, even under adverse conditions.

Real-World Applications: Where BS 7870 Cables Power Progress

The versatility and reliability of BS 7870 cables make them indispensable across a vast spectrum of applications, each demanding specific performance characteristics while benefiting from the standard's comprehensive design requirements.

Utility Grid Infrastructure

In urban distribution networks, BS 7870 cables form the arteries through which electrical power flows from substations to end users. The dense, interconnected nature of city electrical systems demands cables capable of operating reliably in challenging environments while maintaining safety standards that protect both utility workers and the public.

Underground distribution systems rely heavily on BS 7870-4 medium voltage cables, which navigate complex underground utility corridors alongside water mains, gas lines, and telecommunications infrastructure. The robust construction of these cables, with their steel wire armour and chemical-resistant sheaths, enables direct burial installation while providing decades of reliable service. The superior water-blocking capabilities prevent moisture-related failures that could cause widespread power outages.

Rural distribution presents different challenges, with longer cable runs and exposure to agricultural chemicals and varying soil conditions. Here, the environmental resistance of BS 7870 cables becomes crucial, as replacement costs are high and service interruptions affect entire communities. The standard's requirements for UV resistance and chemical compatibility ensure reliable operation even in aggressive agricultural environments.

Aerial bundled conductor systems, covered under BS 7870-5, represent an innovative approach to overhead distribution that combines the reliability of underground cables with the accessibility of traditional overhead lines. These systems use XLPE-insulated conductors bundled together with a supporting messenger wire, reducing the clearance requirements of traditional bare conductor systems while improving reliability and reducing maintenance needs.

Critical Industrial Applications

Manufacturing facilities depend on uninterrupted power supply for production continuity and equipment protection. BS 7870 cables in these environments must withstand not only normal electrical stresses but also mechanical vibration, temperature variations, and exposure to industrial chemicals and cleaning agents.

Heavy industrial applications such as steel mills, aluminum smelters, and chemical processing plants demand cables capable of carrying extremely high currents while maintaining safety in hazardous environments. The flame retardancy requirements of BS 7870 become critical in these applications, where cable fires could have catastrophic consequences. LSZH cables are often specified in enclosed industrial spaces to minimize smoke and toxic gas evolution in fire scenarios.

Mining applications represent some of the most demanding environments for power cables. Underground mines subject cables to mechanical abuse, moisture, and aggressive chemicals while requiring absolute reliability for safety systems. The mechanical protection provided by steel wire armour proves invaluable in these applications, while the chemical resistance of modern sheath materials ensures long-term reliability despite harsh environmental conditions.

Maritime and Port Applications: Specialized Challenges

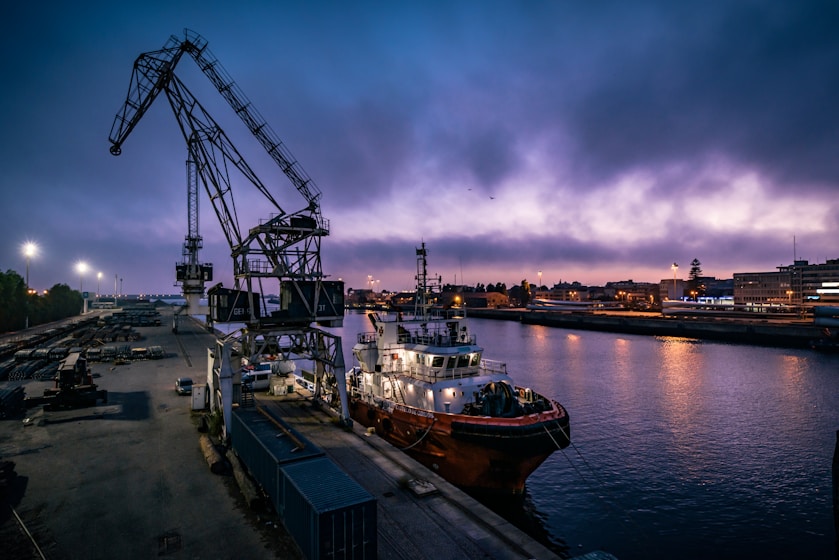

Port facilities present unique challenges that test the limits of BS 7870 cable capabilities while highlighting the standard's comprehensive design philosophy. The marine environment combines salt-laden atmospheres, mechanical stress from heavy equipment, and critical reliability requirements that demand exceptional cable performance.

Shore power systems, also known as cold ironing, enable vessels to connect to land-based electrical supply while docked, reducing emissions and noise pollution in port areas. These installations require cables capable of carrying substantial power loads while maintaining flexibility for connection operations. The UV resistance specified in BS 7870 standards proves essential for cables exposed to intense sunlight reflected from water surfaces, while the chemical resistance of MDPE sheaths provides protection against salt spray and marine atmospheres.

Quayside crane operations demand cables that can withstand thousands of bending cycles while maintaining electrical integrity. Container handling systems place extreme mechanical stress on cable installations, requiring the robust construction provided by steel wire armour. The precise balance between mechanical protection and flexibility achieved in BS 7870 cables enables reliable operation in these demanding applications.

Port substation and control room installations benefit from the fire safety characteristics of LSZH cables specified in BS 7870. These critical facilities often house sophisticated control equipment in enclosed spaces where smoke and toxic gas evolution could compromise both equipment and personnel safety during fire events.

The 24/7 operational requirements of modern ports place premium value on cable reliability. BS 7870's comprehensive testing requirements and material specifications ensure that cables can operate continuously without degradation, supporting the constant flow of commerce through these vital facilities.

Renewable Energy Integration

The transition to renewable energy sources has created new applications for BS 7870 cables in wind farms, solar installations, and energy storage systems. These applications often combine challenging environmental conditions with critical reliability requirements, making the comprehensive protection provided by BS 7870 standards essential.

Wind farm installations subject cables to constant vibration and temperature cycling while requiring reliable operation in remote locations where maintenance access is limited. The fatigue resistance of properly designed BS 7870 cables ensures reliable power transmission from individual turbines to collection systems despite these challenging conditions.

Solar installations present unique combinations of high ambient temperatures, UV exposure, and varying electrical loads throughout daily and seasonal cycles. The thermal performance and UV resistance specified in BS 7870 standards prove crucial for maintaining long-term reliability in these applications.

Addressing Maritime Challenges: BS 7870 and Marine Environments

The relationship between BS 7870 cables and marine applications requires careful consideration of the standard's scope and limitations relative to the unique challenges presented by maritime environments.

Direct Seawater Immersion Considerations

While BS 7870 cables incorporate excellent water ingress protection through their bedding layers and water-blocking systems, they are not specifically designed or tested for direct, continuous immersion in seawater. The standard's water resistance requirements focus on protection against moisture ingress during normal terrestrial installations, not the extreme conditions encountered in subsea applications.

Seawater presents multiple challenges beyond simple moisture exposure. The high ionic conductivity of salt water can accelerate electrochemical degradation processes, while the pressure at significant depths exceeds the mechanical design parameters of standard utility cables. For applications requiring direct seawater immersion, specialized marine and subsea cable standards provide the additional protection and testing requirements necessary for reliable operation.

However, BS 7870 cables find extensive application in port-side installations where they may experience occasional splash or spray exposure without continuous immersion. The robust construction and chemical resistance of these cables provide adequate protection for such applications when properly installed and maintained.

Corrosive Atmosphere Management

Port environments typically feature elevated salt concentrations in the atmosphere, creating corrosive conditions that can challenge cable materials over extended service periods. BS 7870 addresses these concerns through its sheath material specifications and environmental resistance requirements.

MDPE sheaths, commonly specified for challenging environmental conditions, demonstrate superior resistance to salt-laden atmospheres compared to standard PVC formulations. The chemical inertness of polyethylene provides excellent long-term resistance to salt exposure, while the material's low water absorption prevents the accumulation of corrosive electrolytes within the sheath material.

The UV resistance requirements incorporated into BS 7870 also contribute to cable longevity in port environments, where intense sunlight reflected from water surfaces can accelerate polymer degradation. Stabilizer systems in modern cable sheaths provide years of reliable protection against photodegradation while maintaining mechanical properties.

Dynamic Mechanical Stress Applications

Quayside crane operations and similar applications subject cables to repeated bending cycles and mechanical stress levels that challenge even robust cable designs. While BS 7870 cables provide excellent static mechanical protection through their armoured construction, extreme dynamic applications may require specialized flexible reeling cables designed specifically for continuous movement.

The steel wire armour that provides outstanding protection against crushing and impact forces can become a limitation in applications requiring thousands of bending cycles. In such cases, specialized cable designs employing braided wire screens or alternative armor configurations may prove more suitable than standard BS 7870 constructions.

However, many port applications involve occasional movement rather than continuous dynamic stress, and properly specified BS 7870 cables can provide excellent service in these installations. The key lies in matching cable specifications to actual application requirements rather than assuming that standard utility cables can meet all possible installation conditions.

Marine Vessel Internal Wiring Limitations

An important limitation of BS 7870 cables involves their suitability for internal wiring aboard ships or offshore platforms. These applications fall under specialized marine and offshore cable standards that address the unique fire safety, vibration resistance, and environmental requirements of maritime vessels.

Marine cable standards such as IEC 60092 series incorporate more stringent flame retardancy requirements, enhanced flexibility specifications, and resistance to oil, fuel, and other shipboard chemicals. The fire performance requirements for shipboard cables often exceed those specified in BS 7870, reflecting the critical importance of fire safety in confined maritime environments.

The vibration and shock resistance requirements for marine applications also typically exceed those addressed in utility cable standards. Ship engines, wave action, and operational equipment create continuous mechanical stress that requires specialized cable designs not covered under BS 7870.

The Enduring Legacy: Why BS 7870 Matters

The significance of BS 7870 extends far beyond its technical specifications to encompass its role in ensuring the reliability and safety of electrical infrastructure across diverse applications and environments.

Foundation of Trust and Compliance

BS 7870 provides a common framework that enables manufacturers, installers, and users to have confidence in cable performance and compatibility. This standardization reduces risk, simplifies specification processes, and ensures interoperability across different suppliers and installations. The comprehensive testing requirements provide objective verification of performance claims, fostering trust throughout the supply chain.

The compliance framework established by BS 7870 also facilitates regulatory approval processes and insurance requirements. Many building codes and safety regulations reference recognized standards like BS 7870, streamlining the approval process for new installations while ensuring adequate safety margins.

Innovation and Sustainability Driver

The evolution of BS 7870 reflects ongoing advances in materials science and manufacturing technology while maintaining backward compatibility with existing installations. Recent developments in LSZH compounds, advanced cross-linking techniques, and environmentally friendly materials find incorporation into updated standard requirements, driving industry-wide adoption of improved technologies.

Sustainability considerations increasingly influence cable design and material selection, with BS 7870 evolving to incorporate recycled materials, reduced manufacturing energy requirements, and end-of-life recyclability considerations. These developments support the broader transition to sustainable infrastructure while maintaining the performance and reliability expectations established by decades of successful application.

Future Grid Infrastructure Foundation

The electrical grid of the future will incorporate distributed generation, energy storage, smart grid technologies, and electric vehicle charging infrastructure, all requiring reliable interconnection through advanced cable systems. BS 7870 provides a proven foundation for these applications while continuing to evolve to meet emerging requirements.

The standard's comprehensive approach to cable design ensures that future grid technologies can build upon established reliability and safety principles while incorporating new capabilities and performance requirements. This evolutionary approach protects existing infrastructure investments while enabling smooth integration of advanced technologies.

The rigorous testing and validation procedures established by BS 7870 also provide a model for evaluating new cable technologies and materials as they emerge. This systematic approach to performance verification ensures that innovations enhance rather than compromise the reliability that makes modern electrical infrastructure possible.

In conclusion, BS 7870 represents more than a technical standard; it embodies the accumulated knowledge and experience of generations of electrical engineers working to provide safe, reliable power distribution. As our electrical infrastructure continues to evolve to meet changing energy demands and environmental requirements, the principles and practices established by BS 7870 will continue to guide the development of the cables that power our modern world.
