Introduction: Powering the Depths – Why Marine Cables Matter

Imagine a massive oil rig standing defiantly against towering ocean waves, its lights piercing through the darkness as crews work around the clock to extract precious resources from beneath the seabed. Or picture a cruise ship carrying thousands of passengers across the Atlantic, its sophisticated navigation systems, emergency lighting, and entertainment networks all functioning seamlessly despite the constant motion and harsh marine environment. What makes these modern marvels of engineering possible? The answer lies in the intricate network of electrical cables that serve as the circulatory system of these floating cities and industrial platforms.

Electrical cables in marine environments face challenges that their terrestrial counterparts could never imagine. They must withstand the relentless assault of saltwater corrosion, endure temperature extremes from arctic waters to tropical heat, absorb constant vibrations from engines and wave action, and resist potential mechanical damage from heavy equipment and cargo operations. In this unforgiving environment, cable failure isn't just an inconvenience—it can mean the difference between safe operation and catastrophic disaster.

This is where the BS 6883 standard emerges as a beacon of reliability and safety. Developed specifically for marine and offshore cable applications, BS 6883 establishes rigorous requirements that ensure cables can perform reliably in the most demanding maritime conditions. The standard represents decades of engineering expertise and real-world testing, creating a benchmark that maritime professionals worldwide trust with their most critical electrical installations.

Today, we'll embark on a detailed exploration of two fundamental types of BS 6883 cables: the unarmoured EPR/SW4 (657X TQ) and the armoured EPR/SW4/GSWB/SW4 (658X TQ). While these cables share essential characteristics that make them suitable for marine use, their crucial differences determine which applications they're best suited for. Understanding these distinctions isn't just technical knowledge—it's the foundation for making informed decisions that ensure safety, reliability, and operational efficiency in marine environments.

The Core DNA: Shared Characteristics of BS 6883 EPR/SW4 Cables

Designed for the Rigors of the Sea

Before we delve into the differences between these cable types, it's essential to understand what makes them both exceptional choices for marine applications. Both the EPR/SW4 and armoured EPR/SW4/GSWB/SW4 cables are engineered specifically for fixed installations throughout all areas of ships and offshore units, including the most challenging environment of open decks. This versatility isn't accidental—it's the result of careful engineering that addresses the unique demands of maritime electrical systems.

Think of these cables as the maritime equivalent of a Swiss Army knife: versatile, reliable, and built to handle whatever the ocean throws at them. Whether installed in the climate-controlled environment of a ship's bridge or exposed to the salt spray and temperature variations of an open deck, these cables maintain their electrical integrity and mechanical stability.

The Conductor: The Heart of the Cable

At the core of both cable types lies the conductor—the pathway through which electrical current flows. Both cables utilize electrolytic annealed, class 2 or class 5 stranded tinned copper wires. This seemingly technical specification actually reveals a sophisticated approach to marine cable design.

The choice of copper as the conductor material is fundamental to electrical performance, offering excellent conductivity and reliability. However, raw copper in marine environments would quickly succumb to corrosion from salt air and moisture. This is why these cables use tinned copper, where each copper strand is coated with a thin layer of tin. This tin coating acts like a protective shield, preventing the underlying copper from oxidizing and maintaining electrical performance over the cable's lifetime.

The stranding classification—class 2 or class 5—refers to the flexibility of the conductor. Class 2 stranding uses fewer, thicker wires, while class 5 stranding uses many more, thinner wires. This difference is crucial for installation: class 5 stranded conductors offer greater flexibility, making them easier to route through tight spaces and around obstacles common in ship construction. The stranding also helps the cable withstand the constant flexing and vibration present in marine environments without breaking the conductor strands.

Some configurations include an optional separator tape over the conductor. This thin layer serves as additional protection, preventing the insulation material from adhering directly to the conductor and making future maintenance or modifications easier while improving overall insulation integrity.

Insulation: The Protective Barrier

Both cable types employ GP4 Type elastomer compound insulation, with the armoured version rated for 600/1000 V operation. Understanding insulation in marine cables requires thinking beyond simple electrical isolation—the insulation must serve as a comprehensive barrier against the marine environment's multiple threats.

Elastomer compounds like GP4 represent a significant advancement over traditional insulation materials. Unlike rigid plastics that might crack under stress or natural rubber that degrades over time, elastomer compounds maintain their protective properties across a wide range of conditions. They offer excellent electrical properties, ensuring reliable insulation even as voltage levels fluctuate during normal ship operations.

The flexibility of elastomer insulation is particularly crucial in marine applications. Ships and offshore platforms are constantly in motion, creating dynamic stresses that would quickly fatigue rigid insulation materials. The elastomer compound flexes with these movements, maintaining its integrity over thousands of cycles of bending and stretching.

Resistance to heat, moisture, and aging makes these compounds ideal for the marine environment. Engine rooms can reach extreme temperatures, while other areas of the vessel may experience significant temperature variations. The insulation must maintain its properties throughout these temperature ranges while also resisting the moisture that's omnipresent in marine environments.

Core identification follows a standardized approach with white insulation featuring black numbering. This seemingly simple detail has profound practical implications. When electricians need to troubleshoot a problem or perform maintenance in the dim lighting of an engine room or during an emergency, clear circuit identification can make the difference between a quick repair and hours of detective work.

Outer Sheath: The First Line of Defense

Both cable types feature an SW4 Type elastomer compound outer sheath, which serves as the cable's primary defense against environmental threats. The SW4 designation isn't just a technical specification—it represents a carefully engineered solution to multiple marine safety challenges.

The Low Smoke Halogen Free (LSZH) properties of SW4 sheathing address one of the most serious safety concerns in marine environments: fire safety in enclosed spaces. Traditional cable materials, when burned, can produce toxic gases and dense smoke that quickly make enclosed areas uninhabitable. In a ship or offshore platform, where escape routes may be limited and ventilation systems could be compromised, this can be life-threatening.

SW4 sheathing significantly reduces smoke generation and eliminates halogen compounds that would otherwise produce toxic gases when burned. This means that even in the unfortunate event of a fire, personnel have a better chance of safe evacuation and firefighting efforts are more effective.

The Heat, Oil, and Fire Retardant (HOFR) properties address the everyday operational hazards of marine environments. Engine rooms expose cables to elevated temperatures and potential oil contamination, while the risk of fire from various sources is an ever-present concern. SW4 sheathing resists these threats, helping prevent small incidents from escalating into major problems.

Compliance and Testing Standards: The Foundation of Trust

The reliability of these cables rests on a foundation of rigorous testing and compliance with established standards. Construction compliance with BS 6883 ensures that every aspect of the cable's design and manufacturing meets stringent requirements developed specifically for marine applications.

Electrical testing according to BS EN 50395 verifies that the cable meets specified electrical performance criteria. This includes insulation resistance testing to ensure the insulation effectively isolates conductors, voltage withstand testing to confirm the cable can handle its rated voltage under stress conditions, and conductor resistance measurements to verify electrical efficiency.

Non-electrical testing per BS EN 50396 examines the physical and material properties that determine long-term reliability. Tensile strength testing ensures the cable can withstand installation stresses and operational loads. Abrasion resistance testing simulates the wear that cables experience in service, while flame propagation testing verifies fire safety characteristics.

These comprehensive testing protocols mean that when you specify a BS 6883 cable, you're not just getting a product that meets minimum requirements—you're getting a cable that has been thoroughly validated for the demanding marine environment.

The Defining Difference: Armoured vs. Unarmoured Protection

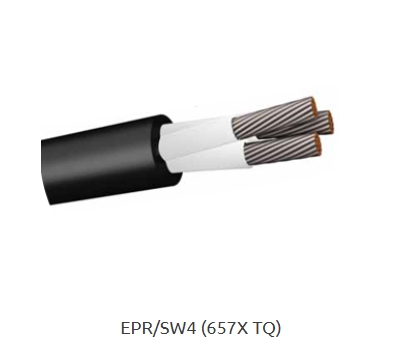

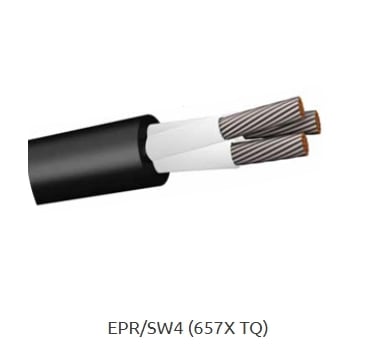

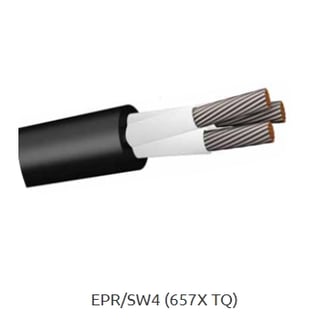

EPR/SW4 (657X TQ): The Flexible & Lightweight Champion

The unarmoured EPR/SW4 cable represents elegance through simplicity. Its construction follows a straightforward path: conductor, optional separator, GP4 insulation, and SW4 sheath. This streamlined design creates a cable that excels in applications where flexibility and ease of installation are paramount.

The absence of an armour layer dramatically reduces the cable's weight and increases its flexibility. This might seem like a minor consideration, but in marine applications, these characteristics can be crucial. Consider the installation process in tight spaces common to ship construction—between bulkheads, through cable trays with multiple bends, or in areas where the cable must be routed around obstacles. The enhanced flexibility of the unarmoured cable makes installation faster and reduces the risk of damage during the installation process.

The lightweight nature of these cables also has practical implications for vessel design. Every pound matters in marine applications, where weight affects fuel efficiency, stability, and cargo capacity. While a single cable might not make a significant difference, the cumulative weight savings across an entire electrical installation can be substantial.

The 657X TQ product code designation helps identify this cable type within the BS 6883 series. This coding system allows engineers and procurement specialists to quickly specify the correct cable for their applications while ensuring compatibility with project requirements and installation procedures.

Typical applications for unarmoured EPR/SW4 cables include areas where mechanical protection isn't the primary concern. Control panels, enclosed conduit runs, and sheltered sections of a ship's interior benefit from the cable's flexibility while providing adequate environmental protection through the installation method rather than the cable construction itself.

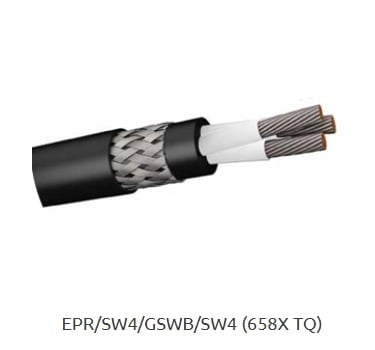

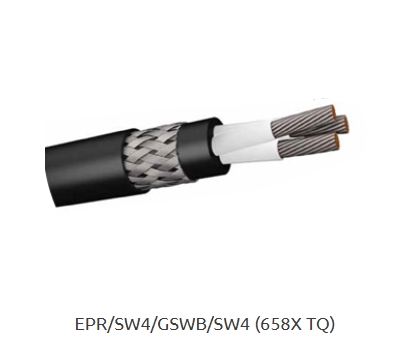

EPR/SW4/GSWB/SW4 (658X TQ): The Robust Guardian of Critical Systems

The armoured variant represents a significant step up in mechanical protection, though this enhanced protection comes with tradeoffs in weight and flexibility. The construction of the armoured cable tells the story of its enhanced capabilities: conductor, optional separator, GP4/GP5 insulation, SW4 inner sheath, GSWB armour, and SW4 outer sheath.

The additional inner sheath serves a crucial function that's often overlooked. This SW4 Type layer acts as bedding for the armour, providing a smooth, uniform surface over which the galvanised steel wire braiding can be applied. Without this bedding layer, the armour wires could create pressure points against the insulation, potentially leading to premature failure. The inner sheath also provides an additional barrier against moisture penetration, creating redundant protection for the critical insulation layer.

The Galvanised Steel Wire Braiding (GSWB) represents the heart of the armoured cable's enhanced protection. The minimum 82% coverage requirement ensures comprehensive mechanical protection while maintaining flexibility. The galvanising process coats each steel wire with zinc, providing corrosion resistance that's essential in marine environments. Without this protection, the steel armour would quickly rust in the salt-laden atmosphere, compromising its protective function and potentially creating new problems.

This armour construction provides superior mechanical protection against crushing forces, impact damage, abrasion from movement or contact with other equipment, and even protection against rodent damage—a consideration that might seem minor but can be critical in certain marine applications where rats or other pests might be present.

The enhanced durability translates directly into increased cable lifespan, which has significant economic implications. While armoured cables cost more initially, their ability to withstand harsh operational environments can prevent costly failures, reduce maintenance requirements, and minimize operational disruptions.

The 658X TQ product code specifically identifies the armoured version within the BS 6883 series, allowing for precise specification and ensuring that the enhanced protection capabilities are properly incorporated into system designs.

Critical applications for armoured cables include open decks where cables are exposed to weather, foot traffic, and potential impact from equipment or cargo operations. Engine rooms present multiple mechanical hazards from vibrating machinery, potential contact with hot surfaces, and the general industrial environment. Drilling areas on offshore platforms expose cables to heavy equipment movement, potential impact from drilling operations, and the harsh conditions associated with oil and gas extraction.

Understanding the Engineering Trade-offs

The choice between armoured and unarmoured cables isn't simply about better versus worse—it's about understanding engineering trade-offs and matching cable characteristics to application requirements. The unarmoured cable offers advantages in weight, flexibility, and cost, while the armoured version provides superior mechanical protection at the expense of these characteristics.

Weight considerations extend beyond simple installation convenience. In marine applications, particularly on smaller vessels or platforms where weight distribution is critical, the cumulative weight of electrical installations can affect stability and performance. The unarmoured cable's lighter weight can be a significant advantage in these applications.

Flexibility affects both installation and service life. More flexible cables are easier to install, particularly in complex routing situations common in marine construction. However, flexibility also affects the cable's response to vibration and movement. In some applications, the added mass and reduced flexibility of armoured cables can actually provide better resistance to fatigue from constant motion.

Cost considerations must account for both initial procurement and lifecycle costs. While armoured cables cost more upfront, their enhanced durability can provide better long-term value in demanding applications. Conversely, using armoured cables where they're not needed represents unnecessary expense without corresponding benefit.

Choosing the Right Lifeline: Application-Specific Selection Criteria

Environmental Assessment: Understanding the Threat Landscape

Effective cable selection begins with a comprehensive assessment of the installation environment. This assessment must consider both obvious and subtle environmental factors that could affect cable performance and longevity.

Mechanical damage risks include obvious threats like heavy equipment movement, cargo operations, and potential impact from maintenance activities. However, subtler risks like vibration from machinery, thermal cycling that causes expansion and contraction, and even the cumulative effect of personnel foot traffic must be considered.

The marine environment presents unique challenges that terrestrial installations rarely encounter. Salt spray can penetrate surprising distances from the ocean surface, creating corrosive conditions even in seemingly protected areas. Temperature variations can be extreme, from the heat of engine rooms to the cold of refrigerated spaces or northern waters. Humidity levels are typically high throughout marine installations, creating conditions that accelerate many degradation processes.

Installation Constraints: Balancing Protection with Practicality

Installation constraints often drive cable selection decisions as much as environmental factors. Tight bends, limited access spaces, and complex routing requirements favor more flexible unarmoured cables. However, these same constraints might also increase the risk of installation damage, suggesting that armoured cables could be appropriate despite the installation challenges.

The installation process itself must be considered. Armoured cables require more careful handling during installation to prevent damage to the armour and ensure proper termination techniques. Installation crews must be trained in proper armoured cable handling, and appropriate tools and techniques must be available.

Space constraints in marine installations often dictate creative cable routing solutions. The enhanced flexibility of unarmoured cables can make the difference between a straightforward installation and one requiring significant modifications to accommodate cable routing requirements.

Safety Prioritization: When Protection Trumps Convenience

Safety considerations should always take precedence in cable selection decisions. Areas with high risk of mechanical damage, critical system applications, and locations where cable failure could compromise vessel safety or environmental protection should generally favor armoured cable solutions.

The cost of cable failure extends far beyond the price of replacement cables. In marine applications, cable failures can result in system shutdowns, safety hazards, environmental incidents, and expensive emergency repairs. The enhanced protection provided by armoured cables often represents excellent insurance against these potential consequences.

However, safety considerations also include installation safety. More flexible cables are often safer to install, particularly in confined spaces or challenging routing situations. The installation safety benefits of unarmoured cables must be weighed against their reduced operational protection.

Economic Analysis: Total Cost of Ownership

A comprehensive economic analysis considers not just initial cable cost but the total cost of ownership throughout the cable's service life. This analysis must include procurement costs, installation costs, maintenance requirements, expected service life, and the cost of potential failures.

Armoured cables typically cost 30-50% more than their unarmoured counterparts, but this premium must be evaluated against their enhanced durability and reduced failure risk. In critical applications, the cost of a single failure event can easily exceed the premium paid for armoured construction.

Installation costs can also vary significantly between cable types. Unarmoured cables are typically faster and easier to install, reducing labor costs. However, armoured cables might eliminate the need for additional mechanical protection measures, potentially offsetting their higher installation complexity.

an oil rig in the middle of the ocean
an oil rig in the middle of the ocean

Advanced Considerations for Marine Cable Applications

System Integration and Compatibility

Modern marine electrical systems are complex networks where individual components must work together seamlessly. Cable selection affects not just the immediate installation but also system integration, maintenance procedures, and future modifications or expansions.

Termination requirements differ between armoured and unarmoured cables. Armoured cables require specialized termination techniques to properly ground the armour and prevent moisture ingress at termination points. This requirement affects both initial installation costs and ongoing maintenance procedures.

Compatibility with existing installations must be considered when expanding or modifying marine electrical systems. Mixing cable types within a system isn't necessarily problematic, but it does require careful consideration of termination techniques, grounding practices, and maintenance procedures.

Future-Proofing and Adaptability

Marine installations typically have long service lives, and electrical systems must adapt to changing requirements over time. Cable selection should consider not just current needs but also potential future modifications, expansions, or changes in operational requirements.

The enhanced mechanical protection of armoured cables can provide better long-term adaptability by reducing the risk of damage during future modifications. However, the increased flexibility of unarmoured cables might make them easier to repurpose or reroute as system requirements change.

Regulatory requirements continue to evolve, particularly in areas related to safety and environmental protection. Cable selections should consider potential future regulatory changes that might affect system requirements or acceptable installation practices.

Specialized Marine Applications

Certain marine applications present unique requirements that affect cable selection decisions. Offshore wind installations, for example, combine marine environmental challenges with the specific requirements of renewable energy systems. Deep-sea research vessels might require cables that can withstand extreme pressure variations. Military vessels have specific requirements related to electromagnetic compatibility and survivability.

These specialized applications often require modifications to standard cable designs or the use of specialized variants within the BS 6883 family. Understanding these requirements early in the design process ensures appropriate cable selection and avoids costly modifications later in the project.

Installation Best Practices and Considerations

Pre-Installation Planning

Successful marine cable installations begin with comprehensive planning that considers the unique challenges of the marine environment. This planning must account for weather windows, vessel scheduling, and the logistical challenges of working in offshore environments.

Cable handling and storage procedures are particularly critical in marine environments. Salt air can accelerate corrosion of exposed metal components, while temperature and humidity variations can affect cable properties. Proper storage and handling procedures protect the cable investment and ensure optimal performance.

Installation Techniques and Quality Control

Proper installation techniques are crucial for realizing the full potential of both armoured and unarmoured marine cables. These techniques must account for the specific characteristics of each cable type while addressing the unique challenges of marine installations.

Quality control during installation includes verification of proper cable routing, appropriate support spacing, correct termination techniques, and thorough testing before system commissioning. Each of these elements contributes to long-term system reliability and safety.

Maintenance and Lifecycle Management

Preventive Maintenance Strategies

Effective maintenance of marine cable systems requires understanding the specific characteristics and failure modes of each cable type. Armoured cables require attention to armour integrity and grounding continuity, while unarmoured cables need monitoring for signs of mechanical stress or environmental degradation.

Regular inspection procedures should be tailored to the specific risks and failure modes associated with each cable type and installation environment. These procedures help identify potential problems before they result in system failures or safety hazards.

Troubleshooting and Repair Considerations

When problems do occur, the approach to troubleshooting and repair differs between armoured and unarmoured cables. Armoured cables offer some protection against external damage but can be more complex to repair when problems do occur. Understanding these differences helps maintenance teams respond effectively to system problems.

Emergency repair procedures must account for the specific characteristics of each cable type and the limitations of shipboard or offshore repair capabilities. Having appropriate spare parts and repair materials available is crucial for minimizing downtime in critical applications.

Conclusion: Engineering Excellence for Marine Safety

The journey through the technical landscape of BS 6883 marine cables reveals the sophisticated engineering that goes into protecting the electrical lifelines of our maritime world. Both the EPR/SW4 (657X TQ) and EPR/SW4/GSWB/SW4 (658X TQ) cables represent the culmination of decades of engineering expertise, combining advanced materials science with practical experience from countless marine installations worldwide.

These cables share fundamental characteristics that make them exceptionally well-suited for marine applications: the corrosion-resistant tinned copper conductors that maintain electrical integrity in salt-laden environments, the elastomer insulation systems that provide reliable electrical isolation while withstanding the physical stresses of marine service, and the SW4 sheathing that offers both environmental protection and enhanced fire safety characteristics.

The critical distinction between these cable types lies in the presence or absence of the galvanised steel wire braiding armour—a seemingly simple difference that dramatically affects their appropriate applications. The unarmoured EPR/SW4 cable excels in applications where flexibility, weight considerations, and installation convenience are paramount, while still providing the environmental protection and electrical performance required for marine service. The armoured EPR/SW4/GSWB/SW4 variant sacrifices some flexibility and adds weight and cost to provide superior mechanical protection that can be crucial in demanding operational environments.

The selection process between these cable types requires a comprehensive understanding of the installation environment, operational requirements, safety considerations, and economic factors. This decision-making process exemplifies the broader challenges of marine engineering, where multiple competing requirements must be balanced to achieve optimal results.

As our maritime industries continue to evolve—with larger vessels, more complex offshore installations, and increasingly sophisticated electrical systems—the importance of proper cable selection becomes ever more critical. The foundation of knowledge provided by understanding these cable types, their characteristics, and their appropriate applications ensures that future marine electrical installations will continue to meet the highest standards of safety, reliability, and operational efficiency.

The ocean remains one of Earth's most challenging environments, but through careful engineering and proper material selection, we continue to build electrical systems that reliably serve the vessels and platforms that connect our world and harvest its resources. In this context, the choice between EPR/SW4 and armoured EPR/SW4/GSWB/SW4 cables isn't just a technical decision—it's a commitment to the safety and success of the maritime operations that depend on these electrical lifelines.

Whether powering the navigation systems that guide a container ship safely to port, providing electricity to the critical safety systems of an offshore oil platform, or ensuring reliable operation of the environmental monitoring equipment on a research vessel, these cables serve as silent guardians of maritime safety and operational success. Understanding their capabilities and limitations ensures that this guardianship continues for generations to come, supporting humanity's ongoing relationship with the sea.
