Introduction: Meeting the Demands of Modern Marine Lifting Technology

Modern maritime operations depend heavily on sophisticated lifting and handling equipment that must operate reliably in some of the world's most challenging environments. Container terminals, offshore platforms, and shipboard crane systems require cables that can withstand not only the electrical demands of high-power equipment but also the severe mechanical stresses inherent in vertical reeling operations. The ÜNFLEX SPREADER REEL PUR – HF represents a breakthrough in marine cable technology, specifically engineered to address the unique challenges faced by engineers and procurement specialists in the maritime industry.

Vertical reeling systems present a particularly complex set of engineering challenges that go far beyond simple cable management. Unlike fixed installations or horizontal applications, vertical reeling subjects cables to continuous torsional forces, varying tensile loads, and rapid acceleration cycles that can quickly degrade conventional cable designs. The marine environment compounds these challenges with corrosive salt spray, extreme temperature variations, and constant moisture exposure that can penetrate cable jackets and compromise both electrical integrity and mechanical performance.

The ÜNFLEX SPREADER REEL PUR – HF addresses these challenges through advanced materials science and precision engineering. Its development represents years of research into the specific failure modes that plague marine cable installations, resulting in a cable design that not only meets but exceeds the performance requirements of modern port operations and offshore lifting systems.

Understanding the Critical Role of Specialized Reeling Cables

To appreciate the significance of the ÜNFLEX SPREADER REEL PUR – HF, it's essential to understand how vertical reeling systems create unique mechanical stress patterns that conventional cables simply cannot withstand. When a cable is wound onto a reel in vertical applications, it experiences what engineers call "combined loading" – simultaneous tension, torsion, and bending forces that work together to create failure points throughout the cable structure.

The tension component arises from the weight of the cable itself plus any additional mechanical loads from the equipment it powers. In spreader reel applications, this can represent significant forces as the cable must support not only its own weight but also resist the dynamic loads created by container handling operations. The torsional component comes from the winding action itself, as each layer of cable on the reel creates twist forces that must be absorbed by the cable structure without causing conductor fatigue or insulation breakdown.

Perhaps most challenging is the bending component, which occurs at the transition point where the cable moves from the straight vertical section to the curved section entering the reel. This transition zone represents the highest stress area in the entire system, where cables must maintain their electrical properties while accommodating bend radii that change dynamically with reel position and load conditions.

Application Scenarios: Where the ÜNFLEX SPREADER REEL PUR – HF Excels

The ÜNFLEX SPREADER REEL PUR – HF finds its primary application in spreader reeling systems used on container cranes and port handling equipment. These systems represent some of the most demanding cable applications in the maritime industry, where cables must deliver reliable power to spreader mechanisms that lift and position containers weighing up to 65 tons or more. The constant acceleration and deceleration cycles, combined with the need for precise positioning, create electrical load patterns that stress both the conductors and insulation systems.

In container terminal operations, the cable must perform reliably through thousands of lift cycles per day, with each cycle involving rapid acceleration from rest to full speed, followed by equally rapid deceleration and precise positioning. The electrical demands during these operations can vary dramatically, from high starting currents during motor acceleration to regenerative braking currents during deceleration. The cable's conductor design and insulation system must accommodate these varying loads without experiencing thermal cycling damage or electrical breakdown.

The marine environment adds another layer of complexity to these applications. Salt-laden air creates corrosive conditions that can penetrate cable jackets and attack conductor materials. Temperature variations from freezing conditions during winter operations to extreme heat from solar loading during summer can cause expansion and contraction cycles that stress cable connections and internal components. Moisture ingress, whether from rain, spray, or condensation, can create electrical leakage paths and accelerate corrosion processes.

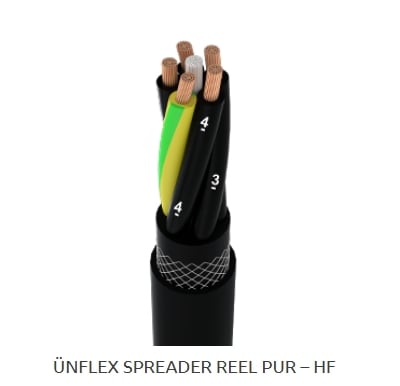

Advanced Construction: Engineering Excellence in Every Component

The ÜNFLEX SPREADER REEL PUR – HF represents a comprehensive approach to marine cable design, where every component has been optimized for the specific demands of vertical reeling applications. The cable's construction follows rigorous international standards including IEC 60502 and VDE 0250, ensuring compatibility with global maritime equipment specifications while exceeding basic performance requirements.

Conductor Technology: Maximizing Electrical Performance

The cable employs Class 5 fine-stranded electrolytic plain annealed copper conductors, a specification that reflects careful consideration of both electrical and mechanical requirements. The "Class 5" designation indicates an extremely fine stranding pattern that provides maximum flexibility while maintaining excellent electrical conductivity. This fine stranding is crucial in reeling applications because it allows the conductor to bend repeatedly without experiencing the work hardening that can lead to conductor fatigue and eventual failure.

The electrolytic copper specification ensures the highest possible conductivity, which becomes particularly important in marine applications where power losses can be significant due to cable length and environmental factors. The plain annealed treatment provides the optimal balance between conductivity and flexibility, allowing the conductors to withstand the mechanical stresses of reeling while maintaining their electrical properties over extended service life.

Insulation System: Protecting Against Electrical and Environmental Hazards

The insulation system represents one of the most critical aspects of the cable's design, employing a halogen-free polyester-based compound that provides exceptional electrical properties while resisting the environmental factors common in marine applications. The halogen-free designation is particularly important for shipboard and enclosed terminal applications, where fire safety requirements mandate materials that produce minimal toxic gases during combustion.

The polyester base provides excellent electrical insulation properties across a wide temperature range, maintaining its dielectric strength even under the thermal cycling conditions common in marine operations. The compound formulation includes additives that enhance resistance to hydrolysis, a common failure mode in marine cables where moisture ingress can break down insulation materials over time.

A critical innovation in the insulation system is the PTFE wrapping applied over the polyester compound. This wrapping serves multiple functions: it provides additional protection against abrasion during reeling operations, creates a barrier against moisture ingress, and provides a low-friction surface that reduces mechanical stress during cable movement. The PTFE material maintains its properties across the full operating temperature range, ensuring consistent performance from Arctic conditions to tropical heat.

Sheathing Technology: Ultimate Protection Against Marine Environments

The dual-layer sheathing system represents the cable's primary defense against the harsh marine environment. Both inner and outer sheaths are constructed from halogen-free flame-retardant polyurethane (PUR), a material specifically chosen for its exceptional resistance to the environmental factors encountered in marine applications.

Polyurethane offers superior resistance to hydrolysis compared to conventional PVC or rubber compounds, making it ideal for applications where moisture exposure is constant. The material maintains its flexibility and mechanical properties even after extended exposure to saltwater, oils, hydraulic fluids, and the various chemicals commonly found in port environments.

The flame-retardant properties of the PUR compound are particularly important for shipboard applications, where fire safety requirements are stringent. The halogen-free formulation ensures that in the event of fire, the cable will not contribute to the production of toxic gases that could endanger personnel or damage sensitive electronic equipment.

Aramid Reinforcement: The Key to Torsional Stability

Perhaps the most critical innovation in the ÜNFLEX SPREADER REEL PUR – HF is its integrated Aramid strength member and braided Aramid yarn reinforcement. Aramid fibers, known for their exceptional strength-to-weight ratio and resistance to fatigue, provide the cable with the mechanical properties necessary to withstand the severe stresses of vertical reeling operations.

The central Aramid strength member bears the primary tensile loads, relieving stress on the electrical conductors and preventing the elongation that could lead to conductor fatigue. This strength member is sized to handle the maximum expected loads with appropriate safety factors, ensuring that the cable can support its own weight plus any additional mechanical loads without approaching failure limits.

The braided Aramid yarn reinforcement serves a different but equally important function. This braiding resists the torsional forces that develop during reeling operations, preventing the cable from twisting and maintaining proper conductor geometry. The braiding pattern is engineered to provide optimal torque resistance while maintaining cable flexibility, allowing the cable to bend smoothly during reeling while resisting the twisting forces that could cause conductor displacement or insulation damage.

Electrical Performance: Precision Engineering for Demanding Applications

The electrical specifications of the ÜNFLEX SPREADER REEL PUR – HF reflect its design for high-performance marine applications. The rated voltage of 0.6/1 kV provides adequate safety margins for most port equipment applications, while the maximum AC voltage capability of 0.7/1.2 kV ensures reliable operation even under system voltage variations common in marine electrical systems.

The DC voltage ratings of 0.9/1.8 kV recognize the increasing use of variable frequency drives and DC motor systems in modern port equipment. These systems can generate voltage spikes and transients that exceed normal AC voltage levels, making the higher DC rating essential for reliable operation.

The AC test voltage of 3.5 kV provides a substantial safety margin, ensuring that the cable can withstand the electrical stresses that may occur during system fault conditions or transient events. This test voltage is applied during manufacturing to verify insulation integrity and provides confidence that the cable will maintain its electrical properties throughout its service life.

Current carrying capacity follows DIN VDE 0298-4 standards, which provide comprehensive guidance for calculating cable ampacity under various installation conditions. The fine-stranded conductor design and advanced insulation system allow the cable to carry substantial currents while maintaining safe operating temperatures even under the demanding conditions of continuous reeling operations.

Mechanical Properties: Engineered for Extreme Service Conditions

The mechanical properties of the ÜNFLEX SPREADER REEL PUR – HF demonstrate its suitability for the most demanding marine applications. The minimum bending radius specifications of 6 times the cable diameter for fixed installations and 8 times for mobile applications reflect the cable's exceptional flexibility while ensuring that bending stresses remain within safe limits.

These bending radius specifications are particularly important in reeling applications, where the cable must accommodate the curvature of the reel drum while maintaining its electrical and mechanical properties. The relatively small bending radii possible with this cable design allow for more compact reel systems and greater flexibility in equipment design.

The maximum tensile load specification of 30 N/mm² on the conductor provides clear guidance for installation and operation. This specification ensures that the cable can support its own weight in vertical installations while providing adequate safety margins for additional loads that may be encountered during operation. The Aramid strength member carries the primary tensile loads, but the conductor specification provides an additional safety factor for extreme conditions.

Torsional performance is critical in reeling applications, and the ÜNFLEX SPREADER REEL PUR – HF is rated for ±25° per meter of cable length. This specification recognizes that some torsional loading is inevitable in reeling systems while ensuring that the cable can accommodate this loading without damage. The braided Aramid reinforcement provides the torsional strength necessary to meet this specification while maintaining cable flexibility.

Temperature Performance: Reliability Across Extreme Conditions

The temperature performance of the ÜNFLEX SPREADER REEL PUR – HF reflects its design for global marine applications, where equipment may operate in Arctic conditions or tropical heat. The cable maintains its flexibility and electrical properties from -50°C in fixed installations to +90°C during normal operation, with short-circuit capability up to +250°C.

The low-temperature performance is particularly challenging for marine cables, as many materials become brittle and lose their flexibility at extreme cold temperatures. The polyurethane sheathing and specialized insulation compounds maintain their properties even at -50°C, ensuring that the cable can be installed and operated in the harshest Arctic conditions.

High-temperature performance is equally important, as marine equipment often operates in enclosed spaces where ambient temperatures can be elevated, and electrical loading can generate additional heat. The +90°C continuous operating temperature provides adequate safety margins for most applications, while the +250°C short-circuit rating ensures that the cable can survive electrical fault conditions without catastrophic failure.

Speed and Dynamic Performance: Meeting Modern Operational Demands

Modern port operations demand high-speed equipment capable of rapid cycle times to maximize throughput. The ÜNFLEX SPREADER REEL PUR – HF is designed to meet these demands with impressive speed capabilities that exceed most conventional marine cables.

For festoon systems, the cable can operate at speeds up to 240 meters per minute, allowing for rapid traverse of gantry cranes and other equipment. This high-speed capability is made possible by the cable's flexible construction and advanced materials that resist fatigue even under rapid acceleration and deceleration cycles.

In reeling applications, the cable maintains its 240 m/min capability for horizontal applications while supporting vertical tensile loads up to 180 N/mm². This combination of speed and load capacity makes the cable ideal for modern spreader systems that must operate at high speeds while supporting substantial loads.

The dynamic performance of the cable extends beyond simple speed capabilities to include acceleration and deceleration performance. The cable's construction allows it to withstand the mechanical stresses associated with rapid speed changes, ensuring reliable operation even in applications with aggressive acceleration profiles.

Installation Considerations: Maximizing Performance Through Proper Application

Proper installation of the ÜNFLEX SPREADER REEL PUR – HF is critical to achieving its full performance potential. The cable's advanced construction provides exceptional capabilities, but these capabilities can only be realized through careful attention to installation details and system design considerations.

Reel design is perhaps the most critical aspect of successful installation. The reel drum diameter must be sufficient to maintain bending radii within the cable's specifications, while the reel system must be designed to minimize torsional loading during operation. Proper cable management systems, including guide systems and tension control, are essential to prevent damage during installation and operation.

Cable termination requires special attention due to the cable's multi-layer construction and Aramid reinforcement. Proper termination techniques must maintain the cable's mechanical properties while providing reliable electrical connections. The use of appropriate strain relief and environmental sealing is particularly important in marine applications where moisture ingress can be a significant concern.

System grounding and electrical protection must be carefully considered to ensure that the cable's electrical properties are properly utilized. The cable's shielding and grounding systems must be properly connected to provide effective protection against electrical noise and fault conditions.

Maintenance and Service Life: Maximizing Return on Investment

The ÜNFLEX SPREADER REEL PUR – HF is designed for extended service life with minimal maintenance requirements. However, proper maintenance practices are essential to achieve the cable's full potential and maximize return on investment.

Regular inspection should focus on the cable's exterior condition, looking for signs of abrasion, cracking, or other damage that could compromise the cable's integrity. The connection points and terminations should be inspected for signs of corrosion, looseness, or other issues that could affect electrical performance.

Electrical testing should be performed periodically to verify insulation resistance and conductor continuity. These tests can identify developing problems before they result in system failures, allowing for planned maintenance rather than emergency repairs.

The cable's polyurethane sheathing may benefit from periodic cleaning to remove salt deposits and other contaminants that could accelerate degradation. However, care must be taken to use cleaning agents that are compatible with the cable materials and will not damage the sheathing.

Conclusion: Setting New Standards for Marine Cable Performance

The ÜNFLEX SPREADER REEL PUR – HF represents a significant advancement in marine cable technology, offering engineers and procurement specialists a solution that addresses the unique challenges of vertical reeling applications in harsh marine environments. Its combination of advanced materials, precision engineering, and comprehensive testing ensures reliable performance in the most demanding applications.

The cable's integrated Aramid strength member and braided reinforcement provide the mechanical properties necessary for high-stress vertical reeling, while its halogen-free polyurethane construction offers exceptional resistance to marine environmental factors. The electrical specifications provide adequate safety margins for modern port equipment, while the mechanical properties enable high-speed, high-load operation.

For engineers and procurement specialists evaluating cable options for marine applications, the ÜNFLEX SPREADER REEL PUR – HF offers a comprehensive solution that can reduce maintenance costs, improve system reliability, and extend service life compared to conventional cable designs. Its proven performance in demanding applications makes it an ideal choice for new installations and upgrades to existing systems.

The investment in advanced cable technology like the ÜNFLEX SPREADER REEL PUR – HF pays dividends through reduced downtime, lower maintenance costs, and improved system performance. In an industry where equipment reliability directly impacts profitability, choosing the right cable technology is not just an engineering decision but a strategic business choice that can provide competitive advantages for years to come.
