ÜNFLEX LIFT TRAILING PUR – HF: Engineering Excellence in Vertical Marine Power Transmission

Introduction: The Engineering Challenge of Vertical Power Transmission

In the demanding world of marine engineering and port operations, few challenges are as complex as maintaining reliable electrical power transmission through vertical lifting systems. Consider the massive container cranes that dominate modern ports, lifting loads weighing hundreds of tons through vertical distances exceeding 50 meters, or the sophisticated ship-to-shore transfer systems that must operate continuously in harsh saltwater environments. These applications present a unique convergence of electrical, mechanical, and environmental challenges that standard power cables simply cannot address effectively.

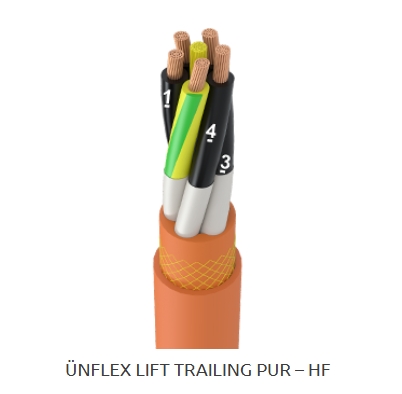

The ÜNFLEX LIFT TRAILING PUR – HF cable represents a sophisticated engineering solution specifically designed to meet these extraordinary demands. This specialized power transmission cable demonstrates how advanced materials science, precise mechanical engineering, and deep understanding of marine environmental conditions can combine to create a solution that performs reliably where conventional cables would fail catastrophically.

Understanding the Application Landscape: Where Extreme Demands Meet Engineering Innovation

The Vertical Challenge: Why Standard Cables Fail

To appreciate the engineering sophistication of the ÜNFLEX LIFT TRAILING PUR – HF, we must first understand why vertical lifting applications present such formidable challenges. When a cable hangs vertically while carrying electrical current, it experiences forces that are fundamentally different from those encountered in horizontal applications. The cable's own weight creates continuous tensile stress throughout its length, with maximum stress occurring at the top connection point. This stress increases proportionally with cable length and weight, creating a scenario where longer vertical runs demand exponentially greater strength.

Beyond simple gravitational forces, vertical reeling systems introduce dynamic mechanical stresses that test every aspect of cable construction. As the cable extends and retracts during lifting operations, it experiences rapid acceleration and deceleration forces that can exceed several times the gravitational load. The reeling mechanism itself introduces torsional forces as the cable winds and unwinds, creating a complex stress pattern that combines tension, torsion, and bending in ways that can quickly fatigue conventional cable designs.

Marine Environmental Amplification

Marine environments dramatically amplify these mechanical challenges through environmental factors that would be manageable individually but become overwhelming in combination. Saltwater exposure creates ongoing chemical attack on cable materials, while humidity and temperature variations cause expansion and contraction cycles that stress internal connections. Wind loading on vertical cable runs can induce dynamic oscillations that add yet another dimension to the mechanical stress profile.

The ÜNFLEX LIFT TRAILING PUR – HF addresses these challenges through a comprehensive design approach that considers each stress factor and their interactions. Its application in container cranes, ship-to-shore lifts, offshore hoists, and marine elevator platforms demonstrates the versatility of this engineering approach across diverse but related operational scenarios.

Electrical Performance Architecture: Power Transmission Under Mechanical Duress

Voltage Rating Philosophy and Safety Margins

The electrical specification of the ÜNFLEX LIFT TRAILING PUR – HF reflects a conservative engineering approach that prioritizes reliability over minimal cost. With a rated voltage of 0.6/1 kV and maximum AC operating voltages of 0.7/1.2 kV, the cable incorporates substantial safety margins that account for the electrical stress variations inherent in dynamic mechanical applications.

This voltage rating structure follows the international convention where the first number indicates the rated voltage between conductor and earth, while the second represents the rated voltage between conductors. The conservative rating ensures that even under maximum mechanical stress, when cable geometry might vary slightly due to tensile loading, the electrical performance remains within safe operational parameters.

The AC test voltage specification of 3.5 kV provides additional insight into the cable's electrical integrity design. This test voltage, which is five times the rated line-to-line voltage, ensures that the insulation system can withstand not only normal operating voltages but also the transient overvoltages that commonly occur in marine electrical systems due to switching operations, lightning strikes, or power system faults.

Conductor Design: Balancing Flexibility with Current Capacity

The fine-stranded copper conductor construction, conforming to Class 5 or 6 specifications per IEC 60228, represents a critical compromise between electrical performance and mechanical flexibility. Class 5 conductors consist of numerous fine copper strands that provide the flexibility necessary for continuous flexing applications, while Class 6 conductors offer even greater flexibility through the use of even finer strands.

This stranding approach serves multiple engineering purposes beyond simple flexibility. The multiple parallel current paths created by fine stranding help maintain electrical continuity even if individual strands fail due to fatigue, providing a degree of electrical redundancy. Additionally, the fine stranding reduces skin effect losses at higher frequencies, which can be significant in variable frequency drive applications common in modern crane control systems.

The current capacity determination according to DIN VDE 0298-4 acknowledges that current-carrying capacity in dynamic applications differs significantly from static installations. The standard accounts for factors such as reduced heat dissipation due to cable movement, potential hot spots from mechanical stress concentrations, and the thermal cycling effects of intermittent loading patterns typical in lifting applications.

Temperature Performance Envelope

The conductor operating temperature specification of +90°C with short circuit capability to +250°C reveals sophisticated thermal management design. The 90°C continuous rating ensures reliable operation even under high ambient temperatures combined with significant solar loading, common conditions on exposed marine installations.

The short circuit temperature rating of 250°C demonstrates the cable's ability to survive fault conditions without catastrophic failure. This specification is particularly important in marine applications where fault clearing times may be extended due to coordination with other protective systems or the need to safely complete lifting operations before power interruption.

Mechanical Construction: Engineering Resilience Through Material Science

The Central Strength Member: Kevlar's Role in Load Distribution

The incorporation of a central Kevlar (aramid) strength member represents one of the most critical design decisions in the ÜNFLEX LIFT TRAILING PUR – HF construction. Kevlar, with its exceptional tensile strength-to-weight ratio and resistance to fatigue, serves as the primary load-bearing element that relieves mechanical stress from the electrical conductors.

This design philosophy recognizes a fundamental principle in cable engineering: electrical conductors, even when constructed from high-strength copper, are not optimized for mechanical loading. Copper's excellent electrical properties come at the cost of limited tensile strength and susceptibility to fatigue under repeated loading cycles. By transferring the primary mechanical loads to a dedicated strength member, the electrical conductors remain in their optimal stress state for reliable power transmission.

The central placement of the Kevlar strength member creates optimal load distribution geometry. As tensile forces are applied to the cable, they are transmitted directly to the strength member through the cable's core, minimizing stress concentration in the surrounding electrical elements. This arrangement also provides the most efficient use of the strength member material, as the central location experiences uniform stress distribution regardless of cable bending orientation.

Insulation System: Chemical and Mechanical Protection

The insulation system employing polyamide alloy or halogen-free polyester elastomer demonstrates advanced materials selection for demanding environments. These materials provide several critical performance characteristics that address the unique challenges of marine vertical lifting applications.

Polyamide alloys offer exceptional resistance to mechanical abrasion while maintaining good electrical properties across a wide temperature range. Their chemical inertness provides resistance to the various lubricants, hydraulic fluids, and cleaning agents commonly encountered in marine environments. The elastomeric properties ensure that the insulation can accommodate the mechanical deformations associated with cable flexing without developing stress cracks that could compromise electrical integrity.

The optional PTFE wrap addition for enhanced abrasion resistance addresses specific applications where cable contact with mechanical structures is unavoidable. PTFE's exceptionally low coefficient of friction and chemical inertness provide an additional protective barrier that extends cable service life in the most demanding applications.

Anti-Twist Engineering: Managing Torsional Forces

The anti-twist aramid yarn braid represents sophisticated mechanical engineering applied to a common problem in vertical reeling applications. As cables wind onto reels, they naturally tend to twist, creating torsional stress that can damage internal elements and degrade electrical performance over time.

The aramid braid construction creates a geometric pattern that resists torsional deformation while allowing normal bending flexibility. This is achieved through a specific braiding angle and tension that creates mechanical opposition to twisting forces while not significantly increasing the cable's bending stiffness. The result is a cable that maintains its electrical and mechanical integrity even through thousands of reeling cycles.

Understanding the physics of this anti-twist design helps explain its effectiveness. The braided aramid fibers create helical load paths that convert torsional forces into tensile loads distributed across multiple fiber bundles. This load distribution prevents stress concentration and provides redundancy against individual fiber failure.

Sheath System: Environmental Protection Architecture

The dual-layer polyurethane sheath system provides comprehensive environmental protection through a carefully engineered material selection and construction approach. Polyurethane offers an exceptional combination of properties that make it ideal for marine applications: excellent abrasion resistance, good chemical compatibility with marine environments, and maintained flexibility across a wide temperature range.

The inner sheath layer provides the primary barrier against moisture ingress and chemical attack, while the outer layer bears the primary mechanical loads from external abrasion and impact. This layered approach allows each sheath component to be optimized for its specific function while providing redundancy against failure.

The halogen-free formulation addresses modern environmental and safety requirements while maintaining performance characteristics. Halogen-free materials produce less toxic combustion products in fire situations, an important safety consideration in the confined spaces often associated with marine installations.

Environmental Resilience: Performance Across Extreme Conditions

Temperature Performance: From Arctic to Tropical Operations

The temperature specification range from -50°C to +90°C for fixed installations and -40°C to +90°C for mobile applications demonstrates the cable's capability to operate across virtually any climate condition encountered in marine applications. This temperature range encompasses everything from Arctic offshore platforms to tropical port facilities, ensuring consistent performance regardless of deployment location.

The distinction between fixed and mobile temperature ratings reflects the different thermal stresses experienced in each application type. Fixed installations benefit from thermal mass and reduced air circulation, allowing operation at lower temperatures. Mobile applications experience greater thermal cycling and wind chill effects, necessitating the more conservative lower temperature limit.

Understanding the physics behind low-temperature cable performance helps explain these specifications. As temperatures decrease, most polymer materials become increasingly stiff and brittle, making them susceptible to cracking under mechanical stress. The materials selected for the ÜNFLEX LIFT TRAILING PUR – HF maintain sufficient flexibility even at extreme low temperatures to accommodate normal handling and installation stresses without damage.

Mechanical Stress Tolerance: Quantifying Durability

The torsion tolerance specification of ±25°/m provides a quantitative measure of the cable's ability to handle the twisting forces inherent in reeling applications. This specification means that the cable can withstand 25 degrees of twist per meter of length in either direction while maintaining its electrical and mechanical integrity.

To put this specification in perspective, consider a 50-meter cable deployment where the entire length might experience 1,250 degrees of total twist (nearly 3.5 complete rotations) during normal operation. The anti-twist design elements must accommodate this level of deformation repeatedly without failure, demonstrating the sophistication of the mechanical engineering involved.

The tensile load specification of maximum 30 N/mm² on the conductor provides insight into the load distribution design philosophy. This relatively moderate stress level on the electrical conductor indicates that the Kevlar strength member is effectively carrying the primary mechanical loads, allowing the conductor to operate within its optimal stress range for long-term reliability.

Speed Capabilities: Dynamic Performance Optimization

The travel speed specifications of up to 150 m/min vertical and 200 m/min horizontal reveal the cable's optimization for high-performance applications. These speeds are significantly higher than typical industrial power cables can accommodate, reflecting specialized design features that address the dynamic stresses of high-speed operation.

High-speed cable movement creates several engineering challenges beyond simple mechanical stress. Air resistance becomes significant at these speeds, creating drag forces that must be accommodated in the cable design. Dynamic loading from acceleration and deceleration creates stress cycles that can induce fatigue in inadequately designed cables. The resonant frequency behavior of long cable runs can create oscillations that amplify stress levels beyond static calculations.

The ÜNFLEX LIFT TRAILING PUR – HF addresses these challenges through careful attention to mass distribution, flexibility characteristics, and damping properties that minimize dynamic stress amplification while maintaining the mechanical strength necessary for reliable operation.

Chemical Resistance: Surviving Marine Environments

The specified resistance to hydrolysis, solvents, alkalines, and oils addresses the complex chemical environment typical of marine applications. Hydrolysis resistance is particularly critical in marine environments where constant moisture exposure can gradually degrade polymer materials through chemical reaction with water molecules.

Solvent resistance addresses exposure to the various cleaning agents, lubricants, and hydraulic fluids common in marine machinery. The alkaline resistance specification addresses exposure to seawater, which has a slightly alkaline pH, as well as various cleaning and deicing compounds used in marine facilities.

Oil resistance ensures compatibility with the hydraulic systems commonly used in marine lifting equipment, preventing degradation from accidental contact with hydraulic fluids during maintenance or operation.

Quality Standards and Compliance: International Recognition

Standards Compliance Framework

The cable's compliance with IEC 60502 and VDE 0250 standards demonstrates adherence to internationally recognized quality and performance standards. IEC 60502 specifically addresses power cables with extruded insulation for rated voltages from 1 kV to 30 kV, providing comprehensive requirements for electrical, mechanical, and environmental performance.

VDE 0250 compliance adds the rigorous German engineering standards that are widely recognized in the marine industry for their thoroughness and reliability focus. These standards address not only basic performance requirements but also long-term reliability and safety considerations that are critical in marine applications.

The flame retardancy compliance per IEC 60332-1 addresses fire safety requirements that are increasingly important in marine applications. This standard ensures that the cable will not contribute to fire propagation, an essential safety feature in the confined spaces and evacuation challenges typical of marine installations.

Practical Applications: Real-World Performance Examples

Container Terminal Operations

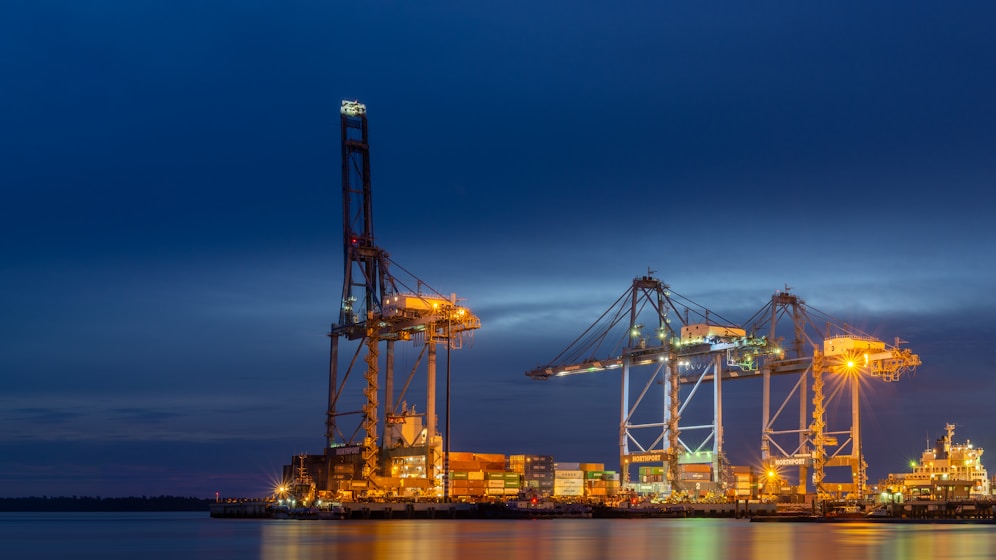

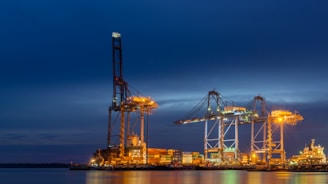

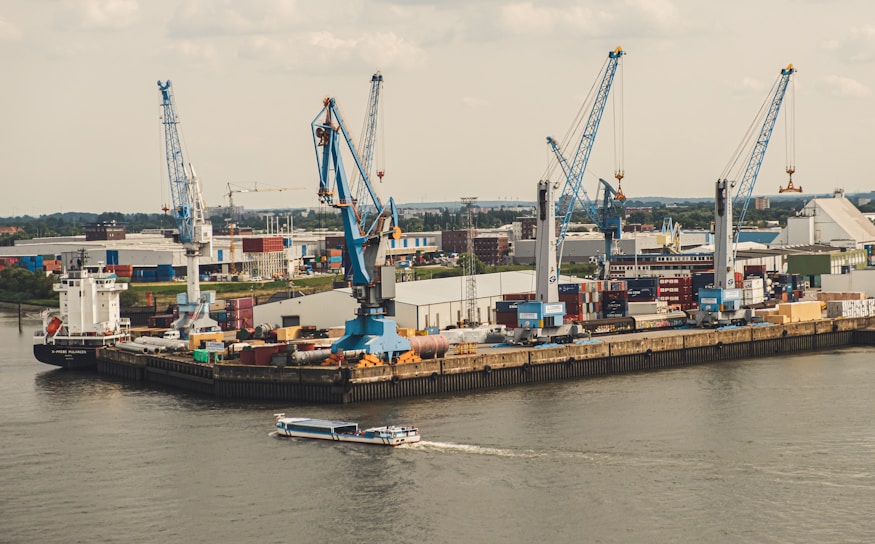

In modern container terminals, the ÜNFLEX LIFT TRAILING PUR – HF enables the massive ship-to-shore cranes that define modern port efficiency. These cranes must lift containers weighing up to 67 tons through vertical distances exceeding 50 meters while maintaining precise positioning control. The electrical systems powering these operations require uninterrupted power transmission despite the constant motion and mechanical stress.

The cable's performance in these applications demonstrates its engineering effectiveness. Container terminals operate continuously, with cranes cycling through hundreds of lift operations per day. Over a typical service life, a single cable installation may experience millions of stress cycles while maintaining electrical integrity. This level of reliability is essential for maintaining the productivity levels that modern global shipping demands.

Offshore Marine Platforms

Offshore applications present even more demanding conditions, combining the mechanical stresses of lifting operations with the harsh environment of open ocean exposure. Wave action creates dynamic loading that adds to the normal operational stresses, while salt spray and humidity create ongoing chemical attack on all exposed materials.

The ÜNFLEX LIFT TRAILING PUR – HF's performance in offshore hoisting systems demonstrates its capability to maintain reliable operation despite these challenging conditions. The cable's chemical resistance prevents degradation from salt exposure, while its mechanical design accommodates the additional dynamic stresses from wave-induced platform motion.

Marine Elevator Systems

Ship-based elevator systems for crew and cargo access present unique challenges that combine vertical lifting requirements with space constraints and safety considerations. These applications require cables that can operate reliably in confined spaces while providing the safety margins necessary for human transportation.

The cable's flame retardancy and halogen-free construction become particularly important in these applications, where fire safety is paramount. The reliable electrical performance ensures consistent elevator operation, while the mechanical durability provides the long service life essential for maintaining crew safety and operational efficiency.

Future Considerations: Advancing Marine Cable Technology

Emerging Challenges

As marine operations continue to evolve toward greater automation and efficiency, cable systems face new challenges that will drive continued innovation. Increased lifting speeds demand even greater mechanical durability, while more sophisticated control systems require enhanced electrical performance characteristics.

Environmental regulations continue to evolve, driving demand for more sustainable materials and manufacturing processes. The marine industry's focus on reducing environmental impact will likely influence future cable designs toward even greater chemical compatibility and reduced environmental impact throughout the product lifecycle.

Technological Evolution

Advanced materials science continues to offer new possibilities for enhanced cable performance. Developments in aramid fiber technology may provide even greater strength-to-weight ratios, while polymer science advances promise improved environmental resistance and mechanical durability.

Smart cable technologies incorporating embedded sensors for condition monitoring represent a potential future development that could provide real-time performance data and predictive maintenance capabilities. Such innovations could further enhance the reliability and safety of marine lifting systems while reducing maintenance costs and downtime.

Conclusion: Engineering Excellence in Demanding Applications

The ÜNFLEX LIFT TRAILING PUR – HF cable represents a sophisticated engineering solution that addresses the complex challenges of marine vertical power transmission through careful attention to electrical performance, mechanical durability, and environmental resistance. Its success in demanding applications from container terminals to offshore platforms demonstrates the effectiveness of its design approach and the importance of specialized engineering in critical applications.

Understanding the engineering principles behind this cable provides insight into the broader challenges of marine electrical systems and the innovative solutions that enable modern marine operations. As the marine industry continues to evolve, cables like the ÜNFLEX LIFT TRAILING PUR – HF will remain essential components that enable the reliable, efficient operations that global commerce depends upon.

The integration of advanced materials, sophisticated mechanical design, and rigorous quality standards demonstrates how specialized engineering can create solutions that perform reliably in applications where failure is not an option. This approach to engineering excellence provides a model for addressing the increasingly complex challenges facing modern marine operations and the electrical systems that power them.
