Introduction to Underwater Optical Cable Technology
In the depths of our oceans, rivers, and coastal waters, a sophisticated network of optical cables serves as the backbone of modern underwater communication systems. These specialized cables represent one of the most challenging applications in fiber optic technology, where engineers must balance the delicate nature of optical fibers with the harsh realities of underwater environments. Understanding the intricacies of underwater optical cables begins with recognizing their fundamental role in connecting isolated marine installations, offshore platforms, and coastal facilities to the broader communication infrastructure.
Underwater optical cables differ significantly from their terrestrial counterparts due to the unique challenges posed by aquatic environments. Water pressure, corrosive saltwater, mechanical stresses from currents and tides, and the potential for impact damage from marine activities all contribute to the complex engineering requirements these cables must meet. The development of specialized cable designs like the GYTA43 and GYTA53+333 represents decades of evolution in underwater cable technology, each designed to address specific environmental challenges while maintaining the high-performance optical transmission capabilities essential for modern communication needs.
The Critical Role of Optical Cables in Marine Communication Systems
The importance of underwater optical cables extends far beyond simple data transmission. These cables serve as lifelines for offshore oil platforms, connecting them to onshore control centers for real-time monitoring and operational control. Marine research stations rely on these connections to transmit vast amounts of oceanographic data, enabling scientists to study climate change, marine ecosystems, and geological processes. Port facilities depend on reliable underwater cable connections to manage shipping traffic, coordinate logistics, and maintain security systems that protect critical maritime infrastructure.
The reliability requirements for these applications are exceptionally high, as failure of an underwater cable can result in the isolation of critical facilities, loss of valuable data, or even safety hazards for personnel working in remote marine environments. This understanding of the critical nature of underwater optical communications drives the sophisticated engineering approaches embodied in cables like the GYTA43 and GYTA53+333, where every design element serves a specific purpose in ensuring long-term reliability under challenging conditions.
Cable Categories and Strategic Application Scenarios
The classification of armored underwater cables follows a systematic approach based on their structural design, mechanical properties, and intended deployment environments. The GYTA series represents a family of cables specifically engineered for underwater applications, with each variant optimized for different levels of environmental challenge and mechanical stress. Understanding these classifications helps engineers and system designers select the most appropriate cable for their specific application requirements.
GYTA43: Balanced Performance for General Underwater Deployment
The GYTA43 cable represents a carefully balanced approach to underwater optical cable design, offering reliable performance in moderately harsh underwater environments. This cable type finds its primary applications in scenarios where water depth, current forces, and mechanical stresses fall within moderate ranges. Typical deployment scenarios include coastal communication links, shallow water installations, and connections between marine facilities where environmental conditions are challenging but not extreme.
The design philosophy behind the GYTA43 centers on providing adequate mechanical protection while maintaining cost-effectiveness and installation flexibility. This makes it particularly suitable for applications such as harbor communication systems, coastal monitoring networks, and connections to floating platforms in relatively protected waters. The cable's mechanical properties provide sufficient strength to withstand normal installation stresses and operational loads while offering long-term reliability in typical marine environments.
GYTA53+333: Enhanced Protection for Demanding Marine Environments
The GYTA53+333 represents a more robust approach to underwater cable design, specifically engineered for deployment in more demanding environments where higher compression resistance and enhanced mechanical protection are essential. This cable type excels in applications involving greater water depths, stronger currents, more aggressive marine environments, or situations where the cable may be subject to higher mechanical stresses during installation or operation.
The enhanced design of the GYTA53+333 makes it the preferred choice for deep-water installations, connections to offshore platforms in exposed locations, and critical communication links where cable failure would have severe consequences. The additional protection layers and reinforcement elements provide superior resistance to crushing forces, impact damage, and long-term environmental degradation, making this cable type suitable for the most challenging underwater deployment scenarios.




Detailed Structural Composition Analysis
Understanding the structural composition of underwater optical cables requires examining each layer's specific function and how these elements work together to protect the delicate optical fibers while maintaining signal integrity. The layered construction approach used in both GYTA43 and GYTA53+333 cables represents a sophisticated engineering solution that addresses multiple challenges simultaneously.

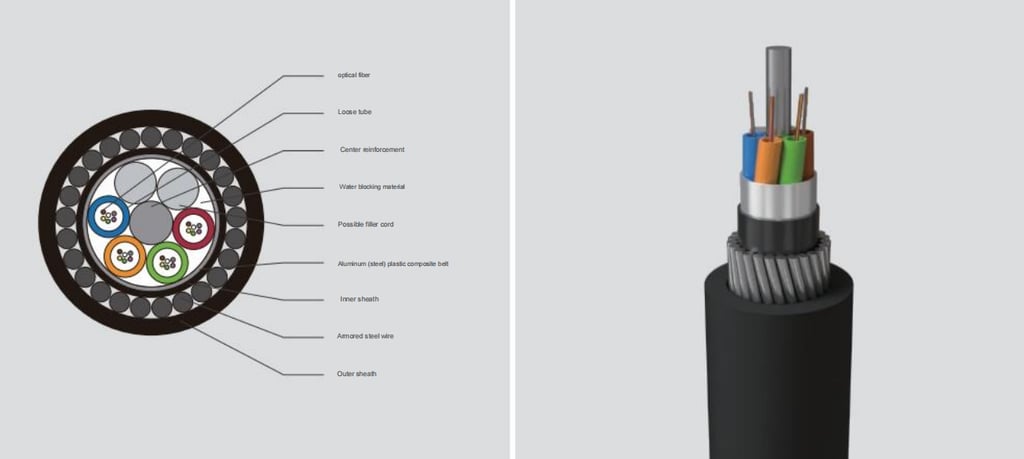

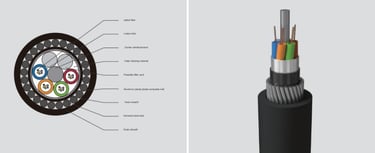

GYTA43 Structural Architecture
The GYTA43 cable employs a multi-layer protection strategy that begins at the core with the optical fibers themselves. The optical fibers are housed within loose tubes, a design approach that allows the fibers to move slightly within their protective environment, reducing mechanical stress transfer from the cable structure to the optical elements. This loose tube design proves particularly important in underwater applications where the cable may experience bending, twisting, and thermal expansion cycles.
The center reinforcement element serves as the primary load-bearing component of the cable, designed to handle the tensile forces encountered during installation and operation. This reinforcement typically consists of high-strength materials such as steel wire or composite materials that provide the necessary strength while maintaining reasonable flexibility. The selection of reinforcement materials must balance strength requirements with the need to prevent galvanic corrosion in the marine environment.
Water-blocking materials play a crucial role in preventing water ingress along the cable length, even if the outer protective layers are compromised. These materials typically include water-swellable tapes or gels that expand when exposed to moisture, creating an effective seal that prevents water migration along the cable structure. The effectiveness of these water-blocking systems directly impacts the long-term reliability of the cable in underwater environments.
Filler cords, when present, serve multiple functions including maintaining cable roundness, providing additional mechanical support, and ensuring uniform stress distribution across the cable cross-section. The aluminum-steel plastic composite belt provides electromagnetic shielding while contributing to the cable's overall mechanical integrity. This composite approach allows engineers to optimize the balance between protection, flexibility, and cost-effectiveness.
The inner sheath serves as the primary barrier against water ingress and provides a smooth interface for the armor layer. The armored steel wire layer represents the cable's primary defense against crushing forces, impact damage, and abrasion. The design and sizing of this armor layer directly influence the cable's mechanical performance characteristics. Finally, the outer sheath provides the ultimate protection against the marine environment, including resistance to seawater corrosion, marine growth, and UV degradation in shallow water applications.

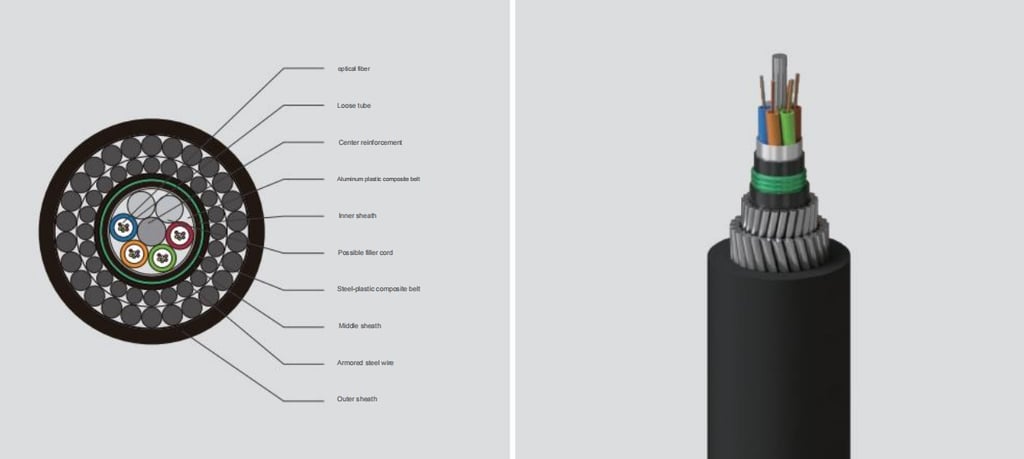

GYTA53+333 Enhanced Structural Design
The GYTA53+333 cable incorporates additional protection layers that significantly enhance its mechanical performance and environmental resistance. Like the GYTA43, it begins with optical fibers in loose tubes and includes center reinforcement, but the protection strategy becomes more sophisticated with additional layers designed to handle more severe environmental conditions.
The aluminum plastic composite belt in the GYTA53+333 serves similar functions to that in the GYTA43, but may be enhanced with additional thickness or improved materials to provide better electromagnetic shielding and mechanical support. The inner sheath in this design must accommodate the additional protection layers while maintaining flexibility and processability during manufacturing.
The steel-plastic composite belt represents a significant enhancement in the GYTA53+333 design, providing an additional layer of mechanical protection that significantly improves the cable's resistance to crushing forces and impact damage. This additional protection layer works in conjunction with the armored steel wire to create a multi-layer defense system against mechanical threats.
The middle sheath serves as an important interface between the inner protection layers and the final armor system, ensuring that loads are properly distributed and that the various protection elements work together effectively. The armored steel wire in the GYTA53+333 may be enhanced with larger wire diameters, different wire configurations, or improved materials to provide the superior mechanical performance characteristics required for demanding applications.
The outer sheath of the GYTA53+333 must provide the same environmental protection as the GYTA43 while accommodating the larger cable diameter and more complex internal structure. This outer layer represents the final barrier against the marine environment and must maintain its protective properties throughout the cable's operational lifetime.

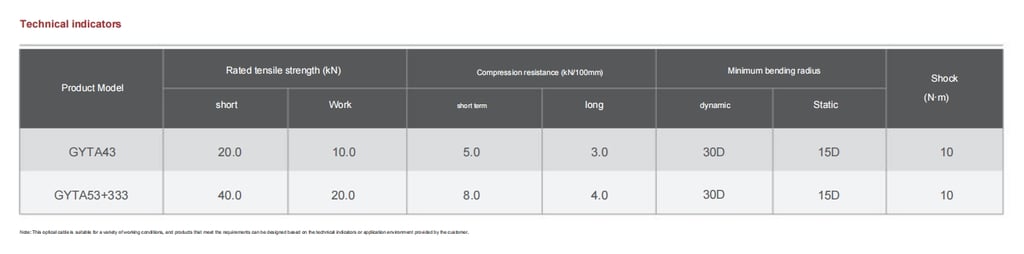

Technical Parameters and Performance Characteristics
The technical parameters of underwater optical cables provide quantitative measures of their mechanical and optical performance capabilities. These specifications serve as the foundation for proper cable selection and deployment planning, ensuring that the chosen cable can meet the specific requirements of each application.
Tensile Strength Performance Analysis
Tensile strength represents one of the most critical mechanical parameters for underwater optical cables, as these cables must withstand significant pulling forces during installation and may experience ongoing tensile loads during operation due to currents, tides, and thermal expansion. The distinction between short-term and working tensile strength reflects the reality that cables may need to handle higher loads during installation than during normal operation.
The GYTA43 cable provides a short-term tensile strength of 20.0 kN, which represents the maximum load the cable can withstand for brief periods during installation or emergency conditions. This capacity allows for the use of standard cable installation equipment and techniques while providing adequate safety margins for normal installation procedures. The working tensile strength of 10.0 kN represents the maximum load that should be applied to the cable during normal operation, ensuring long-term reliability and preventing gradual degradation of the cable structure.
The GYTA53+333 cable offers significantly enhanced tensile strength performance with a short-term capacity of 40.0 kN and a working tensile strength of 20.0 kN. This doubled capacity reflects the enhanced reinforcement and protection layers incorporated into the cable design, making it suitable for installations where higher mechanical loads are anticipated. The increased tensile strength also provides greater safety margins for critical applications where cable failure would have severe consequences.
Compression Resistance Characteristics
Compression resistance measures the cable's ability to withstand crushing forces that may be encountered in underwater environments. These forces can result from water pressure at depth, impact from marine debris, or mechanical loading during installation and handling. The specification of both short-term and long-term compression resistance recognizes that cables may need to withstand brief high loads while maintaining structural integrity under sustained lower loads.
The GYTA43 cable provides a short-term compression resistance of 5.0 kN per 100mm of cable length, allowing it to withstand brief crushing forces that might be encountered during installation or from temporary loading conditions. The long-term compression resistance of 3.0 kN per 100mm ensures that the cable can maintain its structural integrity under sustained loading conditions such as those encountered in permanent installations where the cable may be subject to ongoing mechanical stresses.
The GYTA53+333 cable offers superior compression resistance with short-term and long-term ratings of 8.0 kN and 4.0 kN per 100mm respectively. This enhanced compression resistance makes the cable suitable for deeper water installations where higher water pressures are encountered, as well as applications where the cable may be subject to more severe mechanical loading conditions.
Bending Radius and Installation Flexibility
The minimum bending radius specifications define the tightest curves that can be imposed on the cable without risking damage to the optical fibers or cable structure. The distinction between dynamic and static bending radius reflects the different stresses imposed on cables during installation versus their final installed configuration.
Both the GYTA43 and GYTA53+333 cables specify a dynamic bending radius of 30D (where D represents the cable diameter), which applies during installation when the cable is being pulled around curves or through cable routing systems. This specification ensures that installation crews can route the cable through reasonable curves without exceeding the mechanical limits of the optical fibers or cable structure.
The static bending radius of 15D applies to the final installed configuration of the cable, recognizing that once the cable is in its permanent position and not subject to the dynamic stresses of installation, it can tolerate tighter curves. This specification allows for more compact cable routing in confined spaces while ensuring long-term reliability of the optical transmission performance.
Shock Resistance and Impact Protection
The shock resistance specification of 10 N·m for both cable types quantifies their ability to withstand impact forces that might be encountered during installation, handling, or from environmental factors such as floating debris or marine activities. This specification ensures that the cables can maintain their optical and mechanical integrity when subjected to reasonable impact forces.
The identical shock resistance ratings for both cable types reflect the fact that both designs incorporate effective impact protection systems, though the GYTA53+333 achieves this protection through its enhanced multi-layer structure while maintaining the same impact resistance specification.
Performance Comparison and Selection Guidelines
The selection of appropriate underwater optical cable requires careful consideration of the specific environmental conditions, mechanical requirements, and performance expectations of each application. The differences between GYTA43 and GYTA53+333 cables represent distinct approaches to balancing performance, cost, and application requirements.

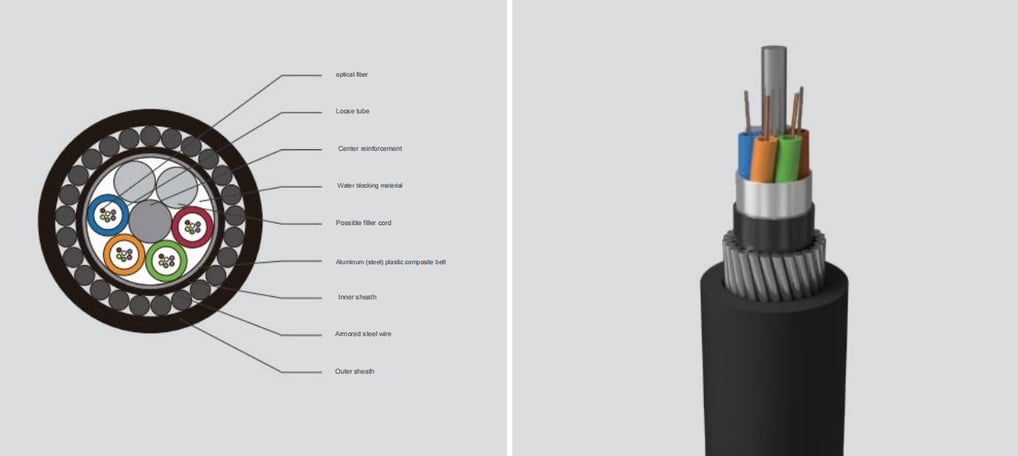

GYTA43: Optimized Balance for General Applications
The GYTA43 cable represents an optimized balance between performance and cost-effectiveness, making it the preferred choice for applications where environmental conditions are challenging but not extreme. The cable's mechanical properties provide adequate protection for most underwater installations while maintaining reasonable costs and installation flexibility.
The balanced design approach of the GYTA43 makes it particularly suitable for coastal applications, harbor installations, and connections between marine facilities in relatively protected environments. The cable's tensile strength and compression resistance provide adequate safety margins for normal installation and operational conditions while the cost-effective design approach makes it economically viable for a wide range of applications.
Applications where GYTA43 excels include shallow water communication links, coastal monitoring systems, connections to floating docks and marine facilities, and installations where water depth and environmental conditions fall within moderate ranges. The cable's performance characteristics align well with the requirements of these applications while providing the reliability and longevity expected from professional underwater optical cable systems.
GYTA53+333: Enhanced Protection for Critical Installations
The GYTA53+333 cable represents a more robust approach to underwater cable design, with enhanced mechanical properties and additional protection layers that make it suitable for the most demanding marine environments. The significantly higher tensile strength and compression resistance capabilities of this cable type make it the preferred choice for deep-water installations, exposed offshore locations, and critical communication links where cable failure would have severe consequences.
The enhanced design of the GYTA53+333 provides superior protection against the mechanical stresses encountered in harsh marine environments, including higher water pressures, stronger currents, and more aggressive installation conditions. The additional protection layers and reinforcement elements provide greater safety margins and longer service life in challenging environments.
Critical installations that benefit from the GYTA53+333 design include deep-water communication links, connections to offshore platforms in exposed locations, submarine cable systems crossing shipping channels, and installations where environmental conditions exceed the capabilities of standard cable designs. The enhanced performance characteristics of this cable type justify its higher cost for applications where reliability and longevity are paramount concerns.
Advanced Considerations in Cable Selection and Deployment
The selection of underwater optical cables involves considerations beyond basic mechanical and optical specifications. Environmental factors such as water temperature variations, marine growth potential, seabed conditions, and marine traffic patterns all influence the appropriate cable choice and deployment strategy.
Water depth represents a primary factor in cable selection, as greater depths impose higher static water pressures that require enhanced compression resistance. The GYTA53+333 cable's superior compression resistance makes it more suitable for deeper installations, while the GYTA43 may be adequate for shallower water applications where pressure loading is less severe.
Current forces and wave action create dynamic loading conditions that can subject cables to fatigue stresses over time. The enhanced mechanical properties of the GYTA53+333 provide greater resistance to these dynamic loads, making it preferable for installations in areas with strong currents or significant wave action.
Marine traffic considerations include the potential for anchor damage, fishing activities, and vessel operations that might impact underwater cables. Areas with heavy marine traffic may require the enhanced impact resistance and mechanical protection provided by the GYTA53+333 design, while protected areas may allow for the use of the more cost-effective GYTA43 design.
Installation method selection depends on cable specifications, environmental conditions, and available equipment. The enhanced mechanical properties of the GYTA53+333 may allow for more aggressive installation techniques or installation in more challenging conditions, while the GYTA43 may require more careful handling and installation procedures.
Future Developments and Technology Evolution
The field of underwater optical cable technology continues to evolve as new materials, manufacturing techniques, and application requirements drive innovation. Future developments may include enhanced fiber optic technologies that provide greater bandwidth capabilities, improved protection materials that offer better environmental resistance, and manufacturing techniques that reduce costs while maintaining performance.
The increasing demand for underwater communication capacity driven by offshore renewable energy installations, marine research activities, and expanding coastal development creates ongoing pressure for improved cable designs. Future cable developments may incorporate smart monitoring capabilities that allow for real-time assessment of cable condition and performance, predictive maintenance capabilities, and enhanced reliability through improved design and materials.
Environmental considerations are becoming increasingly important in cable design, with emphasis on materials that minimize environmental impact while maintaining performance requirements. Future cable designs may incorporate recyclable materials, reduced environmental footprint manufacturing processes, and improved longevity to reduce the frequency of cable replacement operations.
Conclusion: Strategic Cable Selection for Optimal Performance
The choice between GYTA43 and GYTA53+333 underwater optical cables ultimately depends on a careful analysis of application requirements, environmental conditions, and performance expectations. The GYTA43 provides a balanced approach to underwater optical cable design, offering reliable performance and cost-effectiveness for general-purpose applications in moderately challenging environments. Its mechanical properties and protection systems provide adequate performance for most coastal and shallow water installations while maintaining reasonable costs and installation flexibility.
The GYTA53+333 represents a more robust approach to underwater cable design, with enhanced mechanical properties and additional protection layers that make it suitable for the most demanding marine environments. The significantly higher tensile strength and compression resistance capabilities make it the preferred choice for deep-water installations, exposed offshore locations, and critical communication links where maximum reliability is essential.
The success of underwater optical cable installations depends not only on proper cable selection but also on careful planning of installation procedures, environmental assessment, and ongoing maintenance strategies. The sophisticated engineering embodied in both the GYTA43 and GYTA53+333 designs represents the culmination of decades of experience in underwater cable technology, providing reliable solutions for the diverse range of marine communication requirements encountered in modern applications.
Understanding the technical specifications, structural designs, and application characteristics of these cable types enables informed decision-making that ensures optimal performance, reliability, and cost-effectiveness for underwater optical communication systems. As marine communication requirements continue to evolve and expand, these proven cable designs provide the foundation for reliable underwater optical networks that support critical marine operations, research activities, and coastal infrastructure development.
