Understanding YSLY and YSLY-JZ Control Cables: A Critical Guide for Singapore's Maritime Operations

The Unsung Heroes of Maritime Connectivity

When you witness the seamless choreography of Singapore's bustling ports—container cranes lifting massive loads, automated guided vehicles navigating precisely between stacks, and ship-to-shore operations running around the clock—you're observing one of the world's most sophisticated maritime ecosystems. Yet beneath this visible symphony of steel and machinery lies an intricate nervous system of control cables that makes it all possible. These cables, often overlooked despite their critical importance, carry the electrical signals that coordinate every movement, monitor every system, and ensure the safety of both equipment and personnel.

In Singapore's maritime landscape, where the Port of Singapore Authority (PSA) handles millions of containers annually and shipyards work continuously to maintain global fleets, the choice of control cables becomes far more than a technical specification—it becomes a matter of operational continuity, safety compliance, and economic efficiency. Among the most commonly specified flexible control cables in these demanding environments are YSLY and YSLY-JZ variants, two seemingly similar yet fundamentally different cable types that serve distinct roles in maritime electrical systems.

This comprehensive examination will illuminate the critical distinctions between these cable types, focusing particularly on their construction differences, safety implications, and optimal applications within Singapore's maritime infrastructure. Understanding these differences isn't merely academic—it's essential knowledge for engineers, technicians, and decision-makers who must ensure that every electrical connection supports both operational excellence and personnel safety in one of the world's most demanding industrial environments.

Foundational Similarities: The Common Ground

Before exploring their differences, it's crucial to understand that YSLY and YSLY-JZ cables share substantial foundational characteristics that make them both suitable for maritime applications. Both cable types feature flexible Class 5 stranded bare copper conductors, manufactured to meet the stringent requirements of IEC 60228 Class 5 specifications. This construction choice isn't arbitrary—the fine stranding of these conductors provides exceptional flexibility that proves invaluable in dynamic maritime environments where cables must withstand constant movement, vibration, and repeated bending cycles.

The insulation system in both cable types employs special quality polyvinyl chloride (PVC) compounds that provide reliable electrical isolation while maintaining flexibility across a wide temperature range. The outer sheath, also constructed from PVC and typically supplied in a distinctive grey color, serves multiple protective functions. Beyond mechanical protection, this sheath incorporates flame-retardant properties compliant with IEC 60332-1 standards—a critical safety feature in maritime environments where fire prevention and containment are paramount concerns.

Both cable types share identical electrical specifications that make them well-suited for control applications in port environments. Their rated voltage of 300/500V provides adequate capacity for most control circuits, while the test voltage of 1000VAC for one minute ensures reliable performance under electrical stress conditions. The insulation resistance specification of at least 20 megohms per kilometer guarantees excellent isolation between conductors, preventing cross-talk and ensuring signal integrity in complex control systems.

Temperature performance represents another shared strength, with both cables capable of continuous operation at temperatures up to 70°C—well above Singapore's typical ambient temperatures—while maintaining installation flexibility down to -5°C. The specified minimum bending radius of 15 times the cable diameter acknowledges the dynamic nature of port equipment, ensuring that cables can withstand the mechanical stresses encountered in applications such as crane cable reels, moving gantries, and articulated machinery.

The Critical Differentiator: Core Identification and Protective Earth

The fundamental distinction between YSLY and YSLY-JZ cables lies not in their construction materials or electrical specifications, but in their core identification schemes and, most critically, their approach to protective earthing. This difference, while seemingly minor, has profound implications for safety, compliance, and application suitability in maritime environments.

YSLY cables typically employ a core identification system consisting of black-insulated conductors with white numbering or, alternatively, full color coding according to VDE 0293 standards. The defining characteristic of standard YSLY cables is the absence of a dedicated green/yellow protective earth conductor. This design philosophy assumes that protective earthing will be provided through alternative means—such as metallic conduit systems, equipment chassis bonding, or separate earthing arrangements external to the cable itself.

In contrast, YSLY-JZ cables incorporate a dedicated green/yellow protective earth conductor alongside the numbered black conductors. This seemingly simple addition fundamentally changes the cable's safety profile and application suitability. The green/yellow conductor provides a dedicated, low-resistance path for fault currents, ensuring that in the event of an insulation failure, dangerous voltages are safely conducted to earth rather than appearing on equipment enclosures where they could pose electrocution risks to personnel.

To understand why this distinction matters so profoundly in maritime applications, consider the electrical environment of a typical port facility. Salt-laden air creates conductive conditions that can compromise insulation systems over time. Massive steel structures provide numerous potential fault paths, while the constant presence of moisture—from Singapore's tropical humidity to occasional spray from harbor waters—creates conditions where electrical faults can have particularly dangerous consequences.

Safety Imperatives in Maritime Electrical Systems

The maritime environment presents unique electrical hazards that make the presence or absence of dedicated protective earthing a critical safety consideration. Unlike terrestrial industrial installations, maritime facilities combine several risk factors that amplify the potential consequences of electrical faults. The omnipresent moisture in harbor environments, whether from Singapore's high humidity or direct exposure to seawater, creates conductive conditions that can turn normally safe equipment surfaces into electrical hazards.

Singapore's regulatory framework, aligned with international maritime safety standards, recognizes these risks through stringent requirements for electrical safety in marine installations. The Maritime and Port Authority of Singapore (MPA), working in conjunction with international bodies such as the International Maritime Organization (IMO) and classification societies, has established comprehensive electrical safety standards that often mandate dedicated protective earthing in critical applications.

The physics of electrical fault protection in maritime environments reveals why dedicated earthing becomes so crucial. When an insulation failure occurs in equipment connected via YSLY-JZ cables, the fault current flows through the green/yellow conductor to the earthing system, typically causing protective devices such as circuit breakers or residual current devices to operate rapidly. This rapid disconnection prevents dangerous voltages from persisting on equipment enclosures, dramatically reducing the risk of electrocution.

Consider the alternative scenario with YSLY cables in the same fault condition. Without a dedicated earth conductor, the fault current must find alternative paths to earth—perhaps through equipment mountings, structural steelwork, or other fortuitous connections. These alternative paths often present higher resistance, potentially allowing dangerous voltages to persist on equipment surfaces for extended periods. In the conductive maritime environment, this situation can prove particularly hazardous to personnel who might simultaneously contact both the faulted equipment and earthed structures.

Strategic Applications in Singapore's Maritime Infrastructure

The practical implications of choosing between YSLY and YSLY-JZ cables become clear when examining specific applications within Singapore's maritime infrastructure. For the vast majority of control applications in port facilities, YSLY-JZ cables represent the preferred choice, particularly where personnel safety and regulatory compliance are paramount concerns.

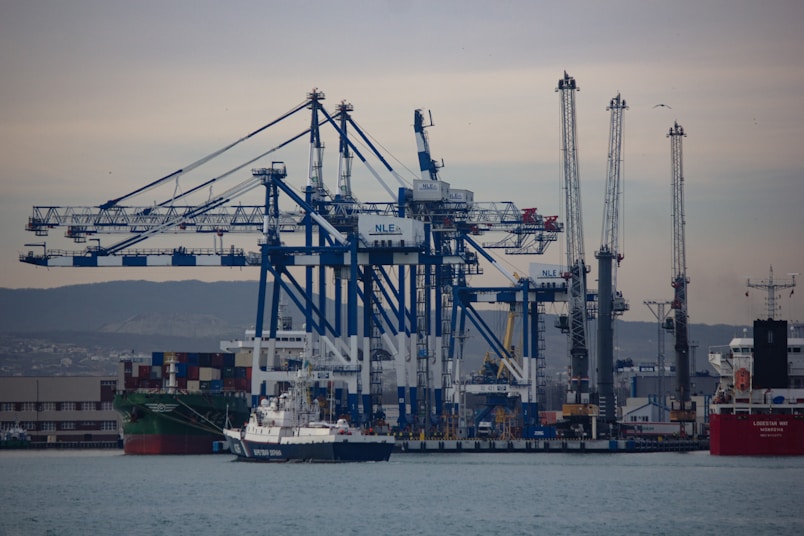

Container handling systems exemplify applications where YSLY-JZ cables prove essential. The massive ship-to-shore cranes that define Singapore's port skyline rely on complex control systems that coordinate multiple motors, sensors, and safety interlocks. These systems not only handle enormous loads but also operate in close proximity to personnel, making reliable protective earthing absolutely critical. The constant movement of these cranes, with their extensive cable reel systems, subjects control cables to continuous flexing cycles where the integrity of the protective earth conductor becomes a vital safety consideration.

Similarly, the automated guided vehicles (AGVs) that increasingly handle container transport within PSA terminals represent another prime application for YSLY-JZ cables. These sophisticated vehicles combine high-voltage drive systems with low-voltage control circuits, operating autonomously in areas where maintenance personnel must occasionally interact with them. The dedicated earth conductor in YSLY-JZ cables ensures that any fault condition is quickly detected and cleared, preventing the AGVs from becoming mobile electrical hazards.

Rubber-tyred gantry cranes, which stack containers in port yards, present particularly challenging electrical environments. These mobile cranes must maintain electrical connections while traversing uneven surfaces, subjecting their cable systems to continuous mechanical stress. The vibration, flexing, and environmental exposure inherent in RTG operations make the reliability of protective earthing systems absolutely crucial for safe operation.

Marine workshops and ship repair facilities represent another critical application area where YSLY-JZ cables prove indispensable. These facilities routinely handle portable tools, temporary power connections, and machinery that must operate safely in close proximity to personnel. The combination of metallic work surfaces, cutting and welding operations, and the presence of potentially conductive contaminants creates an environment where reliable protective earthing becomes a fundamental safety requirement.

Port lighting and signaling systems, while sometimes overlooked in discussions of critical infrastructure, represent another area where YSLY-JZ cables provide essential safety benefits. These systems must maintain reliable operation under all weather conditions while remaining safe for maintenance personnel to service. The dedicated earth conductor ensures that any fault condition in these systems is quickly detected and cleared, preventing extended outages that could compromise port operations or safety.

Understanding the Niche Applications for YSLY Cables

While YSLY-JZ cables dominate most maritime control applications, standard YSLY cables do retain certain niche applications where their characteristics prove advantageous. These applications typically involve systems where protective earthing is handled at a higher system level, or where the nature of the electrical circuits minimizes direct shock hazards to personnel.

Certain data transmission applications represent one area where YSLY cables might be preferred. In systems where the cables carry only low-voltage signals that don't pose direct shock hazards, and where the overall system design provides adequate protection through other means, the absence of a dedicated earth conductor in YSLY cables can sometimes reduce potential for ground loops or interference issues. However, even in these applications, the safety benefits of YSLY-JZ cables often outweigh any potential technical advantages of standard YSLY cables.

Some specialized applications within larger shielded systems might also favor YSLY cables. When control circuits are integrated into comprehensive shielding and earthing systems that provide protection at the system level, the dedicated earth conductor within individual YSLY-JZ cables might become redundant. However, such applications are increasingly rare in modern maritime installations, where defense-in-depth safety approaches favor multiple levels of protection.

Environmental Considerations for Singapore's Maritime Climate

Singapore's tropical maritime climate presents specific environmental challenges that both YSLY and YSLY-JZ cables must address effectively. The combination of high humidity, elevated temperatures, and salt-laden air creates conditions that can accelerate the degradation of electrical insulation systems while simultaneously increasing the conductivity of the surrounding environment.

The PVC insulation and sheath materials used in both cable types provide excellent resistance to moisture absorption, a critical characteristic in Singapore's humid climate where relative humidity frequently exceeds 80%. Unlike some organic insulation materials that can absorb moisture and experience degradation in electrical properties, PVC maintains its insulation characteristics even under sustained high humidity conditions.

The temperature specifications of both cable types prove well-suited to Singapore's climate conditions. While ambient temperatures rarely approach the cables' maximum operating temperature of 70°C, the thermal capacity provides important safety margins for installations in enclosed spaces, direct sunlight exposure, or proximity to heat-generating equipment. The ability to maintain installation flexibility down to -5°C, while rarely tested in Singapore's climate, ensures that cables remain manageable during installation in air-conditioned environments or during rare cool weather periods.

Salt exposure represents another environmental consideration that affects cable selection in maritime applications. While the PVC materials used in both YSLY and YSLY-JZ cables provide good resistance to salt contamination, the presence of salt can affect the electrical environment in ways that make reliable protective earthing even more critical. Salt deposits can create conductive paths that might not exist in cleaner environments, potentially creating fault conditions that highlight the importance of dedicated earth conductors in YSLY-JZ cables.

Compliance and Standards: Navigating the Regulatory Landscape

The regulatory environment governing electrical installations in Singapore's maritime facilities reflects both local safety requirements and international maritime standards. Understanding this regulatory landscape proves crucial for making informed decisions about cable selection and installation practices.

Singapore's electrical safety regulations, implemented through the Energy Market Authority (EMA) and aligned with international standards such as IEC and BS specifications, establish minimum requirements for electrical installations in industrial and maritime environments. These regulations typically mandate specific earthing arrangements for electrical systems, particularly in environments where personnel safety risks are elevated.

International maritime standards, including those established by the International Maritime Organization (IMO) and various classification societies, provide additional layers of requirements for electrical installations in marine environments. These standards often specify more stringent requirements for protective earthing and electrical safety than might be found in purely terrestrial installations, reflecting the unique risks associated with maritime operations.

The practical implication of these regulatory requirements is that YSLY-JZ cables often represent the only compliant choice for many maritime applications. While engineering judgment and specific risk assessments might occasionally justify the use of standard YSLY cables in very specific circumstances, the default assumption should favor YSLY-JZ cables to ensure compliance with applicable safety standards.

Making the Strategic Choice: Engineering Decision Framework

Selecting between YSLY and YSLY-JZ cables requires a systematic approach that considers multiple factors beyond simple technical specifications. The decision framework should prioritize safety considerations while also accounting for regulatory requirements, operational needs, and long-term maintenance considerations.

The primary decision criterion should focus on the need for dedicated protective earthing. Applications where personnel might come into contact with electrical equipment, where regulatory standards mandate specific earthing arrangements, or where the consequences of electrical faults could be severe should default to YSLY-JZ cables. This encompasses the vast majority of control applications in maritime environments.

Cost considerations, while important, should be viewed in the context of the overall safety and compliance picture. The incremental cost of YSLY-JZ cables compared to standard YSLY cables is typically modest when considered against the potential consequences of electrical faults or regulatory non-compliance. The cost of retrofitting inadequate cable installations far exceeds the initial investment in appropriate cable selection.

Maintenance and operational considerations also favor YSLY-JZ cables in most maritime applications. The presence of a dedicated earth conductor simplifies troubleshooting, provides clear indication of earthing system integrity, and supports predictive maintenance programs that can identify potential problems before they result in failures or safety incidents.

Future Outlook: Evolving Maritime Technologies

Singapore's maritime industry continues to evolve toward greater automation, digitalization, and integration of advanced technologies. These trends have important implications for cable selection and electrical system design that will likely reinforce the importance of reliable protective earthing systems.

The increasing deployment of automated systems, from autonomous cranes to artificial intelligence-guided logistics systems, creates more complex electrical environments where fault conditions can have cascading effects across multiple systems. The reliable protective earthing provided by YSLY-JZ cables becomes even more critical as these systems become more interconnected and interdependent.

Emerging technologies such as electric and hybrid vessel systems, shore power connections for ships, and renewable energy integration in port facilities will likely create new applications where the safety benefits of dedicated protective earthing become even more pronounced. The trend toward electrification of port equipment and vehicles will increase the prevalence of high-voltage systems operating in close proximity to personnel, making robust earthing systems essential for safe operation.

Conclusion: Ensuring Maritime Excellence Through Informed Cable Selection

The choice between YSLY and YSLY-JZ control cables represents far more than a technical specification decision—it embodies a fundamental commitment to safety, compliance, and operational excellence in Singapore's critical maritime infrastructure. While both cable types share important technical characteristics that make them suitable for maritime applications, the presence of a dedicated protective earth conductor in YSLY-JZ cables provides essential safety benefits that prove crucial in the demanding maritime environment.

The overwhelming majority of control applications in Singapore's ports, shipyards, and maritime facilities should employ YSLY-JZ cables to ensure compliance with safety regulations, protect personnel from electrical hazards, and support the reliable operation of critical systems. The modest incremental cost of these cables pales in comparison to the potential consequences of electrical faults, regulatory non-compliance, or safety incidents that could result from inadequate earthing arrangements.

As Singapore continues to maintain its position as a global maritime hub through technological advancement and operational excellence, the foundation of electrical safety provided by appropriate cable selection becomes even more critical. By understanding the crucial differences between YSLY and YSLY-JZ cables and making informed decisions based on safety requirements, regulatory compliance, and operational needs, engineers and decision-makers can ensure that Singapore's maritime infrastructure continues to operate safely and efficiently in service of global trade and commerce.

The cables that quietly carry control signals through Singapore's ports may be invisible to casual observers, but their proper selection and installation represent essential contributions to the safety, reliability, and continued success of one of the world's most important maritime hubs. In this context, the choice of YSLY-JZ cables for the vast majority of maritime control applications represents not just good engineering practice, but a commitment to the safety and operational excellence that defines Singapore's maritime industry.
