Understanding (N)SHTÖU-J/O VR Spreader Cables: The Engineering Marvel Behind Vertical Reeling in Maritime Applications

Introduction: The Critical Role of Vertical Reeling in Maritime Operations

Maritime and port environments represent some of the most demanding operational conditions for electrical infrastructure. From the towering container cranes that define Singapore's skyline at the Port of Singapore to the complex conveyor systems that handle millions of tons of cargo annually, reliable power transmission remains the invisible backbone of modern maritime commerce. The challenge becomes particularly acute when we consider vertical reeling applications, where cables must not only conduct electricity safely but also withstand the mechanical stresses of constant vertical movement, harsh environmental conditions, and the unforgiving marine atmosphere.

Vertical reeling systems are essential components in maritime operations, powering everything from ship-to-shore cranes to mobile harbor equipment. These systems require cables that can handle dynamic loads while maintaining electrical integrity through thousands of operating cycles. The (N)SHTÖU-J/O VR spreader cable represents a specialized engineering solution designed specifically for these demanding applications, incorporating decades of materials science research and field experience to deliver reliable performance in the harshest maritime environments.

Understanding the importance of these cables requires appreciating the scale of modern port operations. Consider Singapore's Port of Singapore Authority, which handles over 37 million twenty-foot equivalent units annually. Each container movement involves multiple crane operations, with cables constantly winding and unwinding as containers are lifted from ships, moved across the terminal, and loaded onto trucks or trains. The failure of a single cable can shut down an entire crane, potentially costing tens of thousands of dollars in lost productivity while ships wait at berth.

Key Features of (N)SHTÖU-J/O VR Spreader Cables: Engineering Excellence Under Pressure

Robust Construction: The Foundation of Reliability

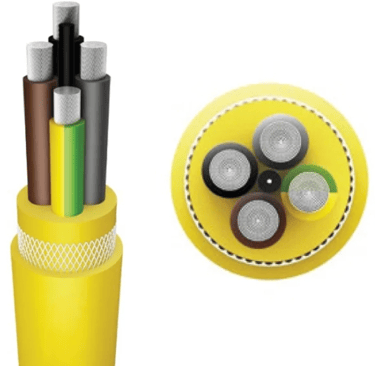

The electrical heart of any power cable lies in its conductor system, and the (N)SHTÖU-J/O VR cable demonstrates sophisticated engineering in this critical component. The cable employs flexible stranded copper conductors manufactured to Class 5 specifications according to IEC 60228, representing the highest flexibility standard for power cables. This classification indicates that the copper strands are extremely fine, typically comprising hundreds of individual wire strands that can flex repeatedly without work hardening or breaking.

The optimization of lay length in these conductors deserves particular attention. Lay length refers to the distance along the cable axis required for one complete spiral of the conductor strands. Engineers carefully calculate this parameter to balance flexibility with electrical performance. Too short a lay length can create excessive resistance and heat buildup, while too long a lay length reduces flexibility and increases the risk of strand breakage during repeated bending cycles. The (N)SHTÖU-J/O VR design incorporates computer-modeling techniques to optimize this critical dimension for vertical reeling applications.

Surrounding these conductors, the cable employs EPDM (Ethylene Propylene Diene Monomer) rubber insulation, a material choice that reflects deep understanding of maritime electrical challenges. EPDM rubber offers exceptional dielectric properties while maintaining flexibility across extreme temperature ranges. The halogen-free and lead-free formulation addresses both environmental concerns and safety requirements, particularly important in enclosed spaces where toxic gas generation during fire could pose life-threatening risks to personnel.

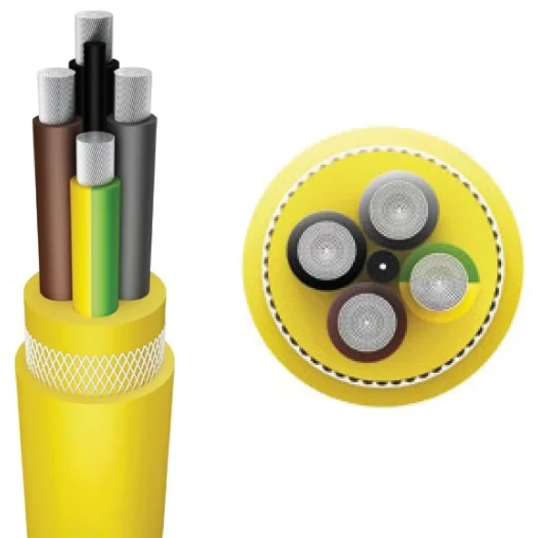

Perhaps most innovative is the anti-torsion braid constructed from polyamide threads. This component addresses one of the most significant challenges in vertical reeling applications: the tendency for cables to twist and develop torsional stress during vertical movement. As cables wind onto drums or reels, they naturally want to rotate, which can lead to conductor damage, insulation failure, and premature cable failure. The polyamide braid acts as a mechanical constraint, distributing torsional forces throughout the cable structure and preventing localized stress concentrations that could lead to failure.

High-Performance Sheathing System: Protection Against the Elements

The dual-sheath system in (N)SHTÖU-J/O VR cables represents a sophisticated approach to environmental protection, with each layer serving specific protective functions. The inner sheath utilizes a yellow thermosetting compound designated as 5GM3, a formulation specifically engineered for maritime applications. This bright yellow color serves a practical purpose beyond aesthetics, providing high visibility for safety inspections and maintenance procedures in the often dimly lit environments of ship holds and crane enclosures.

Thermosetting compounds differ fundamentally from thermoplastic materials in their response to heat. While thermoplastics soften and can melt when heated, thermosetting compounds undergo cross-linking during the curing process, creating three-dimensional molecular networks that maintain their properties even at elevated temperatures. This characteristic proves crucial in maritime applications where cables may be exposed to hot machinery, engine exhaust, or fire conditions.

The outer sheath employs the 5GM5 thermosetting compound, formulated specifically for abrasion resistance and environmental durability. This material must withstand the mechanical abuse common in port environments, including contact with rough concrete surfaces, metal edges, and the constant friction of cable movement through guides and pulleys. The compound also incorporates additives that provide resistance to ultraviolet radiation, ozone attack, oil contamination, and flame propagation.

Understanding UV resistance becomes particularly important in tropical maritime environments like Singapore, where intense solar radiation can rapidly degrade unprotected polymer materials. The outer sheath formulation includes UV stabilizers that absorb harmful radiation and prevent the photochemical reactions that lead to material degradation. Similarly, ozone resistance addresses the oxidative environment created by electrical equipment and industrial processes common in port areas.

Electrical and Mechanical Capabilities: Performance Under Extreme Conditions

The electrical specifications of (N)SHTÖU-J/O VR cables reflect their design for heavy-duty maritime applications. With a rated voltage of 0.6/1 kV and maximum operating voltage of 1.2 kV, these cables can handle the power requirements of substantial electrical loads while maintaining adequate safety margins. The AC test voltage capability of 3 kV demonstrates the cable's ability to withstand electrical stress testing, a critical requirement for maritime applications where electrical safety inspections are mandatory.

The operational temperature range of -40°C to +90°C encompasses the extreme conditions encountered in maritime environments worldwide. The lower temperature limit addresses Arctic shipping operations and cold storage facilities, while the upper limit accommodates tropical climates and heated machinery enclosures. The short-circuit resistance capability up to +250°C provides crucial safety margin during fault conditions, allowing protective devices time to operate before cable damage occurs.

Mechanical performance specifications reveal the cable's sophisticated engineering for dynamic applications. The maximum travel speed of 100 meters per minute seems impressive until we consider the operational requirements of modern container cranes, which must move quickly to maintain port productivity. This speed capability requires careful attention to cable construction details, including strand design, insulation adhesion, and sheath integrity under dynamic stress.

The twist limitation of 50 degrees per meter represents a critical design parameter for vertical reeling applications. This specification recognizes that some cable rotation is inevitable during vertical movement but establishes limits that prevent excessive torsional stress. Engineers achieve this performance through careful attention to conductor lay direction, insulation application techniques, and the anti-torsion braid design mentioned earlier.

Safety and Compliance: Meeting International Standards

The comprehensive compliance of (N)SHTÖU-J/O VR cables with international standards reflects the global nature of maritime operations and the critical importance of safety in port environments. Compliance with DIN VDE standards ensures compatibility with German and European electrical systems, while IEC standards provide international harmonization for electrical safety. ISO compliance addresses broader quality management and environmental considerations, and UL standards provide access to North American markets.

The suitability for hazardous environments, including explosion-risk areas and mining applications, requires special attention to cable construction and materials. In these environments, cables must not only perform their electrical function but also avoid becoming ignition sources for flammable atmospheres. This requirement influences every aspect of cable design, from conductor sizing to insulation selection and sheath formulation.

Application Scenarios in Maritime and Port Operations: Real-World Performance

Container Handling Systems: The Heart of Modern Ports

Container cranes represent perhaps the most visible application of vertical reeling cables in maritime environments. These massive structures, some reaching heights of over 100 meters, require reliable power transmission for their complex electrical systems. In Singapore's container terminals, these cranes operate around the clock, handling containers with precision and speed that would have been unimaginable just decades ago.

The vertical reeling system in a container crane faces unique challenges. As the crane's spreader moves up and down to engage containers, the cable must accommodate vertical movements of 30 meters or more while maintaining electrical continuity. Simultaneously, the crane's horizontal movement along the waterfront creates additional dynamic stress on the cable system. The (N)SHTÖU-J/O VR cable's design addresses these challenges through its flexible conductor construction and anti-torsion features.

Consider the operational environment these cables face in Singapore's port. The tropical climate creates temperatures that can exceed 35°C in direct sunlight, while the high humidity and salt spray from the Singapore Strait create corrosive conditions that rapidly degrade inferior materials. The constant operational tempo means cables rarely get extended rest periods, with some cranes operating nearly continuously during peak shipping seasons.

Conveyor Systems: Moving Mountains of Cargo

Modern ports rely heavily on conveyor systems to move cargo efficiently from ships to storage areas and onward transportation. These systems often incorporate vertical sections where materials must be lifted to elevated conveyor paths or storage silos. The power requirements for these systems can be substantial, particularly for bulk cargo handling where conveyor motors may operate at hundreds of horsepower.

The challenge in conveyor applications lies in the combination of electrical power transmission and mechanical flexibility. Conveyors must accommodate the settling and thermal expansion of port structures while maintaining precise alignment for optimal operation. The (N)SHTÖU-J/O VR cable's temperature range and mechanical flexibility make it ideally suited for these applications, where cables may be exposed to both the heat of electric motors and the cooling effects of evening sea breezes.

Offshore Platform Applications: Engineering at the Ocean's Edge

Singapore's strategic location has made it a hub for offshore oil and gas operations in Southeast Asia. Offshore platforms present unique challenges for electrical cables, combining the harsh marine environment with the critical safety requirements of petroleum operations. The (N)SHTÖU-J/O VR cable's suitability for explosion-risk areas becomes particularly relevant in these applications.

On offshore platforms, vertical reeling systems often power drilling equipment, crane operations, and material handling systems. The cables must withstand not only the corrosive marine environment but also the mechanical stresses created by platform movement in sea conditions. The anti-torsion braid and robust sheathing system provide the mechanical integrity required for these demanding applications.

Shipyard Operations: Building the Future Fleet

Singapore's shipyards represent another significant application area for specialized maritime cables. During ship construction and repair, portable cranes and material handling equipment require flexible power connections that can accommodate the complex geometry of shipyard operations. The (N)SHTÖU-J/O VR cable's ability to handle frequent winding and unwinding makes it ideal for these applications.

Shipyard environments combine multiple challenges: welding operations create intense heat and spark exposure, while the presence of steel dust and metal filings can cause abrasion damage to cable sheaths. The flame resistance and abrasion resistance of the (N)SHTÖU-J/O VR design address these specific environmental hazards.

Frequently Asked Questions: Addressing Common Concerns

How do these cables handle vertical tensile stress in tall crane applications?

The engineering solution to vertical tensile stress represents one of the most sophisticated aspects of (N)SHTÖU-J/O VR cable design. When cables hang vertically in tall crane applications, they must support their own weight while also accommodating the dynamic loads created by crane movement and load handling. The anti-torsion braid serves a dual purpose here, not only preventing rotation but also providing mechanical support that distributes tensile loads throughout the cable structure.

The optimized conductor construction contributes significantly to tensile strength performance. The Class 5 stranding specification ensures that individual conductor strands can flex and move relative to each other without creating stress concentrations. This flexibility becomes crucial when cables experience the combination of tensile stress and bending that occurs during vertical reeling operations.

Engineers also carefully consider the cable's weight distribution and support systems. In tall crane applications, intermediate support points may be used to limit the unsupported cable length, reducing the tensile stress on any single cable section. The (N)SHTÖU-J/O VR design accommodates these support systems while maintaining the flexibility required for vertical movement.

Can the (N)SHTÖU-J/O VR cables withstand harsh maritime environments like saltwater spray and UV radiation?

The marine environment presents a unique combination of challenges that few other environments can match. Salt spray creates both corrosive conditions and conductive surface films that can lead to electrical tracking and flashover. The (N)SHTÖU-J/O VR cable's dual-sheath system addresses these challenges through careful materials selection and testing.

The outer sheath's resistance to UV radiation becomes particularly important in tropical maritime environments. Singapore's location near the equator exposes cables to intense solar radiation throughout the year. The UV stabilizers incorporated into the sheath formulation prevent the photochemical breakdown that would otherwise lead to cracking, brittleness, and eventual failure.

Ozone resistance addresses another aspect of the marine environment that many people don't consider. Ozone concentrations can be elevated in marine environments due to the interaction of sunlight with salt spray and industrial emissions. This powerful oxidizer can rapidly attack rubber compounds, leading to cracking and degradation. The (N)SHTÖU-J/O VR cable's tested ozone resistance ensures long-term performance in these challenging conditions.

What happens if the cable is exposed to extremely low or high temperatures at the port?

Temperature extremes challenge cable performance in multiple ways, affecting both electrical and mechanical properties. At low temperatures, rubber compounds can become stiff and brittle, potentially leading to cracking during movement. The EPDM insulation system in (N)SHTÖU-J/O VR cables maintains flexibility down to -40°C, accommodating the temperature extremes encountered in Arctic shipping operations or refrigerated cargo handling.

High-temperature performance becomes critical in tropical ports and around heated machinery. At elevated temperatures, electrical resistance increases, potentially leading to voltage drop and power loss. The cable's rated performance up to +90°C ensures reliable operation even in the most demanding thermal conditions.

The short-circuit temperature rating of +250°C provides crucial safety margin during fault conditions. When electrical faults occur, cables can experience temperature spikes that would destroy conventional materials. The thermosetting sheath compounds maintain their protective properties even at these extreme temperatures, providing time for protective devices to operate and preventing fire propagation.

Are these cables safe to use in explosion-prone zones such as bulk cargo handling areas?

Explosion-prone environments require cables that cannot become ignition sources for flammable atmospheres. This requirement affects every aspect of cable design and installation. The (N)SHTÖU-J/O VR cable's compliance with flame propagation standards ensures that it will not contribute to fire spread in the event of an ignition.

Bulk cargo handling areas can present explosion risks from dust accumulation, particularly with grain, coal, or chemical products. The cable's robust construction and halogen-free materials reduce the risk of toxic gas generation during fire conditions, an important consideration for personnel safety in enclosed spaces.

The installation requirements for explosion-prone areas go beyond cable selection to include proper grounding, bonding, and protection systems. The (N)SHTÖU-J/O VR cable's design facilitates these installation requirements while maintaining the mechanical performance required for vertical reeling applications.

How does the cable cope with constant movement during port operations?

The mechanical design of (N)SHTÖU-J/O VR cables specifically addresses the challenge of constant movement in port operations. The flexible conductor construction allows individual strands to move relative to each other during bending and flexing, preventing the work hardening that would eventually lead to conductor failure.

The anti-torsion braid plays a crucial role in managing the complex mechanical stresses created by vertical reeling operations. As cables wind onto drums or reels, they naturally want to rotate, which can create torsional stress in the conductors. The polyamide braid constrains this rotation while distributing the mechanical loads throughout the cable structure.

The speed capability of 100 meters per minute may seem modest compared to some industrial applications, but it represents the practical limit for safe cable operation in vertical reeling systems. Higher speeds would create excessive dynamic stress and reduce cable life, while lower speeds would impact port productivity. The (N)SHTÖU-J/O VR design strikes the optimal balance between performance and longevity.

What installation environments are supported beyond ports?

The versatility of (N)SHTÖU-J/O VR cables extends their application beyond maritime environments to include various industrial and mining operations. Underground mining applications present unique challenges, including potential exposure to groundwater, mechanical abuse from rock fall, and the need for flame resistance in potentially explosive atmospheres.

Open-cast mining operations expose cables to extreme temperature variations, UV radiation, and mechanical abuse from heavy machinery. The robust construction and environmental resistance of (N)SHTÖU-J/O VR cables make them suitable for these demanding applications, where cable failure can shut down expensive mining operations.

Building machinery applications, particularly in high-rise construction, require cables that can handle vertical movement while maintaining electrical performance. The anti-torsion features and flexible construction of (N)SHTÖU-J/O VR cables make them ideal for construction crane applications, where reliable power transmission is essential for safety and productivity.

Conclusion: Engineering Excellence for Maritime Applications

The (N)SHTÖU-J/O VR spreader cable represents a sophisticated engineering solution that addresses the unique challenges of vertical reeling applications in maritime and industrial environments. Through careful attention to conductor design, insulation systems, mechanical protection, and environmental resistance, these cables deliver reliable performance in some of the world's most demanding operating conditions.

For maritime operators, particularly in challenging environments like Singapore's busy port operations, the choice of cable technology can significantly impact operational reliability and safety. The comprehensive design of (N)SHTÖU-J/O VR cables addresses the mechanical stresses of vertical reeling while providing the electrical performance required for modern port equipment.

The compliance with international standards ensures that these cables can be used globally, supporting the international nature of maritime commerce. From the container terminals of Singapore to offshore platforms in the South China Sea, (N)SHTÖU-J/O VR cables provide the reliable power transmission that keeps global commerce moving.

As maritime operations continue to evolve toward greater automation and efficiency, the importance of reliable electrical infrastructure becomes even more critical. The (N)SHTÖU-J/O VR spreader cable's combination of mechanical durability, electrical performance, and environmental resistance positions it as an essential component in the future of maritime operations, ensuring that the invisible networks of power transmission continue to support the visible movement of global commerce across the world's oceans and through its ports.
