Introduction: The Critical Role of Marine Cables in Modern Shipping
Marine environments present some of the most challenging conditions for electrical systems. Ships must operate reliably across vast temperature ranges, withstand constant vibration from engines and waves, resist corrosion from salt spray, and maintain functionality even during emergency situations like fires. This demanding environment requires specialized cables that go far beyond standard electrical wiring.

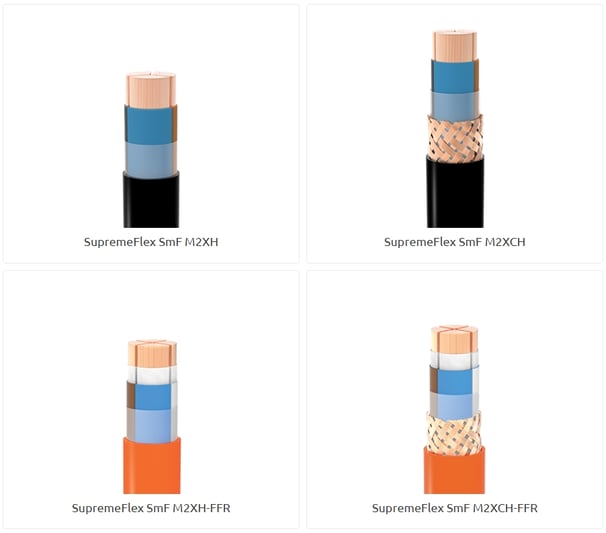

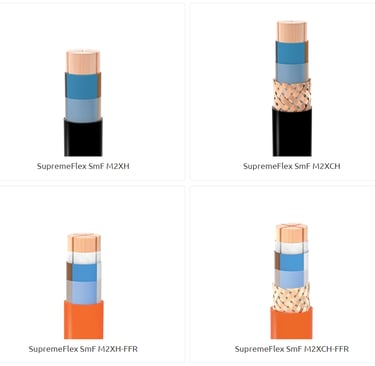

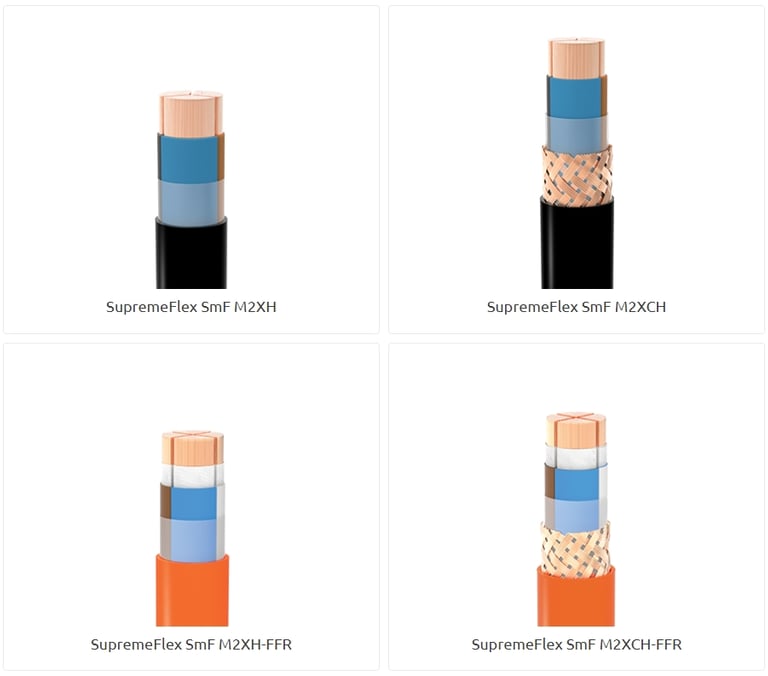

The SupremeFlex SmF M2XH series represents a sophisticated approach to marine cable design, offering four distinct variants: M2XH, M2XCH, M2XH-FFR, and M2XCH-FFR. Each variant addresses specific challenges found in maritime applications, from basic power distribution to critical safety systems that must continue operating during emergencies.
Understanding the differences between these cable types is essential for marine engineers, ship designers, and maintenance professionals who must ensure reliable electrical systems throughout a vessel's operational life. The selection of appropriate cables directly impacts not only system performance but also crew safety and regulatory compliance.
Application Scenarios: Matching Cables to Marine Environments
M2XH: The Foundation Cable for General Marine Applications
The M2XH variant serves as the workhorse cable for standard marine installations. Its design focuses on providing reliable power transmission and signal carrying capability throughout most areas of a ship, including the challenging open deck environment where cables face direct exposure to sunlight, salt spray, and temperature extremes.
The cable's construction centers around a stranded copper conductor that meets IEC 60228 Class 5 specifications, ensuring flexibility while maintaining excellent electrical conductivity. The cross-linked polyethylene (XLPE) insulation provides superior electrical properties compared to traditional PVC insulation, particularly in terms of temperature resistance and long-term stability. This becomes crucial in marine applications where cables may experience significant temperature variations during normal operation.
What sets the M2XH apart for marine use is its halogen-free outer sheath compound. Traditional cable materials containing halogens can release toxic gases when heated or burned, creating dangerous conditions in the confined spaces of a ship. The halogen-free formulation eliminates this risk while maintaining flame retardant properties that prevent fire propagation along cable runs.
The UV resistance built into the outer sheath addresses a specific challenge of marine installations. Unlike terrestrial applications where cables are typically protected from sunlight, marine cables on open decks face constant UV exposure that can degrade standard materials over time. The specialized compound maintains its integrity and protective properties even after years of sun exposure.
M2XCH: Adding Electromagnetic Interference Protection
The M2XCH variant builds upon the foundation of the M2XH by incorporating a copper braided screen that provides at least 90% coverage around the cable core. This addition transforms the cable from a simple power carrier into a sophisticated tool for maintaining signal integrity in electrically noisy environments.
Modern ships contain numerous sources of electromagnetic interference (EMI). Radar systems, radio communications, motor drives, and switching power supplies all generate electromagnetic fields that can interfere with sensitive electronic systems. Navigation equipment, engine control systems, and communication devices require clean electrical signals to function properly, making EMI protection crucial for safe ship operation.
The copper braid screen works by creating a Faraday cage effect around the inner conductors. When electromagnetic fields encounter the screen, they induce currents in the copper braid rather than penetrating to the inner conductors. These induced currents are then conducted away through proper grounding, protecting the signals inside the cable.
The effectiveness of the screen depends heavily on proper installation practices. The screen must be grounded at appropriate points, typically at both ends for short cable runs or at intermediate points for longer installations. Breaks in the screen continuity can create gaps in protection, allowing EMI to penetrate the cable. This makes the M2XCH particularly valuable in installations where maintaining screen integrity is practical and where EMI protection is essential.
M2XH-FFR: Maintaining Circuit Integrity During Fire Emergencies
Fire represents one of the most serious threats aboard any vessel. The M2XH-FFR variant addresses this challenge by incorporating fire-resistant construction that allows electrical circuits to continue functioning even when exposed to fire conditions. This capability proves critical for emergency systems that must operate during the most dangerous moments of a fire emergency.
The key innovation in the M2XH-FFR lies in its mica tape fire barrier. Mica, a naturally occurring mineral, possesses exceptional heat resistance and maintains its insulating properties even at extremely high temperatures. When incorporated as a tape layer around the cable core, mica creates a protective barrier that prevents fire from reaching the conductor and insulation beneath.
During a fire, the outer sheath may burn away and the primary insulation may degrade, but the mica barrier continues to provide electrical insulation between conductors. This allows the cable to maintain circuit continuity for critical systems such as emergency lighting, fire pumps, ventilation fans, and communication systems that emergency responders depend upon during firefighting operations.
The fire resistance specification of the M2XH-FFR meets IEC 60331 standards, which require the cable to continue operating while exposed to flame temperatures of approximately 750°C for specified durations. This performance level ensures that emergency systems remain functional long enough for crew evacuation and initial firefighting efforts.
Understanding the distinction between flame retardant and fire resistant properties is crucial for proper cable selection. Flame retardant materials resist ignition and prevent fire spread but do not necessarily maintain electrical function during fire exposure. Fire resistant cables like the M2XH-FFR go further by preserving circuit integrity under fire conditions, making them essential for life safety systems.
M2XCH-FFR: Ultimate Protection for Critical Safety Systems
The M2XCH-FFR represents the most sophisticated variant in the series, combining both EMI shielding and fire resistance in a single cable construction. This combination addresses the needs of safety-critical systems that must maintain both signal integrity during normal operation and circuit continuity during fire emergencies.
In modern ships, many safety systems rely on electronic controls and monitoring that are sensitive to electromagnetic interference. Fire detection systems, emergency communication networks, and automated fire suppression controls all require clean electrical signals to function properly. The copper braid screen in the M2XCH-FFR ensures reliable operation of these systems during normal conditions.
When fire occurs, these same systems become even more critical. The mica tape fire barrier ensures that safety systems continue to operate even as fire damages other parts of the electrical installation. This dual protection makes the M2XCH-FFR ideal for installations in high-risk areas where both EMI and fire represent significant threats to system reliability.
The integration of both screening and fire resistance technologies in a single cable simplifies installation while providing comprehensive protection. Rather than requiring separate cable types for different protection needs, the M2XCH-FFR allows designers to specify one cable type for critical applications, reducing inventory complexity and potential installation errors.


Technical Specifications: Understanding the Engineering Behind Marine Cable Performance
Conductor Design and Electrical Properties
All variants in the SupremeFlex SmF M2XH series utilize electrolytic copper conductors that meet IEC 60228 Class 5 specifications. This standard defines the conductor as having multiple fine strands that provide flexibility while maintaining excellent electrical conductivity. The stranding pattern uses sector-shaped individual wires that pack more efficiently than round wires, allowing for smaller overall cable diameters while maintaining the same current-carrying capacity.
The annealing process applied to the copper removes work hardening from the wire drawing process, ensuring the conductor remains flexible throughout the cable's service life. This flexibility becomes particularly important in marine applications where cables may experience vibration from ship movement and machinery operation. Rigid conductors would be prone to fatigue failure under these conditions.
The option for tinned copper conductors addresses the corrosive marine environment. While copper itself provides excellent conductivity, it can corrode when exposed to salt air and moisture. The tin coating provides a protective barrier that prevents corrosion while maintaining good electrical connections. Tinned conductors are particularly valuable in areas where cables might be exposed to salt spray or high humidity conditions.
Insulation Technology and Temperature Performance
The cross-linked polyethylene (XLPE) insulation used throughout the series represents advanced polymer technology specifically chosen for marine applications. Cross-linking creates chemical bonds between polymer chains, resulting in a three-dimensional network structure that provides superior properties compared to conventional thermoplastic insulations.
XLPE insulation maintains its electrical and mechanical properties across the full operating temperature range of -40°C to +90°C. This wide temperature range accommodates the extreme conditions found in marine service, from arctic operations where temperatures can drop well below freezing to tropical conditions where engine room ambient temperatures may exceed 50°C.
The cross-linked structure also provides excellent resistance to environmental stress cracking, a failure mode that can affect thermoplastic insulations when exposed to mechanical stress in the presence of certain chemicals. This resistance proves valuable in marine environments where cables may encounter cleaning solvents, hydraulic fluids, and other chemicals used in ship operations.
Screen Construction and EMI Protection
The copper braided screens used in the M2XCH and M2XCH-FFR variants employ multiple fine copper wires woven in a tubular braid pattern around the cable core. The minimum 90% coverage specification ensures effective electromagnetic shielding while maintaining cable flexibility.
The effectiveness of electromagnetic shielding depends on several factors including the conductivity of the screen material, the coverage percentage, and the frequency of the interfering signals. Copper provides excellent conductivity for screen applications, while the high coverage percentage ensures minimal gaps in the protective barrier.
The braided construction offers advantages over alternative screen types such as foil or spiral-wound wire screens. Braided screens provide consistent coverage even when the cable is bent or flexed, maintaining protection throughout the cable's service life. The multiple contact points between braid wires ensure reliable electrical continuity of the screen, which is essential for effective grounding and EMI protection.
Fire Protection Technology
The mica tape fire barriers used in the FFR variants represent specialized fire protection technology adapted for cable applications. Mica tape consists of thin sheets of mica mineral bound with high-temperature adhesives and reinforcing materials. The tape is applied in overlapping layers around the cable core, creating a continuous protective barrier.
When exposed to fire, the organic components of the mica tape burn away, but the mica mineral itself remains intact and continues to provide electrical insulation. This behavior allows the cable to maintain circuit integrity even after the primary insulation has been damaged by fire exposure.
The fire resistance testing specified in IEC 60331 subjects cables to direct flame exposure while monitoring electrical continuity. Cables must continue to conduct current without short-circuiting between conductors or to ground throughout the test duration. This rigorous testing ensures that fire-resistant cables will perform as expected during actual fire emergencies.
Outer Sheath Formulation and Environmental Protection
The SHF1 (Ship Halogen-Free type 1) outer sheath compound represents advanced polymer formulation specifically developed for marine cable applications. This thermoplastic compound combines multiple performance requirements including flame retardancy, UV resistance, ozone resistance, and mechanical durability.
The halogen-free formulation eliminates chlorine, bromine, and other halogen elements that can form toxic and corrosive gases when heated. This design choice is particularly important in marine applications where crew safety in confined spaces is paramount. The flame retardant properties are achieved through the use of mineral flame retardants rather than halogenated compounds.
UV resistance is built into the compound through the addition of UV stabilizers and absorbers that protect the polymer matrix from degradation caused by ultraviolet radiation. This protection is essential for cables installed on open decks where direct sunlight exposure is unavoidable.
Ozone resistance addresses another environmental challenge in marine applications. Ozone can form naturally in marine environments through the action of sunlight on salt spray and can also be generated by electrical equipment. The specialized compound formulation resists ozone attack that could cause cracking and degradation of standard materials.
Frequently Asked Questions: Addressing Common Marine Cable Concerns
Understanding the Difference Between Flame Retardant and Fire Resistant Properties
The distinction between flame retardant and fire resistant properties often causes confusion but represents a fundamental difference in cable behavior during fire conditions. Flame retardant properties focus on preventing fire propagation by making materials difficult to ignite and self-extinguishing when the ignition source is removed. These properties help prevent cables from becoming a fuel source that spreads fire throughout a vessel.
Fire resistant properties go significantly further by maintaining electrical circuit integrity even when exposed to fire conditions. While the cable's outer materials may burn or degrade, the electrical function continues, allowing critical systems to operate during fire emergencies. This distinction becomes crucial when selecting cables for safety systems that must continue operating while firefighting efforts are underway.
In practical terms, flame retardant cables help prevent electrical systems from contributing to fire spread, while fire resistant cables ensure that essential systems remain operational during the fire event itself. Both properties are important, but fire resistance is specifically required for life safety systems where loss of electrical power could endanger crew or hamper emergency response efforts.
Determining When EMI Shielding Becomes Necessary
Electromagnetic interference shielding requirements depend on both the sensitivity of connected equipment and the electromagnetic environment where cables are installed. Modern ships contain numerous sources of EMI including radar transmitters, radio communications, variable frequency drives, switching power supplies, and electronic navigation equipment.
Sensitive systems that typically require shielded cables include navigation equipment, communication systems, engine control electronics, and instrumentation circuits carrying low-level signals. These systems can malfunction or provide inaccurate readings when subjected to electromagnetic interference, potentially compromising ship safety and operational efficiency.
The decision to specify shielded cables should also consider the installation environment. Areas near high-power transmitters, motor drives, or switching equipment represent high EMI environments where shielding becomes more critical. Cable routing that runs parallel to power cables or passes near sources of electromagnetic radiation also increases the need for shielding protection.
Proper installation of shielded cables requires attention to grounding practices and screen continuity. The shield must be connected to an effective ground system to conduct induced currents away from the protected conductors. Breaks in screen continuity can create gaps in protection, making proper installation techniques as important as the shield itself.
Suitability for Outdoor Marine Installations
All variants in the SupremeFlex SmF M2XH series are specifically designed for outdoor marine use, including installation on open decks where cables face direct exposure to environmental extremes. The SHF1 outer sheath formulation provides comprehensive protection against the challenges of marine outdoor installation.
UV resistance prevents degradation from constant sunlight exposure that can cause standard materials to become brittle and crack over time. The specialized compound maintains its flexibility and protective properties even after years of sun exposure, ensuring long-term reliability in deck installations.
Salt spray resistance addresses the corrosive marine environment where salt deposits can accelerate material degradation. The halogen-free compound resists salt-induced corrosion while maintaining its protective properties. This resistance extends cable service life and reduces maintenance requirements in harsh marine environments.
Temperature cycling from solar heating during the day to cooling at night creates expansion and contraction stresses that can damage cables with inferior materials. The XLPE insulation and SHF1 sheath are formulated to accommodate these thermal cycles without degrading electrical or mechanical properties.
Low Temperature Installation and Operation Capabilities
The temperature specifications for the SupremeFlex SmF M2XH series address both installation conditions and operational requirements. The minimum installation temperature of -15°C ensures that cables can be installed during winter conditions or in cold climate operations without risking damage to the cable structure.
During installation at low temperatures, cable materials become stiffer and more prone to cracking if bent too severely. The -15°C installation limit ensures that the cable materials retain sufficient flexibility for safe installation practices. Installation at temperatures below this limit could result in insulation or sheath cracking that compromises long-term reliability.
The operational temperature range of -40°C to +90°C accommodates the extreme conditions encountered in marine service. Arctic operations can expose cables to temperatures well below freezing, while tropical conditions combined with engine room heat can create high-temperature environments. The XLPE insulation maintains its electrical properties throughout this temperature range, ensuring reliable system operation regardless of environmental conditions.
Cold temperature operation requires materials that remain flexible and maintain their electrical properties as temperatures drop. Standard PVC insulations can become brittle at low temperatures, leading to cracking and electrical failures. The XLPE insulation used in the M2XH series maintains flexibility and electrical integrity even at -40°C, ensuring reliable operation in arctic conditions.
Compliance with International Marine Standards
The SupremeFlex SmF M2XH series meets comprehensive international standards that govern marine electrical installations. Compliance with the IEC 60092 series ensures that the cables meet the specific requirements for shipboard electrical installations, addressing the unique challenges of marine environments.
IEC 60092-353 specifies construction requirements for marine cables, including conductor specifications, insulation requirements, and sheath properties. This standard ensures that cables are designed to withstand the mechanical stresses, environmental conditions, and electrical demands of marine service.
The flame retardant testing standards IEC 60332-1 and IEC 60332-3 Category A verify that the cables will not propagate fire when exposed to ignition sources. These tests ensure that electrical systems do not contribute to fire spread throughout a vessel, protecting crew safety and limiting fire damage.
Fire resistance testing under IEC 60331 applies to the FFR variants and ensures that critical circuits continue to operate during fire conditions. This testing subjects cables to direct flame exposure while monitoring electrical continuity, verifying that safety systems will continue operating during fire emergencies.
Halogen content testing under IEC 60754 verifies the halogen-free formulation that prevents the generation of toxic gases during fire conditions. Smoke emission testing under IEC 61034 ensures that burning cables produce minimal smoke that could hamper evacuation and firefighting efforts.
Conclusion: Strategic Cable Selection for Marine Excellence
The selection of appropriate marine cables represents a critical decision that impacts both operational reliability and safety performance throughout a vessel's service life. The SupremeFlex SmF M2XH series provides a comprehensive range of solutions that address the varying requirements found in marine electrical installations.
For general marine applications where basic environmental protection and flame retardancy are sufficient, the M2XH variant provides reliable performance with cost-effective construction. Its halogen-free design ensures crew safety while the XLPE insulation and UV-resistant sheath provide long-term reliability in marine environments.
When electromagnetic interference presents challenges to sensitive electronic systems, the M2XCH variant adds essential EMI protection through its copper braided screen. This protection becomes increasingly important as ships incorporate more sophisticated electronic systems for navigation, communication, and operational control.
For safety-critical systems that must continue operating during fire emergencies, the fire-resistant variants M2XH-FFR and M2XCH-FFR provide essential circuit integrity protection. The choice between these depends on whether EMI protection is also required for the application.
Understanding the specific requirements of each installation allows marine engineers to select the most appropriate cable variant, ensuring optimal performance while avoiding unnecessary costs. The comprehensive testing and certification of all variants provides confidence that the selected cables will meet the demanding requirements of marine service while maintaining compliance with international standards.
The investment in appropriate marine cables pays dividends through reduced maintenance requirements, improved system reliability, and enhanced safety performance. In the demanding marine environment, cable selection represents a fundamental decision that influences every aspect of electrical system performance throughout the vessel's operational life.
