Understanding M2XCH Marine Cable Variants: A Comprehensive Guide to VFD Applications and Fixed Installations

Introduction to Marine Cable Technology

Marine electrical installations demand cables that can withstand the unique challenges of shipboard environments while maintaining reliable performance under extreme conditions. The harsh maritime environment presents multiple technical challenges including salt spray corrosion, temperature fluctuations, mechanical stress from ship movement, and electromagnetic interference from various electronic systems operating in close proximity.

Modern ships rely increasingly on sophisticated electronic control systems, variable frequency drives for motor control, and sensitive navigation equipment that requires exceptional electromagnetic compatibility. This evolution in marine technology has driven the development of specialized cable designs that not only meet traditional marine safety standards but also address contemporary electromagnetic interference concerns.

The M2XCH family of marine cables represents a comprehensive solution designed specifically for these demanding applications. These cables incorporate advanced materials and construction techniques to provide superior performance in both traditional fixed installations and modern VFD-controlled systems, making them essential components in contemporary marine electrical design.

Application Scenarios and Technical Requirements

General Marine Applications

Marine cable installations span diverse environments within a vessel, each presenting unique technical challenges. In accommodation areas, cables must prioritize fire safety and low smoke emission to protect passenger and crew safety during emergency situations. The cables need to maintain structural integrity while providing reliable power transmission in spaces where human occupancy is highest.

Engine rooms represent one of the most demanding installation environments, characterized by high temperatures, mechanical vibration, and exposure to oil and other chemical contaminants. Cables in these areas must demonstrate exceptional thermal resistance while maintaining electrical performance despite continuous mechanical stress from engine operation and ship movement.

Open deck installations expose cables to the full range of marine environmental conditions including UV radiation, salt spray, temperature cycling, and direct weather exposure. The outer sheath materials must provide long-term resistance to these environmental factors while maintaining flexibility for installation and service access.

Automation systems in modern vessels require cables that can support both power transmission and data integrity simultaneously. These applications demand exceptional electromagnetic compatibility to prevent interference between power circuits and sensitive control signals that manage critical ship systems.

VFD-Driven Systems and Electromagnetic Considerations

Variable Frequency Drives have become ubiquitous in modern marine applications, controlling everything from propulsion motors to HVAC systems and deck machinery. These electronic control systems generate significant electromagnetic interference as a byproduct of their switching operation, creating harmonics and high-frequency noise that can interfere with sensitive electronic equipment.

The electromagnetic interference generated by VFD systems operates across a broad frequency spectrum, with particular intensity in the kilohertz to megahertz ranges where many communication and navigation systems operate. This interference can propagate through both radiated and conducted paths, making proper cable shielding essential for system compatibility.

M2XCH-VFD and M2XCH-EMC variants incorporate sophisticated shielding systems specifically designed to contain these electromagnetic emissions. The combination of metallic tape screening and braided copper shields creates multiple barriers that attenuate electromagnetic energy across the frequency ranges most critical for marine electronics compatibility.

The shielding effectiveness of these cables becomes particularly important in installations where VFD power cables run parallel to sensitive signal cables or pass near sensitive electronic equipment. Proper shielding not only protects other systems from interference but also improves the stability and reliability of the VFD system itself by reducing susceptibility to external electromagnetic disturbances.

Understanding FI and NOFI Construction Differences

The distinction between FI (with bedding compound) and NOFI (with separating foil) construction reflects different approaches to mechanical protection and installation requirements. This fundamental design difference affects not only the mechanical properties of the cable but also its installation characteristics and long-term performance.

FI construction incorporates an extruded halogen-free bedding compound that provides enhanced mechanical protection for the internal cable structure. This bedding layer acts as a cushioning medium that distributes mechanical stress more evenly across the cable cross-section, making it particularly suitable for installations where the cable may experience significant mechanical loading or impact.

The bedding compound also provides superior moisture barrier properties, creating an additional layer of protection against water ingress that could compromise insulation performance. This characteristic makes FI construction particularly valuable in marine environments where moisture exposure is unavoidable despite best installation practices.

NOFI construction employs a separating foil system that provides adequate mechanical separation between cable elements while maintaining a lighter overall construction. The foil barrier effectively prevents conductor strands from migrating between cable cores while allowing for more flexible installation in confined spaces typical of marine installations.

The weight advantage of NOFI construction can be significant in applications where cable runs are extensive or where weight distribution is critical to vessel stability. This construction also typically allows for tighter bending radii during installation, facilitating routing through complex ship structures.

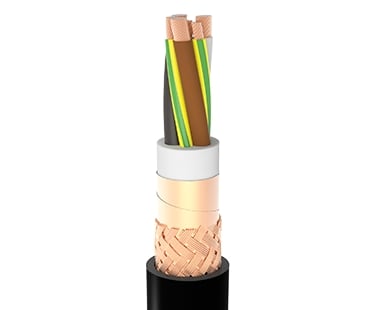

M2XCH-VFD

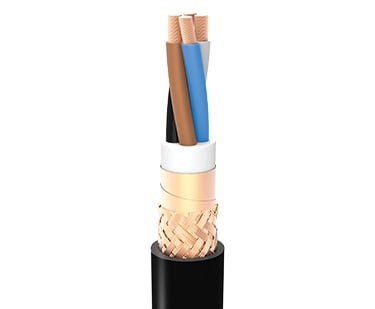

M2XCH-EMC

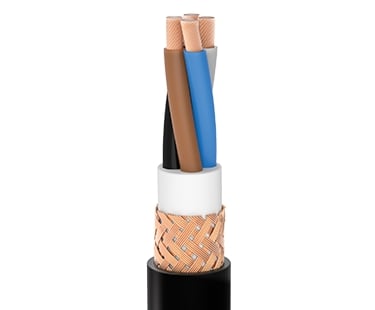

M2XCH(FI)

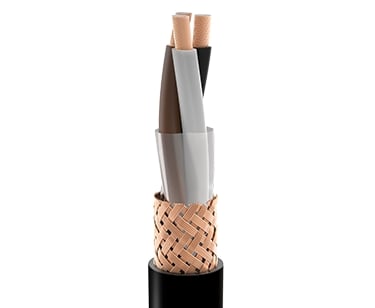

M2XCH(NOFI)

Detailed Technical Specifications and Performance Characteristics

Conductor Technology and Performance Implications

The choice between Class 2 and Class 5 conductors represents a fundamental design decision that affects both installation characteristics and long-term performance. Class 2 conductors consist of relatively few, larger diameter strands that provide excellent electrical performance and mechanical stability in fixed installations where minimal cable movement is expected after installation.

The reduced number of strands in Class 2 construction results in lower manufacturing costs and simpler termination procedures, making these conductors cost-effective for straightforward fixed installations. The larger individual strand diameter also provides better resistance to corrosion in marine environments, as the surface area to volume ratio is more favorable.

Class 5 conductors incorporate many more, smaller diameter strands that significantly increase cable flexibility during installation. This construction facilitates routing through tight bends and complex ship structures where installation access is limited. The increased flexibility also provides better resistance to fatigue failure in applications where some cable movement is unavoidable.

The fine strand construction of Class 5 conductors does require more careful handling during termination to prevent strand breakage, and the increased surface area may require additional attention to termination techniques in highly corrosive environments. However, the installation advantages often outweigh these considerations in complex marine installations.

Insulation System Design and Thermal Performance

Cross-linked polyethylene (XLPE) insulation represents the standard for marine power cables due to its excellent electrical properties combined with superior thermal and chemical resistance. The cross-linking process creates a three-dimensional molecular structure that maintains insulation properties across the full operating temperature range while providing resistance to thermal aging.

XLPE insulation demonstrates excellent dielectric strength, maintaining high breakdown voltage even under the elevated temperatures common in marine engine room installations. The material also exhibits low dielectric loss, reducing power dissipation within the cable and improving overall system efficiency.

The thermal characteristics of XLPE insulation allow continuous operation at temperatures up to 90°C while maintaining full electrical performance. This thermal rating provides significant margin above typical marine operating temperatures while ensuring reliable performance during peak loading conditions or in high ambient temperature environments.

Chemical resistance represents another critical advantage of XLPE insulation in marine applications. The material demonstrates excellent resistance to oils, fuels, and cleaning solvents commonly encountered in marine installations, preventing insulation degradation that could lead to electrical failure.

Advanced Shielding Technologies and EMC Performance

The electromagnetic compatibility requirements of modern marine installations have driven the development of sophisticated cable shielding systems that provide effective interference suppression across broad frequency ranges. The combination of metallic tape screening and braided copper shields employed in M2XCH-VFD and M2XCH-EMC variants creates a comprehensive electromagnetic barrier.

Copper-polyester tape screening provides 100% coverage of the cable core, creating a continuous metallic barrier that effectively contains high-frequency electromagnetic emissions. The polyester backing provides mechanical stability for the copper layer while maintaining flexibility necessary for cable installation and service.

The copper braided screen adds a second layer of electromagnetic protection while providing the low-impedance path necessary for effective shield termination. The minimum 90% coverage specification ensures adequate electromagnetic performance while maintaining manufacturing flexibility. The braided construction provides excellent flexibility and resistance to mechanical damage during installation.

The dual-layer shielding system provides superior performance compared to single-layer alternatives, offering effective attenuation across the frequency ranges most critical for marine electromagnetic compatibility. This performance is particularly important in VFD applications where switching frequencies and their harmonics can extend well into the megahertz range.

Standards Compliance and Certification Requirements

Fire Safety Standards and Material Properties

Marine fire safety represents one of the most critical aspects of cable design, as shipboard fires present extreme danger due to limited escape routes and confined spaces. The IEC 60332 series of standards establishes comprehensive requirements for flame retardancy that address both individual cable performance and cable bundle installations.

IEC 60332-1-2 testing evaluates individual cable flame retardancy, ensuring that single cables will not propagate flame when exposed to a standardized ignition source. This characteristic prevents localized ignition sources from causing progressive cable failure that could extend fire damage throughout the electrical installation.

IEC 60332-3-22 Category A testing addresses the more challenging scenario of bundled cable installations, where multiple cables installed together could create conditions for rapid fire propagation. The Category A classification represents the most stringent requirement, ensuring that even large cable bundles will not sustain flame propagation under test conditions.

The halogen-free requirements specified in IEC 60754 standards address the toxic gas emission concerns that are particularly critical in marine confined spaces. Halogen-free materials, when burned, produce significantly less toxic gas than conventional PVC-based materials, improving survivability during fire emergencies.

Low smoke emission characteristics, verified through IEC 61034 testing, ensure that cable fires produce minimal optical obscuration that could impede evacuation or firefighting efforts. This characteristic is particularly critical in marine installations where visibility during emergencies directly affects survival rates.

Environmental Resistance and Durability Standards

Ozone resistance testing per IEC 60811-403 addresses the degradation effects of ozone exposure that can be significant in marine environments, particularly in areas where electrical equipment generates ozone as a byproduct of operation. The testing ensures long-term material stability despite continuous low-level ozone exposure.

UV resistance characteristics of the SHF1 outer sheath material enable reliable performance in open deck installations where direct sunlight exposure is unavoidable. This resistance prevents polymer degradation that could compromise mechanical protection and moisture barrier properties over the service life of the installation.

Temperature cycling resistance ensures reliable performance despite the significant temperature variations common in marine service. Cables must maintain electrical and mechanical properties despite repeated expansion and contraction cycles that occur due to varying load conditions and environmental temperature changes.

Practical Selection Guidelines and Application Considerations

Engineering Decision Criteria for Cable Selection

The selection process for M2XCH cable variants requires careful consideration of multiple technical factors that affect both initial installation success and long-term performance. Understanding the relationship between these factors enables optimal cable selection for specific applications.

Electromagnetic compatibility requirements represent the primary differentiator between basic and EMC-enhanced cable variants. Applications involving VFD motor control, sensitive electronic equipment, or installations in electromagnetically noisy environments require the enhanced shielding provided by M2XCH-VFD or M2XCH-EMC variants.

Mechanical protection requirements drive the choice between FI and NOFI construction. Installations where cables may experience impact loading, such as routing through high-traffic areas or locations where maintenance activities could cause mechanical stress, benefit from the enhanced protection provided by bedding compound construction.

Installation environment characteristics, including available routing space, bending requirements, and access limitations, influence conductor class selection. Tight routing requirements or complex installation paths favor the enhanced flexibility of Class 5 conductor construction, while straightforward fixed installations can effectively utilize Class 2 conductors.

Installation Best Practices and Performance Optimization

Proper installation techniques are essential for realizing the full performance potential of M2XCH cable systems. The 6×D minimum bending radius specification represents the minimum allowable bend radius under any installation condition, but larger radius bends should be employed whenever space permits to minimize mechanical stress.

Shield termination practices critically affect electromagnetic compatibility performance. Effective shield termination requires continuous electrical connection of the shield to the equipment ground system with minimal impedance discontinuities. Poor shield termination can negate the electromagnetic compatibility benefits of sophisticated cable shielding systems.

Support spacing and cable tray configuration affect long-term mechanical performance. Proper support prevents excessive sag that could create stress concentrations, while appropriate spacing prevents damage from cable movement during ship operation. Consideration of thermal expansion is particularly important in long cable runs where temperature variations could create significant dimensional changes.

Separation from heat sources and electromagnetic interference sources during routing planning prevents performance degradation and extends service life. Maintaining adequate clearance from hot surfaces prevents insulation aging, while separation from strong electromagnetic field sources prevents interference despite cable shielding.

Advanced Technical Considerations and Future Developments

Electromagnetic Compatibility in Complex Marine Systems

Modern marine electrical systems incorporate increasingly sophisticated power electronics that create complex electromagnetic environments requiring advanced cable design considerations. The interaction between multiple VFD systems, switch-mode power supplies, and communication equipment creates electromagnetic interference patterns that extend well beyond traditional frequency ranges.

Harmonic distortion from nonlinear loads affects not only power quality but also influences electromagnetic compatibility requirements for associated cabling systems. The higher-order harmonics generated by modern power electronic equipment can couple into cable shielding systems and propagate throughout the electrical installation if not properly managed.

Ground loop formation represents a significant concern in marine installations where multiple equipment grounds may create unintended current paths through cable shielding systems. Proper system design must consider shield termination strategies that provide effective electromagnetic compatibility without creating problematic ground loops.

The evolution toward increased automation and digital control systems in marine applications will continue to drive electromagnetic compatibility requirements for marine cable systems. Future cable designs will need to address even more stringent interference suppression requirements while maintaining the mechanical and environmental performance characteristics essential for marine service.

Material Science Advances and Performance Enhancement

Ongoing developments in polymer science continue to improve the performance characteristics of marine cable materials. Advanced cross-linking techniques enable improved thermal performance while maintaining flexibility characteristics essential for installation. New halogen-free flame retardant systems provide enhanced fire safety performance with reduced environmental impact.

Conductor technology advances focus on improving corrosion resistance while maintaining electrical performance and mechanical flexibility. Advanced plating systems and alloy development provide enhanced resistance to marine environmental conditions while preserving the termination characteristics essential for reliable electrical connections.

Shielding system optimization continues to evolve with advances in metallic foil technology and braided shield construction techniques. These developments enable improved electromagnetic compatibility performance while maintaining the mechanical characteristics necessary for marine cable installations.

The integration of monitoring technologies into cable systems represents an emerging area of development that could provide real-time performance feedback and predictive maintenance capabilities. These smart cable systems could revolutionize marine electrical system reliability and maintenance practices.

Conclusion and Selection Summary

The M2XCH family of marine cables provides comprehensive solutions for the diverse requirements of modern marine electrical installations. Understanding the technical differences between VFD, EMC, FI, and NOFI variants enables optimal cable selection that balances performance requirements with installation constraints and economic considerations.

The sophisticated engineering incorporated into these cable designs reflects the demanding requirements of marine service and the critical importance of reliable electrical performance in maritime applications. Proper selection and installation of these cables contributes significantly to overall system reliability and safety.

As marine electrical systems continue to evolve toward increased complexity and performance requirements, the advanced characteristics of M2XCH cable systems position them as essential components for contemporary marine electrical design. The comprehensive standards compliance and proven performance characteristics of these cables provide the foundation for reliable marine electrical installations that meet both current requirements and future performance expectations.
