Understanding FRHF-CXO 0.6/1KV Marine Power Cable: Safety, Performance, and Maritime Applications
Comprehensive guide to FRHF-CXO 0.6/1KV marine power cables covering fire resistance, halogen-free design, technical specifications, and maritime applications for enhanced vessel safety.
BLOGS
6/27/202512 min read
Introduction
The maritime industry operates under some of the most demanding electrical conditions imaginable, where the combination of saltwater corrosion, confined spaces, and the critical need for uninterrupted power creates unique challenges for electrical infrastructure. Within this context, the FRHF-CXO 0.6/1KV marine power cable represents a sophisticated engineering solution designed specifically to address these harsh maritime requirements while prioritizing crew safety and operational reliability.
The FRHF-CXO designation stands for Fire Resistant Halogen-Free Cross-linked polyethylene Outer sheath, indicating its primary safety characteristics. This cable type has emerged as a preferred choice for modern vessel electrical systems due to its exceptional ability to maintain electrical circuit integrity during fire emergencies while simultaneously minimizing the production of toxic gases that could endanger crew members in enclosed spaces.
Understanding the critical importance of fire-resistant and halogen-free cables in marine environments requires recognizing that ships and offshore installations present unique fire hazards. Unlike terrestrial buildings where occupants can evacuate relatively easily, maritime vessels confine crew members within limited spaces where toxic smoke and gases can accumulate rapidly. The halogen-free characteristic becomes particularly crucial because traditional cables containing halogens release highly corrosive and toxic hydrogen chloride and hydrogen fluoride gases when exposed to fire, creating both immediate health hazards and long-term corrosion damage to sensitive electronic equipment.
Where Is FRHF-CXO Used?
The application scope of FRHF-CXO 0.6/1KV cables extends across virtually every critical power distribution system aboard modern vessels and offshore installations. These cables serve as the electrical backbone for fixed power installations on ships, where reliability cannot be compromised even under the most challenging conditions.
In machinery rooms, these cables power essential equipment including main engines, auxiliary generators, pumps, and ventilation systems. The fire-resistant properties become particularly valuable in these high-temperature environments where the risk of electrical fires remains elevated due to the presence of fuel systems, hot surfaces, and mechanical equipment. The ability to maintain circuit integrity during fire emergencies ensures that critical safety systems such as fire pumps and emergency lighting continue operating when they are needed most.
Accommodation areas represent another critical application zone where FRHF-CXO cables provide power for lighting, air conditioning, galley equipment, and entertainment systems. In these spaces, the halogen-free characteristic becomes especially important because crew members spend extended periods in these areas, and any fire event must not compromise their ability to evacuate safely through smoke-filled corridors and stairways.
Open deck installations present unique challenges where cables must withstand direct exposure to saltwater spray, ultraviolet radiation from sunlight, and extreme temperature variations. FRHF-CXO cables excel in these applications due to their robust outer sheath material that resists both chemical degradation and mechanical damage from deck operations.

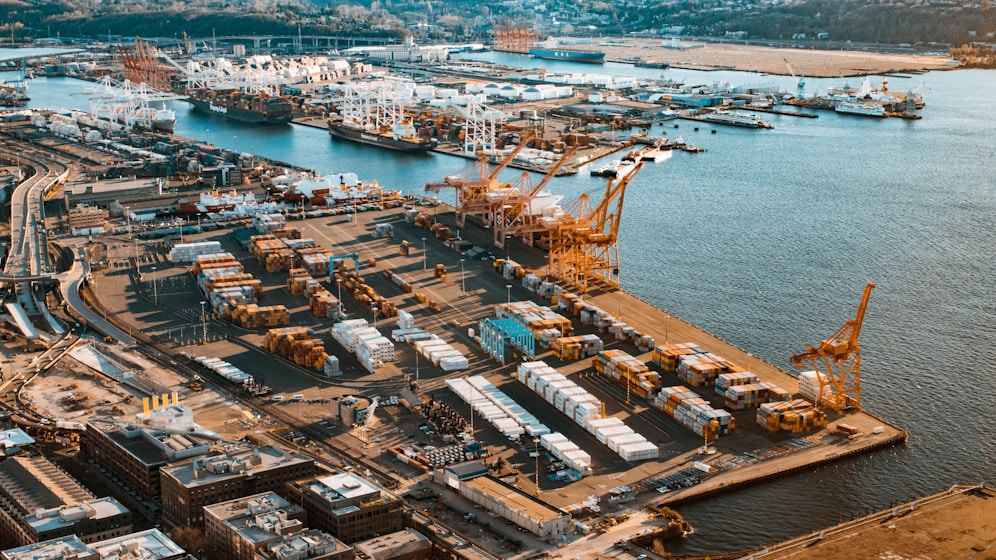

Port crane systems and terminal lighting installations also benefit from FRHF-CXO cable technology, particularly in applications where the cable routing passes through areas with potential fire hazards or where environmental regulations mandate halogen-free materials. These installations often require cables that can operate reliably for decades with minimal maintenance, making the chemical resistance and durability of FRHF-CXO cables particularly valuable.
Key Functional Benefits
The fire resistance capability of FRHF-CXO cables represents perhaps their most critical functional benefit, particularly in maritime applications where fire can spread rapidly through confined spaces. Fire resistance differs fundamentally from flame retardance in that fire-resistant cables must maintain their electrical circuit integrity even when directly exposed to flames and high temperatures. This characteristic ensures that emergency systems such as fire pumps, emergency lighting, and communication systems continue operating during fire emergencies, providing crew members with the tools necessary for effective fire suppression and evacuation.
The fire resistance is achieved through a carefully engineered mica tape layer that forms a protective barrier around the conductors. When exposed to high temperatures, this mica tape creates a ceramic-like protective shell that maintains the electrical pathway even after the cable's organic materials have been consumed by fire. This technology allows critical circuits to remain operational for the time periods specified in international maritime safety regulations.
Flame retardance provides an additional layer of protection by preventing fire from spreading along cable bundles. In typical vessel installations, hundreds of cables are routed together in cable trays and conduits, creating the potential for rapid fire propagation if individual cables are not properly protected. The flame retardant properties of FRHF-CXO cables help contain fires to their point of origin, buying valuable time for crew response and preventing the cascade failure of multiple electrical systems.
Low smoke generation during fire events dramatically improves visibility in emergency situations, which can mean the difference between successful evacuation and tragedy in confined maritime spaces. Traditional cables often produce dense, black smoke that quickly fills compartments and corridors, making navigation impossible and hampering firefighting efforts. FRHF-CXO cables are specifically formulated to minimize smoke production, maintaining visibility levels that allow crew members to navigate safely and firefighting teams to locate and suppress fires effectively.
The halogen-free characteristic addresses both immediate and long-term safety concerns. During fire events, halogen-free cables do not release hydrogen chloride, hydrogen fluoride, or other toxic halogenated compounds that can cause severe respiratory damage and death at relatively low concentrations. This characteristic becomes particularly critical in ships and offshore installations where crew members may be trapped in enclosed spaces for extended periods during emergency situations.
Beyond immediate safety concerns, the absence of halogens prevents the formation of corrosive acids that can cause extensive damage to sensitive electronic equipment, structural metals, and other vessel systems. This characteristic significantly reduces post-fire cleanup costs and helps preserve critical navigation and communication equipment that may be essential for vessel safety even after fire events.
High temperature tolerance up to 90°C continuous operation enables FRHF-CXO cables to function reliably in the elevated temperature environments commonly found in engine rooms, boiler spaces, and other machinery areas. This capability ensures that cables maintain their electrical and mechanical properties even when subjected to the heat generated by large marine engines and auxiliary equipment.
Technical Construction Explained
The conductor system of FRHF-CXO cables utilizes Class 2 stranded annealed copper conforming to IEC 60228 specifications, which provides the optimal balance between electrical conductivity and mechanical flexibility required for marine installations. The Class 2 stranding configuration consists of multiple fine copper wires twisted together in a specific pattern that allows the cable to flex repeatedly without conductor fatigue while maintaining low electrical resistance.
The annealing process involves heating the copper wires to remove work hardening that occurs during the drawing process, resulting in conductors that remain flexible even after years of service in vibrating marine environments. This flexibility becomes particularly important in applications where cables must route through tight spaces and around obstacles while maintaining their electrical integrity over the vessel's operational lifetime.
The insulation system employs halogen-free cross-linked polyethylene (HF XLPE) that provides superior electrical insulation properties while eliminating halogen-containing compounds. Cross-linking involves forming chemical bonds between polymer chains, creating a three-dimensional molecular structure that dramatically improves the material's thermal stability, chemical resistance, and mechanical properties compared to standard thermoplastic insulation materials.
This cross-linked structure allows the insulation to maintain its properties at elevated temperatures up to 90°C continuous operation and withstand short-circuit temperatures up to 250°C without losing its insulating capability. The halogen-free formulation ensures that even under extreme temperature conditions, the insulation does not release toxic or corrosive gases that could endanger crew safety or damage sensitive equipment.
The fire barrier layer consists of a precisely applied mica tape that serves as the heart of the cable's fire resistance capability. Mica is a naturally occurring mineral with exceptional thermal stability that maintains its structural integrity at temperatures exceeding 1000°C. When properly applied as a tape layer around the insulated conductors, mica creates a protective barrier that prevents fire from reaching the conductor while maintaining the electrical circuit path.
The application of mica tape requires careful attention to overlap patterns and tension control to ensure complete coverage without creating stress concentrations that could compromise the cable's mechanical properties. The tape must be applied with sufficient overlap to prevent gaps that could allow flame penetration while avoiding excessive buildup that would create an overly rigid cable structure.
The sheath system utilizes SHF1 halogen-free thermoplastic polyolefin that provides the cable's primary protection against environmental hazards including saltwater, chemicals, ultraviolet radiation, and mechanical damage. The SHF1 designation indicates compliance with specific marine industry standards for halogen-free sheath materials that must demonstrate superior performance in saltwater environments.
This outer sheath formulation incorporates stabilizers and antioxidants that prevent degradation from prolonged exposure to marine environmental conditions while maintaining flexibility across the temperature range from -40°C to +90°C. The thermoplastic nature of the material allows for efficient manufacturing processes while providing the durability required for marine service.
The overall cable construction integrates these individual components into a cohesive system optimized for multi-core stability and compactness. The arrangement of multiple insulated conductors within the cable structure requires careful consideration of electrical field distribution, thermal management, and mechanical stress patterns to ensure that the cable performs reliably throughout its service life.
Electrical and Environmental Performance
The voltage rating of 0.6/1 kV indicates the cable's capability to operate safely at voltages up to 600 volts between conductor and ground (0.6 kV) and up to 1000 volts between conductors (1 kV). This voltage rating makes FRHF-CXO cables suitable for the majority of shipboard power distribution applications, including lighting circuits, motor feeds, and general power distribution systems.
The thermal performance capabilities of FRHF-CXO cables demonstrate their suitability for demanding marine applications through several key temperature ratings. Continuous operation at 90°C allows these cables to function reliably in high-temperature environments such as engine rooms and machinery spaces where ambient temperatures may reach 50°C or higher and additional heating from nearby equipment further elevates conductor temperatures.
During short-circuit conditions, the cables can withstand conductor temperatures up to 250°C for limited durations without suffering permanent damage to their insulation system. This capability ensures that temporary overload conditions do not result in cable failure, providing system designers with confidence that momentary fault conditions will not compromise the integrity of the electrical distribution system.
The mechanical durability of FRHF-CXO cables extends their operational capability down to -40°C, enabling their use in vessels operating in Arctic conditions or offshore installations in cold climates. This low-temperature capability requires special attention to the flexibility characteristics of both the insulation and sheath materials to prevent cracking or other mechanical failures when cables are subjected to bending or vibration at extremely low temperatures.
Installation temperature specifications require that cables not be installed when ambient temperatures fall below -15°C, as the reduced flexibility at these temperatures could result in installation damage that might not become apparent until the cable is placed into service. This requirement emphasizes the importance of proper installation procedures and environmental controls during cable installation projects.
Bending radius specifications vary based on the number of cores and overall cable diameter, with typical requirements ranging from 6 to 12 times the cable outer diameter depending on the specific construction. These specifications ensure that cables can be routed through typical ship construction details without suffering mechanical damage that could compromise their electrical or fire performance characteristics.
International Standards Compliance
The comprehensive standards compliance of FRHF-CXO cables reflects the rigorous testing and certification requirements necessary for marine electrical equipment. Fire testing according to IEC 60331-1 and IEC 60331-2 standards verifies the cable's ability to maintain circuit integrity when subjected to direct flame impingement at temperatures of 750°C for specified durations.
These fire tests simulate actual fire conditions by exposing energized cable samples to controlled flame sources while monitoring the continuity of electrical circuits. The cables must continue to carry their rated current without interruption throughout the test duration, demonstrating that emergency circuits will remain operational during actual fire events.
Flame testing per IEC 60332-3-22 evaluates the cable's resistance to flame propagation when installed in bundles, as would be typical in actual vessel installations. This test involves mounting multiple cable samples in a ladder configuration and applying a controlled flame source to the bottom of the bundle. The test measures how far flames propagate up the cable bundle and establishes requirements for self-extinguishing behavior.
Smoke testing according to IEC 61034-2 quantifies the amount of smoke produced when cable samples are burned under controlled conditions. The test measures light transmission through the smoke to establish smoke density values, with lower values indicating better visibility retention during fire events. This characteristic directly impacts crew safety by maintaining visibility for evacuation and firefighting operations.
Halogen-free testing per IEC 60754-1 and IEC 60754-2 standards verifies that cable materials do not contain significant quantities of halogen elements (fluorine, chlorine, bromine, iodine) that would produce toxic and corrosive gases during combustion. These tests involve combusting cable samples and analyzing the resulting gases for halogen content, with strict limits on allowable concentrations.
Construction and material standards compliance with the IEC 60092 series ensures that FRHF-CXO cables meet the specific requirements for marine electrical installations. This comprehensive standard series covers conductor materials, insulation properties, sheath requirements, and construction methods specifically developed for the marine environment.
Installation Considerations in Marine Environments
Cable routing in confined spaces requires careful planning to ensure adequate support while providing access for inspection and maintenance throughout the vessel's operational life. Marine installations typically involve routing cables through watertight bulkheads, around machinery foundations, and through areas with limited clearance, making proper cable selection and installation techniques critical for long-term reliability.
The compact construction of FRHF-CXO cables facilitates installation in space-constrained areas while their flexibility allows routing around obstacles without exceeding minimum bending radius requirements. Proper cable support systems must be installed to prevent mechanical stress from vessel motion and vibration while allowing for thermal expansion and contraction.
Performance in corrosive zones requires attention to both the cable construction and the installation hardware used to support and protect the cables. The halogen-free sheath material provides superior resistance to saltwater corrosion compared to traditional cable materials, but proper installation practices remain essential for achieving design service life.
Cable supports, clamps, and protective conduits must be fabricated from corrosion-resistant materials and properly installed to prevent galvanic corrosion at connection points. Regular inspection procedures should be established to monitor cable condition and identify potential problems before they result in system failures.
Safe deck exposure installations must address the combined effects of ultraviolet radiation, saltwater spray, mechanical damage from deck operations, and extreme temperature variations. FRHF-CXO cables include UV-resistant compounds in their sheath formulation, but installation designers should consider additional protective measures such as cable trays with covers or protective conduits in areas with severe exposure conditions.
The integration of power cables with control and lighting systems requires careful attention to electromagnetic compatibility and proper grounding practices. FRHF-CXO power cables should be routed separately from sensitive control circuits where possible, and proper shielding and grounding techniques should be employed to prevent interference with navigation and communication equipment.
Why Choose FRHF-CXO for Your Vessel or Port System?
Long-term reliability and regulatory compliance represent fundamental advantages of FRHF-CXO cables that directly impact vessel operations and safety. The combination of fire resistance, halogen-free materials, and robust construction provides confidence that electrical systems will continue operating reliably throughout the vessel's service life while meeting evolving international safety regulations.
Modern maritime regulations increasingly emphasize fire safety and environmental protection, making halogen-free materials a requirement rather than an option for many applications. FRHF-CXO cables meet current regulatory requirements while providing margin for future regulatory changes, protecting vessel owners from the need for costly retrofits to maintain compliance.
Enhanced safety for crew and onboard equipment extends beyond fire emergencies to include protection from toxic gas exposure, reduced corrosion damage, and improved system reliability during normal operations. The comprehensive safety features of FRHF-CXO cables create multiple layers of protection that reduce overall vessel risk profiles.
Lower maintenance requirements result from the superior chemical and fire resistance characteristics that prevent degradation from environmental exposure and reduce the likelihood of premature cable failures. The cross-linked insulation system maintains its properties throughout the cable's service life, eliminating the need for periodic cable replacement that might be required with inferior cable types.
The initial investment in FRHF-CXO cables often proves economical when lifecycle costs are considered, as reduced maintenance, improved reliability, and enhanced safety translate into lower operational costs and reduced insurance risks over the vessel's service life.
Frequently Asked Questions
Is FRHF-CXO suitable for outdoor deck cable trays exposed to saltwater?
Yes, FRHF-CXO cables are specifically designed for marine environments where saltwater exposure is inevitable. The outer sheath material is halogen-free SHF1 rated specifically for marine conditions, incorporating compounds that resist saltwater corrosion and UV degradation. The sheath formulation includes stabilizers that prevent polymer breakdown from prolonged saltwater exposure while maintaining flexibility across the full operational temperature range. However, proper installation practices including adequate drainage and appropriate support systems remain essential for achieving design service life in these demanding applications.
What's the difference between flame retardant and fire resistant properties?
Fire resistance and flame retardance serve different but complementary safety functions in cable design. Fire resistance ensures continued circuit operation under direct flame exposure, allowing emergency systems to remain operational during fire events. This capability is achieved through the mica tape barrier that maintains conductor integrity even after organic materials are consumed. Flame retardance prevents fire from spreading along cable bundles by incorporating materials that slow combustion and promote self-extinguishing behavior. Both characteristics are essential for comprehensive fire safety, with fire resistance maintaining emergency power and flame retardance preventing fire propagation through cable installations.
Can FRHF-CXO cables be used for shore power systems at terminals?
FRHF-CXO cables can be used for shore power applications at terminals, provided the installation matches fixed cabling design parameters rather than flexible shore power cord requirements. The cable's construction optimizes it for permanent installation in cable trays, conduits, and similar fixed routing systems rather than the repeated flexing required for retractable shore power connections. Terminal installations benefit from the cable's fire resistance and halogen-free characteristics, particularly in enclosed spaces where crew safety and equipment protection are priorities.
Conclusion
FRHF-CXO 0.6/1KV marine power cables represent a sophisticated engineering solution that addresses the unique challenges of maritime electrical installations through comprehensive safety features and robust construction. The combination of fire resistance, halogen-free materials, and superior environmental performance creates multiple layers of protection that enhance both crew safety and system reliability.
The technical advantages of these cables extend beyond immediate safety benefits to include long-term operational benefits such as reduced maintenance requirements, regulatory compliance assurance, and protection of sensitive electronic equipment from corrosive fire gases. The comprehensive standards compliance demonstrates the cable's suitability for the most demanding marine applications while providing confidence in long-term performance.
For marine electrical system designers and shipowners, FRHF-CXO cables offer a proven solution that balances safety, performance, and economic considerations. The initial investment in these advanced cables is typically justified by their superior performance characteristics, reduced lifecycle costs, and the peace of mind that comes from knowing that electrical systems will continue operating when they are needed most. As maritime safety regulations continue to evolve toward more stringent requirements, FRHF-CXO cables provide a future-ready solution that meets current standards while providing margin for anticipated regulatory changes.
