Understanding BS5467 and BS6724 Armoured Cables: An Engineering Perspective on Low Voltage Power Distribution

Introduction: The Foundation of Modern Power Distribution

In the complex landscape of electrical engineering, the selection of appropriate cabling systems forms the backbone of safe and reliable power distribution. British Standards have long established the benchmark for low voltage armoured cable specifications, with BS5467 and BS6724 representing two of the most widely implemented standards in contemporary electrical installations.

Both standards govern cables rated at 600/1000V, incorporating mechanical protection through steel wire armour or aluminium wire armour configurations. However, their fundamental differences lie in fire safety characteristics and material compositions, making the choice between them a critical engineering decision that impacts not only immediate performance but also long-term safety and regulatory compliance.

The significance of understanding these differences extends beyond mere technical specifications. In an era where fire safety regulations are increasingly stringent and environmental considerations play a larger role in material selection, engineers must navigate the balance between cost-effectiveness, performance reliability, and safety compliance. This understanding becomes particularly crucial when designing systems for public buildings, marine environments, or industrial facilities where human safety and operational continuity are paramount.

Diverse Applications: Where These Cables Excel

Industrial Power Supply and Distribution Networks

The industrial sector represents the primary application domain for both BS5467 and BS6724 cables. In manufacturing facilities, these cables serve as the arterial network for power distribution, connecting main distribution boards to subsidiary panels, motor control centers, and individual equipment loads. The mechanical protection provided by their armoured construction makes them particularly suitable for installations where cables may be subject to physical stress, vibration, or potential impact damage.

Fixed installations in industrial environments often require cables to traverse areas with heavy machinery, overhead cranes, and material handling equipment. The steel wire armour provides exceptional resistance to crushing forces and accidental damage, while the robust construction ensures continued operation even under challenging conditions. Control systems and auxiliary wiring applications benefit from the electromagnetic shielding properties inherent in the armoured design, reducing interference and improving signal integrity in electrically noisy industrial environments.

Public and Commercial Infrastructure Requirements

The distinction between BS5467 and BS6724 becomes most apparent in public and commercial building applications. BS6724 cables have gained preference in these environments primarily due to their Low Smoke Zero Halogen (LSZH) characteristics, which align with modern fire safety philosophies that prioritize occupant safety during emergency evacuation scenarios.

In public buildings such as hospitals, schools, shopping centers, and office complexes, the potential consequences of cable-related fires extend far beyond property damage. The toxic gases and dense smoke produced by conventional PVC-sheathed cables can impair visibility and create life-threatening conditions for occupants attempting to evacuate. BS6724 cables address these concerns by utilizing LSZH materials that significantly reduce smoke production and eliminate the release of corrosive halogen gases during combustion.

Underground and External Installation Challenges

Both cable types excel in underground and external installation applications, where their armoured construction provides essential protection against mechanical damage from excavation activities, ground settlement, and environmental factors. Direct burial installations particularly benefit from the corrosion resistance and structural integrity provided by the steel wire armour, which maintains cable protection even when subjected to soil movement and hydrostatic pressure.

External installations expose cables to ultraviolet radiation, temperature cycling, and moisture ingress. The robust outer sheathing materials used in both standards provide adequate protection against these environmental stressors, though the specific material choice may influence long-term performance. The armoured construction also provides an additional earthing path, enhancing electrical safety in outdoor environments where fault currents might otherwise pose risks to personnel and equipment.

Marine and Offshore Considerations

Marine and offshore applications present unique challenges that highlight the importance of proper cable selection. While both BS5467 and BS6724 provide mechanical protection suitable for marine environments, the enclosed nature of ships, offshore platforms, and marine structures makes the fire safety characteristics of BS6724 particularly valuable.

The confined spaces typical of marine installations mean that smoke and toxic gas production during fire incidents can quickly overwhelm ventilation systems and create untenable conditions for personnel. BS6724's low smoke emission characteristics become critical safety features in these environments, potentially providing the additional evacuation time necessary to save lives during emergency situations.

Regulatory Compliance in Modern Construction

The Construction Products Regulation (CPR) has fundamentally changed the landscape of cable selection in European markets, with implications extending to projects following European standards worldwide. BS6724 cables designed to meet CPR requirements undergo rigorous testing for fire performance, including reaction to fire tests that evaluate flame spread, heat release, smoke production, and the release of flaming droplets.

This regulatory framework has created a clear delineation between cables suitable for general industrial use and those required for public buildings and spaces where enhanced fire safety performance is mandated. Understanding these regulatory requirements is essential for engineers working on projects that must comply with modern building codes and safety standards.

Technical Specifications: Engineering the Performance Balance

Voltage Rating Systems and Applications

Both BS5467 and BS6724 cables are primarily rated for 600/1000V operation, which corresponds to their suitability for low voltage distribution systems operating at 415V three-phase or 240V single-phase configurations. This voltage rating represents the cable's ability to withstand both normal operating voltage and temporary overvoltage conditions without insulation breakdown.

The availability of 1.9/3.3kV configurations extends the application range into medium voltage distribution systems, though these higher voltage variants require additional consideration of installation methods, termination techniques, and safety protocols. The voltage rating directly influences insulation thickness, overall cable diameter, and installation requirements, making it a fundamental parameter in system design.

Conductor Materials and Their Engineering Implications

The choice between copper and aluminum conductors involves multiple engineering considerations beyond simple cost comparison. Copper conductors, typically supplied as Class 2 stranded configurations, offer superior conductivity, flexibility, and termination reliability. The stranded construction provides better flexibility for installation in confined spaces and reduces stress concentrations that might develop in solid conductors subjected to mechanical vibration.

Aluminum conductors, usually supplied as Class 1 solid construction, offer weight advantages and cost benefits for larger cross-sectional areas. However, aluminum's different thermal expansion characteristics and potential for galvanic corrosion when in contact with dissimilar metals require careful consideration during installation and termination procedures. The choice often depends on the specific application requirements, installation environment, and long-term maintenance considerations.

Core configuration options range from single-core installations for high-current applications to multi-core configurations supporting complex control and instrumentation circuits. BS5467 accommodates configurations up to 48 cores, making it suitable for comprehensive control systems and multi-circuit applications. BS6724 typically focuses on power distribution applications with configurations up to five cores plus auxiliary conductors for earthing and control functions.

Insulation Technology and Material Science

The insulation system represents the heart of cable performance, determining electrical integrity, thermal capability, and service life. Cross-linked polyethylene (XLPE) serves as the primary insulation material for both standards, offering excellent electrical properties, thermal stability, and resistance to environmental stress cracking.

XLPE's cross-linked molecular structure provides superior thermal performance compared to thermoplastic alternatives, enabling higher operating temperatures and better short-circuit performance. The cross-linking process creates a three-dimensional polymer network that maintains structural integrity even at elevated temperatures, contributing to the cables' 90°C continuous operating temperature rating and 250°C short-circuit capability.

BS6724 extends insulation options to include Ethylene Propylene Rubber (EPR) and specialized thermosetting polyolefin compounds designated as GP8, GP6, and EI5. These alternatives offer specific advantages in certain applications, such as enhanced flexibility for EPR or improved fire performance characteristics for the specialized polyolefin compounds.

Armour Systems and Mechanical Protection

The armour system design reflects the fundamental purpose of these cables: providing mechanical protection while maintaining electrical performance. Single-core cables utilize Aluminium Wire Armour (AWA) to avoid magnetic losses that would occur with ferromagnetic steel armour surrounding a single current-carrying conductor. This non-magnetic approach eliminates eddy current losses and heating that would otherwise reduce cable efficiency and current-carrying capacity.

Multi-core cables employ Steel Wire Armour (SWA), where the balanced currents in the multiple cores minimize magnetic field effects on the steel armour. The steel construction provides superior mechanical protection compared to aluminum alternatives, making it the preferred choice for applications where maximum impact resistance is required.

The armour wire diameter, lay angle, and tension during manufacture all influence the final mechanical properties of the cable. These parameters are carefully controlled during production to achieve optimal balance between flexibility for installation and protection against mechanical damage.

Sheathing Materials and Fire Performance

The distinction between BS5467 and BS6724 becomes most pronounced in their approach to outer sheathing materials and fire performance. BS5467 utilizes traditional PVC (Polyvinyl Chloride) sheathing, which provides good mechanical protection, weather resistance, and cost-effectiveness for general industrial applications.

BS6724's commitment to LSZH technology represents a fundamental shift in cable design philosophy. The LSZH materials used must contain less than 0.5% halogen content by weight, dramatically reducing the production of corrosive hydrogen chloride gas during combustion. This requirement necessitates the use of alternative polymer systems, typically based on polyolefin compounds with specialized flame retardant additives.

The fire performance of BS6724 cables extends beyond simple material composition to encompass comprehensive testing according to BS7655 LTS 1 standards. These tests evaluate smoke density, toxic gas emission, and flame spread characteristics under controlled laboratory conditions that simulate real-world fire scenarios.

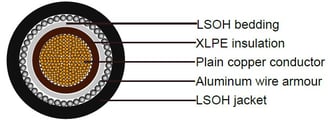

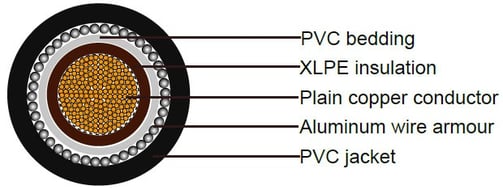

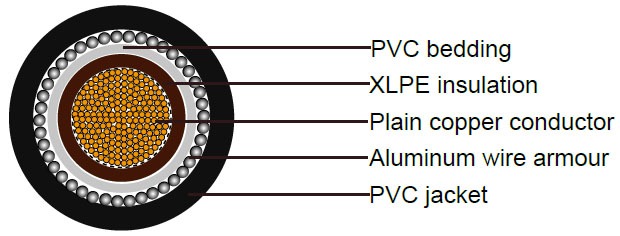

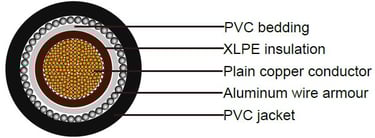

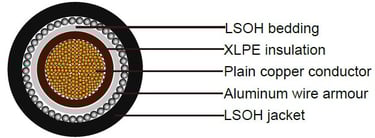

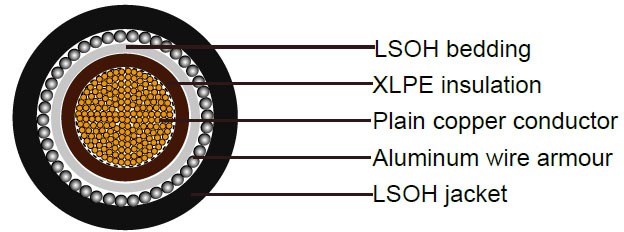

Figure: Cross-Sectional Comparison of BS5467 and BS6724 Single-Core 600/1000V Armoured Cables

This diagram illustrates the structural differences between BS5467 and BS6724 single-core cables, both featuring circular stranded copper conductors rated at 600/1000V. While both use XLPE insulation and aluminium wire armour (AWA), BS5467 employs PVC bedding and outer sheath, whereas BS6724 uses Low Smoke Zero Halogen (LSZH/LSOH) materials to meet fire safety requirements. The LSZH/LSOH layers significantly reduce smoke and corrosive gas emissions in the event of a fire, making BS6724 more suitable for public and enclosed installations.

Thermal Performance and Current Rating Calculations

The thermal performance of armoured cables involves complex heat transfer calculations that consider conductor heating, dielectric losses, armour losses, and heat dissipation through the surrounding environment. The 90°C continuous operating temperature rating reflects the maximum conductor temperature under normal load conditions, while the 250°C short-circuit rating indicates the maximum temperature that the insulation can withstand during fault conditions.

Current rating calculations must account for installation method, ambient temperature, soil thermal resistivity for buried cables, and grouping factors when multiple cables are installed in proximity. The armour system adds both thermal mass and heat dissipation area, influencing the overall thermal behavior of the cable system.

Marine and Offshore Applications: Critical Questions Answered

Understanding Marine Suitability Requirements

The question of whether BS5467 and BS6724 cables are suitable for marine applications requires understanding the unique challenges presented by maritime environments. Both cable types provide mechanical protection through their armoured construction, making them suitable for the physical demands of marine installations. However, the choice between them depends heavily on the specific application environment and safety requirements.

BS6724 emerges as the preferred choice for enclosed marine environments due to its LSZH properties. Ships, offshore platforms, and marine facilities typically feature confined spaces with limited ventilation, making the low smoke and zero halogen characteristics critical safety features. During fire incidents in these environments, the reduced smoke production can provide crucial additional time for evacuation, while the absence of corrosive halogen gases protects both personnel and sensitive electronic equipment.

Addressing Saltwater and Humidity Challenges

Marine environments subject cables to aggressive conditions including saltwater exposure, high humidity, temperature cycling, and mechanical stress from vessel movement or wave action. Both BS5467 and BS6724 incorporate design features that address these challenges, though additional protection measures may be necessary for optimal long-term performance.

The steel wire armour provides excellent mechanical protection but may require additional corrosion mitigation in severe marine environments. Galvanic isolation techniques, protective coatings, or cathodic protection systems might be necessary for installations with direct seawater exposure. The outer sheathing materials in both cable types offer good resistance to moisture ingress, though proper sealing at cable entries and terminations remains critical for system integrity.

Fire Safety Code Compliance

The distinction between BS5467 and BS6724 becomes particularly important when considering fire safety codes applicable to marine installations. International maritime regulations, including SOLAS (Safety of Life at Sea) conventions, emphasize the importance of fire prevention and smoke control in marine environments.

BS6724 cables meet Construction Products Regulation requirements and emit significantly lower levels of smoke and corrosive gases compared to conventional PVC-sheathed alternatives. This performance advantage translates directly into improved safety margins during fire incidents, potentially providing the additional evacuation time that can mean the difference between life and death in marine emergencies.

Steel Wire Armour in Offshore Environments

Steel wire armour provides excellent mechanical protection for offshore applications, but its use in corrosive marine environments requires careful consideration of long-term durability. The steel armour offers superior impact resistance and structural integrity compared to alternative protection methods, making it well-suited for the demanding conditions encountered in offshore installations.

However, galvanic corrosion becomes a significant concern when steel armour is exposed to seawater in the presence of dissimilar metals. Proper design practices include galvanic isolation at cable terminations, use of appropriate protective coatings, and implementation of cathodic protection systems where necessary. These additional measures ensure that the mechanical protection provided by the steel armour remains effective throughout the cable's intended service life.

LSZH Material Performance Considerations

A common concern regarding LSZH materials centers on whether their fire safety advantages come at the expense of mechanical or thermal performance. Modern LSZH sheathing compounds have been developed to provide mechanical resilience comparable to traditional PVC materials while maintaining the enhanced fire safety characteristics.

Advanced polymer chemistry has enabled the development of LSZH compounds that offer excellent resistance to abrasion, impact, and environmental stress cracking. These materials maintain their protective properties across the full operating temperature range and provide comparable UV resistance for outdoor applications. The thermal performance of LSZH-sheathed cables matches that of PVC alternatives, supporting the same 90°C continuous operating temperature and short-circuit ratings.

Conclusion: Strategic Cable Selection for Modern Applications

The choice between BS5467 and BS6724 armoured cables represents more than a simple technical specification decision—it reflects a strategic approach to balancing performance, safety, cost, and regulatory compliance requirements. BS5467 continues to serve as a robust, widely accepted, and cost-effective solution for industrial applications where fire safety requirements are less stringent and where the proven performance characteristics of PVC-sheathed cables meet application needs.

BS6724 emerges as the preferred choice for fire-sensitive applications, enclosed environments, and publicly accessible areas where enhanced safety performance justifies the typically higher initial cost. The LSZH characteristics of BS6724 cables align with modern safety philosophies that prioritize occupant protection and environmental responsibility, making them increasingly specified for new construction projects subject to contemporary building codes.

The engineering decision process should encompass both immediate technical requirements and long-term considerations including regulatory evolution, maintenance requirements, and lifecycle costs. As fire safety regulations continue to evolve and environmental considerations gain importance, the trend toward LSZH cable specifications is likely to accelerate across multiple application sectors.

For marine and offshore applications, the decision framework must incorporate additional factors including corrosion protection requirements, space constraints, and the critical importance of fire safety in confined environments. The enhanced safety characteristics of BS6724 cables often justify their selection even when initial cost considerations might otherwise favor BS5467 alternatives.

Ultimately, successful cable selection requires a comprehensive understanding of application requirements, regulatory environment, and long-term performance expectations. Engineers must balance immediate cost considerations against the potential consequences of inadequate fire safety performance, recognizing that the true cost of cable systems extends far beyond initial purchase price to encompass installation, maintenance, and the potential costs associated with system failures or safety incidents.
