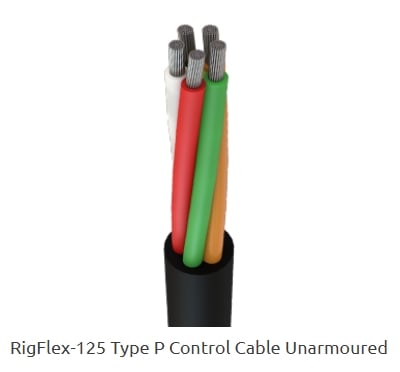

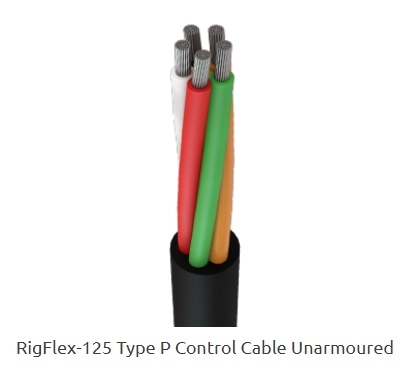

The RigFlex-125 Type P Control Cable Unarmoured: Engineering Excellence for Marine and Offshore Applications
Discover the RigFlex-125 Type P Unarmoured Control Cable - a high-performance marine cable engineered for demanding offshore environments. Learn about its technical specifications, applications, and why it's the preferred choice for shipboard and oil rig installations.
BLOGS
6/11/202511 min read
Introduction: Meeting the Demands of Marine Engineering
The marine and offshore energy sectors present some of the most challenging environments for electrical infrastructure. Between corrosive saltwater, extreme temperatures, constant vibration, and exposure to petrochemical fluids, conventional cables simply cannot withstand the rigorous demands of shipboard and offshore installations. This is where specialized marine cables like the RigFlex-125 Type P Unarmoured Control Cable become not just useful, but absolutely essential.
Understanding what makes a cable suitable for marine applications requires us to think beyond basic electrical performance. We must consider how materials behave when subjected to salt spray for months at a time, how insulation maintains its integrity during temperature swings from arctic cold to engine room heat, and how conductors respond to the constant flexing that occurs on floating platforms. The RigFlex-125 represents a sophisticated engineering solution that addresses each of these challenges through careful material selection and design optimization.
This cable serves as a critical component in the nervous system of modern marine vessels and offshore facilities, carrying control signals that operate everything from navigation systems to drilling equipment. Its reliability directly impacts operational safety, environmental protection, and economic efficiency in industries where downtime can cost millions of dollars per day.
Understanding the Technical Foundation
Electrical Performance Specifications
The RigFlex-125 operates at a rated voltage of 600/1000V, which positions it perfectly for control and instrumentation applications in marine environments. This voltage rating deserves careful consideration because it represents the balance between providing sufficient power for control circuits while maintaining safety margins appropriate for marine installations. The dual rating reflects different testing standards and installation methods, with 600V typically applying to single-phase applications and 1000V to three-phase systems.
Temperature performance stands as one of the most critical aspects of marine cable design. The RigFlex-125 demonstrates exceptional thermal capabilities with ratings of 100°C under IEEE 1580 standards and 110°C under UL 1309 standards. For single-core applications, these ratings increase to 125°C, which explains the "125" designation in the cable's name. These temperature tolerances ensure reliable operation in engine rooms, near heating systems, and in tropical climates where ambient temperatures can soar.
The current carrying capacity, determined according to IEEE 45.8 standards, ensures that the cable can safely transmit the required power without overheating. This calculation considers not just the conductor size and material properties, but also the specific installation environment, including ambient temperature, grouping with other cables, and ventilation conditions typical of marine applications.
Advanced Material Engineering
The conductor construction represents a masterpiece of metallurgical engineering. The cable utilizes soft annealed flexible stranded tinned copper wire that complies with both IEEE 1580 Table 11 and ASTM B 33 standards. The tinning process involves coating the copper strands with a thin layer of tin, which serves multiple critical functions in marine environments.
Tinning prevents copper oxidation, which is particularly important in marine environments where moisture and salt can accelerate corrosion. The tin coating also facilitates better termination connections and reduces the risk of galvanic corrosion when the cable interfaces with other metals in terminal blocks or connection points. The soft annealing process ensures maximum flexibility, allowing the cable to bend and flex without work-hardening that could lead to conductor breakage over time.
The stranded construction, as opposed to solid conductor design, provides superior flexibility and vibration resistance. Each strand can move independently during flexing, distributing mechanical stress across the entire conductor cross-section rather than concentrating it at specific points where fatigue failures typically occur.
Insulation Technology: The Cross-Linked Advantage
The insulation system employs cross-linked polyolefin compound, classified as Type P under IEEE 1580 and Type X110 under UL 1309/CSA C22.2 No.245. Understanding cross-linking helps explain why this insulation performs so exceptionally in marine environments.
Cross-linking involves creating chemical bonds between polymer chains, transforming the material from a thermoplastic (which softens when heated) to a thermoset (which maintains its properties across temperature ranges). This molecular restructuring provides several advantages critical to marine applications.
The cross-linked structure maintains excellent dielectric properties across the entire operating temperature range, ensuring consistent insulation performance whether the cable operates in a refrigerated compartment at -40°C or in an engine room at 125°C. The material also exhibits superior resistance to environmental stress cracking, which can occur when polymers are exposed to certain chemicals while under mechanical stress.
Chemical resistance becomes particularly important in marine applications where cables may encounter hydraulic fluids, fuel oils, cleaning solvents, and other petrochemical products. The cross-linked polyolefin compound maintains its integrity and insulating properties even after prolonged exposure to these substances.
The Protective Sheath: Engineering Environmental Resistance
The outer sheath utilizes thermoset chlorinated polyethylene (CPE) compound, carefully formulated to meet the demanding requirements of IEEE 1580 and UL 1309/CSA C22.2 No.245 standards. CPE represents an optimal choice for marine applications due to its unique combination of properties.
Chlorinated polyethylene offers exceptional resistance to ozone, which is particularly important for cables that may be exposed to electrical equipment that generates ozone or outdoor installations where atmospheric ozone can degrade conventional rubber compounds. The material also demonstrates superior flame resistance, contributing to the cable's excellent performance in flame propagation tests.
The thermoset nature of the CPE sheath means it will not melt or drip when exposed to heat, instead charring to form a protective barrier that helps contain fires and prevent flame spread. This characteristic proves crucial in marine environments where fire safety regulations are stringent and evacuation options may be limited.
Oil resistance represents another critical performance parameter for the CPE sheath. Marine environments contain numerous petroleum products, from diesel fuel and hydraulic oils to lubricants and cleaning solvents. The CPE formulation maintains its mechanical properties and prevents swelling or degradation even after prolonged contact with these substances.




Applications in Marine and Offshore Environments
Shipboard Installations: The Floating City
Modern ships function as floating cities with complex electrical systems that must operate reliably regardless of weather conditions or sea state. The RigFlex-125 finds extensive application in shipboard control systems where reliability directly impacts both safety and operational efficiency.
Navigation systems represent perhaps the most critical application for control cables aboard ships. These systems integrate radar, GPS, compass, and depth-finding equipment into sophisticated navigation computers that require precise, interference-free signal transmission. The RigFlex-125's superior shielding performance and signal integrity ensure that navigation data reaches the bridge without corruption or delay.
Engine room automation systems depend heavily on control cables to monitor and control main propulsion engines, auxiliary generators, fuel systems, and cooling systems. These environments present extreme challenges with high temperatures, vibration, and exposure to fuel oils and lubricants. The cable's temperature rating and chemical resistance make it ideal for these demanding applications.
Lighting control systems throughout the vessel require cables that can withstand the constant flexing that occurs as the ship moves through seas. The RigFlex-125's flexible conductor design and robust sheath construction ensure reliable operation even in high sea states where the vessel experiences significant motion.
Communication systems, including internal telephone networks, public address systems, and emergency communication equipment, rely on control cables to maintain connectivity throughout the vessel. The cable's low-smoke characteristics become particularly important for these applications, as communication systems must remain operational during emergency situations when smoke generation could impair evacuation efforts.
Offshore Oil Rig Applications: Engineering in Extreme Conditions
Offshore oil rigs represent some of the most demanding environments for electrical equipment. These facilities must operate continuously in conditions that combine the challenges of marine exposure with the additional hazards of oil and gas production operations.
Drilling systems require extensive control cable networks to operate draw works, rotary tables, mud pumps, and blowout preventers. These systems must respond instantly to operator commands, making signal integrity and reliability absolutely critical. The RigFlex-125's consistent electrical performance ensures that control signals reach their destinations without delay or distortion.
Production equipment monitoring involves networks of sensors that measure pressure, temperature, flow rates, and chemical compositions throughout the production process. The data from these sensors enables operators to optimize production while maintaining safety margins. Control cables must maintain signal integrity over long runs, often in areas exposed to weather and process chemicals.
Safety systems on offshore rigs include fire detection and suppression systems, gas detection networks, and emergency shutdown systems. These systems literally mean the difference between life and death in emergency situations, making cable reliability paramount. The RigFlex-125's flame retardant properties and reliable operation in extreme conditions make it an excellent choice for these critical applications.
Dynamic positioning systems on floating rigs require control cables that can withstand constant motion as the rig maintains position using thruster systems. The cable's flexibility and fatigue resistance ensure reliable operation even as the rig moves with wind, waves, and currents.
Understanding Installation Considerations
Bending Radius: The Mathematics of Flexibility
The minimum bending radius specifications for the RigFlex-125 provide important guidance for installation teams. For cables with diameters of 25mm or less, the minimum bending radius equals four times the cable diameter. For larger cables, this increases to six times the diameter.
Understanding why these limits exist helps installers appreciate their importance. When a cable bends, the materials on the outer radius experience tensile stress while those on the inner radius undergo compression. Exceeding the minimum bending radius can cause several problems including conductor strand breakage, insulation cracking, and sheath splitting.
The specified bending radii for the RigFlex-125 provide adequate safety margins while still allowing reasonable installation flexibility. These values result from extensive testing that determines the point at which mechanical stress begins to compromise long-term reliability.
Environmental Performance Standards
The cable's performance in flame propagation tests according to IEEE 1202 and IEC 60332-3 standards demonstrates its suitability for marine installations where fire safety requirements are stringent. These tests evaluate how flames spread along cable surfaces and the amount of smoke generated during combustion.
IEEE 1202 testing involves arranging multiple cables in a ladder configuration and applying a controlled flame source. The test measures how far flames spread along the cable assembly and how much smoke is generated. Success requires that flame spread remains limited and smoke production stays below specified levels.
IEC 60332-3 testing follows similar principles but uses different test configurations and acceptance criteria. Cables that pass these tests demonstrate that they will not contribute significantly to fire spread in the event of an electrical fault or external fire source.
Cold performance testing according to CSA C22.2 standards ensures reliable operation in extreme cold conditions. The cold bend test at -40°C verifies that the cable remains flexible enough for installation even in arctic conditions. The cold impact test at -35°C confirms that the cable sheath will not crack or shatter when subjected to mechanical impact at low temperatures.
Maintenance and Longevity Considerations
Inspection Protocols for Marine Cables
Regular inspection of marine control cables helps identify potential problems before they result in system failures. Visual inspection should focus on areas where cables may experience mechanical damage, chemical exposure, or thermal stress. Look for signs of sheath cracking, conductor corrosion at termination points, and insulation degradation.
Electrical testing should include insulation resistance measurements and continuity checks. Insulation resistance testing helps identify moisture ingress or insulation degradation before these conditions cause short circuits or ground faults. Continuity testing verifies that all conductors remain intact and that connections maintain low resistance.
Environmental monitoring in cable installation areas can help predict maintenance needs. Areas with high temperature, humidity, or chemical exposure may require more frequent inspection intervals. Keeping records of environmental conditions helps establish appropriate maintenance schedules based on actual operating conditions rather than generic recommendations.
Factors Affecting Service Life
The service life of marine control cables depends on numerous factors including installation quality, operating environment, and maintenance practices. Proper installation according to manufacturer recommendations significantly extends cable life by preventing mechanical damage and ensuring adequate support.
Environmental factors such as temperature cycling, chemical exposure, and UV radiation gradually degrade cable materials over time. The RigFlex-125's material selection specifically addresses these aging mechanisms, but understanding their effects helps predict when replacement may become necessary.
Mechanical factors including vibration, flexing, and physical damage can accelerate cable aging. Regular inspection of cable support systems and routing helps identify areas where additional protection or support may be needed.
Comparative Analysis: Why Unarmoured Design Works
Understanding the Armour Trade-off
The choice of unarmoured construction for the RigFlex-125 may initially seem counterintuitive for demanding marine applications. Traditional thinking suggests that more protection always equals better performance, but cable engineering involves balancing multiple competing requirements.
Armoured cables typically use steel wire or tape armor to provide mechanical protection against crushing forces and impact damage. However, this armor adds significant weight, reduces flexibility, and increases installation complexity. In marine applications where cables must route through confined spaces and around numerous obstacles, flexibility often proves more valuable than mechanical protection.
The unarmoured design of the RigFlex-125 achieves protection through material selection rather than physical armor. The CPE sheath provides excellent resistance to abrasion, chemicals, and environmental factors that cause most cable failures in marine applications. This approach reduces weight while maintaining the flexibility needed for complex routing requirements.
Installation Advantages
Unarmoured construction significantly simplifies installation procedures. The cables can be pulled through conduits and cable trays without the special handling requirements associated with armoured cables. Termination procedures are also simplified since there is no armor to ground or seal.
The reduced weight of unarmoured cables becomes particularly important in marine applications where weight distribution affects vessel stability. Every pound saved in cable weight allows additional capacity for cargo or equipment without affecting the vessel's center of gravity.
Flexibility advantages become apparent when routing cables through the complex geometry typical of ships and offshore platforms. The ability to make tight bends and navigate around obstacles reduces installation time and allows more direct routing that minimizes voltage drop and signal degradation.
Future Developments and Industry Trends
Advancing Material Science
The marine cable industry continues to develop new materials and construction techniques that push the boundaries of performance and reliability. Research into advanced polymer compounds focuses on further improving resistance to environmental factors while reducing weight and cost.
Nanotechnology applications in cable materials show promise for enhancing specific properties such as flame resistance, thermal conductivity, and mechanical strength. These developments may enable future generations of marine cables to achieve even better performance in demanding applications.
Smart cable technologies that incorporate monitoring capabilities directly into the cable structure represent an emerging trend. These systems can provide real-time data on cable temperature, moisture ingress, and mechanical stress, enabling predictive maintenance programs that prevent failures before they occur.
Regulatory Evolution
Marine safety regulations continue to evolve in response to new technologies and lessons learned from incidents. Cable manufacturers must stay ahead of these regulatory changes to ensure their products meet future requirements as well as current standards.
Environmental regulations increasingly focus on the lifecycle impact of marine equipment, including cable manufacturing, installation, and disposal. This trend drives development of more sustainable materials and manufacturing processes without compromising performance.
International harmonization of standards helps ensure that cables certified in one region will be accepted globally, simplifying the approval process for vessels and platforms that operate internationally.
Conclusion: Engineering Excellence in Marine Applications
The RigFlex-125 Type P Unarmoured Control Cable represents a sophisticated engineering solution that addresses the unique challenges of marine and offshore applications. Through careful material selection, advanced manufacturing techniques, and rigorous testing, this cable delivers the reliability and performance demanded by critical marine systems.
Understanding the technical foundation behind this cable helps engineers and procurement professionals make informed decisions about cable selection for marine projects. The combination of electrical performance, environmental resistance, and installation flexibility makes the RigFlex-125 an excellent choice for demanding marine applications.
As the marine industry continues to push into more challenging environments and develop more sophisticated systems, cables like the RigFlex-125 provide the reliable infrastructure needed to support these advances. The investment in high-quality marine cables pays dividends through reduced maintenance costs, improved system reliability, and enhanced safety performance.
The success of any marine electrical system ultimately depends on the reliability of its individual components. By choosing cables engineered specifically for marine environments, system designers can ensure that their installations will provide years of reliable service in some of the world's most demanding conditions. The RigFlex-125 Type P Unarmoured Control Cable stands as a testament to what can be achieved when engineering expertise meets the uncompromising demands of the marine environment.
