The NTSCGEWÖU Cable: Reliable Power Solution for Marine, Port Crane, and Offshore Applications in Harsh Environments

The industrial world relies on power cables that can withstand extreme conditions while maintaining consistent electrical performance. Among these specialized cables, the NTSCGEWÖU stands as a testament to advanced engineering, designed specifically for applications where ordinary cables would fail within weeks or months. This remarkable piece of electrical infrastructure represents decades of materials science advancement and real-world testing in some of the harshest environments on Earth.

Understanding the NTSCGEWÖU cable requires us to think beyond simple wire and insulation. This cable system embodies a sophisticated approach to power transmission that addresses the unique challenges faced by heavy machinery operators in mining, tunneling, and other demanding industrial sectors. Every component, from the innermost conductor to the outermost protective layer, has been carefully engineered to work in harmony under conditions that would destroy conventional electrical systems.

The Foundation: Understanding Heavy-Duty Cable Requirements

Before we examine the specific features of the NTSCGEWÖU cable, it's essential to understand what makes industrial power transmission so challenging. Traditional electrical installations in buildings or residential areas remain stationary, protected from weather, and operate under relatively stable conditions. Industrial machinery, particularly in mining and construction, faces an entirely different set of demands.

Heavy equipment like excavators, cranes, and mining vehicles must move continuously while maintaining power connections. These machines operate in environments filled with abrasive materials, corrosive chemicals, extreme temperatures, and constant vibration. The electrical systems powering this equipment must flex thousands of times per day, resist chemical attack, and maintain their integrity despite tensile forces that would snap ordinary cables like threads.

The NTSCGEWÖU cable addresses these challenges through what engineers call a "systems approach" to design. Rather than simply making each component stronger, the designers have created a synergistic system where each layer complements and protects the others. This holistic design philosophy becomes apparent as we examine each component in detail.

Conductor Technology: The Heart of Electrical Performance

The foundation of any power cable lies in its conductors, and the NTSCGEWÖU cable employs electrolytic, stranded, tinned copper wire conforming to DIN VDE 0295 Class 5 specifications. This seemingly simple description represents sophisticated metallurgical engineering that deserves careful examination.

Electrolytic copper represents the purest form of copper available for electrical applications, with conductivity approaching theoretical maximums. However, pure copper alone would be inadequate for industrial applications due to its susceptibility to corrosion and oxidation. The tinning process applies a thin layer of tin to each copper strand, creating a protective barrier that prevents oxidation while maintaining excellent electrical conductivity.

The stranding pattern follows Class 5 specifications, which defines the most flexible configuration available in industrial standards. Unlike solid conductors or basic stranded designs, Class 5 stranding uses numerous fine wires arranged in specific geometric patterns that allow the conductor to flex repeatedly without work-hardening or breaking. This flexibility becomes crucial when we consider that industrial cables may flex thousands of times per shift for years without replacement.

The tinning process serves multiple purposes beyond corrosion protection. Tin creates a barrier that prevents the copper strands from welding together under heat and pressure, maintaining the conductor's flexibility throughout its service life. Additionally, tin provides superior solderability and connection reliability, ensuring that joints and terminations remain electrically sound despite vibration and thermal cycling.

Advanced Insulation Systems: Managing Electrical Stress

The insulation system of the NTSCGEWÖU cable represents one of its most sophisticated features, employing 3GI3 type EPR (Ethylene Propylene Rubber) compound that provides exceptional electrical and mechanical properties. Understanding this insulation system requires us to think about electricity not just as current flow, but as electrical fields that must be carefully managed.

EPR insulation offers superior performance compared to traditional materials like PVC or basic rubber compounds. The molecular structure of EPR provides excellent resistance to electrical tracking, thermal aging, and chemical attack. More importantly, EPR maintains its flexibility and insulation properties across the extreme temperature range that industrial equipment encounters, from arctic mining operations to desert construction sites.

The 3GI3 designation indicates specific formulation characteristics that optimize the material for high-voltage applications. This compound includes additives that improve its resistance to partial discharge, a phenomenon that can gradually degrade insulation and lead to catastrophic failure. The formulation also includes anti-oxidants and UV stabilizers that prevent degradation during outdoor storage and installation.

Electrical Field Control: Preventing Invisible Failures

One of the most sophisticated aspects of the NTSCGEWÖU cable design involves its electrical field control system, which employs inner and outer semiconductive layers of specialized rubber around the protective earth conductor. This system addresses one of the most insidious failure modes in high-voltage cables: partial discharge.

Partial discharge occurs when electrical stress concentrates in small air gaps or imperfections within the insulation system. These tiny electrical arcs gradually erode the insulation, eventually leading to complete failure. The semiconductive layers work by creating a uniform electrical field distribution that eliminates the stress concentrations where partial discharge typically initiates.

The inner semiconductive layer bonds intimately with the conductor surface, eliminating air gaps that could trap moisture or contaminants. The outer semiconductive layer provides a smooth, conductive surface that interfaces with the insulation, ensuring uniform electrical stress distribution. This dual-layer approach represents decades of research into high-voltage cable failure modes and their prevention.

The semiconductive compound must balance several competing requirements. It must conduct electricity sufficiently to control electrical fields while remaining non-conductive enough to avoid power losses. It must bond chemically with both the conductor and insulation to prevent delamination during thermal cycling. Finally, it must maintain these properties throughout the cable's service life despite mechanical flexing and environmental exposure.

Mechanical Protection: Engineering for Durability

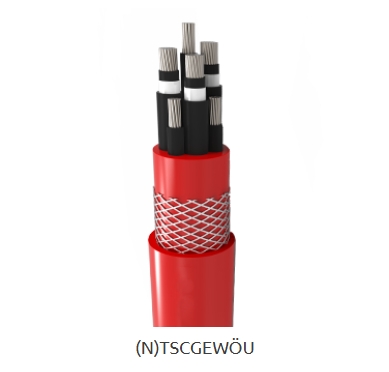

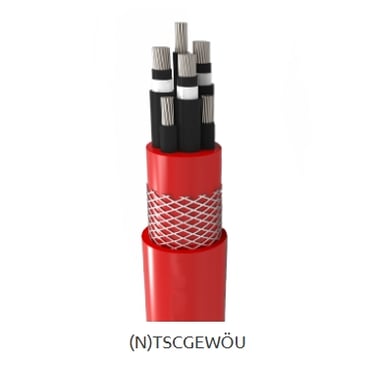

The mechanical protection system of the NTSCGEWÖU cable involves multiple layers, each designed to address specific failure modes encountered in industrial applications. The lay-up consists of three main conductors arranged with three control cores in the outer interstices, a configuration that optimizes both electrical performance and mechanical strength.

This geometric arrangement distributes mechanical stress evenly across all conductors while providing dedicated pathways for control signals. The control cores enable remote monitoring of cable condition, allowing maintenance personnel to detect developing problems before they cause equipment failures or safety hazards.

The inner sheath utilizes a special EPR compound that exceeds GM1b type specifications, providing an additional barrier against moisture ingress and chemical attack. This intermediate layer serves as a backup protection system, ensuring that even if the outer sheath experiences damage, the electrical integrity of the cable remains intact.

The embedded braid made of anti-torsion synthetic threads represents a particularly innovative feature. This braid prevents the cable from twisting during installation and operation, a critical consideration for applications involving rotating machinery or complex cable routing. The braid can withstand tensile loads up to 15 N/mm² and torsion up to ±25º/m, specifications that exceed the requirements of most industrial applications.

Outer Sheath Technology: The First Line of Defense

The outer sheath of the NTSCGEWÖU cable employs 5GM5 type elastomer compound in a distinctive red color that serves both practical and safety purposes. This outer layer represents the cable's primary defense against environmental hazards and mechanical damage.

The 5GM5 elastomer formulation provides exceptional resistance to abrasion, chemicals, and weathering. Unlike traditional rubber compounds that can become brittle with age or temperature extremes, this elastomer maintains its flexibility and protective properties throughout the cable's design life. The material resists oils, acids, alkalis, and other chemicals commonly encountered in industrial environments.

The red coloration serves multiple purposes beyond easy identification. The pigments used in the coloring process include UV stabilizers that protect the underlying elastomer from degradation caused by sunlight exposure. The distinctive color also enhances safety by making the cable easily visible in complex industrial environments where multiple utility lines may be present.

The thickness and composition of the outer sheath are carefully optimized to provide maximum protection while maintaining flexibility. Too thick, and the cable becomes difficult to route and install. Too thin, and it fails to provide adequate protection. The 5GM5 formulation represents an optimal balance of these competing requirements.

Voltage Capabilities and Electrical Performance

The NTSCGEWÖU cable offers impressive voltage ratings that accommodate various industrial power requirements, with rated voltages ranging from 3.6/6 kV to 12/20 kV. Understanding these specifications requires familiarity with how electrical systems are designed and operated in industrial environments.

The dual voltage ratings (such as 3.6/6 kV) reflect different system configurations and grounding methods. The first number represents the voltage between any conductor and ground, while the second represents the voltage between conductors. This flexibility allows the same cable to serve different system configurations, reducing inventory requirements and simplifying procurement.

The AC test voltages of 11 kV to 29 kV demonstrate the cable's ability to withstand electrical stress well beyond normal operating conditions. These test voltages ensure that the cable will perform reliably even during system disturbances such as switching transients or lightning strikes that can impose voltage stresses far exceeding normal operating levels.

The maximum operating voltages, both AC and DC, provide guidance for system designers who must ensure that their installations operate within safe parameters. The DC voltage ratings are particularly important for modern industrial systems that increasingly employ variable frequency drives and other power electronic equipment that can impose DC voltage stress on cable insulation.

Temperature Performance and Environmental Resilience

The NTSCGEWÖU cable's temperature performance represents one of its most impressive characteristics, operating from -40°C to +80°C in fixed installations and -30°C to +80°C for mobile applications. These specifications reflect the reality of industrial operations that may encounter extreme weather conditions or heat generated by nearby equipment.

Low-temperature performance presents particular challenges for cable materials. At extreme cold, many polymers become brittle and crack when flexed. The EPR insulation and elastomer sheath materials used in the NTSCGEWÖU cable are specifically formulated to maintain flexibility and mechanical properties even at -40°C, ensuring reliable operation in arctic mining operations or outdoor installations in harsh climates.

High-temperature performance is equally critical, as industrial equipment often operates in environments with elevated ambient temperatures or heat generated by nearby machinery. The +80°C rating ensures that the cable can operate safely even when exposed to direct sunlight in desert environments or when routed near hot equipment.

The distinction between fixed and mobile temperature ratings reflects the additional thermal stress imposed by mechanical flexing. When cables move repeatedly, the mechanical work generates heat within the cable structure. The slightly reduced low-temperature rating for mobile applications acknowledges this additional thermal load while maintaining safe operating margins.

Flexibility and Mechanical Performance

The mechanical performance specifications of the NTSCGEWÖU cable reflect its design for dynamic applications where conventional cables would fail rapidly. The minimum bending radius, calculated according to DIN VDE 0298 part 3, ensures that the cable can navigate tight routing paths without damaging its internal structure.

The ability to handle travel speeds up to 200 m/min horizontally represents exceptional performance for an industrial power cable. This specification enables the cable to serve high-speed material handling systems, mining conveyors, and other applications where equipment moves rapidly over long distances while maintaining power connections.

The minimum distance for change of direction specification (20 times the cable diameter) reflects the reality that cables experience maximum stress at direction changes. By specifying this minimum distance, the designers ensure that installations avoid stress concentrations that could lead to premature failure.

The tensile strength rating of 15 N/mm² and torsion capability of ±25°/m demonstrate the cable's ability to withstand the mechanical forces encountered in real-world installations. These specifications exceed the requirements of most applications, providing safety margins that account for unexpected loads or installation challenges.

Standards Compliance and Testing Regimens

The NTSCGEWÖU cable undergoes extensive testing to ensure compliance with numerous international standards, reflecting the critical nature of its applications. The construction standards (DIN VDE 0250-813) specify the precise arrangements of conductors, insulation, and protective layers that ensure consistent performance across different manufacturers and production runs.

General requirements testing (DIN VDE 0250-1) verifies that the cable meets fundamental electrical and mechanical performance criteria. These tests include verification of conductor resistance, insulation resistance, voltage withstand capability, and mechanical strength. The testing protocols simulate years of service in compressed time periods, ensuring that cables will perform reliably throughout their design lives.

The electrical testing regimen (DIN VDE 0472-501, 503, 508) subjects the cable to electrical stresses that exceed normal operating conditions. These tests verify that the insulation system can withstand overvoltages, partial discharge stress, and other electrical abnormalities without failure. The testing includes accelerated aging protocols that simulate decades of service to ensure long-term reliability.

Non-electrical testing (DIN VDE 0472-401, 402, 602, 303, 615) verifies mechanical properties, chemical resistance, and environmental performance. These tests subject the cable to temperature cycling, mechanical flexing, chemical exposure, and other environmental stresses that reflect real-world operating conditions.

Fire Safety and Flame Retardancy

Fire safety represents a critical consideration in industrial applications, where cable failures can have catastrophic consequences. The NTSCGEWÖU cable meets stringent flame retardant standards (VDE 0482-332-1-2, DIN EN 60332-1-2, IEC 60332-1) that ensure it will not contribute to fire propagation.

The flame retardant properties result from careful selection of materials and additives that inhibit combustion. When exposed to heat, these materials release fire-suppressing gases and form char layers that insulate the underlying cable structure. This multi-layered approach to fire protection ensures that even if one protective mechanism fails, others continue to function.

Under fire conditions testing (DIN VDE 0472-803, 804) verifies that the cable maintains its electrical integrity during fire exposure. This capability is crucial for emergency systems that must continue operating during fire events to enable safe shutdown procedures or emergency evacuation.

The oil resistance certification (HD/EN/IEC 60811-2-1) addresses the reality that industrial cables often encounter hydraulic fluids, lubricants, and other petroleum products. This resistance prevents degradation of the cable sheath that could compromise its protective function and create safety hazards.

Maritime Applications and Special Considerations

While designed primarily for terrestrial industrial applications, the NTSCGEWÖU cable's robust construction makes it suitable for certain maritime applications with appropriate precautions. The tinned copper conductors provide excellent corrosion resistance, while the elastomer outer sheath offers protection against salt spray and humid conditions.

However, maritime environments present unique challenges that require careful consideration. Direct exposure to salt spray can eventually penetrate even the most robust cable sheaths, potentially causing corrosion of internal components. The cable's oil resistance provides some protection against the petroleum products commonly found in marine environments, but additional protective measures may be necessary for direct seawater exposure.

The cable's flexibility and temperature range align well with maritime requirements, where equipment must operate in confined spaces subject to constant motion and temperature variations. The flame retardant properties are particularly important in marine applications, where fire suppression capabilities may be limited and evacuation routes constrained.

For offshore platform or shipboard installations, additional considerations include protection against constant vibration, chafing in tight routing spaces, and the need for specialized cable support systems that account for vessel motion. The cable's mechanical properties provide a strong foundation for these applications, but installation methods must be carefully planned to ensure long-term reliability.

Conclusion: Excellence Through Engineering Integration

The NTSCGEWÖU cable represents far more than the sum of its individual components. It embodies a systematic approach to engineering that considers every aspect of cable performance, from the molecular structure of its materials to the mechanical forces it will encounter during decades of service. This holistic design philosophy has created a cable system that sets new standards for reliability, durability, and performance in the most demanding industrial applications.

The cable's success stems from its designers' understanding that true engineering excellence requires balancing multiple competing requirements while maintaining focus on real-world performance. Every specification, from the conductor stranding pattern to the outer sheath formulation, reflects careful consideration of how that component will interact with others and contribute to overall system reliability.

As industrial operations continue to evolve and face new challenges, the NTSCGEWÖU cable provides a robust foundation for electrical power distribution that can adapt to changing requirements while maintaining the highest standards of safety and reliability. Its comprehensive testing and certification ensure that it will continue to perform reliably in applications where failure is not an option, making it an essential component in the infrastructure that powers our modern industrial economy.
