Submarine Optical Cables GH/r-16B1 Series: Engineering Solutions for Deep-Sea Communication and Power Transmission

Introduction: The Backbone of Underwater Connectivity

Submarine optical cables represent one of humanity's most remarkable engineering achievements, silently carrying the vast majority of global internet traffic beneath the world's oceans. These sophisticated transmission systems form the invisible backbone of international communications, enabling everything from video calls across continents to real-time financial transactions between global markets. Beyond data transmission, modern submarine cables have evolved to serve dual purposes, simultaneously delivering both optical communication signals and electrical power to remote offshore installations.

The GH/r-16B1 series submarine optical cables exemplify the cutting-edge engineering required for reliable subsea operations. These cables must withstand crushing water pressures at oceanic depths, resist corrosion from saltwater exposure, and maintain signal integrity over distances spanning thousands of kilometers. The series encompasses five distinct models, each engineered for specific deployment scenarios ranging from shallow coastal waters to the deepest ocean trenches.

Understanding the technical sophistication of these cables requires appreciating the extreme environment they operate within. At depths exceeding 6,000 meters, water pressure reaches levels equivalent to having a fully loaded commercial airliner pressing down on every square inch of the cable surface. Combined with corrosive seawater, unpredictable seabed conditions, and the mechanical stresses of installation, submarine cables must demonstrate extraordinary durability while maintaining precise optical and electrical performance characteristics.

The purpose of examining the GH/r-16B1 series in detail lies in understanding how modern submarine cable technology addresses these multifaceted challenges. Each model within the series represents a carefully optimized solution for specific operational requirements, balancing factors such as data capacity, power transmission capability, mechanical strength, and installation complexity.

Cable Categories and Classification: Understanding the GH/r-16B1 Family

The GH/r-16B1 series comprises five distinct cable models, each designed to address specific operational requirements and deployment environments. This systematic approach to cable design reflects the diverse challenges encountered in submarine installations, from relatively benign shallow-water environments to the harsh conditions of deep-ocean trenches.

The foundational model, GH/r-16B1, serves as the baseline design incorporating both optical fiber communication capabilities and integrated copper conductor power transmission. This hybrid functionality makes it particularly valuable for applications requiring both data connectivity and electrical power delivery to remote subsea equipment. The cable's compact 18.5mm diameter and relatively lightweight construction (0.6 kg/m in air) make it suitable for installations where space constraints or handling limitations are primary concerns.

Building upon this foundation, the GHSA/r-16B1 and GHDA/r-16B1 models introduce progressively enhanced armoring systems designed for increasingly demanding mechanical environments. The GHSA variant incorporates single-armor protection, expanding the diameter to 27mm while maintaining the integrated power conductor functionality. This additional protection significantly increases the cable's resistance to external mechanical damage while preserving the hybrid transmission capabilities essential for many offshore applications.

The GHDA/r-16B1 represents the most robust hybrid design within the series, featuring dual-armor construction that provides maximum mechanical protection for installations in high-risk environments. With a 36mm diameter and substantial 3.8 kg/m weight in air, this model prioritizes mechanical durability above all other considerations, making it ideal for deployments in areas with significant fishing activity, unstable seabed conditions, or extreme water depths.

Complementing the hybrid models, the GHSA-96B1 and GHDA-96B1 variants focus exclusively on high-capacity optical communication. These models eliminate the copper power conductor in favor of maximized fiber count, with 96 optical fibers providing exceptional data transmission capacity. The GHSA-96B1 offers single-armor protection at 28mm diameter, while the GHDA-96B1 provides dual-armor protection at 37mm diameter, allowing system designers to select the appropriate level of mechanical protection based on specific deployment conditions.

This systematic classification approach enables engineers to select the optimal cable configuration based on three primary factors: required data transmission capacity, power delivery requirements, and expected mechanical stress levels during both installation and operational phases. The progression from basic hybrid functionality through increasingly robust mechanical protection, combined with the high-capacity optical-only variants, ensures comprehensive coverage of submarine cable application requirements.

Typical Applications: Where Submarine Cables Enable Critical Infrastructure

The versatility of the GH/r-16B1 series enables deployment across a broad spectrum of submarine applications, each with distinct technical requirements and operational challenges. Understanding these applications provides insight into the design rationale behind each cable variant and the engineering trade-offs inherent in submarine cable development.

Subsea communication systems represent the most visible application for submarine optical cables, forming the physical infrastructure that enables global internet connectivity. In these applications, the high fiber count variants such as GHSA-96B1 and GHDA-96B1 excel by providing maximum data transmission capacity without the space and weight penalties associated with integrated power conductors. These installations typically span vast oceanic distances, requiring cables that maintain signal integrity over thousands of kilometers while withstanding the mechanical stresses of deep-water deployment and decades of operational service.

Offshore oil and gas platforms present a different set of requirements, combining high-capacity data transmission needs with substantial power delivery demands. These installations require real-time monitoring and control capabilities for safety-critical systems, making reliable communication essential for operational safety and efficiency. The hybrid capabilities of GH/r-16B1, GHSA/r-16B1, and GHDA/r-16B1 models prove particularly valuable in these applications, enabling simultaneous delivery of high-speed data connectivity and electrical power through a single cable system. This approach significantly reduces installation complexity and ongoing maintenance requirements compared to separate cable systems.

The growing renewable energy sector, particularly offshore wind installations, represents an increasingly important application area for submarine cables. These systems require robust data communication for monitoring and control functions while simultaneously transmitting substantial electrical power generated by offshore turbines back to onshore distribution networks. The mechanical robustness of the GHDA variants becomes particularly important in these installations, as the cables must withstand the dynamic loading conditions associated with floating platforms and the harsh marine environment typical of optimal wind energy locations.

Seabed monitoring and remote control infrastructure applications showcase the unique capabilities enabled by hybrid submarine cables. These systems deploy extensive networks of sensors and control equipment across the ocean floor, requiring both data connectivity for telemetry transmission and power delivery for sensor operation. The compact design of the basic GH/r-16B1 model often proves optimal for these applications, providing essential hybrid functionality while minimizing installation complexity and material costs for extensive network deployments.

Scientific research installations increasingly rely on submarine cables for continuous power and data connectivity to sophisticated monitoring equipment deployed on the ocean floor. These applications often require long-term reliability in challenging environments, making the corrosion resistance and mechanical durability of the GH/r-16B1 series particularly valuable. The ability to provide both power and high-speed data connectivity enables deployment of advanced scientific instruments that would otherwise be impossible to operate in remote subsea locations.

Construction and Material Details: Engineering for Extreme Environments

The construction of GH/r-16B1 series cables reflects sophisticated materials engineering designed to address the multiple challenges of submarine deployment. Each component serves specific functions while contributing to the overall system performance and reliability required for decades of underwater operation.

At the heart of each cable lies the optical fiber core, utilizing standard single-mode or multimode optical fibers depending on transmission requirements. These fibers, typically measuring 125 micrometers in outer diameter, represent the actual data transmission medium and must maintain precise optical characteristics despite the extreme mechanical and environmental stresses encountered in submarine applications. The fibers are housed within a precision-manufactured stainless steel tube that provides both mechanical protection and environmental sealing, preventing water ingress that would catastrophically degrade optical performance.

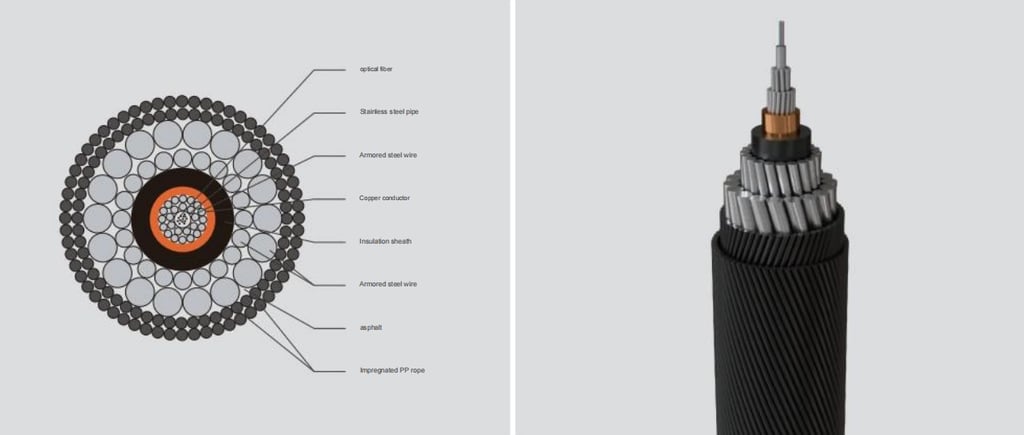

The integration of copper conductors in hybrid models represents a significant engineering challenge, as these conductors must coexist with the sensitive optical fibers while providing reliable electrical power transmission. The copper conductors are carefully sized and positioned to minimize electromagnetic interference with optical signals while providing adequate current-carrying capacity for intended power applications. The conductor sizing and insulation system must account for the long cable lengths typical in submarine applications, where voltage drop considerations become critical for maintaining adequate power delivery to remote equipment.

Environmental protection begins with the insulation sheath system, typically constructed from specialized polyethylene (PE) compounds engineered for long-term stability in seawater environments. This sheath provides the primary barrier against water ingress while maintaining flexibility necessary for cable handling and installation. The material selection process considers factors such as temperature stability, chemical resistance to seawater constituents, and mechanical properties under the high-pressure conditions encountered at operational depths.

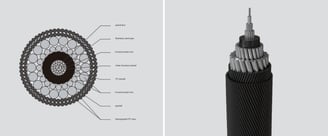

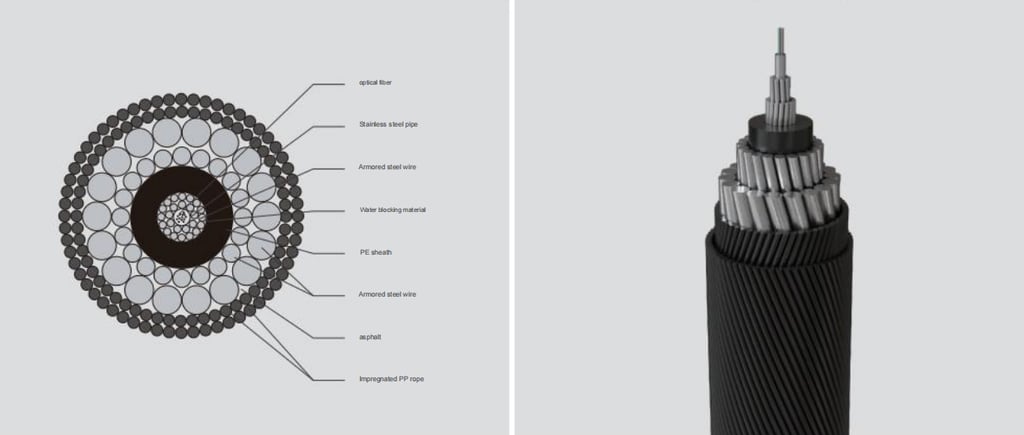

The dual-armored steel wire system represents perhaps the most critical component for mechanical protection, providing tensile strength, crush resistance, and impact protection essential for submarine deployment. The inner armor layer typically consists of galvanized steel wires wound in a helical pattern designed to distribute mechanical loads while maintaining cable flexibility. The outer armor layer employs a counter-helical winding pattern that prevents cable rotation under tension while providing additional mechanical protection. The wire sizing, winding pitch, and tensioning must be precisely controlled to achieve specified mechanical properties without compromising cable flexibility or optical performance.

Waterproofing protection extends beyond the basic sheath system through the integration of specialized compounds such as asphaltic materials and impregnated polypropylene rope. These materials serve dual purposes, providing additional water blocking capability while serving as impact-absorbing layers that distribute mechanical loads across the cable structure. The asphalt compounds are specially formulated to remain stable and effective at the low temperatures and high pressures typical of deep-sea environments.

The fundamental distinction between hybrid models containing copper conductors and optical-only variants extends throughout the construction process. Hybrid models require additional insulation systems to prevent electrical fault conditions while maintaining the environmental sealing essential for optical fiber protection. The increased complexity of hybrid designs necessitates more sophisticated manufacturing processes and quality control procedures to ensure both optical and electrical performance specifications are met consistently.

Electrical and Mechanical Parameters: Quantifying Performance Capabilities

The technical specifications of the GH/r-16B1 series reflect the engineering optimization required to balance multiple performance requirements within the constraints of submarine deployment. These parameters provide quantitative measures of cable capabilities and limitations, enabling system designers to select appropriate cable variants for specific applications.

Nominal diameter specifications ranging from 18.5mm for the basic GH/r-16B1 model to 37mm for the heavily armored GHDA-96B1 variant illustrate the trade-offs between mechanical protection and handling convenience. The compact 18.5mm diameter of the baseline model enables easier installation in space-constrained environments while providing adequate protection for moderate deployment conditions. Progressively larger diameters reflect enhanced armor systems that provide increased mechanical protection at the cost of increased weight, handling complexity, and material costs.

Weight characteristics demonstrate the significant impact of armor systems on cable handling requirements. In-air weights ranging from 0.6 kg/m for the basic model to 3.8 kg/m for heavily armored variants directly affect installation equipment requirements and handling procedures. The corresponding in-seawater weights, ranging from 0.34 kg/m to 2.7 kg/m, account for buoyancy effects that influence cable behavior during underwater installation and operational loading conditions. These specifications are critical for installation planning, as they determine the minimum cable handling equipment capabilities required for safe deployment.

Tensile strength specifications provide three distinct categories that reflect different loading scenarios encountered during cable lifecycle. Breaking strength values, ranging from 65 kN to 480 kN, represent the ultimate mechanical limits beyond which cable failure occurs. These values establish absolute limits for cable handling and deployment procedures. Short-term tensile strength ratings, from 50 kN to 320 kN, define maximum allowable loads during temporary conditions such as installation operations where brief exposure to high tensions may be unavoidable. Operational tensile strength limits, ranging from 30 kN to 240 kN, specify maximum continuous loading levels that ensure long-term reliability without cumulative damage.

The minimum bending radius specification of 1 meter applies across all models and reflects the optical fiber protection requirements rather than mechanical cable limitations. This specification ensures that optical fibers remain within their elastic limits and maintain signal transmission characteristics during cable handling and installation procedures. Violation of minimum bending radius requirements can result in permanent optical performance degradation or complete signal loss.

Crush resistance ratings, spanning 15 kN to 40 kN depending on armor configuration, quantify the cable's ability to withstand external compression forces without sustaining damage. These forces may result from seabed debris, fishing equipment contact, or geological activity. The progressive increase in crush resistance across the model range directly correlates with armor system complexity and weight.

Impact resistance specifications, ranging from 100 N·m to 400 N·m, measure the cable's ability to absorb sudden mechanical shocks without sustaining damage. These conditions may arise from dropped objects during installation, seabed impacts during laying operations, or contact with mobile fishing equipment. The significant variation across models reflects the protective capabilities of different armor configurations.

Water pressure resistance ratings up to 50 MPa enable deployment in virtually all ocean environments, including the deepest accessible trenches. This specification ensures that environmental sealing systems maintain integrity under extreme pressure conditions while preserving both optical and electrical performance characteristics.

For hybrid models incorporating copper conductors, DC resistance specifications of ≤1.0 Ω/km ensure adequate electrical performance for power transmission applications. This low resistance minimizes power losses over the long distances typical in submarine installations while maintaining voltage levels adequate for remote equipment operation.

Model Highlights: Optimized Solutions for Specific Applications

Each model within the GH/r-16B1 series represents a carefully optimized solution addressing specific combinations of performance requirements, environmental conditions, and operational constraints. Understanding the distinctive characteristics of each variant enables appropriate selection for particular applications while avoiding over-specification that increases costs and installation complexity unnecessarily.

The foundational GH/r-16B1 model embodies the essential hybrid cable concept, integrating optical communication and electrical power transmission capabilities within a compact, lightweight package. Its 18.5mm diameter and 0.6 kg/m in-air weight make it particularly suitable for applications where installation equipment limitations, space constraints, or cost considerations are primary factors. The model's 65 kN breaking strength and 15 kN crush resistance provide adequate protection for moderate-risk environments while maintaining the flexibility and handling convenience essential for complex routing requirements. This balance of capabilities makes the GH/r-16B1 ideal for coastal installations, shallow-water deployments, and applications where the submarine environment presents minimal mechanical hazards.

The GHSA/r-16B1 variant introduces single-armor protection while maintaining the hybrid functionality that distinguishes the series. The increased 27mm diameter and 1.8 kg/m weight reflect the enhanced mechanical protection provided by the armor system, resulting in substantially improved crush resistance of 25 kN and breaking strength of 150 kN. These enhancements make the model suitable for moderate-risk environments where occasional mechanical contact with fishing equipment or seabed debris may occur, while still maintaining the cost and handling advantages associated with single-armor construction.

Representing the apex of mechanical protection within the hybrid category, the GHDA/r-16B1 features dual-armor construction that prioritizes durability above all other considerations. The substantial 36mm diameter and 3.8 kg/m weight reflect the comprehensive protection provided by the dual-armor system, resulting in exceptional 40 kN crush resistance and 480 kN breaking strength. These specifications make the model appropriate for the most demanding submarine environments, including areas with intensive fishing activity, unstable seabed conditions, or extreme depths where mechanical protection is paramount for long-term reliability.

The GHSA-96B1 model represents a fundamental shift in design philosophy, eliminating the copper power conductor in favor of maximized optical fiber capacity. With 96 optical fibers contained within a 28mm diameter cable, this model provides exceptional data transmission capacity for applications where power delivery is not required or is provided through separate systems. The single-armor protection provides adequate mechanical protection for most submarine environments while maintaining reasonable weight and handling characteristics. This configuration proves optimal for pure communication applications where maximum data capacity takes precedence over hybrid functionality.

Completing the series, the GHDA-96B1 combines maximum optical capacity with maximum mechanical protection, creating a cable optimized for high-capacity communication systems in demanding submarine environments. The 37mm diameter and dual-armor construction provide exceptional mechanical protection for the 96 optical fibers, ensuring reliable operation even in harsh conditions where mechanical damage risks are significant. This model represents the ultimate expression of submarine cable engineering, providing both maximum data capacity and maximum mechanical protection for the most demanding applications.

Marine Deployment FAQ: Addressing Common Operational Concerns

The complexity of submarine cable deployment raises numerous technical questions that reflect the challenging nature of underwater operations and the critical importance of reliable performance in inaccessible environments. These frequently asked questions address common concerns encountered during system design, installation planning, and operational phases of submarine cable projects.

Question 1: What happens if the cable is subjected to sudden tension during laying?

The GHDA models within the series are specifically engineered to handle dynamic loading conditions through their high short-term tensile strength ratings reaching up to 320 kN. This substantial margin above operational loading levels provides protection against the sudden tension spikes that can occur during cable laying operations due to ocean currents, vessel motion, or equipment malfunctions. However, even these robust cables require proper tension control equipment and careful monitoring during installation to prevent exceeding design limits. The dual-armor construction distributes loads effectively across the cable structure, reducing stress concentrations that could lead to localized failures. Installation procedures must include contingency plans for tension excursions and real-time monitoring systems that can detect dangerous loading conditions before they result in cable damage.

Question 2: Can these cables withstand deep-sea water pressure?

The GH/r-16B1 series incorporates pressure ratings up to 50 MPa, which corresponds to water depths exceeding 5,000 meters and encompasses virtually all practical submarine deployment scenarios, including the deepest accessible ocean trenches. The pressure resistance derives from the cable's robust construction, particularly the stainless steel fiber protection tubes and multiple sealing systems that prevent water ingress under extreme pressure conditions. The environmental sealing system maintains its integrity across the full pressure range while preserving both optical signal transmission characteristics and electrical insulation properties in hybrid models. This capability enables deployment in the most challenging deep-sea environments without compromising performance or reliability.

Question 3: Are the cables resistant to marine corrosion?

Marine corrosion resistance represents a fundamental design requirement addressed through multiple protective systems working in concert. The stainless steel fiber protection tubes provide inherent corrosion resistance while the specialized asphalt coatings create additional barriers against seawater penetration. The enhanced PE sheathing systems in GHSA and GHDA variants offer improved water blocking capabilities that further protect internal components from corrosive exposure. The galvanized steel armor wires incorporate protective coatings designed for long-term seawater exposure, while the overall cable construction eliminates crevices and gaps where corrosive attack might initiate. These multiple layers of protection ensure decades of reliable operation in the harsh marine environment without degradation of mechanical or transmission properties.

Question 4: How to prevent damage from seabed rocks or fishing trawlers?

The dual-layer armored steel wire design provides exceptional protection against external mechanical damage, with crush resistance ratings up to 40 kN and impact resistance up to 400 N·m. These specifications exceed the forces typically encountered from seabed rocks or incidental contact with fishing equipment. However, comprehensive protection requires proper installation planning that considers local environmental conditions and maritime activity patterns. In areas with intensive fishing activity or unstable seabed conditions, cable burial or protective casing installation may be necessary to provide additional protection beyond the cable's inherent mechanical resistance. The armor system distributes impact forces across the cable structure, preventing localized damage that could compromise optical or electrical performance.

Question 5: Can these cables carry both data and power?

The hybrid functionality of GH/r-16B1, GHSA/r-16B1, and GHDA/r-16B1 models enables simultaneous transmission of high-speed optical data and electrical power through integrated copper conductors. This capability eliminates the need for separate power and communication cable systems, significantly reducing installation complexity and ongoing maintenance requirements. The copper conductors are sized to provide adequate power transmission capacity while maintaining low resistance characteristics that minimize power losses over long submarine distances. The electrical insulation systems ensure complete isolation between power and optical circuits, preventing electromagnetic interference that could degrade optical signal quality. In contrast, the GHSA-96B1 and GHDA-96B1 models focus exclusively on optical communication, providing maximum fiber count for applications where power delivery is not required or is provided through separate systems.

Question 6: What if a section of the cable is damaged after deployment?

Submarine cable repair procedures are well-established and utilize the robust construction characteristics of the GH/r-16B1 series to enable effective restoration. Repair operations typically involve recovering the damaged cable section using specialized marine equipment, cutting out the affected portion, and splicing in a replacement segment. The cable's construction enables reliable splicing procedures that restore both optical and electrical performance to original specifications. The dual-armor construction facilitates secure mechanical joints that maintain the cable's protective characteristics across splice locations. Modern splice enclosures provide environmental sealing equivalent to the original cable construction, ensuring that repaired sections maintain the same longevity and reliability as the original installation. The key to successful repairs lies in maintaining adequate cable length allowances during initial installation to accommodate potential repair requirements without compromising system performance.

Conclusion: Advancing Submarine Cable Technology

The GH/r-16B1 series submarine optical cables represent the culmination of decades of engineering advancement in submarine cable technology, offering comprehensive solutions for the increasingly complex demands of underwater infrastructure. Through systematic optimization of mechanical protection, transmission capacity, and hybrid functionality, this cable series addresses the full spectrum of submarine application requirements while maintaining the reliability and durability essential for successful underwater operations.

The series demonstrates how modern submarine cable design successfully balances competing requirements through careful materials selection, sophisticated construction techniques, and comprehensive testing and qualification procedures. Each model represents a focused solution for specific operational scenarios, enabling system designers to select optimal configurations without compromising performance or accepting unnecessary complexity and cost.

The customizable nature of the series, ranging from compact hybrid cables for moderate environments to heavily armored high-capacity variants for extreme conditions, reflects the diverse challenges encountered in submarine installations. This flexibility enables deployment across applications spanning coastal communication systems, offshore energy platforms, deep-sea research installations, and transcontinental communication networks.

Perhaps most significantly, the proven mechanical and electrical properties of the GH/r-16B1 series ensure reliable long-term underwater operation with minimal maintenance requirements. This characteristic proves essential for submarine applications where accessibility for maintenance and repair operations is severely limited and system reliability directly impacts critical infrastructure functionality.

As global demand for submarine infrastructure continues to expand, driven by increasing international connectivity requirements, offshore renewable energy development, and deep-sea exploration activities, the GH/r-16B1 series provides the technological foundation necessary to support these advancing applications. The series represents not merely an incremental improvement in submarine cable technology, but a comprehensive platform for addressing the evolving challenges of underwater infrastructure deployment and operation.

The engineering achievements embodied in the GH/r-16B1 series illustrate the remarkable capabilities that result from systematic application of advanced materials science, precision manufacturing, and comprehensive system integration. These cables enable critical infrastructure that would otherwise be impossible to deploy and maintain in the challenging submarine environment, supporting applications that are fundamental to modern global communications, energy systems, and scientific research capabilities.
