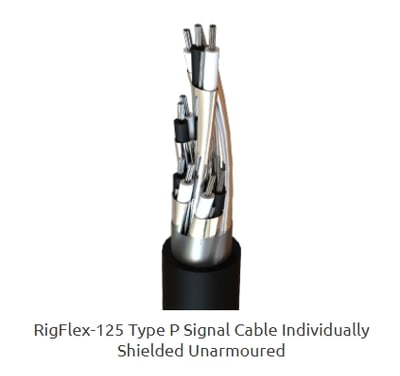

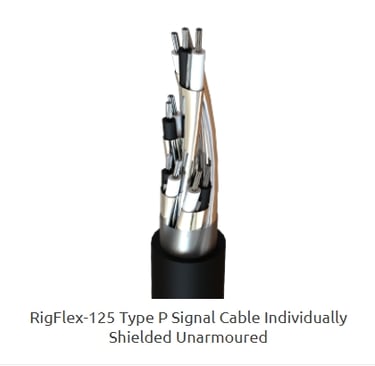

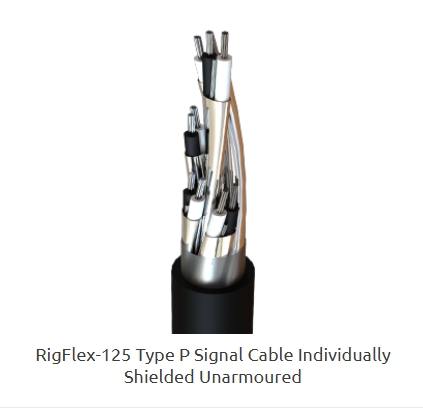

Should You Specify the RigFlex-125 Type P Individually Shielded Unarmoured Cable for Your Next Marine Project?

Introduction: The Challenge of Reliable Signaling in Harsh Environments

Marine and offshore environments present some of the most demanding conditions for electrical systems in the world. Picture a floating oil platform battling twenty-foot swells in the North Sea, or a cargo vessel navigating through extreme temperature variations while crossing multiple climate zones. In these environments, the difference between reliable signal transmission and catastrophic system failure often comes down to one critical component: the cable that carries vital data and control signals throughout the installation.

The unique challenges of marine and offshore applications extend far beyond simple weather resistance. These environments subject cables to constant vibration from machinery and wave action, exposure to saltwater spray that can corrode even the most robust materials, extreme temperature fluctuations that can cause thermal cycling stress, and the presence of hydrocarbon vapors and other aggressive chemicals that can degrade inferior cable materials over time.

When we consider the systems that depend on reliable signal transmission in these environments, the stakes become clear. Navigation systems, fire detection networks, emergency shutdown systems, and process control instrumentation all rely on uninterrupted, noise-free signal transmission to function properly. A single cable failure in a critical control circuit could result in environmental disasters, equipment damage worth millions of dollars, or even loss of life.

This is why the selection of appropriate signal cables becomes a cornerstone decision in marine and offshore electrical design. The cable must not only meet the immediate technical requirements for signal transmission but also demonstrate long-term reliability under the most challenging conditions nature can provide. Understanding these requirements helps us appreciate why specialized cables like the RigFlex-125 Type P have been developed specifically for these demanding applications.

What Is the RigFlex-125 Type P Signal Cable?

The RigFlex-125 Type P Signal Cable represents a sophisticated engineering solution designed specifically for the harsh realities of marine and offshore electrical installations. This cable belongs to a specialized category of instrumentation and signal cables that have been engineered from the ground up to meet the stringent requirements of IEEE 1580, the comprehensive standard that governs marine shipboard cable systems.

To understand what makes this cable special, we need to first understand what "Type P" designation means in the context of marine cables. The "P" refers to the specific type of cross-linked polyolefin insulation system used in the cable construction. This insulation system provides enhanced thermal performance compared to conventional thermoplastic insulations, allowing the cable to operate reliably at temperatures up to 125°C while maintaining excellent electrical properties.

The IEEE 1580 compliance is particularly significant because this standard represents the culmination of decades of experience in marine electrical systems. It addresses not just the basic electrical performance requirements, but also the unique environmental challenges that cables face in marine applications. This includes resistance to oil and fuel exposure, ability to withstand constant vibration and mechanical stress, performance in high humidity and salt-laden atmospheres, and maintenance of electrical properties across extreme temperature ranges.

The "individually shielded" aspect of this cable's design addresses one of the most critical challenges in marine signal transmission: electromagnetic interference. In the confined spaces of a ship or offshore platform, power cables, communication systems, radar equipment, and various electronic devices create a complex electromagnetic environment. Without proper shielding, signal cables can pick up interference that corrupts critical data or control signals, potentially leading to system malfunctions or false alarms.

The "unarmoured" designation indicates that this cable relies on its robust sheath material rather than metallic armor for mechanical protection. This design choice offers several advantages in marine applications, including reduced weight, improved flexibility for installation in tight spaces, and elimination of potential galvanic corrosion issues that can occur with metallic armor in saltwater environments.

Key Construction Features and Materials

Understanding the construction of the RigFlex-125 Type P Signal Cable requires examining each component layer and how they work together to create a cable system that can reliably perform in the most challenging environments. Let's build this understanding from the inside out, starting with the conductor and working our way to the outer sheath.

Conductor Design and Materials

The heart of any signal cable is its conductor, and the RigFlex-125 utilizes tinned copper conductors that conform to both ASTM B33 and IEEE 1580 Table 11 specifications. The choice of copper as the base conductor material reflects its superior electrical conductivity, which is essential for maintaining signal integrity over long cable runs. However, plain copper would quickly corrode in marine environments, which is why the conductors are tinned with a thin layer of tin.

This tinning process serves multiple critical functions. First, it provides excellent corrosion resistance even in the presence of moisture and salt spray. Second, the tin coating actually improves the solderability of the conductor, making field terminations more reliable. Third, tin has good compatibility with the insulation system, reducing the risk of chemical interactions that could degrade the cable over time.

The conductors are designed to be flexible, which is achieved through the use of fine wire stranding. This construction allows the cable to bend and flex during installation and service without causing conductor fatigue or breakage. The low-resistance characteristic ensures that signal attenuation is minimized, which is particularly important for analog signals and low-power digital communications.

Insulation System Performance

The insulation system represents perhaps the most critical advancement in the RigFlex-125 design. The cross-linked polyolefin insulation (designated as Type P under UL X110 standards) provides exceptional thermal performance that sets this cable apart from conventional marine cables.

Cross-linking is a chemical process that creates molecular bonds between polymer chains, essentially creating a three-dimensional network structure. This cross-linked structure provides several important benefits over conventional thermoplastic insulations. The material maintains its electrical and mechanical properties at elevated temperatures, exhibits superior resistance to environmental stress cracking, demonstrates excellent long-term aging characteristics, and provides better resistance to chemical attack.

The 125°C temperature rating of this insulation system is particularly significant because it allows the cable to operate reliably in high-temperature environments such as engine rooms, near exhaust systems, and in other areas where conventional cables might fail. This temperature capability also provides a safety margin that helps ensure reliable operation even during emergency conditions when system temperatures might spike above normal operating levels.

Individual Shielding Technology

The individual shielding system employed in the RigFlex-125 cable represents a sophisticated approach to electromagnetic interference protection. Each conductor pair or signal circuit is wrapped with an aluminum/polyester tape shield that provides 100% coverage of the underlying insulation.

The aluminum component of the shield provides excellent conductivity for carrying away interference currents, while the polyester backing provides mechanical strength and insulation between the shield and the conductor insulation. This tape construction is applied with precise overlap to ensure complete coverage without gaps that could allow interference to penetrate.

The inclusion of a drain wire with each shield is a critical design feature that is sometimes overlooked. The drain wire provides a low-impedance path for connecting the shield to ground, which is essential for the shield to function effectively. Without a proper drain wire connection, the shield becomes merely a passive barrier rather than an active interference suppression system.

This individual shielding approach offers significant advantages over overall cable shielding in multi-conductor applications. Each signal circuit is protected independently, which prevents crosstalk between circuits within the same cable. This is particularly important for analog signals, where even small amounts of crosstalk can cause measurement errors or control system instability.

Outer Sheath Protection

The outer sheath of the RigFlex-125 cable utilizes a thermoset chlorinated polyethylene (CPE) compound that has been specifically formulated for marine applications. This material choice reflects a careful balance of multiple performance requirements that are critical for long-term reliability in harsh environments.

The thermoset nature of the CPE sheath means that it will not melt or flow when exposed to high temperatures, unlike thermoplastic materials that can deform under heat. This characteristic is particularly important in marine applications where cables might be exposed to hot surfaces or fire conditions.

The chemical resistance of the CPE sheath is exceptional, providing protection against the wide variety of chemicals commonly found in marine environments. This includes resistance to fuel oils, hydraulic fluids, cleaning solvents, and the various chemicals used in offshore drilling operations. The material also demonstrates excellent resistance to ozone and ultraviolet radiation, which is important for cables that might be exposed to sunlight during installation or maintenance.

The abrasion resistance of the sheath material is another critical performance characteristic. Marine installations often require cables to be pulled through tight conduits, around sharp corners, and past potentially abrasive surfaces. The CPE sheath provides excellent resistance to mechanical damage during both installation and service.

Compliance with Industry Standards

The comprehensive standards compliance of the RigFlex-125 Type P Signal Cable represents one of its most significant advantages for marine and offshore applications. Understanding these standards and their requirements helps explain why this cable can be trusted in critical applications where failure is not an option.

IEEE 1580 Marine Shipboard Cable Standard

IEEE 1580 represents the most comprehensive standard for marine shipboard cables, and compliance with this standard indicates that the RigFlex-125 has been designed and tested to meet the most demanding requirements of marine electrical systems. This standard addresses every aspect of cable performance, from basic electrical characteristics to complex environmental testing protocols.

The standard requires extensive testing of cable materials and construction to ensure they can withstand the unique stresses of marine service. This includes testing for resistance to oil and fuel exposure, which is particularly important given the prevalence of hydrocarbon-based fluids in marine environments. The standard also requires testing for mechanical properties such as tensile strength, elongation, and resistance to impact damage.

One of the most rigorous aspects of IEEE 1580 compliance is the environmental testing requirements. Cables must demonstrate their ability to maintain electrical integrity after exposure to salt spray, high humidity, temperature cycling, and various chemical exposures. These tests simulate years of service in accelerated timeframes, providing confidence that the cable will perform reliably throughout its intended service life.

UL 1309 and CSA C22.2 No.245 Requirements

The compliance with UL 1309 and CSA C22.2 No.245 standards provides additional validation of the cable's safety and performance characteristics. These standards focus particularly on the fire safety aspects of cable design, which is critically important in marine applications where fire represents one of the most serious safety threats.

UL 1309 establishes requirements for marine shipboard cables that ensure they will not contribute to the spread of fire and will continue to function during emergency conditions. The standard requires extensive flame testing to verify that the cable's materials will not support combustion and will self-extinguish when the ignition source is removed.

CSA C22.2 No.245 provides additional requirements for cable performance in Canadian marine applications, including specific provisions for cold weather performance. This standard recognizes that marine vessels and offshore platforms operating in northern waters face unique challenges related to extreme cold temperatures, and cables must be designed to function reliably in these conditions.

IEEE 45 Marine Electrical Systems Integration

Compliance with IEEE 45 standards ensures that the RigFlex-125 cable will integrate properly with other marine electrical system components. This standard addresses the broader context of marine electrical systems, including considerations for system grounding, electromagnetic compatibility, and overall system safety.

The IEEE 45 standard is particularly important for current-carrying capacity calculations, as it provides specific guidance for determining the ampacity of cables in marine installations. This standard recognizes that marine installations often have unique thermal environments, with cables installed in confined spaces with limited ventilation, and provides appropriate derating factors to ensure safe operation.

Flame Retardancy and Fire Safety

The flame retardancy characteristics of the RigFlex-125 cable are validated through compliance with both IEEE 1202 and IEC 60332-3 standards. These standards represent different approaches to flame testing, with IEEE 1202 focusing on vertical flame propagation and IEC 60332-3 addressing flame spread in cable bundles.

The IEEE 1202 test is particularly relevant for marine applications because it simulates the conditions that might occur if a cable is exposed to a flame source in a vertical installation, such as a cable tray or conduit system. The test measures the cable's ability to self-extinguish and determines whether flame propagation will occur along the cable length.

IEC 60332-3 testing addresses the more complex scenario of flame spread in cable bundles, which is common in marine installations where multiple cables are often installed in close proximity. This test provides validation that the cable will not contribute to fire spread even when installed with other cables in a bundle configuration.

Performance Characteristics

The performance characteristics of the RigFlex-125 Type P Signal Cable reflect its sophisticated design and high-quality materials. Understanding these characteristics helps engineers and system designers make informed decisions about cable selection and application.

Electrical Performance Parameters

The voltage rating of 600/1000V provides substantial margin for most marine signal and control applications. This rating indicates that the cable can safely operate at 600V line-to-line in three-phase systems or 1000V line-to-ground in single-phase applications. The generous voltage rating provides safety margin and allows the cable to be used in applications where voltage transients or surges might occur.

The current-carrying capacity of the cable is determined according to IEEE 45.8 methodology, which provides specific guidance for calculating ampacity in marine environments. This standard recognizes that marine installations often have unique thermal conditions, with cables installed in confined spaces with limited ventilation, and provides appropriate calculation methods to ensure safe operation.

The signal transmission characteristics of the cable are optimized for the frequency ranges commonly used in marine control and instrumentation systems. The low-resistance conductor design ensures minimal signal attenuation, while the individual shielding provides excellent protection against electromagnetic interference. The cable's capacitance and inductance characteristics are carefully controlled to ensure compatibility with both analog and digital signal systems.

Thermal Performance Capabilities

The 125°C temperature rating represents a significant advantage over conventional marine cables, which typically operate at 90°C or less. This higher temperature capability allows the cable to be used in applications where conventional cables might fail, such as near engine exhaust systems, in heated equipment compartments, or in areas where emergency conditions might cause elevated temperatures.

The thermal stability of the cross-linked polyolefin insulation system ensures that the cable's electrical properties remain stable across its entire temperature range. This is particularly important for precision instrumentation applications where small changes in cable characteristics could affect measurement accuracy.

The cable's thermal cycling performance has been validated through extensive testing that simulates the temperature variations commonly experienced in marine service. This testing ensures that the cable can withstand repeated heating and cooling cycles without developing cracks, delamination, or other forms of thermal damage.

Mechanical Resilience and Flexibility

The mechanical performance characteristics of the RigFlex-125 cable are particularly impressive, with cold bend capability maintained down to -40°C and cold impact resistance verified at -35°C. These characteristics are essential for marine applications where cables might be installed or serviced in extremely cold conditions.

The cold bend capability is tested by subjecting the cable to bending around a specified radius at low temperature and then examining it for cracks or other damage. The ability to maintain flexibility at -40°C ensures that the cable can be installed even in arctic conditions without risk of insulation damage.

Cold impact resistance testing involves striking the cable with a specified force at low temperature to simulate the kind of mechanical shock that might occur during installation or service. The cable's ability to withstand this impact at -35°C provides confidence that it will not suffer damage from incidental contact with tools or equipment during cold weather operations.

The minimum bending radius specifications provide important guidance for installation practices. These specifications ensure that the cable can be bent to fit through conduits and around obstacles without causing damage to the conductors or insulation. Adhering to these specifications is critical for ensuring long-term reliability of the cable installation.

Why Use Individually Shielded Unarmoured Cables?

The design philosophy behind individually shielded unarmoured cables reflects a sophisticated understanding of the electromagnetic environment in marine and offshore installations. To fully appreciate the advantages of this approach, we need to examine both the benefits of individual shielding and the rationale for the unarmoured construction.

Individual Shielding Benefits for Signal Integrity

Individual shielding represents a significant advancement over traditional overall cable shielding approaches, particularly in multi-conductor signal cables. When multiple signal circuits share a common shield, interference that affects one circuit can easily couple to adjacent circuits, creating crosstalk that can degrade signal quality or cause system malfunctions.

The individual shielding approach used in the RigFlex-125 cable provides each signal circuit with its own dedicated electromagnetic barrier. This isolation is particularly important for analog signals, where even small amounts of crosstalk can cause measurement errors that propagate through control systems and affect process performance.

In marine environments, the sources of electromagnetic interference are numerous and varied. Power cables carrying large currents, radio and radar transmitters, welding equipment, and various electronic devices all contribute to a complex electromagnetic environment. Individual shielding provides effective protection against both magnetic and electric field coupling, ensuring that signal circuits remain unaffected by these interference sources.

The effectiveness of individual shielding is further enhanced by the use of drain wires that provide low-impedance connections to ground. This grounding path is essential for the shield to function as an active interference suppression system rather than merely a passive barrier. The drain wire allows interference currents to flow to ground rather than being transferred to the signal conductors.

Flexibility and Installation Advantages

The unarmoured construction of the RigFlex-125 cable provides significant advantages in terms of flexibility and ease of installation. Armoured cables, while providing excellent mechanical protection, tend to be stiff and difficult to route through the confined spaces commonly found in marine installations.

The flexibility of unarmoured construction is particularly beneficial when cables must be routed through multiple direction changes, such as through bulkheads, around equipment, and through cable trays. The ability to bend to relatively tight radii without damage makes installation faster and reduces the risk of cable damage during the installation process.

Weight considerations are also important in marine applications, where every pound affects vessel stability and fuel efficiency. The unarmoured construction of the RigFlex-125 cable results in significantly lower weight compared to equivalent armoured cables, which can be important when large quantities of cable are required for a project.

The absence of metallic armor also eliminates concerns about galvanic corrosion that can occur when dissimilar metals are exposed to saltwater environments. The non-metallic construction of the cable sheath provides excellent corrosion resistance without the need for specialized coatings or cathodic protection systems.

Environmental Resistance Without Armor

The robust CPE sheath of the RigFlex-125 cable provides excellent mechanical protection without the need for metallic armor. This approach relies on material science rather than mechanical armor to achieve the necessary level of environmental protection.

The chemical resistance of the CPE sheath material provides protection against the wide variety of chemicals commonly encountered in marine environments. This includes not only saltwater but also fuel oils, hydraulic fluids, cleaning solvents, and various industrial chemicals used in offshore operations.

The abrasion resistance of the sheath material is sufficient to protect the cable during normal installation and service activities. While the cable should not be subjected to severe mechanical abuse, it can withstand the normal handling and incidental contact that occurs during installation and maintenance activities.

The UV resistance of the sheath material is important for cables that might be exposed to sunlight during installation or in areas where natural light penetrates into the vessel or platform structure. The material's ability to resist UV degradation ensures that temporary exposure to sunlight will not compromise the cable's long-term performance.

Applications Across Marine and Offshore Environments

The versatility of the RigFlex-125 Type P Signal Cable makes it suitable for a wide range of applications across marine and offshore environments. Understanding these applications helps illustrate why this cable represents such a valuable solution for marine electrical systems.

Fixed and Floating Platform Applications

Offshore oil and gas platforms represent some of the most demanding environments for electrical cables. These installations must operate reliably for decades in the harsh conditions of the open ocean, where failure can result in environmental disasters, production shutdowns, and significant financial losses.

The RigFlex-125 cable is ideally suited for instrumentation and control applications on these platforms. Process control systems require reliable signal transmission between sensors, controllers, and actuators to maintain safe and efficient operations. The cable's resistance to oil and chemical exposure makes it particularly suitable for areas where hydrocarbon spills or chemical exposure might occur.

Fire and gas detection systems on offshore platforms rely on signal cables to transmit critical safety information from sensors located throughout the platform to central control systems. The flame retardant properties and high-temperature performance of the RigFlex-125 cable make it an excellent choice for these life-safety applications.

The cable's ability to withstand constant vibration from machinery and wave action is particularly important on floating platforms, where the structure is in constant motion. The flexible conductor construction and robust insulation system ensure that the cable can withstand these dynamic loads without failure.

Shipboard Installation Requirements

Marine vessels present unique challenges for cable installations due to the limited space available for cable routing and the need for cables to withstand the constant motion of the vessel. The RigFlex-125 cable's flexibility and compact construction make it well-suited for these constrained environments.

Navigation and communication systems on vessels require reliable signal transmission to ensure safe operation. The individual shielding of the RigFlex-125 cable provides excellent protection against interference from radar systems, radio transmitters, and other electronic equipment commonly found on ships.

Engine room applications represent particularly challenging environments due to the presence of high temperatures, oil vapor, and constant vibration. The 125°C temperature rating and oil resistance of the RigFlex-125 cable make it suitable for these demanding conditions.

The cable's compliance with marine safety standards makes it suitable for use in critical safety systems such as fire detection, emergency lighting, and public address systems. These systems must continue to function during emergency conditions when other electrical systems might fail.

Control System Integration

Modern marine and offshore installations rely heavily on sophisticated control systems that coordinate the operation of multiple subsystems. These control systems require reliable communication between distributed components, often over significant distances within the vessel or platform structure.

The RigFlex-125 cable's signal transmission characteristics make it suitable for both analog and digital control signals. The low-resistance conductor design ensures minimal signal attenuation, while the individual shielding prevents interference that could cause control system malfunctions.

Distributed control systems commonly used in marine applications often require multiple signal types to be transmitted within the same cable. The individual shielding of the RigFlex-125 cable allows different signal types to coexist without mutual interference, simplifying system design and reducing installation costs.

Monitoring and Instrumentation Networks

Environmental monitoring systems on offshore platforms and vessels require accurate transmission of sensor data to central monitoring stations. The precision required for these measurements demands cables with excellent signal integrity characteristics.

The RigFlex-125 cable's individual shielding and low-noise characteristics make it particularly suitable for transmitting low-level signals from sensors measuring parameters such as temperature, pressure, flow, and vibration. The cable's ability to maintain signal integrity in the presence of electromagnetic interference ensures accurate data transmission even in electrically noisy environments.

Condition monitoring systems that track the health of critical equipment rely on continuous data transmission from sensors to analysis systems. The reliability of the RigFlex-125 cable ensures that this critical data is transmitted without interruption, allowing maintenance teams to detect potential problems before they result in equipment failure.

Conclusion: A Smart Investment in Signal Integrity and System Safety

The selection of appropriate signal cables represents a fundamental decision that affects the long-term reliability and safety of marine and offshore electrical systems. The RigFlex-125 Type P Signal Cable demonstrates how advanced materials science and careful engineering can create solutions that meet the most demanding requirements of these challenging environments.

The comprehensive standards compliance of this cable provides assurance that it has been thoroughly tested and validated for marine service. The IEEE 1580 compliance alone represents hundreds of hours of testing under conditions that simulate years of actual service, providing confidence that the cable will perform reliably throughout its intended service life.

The sophisticated construction of the cable, with its cross-linked polyolefin insulation, individual aluminum/polyester shielding, and robust CPE sheath, represents a careful balance of performance characteristics that address the unique challenges of marine environments. Each component has been selected and engineered to contribute to the overall performance of the cable system.

The performance characteristics of the RigFlex-125 cable, including its 125°C temperature rating, excellent cold weather performance, and superior electromagnetic shielding effectiveness, make it suitable for a wide range of marine applications. From critical safety systems to precision instrumentation, this cable provides the reliability and performance that marine and offshore operations demand.

For engineers and procurement teams evaluating cabling solutions for marine and offshore projects, the RigFlex-125 Type P Signal Cable represents a smart investment in system reliability and safety. While the initial cost might be higher than conventional cables, the long-term value proposition becomes clear when considering the costs of system downtime, maintenance, and potential safety incidents that can result from cable failures.

The cable's proven performance in harsh environments, comprehensive standards compliance, and advanced construction make it an ideal choice for engineers who cannot afford to compromise on reliability. In applications where signal integrity is critical and failure is not an option, the RigFlex-125 Type P Signal Cable provides the performance and peace of mind that marine and offshore operations require.

The investment in high-quality signal cables like the RigFlex-125 represents a commitment to operational excellence and safety that pays dividends throughout the life of the installation. By choosing cables that exceed minimum requirements and provide generous safety margins, engineers can ensure that their electrical systems will continue to operate reliably even as operating conditions become more demanding over time.

In the challenging world of marine and offshore operations, where the margin for error is minimal and the consequences of failure are severe, the RigFlex-125 Type P Signal Cable stands as a testament to the importance of quality, reliability, and engineering excellence in electrical system design.
