RU, BU, BFOU, and RFOU Marine Cables: Technical Comparison and Selection Guide for Offshore and Shipboard Use

Introduction: The Critical Role of Marine Cable Systems

In the demanding world of marine and offshore operations, the reliability of electrical systems can mean the difference between successful operations and catastrophic failure. Whether powering critical navigation equipment on a commercial vessel or maintaining emergency lighting systems on an offshore drilling platform, the cables that carry electrical power and control signals must withstand extraordinary environmental challenges while maintaining absolute reliability.

The marine environment presents unique challenges that land-based electrical systems rarely encounter. Salt spray corrodes metals, temperature fluctuations stress insulation materials, vibration from engines and wave action creates mechanical fatigue, and the ever-present risk of fire demands exceptional flame retardancy and fire resistance. Understanding these challenges helps us appreciate why specialized marine cables like RU, BU, BFOU, and RFOU have been developed with specific design features to address these demanding conditions.

The purpose of this comprehensive guide is to explain the technical differences between these four major marine cable types and provide practical guidance for selecting the most appropriate cable for specific applications. By understanding the construction details, performance characteristics, and intended applications of each cable type, engineers and marine professionals can make informed decisions that ensure both safety and operational reliability.

Understanding Marine Cable Standards and Design Framework

Before diving into specific cable types, it's essential to understand the regulatory framework that governs marine cable design and performance. The foundation of modern marine cable standards rests primarily on two key standard series: NEK 606 and the IEC 60092 series.

NEK 606, developed by the Norwegian Electrotechnical Committee, represents one of the most comprehensive and widely adopted standards for marine cables. This standard establishes performance requirements and testing protocols specifically tailored to the harsh conditions encountered in maritime environments. Within NEK 606, different cable types are designated by P-codes, which serve as shorthand references for specific construction and performance characteristics.

The P-code system provides a systematic way to categorize cables based on their intended applications and performance levels. For example, P17 and P18 designations indicate different levels of fire performance and construction requirements. Understanding these codes helps marine professionals quickly identify whether a cable meets the requirements for their specific application.

The IEC 60092 series complements NEK 606 by providing detailed specifications for various aspects of marine electrical installations. IEC 60092-350 through 60092-359 cover specific testing requirements for insulation materials, flame retardancy, fire resistance, and other critical performance parameters. These standards work together to ensure that marine cables can withstand the unique combination of environmental stresses found in shipboard and offshore applications.

The relationship between these standards and actual cable performance becomes clearer when we examine how different environmental factors affect cable materials. Salt water, for instance, is highly conductive and corrosive, requiring special attention to conductor materials and insulation integrity. Temperature cycling from engine room heat to cold deck conditions stresses insulation materials through repeated expansion and contraction. Mechanical vibration from engines, pumps, and wave action creates fatigue stresses that can eventually lead to conductor breakage or insulation failure if not properly addressed in the cable design.

RU Cable Profile: The Foundation of Marine Power Distribution

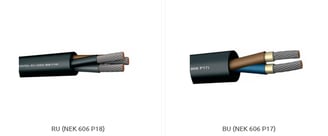

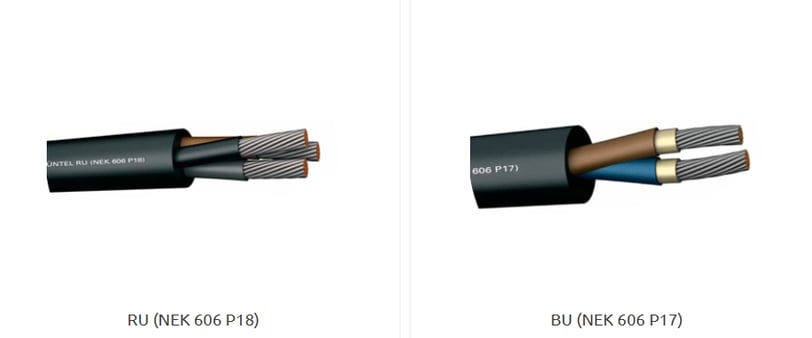

The RU cable, designated as NEK 606 P18, represents the fundamental building block of marine electrical systems. Designed for fixed installation applications including power distribution, control circuits, and lighting systems, RU cables provide reliable performance in standard marine environments without the additional complexity and cost of specialized fire resistance features.

The construction of RU cables begins with high-quality electrolytic copper conductors that are tinned to prevent corrosion in the marine environment. The tinning process involves coating the copper with a thin layer of tin, which acts as a barrier against the corrosive effects of salt air and moisture. These conductors are manufactured to IEC 60228 Class 2 specifications, which defines the stranding pattern and flexibility characteristics. Class 5 conductors are available as an option for applications requiring greater flexibility, such as installations where the cable must navigate tight bends or where vibration resistance is particularly important.

The insulation system in RU cables utilizes halogen-free EPR (Ethylene Propylene Rubber) or halogen-free HEPR (Hard Ethylene Propylene Rubber). This choice reflects a critical balance between electrical performance and safety considerations. EPR provides excellent electrical properties including high dielectric strength and low dielectric loss, while the halogen-free formulation ensures that toxic gases are not released if the cable is exposed to fire. This is particularly important in the confined spaces typical of marine vessels, where toxic gas accumulation could pose serious threats to crew safety during emergency evacuation.

The outer sheath options for RU cables include SHF2 and SHF MUD formulations, both designed to provide protection against the various environmental challenges encountered in marine applications. SHF2 sheaths offer excellent resistance to oils, chemicals, and UV radiation, making them suitable for general marine use. The SHF MUD option provides enhanced resistance to drilling mud and other specialized chemicals encountered in offshore drilling operations, demonstrating how cable manufacturers adapt their products to meet specific industry requirements.

The electrical characteristics of RU cables are optimized for marine power distribution systems. With a rated voltage of 0.6/1 kV and test voltage of 3.5 kV, these cables provide adequate electrical performance for most shipboard applications while maintaining safety margins appropriate for the challenging marine environment. The operating temperature range of -15°C to +90°C covers the normal range of conditions encountered in marine service, with an optional extended range of -40°C to +90°C available for vessels operating in extreme cold conditions such as Arctic service.

Fire safety performance in RU cables meets stringent marine requirements through compliance with multiple international standards. IEC 60332-1 and IEC 60332-3 Category A flame retardancy testing ensures that the cables will not propagate flame along their length, while IEC 60754 halogen content testing confirms that toxic gas emissions are minimized. IEC 61034 smoke density testing verifies that smoke production is kept to acceptable levels, maintaining visibility for emergency evacuation procedures.

BU Cable Profile: Enhanced Fire Safety for Critical Applications

The BU cable, designated as NEK 606 P17, builds upon the foundation of RU cable construction while adding critical fire resistance capabilities that make it suitable for emergency systems, critical circuits, and applications where continued operation during fire conditions is essential for safety.

The key differentiator in BU cable construction is the addition of mica tape wrapped around the conductor before the insulation is applied. This mica tape serves as a fire barrier that maintains electrical continuity even when the organic insulation materials are damaged by fire. Mica is a naturally occurring mineral with exceptional thermal stability and electrical insulation properties. When exposed to high temperatures, mica maintains its structural integrity and continues to provide electrical insulation, allowing critical circuits to remain operational during fire emergencies.

This fire resistance capability, tested according to IEC 60331, represents a significant performance enhancement over standard RU cables. The test involves subjecting the cable to direct flame while monitoring electrical continuity and insulation resistance. Cables that pass this test demonstrate their ability to continue functioning for specified periods during fire conditions, providing precious time for emergency response procedures or safe shutdown sequences.

The application scope for BU cables reflects their enhanced safety capabilities. Emergency lighting systems rely on BU cables to ensure that evacuation routes remain illuminated even during fire emergencies. Critical control systems for fire suppression, emergency communication, and navigation equipment use BU cables to maintain functionality when it's needed most. Power distribution to essential services such as emergency ventilation and bilge pumps also typically requires the fire resistance provided by BU cables.

Despite the addition of fire resistance features, BU cables maintain the same electrical and mechanical characteristics as RU cables. This compatibility simplifies system design and installation procedures, as engineers can specify BU cables for critical circuits without needing to modify electrical parameters or installation practices. The rated voltage, test voltage, operating temperature range, and minimum bending radius remain identical to RU specifications, ensuring consistent system performance across different cable types.

The fire resistance testing protocol deserves deeper examination to understand its practical implications. During IEC 60331 testing, the cable is exposed to flames at temperatures exceeding 750°C while electrical continuity is monitored. The test continues for specified periods, typically 90 minutes for power cables, during which the cable must maintain its electrical function. This testing simulates real-world fire scenarios and provides confidence that critical systems will continue operating during the crucial early stages of fire emergencies.

BFOU and RFOU Cables: Armored Solutions for Harsh Offshore Environments

BFOU (Borehole Fire-resistant Oil-resistant Underground) and RFOU (Rubber Fire-retardant Oil-resistant Underground) cables represent specialized solutions designed for the most demanding offshore applications. These cables incorporate armoring systems and enhanced chemical resistance to survive the extreme conditions encountered on floating production platforms, drilling rigs, and subsea installations.

The construction of BFOU and RFOU cables begins with similar conductor and insulation systems to their RU and BU counterparts, but adds significant mechanical protection through armoring systems. The armoring typically consists of either copper wire braid or galvanized steel wire arrangements that provide mechanical protection against impact, crushing, and rodent damage. Copper wire braid armoring offers superior electrical properties and corrosion resistance, making it suitable for applications where electromagnetic interference shielding is important. Galvanized steel wire armoring provides maximum mechanical protection for cables exposed to severe physical abuse.

The distinction between BFOU and RFOU lies primarily in their fire performance characteristics. BFOU cables include mica tape fire barriers similar to BU cables, providing fire resistance according to IEC 60331 standards. This makes BFOU suitable for critical offshore systems that must continue operating during fire emergencies. RFOU cables provide flame retardancy but not fire resistance, making them appropriate for general offshore applications where enhanced mechanical protection is needed but fire resistance is not a specific requirement.

The outer sheath systems in both BFOU and RFOU cables utilize advanced SHF2 formulations specifically engineered for offshore chemical environments. These sheaths must resist not only salt water and UV radiation but also drilling muds, hydraulic fluids, crude oil, and various chemical treatments used in offshore operations. The chemical resistance requirements are particularly stringent because offshore installations often involve contact with aggressive substances that would quickly degrade standard cable materials.

Installation considerations for armored cables differ significantly from non-armored types. The minimum bending radius requirements are typically larger due to the armoring system, requiring careful planning during cable routing design. The additional weight and stiffness of armored cables also affects support requirements and pulling tensions during installation. However, these challenges are offset by the superior mechanical protection provided, which can significantly extend cable service life in harsh environments.

The environmental conditions that drive the need for BFOU and RFOU cables are worth examining in detail. Offshore platforms experience temperature extremes from hot engine rooms to cold exterior environments. Salt spray and wind-driven moisture create corrosive conditions that challenge all materials. Mechanical vibration from engines, pumps, and wave action subjects cables to continuous fatigue stresses. Chemical exposure from drilling operations, production processes, and maintenance activities can degrade inadequately protected cables. The combination of these factors creates an environment that demands the highest levels of cable performance and reliability.

Comprehensive Technical Comparison and Performance Analysis

Understanding the performance differences between RU, BU, BFOU, and RFOU cables requires examining their characteristics across multiple dimensions. Fire resistance represents the most significant functional difference, with BU and BFOU cables providing continued operation during fire conditions while RU and RFOU cables offer flame retardancy but not fire resistance. This distinction is crucial for system designers who must identify circuits requiring continued operation during emergencies.

Mechanical protection varies dramatically between cable types. RU and BU cables rely on their outer sheaths for environmental protection, making them suitable for protected installations such as conduit systems or interior cable trays. BFOU and RFOU cables incorporate armoring systems that enable direct burial, exposure to mechanical abuse, and installation in unprotected environments where impact damage is possible.

Chemical resistance capabilities differ based on sheath formulations and construction details. All four cable types utilize advanced polymer sheaths designed for marine environments, but BFOU and RFOU cables typically incorporate enhanced formulations specifically developed for offshore chemical exposure. The armoring systems in BFOU and RFOU cables also provide an additional barrier against chemical penetration.

Installation characteristics vary significantly between cable types, affecting both initial installation costs and long-term maintenance requirements. Non-armored RU and BU cables offer flexibility and ease of installation, particularly in congested spaces typical of marine vessels. Armored BFOU and RFOU cables require more careful handling and support but provide superior protection against physical damage that could result in costly repairs or dangerous failures.

Cost considerations involve both initial cable costs and lifecycle expenses. RU cables represent the most economical option for applications where their performance characteristics are adequate. BU cables command a premium for their fire resistance capabilities but provide value through enhanced safety performance. BFOU and RFOU cables involve higher initial costs due to their complex construction but may provide better long-term value in harsh environments where cable replacement is difficult and expensive.

Strategic Selection Guidance for Marine Cable Applications

Selecting the appropriate cable type requires systematic evaluation of multiple factors including environmental conditions, safety requirements, regulatory compliance, and operational considerations. The decision process should begin with a thorough assessment of the installation environment and the consequences of cable failure.

Environmental analysis should consider both normal operating conditions and potential emergency scenarios. Temperature extremes, chemical exposure, mechanical stresses, and fire risks all influence cable selection. Offshore installations typically present more severe environmental challenges than shipboard applications, often justifying the additional cost and complexity of armored cable systems.

Fire safety requirements represent a critical decision factor that should be evaluated in consultation with regulatory authorities and safety professionals. Emergency circuits, life safety systems, and critical operational controls typically require fire-resistant cables to ensure continued operation during fire conditions. General power distribution and non-critical control circuits may adequately served by flame-retardant cables without fire resistance capabilities.

Regulatory compliance requirements vary by vessel type, operating area, and flag state requirements. Classification societies such as DNV, ABS, Lloyd's Register, and Bureau Veritas maintain specific requirements for different cable types and applications. Early consultation with the appropriate regulatory authorities can prevent costly specification changes during later project phases.

Installation considerations including cable routing, support requirements, and maintenance access should influence cable selection decisions. Cables installed in accessible locations may adequately served by non-armored types, while cables in inaccessible or harsh locations may justify armored construction despite higher initial costs.

Long-term operational factors such as expected service life, maintenance requirements, and replacement costs should be incorporated into the selection process. The total cost of ownership often favors higher-performance cables in demanding applications, even when initial costs are significantly higher.

FAQ: Addressing Common Marine Cable System Challenges

Q1: How do I identify if an existing marine cable is RU, BU, BFOU, or RFOU without documentation?

A1: While definitive identification often requires documentation, you can look for several clues. Check the cable's outer sheath for printed designations (e.g., "NEK 606 P17" or "P18"). The physical construction can also offer hints: the presence of an armor layer (braid or wire) strongly suggests BFOU or RFOU. If you see a thick, often shiny, layer beneath the insulation (mica tape), it's likely a fire-resistant cable (BU or BFOU). For precise identification and to verify compliance, always consult the manufacturer's data sheet or relevant project documentation if available. If not, consider a professional inspection and testing.

Q2: What are the consequences of using a non-fire-resistant cable (e.g., RU) in an application requiring fire resistance (e.g., emergency lighting)?

A2: The consequences can be severe and life-threatening. In a fire, a non-fire-resistant cable will quickly fail, leading to loss of power to critical systems like emergency lighting, fire pumps, communication systems, and navigation equipment. This loss of functionality can impede emergency response, hinder evacuation, and compromise the safety of personnel. Regulatory bodies and classification societies strictly enforce the use of fire-resistant cables in such applications, and non-compliance can result in significant fines, operational restrictions, and even criminal charges in the event of a catastrophic failure.

Q3: Can armored cables (BFOU/RFOU) be used in non-offshore applications, such as on a standard commercial vessel?

A3: Yes, armored cables can be used on standard commercial vessels. While BFOU and RFOU are primarily designed for the extreme conditions of offshore environments, their robust construction and enhanced mechanical protection can be advantageous in certain shipboard applications where cables are exposed to potential physical damage, abrasion, or frequent movement. This could include areas with heavy traffic, machinery spaces, or where cables are laid without conduit. However, it's important to consider the increased weight, larger bending radius, and higher cost associated with armored cables, as they may not be necessary or cost-effective for all shipboard installations.

Q4: How does installation quality impact the long-term performance and safety of marine cable systems?

A4: Installation quality is paramount to the long-term performance and safety of marine cable systems. Improper installation can negate the benefits of even the highest quality cables. Issues like exceeding minimum bending radii can damage conductors or insulation, leading to premature failure. Inadequate support or improper clamping can cause mechanical stress and fatigue. Incorrect termination and sealing can lead to water ingress, corrosion, and electrical faults. Moreover, poor installation practices can compromise a cable's fire performance. Adherence to manufacturer guidelines, industry best practices, and relevant standards (e.g., IEC 60092-352 for installation) is crucial to ensure the cable performs as designed throughout its operational life, preventing costly repairs, downtime, and potential safety hazards. Regular inspections and maintenance, especially after installation, are also critical.

Q5: What are the key considerations when replacing an old marine cable with a new one to ensure compatibility and compliance?

A5: When replacing an old marine cable, several key considerations are vital:

1. Original Cable Specifications: Identify the exact type, voltage rating, conductor size, number of cores, and any specific designations (e.g., NEK 606 P-code) of the existing cable. This ensures the replacement meets or exceeds the original requirements.

2. Application Requirements: Re-evaluate the current operational environment and any changes in usage or regulations. For instance, if an area now has a higher fire risk, upgrading to a fire-resistant cable might be necessary.

3. Regulatory Compliance: Ensure the new cable complies with the latest standards from classification societies (DNV, ABS, LR, BV) and flag state authorities applicable to your vessel or offshore unit. Standards evolve, so a direct like-for-like replacement might not meet current regulations.

4. Physical Compatibility: Check the dimensions, bending radius, and weight of the new cable to ensure it fits the existing cable trays, conduits, and gland arrangements without undue stress.

5. Termination and Glanding: Verify that the new cable is compatible with existing termination methods and cable glands, or plan for necessary upgrades.

6. Certification: Always obtain and review the material certificates and type approvals for the new cable to confirm its compliance and performance characteristics.

Future Developments and Industry Trends

The marine cable industry continues to evolve in response to changing operational requirements, environmental regulations, and technological advances. Increased focus on environmental protection is driving development of cables with enhanced recyclability and reduced environmental impact during manufacturing and disposal.

Digitalization trends in marine operations are creating demand for cables with enhanced data transmission capabilities while maintaining traditional power and control functions. Hybrid cables that combine power, control, and communication functions in single constructions offer installation advantages while meeting evolving operational requirements.

Enhanced fire safety requirements, driven by lessons learned from marine casualties, continue to push cable performance standards toward higher levels of fire resistance and reduced toxic gas emissions. These developments benefit all marine operations through improved safety performance and reduced risk exposure.

Conclusion: Ensuring Optimal Cable Selection for Marine Success

The selection of appropriate marine cables represents a critical decision that affects both immediate project success and long-term operational reliability. RU cables provide cost-effective solutions for general marine applications where standard environmental protection is adequate. BU cables offer enhanced fire safety for critical systems requiring continued operation during emergencies. BFOU cables combine fire resistance with mechanical protection for critical offshore applications. RFOU cables provide mechanical protection and chemical resistance for general offshore use without fire resistance requirements.

Successful cable selection requires systematic evaluation of environmental conditions, safety requirements, regulatory compliance, and operational factors. The additional cost of higher-performance cables is often justified by improved safety, reliability, and reduced maintenance requirements over the cable's service life.

The importance of standard compliance and environmental adaptation cannot be overstated in marine cable selection. Cables that meet appropriate international standards and are properly matched to their operating environment provide the foundation for safe, reliable marine electrical systems. By understanding the technical differences between available cable types and following systematic selection procedures, marine professionals can ensure that their electrical systems provide dependable service throughout their operational lives while meeting the highest standards of safety and performance.
