Introduction: Meeting the Demands of Marine Power Distribution
The marine and offshore industries present some of the most challenging environments for electrical infrastructure. Power cables in these settings must withstand not only the standard electrical loads but also extreme weather conditions, corrosive salt spray, temperature fluctuations, mechanical stress, and exposure to petroleum products. Understanding these unique challenges helps us appreciate why specialized cables like the RigFlex-125 Type P are essential for reliable operations.
Traditional land-based power cables simply cannot meet the rigorous demands of marine environments. The combination of constant moisture, salt corrosion, UV radiation from intense sun exposure, and the mechanical stresses from ship movement or platform vibration creates a perfect storm of destructive forces. Add to this the presence of oil, fuel, and various petrochemical substances commonly found in engine rooms and drilling operations, and it becomes clear that standard electrical cables would fail rapidly in these conditions.

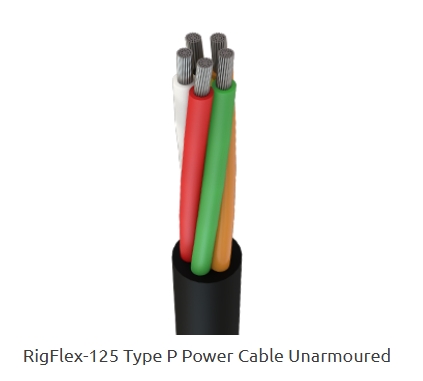

The RigFlex-125 Type P unarmoured power cable represents a sophisticated engineering solution specifically designed to address these multifaceted challenges. This cable incorporates advanced materials science, rigorous testing protocols, and compliance with multiple international standards to deliver reliable power distribution in the harshest marine and offshore environments. By understanding its technical specifications and application scenarios, engineers and procurement professionals can make informed decisions about power infrastructure that will operate safely and reliably for years to come.
Comprehensive Electrical and Technical Specifications
Voltage Ratings and Testing Standards
The electrical foundation of any power cable begins with its voltage ratings, and the RigFlex-125 Type P is designed to handle demanding electrical loads safely. The cable operates at a rated voltage of 600/1000 V, which means it can handle 600 volts between any conductor and ground, or 1000 volts between conductors in a multi-conductor configuration. This voltage rating makes it suitable for most marine power distribution systems, from lighting circuits to motor feeds for deck equipment and propulsion systems.
The test voltage requirements follow IEEE 1580 Table 19 specifications, which establish rigorous testing protocols that go well beyond the normal operating voltage. These tests ensure that the cable can withstand voltage surges, transient overvoltages, and other electrical stresses that commonly occur in marine electrical systems. The testing regime includes both AC and impulse voltage tests that simulate lightning strikes and switching surges that ships and offshore platforms frequently experience.
Temperature Performance Characteristics
Temperature management represents one of the most critical aspects of marine cable design, as these environments subject cables to extreme temperature variations. The RigFlex-125 Type P demonstrates exceptional temperature performance through its dual-standard compliance approach.
Under IEEE 1580 standards, the cable operates at 100°C for general applications and can handle 125°C for single-core configurations. Meanwhile, UL 1309 certification allows for 110°C general operation and 125°C for single-core applications. This temperature flexibility proves crucial in marine environments where engine rooms may reach extreme temperatures, while deck installations might face arctic conditions.
The higher temperature ratings for single-core applications reflect the improved heat dissipation characteristics when cores are separated. In multi-core cables, heat generated by current flow in one conductor affects adjacent conductors, requiring more conservative temperature limits. Single-core installations allow each conductor to dissipate heat more effectively, enabling higher current-carrying capacity and operational temperatures.
Advanced Conductor Technology
The conductor system forms the electrical heart of any power cable, and the RigFlex-125 Type P employs sophisticated conductor technology optimized for marine applications. The conductors utilize soft annealed tinned copper conforming to ASTM B 33 specifications, which provides several crucial advantages over standard copper conductors.
The soft annealing process creates a conductor that maintains excellent electrical conductivity while providing superior flexibility. This flexibility becomes essential in marine installations where cables must route through tight spaces, around obstacles, and accommodate the constant movement inherent in floating platforms or ship operations. Hard-drawn copper, while having slightly better electrical properties, would create brittle conductors prone to fatigue failure under repeated flexing.
The tinning process involves coating the copper strands with a thin layer of tin, which provides exceptional corrosion resistance in marine environments. Salt spray and humidity can quickly corrode untreated copper, leading to increased resistance, hot spots, and eventual failure. The tin coating creates a barrier that prevents this corrosion while maintaining excellent electrical contact between strands.
The flexible stranded construction follows IEEE 1580 Table 11 specifications, which define the exact stranding patterns and wire sizes that optimize both electrical performance and mechanical flexibility. The resistance characteristics comply with IEEE 1580 requirements, ensuring that voltage drop calculations and current-carrying capacity determinations remain accurate throughout the cable's service life.




Insulation and Sheath Systems
The insulation system of the RigFlex-125 Type P represents advanced polymer chemistry specifically formulated for marine applications. The cross-linked polyolefin insulation (Type P / X110) provides exceptional electrical insulation properties while maintaining flexibility and chemical resistance.
Cross-linking creates chemical bonds between polymer chains, transforming the material from a thermoplastic to a thermoset. This transformation dramatically improves the insulation's resistance to heat, chemicals, and mechanical stress. Unlike thermoplastic insulation that can soften and flow under heat, cross-linked polyolefin maintains its structural integrity even at elevated temperatures, preventing short circuits and maintaining electrical isolation.
The Type P designation indicates compliance with specific flame-retardant requirements, while the X110 classification confirms the insulation's ability to operate continuously at elevated temperatures. This combination ensures that the cable can handle both normal operating conditions and emergency situations where temperatures might exceed normal limits.
The outer sheath utilizes thermoset chlorinated polyethylene (CPE), which provides the cable's primary defense against environmental hazards. CPE offers outstanding resistance to oil, fuel, salt water, and UV radiation – the primary threats in marine environments. The thermoset nature of this sheath means it will not soften or degrade under heat exposure, maintaining its protective properties throughout the cable's service life.
Mechanical and Environmental Performance
The mechanical performance specifications of the RigFlex-125 Type P reflect the demanding physical conditions of marine installations. The cold bend rating of -40°C ensures that the cable remains flexible even in arctic conditions, while the cold impact rating of -35°C confirms that the cable can withstand mechanical shock at low temperatures without cracking or failing.
These cold weather specifications prove particularly important for vessels operating in northern waters or offshore platforms in cold climates. Traditional cables often become brittle in cold conditions, leading to insulation cracking during installation or operation. The RigFlex-125 Type P maintains its flexibility and integrity even under these extreme conditions.
The flame performance ratings according to IEEE 1202 and IEC 60332-3 standards ensure that the cable will not contribute to fire propagation in the event of an onboard fire. These tests subject the cable to direct flame exposure and measure both the flame spread rate and the amount of smoke generated. Marine fire safety regulations require cables to self-extinguish quickly and produce minimal toxic smoke to protect personnel during evacuation.
Installation Considerations and Bending Radius
The bending radius specifications provide critical guidance for proper cable installation and long-term reliability. For cables with diameters of 25 mm or less, the minimum bending radius equals four times the cable diameter. For larger cables exceeding 25 mm diameter, the minimum bending radius increases to six times the diameter.
These specifications prevent excessive stress on the conductor strands and insulation system during installation and operation. Bending cables too tightly can cause conductor breakage, insulation cracking, or premature fatigue failure. The specified bending radii ensure that mechanical stresses remain within acceptable limits while allowing reasonable installation flexibility in tight marine spaces.
The current capacity determination follows IEEE 45.8 standards, which account for the specific conditions found in marine installations. These calculations consider factors such as ambient temperature, grouping effects when multiple cables are installed together, and the heat dissipation characteristics of typical marine cable routes.
Diverse Application Scenarios in Marine Environments
Fixed and Floating Offshore Platforms
Offshore oil and gas platforms represent some of the most demanding environments for electrical infrastructure. These massive structures must operate continuously in harsh ocean conditions while handling enormous power loads for drilling operations, processing equipment, and life support systems. The RigFlex-125 Type P cable excels in these applications due to its comprehensive resistance to the multiple environmental stressors present on offshore platforms.
Fixed platforms, anchored permanently to the seabed, experience constant exposure to salt spray, temperature cycling, and UV radiation. The CPE sheath provides excellent long-term resistance to these environmental factors, while the cross-linked polyolefin insulation maintains its electrical properties despite temperature variations. The cable's oil and petrochemical resistance proves essential in environments where drilling mud, hydraulic fluids, and crude oil are constantly present.
Floating platforms present additional challenges due to their constant motion in response to ocean swells. This movement creates continuous mechanical stress on cables, requiring the exceptional flexibility provided by the soft annealed tinned copper conductors and polymer systems. The cable's ability to withstand repeated flexing without fatigue failure makes it ideal for floating production platforms and drilling ships.
Shipboard Power Distribution Systems
Modern ships require sophisticated electrical systems to power everything from navigation equipment to cargo handling systems. The RigFlex-125 Type P cable serves as the backbone of these power distribution networks, routing power throughout the vessel while withstanding the unique challenges of marine service.
Ship engine rooms present particularly harsh conditions with high temperatures, oil exposure, and mechanical vibration from the propulsion system. The cable's high temperature ratings and oil resistance allow it to operate reliably in these demanding spaces. The flexible conductor construction accommodates the thermal expansion and contraction that occurs as engines cycle between operating and shutdown conditions.
Deck installations expose cables to direct sunlight, salt spray, and temperature extremes. The UV-resistant CPE sheath prevents degradation from constant sun exposure, while the moisture resistance protects against salt water infiltration. The cable's ability to maintain flexibility at low temperatures ensures reliable operation even when ships transit through arctic waters.
Marine Engine Rooms and Drilling Equipment
Engine rooms aboard ships and offshore platforms combine high temperatures, oil exposure, mechanical vibration, and limited space – creating one of the most challenging environments for electrical cables. The RigFlex-125 Type P cable addresses each of these challenges through its advanced material system and construction.
The high temperature ratings allow the cable to operate safely near hot engine components and exhaust systems. The oil and petrochemical resistance prevents degradation from contact with lubricating oils, hydraulic fluids, and fuel that commonly leak or spill in engine spaces. The flexible construction accommodates the constant vibration from rotating machinery without developing fatigue failures.
Drilling rigs present additional challenges with their combination of heavy mechanical loads, chemical exposure, and extreme environmental conditions. The cable's resistance to drilling mud chemicals and its ability to withstand mechanical abuse make it well-suited for power feeds to drilling equipment, mud pumps, and draw works systems.
Key Performance Features
The exceptional resistance to oil, abrasion, petrochemical fluids, and UV radiation sets the RigFlex-125 Type P apart from conventional power cables. This comprehensive resistance profile ensures reliable operation across the full spectrum of marine applications without the need for multiple cable types.
The compliance with multiple international standards including IEEE 1580, UL 1309, CSA C22.2 No.245, and IEEE 45 provides assurance that the cable meets the rigorous requirements of various marine classification societies and regulatory authorities. This multi-standard compliance simplifies specification and procurement processes while ensuring global acceptance.
Addressing Marine Environment Challenges: Technical Questions and Solutions
Oil and Fuel Resistance in Critical Applications
Marine engineers frequently ask about cable performance in oil-contaminated environments, particularly in engine rooms and drilling operations. The RigFlex-125 Type P addresses this concern through its carefully selected polymer chemistry. The cross-linked polyolefin insulation provides inherent resistance to hydrocarbon penetration, while the CPE sheath offers outstanding protection against oil, fuel, and various petrochemical substances.
The resistance mechanism works at the molecular level, where the polymer chains are designed to be incompatible with hydrocarbon molecules. This prevents oil absorption that could lead to insulation swelling, property degradation, or eventual failure. Testing protocols verify this resistance through extended exposure to various petroleum products at elevated temperatures, simulating decades of service exposure.
Fixed Versus Floating Installation Requirements
The distinction between fixed and floating marine installations creates different mechanical and electrical requirements that the RigFlex-125 Type P accommodates through its design flexibility. Fixed installations, such as permanently anchored offshore platforms, experience relatively stable positioning but must handle extreme weather events and long-term environmental exposure.
Floating installations, including drilling ships and floating production platforms, add the complexity of constant motion to the environmental challenges. The cable's exceptional flexibility and fatigue resistance enable it to handle the continuous stress cycles created by platform movement. The IEEE 1580 compliance specifically addresses these dynamic loading conditions through rigorous testing protocols that simulate years of operational movement.
Cold Weather Performance and Arctic Operations
Arctic and cold weather operations present unique challenges that many standard cables cannot handle effectively. The RigFlex-125 Type P maintains its flexibility and impact resistance at temperatures as low as -40°C, ensuring reliable performance in the world's harshest marine environments.
The cold weather performance results from careful polymer selection and formulation. The materials maintain their molecular flexibility at low temperatures, preventing the brittleness that causes conventional cables to crack or fail when subjected to mechanical stress in cold conditions. This capability proves essential for vessels operating polar routes or offshore platforms in northern waters.
UV Radiation and Outdoor Exposure Solutions
Direct sunlight exposure creates two primary threats to electrical cables: UV radiation degradation and thermal cycling. The CPE sheath incorporates UV stabilizers that absorb harmful radiation before it can break down the polymer chains. This protection ensures that cables installed on open decks or external platform structures maintain their integrity despite years of sun exposure.
The thermal cycling resistance addresses the expansion and contraction that occurs as cables heat up during the day and cool at night. The thermoset nature of both the insulation and sheath prevents permanent deformation from these temperature cycles, maintaining the cable's electrical and mechanical properties throughout its service life.
Fire Safety and Flame Propagation Control
Marine fire safety represents a critical concern due to the confined spaces and limited escape routes on ships and offshore platforms. The RigFlex-125 Type P meets both IEEE 1202 and IEC 60332-3 flame propagation standards, ensuring that it will not contribute to fire spread in the event of an electrical fault or external fire source.
The flame retardant properties work through multiple mechanisms. The polymer formulation includes flame retardant additives that release inert gases when heated, diluting the oxygen concentration around the cable. Additionally, the materials form a protective char layer when exposed to flame, insulating the underlying material and preventing continued combustion.
Installation Flexibility in Confined Spaces
Shipboard and offshore platform electrical installations often require routing cables through tight spaces, around obstacles, and through multiple compartments. The RigFlex-125 Type P facilitates these challenging installations through its optimized bending radius requirements and flexible conductor construction.
The specified bending radii represent the minimum allowable bend without causing mechanical damage, but the cable can accommodate even tighter bends during installation as long as pulling tensions remain within acceptable limits. The soft annealed copper conductors resist work hardening during installation, maintaining their flexibility even after multiple bending operations.
Conclusion: Excellence in Marine Power Infrastructure
The RigFlex-125 Type P unarmoured power cable represents the culmination of advanced materials science, rigorous testing protocols, and decades of marine industry experience. Its comprehensive approach to addressing the multiple challenges of marine and offshore environments makes it an ideal choice for engineers and procurement professionals who cannot accept compromise in their power infrastructure.
The cable's exceptional performance characteristics stem from the careful integration of every component, from the soft annealed tinned copper conductors to the UV-resistant CPE sheath. Each element contributes to the overall system reliability while addressing specific environmental challenges encountered in marine service. The multi-standard compliance ensures global acceptance while providing assurance that the cable meets the most demanding international requirements.
For fixed offshore platforms requiring long-term reliability in harsh ocean conditions, the RigFlex-125 Type P provides the environmental resistance and electrical performance necessary for decades of continuous operation. The cable's resistance to salt spray, UV radiation, and temperature cycling ensures that power distribution systems maintain their integrity despite constant environmental assault.
Floating installations benefit from the cable's exceptional flexibility and fatigue resistance, enabling reliable operation despite the constant motion inherent in floating platforms. The ability to handle repeated stress cycles without degradation makes it possible to design power distribution systems that operate reliably throughout the platform's service life.
Shipboard applications leverage the cable's comprehensive resistance profile and installation flexibility to create robust power distribution networks. From engine room applications requiring oil resistance and high temperature capability to deck installations needing UV and weather resistance, the RigFlex-125 Type P provides a single solution that addresses multiple application requirements.
The investment in high-quality marine power cables like the RigFlex-125 Type P pays dividends through reduced maintenance costs, improved system reliability, and enhanced safety performance. In environments where cable failure can result in lost production, safety hazards, or expensive emergency repairs, the superior performance characteristics of properly specified cables become essential for successful operations.
Engineers and procurement teams evaluating power cable options for marine and offshore applications will find that the RigFlex-125 Type P offers the comprehensive performance, regulatory compliance, and proven reliability necessary for success in these demanding environments. The combination of advanced materials, rigorous testing, and multi-standard compliance creates a power cable solution that meets both current requirements and future challenges in marine electrical infrastructure.
