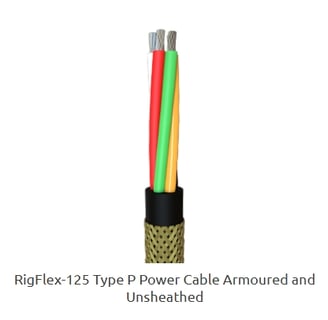

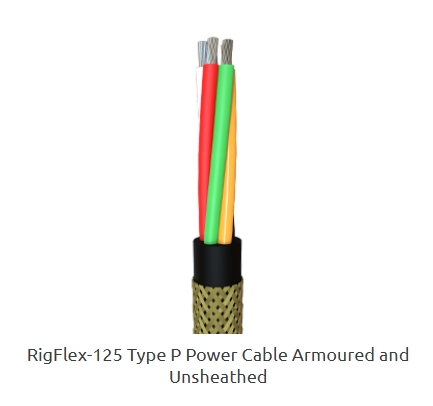

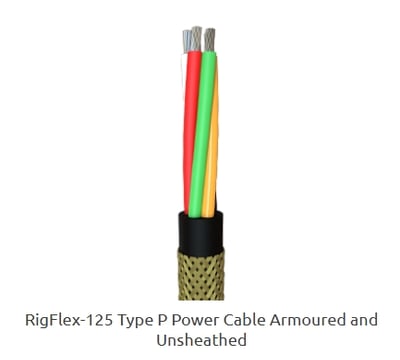

RigFlex-125 Type P Power Cable Armoured and Unsheathed: Advanced Armoured Solutions for Marine and Offshore Applications
Comprehensive technical guide to RigFlex-125 Type P armoured power cables, featuring cross-linked polyolefin insulation, basket weave armor, and CPE jacket for demanding offshore oil rig and shipboard applications.
BLOGS
6/12/20259 min read
Introduction to Marine Power Cable Engineering
When engineering teams design electrical systems for offshore oil rigs and marine vessels, they face a fundamental challenge that land-based installations rarely encounter: the relentless assault of saltwater, extreme temperature fluctuations, mechanical vibration, and corrosive petrochemical environments. Understanding this context helps explain why specialized cables like the RigFlex-125 Type P represent such critical infrastructure components in marine engineering.
The RigFlex-125 Type P power cable emerges from decades of marine electrical engineering evolution, specifically designed to address the unique demands of shipboard installations and offshore drilling platforms. Unlike conventional industrial cables that might suffice in controlled indoor environments, this cable system must maintain electrical integrity while withstanding conditions that would quickly degrade standard electrical infrastructure. The cable's designation as "Type P" follows IEEE 1580 classification standards, indicating its specialized construction for portable power applications in marine environments.
The significance of cable reliability in harsh marine environments cannot be overstated. When electrical systems fail on offshore platforms or vessels, the consequences extend far beyond simple inconvenience. Power failures can compromise critical safety systems, disable essential equipment, and potentially endanger human lives in environments where immediate evacuation may be impossible. This reality drives the stringent engineering requirements that shape every aspect of the RigFlex-125's design, from its tinned copper conductors to its specialized armor construction.
Sophisticated Design Architecture and Construction Methods
Advanced Conductor Technology
The foundation of any power cable lies in its conductor design, and the RigFlex-125 employs soft annealed, flexible, stranded tinned copper conductors manufactured to exacting IEEE 1580 Table 11 and ASTM B33 specifications. This conductor choice represents a carefully engineered balance between electrical performance and mechanical durability that merits deeper examination.
The soft annealing process involves heating copper strands to specific temperatures that optimize their crystal structure, creating conductors that maintain excellent electrical conductivity while achieving the flexibility necessary for marine applications. The stranding pattern follows precise geometric arrangements that allow individual wire strands to move independently during cable flexing, preventing the work hardening that could lead to conductor fatigue and eventual failure.
The tinning process applies a thin layer of tin coating to each copper strand, creating a barrier against the corrosive effects of moisture and salt exposure. This tin coating serves multiple functions: it prevents oxidation of the underlying copper, facilitates better electrical connections at termination points, and provides enhanced resistance to galvanic corrosion when the cable interfaces with other metals in marine electrical systems.
Insulation System Engineering
The cross-linked polyolefin compound insulation system represents one of the most sophisticated aspects of the RigFlex-125's design. Cross-linking involves creating chemical bonds between polymer chains, transforming the insulation from a thermoplastic material into a thermoset compound with superior electrical and mechanical properties.
This cross-linking process occurs through controlled chemical reactions that create three-dimensional molecular networks within the insulation material. The resulting structure exhibits exceptional dielectric strength, maintaining its insulating properties across wide temperature ranges while resisting the degradation effects of moisture, ozone, and chemical exposure that commonly occur in marine environments.
The insulation complies with multiple international standards including IEEE 1580 Type P specifications and UL 1309/CSA C22.2 No.245 Type X110 requirements. These compliance standards ensure that the insulation maintains consistent performance characteristics across different operating conditions, providing reliable electrical isolation between conductors and between conductors and ground.
Innovative Armor Protection Systems
The basket weave armor construction deserves particular attention as it represents a sophisticated approach to mechanical protection that distinguishes the RigFlex-125 from conventional armored cables. Traditional armor systems often employ steel wire or tape configurations that provide robust protection but can introduce complications in marine environments, particularly regarding corrosion and electromagnetic interference.
The basket weave design utilizes bronze or tinned copper wires arranged in an interlocking pattern that provides multidirectional mechanical protection while maintaining electrical compatibility with the cable's copper conductors. This armor configuration distributes mechanical stresses across multiple wire elements, preventing localized stress concentrations that could lead to armor failure under dynamic loading conditions common in marine applications.
The decision to use bronze or tinned copper for the armor material rather than steel reflects careful consideration of the marine environment's corrosive nature. These materials offer excellent corrosion resistance while maintaining sufficient mechanical strength for protective purposes. Additionally, the use of non-ferrous armor materials eliminates concerns about magnetic interference with sensitive electronic equipment commonly found on modern offshore platforms.
Advanced Jacket Technology
The thermoset chlorinated polyethylene (CPE) jacket represents the cable's final line of defense against environmental hazards. CPE combines the chemical resistance of chlorinated compounds with the cross-linked durability of thermoset materials, creating a protective barrier that maintains its integrity under conditions that would severely compromise other jacket materials.
The jacket's resistance profile encompasses oil, abrasion, petrochemical fluids, moisture, saltwater, and ultraviolet radiation. This comprehensive resistance spectrum addresses the full range of environmental challenges encountered in marine and offshore applications, from the mechanical wear caused by equipment vibration to the chemical attack from hydraulic fluids and fuel oils commonly present in industrial marine environments.




Comprehensive Technical Performance Characteristics
Electrical Performance Parameters
The RigFlex-125's voltage rating of 600/1000 V reflects its design for medium-voltage distribution applications common in marine electrical systems. The dual voltage designation indicates the cable's capability to operate at 600 V line-to-line in three-phase systems or 1000 V line-to-ground in single-phase applications, providing flexibility for various electrical system configurations.
Temperature ratings vary depending on the applicable standard and cable configuration. Under IEEE 1580 specifications, the cable operates at 100°C for multi-conductor configurations and 125°C for single-core applications. UL 1309 standards specify 110°C for multi-conductor and 125°C for single-core configurations. These temperature ratings reflect the cable's ability to carry rated current while maintaining insulation integrity under worst-case ambient conditions.
The current carrying capacity follows IEEE 45.8 specifications, which provide detailed ampacity tables based on installation conditions, ambient temperature, and cable grouping factors. These calculations consider the complex heat transfer characteristics of cables installed in marine environments, where ambient temperatures may vary significantly and ventilation may be limited.
Environmental Performance Capabilities
Cold weather performance represents a critical consideration for cables serving offshore platforms in northern climates or vessels operating in arctic conditions. The RigFlex-125 demonstrates cold bend capability to -40°C and cold impact resistance to -35°C under CSA C22.2 testing protocols. These specifications ensure that the cable maintains mechanical integrity and electrical performance even when subjected to extreme cold conditions that could render conventional cables brittle and prone to failure.
The minimum bending radius specification of six times the cable's outer diameter reflects the engineering balance between installation flexibility and mechanical stress management. This relatively generous bending radius helps ensure that installation practices do not introduce excessive stress concentrations that could compromise the cable's long-term reliability.
Flame resistance compliance with IEEE 1202 and IEC 60332-3 standards addresses critical safety considerations in marine environments where fire hazards pose exceptional risks. These standards verify that the cable will not propagate flames during fire conditions and will not contribute significantly to toxic gas generation, both crucial factors in enclosed marine environments where evacuation options may be limited.
Rigorous Standards and Compliance Framework
International Standard Harmonization
The RigFlex-125's compliance with multiple international standards reflects the global nature of marine and offshore operations, where equipment may be manufactured in one country, installed on vessels flagged in another, and operated in international waters under various regulatory jurisdictions.
IEEE 1580 provides the primary technical framework for marine power cables, establishing requirements for conductor construction, insulation performance, and environmental resistance. This standard emerged from decades of marine electrical engineering experience and represents industry consensus on the performance characteristics necessary for reliable marine power distribution.
UL 1309 and CSA C22.2 No.245 provide additional certification frameworks that address specific safety and performance requirements for marine electrical equipment. These standards often incorporate more stringent testing requirements for certain environmental conditions, providing additional assurance of cable performance under extreme operating conditions.
IEEE 45 establishes broader requirements for marine electrical systems, providing context for how individual components like the RigFlex-125 integrate into comprehensive shipboard electrical installations. This standard addresses system-level considerations including grounding, protection coordination, and electromagnetic compatibility that influence cable selection and installation practices.
Material and Performance Verification
Compliance verification involves extensive testing protocols that validate every aspect of the cable's performance. Conductor resistance testing verifies that electrical losses remain within acceptable limits across the full range of operating temperatures. Dielectric testing following IEEE 1580 Table 19 procedures confirms that the insulation system maintains adequate electrical isolation under both normal operating conditions and fault scenarios.
Sheath compliance testing evaluates the jacket's resistance to various environmental stressors including chemical exposure, ultraviolet radiation, and mechanical abrasion. These tests simulate years of service exposure in accelerated laboratory conditions, providing confidence in the cable's long-term environmental resistance.
Diverse Application Scenarios and Installation Considerations
Fixed Offshore Platform Applications
Fixed offshore platforms present unique challenges for electrical infrastructure due to their permanent exposure to marine environments combined with the vibration and mechanical stress generated by drilling operations and wave action. The RigFlex-125's armored construction provides essential protection in these applications, where cables must route through areas subject to mechanical damage from equipment operation and maintenance activities.
The cable's oil and petrochemical resistance becomes particularly important in platform applications where hydraulic systems, fuel handling, and chemical injection processes create environments where cable exposure to various fluids is inevitable. The CPE jacket's comprehensive chemical resistance ensures that accidental exposure to these substances will not compromise cable integrity or create safety hazards.
Floating Facility Installations
Floating production storage and offloading (FPSO) vessels and semi-submersible platforms introduce additional dynamic loading considerations as these facilities respond to sea state conditions. The RigFlex-125's flexible conductor construction and generous bending radius specifications help ensure that cables can accommodate the continuous motion experienced in these applications without developing fatigue-related failures.
The cable's flame resistance characteristics become especially critical in floating facility applications where fire suppression may be more challenging and evacuation options more limited than on fixed platforms. The compliance with IEEE 1202 and IEC 60332-3 flame testing standards provides assurance that the cable will not contribute to fire propagation in emergency scenarios.
High-Vibration Environment Performance
Marine and offshore environments subject electrical cables to continuous vibration from engines, generators, pumps, and sea state motion. The RigFlex-125's stranded conductor construction distributes these dynamic stresses across multiple wire elements, preventing the stress concentrations that could lead to individual wire failures and eventual conductor degradation.
The basket weave armor construction provides additional vibration resistance by distributing mechanical loads across the armor structure rather than concentrating stresses at individual points. This design approach helps ensure that the cable maintains its protective integrity even under the continuous dynamic loading conditions typical of marine applications.
Comprehensive Advantages Analysis
Enhanced Durability in Marine Conditions
The RigFlex-125's multi-layer protection system creates a defense-in-depth approach to environmental resistance that addresses the full spectrum of marine hazards. The tinned copper conductors resist corrosion, the cross-linked polyolefin insulation maintains electrical integrity under temperature and moisture extremes, the bronze or tinned copper armor provides mechanical protection without introducing galvanic corrosion risks, and the CPE jacket offers broad-spectrum chemical and environmental resistance.
This comprehensive protection approach recognizes that marine environments present multiple simultaneous challenges rather than single-point failure modes. The cable's ability to maintain performance when subjected to combined stressors distinguishes it from cables designed for less demanding applications.
Safety Enhancement Through Advanced Materials
The flame resistance characteristics provided by the cable's materials selection and construction methods offer critical safety advantages in marine applications. The cross-linked polyolefin insulation and CPE jacket resist ignition and flame propagation while generating minimal toxic gases during fire exposure. These characteristics can provide crucial additional time for emergency response and evacuation in marine emergency scenarios.
The cold weather performance capabilities ensure that the cable maintains mechanical integrity and electrical performance even in extreme conditions that might render conventional cables inoperable. This reliability can prove essential for maintaining power to critical safety systems during severe weather events.
International Standards Compliance Benefits
The cable's compliance with multiple international standards facilitates its use in global marine and offshore operations where regulatory requirements may vary by jurisdiction. This standards compliance provides confidence for engineering teams, regulatory authorities, and insurance providers that the cable meets recognized performance benchmarks for marine electrical applications.
The harmonization of requirements across IEEE, UL, and CSA standards also simplifies specification and procurement processes for projects involving multiple international stakeholders, reducing the complexity and potential for confusion that can arise when dealing with conflicting technical requirements.
Engineering Recommendations and Conclusion
The RigFlex-125 Type P power cable represents a sophisticated engineering solution specifically developed to address the unique challenges of marine and offshore electrical installations. Its comprehensive design approach, incorporating advanced materials science, international standards compliance, and decades of marine engineering experience, positions it as an ideal choice for demanding marine power distribution applications.
For engineering teams responsible for offshore platform electrical systems, the cable's combination of mechanical durability, environmental resistance, and electrical performance provides the reliability foundation necessary for safe and efficient operations in challenging marine environments. The armored construction offers particular advantages in areas subject to mechanical stress, while the comprehensive chemical resistance of the CPE jacket ensures long-term performance even in the presence of oils, fuels, and other petrochemical fluids common in offshore operations.
The cable's compliance with multiple international standards framework facilitates its specification and approval for global marine projects, while its proven performance characteristics provide confidence for long-term infrastructure investments. When procuring power cables for marine and offshore applications, engineering teams should consider the RigFlex-125 Type P as a premium solution that addresses the full spectrum of marine electrical challenges through advanced materials science and sophisticated engineering design.
The investment in high-quality marine power cables like the RigFlex-125 represents sound engineering economics when considering the total cost of ownership in marine applications. The enhanced reliability, reduced maintenance requirements, and improved safety characteristics provided by this advanced cable design justify the initial investment through reduced downtime, lower maintenance costs, and enhanced operational safety over the cable's service life. For marine and offshore projects where electrical system reliability is paramount, the RigFlex-125 Type P offers the engineering performance and regulatory compliance necessary for successful long-term operations.
