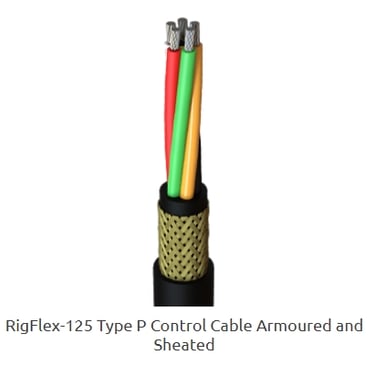

RigFlex-125 Type P Control Cable Armoured and Sheathed: Engineered for Marine & Offshore Critical Systems

Introduction: Meeting the Challenges of Marine Control Systems

The maritime and offshore industries operate in some of the most demanding environments on Earth, where equipment failure can result in catastrophic consequences affecting both human safety and environmental protection. Within these harsh operational theaters, electrical control systems serve as the nervous system of vessels and offshore platforms, requiring cables that can withstand extreme conditions while maintaining unwavering reliability.

The RigFlex-125 Type P Control Cable represents a pinnacle of engineering design specifically crafted for these challenging applications. This armoured and sheathed control cable addresses the unique requirements of ship control systems and offshore oil rig operations, where traditional cables would fail under the relentless assault of saltwater corrosion, mechanical stress, temperature extremes, and chemical exposure.

Understanding the critical nature of these applications helps explain why the RigFlex-125 Type P cable incorporates such robust construction and adheres to stringent marine standards, particularly IEEE 1580. In marine environments, cable failure doesn't merely mean inconvenience—it can compromise navigation systems, engine controls, safety equipment, and communication networks that crews depend upon for survival and operational success.

The target audience for this technical overview includes electrical engineers designing marine systems, marine architects specifying vessel electrical infrastructure, project managers overseeing offshore installations, procurement personnel responsible for cable selection, and installation and maintenance engineers who work directly with these systems in the field. Each of these professionals brings unique perspectives to cable selection, from initial design considerations through long-term operational maintenance.

Understanding the Electrical Foundation: Voltage and Temperature Specifications

The electrical parameters of the RigFlex-125 Type P cable form the foundation of its performance capabilities, with each specification carefully chosen to address the realities of marine and offshore electrical systems. The rated voltage of 600/1000 V represents a dual-voltage capability that provides flexibility in system design while ensuring adequate safety margins for various control circuit applications.

This voltage rating follows the standard notation where 600V represents the voltage between any conductor and ground (or neutral), while 1000V indicates the voltage between any two conductors in a multi-conductor cable. This specification makes the cable suitable for both single-phase and three-phase control systems commonly found in marine applications, from simple lighting controls to complex motor control circuits for winches, pumps, and navigation equipment.

Temperature rating represents one of the most critical performance parameters for marine cables, as these environments present unique thermal challenges. The RigFlex-125 Type P cable carries dual temperature ratings reflecting compliance with different international standards. Under IEEE 1580 standards, the cable operates continuously at 100°C, with single-core configurations rated for 125°C operation. Meanwhile, UL 1309 standards permit 110°C continuous operation, again with single-core configurations rated for 125°C.

These temperature specifications reflect the cable's ability to operate reliably in engine rooms where ambient temperatures can exceed 50°C, combined with the additional heat generated by electrical current flow through the conductors. The higher single-core temperature rating acknowledges that individual conductors can dissipate heat more effectively than those bundled in multi-conductor configurations, allowing for higher current densities in single-core applications.

The significance of these temperature ratings extends beyond mere electrical performance. In marine environments, cables often route through confined spaces with limited ventilation, creating thermal challenges that would overwhelm standard cables. The cross-linked polyolefin insulation system maintains its dielectric properties and mechanical integrity even under sustained high-temperature operation, ensuring long-term reliability in demanding thermal environments.

Conductor Design: The Foundation of Electrical Performance

The conductor design of the RigFlex-125 Type P cable exemplifies the careful balance between electrical performance, mechanical flexibility, and environmental resistance required for marine applications. The cable utilizes soft annealed flexible stranded tinned copper wire, conforming to the precise specifications outlined in IEEE 1580 Table 11 and ASTM B 33 standards.

The choice of copper as the conductor material reflects its superior electrical conductivity, providing low resistance paths for control signals while minimizing voltage drop across cable runs. This becomes particularly important in large vessels or offshore platforms where cable runs can extend hundreds of meters, and signal integrity is paramount for reliable control system operation.

The stranded construction, rather than solid wire, provides the mechanical flexibility essential for marine installations. Ships and offshore platforms experience constant motion from waves, wind, and operational activities. This movement subjects cables to continuous flexing that would quickly fatigue and fracture solid conductors. The multiple fine strands in each conductor can flex independently, distributing mechanical stress and significantly extending cable life under these dynamic conditions.

The soft annealing process further enhances conductor flexibility by relieving internal stresses in the copper strands, creating a conductor that can withstand repeated bending cycles without work hardening. This characteristic proves invaluable during installation, where cables must route through complex pathways with multiple bends and turns.

Perhaps most importantly for marine applications, the tinning process coats each copper strand with a thin layer of tin, providing exceptional corrosion resistance in the high-humidity, salt-laden atmosphere of marine environments. Untinned copper would quickly develop surface oxidation in these conditions, increasing resistance and creating potential failure points. The tin coating creates a stable, corrosion-resistant surface that maintains its electrical properties throughout the cable's operational life.

Conductor resistance values follow the specifications detailed in IEEE 1580 Table 11, ensuring predictable electrical performance for system designers. These standardized values allow engineers to accurately calculate voltage drops and current carrying capacities for specific installation configurations, critical for maintaining control system reliability and safety margins.

Current Carrying Capacity and Electrical Safety

The current carrying capacity of the RigFlex-125 Type P cable follows the rigorous standards established in IEEE 45.8, which specifically addresses the unique considerations of shipboard electrical installations. This standard recognizes that marine cables operate in environments significantly different from terrestrial installations, requiring specialized derating factors and safety considerations.

Several factors influence the cable's current carrying capacity in marine applications. Ambient temperature plays a crucial role, as engine rooms and machinery spaces can reach temperatures well above standard rating conditions. The cable's high temperature rating provides substantial margin for these elevated ambient conditions, but proper derating calculations remain essential for safe operation.

Installation method significantly impacts current capacity, with cables in enclosed raceways or cable trays requiring different derating factors than those in free air. The IEEE 45.8 standard provides detailed guidance for these various installation scenarios, ensuring that electrical systems operate within safe parameters regardless of routing requirements.

The grouping of multiple cables also affects current capacity, as heat generated by adjacent cables can elevate temperatures above design limits. The robust insulation system of the RigFlex-125 Type P cable provides excellent thermal properties, but engineers must still consider these grouping effects when designing cable installations.

Test voltage requirements, as specified in IEEE 1580 Table 19, ensure that the cable's insulation system can withstand electrical stresses well beyond normal operating conditions. These test voltages verify the dielectric strength and insulation integrity that protect against electrical failures that could compromise safety systems or create fire hazards in the confined spaces of ships and offshore platforms.

Mechanical Considerations: Bending Radius and Installation Requirements

The minimum bending radius specification of 6 times the cable diameter (6 x D) represents a critical mechanical parameter that directly impacts both installation success and long-term reliability. This specification reflects the complex interplay between the cable's various layers and the mechanical stresses imposed during installation and operation.

Understanding why this bending radius matters requires examining what happens when cables bend beyond their design limits. Excessive bending can cause the outer sheath to stretch while the inner conductors compress, creating stress concentrations that can lead to insulation failure or conductor damage. In armoured cables like the RigFlex-125 Type P, overbending can also damage the protective armor, compromising the cable's ability to withstand mechanical abuse.

The 6 x D specification provides a safety margin that ensures all cable components remain within their elastic limits during bending. This means that installers can route the cable through typical shipboard or offshore platform pathways without exceeding the mechanical limits of any cable component. The specification also accounts for the cable's construction complexity, with multiple layers that must bend together without creating destructive internal stresses.

During installation, adherence to this bending radius becomes particularly critical at cable terminations and junction points, where space constraints might tempt installers to exceed the minimum radius. Proper installation techniques, including the use of appropriate bend supports and careful routing planning, ensure that the cable's mechanical integrity remains intact throughout its service life.

The dynamic nature of marine environments adds another dimension to bending considerations. Unlike static terrestrial installations, marine cables must withstand continuous movement from vessel motion or platform dynamics. The generous bending radius specification provides margin for these dynamic loads, ensuring that normal operational movements don't stress the cable beyond its design limits.

Construction Excellence: Materials and Design Philosophy

The construction of the RigFlex-125 Type P cable reflects a sophisticated understanding of marine environmental challenges and the materials science required to address them. Each layer of the cable's construction serves specific purposes while contributing to the overall system performance and longevity.

The cross-linked polyolefin insulation system represents the electrical heart of the cable, providing the dielectric properties necessary for reliable signal transmission while withstanding the mechanical and thermal stresses of marine service. This insulation type, conforming to Type P specifications of IEEE 1580 and Type X110 of UL 1309/CSA C22.2 No.245, undergoes a cross-linking process that creates three-dimensional molecular bonds within the polymer structure.

This cross-linking process fundamentally changes the insulation's properties, creating a material that maintains its electrical and mechanical characteristics across a wide temperature range. Unlike thermoplastic insulations that can soften and flow at elevated temperatures, cross-linked polyolefin maintains its shape and dielectric properties even under sustained high-temperature operation. This characteristic proves essential in marine applications where cables may experience extended periods of high-temperature exposure.

The thermoset chlorinated polyethylene (CPE) compound used for both the jacket and outer sheath represents a carefully engineered material designed specifically for harsh environmental exposure. This compound provides exceptional resistance to the complex mixture of challenges present in marine environments, including oil, petrochemical fluids, moisture, salt water, and ultraviolet radiation from sunlight.

The chemical resistance of the CPE compound addresses one of the most significant challenges in marine cable applications. Ships and offshore platforms handle a wide variety of petroleum products, hydraulic fluids, and cleaning chemicals that could degrade standard cable materials. The CPE formulation maintains its integrity when exposed to these substances, preventing chemical attack that could compromise the cable's protective barrier.

The armor system utilizes a basket weave construction of bronze or tinned copper wire, providing mechanical protection while maintaining the cable's flexibility. This armor design distributes mechanical loads across the cable surface, protecting the inner conductors from impact, crushing, and abrasion that could occur during installation or operation.

The choice between bronze and tinned copper armor reflects different environmental considerations. Bronze armor provides excellent corrosion resistance and mechanical strength, particularly suitable for applications with severe mechanical exposure. Tinned copper armor offers superior electrical conductivity for applications where the armor might serve as an electrical ground path, while still providing excellent corrosion resistance through the tin coating.

Standards Compliance: Ensuring Safety and Interoperability

The RigFlex-125 Type P cable's compliance with multiple international standards reflects the global nature of the marine industry and the critical safety requirements of maritime operations. Each standard addresses specific aspects of cable performance and safety, creating a comprehensive framework for reliable operation.

IEEE 1580 serves as the primary standard for marine cable construction and performance, providing detailed specifications for materials, construction methods, and testing procedures. This standard recognizes the unique challenges of marine environments and establishes requirements that ensure cables can withstand these conditions while maintaining electrical performance and safety.

UL 1309 and CSA C22.2 No.245 standards provide additional safety requirements, particularly focusing on fire safety and electrical safety in marine applications. These standards establish testing protocols for flame spread, smoke generation, and electrical performance under various conditions, ensuring that cables meet stringent safety requirements for use in the confined spaces of ships and offshore platforms.

IEEE 45 standards provide the broader framework for electrical installations on ships, establishing requirements for system design, installation practices, and maintenance procedures. The RigFlex-125 Type P cable's compliance with these standards ensures compatibility with shipboard electrical systems and installation practices.

ASTM B 33 standards govern the tinned copper wire used in the cable's conductors, ensuring consistent quality and performance characteristics. This standard establishes requirements for copper purity, strand construction, and tinning processes that directly impact the cable's electrical performance and corrosion resistance.

The flame propagation standards IEEE 1202 and IEC 60332-3 address one of the most critical safety concerns in marine applications: fire prevention and control. These standards establish testing procedures that verify the cable's ability to limit flame spread in the event of electrical fault or external fire exposure, critical for maintaining safe evacuation routes and preventing fire propagation in confined vessel spaces.

Cold performance standards CSA C22.2 ensure that the cable maintains its flexibility and mechanical integrity in low-temperature environments, essential for vessels operating in Arctic conditions or offshore platforms in northern climates. The cable's cold bend rating of -40°C and cold impact rating of -35°C demonstrate its ability to withstand extreme cold conditions without compromising performance or safety.

Application Scenarios: Real-World Performance Requirements

Shipboard control systems present diverse and demanding requirements for control cables, spanning from critical navigation and engine control systems to auxiliary equipment and safety systems. The RigFlex-125 Type P cable's robust construction makes it ideal for these applications, where failure could compromise vessel safety or operational capability.

Engine control systems represent one of the most demanding applications, requiring cables that can withstand the extreme temperatures, vibration, and chemical exposure present in machinery spaces. The cable's high temperature rating and chemical resistance ensure reliable operation in these challenging environments, while its mechanical construction provides the vibration resistance necessary for mounting near large rotating machinery.

Navigation and communication systems require cables that maintain signal integrity under all operational conditions. The cable's excellent electrical properties and electromagnetic shielding characteristics ensure that critical navigation signals remain clear and reliable, even in the electrically noisy environment of a ship's electrical system.

Power distribution and lighting controls throughout the vessel require cables that can handle the current loads while withstanding the mechanical stresses of shipboard installation. The cable's current carrying capacity and flexible construction make it suitable for these applications, from main distribution panels to remote lighting controls in cargo holds and accommodation spaces.

Offshore oil rigs and platforms present even more extreme challenges, with applications spanning from drilling equipment control to subsea equipment communication and environmental monitoring systems. The cable's armor construction provides the mechanical protection necessary for these industrial applications, while its chemical resistance ensures reliable operation in the presence of drilling fluids, crude oil, and other petrochemical products.

Drilling equipment control systems require cables that can withstand the extreme mechanical stresses of drilling operations, including shock, vibration, and exposure to drilling mud and other harsh chemicals. The RigFlex-125 Type P cable's armored construction and chemical-resistant sheath provide the protection necessary for these demanding applications.

Safety systems on offshore platforms require absolute reliability, as they serve as the last line of defense against catastrophic failures. The cable's compliance with stringent safety standards and its robust construction ensure that these critical systems remain operational when needed most.

Environmental monitoring systems require cables that maintain their performance characteristics over extended periods while exposed to the corrosive offshore environment. The cable's corrosion-resistant construction and stable electrical properties ensure accurate monitoring data throughout the cable's service life.

Addressing Critical Maritime Concerns

The corrosive nature of saltwater environments poses one of the most significant challenges for marine electrical systems, requiring cable designs that can withstand sustained exposure to salt spray, high humidity, and direct seawater contact. The RigFlex-125 Type P cable addresses this challenge through multiple layers of corrosion protection, beginning with the tinned copper conductors that resist oxidation and corrosion at the most fundamental level.

The thermoset chlorinated polyethylene jacket and sheath create a robust chemical barrier that prevents saltwater and other corrosive substances from reaching the cable's internal components. This material's exceptional resistance to moisture absorption ensures that the cable's electrical properties remain stable even under prolonged exposure to high-humidity conditions typical of marine environments.

The bronze or tinned copper armor provides an additional layer of corrosion protection while maintaining the cable's mechanical integrity. The armor's basket weave construction allows for flexibility while distributing mechanical loads, ensuring that the protective barrier remains intact even under dynamic loading conditions.

Fire safety considerations in marine environments require particular attention due to the confined nature of ships and offshore platforms, where fire can spread rapidly and evacuation options may be limited. The RigFlex-125 Type P cable's compliance with IEEE 1202 and IEC 60332-3 flame propagation standards ensures that the cable exhibits limited flame spread characteristics, reducing the risk of fire propagation through cable systems.

The cable's insulation and sheath materials are formulated to produce minimal smoke and toxic gases in the event of fire, critical for maintaining visibility and air quality during emergency evacuation procedures. This characteristic becomes particularly important in accommodation areas and escape routes where personnel safety depends on maintaining clear evacuation paths.

Cold weather performance requirements vary significantly depending on operational areas, with Arctic shipping and northern offshore operations presenting extreme low-temperature challenges. The RigFlex-125 Type P cable's cold bend rating of -40°C ensures that the cable remains flexible and resistant to damage even in extreme cold conditions, while the cold impact rating of -35°C demonstrates the cable's ability to withstand mechanical shock at low temperatures.

These cold weather capabilities prove essential for reliable operation in harsh northern climates, where cable failure due to cold-induced brittleness could compromise critical systems during the most challenging operational conditions. The cable's ability to maintain its flexibility and mechanical integrity ensures that control systems remain operational when environmental conditions are most severe.

Mechanical stress resistance addresses the reality that marine cables must withstand significant physical abuse throughout their service life, from installation stresses to operational impacts and abrasion. The basket weave bronze or tinned copper armor provides exceptional mechanical protection, distributing loads across the cable surface and preventing damage to internal components.

The armor's design allows for significant mechanical protection while maintaining the cable's flexibility, ensuring that the protective system doesn't compromise the cable's ability to route through complex installation pathways. This balance between protection and flexibility represents a critical design consideration for marine applications where both characteristics are essential.

Long-Term Reliability and Service Life Considerations

The expected service life of the RigFlex-125 Type P cable in marine and offshore applications depends on numerous factors, but the cable's robust construction and high-quality materials contribute to significantly extended operational life compared to standard cables. The combination of corrosion-resistant materials, high-temperature capability, and mechanical protection creates a cable system designed for long-term reliability in harsh environments.

Factors that influence cable service life include operating temperature, mechanical stress, chemical exposure, and installation quality. The cable's generous temperature ratings provide margin for occasional overload conditions, while the chemical-resistant materials ensure that exposure to petroleum products and other chemicals doesn't compromise the cable's integrity.

Proper installation practices significantly impact service life, particularly adherence to minimum bending radius requirements and proper support systems. Cables that exceed their mechanical limits during installation may exhibit premature failure even if they initially appear to function correctly.

Regular inspection and maintenance programs can identify potential problems before they result in cable failure, allowing for proactive replacement and minimizing operational disruptions. The cable's robust construction makes it suitable for extended service intervals while maintaining reliable performance.

Environmental factors such as extreme temperatures, severe weather, and chemical spills can impact service life, but the cable's design provides substantial margin for these conditions. The armor system protects against mechanical damage that could compromise the cable's integrity, while the chemical-resistant materials prevent degradation from exposure to harsh substances.

Conclusion: Engineering Excellence for Critical Applications

The RigFlex-125 Type P Control Cable represents a comprehensive solution to the demanding requirements of marine and offshore control systems, combining advanced materials science with proven construction techniques to deliver reliable performance in the world's harshest environments. Its robust construction, superior environmental resistance, and high electrical performance make it an ideal choice for applications where failure is not an option.

The cable's compliance with critical marine and offshore standards ensures compatibility with existing systems and installation practices while meeting the stringent safety requirements of maritime operations. From the corrosion-resistant tinned copper conductors to the mechanically protective armor system, every aspect of the cable's design addresses the specific challenges of marine and offshore environments.

For industry professionals, procurement personnel, and engineers responsible for marine and offshore electrical systems, the RigFlex-125 Type P cable offers a reliable and cost-effective solution that provides long-term value through extended service life and reduced maintenance requirements. Its proven performance in demanding applications makes it a trusted choice for critical control systems where reliability and safety are paramount.

The investment in high-quality cable systems like the RigFlex-125 Type P ultimately provides significant value through reduced downtime, lower maintenance costs, and enhanced safety margins. In applications where the cost of failure far exceeds the cost of quality components, this cable represents a wise investment in operational reliability and safety.

For specific application requirements and technical support, consultation with manufacturers or authorized distributors ensures proper cable selection and installation practices that maximize the cable's performance and service life in demanding marine and offshore environments.
