RFOU P101 6/10kV: The Ultimate Marine Power Cable for Extreme Offshore Environments
Discover the RFOU P101 6/10kV cable - a specialized medium-voltage power solution engineered for harsh marine and offshore conditions. Learn about its flame-retardant, mud-resistant, and low-smoke properties that ensure safe, reliable power distribution in oil platforms, FPSOs, and marine vessels.
BLOGS
6/25/202513 min read
Introduction: Navigating Power Challenges in the World's Harshest Environments
When engineers design power systems for offshore oil platforms or deep-sea vessels, they face a unique constellation of challenges that would destroy conventional electrical cables within months. Picture a drilling platform 200 miles from shore, where saltwater spray corrodes metal surfaces daily, temperatures swing from scorching engine rooms to freezing deck areas, and the entire structure moves constantly with ocean swells. Add to this the presence of flammable hydrocarbons, caustic drilling muds, and the ever-present risk of fire in confined spaces, and you begin to understand why standard electrical cables simply cannot survive in these environments.
The marine and offshore industries demand power cables that can withstand not just one or two of these harsh conditions, but all of them simultaneously, while maintaining absolute reliability. A power failure on an offshore platform doesn't just mean inconvenience—it can mean the difference between life and death for crew members, the loss of millions of dollars in equipment, or catastrophic environmental damage.
This is where the RFOU P101 6/10kV cable emerges as a specialized engineering solution. Unlike conventional power cables designed for terrestrial applications, this medium-voltage cable represents years of development specifically focused on marine and offshore challenges. It serves as the electrical backbone for critical operations, ensuring that power flows safely and continuously to drilling equipment, safety systems, accommodation facilities, and life-support systems that keep offshore operations running smoothly.
The importance of reliable power distribution in these environments cannot be overstated. When you're hundreds of miles from the nearest help, with crew members depending on electrical systems for everything from lighting and communication to fire suppression and emergency evacuation, the cable carrying that power becomes as critical as the hull of the vessel itself.
Understanding the RFOU P101: Engineering Excellence Decoded
To truly appreciate what makes the RFOU P101 6/10kV cable exceptional, we need to decode its designation and understand how each component contributes to its superior performance in marine environments.
Breaking Down the Technical Designation
The "RFOU" designation tells us immediately that this cable employs a radial field design with unarmoured construction. The radial field concept refers to the internal copper braiding that creates an electromagnetic field pattern radiating outward from the central conductor. This design serves two critical functions: it provides effective electromagnetic interference (EMI) shielding, which is essential in environments filled with electronic equipment, and it creates a reliable grounding path that enhances both safety and signal integrity.
The "unarmoured" aspect might seem counterintuitive for such a robust application, but it reflects a careful engineering balance. While armoured cables offer mechanical protection through steel wire or tape layers, they also add weight, reduce flexibility, and can create corrosion issues in marine environments. The RFOU design achieves mechanical protection through its specialized outer sheath materials rather than metallic armoring.
The "P101" classification represents compliance with NEK TS 606 standards, which specifically address cables for petroleum and offshore applications. This isn't just another electrical standard—it's a comprehensive specification that addresses the unique challenges of hydrocarbon environments, including resistance to oil-based drilling muds, specialized flame retardancy requirements, and enhanced safety features for explosive atmospheres.
Finally, the "6/10kV" rating indicates this cable's medium-voltage capability, designed for power distribution systems that operate at 6 kilovolts phase-to-earth and 10 kilovolts phase-to-phase. This voltage level represents the sweet spot for offshore power distribution, providing enough voltage for efficient power transmission while remaining manageable for onboard electrical systems.
The Four Pillars of Superior Performance
Understanding what makes the RFOU P101 exceptional requires examining four critical performance characteristics that set it apart from conventional power cables.
Pillar One: Advanced Flame Retardancy
When fire breaks out on an offshore platform or vessel, it represents one of the most serious emergencies possible. Unlike land-based facilities where firefighters can arrive within minutes, offshore installations must rely entirely on their own fire suppression capabilities. This makes flame-retardant cables not just desirable, but absolutely essential for survival.
The RFOU P101 meets the demanding requirements of IEC 60332-3 Category A, which tests cables' ability to prevent flame propagation under realistic installation conditions. Think of this standard as simulating what happens when multiple cables are bundled together in a cable tray and exposed to intense heat. Ordinary cables would act like wicks, carrying fire throughout the installation. The RFOU P101's advanced flame-retardant materials actually self-extinguish, creating a barrier that prevents fire from spreading through the electrical system.
This flame retardancy comes from carefully engineered polymer compounds in both the insulation and outer sheath. These materials are designed to char and form a protective barrier when exposed to high temperatures, effectively starving the fire of fuel and oxygen. For personnel working in enclosed spaces with limited escape routes, this characteristic can mean the difference between a contained incident and a catastrophic fire.
Pillar Two: Low Smoke and Zero Halogen Properties
Even more insidious than flames themselves is the toxic smoke that conventional cables produce when they burn. Standard PVC cables, when heated, release dense black smoke filled with hydrogen chloride and other corrosive gases. In the confined spaces of a ship or offshore platform, this smoke can quickly reduce visibility to zero and create an atmosphere that's immediately dangerous to life and health.
The RFOU P101's compliance with IEC 60754 and IEC 61034 standards addresses this critical safety concern through its Low Smoke Zero Halogen (LSZH) construction. When exposed to fire, these cables produce minimal smoke and absolutely no halogenated gases. This seemingly technical specification has profound practical implications: crew members can still see escape routes, emergency responders can navigate effectively, and electronic equipment won't be damaged by corrosive gases.
The LSZH properties come from specialized thermoplastic compounds that break down cleanly under heat, producing water vapor and carbon dioxide rather than toxic gases. This technology represents a significant advancement over earlier cable designs and has become mandatory for many marine applications where human safety is paramount.
Pillar Three: Unmatched Chemical Resistance
Offshore drilling operations expose cables to some of the most aggressive chemical environments imaginable. Drilling muds used in oil and gas exploration contain a complex mixture of clays, polymers, salts, and chemical additives designed to lubricate drill bits and carry rock cuttings to the surface. These muds can be highly alkaline or acidic, and they often contain hydrocarbons and other organic compounds that would quickly degrade conventional cable materials.
The RFOU P101's compliance with NEK TS 606 P101 requirements specifically addresses these chemical challenges. The cable's outer sheath uses specialized polymer compounds that resist swelling, cracking, and degradation when exposed to oil-based and water-based drilling muds. This isn't just about surface protection—the chemical resistance extends through multiple layers of the cable construction to ensure long-term integrity.
Field testing has demonstrated that RFOU P101 cables can withstand direct immersion in drilling muds for extended periods without significant degradation. This capability is crucial for installations where cables may be accidentally exposed to spilled fluids or where they must pass through areas with potential chemical contamination.

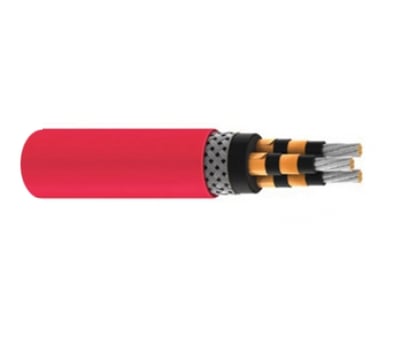

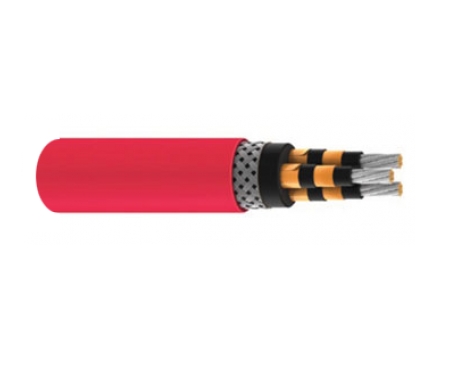

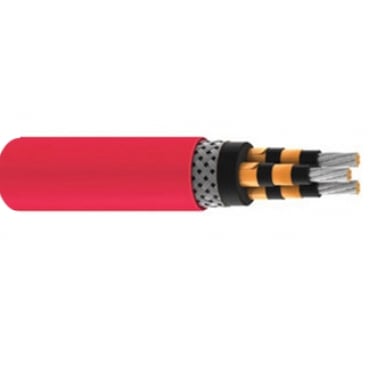

Pillar Four: Engineered Construction for Longevity
The RFOU P101's construction represents a carefully orchestrated balance of materials, each chosen for specific performance characteristics that contribute to the cable's overall reliability in marine environments.
The conductor uses tinned annealed copper, which might seem like a simple choice but represents sophisticated materials engineering. The copper provides excellent electrical conductivity, while the tin coating serves as a barrier against corrosion from salt air and moisture. The annealing process ensures the copper remains flexible even after years of installation, preventing stress fractures that could lead to power failures.
The insulation layer employs Ethylene Propylene Rubber (EPR), a material specifically chosen for its exceptional performance in marine applications. EPR maintains its electrical properties across a wide temperature range, from the freezing conditions of arctic operations to the high temperatures found in engine rooms and electrical compartments. Unlike some insulation materials that become brittle with age, EPR maintains its flexibility and strength throughout the cable's service life.
The electromagnetic shielding comes from a tinned copper wire braid (TCWB) that serves multiple critical functions. Beyond providing EMI protection, this braid creates a low-impedance path for fault currents, ensuring that electrical protection systems can detect and clear faults quickly. The braid also serves as an equipment grounding conductor, providing the electrical connection necessary for safe operation of connected equipment.
The outer sheath uses an SHF2 type LSZH compound that serves as the cable's first line of defense against environmental hazards. This specialized material provides mechanical protection against impact and abrasion while maintaining the chemical resistance and fire safety properties that make the cable suitable for marine service.




Critical Applications: Where Performance Meets Purpose
Understanding where the RFOU P101 6/10kV cable finds its most important applications helps illustrate why its specialized characteristics are so crucial for marine and offshore operations.
Offshore Oil and Gas Platforms: The Ultimate Testing Ground
Fixed offshore platforms represent perhaps the most demanding application for power cables. These installations must operate continuously for decades, often in some of the world's harshest environments. From the North Sea's brutal storms to the Gulf of Mexico's hurricane seasons, these platforms face conditions that would challenge any electrical system.
The RFOU P101 cable serves as the power distribution backbone for these installations, carrying electricity from main generators to drilling equipment, mud pumps, draw-works, and rotary tables. These systems operate at high power levels and must maintain precise control for safe drilling operations. A power interruption during critical drilling phases could result in stuck pipe, blowout conditions, or other dangerous situations.
Beyond drilling operations, these cables power the accommodation modules where crew members live and work. This includes lighting, ventilation, galley equipment, and communication systems that maintain connection with shore-based operations. The cable's flame-retardant and low-smoke properties become especially critical in these living spaces, where rapid evacuation might be necessary during emergencies.
Floating Production Storage and Offloading Units: Power in Motion
FPSOs represent a unique challenge for electrical systems because they combine the harsh environment of offshore platforms with the constant motion of floating vessels. These massive ships, often converted from oil tankers, must maintain stable power distribution while weathering storms that can create significant pitch and roll motions.
The RFOU P101's flexible construction becomes particularly important in FPSO applications, where cables must withstand constant flexing as the vessel moves with ocean swells. The EPR insulation and copper conductor are specifically chosen to maintain their integrity under these dynamic conditions, preventing the fatigue failures that might occur with more rigid cable designs.
These installations also present unique fire risks because they combine oil production equipment with large quantities of stored hydrocarbons. The cable's flame-retardant properties and low-smoke characteristics provide critical safety margins in an environment where fire could have catastrophic consequences.
Large Marine Vessels: Bringing Offshore Technology to Sea
Modern cruise ships, cargo vessels, and naval ships increasingly rely on medium-voltage power distribution systems similar to those found on offshore platforms. These vessels face similar challenges of salt air, confined spaces, and the need for absolute reliability during extended voyages far from shore.
The RFOU P101 finds applications in these vessels' most critical systems, including main propulsion equipment, navigation systems, and safety equipment. The cable's EMI shielding becomes particularly important in these applications, where sensitive electronic equipment must operate reliably in the presence of powerful electrical systems.
Naval applications present additional challenges because these vessels may face combat conditions where cable damage from shock, vibration, or fire becomes a real possibility. The cable's robust construction and superior fire safety characteristics provide important survivability advantages in these demanding applications.
Renewable Energy: Powering the Green Revolution
As offshore wind energy expands into deeper waters and more challenging environments, the lessons learned from oil and gas operations become increasingly relevant. Offshore wind substations face many of the same challenges as oil platforms, including salt air corrosion, limited access for maintenance, and the need for absolute reliability.
The RFOU P101 cable serves in these installations' internal power distribution systems, connecting transformers, switchgear, and control systems within the substation platforms. While submarine cables handle the connections between turbines and to shore, the RFOU P101 ensures reliable power distribution within the critical infrastructure that makes offshore wind generation possible.
These applications also benefit from the cable's environmental characteristics, as offshore wind installations often operate in sensitive marine environments where any chemical contamination from cable degradation could have serious consequences.
The Economics of Reliability: Understanding Long-Term Value
When engineers specify cables for marine and offshore applications, the initial purchase price represents only a small fraction of the total cost of ownership. Understanding the economic advantages of the RFOU P101 requires examining the broader financial picture of offshore operations.
Safety and Compliance: The Foundation of Operational Success
Regulatory compliance in marine and offshore industries isn't optional—it's a fundamental requirement for obtaining operating permits and insurance coverage. The RFOU P101's adherence to international standards like NEK TS 606 and IEC specifications provides the documentation necessary to satisfy regulatory authorities and classification societies.
This compliance extends beyond paperwork to real-world safety benefits. The advanced fire safety characteristics reduce the risk of casualties and equipment damage, which can easily cost millions of dollars in a single incident. Insurance companies recognize this reduced risk through lower premiums, creating ongoing savings that can quickly offset the cable's higher initial cost.
The cable's Type Approval by major classification societies like DNV-GL, ABS, and Lloyd's Register streamlines the project approval process. Rather than conducting extensive testing and documentation for each project, engineers can reference existing approvals, reducing both time-to-market and certification costs.
Operational Continuity: The Hidden Value of Reliability
Offshore operations face unique challenges when equipment failures occur. Unlike land-based facilities where repair crews can arrive within hours, offshore repairs may require helicopter transport, specialized vessels, or weather windows that could delay repairs for weeks. During these delays, entire operations may shut down, creating costs that can reach hundreds of thousands of dollars per day.
The RFOU P101's robust construction and chemical resistance significantly reduce the likelihood of premature cable failures. Field experience demonstrates that these cables regularly exceed their design life, often operating reliably for decades in harsh environments. This extended service life reduces both the frequency of replacements and the operational disruptions associated with cable failures.
The cable's superior EMI shielding also contributes to operational continuity by reducing interference with sensitive control and communication systems. In an era where offshore operations rely increasingly on sophisticated automation and remote monitoring, maintaining clean power and signal integrity becomes critical for optimal performance.
Maintenance and Replacement: The True Cost of Ownership
The logistics of maintaining electrical systems in offshore environments create cost multipliers that don't exist in land-based applications. A cable replacement that might cost thousands of dollars onshore could easily cost ten times that amount offshore when you factor in vessel mobilization, weather delays, and production downtime.
The RFOU P101's extended service life and chemical resistance characteristics significantly reduce maintenance requirements. The cable's resistance to oil and mud contamination means it maintains its electrical properties even in harsh conditions, eliminating the need for premature replacements due to environmental degradation.
When replacements are eventually necessary, the cable's flexible construction and standardized design simplify installation procedures. This reduces the specialized labor requirements and installation time, further controlling the total cost of ownership.
Future-Proofing: Adapting to Evolving Requirements
The marine and offshore industries continue to evolve rapidly, with new environmental regulations, safety requirements, and operational standards emerging regularly. The RFOU P101's comprehensive compliance with current international standards provides a buffer against these changing requirements, reducing the risk of forced upgrades or replacements due to regulatory changes.
The cable's robust construction also provides margin for future applications that may require higher performance levels. As offshore operations move into deeper waters and more challenging environments, having electrical infrastructure that exceeds current requirements provides valuable operational flexibility.
Technical Excellence in Practice: Real-World Performance
The true measure of any marine cable lies not in laboratory test results, but in its performance under real-world operating conditions. The RFOU P101 has established a track record of reliable service across diverse applications and environments, demonstrating the practical value of its advanced design characteristics.
Arctic Operations: Performance at the Extremes
Some of the most challenging installations for the RFOU P101 have occurred in arctic environments, where temperatures can drop to -40°C and cables must maintain flexibility and electrical properties in conditions that would make conventional cables brittle and prone to failure. The EPR insulation system demonstrates remarkable temperature stability, maintaining its dielectric properties and mechanical flexibility across this extreme temperature range.
Field reports from arctic drilling platforms indicate that RFOU P101 cables continue to operate reliably after years of exposure to these harsh conditions, with no significant degradation in electrical performance or mechanical properties. This capability has enabled offshore operations to extend into previously inaccessible regions, supporting energy exploration in some of the world's most challenging environments.
Tropical Installations: Heat, Humidity, and Corrosion
At the opposite extreme, tropical offshore installations present their own unique challenges. High temperatures, constant humidity, and accelerated corrosion rates create an environment where many electrical components fail prematurely. The RFOU P101's tinned copper construction and specialized polymer materials provide excellent resistance to these conditions.
Long-term installations in the Gulf of Mexico and Southeast Asian waters demonstrate that the cable maintains its electrical and mechanical properties even after years of exposure to these corrosive environments. The tinned copper conductor shows no significant corrosion, while the outer sheath maintains its integrity and protective properties.
Dynamic Applications: Cables in Motion
Perhaps the most demanding test of cable construction comes in dynamic applications where cables must withstand constant flexing and movement. FPSOs and drill ships present these conditions, where cables may experience millions of flex cycles over their service life.
The RFOU P101's construction specifically addresses these dynamic requirements through its flexible conductor design and EPR insulation system. Field experience demonstrates that cables maintain their electrical integrity even in installations subject to significant vessel motion, with no evidence of the fatigue failures that might affect more rigid cable designs.
Conclusion: Engineering the Future of Marine Power Systems
The RFOU P101 6/10kV cable represents more than just an electrical component—it embodies decades of engineering advancement specifically focused on the unique challenges of marine and offshore environments. Its sophisticated design addresses every aspect of these demanding applications, from the corrosive effects of salt water to the life-safety requirements of confined spaces.
As offshore operations continue to expand into deeper waters and more challenging environments, the importance of reliable electrical infrastructure becomes even more critical. The RFOU P101's comprehensive approach to marine cable design—combining superior fire safety, chemical resistance, mechanical durability, and electromagnetic performance—provides the foundation for safe and reliable operations in these extreme conditions.
The cable's proven track record across diverse applications, from arctic drilling platforms to tropical wind farms, demonstrates that proper engineering and materials selection can overcome even the most challenging environmental conditions. For engineers and operators planning marine and offshore installations, the RFOU P101 offers not just a cable, but a pathway to operational success in some of the world's most demanding environments.
The future of marine and offshore operations depends on electrical systems that can match the reliability and durability of the vessels and platforms they serve. The RFOU P101 6/10kV cable provides that reliability, ensuring that critical power systems continue to operate safely and efficiently, no matter what challenges the ocean may present.
For detailed technical specifications, installation guidelines, and application-specific recommendations, consult with qualified cable engineering professionals who can provide customized solutions for your specific marine or offshore requirements. The investment in proper cable selection and installation pays dividends in safety, reliability, and operational success throughout the life of your installation.
