RFOU Cable Shielding Explained: NEK 606 Pair vs Overall Shielding for Signal Integrity

Introduction

In the demanding world of offshore and marine electrical installations, maintaining signal integrity becomes a critical challenge that directly impacts operational safety and system reliability. RFOU cables, manufactured according to the stringent NEK 606 standard, represent a specialized class of instrumentation cables specifically engineered to withstand the harsh electromagnetic environments commonly encountered in maritime and offshore applications.

The fundamental principle underlying RFOU cable design centers on electromagnetic shielding, which serves as the primary defense mechanism against signal degradation caused by electromagnetic interference (EMI) and crosstalk between adjacent conductors. Understanding the nuanced differences between various shielding architectures becomes essential for engineers and technicians who must select appropriate cable solutions for specific operational requirements.

Within the RFOU cable family, four distinct models have evolved to address varying levels of electromagnetic protection requirements. The RFOU (P1) and RFOU (P1/P8) models represent the foundational designs featuring overall shielding configurations, while the RFOU(I) (S1/S5) and RFOU(C) (S2/S6) models incorporate sophisticated individual pair shielding technologies. Each configuration offers unique advantages and is optimized for specific application environments ranging from basic power distribution to sensitive analog signal transmission in control and automation systems.

The progression from basic overall shielding to advanced individual pair shielding reflects the evolving demands of modern industrial control systems, where signal accuracy and reliability directly translate to operational efficiency and safety margins. As we examine these different shielding approaches, we will discover how the physical structure of each cable type directly influences its electromagnetic performance characteristics and ultimately determines its suitability for various installation scenarios.

Shielding Fundamentals in Instrumentation Cables

To appreciate the sophisticated engineering behind RFOU cable designs, we must first understand the fundamental principles governing electromagnetic shielding in instrumentation cables. Electromagnetic interference represents one of the most pervasive challenges in modern electrical systems, manifesting as unwanted electrical signals that can corrupt data transmission, cause false readings in measurement systems, and lead to unpredictable behavior in automated control systems.

The primary purpose of cable shielding extends beyond simple EMI protection to encompass several critical functions that ensure reliable signal transmission. First and foremost, shielding provides a controlled pathway for electromagnetic energy to dissipate harmlessly to ground, preventing interference signals from coupling into the conductor cores. Additionally, effective shielding significantly reduces crosstalk between adjacent pairs within multi-conductor cables, which becomes particularly important in applications where multiple signal types share the same cable assembly.

Three fundamental shielding architectures have emerged as industry standards, each offering distinct advantages depending on the specific application requirements. Individual pair shielding, where each twisted pair receives its own dedicated electromagnetic barrier, provides the highest level of isolation between signal channels. This approach proves particularly valuable in applications involving sensitive analog measurements or high-speed digital communications where signal purity remains paramount.

Overall shielding, by contrast, envelops the entire cable core with a single electromagnetic barrier, providing effective protection against external interference sources while maintaining cost-effectiveness and installation flexibility. This approach works exceptionally well for applications where moderate EMI protection suffices and where the signal types within the cable do not require complete isolation from one another.

Combined shielding designs, which incorporate both individual pair shields and an overall cable shield, represent the pinnacle of electromagnetic protection technology. These sophisticated configurations provide comprehensive defense against both external interference and internal crosstalk, making them indispensable for critical control system applications where signal integrity cannot be compromised.

The impact of shielding effectiveness on signal quality becomes most apparent in control and automation systems, where even minor signal degradation can cascade into significant operational problems. In process control applications, for instance, a 4-20 mA analog signal corrupted by electromagnetic interference might cause a control valve to operate incorrectly, potentially leading to process upsets or safety concerns. Similarly, in digital communication systems, electromagnetic interference can introduce bit errors that compromise data integrity and system reliability.

Structural Evolution: From P1 to S6

The evolution of RFOU cable designs from the basic P1 configuration to the advanced S6 architecture represents a fascinating journey through the development of electromagnetic shielding technology. Each successive design iteration addresses specific limitations of its predecessors while introducing enhanced capabilities that expand the range of suitable applications.

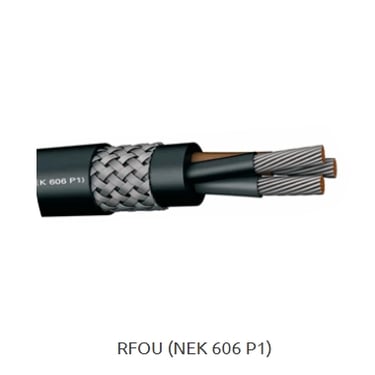

The RFOU (P1) configuration establishes the foundation of the RFOU cable family with its straightforward overall copper wire braid shielding approach. This design employs a single electrolytic, tinned copper braided screen that provides 90% coverage around the entire cable core. The copper wire braid construction offers several important advantages, including excellent flexibility during installation, reliable grounding characteristics, and effective protection against moderate levels of electromagnetic interference.

The P1 design proves particularly well-suited for applications involving power distribution, basic control circuits, and lighting systems where the primary concern centers on protecting against external EMI sources rather than preventing crosstalk between individual conductors. The 90% coverage specification ensures that the vast majority of the cable circumference remains protected by the conductive shield, with only small gaps between individual braid elements that have minimal impact on overall shielding effectiveness.

However, the P1 configuration does present certain limitations that become apparent in more demanding applications. The single overall shield cannot prevent crosstalk between different conductor pairs within the same cable, which can lead to signal integrity issues in multi-channel measurement systems or complex control applications. Additionally, the basic P1 design lacks specialized features for enhanced environmental protection beyond standard marine requirements.

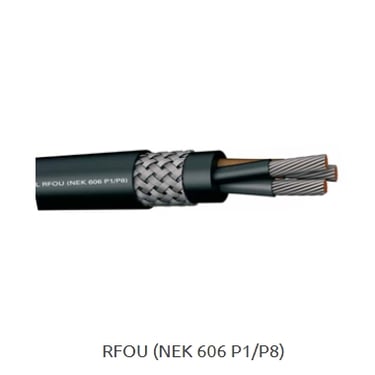

The RFOU (P1/P8) variant addresses some of these limitations by incorporating additional mechanical protection layers and enhanced flame barrier characteristics while maintaining the fundamental overall shielding architecture. The P8 designation indicates the inclusion of specialized mud-resistant outer sheathing materials that provide superior protection in harsh offshore drilling environments where exposure to drilling fluids and abrasive substances poses significant challenges to cable integrity.

This enhanced environmental protection proves particularly valuable in offshore drilling applications where cables must withstand exposure to various drilling muds, saltwater, and mechanical stresses that would quickly degrade standard cable designs. The mud-resistant sheathing maintains its protective properties even under prolonged exposure to aggressive chemical environments, ensuring reliable long-term performance in the most demanding offshore applications.

Moving beyond the overall shielding approach, the RFOU(I) (S1/S5) configuration introduces individual pair shielding technology that fundamentally transforms the cable's electromagnetic performance characteristics. The S1 designation indicates that each twisted pair within the cable receives its own dedicated electromagnetic shield consisting of an electrolytic copper-coated polyester tape screen that provides 100% coverage around each individual pair.

This individual shielding approach offers several significant advantages over overall shielding alone. Most importantly, it virtually eliminates crosstalk between different signal channels within the same cable, allowing sensitive analog signals to coexist with digital communications or power circuits without mutual interference. The 100% coverage specification ensures complete electromagnetic isolation of each pair, providing superior protection compared to the 90% coverage typical of braided overall shields.

The S1 configuration also incorporates dedicated earthing wires positioned adjacent to each shielded pair, providing a low-impedance return path for shield currents and ensuring optimal grounding performance. This design detail becomes particularly important in applications involving high-frequency signals or fast-rising digital waveforms where proper grounding directly impacts signal integrity.

The S5 variant builds upon the S1 foundation by adding an overall copper wire braid shield that envelops the entire cable core. This combined shielding approach provides comprehensive protection against both external EMI sources and internal crosstalk, making it ideal for applications where maximum electromagnetic performance is required. The dual-layer shielding architecture ensures that even if one shield layer becomes compromised, the redundant protection maintains signal integrity.

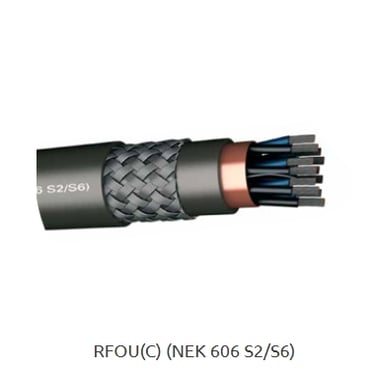

At the pinnacle of RFOU cable shielding technology, the RFOU(C) (S2/S6) configuration represents the ultimate expression of electromagnetic protection engineering. The S2 designation indicates an enhanced version of individual pair shielding that incorporates refined materials and construction techniques to achieve even higher levels of electromagnetic isolation. While maintaining the 100% coverage characteristic of the S1 design, the S2 configuration employs superior shielding materials and more precise manufacturing tolerances to optimize high-frequency performance characteristics.

The S6 variant combines the advanced S2 individual pair shielding with a comprehensive overall copper wire braid shield, creating a formidable electromagnetic barrier that provides exceptional protection against all forms of electrical interference. This configuration proves indispensable for the most sensitive analog measurement applications, precision control systems, and high-speed digital communications where even minor signal degradation cannot be tolerated.

Application Performance in Control Systems

The practical implications of different RFOU cable shielding configurations become most apparent when examining their performance in real-world control system applications. Modern industrial facilities rely heavily on sophisticated automation systems including Programmable Logic Controllers (PLCs), Distributed Control Systems (DCS), and various instrumentation networks that demand reliable, high-quality signal transmission to maintain operational efficiency and safety.

In PLC applications, the choice between different RFOU cable configurations directly impacts system reliability and measurement accuracy. Consider a typical process control scenario where multiple 4-20 mA analog signals must be transmitted from field instruments to a central control room. Using RFOU (P1) cables with only overall shielding might result in acceptable performance if the signals remain relatively stable and the electromagnetic environment remains benign. However, if variable frequency drives, welding equipment, or radio transmitters operate nearby, the increased EMI levels could introduce noise into the analog signals, leading to measurement errors and potentially erratic control system behavior.

The superior shielding performance of RFOU(I) (S1/S5) cables becomes immediately apparent in such challenging electromagnetic environments. The individual pair shielding effectively isolates each analog signal channel, preventing external interference from corrupting the measurement data. Equally important, the individual shields prevent crosstalk between different analog channels, ensuring that a large signal change in one channel does not introduce spurious readings in adjacent channels.

This crosstalk prevention capability proves particularly valuable in applications involving mixed signal types within the same cable assembly. For example, a single RFOU(I) cable might simultaneously carry 4-20 mA analog signals from temperature transmitters, digital communications from smart field devices, and discrete control signals for valve actuators. Without individual pair shielding, the digital communications could introduce noise into the analog measurements, while the discrete control signals might cause interference spikes that trigger false alarms or inappropriate control actions.

Distributed Control System applications present even more stringent requirements for signal integrity, as these systems often coordinate complex process control strategies involving hundreds or thousands of individual measurement and control points. The enhanced shielding performance of RFOU(C) (S2/S6) cables becomes essential in such applications, where the economic impact of a single measurement error or communication failure can reach significant proportions.

The importance of proper shielding selection becomes particularly evident when examining the behavior of different cable types under various noise conditions. In environments with high levels of electromagnetic interference, such as offshore drilling platforms with multiple large motors, generators, and radio equipment, the difference between adequate and inadequate shielding can mean the difference between reliable operation and frequent system failures.

Signal stability represents another critical performance parameter that directly correlates with shielding effectiveness. In precision measurement applications, such as custody transfer metering or environmental monitoring systems, small amounts of electromagnetic interference can introduce measurement uncertainties that compromise the accuracy and reliability of the collected data. The superior shielding performance of advanced RFOU cable configurations ensures that measurement precision remains consistent even in challenging electromagnetic environments.

Error reduction capabilities also vary significantly between different shielding configurations. Overall shielded cables like RFOU (P1) might experience intermittent communication errors or measurement anomalies in high-noise environments, while individually shielded configurations like RFOU(C) (S2/S6) maintain consistent performance even under severe electromagnetic stress conditions.

Selection Criteria and Performance Comparison

Selecting the appropriate RFOU cable configuration for a specific application requires careful consideration of multiple factors that influence both initial installation costs and long-term operational performance. The decision-making process involves evaluating the electromagnetic environment, signal sensitivity requirements, installation constraints, and economic considerations to identify the optimal balance between performance and cost-effectiveness.

EMI resistance represents the primary selection criterion for most applications, as inadequate electromagnetic protection can render even the most sophisticated control system unreliable. RFOU (P1) cables provide adequate EMI resistance for basic applications with moderate electromagnetic noise levels, making them suitable for simple power distribution, lighting circuits, and non-critical control applications. The 90% coverage copper wire braid shield effectively attenuates external interference sources while maintaining cost-effectiveness and installation flexibility.

However, applications involving sensitive analog measurements, high-speed digital communications, or operation in high-noise environments require the superior EMI resistance provided by individually shielded configurations. RFOU(I) (S1/S5) cables offer substantially improved EMI resistance compared to overall shielded designs, with the individual pair shields providing dedicated protection for each signal channel. The S5 variant, with its combination of individual and overall shielding, delivers exceptional EMI resistance suitable for the most demanding electromagnetic environments.

RFOU(C) (S2/S6) cables represent the pinnacle of EMI resistance technology, with their advanced shielding materials and construction techniques providing maximum protection against all forms of electromagnetic interference. These cables prove indispensable for applications where signal integrity cannot be compromised, such as safety-critical control systems, precision measurement networks, and high-value process control applications.

Crosstalk suppression capabilities vary dramatically between different shielding configurations and often represent the determining factor in cable selection for multi-channel applications. Overall shielded cables like RFOU (P1) and RFOU (P1/P8) provide minimal crosstalk suppression between individual conductor pairs, making them unsuitable for applications where multiple signal types share the same cable assembly.

Individual pair shielding fundamentally transforms crosstalk performance by providing complete electromagnetic isolation between different signal channels. RFOU(I) (S1/S5) cables virtually eliminate crosstalk between shielded pairs, allowing sensitive analog signals to coexist with digital communications or power circuits without mutual interference. This capability proves particularly valuable in complex control system installations where cable consolidation reduces installation costs and simplifies system maintenance.

RFOU(C) (S2/S6) cables offer the ultimate crosstalk suppression performance, with their advanced individual pair shielding providing exceptional isolation between signal channels even under the most demanding conditions. This level of performance becomes essential for applications involving high-precision analog measurements or high-speed digital communications where even minimal crosstalk could compromise system performance.

Installation flexibility considerations also influence cable selection decisions, particularly in applications with space constraints or complex routing requirements. Overall shielded cables generally offer superior flexibility during installation due to their simpler construction and reduced number of shielding layers. RFOU (P1) cables, with their single overall shield, typically provide the best flexibility characteristics and smallest minimum bending radius requirements.

Individually shielded cables, while offering superior electromagnetic performance, generally exhibit reduced flexibility due to their more complex construction and multiple shielding layers. RFOU(I) (S1/S5) cables require larger minimum bending radii and more careful handling during installation to prevent damage to the individual pair shields.

Application suitability guidelines help engineers and technicians select the most appropriate RFOU cable configuration for specific installation requirements. Basic power distribution, lighting systems, and non-critical control applications typically perform adequately with RFOU (P1) cables, provided the electromagnetic environment remains relatively benign and crosstalk between conductors does not present operational concerns.

Complex control systems, multi-channel instrumentation networks, and applications involving mixed signal types generally require the enhanced performance of RFOU(I) (S1/S5) cables. The individual pair shielding provides the necessary electromagnetic isolation to ensure reliable operation in challenging electromagnetic environments while maintaining reasonable installation costs.

Critical control systems, precision measurement applications, and high-value process control installations justify the premium cost of RFOU(C) (S2/S6) cables. These advanced configurations provide maximum electromagnetic protection and signal integrity, ensuring reliable operation even under the most demanding conditions.

Conclusion

The sophisticated shielding structures employed in RFOU cables represent far more than simple electromagnetic barriers; they constitute the fundamental foundation upon which reliable signal transmission and operational efficiency depend in demanding offshore and marine environments. The evolutionary progression from basic overall shielding in RFOU (P1) configurations to the advanced individual pair shielding technologies found in RFOU(C) (S2/S6) cables illustrates the continuous refinement of electromagnetic protection engineering in response to increasingly sophisticated industrial control system requirements.

Understanding the distinct characteristics and performance capabilities of each RFOU cable configuration empowers engineers and technicians to make informed decisions that directly impact both immediate installation success and long-term operational reliability. The choice between overall shielding and individual pair shielding approaches involves careful consideration of electromagnetic environment conditions, signal sensitivity requirements, installation constraints, and economic factors that collectively determine the optimal solution for each specific application.

The relationship between shielding structure and signal integrity becomes particularly critical in modern industrial facilities where automation systems coordinate complex processes involving substantial economic and safety implications. In such environments, the superior electromagnetic protection provided by advanced RFOU cable configurations represents not merely a technical specification but a fundamental requirement for maintaining operational continuity and preventing costly system failures.

Proper cable selection based on thorough understanding of shielding principles and performance characteristics ensures that electrical systems operate reliably throughout their intended service life, even when subjected to the harsh electromagnetic conditions commonly encountered in offshore and marine applications. The investment in appropriate shielding technology pays dividends through reduced maintenance costs, improved system availability, and enhanced operational safety margins that justify the initial premium associated with advanced cable configurations.

As industrial control systems continue to evolve toward greater complexity and higher performance requirements, the importance of selecting appropriate RFOU cable configurations will only increase. The comprehensive shielding technologies embodied in these specialized cables provide the electromagnetic protection foundation necessary to support the next generation of offshore and marine automation systems, ensuring that signal integrity and operational reliability remain uncompromised even in the most challenging electromagnetic environments.
