Reliable Vertical Reeling: NSHTÖU-V Cable Applications in Singapore's Ports and Marine Terminals

Introduction

Singapore's position as one of the world's busiest maritime hubs creates extraordinary demands on the electrical infrastructure supporting its port operations. The Port of Singapore, handling over 37 million twenty-foot equivalent units (TEUs) annually, relies on sophisticated crane systems, hoisting equipment, and material handling machinery that operate continuously in challenging marine environments. These operations require electrical cables that can withstand not only the electrical demands of high-powered equipment but also the unique mechanical stresses associated with vertical movement and reeling applications.

The operational environment in Singapore's ports presents a complex set of challenges that standard electrical cables simply cannot handle effectively. Container cranes must lift loads exceeding 65 tons while extending and retracting cables through vertical distances of 30 meters or more. Ship-to-shore cranes operate in salt-laden air with humidity levels often exceeding 80 percent, while simultaneously experiencing mechanical forces from constant winding and unwinding operations. Shipyard gantry cranes support the assembly of vessels weighing thousands of tons, requiring electrical connections that maintain reliability through countless cycles of vertical movement.

The NSHTÖU-V cable emerges as a specialized solution engineered specifically for these demanding vertical reeling applications. Unlike conventional industrial cables that may fail under the combined electrical and mechanical stresses of port operations, the NSHTÖU-V cable integrates advanced conductor design, robust insulation systems, and specialized sheath materials to deliver consistent performance in Singapore's challenging maritime environment. This cable represents a critical component in maintaining the operational efficiency and safety standards that Singapore's maritime industry demands.

Understanding the technical specifications and application requirements of NSHTÖU-V cables becomes essential for port operators, electrical engineers, and maintenance professionals working in Singapore's dynamic maritime sector. The cable's design philosophy centers on addressing the specific failure modes common in vertical reeling applications while maintaining the electrical performance necessary for modern automated port equipment.

NSHTÖU-V Cable Construction and Technical Features

The foundation of the NSHTÖU-V cable's exceptional performance lies in its sophisticated construction, beginning with the conductor design that forms the electrical heart of the cable. The cable employs Class 5 flexible copper conductors, a designation that indicates the conductor consists of many fine copper strands rather than a solid copper core. This construction approach provides several critical advantages for vertical reeling applications. The increased number of individual strands allows the conductor to flex repeatedly without developing the fatigue cracks that would compromise electrical conductivity over time.

The Class 5 conductor specification means the copper strands are significantly finer than those found in Class 2 or Class 4 conductors commonly used in stationary installations. This fine strand construction distributes mechanical stress more evenly across the conductor cross-section, preventing the concentration of stress that leads to individual strand breakage. When a cable experiences the bending and twisting forces inherent in vertical reeling operations, the Class 5 conductor maintains its electrical integrity while accommodating the mechanical movement required by crane and hoisting operations.

The insulation system surrounding each conductor represents another critical design element that distinguishes the NSHTÖU-V cable from standard industrial cables. The insulation material must provide excellent electrical properties while maintaining flexibility and mechanical strength under the stresses of vertical reeling. The cable employs specialized polymer compounds that resist degradation from the temperature cycling common in port operations, where equipment may operate intensively during loading operations and then remain idle for extended periods.

The cable's sheath system provides the primary defense against the harsh environmental conditions present in Singapore's maritime facilities. The outer sheath incorporates materials specifically selected for their resistance to oil, moisture, and abrasion. This becomes particularly important in port environments where hydraulic fluids, lubricants, and seawater create a corrosive environment that would quickly degrade conventional cable sheaths. The sheath material maintains its protective properties across a wide temperature range, accommodating the thermal variations common in tropical marine environments.

The mechanical design of the NSHTÖU-V cable addresses the unique stress patterns encountered in vertical reeling applications. Traditional cable designs optimize for either tensile strength or flexibility, but vertical reeling applications require both characteristics simultaneously. The cable must support its own weight plus any additional loads from the supported equipment while maintaining the flexibility necessary for smooth winding and unwinding operations. This dual requirement drives the specialized lay construction of the cable, where the individual conductors are arranged and twisted in patterns that distribute mechanical stress while maintaining electrical performance.

Torsional stress represents another significant challenge in vertical reeling applications that the NSHTÖU-V cable addresses through its construction design. As drums rotate during cable winding operations, the cable experiences twisting forces that can cause conductor displacement or insulation damage in poorly designed cables. The NSHTÖU-V cable's conductor lay and overall construction resist these torsional forces, maintaining both mechanical integrity and electrical performance throughout the operational cycle.

Key Application Scenarios in Singapore's Ports and Marine Terminals

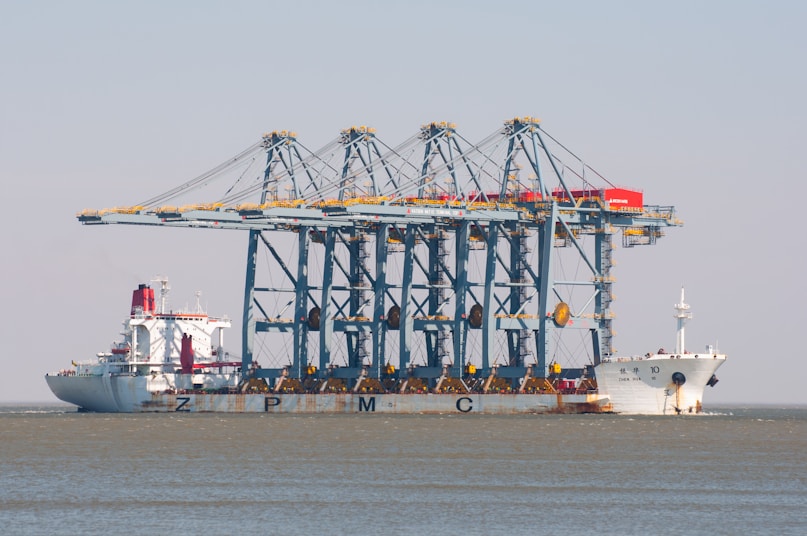

Container crane operations represent perhaps the most demanding application for NSHTÖU-V cables in Singapore's port environment. These massive structures, often exceeding 100 meters in height, require electrical connections that can support both the trolley systems moving horizontally along the crane boom and the hoisting mechanisms that lift containers vertically. The cables must accommodate the simultaneous movement in multiple directions while maintaining reliable power and control signal transmission.

The electrical demands of container cranes extend beyond simple power transmission to include sophisticated control systems that manage load positioning, anti-sway mechanisms, and automated guidance systems. Modern container cranes incorporate computerized control systems that require stable data transmission alongside high-current power feeds. The NSHTÖU-V cable's design ensures that electrical noise and signal interference remain minimal even under the mechanical stresses of crane operation, maintaining the precision control necessary for safe and efficient container handling.

Container terminal operations in Singapore often involve continuous 24-hour cycles, creating thermal and mechanical cycling that challenges cable performance. The cables experience heating during high-load operations followed by cooling periods during idle time. This thermal cycling, combined with the mechanical movement, can cause traditional cables to develop insulation failures or conductor fatigue. The NSHTÖU-V cable's construction and material selection address these cycling stresses, providing consistent performance across extended operational periods.

Bulk cargo terminals present different but equally challenging requirements for vertical reeling cables. These facilities handle materials such as petroleum products, chemicals, and bulk commodities that create contaminated environments. Spills and vapors can attack conventional cable sheaths, leading to premature failure. The NSHTÖU-V cable's chemical-resistant sheath materials maintain their protective properties even when exposed to these industrial contaminants, ensuring reliable electrical performance in challenging chemical environments.

The mechanical demands of bulk cargo handling often involve slower but more sustained loading operations compared to container terminals. Grab cranes and bulk unloaders may operate for hours at a time, creating sustained mechanical stress on the cable system. The NSHTÖU-V cable's robust construction handles these sustained loads while maintaining the flexibility necessary for smooth operation of the reeling systems.

Shipyard gantry cranes create some of the most severe operating conditions for vertical reeling cables. These cranes lift and position massive steel sections during vessel construction, creating peak mechanical loads that can exceed the continuous ratings of the cable systems. The intermittent but severe loading characteristic of shipyard operations requires cables that can handle overload conditions without permanent damage while maintaining long-term reliability under normal operating conditions.

The construction environment in shipyards also exposes cables to welding operations, cutting activities, and other industrial processes that can damage cable systems through flying sparks, metal debris, or accidental contact. The NSHTÖU-V cable's abrasion-resistant sheath and robust construction provide protection against these incidental damage sources while maintaining operational reliability.

Offshore loading facilities represent the most challenging environment for vertical reeling cables due to the combination of marine exposure, mechanical loading, and the consequences of failure. These facilities support the loading and unloading of petroleum products, chemicals, and other materials directly from vessels moored in Singapore's harbor. The cables must maintain performance in fully marine environments while supporting critical operations where failure could result in environmental contamination or safety hazards.

The dynamic nature of offshore loading operations creates unique mechanical stresses as vessels move with tidal and wave action while remaining connected to shore-based loading systems. The NSHTÖU-V cable must accommodate these movements while maintaining electrical continuity and mechanical integrity. The cable's design incorporates features that allow for the controlled movement necessary in these dynamic applications while preventing damage from excessive stress or abrupt loading.

Performance Advantages in Marine Environments

The mechanical durability of NSHTÖU-V cables under repeated bending represents one of their most significant advantages in marine terminal applications. Traditional cables experience fatigue failure when subjected to the constant flexing associated with vertical reeling operations. The phenomenon of flex fatigue occurs when repeated bending causes individual copper strands to work-harden and eventually break, reducing the cable's current-carrying capacity and potentially leading to complete failure.

The NSHTÖU-V cable's Class 5 conductor construction addresses flex fatigue through the use of extremely fine copper strands that distribute bending stress more evenly across the conductor cross-section. This design approach means that even when individual strands do experience fatigue, the large number of parallel paths maintains electrical continuity and performance. The cable can withstand millions of bending cycles without significant degradation in electrical performance, making it ideal for applications where cranes and hoisting equipment operate continuously throughout multiple shifts.

Tensile forces in vertical reeling applications create challenges that extend beyond simple cable strength calculations. While the cable must support its own weight plus any additional loads from supported equipment, the dynamic nature of crane operations creates impact loads that can exceed static calculations by significant margins. The NSHTÖU-V cable's construction incorporates design margins that account for these dynamic loads while maintaining the flexibility necessary for smooth operation.

The cable's response to torsional stress represents another critical performance advantage in marine environments. Drum winding operations create twisting forces that can cause conductor displacement within the cable, leading to uneven current distribution and potential hot spots. The NSHTÖU-V cable's specialized lay construction and conductor arrangement resist these torsional forces, maintaining uniform current distribution and preventing the localized heating that can lead to insulation failure.

Environmental resistance capabilities of the NSHTÖU-V cable extend beyond simple moisture protection to address the complex chemistry of marine environments. Salt-laden air creates corrosive conditions that attack metallic components and degrade organic materials over time. The cable's sheath materials resist both the direct effects of salt contamination and the more subtle effects of humid conditions that can promote the growth of microorganisms or chemical reactions that degrade cable performance.

The cable's performance in oil-contaminated environments addresses a common challenge in port operations where hydraulic fluids, lubricants, and fuel products create contaminated surfaces. Many conventional cables experience sheath swelling or degradation when exposed to petroleum products, leading to mechanical failure or loss of environmental protection. The NSHTÖU-V cable's sheath materials maintain their properties even when exposed to these industrial contaminants, ensuring continued protection of the internal cable components.

Temperature stability in tropical marine environments requires cables that can maintain performance across wide temperature ranges while accommodating rapid temperature changes. Singapore's climate, combined with the heat generated by high-current electrical operations, creates thermal cycling that can cause expansion and contraction stresses in cable systems. The NSHTÖU-V cable's construction and materials accommodate these thermal variations without developing mechanical stress concentrations that could lead to failure.

The extended service life characteristics of NSHTÖU-V cables provide significant economic advantages for port operators. The initial cost of specialized reeling cables is typically higher than conventional industrial cables, but the extended service life and reduced maintenance requirements often result in lower total cost of ownership. The cable's robust construction reduces the frequency of replacement operations, which can be particularly costly in port environments where cable failures may require shutting down critical cargo handling operations.

Installation and Operational Considerations

Proper cable guiding systems represent a critical factor in achieving optimal performance from NSHTÖU-V cables in vertical reeling applications. The cable guidance system must ensure smooth, controlled movement while preventing the cable from experiencing excessive bending radii or abrupt direction changes that could cause mechanical damage. The minimum bend radius for NSHTÖU-V cables is typically specified as a multiple of the cable's overall diameter, but dynamic applications may require larger radii to accommodate the additional stresses of movement.

Cable guiding systems in marine terminals must also address the environmental challenges of salt-laden air and moisture exposure. Guide wheels, rollers, and other mechanical components require regular maintenance to prevent corrosion and wear that could damage the cable during operation. The selection of guide system materials and the implementation of preventive maintenance programs become essential elements in ensuring long-term cable performance.

The design of guide systems must also consider the dynamic forces created by cable movement during crane operations. High-speed reeling operations can create significant forces on guide components, requiring robust mounting systems and careful attention to alignment. Misaligned guide systems can cause uneven wear on the cable sheath and create stress concentrations that lead to premature failure.

Drum selection and sizing represent another critical consideration in NSHTÖU-V cable installations. The drum diameter must provide adequate clearance for the cable's minimum bend radius while accommodating the total length of cable required for the application. Undersized drums can cause excessive bending stress, while oversized drums may create problems with cable layer management and tensioning control.

The drum surface finish and design affect cable performance and service life. Smooth drum surfaces reduce abrasion on the cable sheath, while properly designed drum grooves or patterns can help manage cable laying and prevent overlapping that could cause damage. The drum material selection must also consider the marine environment, with corrosion-resistant materials or protective coatings necessary to prevent degradation that could damage the cable.

Tensioning systems for vertical reeling applications must maintain appropriate cable tension throughout the operating range while accommodating the weight of the suspended cable. Insufficient tension can cause loose cable layers that may become damaged during drum rotation, while excessive tension can create mechanical stress that leads to conductor or insulation damage. The tensioning system must also accommodate the dynamic loads created by crane operations, including the acceleration and deceleration forces that occur during normal operation.

The implementation of proper tensioning systems becomes particularly important in applications where cable lengths exceed 50 meters. At these lengths, the weight of the suspended cable creates significant static loads that must be managed through the tensioning system. The system must also accommodate thermal expansion and contraction of the cable, which can affect tension levels as environmental conditions change.

Routine inspection and preventive maintenance programs are essential for achieving optimal service life from NSHTÖU-V cables in marine environments. Visual inspection of the cable sheath can identify early signs of wear, damage, or environmental degradation that could lead to failure if left unaddressed. Regular inspection schedules should account for the operating intensity of the equipment, with heavily used cranes requiring more frequent inspection than equipment operating intermittently.

Electrical testing of NSHTÖU-V cables should include insulation resistance measurements, continuity testing, and evaluation of conductor resistance to identify potential problems before they cause operational failures. These tests can identify degradation trends that allow for planned maintenance and replacement rather than emergency repairs. The testing program should also include evaluation of the cable's mechanical condition, including checks for proper drum winding, guide system alignment, and tensioning system operation.

Frequently Asked Questions

Q1: Can NSHTÖU-V cables withstand constant exposure to wet and salty marine conditions in Singapore's ports?

The moisture and salt resistance capabilities of NSHTÖU-V cables make them particularly well-suited for Singapore's marine environment. The cable's sheath materials are formulated to resist both the direct effects of salt water exposure and the more subtle effects of high humidity conditions that characterize tropical marine environments. The sheath maintains its protective properties even when exposed to salt spray, standing water, and the high humidity conditions common in Singapore's port operations.

The cable's construction also addresses the challenges created by salt contamination of electrical connections and terminations. While the cable itself can withstand marine exposure, proper installation practices and the use of appropriate termination hardware remain essential for achieving optimal performance in these challenging environments. Regular maintenance of connections and terminations helps ensure continued reliability in salt-laden atmospheres.

Q2: Are these cables suitable for both power and control circuits on cranes?

NSHTÖU-V cables are specifically designed to handle the multi-functional requirements of modern crane systems, supporting both high-current power transmission and sensitive control signals within the same cable installation. The cable's construction includes proper segregation of power and control circuits to prevent electrical interference while maintaining the mechanical properties necessary for vertical reeling applications.

The cable's design ensures that the electromagnetic fields generated by power circuits do not interfere with control signals, maintaining the precision necessary for computerized crane control systems. This capability becomes particularly important in modern automated port facilities where crane operations rely on sophisticated positioning and load management systems that require stable, interference-free signal transmission.

Q3: What mechanical stresses can NSHTÖU-V cables handle during operation?

The mechanical stress capabilities of NSHTÖU-V cables encompass tensile loads, torsional forces, and flexing stresses that occur simultaneously during vertical reeling operations. The cable can typically handle tensile loads that include its own weight plus additional loads from supported equipment, with safety margins built into the design to accommodate dynamic loading conditions.

Torsional stress resistance allows the cable to accommodate the twisting forces created by drum rotation without developing conductor displacement or insulation damage. The cable's construction distributes these torsional forces throughout the cable structure, preventing stress concentrations that could lead to failure. The flexing capabilities of the cable support millions of bending cycles without significant degradation in electrical or mechanical performance.

Q4: Can these cables be used in offshore vessel lifting systems?

NSHTÖU-V cables are well-suited for offshore lifting applications where vessels and floating platforms create dynamic loading conditions. The cable's construction accommodates the movement associated with tidal changes, wave action, and vessel positioning while maintaining electrical continuity and mechanical integrity. The marine-grade materials and construction techniques used in these cables provide the environmental resistance necessary for offshore applications.

The cable's ability to handle dynamic mechanical loads makes it appropriate for applications where the supported equipment experiences movement in multiple directions simultaneously. This capability is particularly important in offshore applications where vessels may move with wave action while remaining connected to shore-based or platform-based lifting systems.

Conclusion

The NSHTÖU-V cable represents a specialized solution that addresses the unique challenges of vertical reeling applications in Singapore's demanding marine environment. Through its sophisticated construction combining Class 5 flexible copper conductors, robust insulation systems, and marine-grade sheath materials, this cable provides the mechanical durability and electrical performance necessary for reliable operation in port terminals, shipyards, and offshore facilities.

The cable's design philosophy recognizes that marine terminal operations create a unique combination of electrical and mechanical stresses that require specialized solutions. Traditional cable designs that may perform adequately in stationary installations often fail when subjected to the dynamic loads, environmental exposure, and operational demands of vertical reeling applications. The NSHTÖU-V cable's construction addresses these challenges while providing the extended service life and reliability that port operators require.

The economic advantages of selecting appropriate reeling cables extend beyond simple cost comparisons to include the operational costs associated with cable failures, maintenance requirements, and replacement operations. In Singapore's high-intensity port operations, where cargo handling equipment operates continuously throughout multiple shifts, the cost of unexpected failures can far exceed the initial investment in specialized cables.

The technical performance characteristics of NSHTÖU-V cables, including their resistance to flexing fatigue, environmental degradation, and mechanical stress, make them an essential component in maintaining the efficiency and safety of Singapore's maritime infrastructure. As port operations continue to evolve toward greater automation and higher operating speeds, the importance of reliable electrical infrastructure becomes even more critical.

Proper installation, maintenance, and operational practices remain essential for achieving optimal performance from NSHTÖU-V cables. The cable's robust construction provides the foundation for reliable operation, but attention to guide systems, drum design, tensioning, and preventive maintenance ensures that the cable can deliver its full performance potential throughout its service life.

The selection of NSHTÖU-V cables for vertical reeling applications in Singapore's ports and marine terminals represents a proactive approach to infrastructure reliability that supports the continued growth and efficiency of one of the world's busiest maritime hubs. These cables provide the electrical backbone for the sophisticated material handling systems that maintain Singapore's position as a global logistics center while ensuring the safety and efficiency that modern port operations demand.
