Introduction: The Electrical Backbone of Asia's Premier Maritime Hub
Singapore stands as one of the world's most crucial maritime centers, handling over 37 million twenty-foot equivalent units (TEUs) annually and serving as a critical transshipment hub connecting East and West. This bustling maritime ecosystem encompasses the massive Tuas Mega Port, one of the world's largest fully automated container terminals, alongside Jurong Island's petrochemical complexes and numerous offshore support facilities. Behind this impressive operational capacity lies a sophisticated electrical infrastructure that must perform flawlessly under some of the most demanding conditions imaginable.
The heart of this electrical system relies on specialized medium voltage flexible reeling cables, particularly the R-(N)TSCGEWÖU series, which power everything from towering quay cranes to mobile offshore support equipment. These cables represent a critical yet often overlooked component that enables the seamless operation of Singapore's maritime industry, where even brief electrical failures can result in significant economic losses and safety hazards.
Understanding the role of these cables requires appreciating the unique challenges of marine electrical systems. Unlike static terrestrial installations, maritime equipment operates in environments characterized by constant motion, exposure to salt spray, temperature fluctuations, and the need for continuous power delivery during dynamic operations. The cables must withstand not only electrical stress but also mechanical forces from repeated bending, twisting, and stretching as equipment moves through its operational cycles.
Understanding R-(N)TSCGEWÖU: Engineering Excellence for Marine Applications
The designation R-(N)TSCGEWÖU represents a sophisticated medium voltage rubber flexible cable specifically engineered for reeling applications in demanding marine environments. Each letter in this technical designation carries specific meaning that reflects the cable's construction and capabilities. The "R" indicates rubber insulation, while the "(N)" denotes the optional neutral conductor configuration. The subsequent letters describe various layers and components that work together to create a cable system capable of withstanding the extreme conditions found in Singapore's maritime operations.
These cables find their primary application in the dynamic systems that define modern port operations. At Singapore's Tuas Mega Port, automated container cranes require continuous power delivery as they move along rails, lift containers weighing up to 65 tons, and rotate through complex loading sequences. The cables must maintain electrical integrity while accommodating the crane's movement patterns, which can involve simultaneous translation, rotation, and vertical motion. This three-dimensional movement creates complex stress patterns that would quickly destroy conventional cables.
Similarly, in offshore support operations around Singapore's waters, these cables power material handling equipment on vessels that experience continuous motion from wave action. The cables must handle not only the planned movements of cranes and conveyors but also the unpredictable forces generated by sea conditions. Rubber-tyred gantry cranes (RTGs) in container yards present another challenging application, where cables must accommodate the vehicle's movement while maintaining power to lifting and positioning systems.
The engineering advantages of R-(N)TSCGEWÖU cables for marine use become evident when examining their response to the primary failure modes that affect electrical systems in maritime environments. Traditional cables often fail due to insulation breakdown from moisture ingress, conductor fatigue from repeated flexing, or sheath degradation from chemical exposure. The specialized design of these reeling cables addresses each of these failure mechanisms through careful material selection and construction techniques.
Technical Architecture: Layer by Layer Excellence
The conductor system forms the foundation of cable performance, utilizing flexible tinned or bare copper conductors that conform to IEC 60228 Class 5 specifications. This classification indicates the highest level of flexibility available in copper conductors, achieved through the use of very fine wire strands that can bend repeatedly without work hardening or breakage. The choice between tinned and bare copper depends on the specific environmental conditions, with tinned conductors offering superior corrosion resistance in marine environments where salt exposure is unavoidable.
The conductor flexibility becomes critical when considering that reeling applications can subject cables to millions of flex cycles over their operational lifetime. Each time a crane moves or a reel system operates, the conductors experience bending stress. Class 5 conductors distribute this stress across hundreds of individual strands, preventing the crack propagation that would occur in more rigid conductor designs. The stranding pattern and individual wire diameter are optimized to minimize internal friction during bending while maintaining the electrical cross-sectional area necessary for current-carrying capacity.
Surrounding the conductors, semi-conductive rubber screens serve multiple critical functions in maintaining electrical performance. These screens provide a smooth, uniform surface that eliminates air gaps between the conductor and insulation, preventing partial discharge phenomena that could lead to insulation breakdown over time. The semi-conductive material has electrical resistivity carefully controlled to allow for uniform electric field distribution while preventing excessive current flow. This balance is crucial in medium voltage applications where electric field concentration can quickly lead to catastrophic failure.
A particularly innovative feature of these cables is the incorporation of anti-adhesion graphite layers between the cable cores. Under the heat generated during high-current operation and the mechanical stress from constant flexing, different rubber compounds can bond together, creating a situation where individual cores cannot move independently. This core sticking phenomenon severely reduces cable flexibility and can lead to premature failure. The graphite layers act as a lubricant, allowing cores to slide past each other while maintaining electrical isolation.
The insulation system represents perhaps the most critical aspect of medium voltage cable design. Multiple layers of specially formulated insulation compounds provide the electrical barrier necessary to prevent breakdown at operating voltages while maintaining flexibility through millions of bend cycles. The insulation materials must exhibit excellent dielectric properties, meaning they can store and release electrical energy without significant loss while preventing current leakage. Simultaneously, these materials must retain their mechanical properties across the full operating temperature range from -25°C to 90°C.
The strippable semi-conductive rubber layer over the insulation facilitates maintenance and termination procedures. When installing cable terminations or performing repairs, technicians must create smooth, controlled interfaces between the cable and terminal hardware. The strippable layer can be removed cleanly without damaging the underlying insulation, ensuring reliable electrical connections that will perform throughout the cable's service life.
The outer sheathing system provides the primary defense against environmental hazards while accommodating the mechanical stresses of reeling applications. Thermosetting synthetic compounds offer superior resistance to oils, ultraviolet radiation, and ozone compared to thermoplastic alternatives. This chemical resistance is essential in marine environments where hydraulic fluids, fuel oils, and cleaning chemicals are commonly encountered. The thermosetting nature means the sheath becomes more stable over time and temperature, rather than softening or degrading as some thermoplastic materials might.
The anti-torsion polyamide braid represents a sophisticated solution to one of the most challenging aspects of reeling cable design. As cables wind onto reels, they experience torsional stress that can cause the individual components to shift or separate. The polyamide braid provides controlled torsional stiffness, allowing necessary twisting motion while preventing excessive deformation. The braid pattern and yarn tension are engineered to provide optimal balance between flexibility and torsional control.
Operational Specifications: Meeting Maritime Demands
The voltage rating of 3.6/6 kV to 12/20 kV encompasses the most common medium voltage requirements in maritime applications. The dual voltage designation (such as 3.6/6 kV) indicates the cable's capability for both phase-to-phase and phase-to-ground voltage levels. This flexibility allows the same cable design to serve different system configurations, simplifying inventory management and installation procedures for port operators.
The maximum operating temperature of 90°C reflects the cable's ability to carry full rated current under normal conditions while maintaining insulation integrity. This temperature capability is particularly important in tropical Singapore, where ambient temperatures can exceed 35°C and equipment enclosures may experience additional heating from solar radiation. The short-circuit temperature rating of 250°C ensures that the cable can survive fault conditions without creating additional hazards, allowing protective systems time to operate and isolate faults.
The low-temperature flexibility specification of -25°C accommodates the air-conditioned environments common in modern port facilities and the potential for equipment to operate in temperature-controlled spaces. This specification ensures that cables remain flexible for installation and maintenance activities regardless of local environmental conditions.
Perhaps most impressive is the travel speed capability of up to 180 meters per minute, which enables the high-speed crane operations essential for port productivity. Modern container cranes must complete loading and unloading cycles in minutes rather than hours to maintain vessel schedules. The cable's ability to accommodate rapid reeling speeds while maintaining electrical integrity directly impacts operational efficiency.
Singapore's Maritime Applications: Real-World Performance

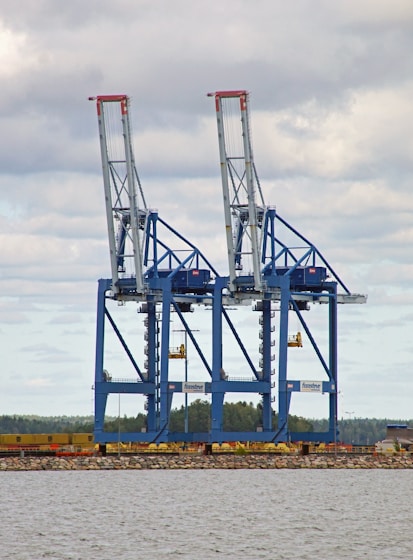

The automated reeling systems on Singapore's quay cranes represent one of the most demanding applications for these specialized cables. These massive structures, some exceeding 100 meters in height, must move containers between ships and terminal facilities with precision and speed. The electrical system powering these cranes includes motors for trolley movement, hoist operation, and boom positioning, all requiring reliable medium voltage power delivery.
The cable reeling system must accommodate the crane's movement along waterfront rails, which can extend for kilometers at major terminals. As the crane moves, the cable management system automatically adjusts cable length, maintaining appropriate tension while preventing damage from excessive stress or slack conditions. The R-(N)TSCGEWÖU cables excel in this application due to their combination of flexibility, durability, and electrical performance.
Ship loaders and mobile offshore support cranes present additional challenges, as these systems must operate on vessels subject to wave motion and varying deck angles. The cable system must accommodate not only the planned movements of the handling equipment but also the unpredictable forces generated by sea conditions. The cables' ability to handle complex stress patterns while maintaining power delivery ensures continuous operation even in challenging sea states.
Jurong Island's petrochemical facilities add another dimension to cable requirements, as operations in potentially explosive atmospheres demand additional safety measures. The flame-retardant properties of R-(N)TSCGEWÖU cables, meeting IEC 60332-1-2 standards, provide crucial safety margins in environments where ignition sources must be carefully controlled. The cables' ability to limit flame propagation helps prevent small electrical faults from escalating into major incidents.
Addressing Operational Challenges: Engineering Solutions
The humid and corrosive environment of Singapore's ports creates particularly challenging conditions for electrical equipment. The combination of high humidity, salt spray, and industrial chemicals can quickly degrade conventional materials. The oil-resistant, UV-stabilized outer sheath of R-(N)TSCGEWÖU cables provides long-term protection against these environmental factors. The synthetic sheath materials are specifically formulated to resist cracking and degradation from ozone exposure, which is particularly aggressive in tropical maritime environments.
Torsional stress management represents another critical performance factor. Container cranes and other reeling equipment subject cables to continuous twisting motions as they wind and unwind from reels. The cables' torsion tolerance of up to 100 degrees per meter allows them to accommodate these movements without internal damage. This specification means that a 10-meter length of cable can twist a full 1000 degrees (nearly three complete rotations) without exceeding design limits.
The maintenance requirements for these cables reflect their robust construction and careful engineering. Unlike conventional cables that might require frequent inspection and replacement, R-(N)TSCGEWÖU cables typically require only routine visual inspections and electrical testing during scheduled equipment maintenance. The anti-adhesion core design prevents the internal bonding that can lead to flexibility loss, extending service life and reducing maintenance costs.
Future Perspectives: Enabling Smart Port Technologies
Singapore's vision for smart port development relies heavily on automation and remote-controlled equipment, both of which demand reliable electrical infrastructure. Advanced flexible cables play a crucial role in enabling these technologies by providing the power delivery reliability necessary for unmanned operations. As port automation increases, the consequences of electrical failures become more severe, as human operators may not be immediately available to address problems.
The energy transition in maritime operations also creates new demands for electrical systems. As ports and ships move toward electrification to reduce emissions, the power requirements for handling equipment continue to increase. The medium voltage capabilities of R-(N)TSCGEWÖU cables position them well to support higher power applications while maintaining the flexibility necessary for dynamic operations.
Emerging technologies such as automated guided vehicles (AGVs) and robotic container handling systems will require increasingly sophisticated cable management solutions. The proven performance of these specialized cables in existing applications provides a foundation for supporting next-generation port technologies.
Conclusion: The Invisible Infrastructure of Maritime Excellence
The R-(N)TSCGEWÖU reeling cables represent a critical but often overlooked component of Singapore's maritime infrastructure. Their sophisticated design addresses the unique challenges of marine electrical systems through careful engineering of every component layer. From the flexible copper conductors to the torsion-resistant outer sheath, each element contributes to overall system reliability and safety.
As Singapore continues to lead in maritime innovation, the importance of robust electrical infrastructure will only increase. The proven performance of these specialized cables in demanding applications provides confidence for future developments in port automation and maritime electrification. By investing in advanced cable solutions, port operators and equipment manufacturers can ensure their electrical systems will support continued growth and technological advancement.
The success of Singapore's maritime industry depends on countless technical innovations working together seamlessly. While container cranes and automated systems may capture attention, the electrical cables that power these systems represent an equally important achievement in engineering excellence. Understanding and appreciating these technical solutions helps ensure their continued development and application in supporting safe, efficient, and reliable maritime operations.
