Powering Safety at Sea: Understanding M2XCH-FFR (NOFI) 0.6/1 kV Marine Cables

Introduction: The Unseen Guardians of Maritime Safety

In the vast expanse of our oceans, where steel giants navigate treacherous waters and offshore platforms brave the elements, an invisible network of electrical arteries pulses with life-sustaining power. These are not ordinary cables, but highly specialized conductors engineered to withstand the unique challenges of marine environments. Among these critical components, the M2XCH-FFR (NOFI) 0.6/1 kV cable stands as a testament to advanced electrical engineering, designed specifically to ensure safety, reliability, and operational continuity in some of the world's most demanding conditions.

The marine environment presents electrical engineers with a complex puzzle. Unlike terrestrial installations, marine electrical systems must contend with salt-laden air that accelerates corrosion, constant vibration from engines and wave action, extreme temperature variations, and perhaps most critically, the catastrophic consequences of electrical fires in confined spaces where escape routes are limited. These challenges demand cables that go far beyond conventional electrical conductors, requiring specialized materials, construction techniques, and rigorous testing standards that ensure they can perform when lives depend on them.

The M2XCH-FFR (NOFI) 0.6/1 kV cable represents the culmination of decades of marine electrical engineering expertise, incorporating advanced materials science and construction techniques to create a conductor that not only delivers power reliably but also maintains circuit integrity even under fire conditions. This capability is not merely a technical achievement but a critical safety feature that can mean the difference between successful emergency response and catastrophic failure in maritime emergencies.

Decoding the Technical Designation: Understanding M2XCH-FFR (NOFI)

To truly appreciate the sophistication of this cable, we must first understand what each component of its designation represents, as each letter and number tells a story of engineering innovation and safety-focused design.

The "M" prefix immediately identifies this as a marine-grade cable, indicating that every aspect of its construction has been optimized for maritime applications. This designation is not merely marketing terminology but represents adherence to specific international standards that govern marine electrical installations, including the rigorous requirements of the International Electrotechnical Commission (IEC) standards for shipboard electrical systems.

The "2X" designation refers to the cross-linked polyethylene (XLPE) insulation system, where the "2" indicates a specific grade of XLPE compound optimized for marine use. Cross-linking is a chemical process that creates molecular bridges between polymer chains, dramatically improving the material's resistance to heat, chemicals, and mechanical stress. This process transforms ordinary polyethylene into a thermosetting material that maintains its properties even at elevated temperatures, making it ideal for marine applications where ambient temperatures can vary dramatically and electrical loads may create significant conductor heating.

The "CH" component indicates the presence of copper braided shielding, a critical feature for electromagnetic compatibility (EMC) in modern marine installations. As ships and offshore platforms become increasingly dependent on sophisticated electronic systems for navigation, communication, and control, the need for effective electromagnetic interference (EMI) suppression becomes paramount. The copper braided shield acts as a Faraday cage around the conductors, preventing electromagnetic radiation from escaping the cable and protecting sensitive equipment from interference while simultaneously providing a path for fault currents.

The "FFR" designation represents perhaps the most critical aspect of this cable's design: Fire Retardant and Fire Resistant properties. This dual designation indicates that the cable not only resists the spread of flames along its length but also maintains electrical circuit integrity during fire conditions. This distinction is crucial in marine safety applications, where emergency systems must continue to operate even when fire threatens the vessel or platform.

The "(NOFI)" notation indicates the presence of a separating foil layer, a seemingly simple addition that serves multiple important functions. This foil facilitates cable stripping during installation, protects internal components from mechanical damage, and ensures consistent cable geometry throughout its length. While this may seem like a minor detail, consistent geometry is essential for maintaining the cable's electrical characteristics and ensuring reliable performance over its operational lifetime.

Finally, the "0.6/1 kV" rating defines the cable's voltage classification, indicating it is designed for low-voltage power distribution systems with a nominal voltage of 600 volts to earth and 1000 volts between phases. This voltage class is particularly common in marine applications for general power distribution, lighting circuits, and auxiliary systems, making this cable a versatile solution for a wide range of shipboard electrical needs.

Engineering Excellence: The Sophisticated Construction of M2XCH-FFR Cables

The construction of M2XCH-FFR cables represents a masterclass in electrical engineering, where each component is carefully selected and precisely manufactured to contribute to the overall performance and safety of the complete assembly. Understanding this construction helps illuminate why these cables can perform reliably in conditions that would quickly destroy conventional electrical conductors.

At the heart of every M2XCH-FFR cable lies the conductor itself, constructed from electrolytic copper wire that meets the stringent requirements of IEC 60228 Class 5. This specification ensures that the copper used is of the highest purity, with minimal impurities that could compromise conductivity or create weak points susceptible to corrosion. The conductors are stranded and annealed, a process that involves heating the copper to relieve internal stresses and improve flexibility. This stranding and annealing process is crucial for marine applications, where cables must often be routed through tight spaces and around sharp corners during installation.

The stranding pattern itself is carefully engineered to optimize both electrical performance and mechanical flexibility. Unlike solid conductors, which would be prone to fatigue failure under the constant motion experienced in marine environments, stranded conductors distribute mechanical stress across multiple individual wires, dramatically improving fatigue resistance. The Class 5 designation specifically indicates a fine stranding pattern that maximizes flexibility while maintaining excellent electrical characteristics.

For applications where enhanced corrosion resistance is required, these conductors can be manufactured with tinned copper wire, where a thin layer of tin is applied to each copper strand. This tin coating provides additional protection against corrosion, particularly important in marine environments where salt spray and high humidity can accelerate oxidation processes. The decision to use tinned copper represents a careful balance between cost and performance, as the tin coating adds expense but provides significant longevity benefits in harsh marine conditions.

Surrounding the conductor is a fire barrier constructed from mica tape, a critical component that sets marine fire-resistant cables apart from conventional electrical conductors. Mica is a naturally occurring mineral with extraordinary heat resistance properties, capable of maintaining its structural integrity at temperatures exceeding 1000°C. When applied as a tape around the conductor, mica creates a protective barrier that prevents the insulation from burning away during a fire, maintaining electrical continuity even under extreme conditions.

This fire barrier is not merely a safety feature but an essential component for maintaining operational capability during emergencies. In marine fire scenarios, emergency systems such as fire pumps, emergency lighting, public address systems, and navigation equipment must continue to operate to ensure passenger and crew safety. The mica tape fire barrier ensures that these critical circuits remain functional even when fire threatens the cable installation, providing the time necessary for emergency response and evacuation procedures.

The primary insulation system utilizes cross-linked polyethylene (XLPE), a material that represents decades of polymer science advancement. Unlike thermoplastic materials that soften when heated, XLPE is a thermosetting material that maintains its properties across a wide temperature range. The cross-linking process creates a three-dimensional molecular structure that provides exceptional resistance to heat, chemicals, and mechanical stress while maintaining excellent electrical insulation properties.

XLPE insulation offers several advantages over alternative materials commonly used in marine applications. Its low dielectric constant ensures minimal power losses, while its high breakdown voltage provides excellent safety margins. The material's resistance to water absorption is particularly important in marine environments, where moisture ingress can dramatically reduce insulation effectiveness and create safety hazards. Additionally, XLPE's resistance to ozone degradation ensures long-term reliability in environments where electrical equipment may generate ozone as a byproduct of operation.

The separating foil layer, indicated by the "NOFI" designation, serves multiple functions that contribute to both installation efficiency and long-term reliability. This thin metallic foil layer facilitates cable stripping by providing a clean separation point between the outer sheath and internal components, reducing installation time and minimizing the risk of damage to internal components during termination. The foil also provides additional protection for internal components and helps maintain consistent cable geometry throughout manufacturing and installation processes.

The electromagnetic shielding system consists of an electrolytic copper braided screen that provides a minimum of 90% coverage around the cable core. This braiding pattern is carefully engineered to provide effective electromagnetic interference (EMI) suppression while maintaining flexibility and durability. The 90% coverage requirement ensures that electromagnetic fields generated by the power conductors are effectively contained, preventing interference with sensitive electronic equipment while simultaneously providing protection against external electromagnetic disturbances.

In marine environments, electromagnetic compatibility has become increasingly critical as ships and offshore platforms rely more heavily on sophisticated electronic systems for navigation, communication, and control. GPS systems, radar equipment, communication radios, and computerized control systems all require protection from electromagnetic interference to function reliably. The copper braided shield serves as a Faraday cage, containing electromagnetic fields within the cable structure and preventing them from interfering with nearby sensitive equipment.

For applications requiring enhanced corrosion resistance, the copper braided shield can be manufactured using tinned copper wire, providing additional protection against the corrosive effects of marine environments. This tinning process involves applying a thin layer of tin to each copper wire before braiding, creating a protective barrier that significantly extends the shield's operational lifetime in harsh conditions.

The outer sheath represents the cable's first line of defense against environmental hazards, constructed from a halogen-free, flame retardant, and fire-resistant thermoplastic polyolefin compound designated as SHF 1. This material designation represents a careful balance of multiple performance requirements, each critical for safe operation in marine environments.

The halogen-free designation, often abbreviated as LSOH (Low Smoke, Zero Halogen) or LSZH (Low Smoke, Zero Halogen), is particularly important for marine applications where fire safety is paramount. Traditional cable sheathing materials often contain halogenated compounds that, while providing excellent flame resistance, generate toxic and corrosive gases when burned. In the confined spaces typical of marine installations, these gases can quickly reach lethal concentrations, making evacuation difficult and potentially causing more casualties than the fire itself.

Halogen-free compounds eliminate this hazard by using alternative flame retardant systems that do not produce toxic gases during combustion. Additionally, these materials generate significantly less smoke when burned, maintaining visibility for evacuation and firefighting operations. The reduced smoke generation also minimizes damage to sensitive electronic equipment, as smoke particles can settle on circuit boards and connectors, causing failures long after the fire is extinguished.

The flame retardant properties of the outer sheath prevent fire from propagating along the cable's length, an essential safety feature in marine installations where cables often run in bundles through confined spaces. The fire-resistant properties ensure that the cable maintains its electrical integrity during fire conditions, allowing critical systems to continue operating when needed most.

Rigorous Standards: Ensuring Uncompromising Safety and Performance

The development and manufacture of M2XCH-FFR cables is governed by a comprehensive framework of international standards that ensure consistent quality, safety, and performance across all applications. These standards represent the collective wisdom of electrical engineers, safety professionals, and regulatory bodies worldwide, developed through decades of research, testing, and real-world experience in marine electrical installations.

The foundational construction and materials standards for these cables are established by IEC 60092/353 and IEC 60092/350-360, which specifically address electrical installations in ships and offshore platforms. These standards go far beyond simple electrical performance requirements, encompassing material selection, construction techniques, testing procedures, and installation practices that ensure reliable operation in marine environments. Compliance with these standards is not optional but represents a fundamental requirement for any cable intended for marine use.

The fire performance standards represent perhaps the most critical aspect of M2XCH-FFR cable certification, as fire safety is paramount in marine applications where escape routes are limited and firefighting resources may be constrained. The flame retardant testing requirements include IEC 60332/1-2 for single insulated wires or cables and IEC 60332/3-22 Category A for bunched cables, each addressing different aspects of fire propagation prevention.

The IEC 60332/1-2 standard evaluates the flame retardant properties of individual cables by subjecting them to a controlled flame source and measuring their ability to self-extinguish. This test simulates the conditions that might occur if a cable were exposed to a small ignition source, such as an electrical arc or hot surface. The cable must demonstrate that it will not sustain combustion after the ignition source is removed, preventing the spread of fire along the cable's length.

The IEC 60332/3-22 Category A standard addresses the more challenging scenario of cable bundles, where multiple cables are installed together in cable trays or conduits. This configuration presents additional fire hazards because the close proximity of multiple cables can create conditions that promote flame propagation even if individual cables meet single-cable flame retardant requirements. The Category A classification represents the highest level of flame retardant performance, ensuring that even densely packed cable installations will not propagate fire.

The fire resistance requirements, addressed by IEC 60331/21 and IEC 60331/1-2, focus on maintaining electrical circuit integrity during fire conditions. These standards recognize that preventing fire spread is only part of the safety equation; critical circuits must continue to operate during fire emergencies to ensure passenger and crew safety. The IEC 60331/21 standard is particularly rigorous, requiring cables to maintain electrical continuity while subjected to fire conditions combined with mechanical shock and water spray, simulating the realistic conditions that might occur during firefighting operations.

This testing protocol acknowledges that marine fire scenarios involve more than just heat exposure. Firefighting operations typically involve high-pressure water sprays that can create significant mechanical forces on cable installations, while the ship's motion or platform vibration can create additional mechanical stresses. The combination of these factors creates a far more challenging environment than simple heat exposure alone, requiring cables to demonstrate exceptional robustness to earn fire resistance certification.

Environmental safety standards address the critical issue of toxic gas generation during fire conditions, a particular concern in marine environments where ventilation may be limited and evacuation routes constrained. The IEC 60754/1-2 standard measures the acidity of gases generated during combustion, ensuring that cable materials do not produce corrosive gases that could harm personnel or damage sensitive equipment. This standard is particularly important for protecting electronic equipment, as acidic gases can cause rapid corrosion of metal components and circuit boards.

The smoke emission characteristics are evaluated according to IEC 61034/1-2, which measures the optical density of smoke generated during cable combustion. This standard recognizes that smoke generation can be as dangerous as fire itself, particularly in confined spaces where visibility is critical for evacuation and firefighting operations. Cables meeting this standard generate minimal smoke when burned, maintaining visibility for emergency operations and reducing the risk of smoke inhalation injuries.

Ozone resistance, evaluated according to IEC 60811/403, addresses a subtle but important degradation mechanism that can affect cable performance over time. Ozone is generated naturally in marine environments through the interaction of sunlight with ocean spray, and can also be produced by electrical equipment as a byproduct of operation. Over time, ozone exposure can cause cracking and degradation of polymer materials, potentially leading to insulation failure and safety hazards. Cables meeting this standard demonstrate resistance to ozone-induced degradation, ensuring long-term reliability in marine environments.

The electrical and mechanical characteristics of M2XCH-FFR cables are designed to meet the demanding requirements of marine installations. The working temperature range of -40°C to +90°C accommodates the extreme conditions encountered in marine environments, from arctic shipping routes to tropical offshore installations. This wide temperature range ensures reliable operation regardless of geographic location or seasonal variations, critical for vessels and platforms that may operate in diverse climates.

The minimum bending radius specification of 6 times the cable diameter (6xD) for fixed installations represents a careful balance between installation flexibility and long-term reliability. This specification ensures that cables can be routed through the tight spaces common in marine installations while maintaining their electrical and mechanical properties. Excessive bending can damage conductor strands, compromise insulation integrity, and reduce the effectiveness of electromagnetic shielding, making adherence to minimum bending radius requirements essential for reliable operation.

The rated voltage of 0.6/1 kV with a test voltage of 3.5 kV provides substantial safety margins for low-voltage power distribution applications. The test voltage, which is significantly higher than the rated voltage, ensures that the cable insulation can withstand voltage surges and transients that commonly occur in marine electrical systems due to generator switching, motor starting, and other operational events.

Critical Applications: Where M2XCH-FFR Cables Excel in Marine Environments

The versatility and robust design of M2XCH-FFR cables make them ideal for a wide range of marine applications, each presenting unique challenges that demonstrate the importance of specialized cable technology. Understanding these applications helps illustrate why conventional cables are inadequate for marine use and why the advanced features of M2XCH-FFR cables are essential for safe and reliable operation.

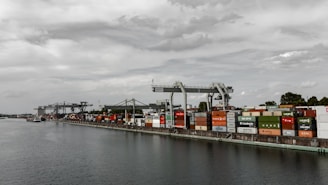

Port and terminal installations represent one of the most demanding applications for marine cables, where the infrastructure must support massive container cranes, extensive lighting systems, sophisticated security networks, and critical shore-to-ship power connections. Container ports operate around the clock, with enormous cranes handling thousands of containers daily, each movement requiring precise electrical control and substantial power. The cables serving these systems must withstand constant vibration from crane operations, exposure to salt spray from nearby water, and the electromagnetic interference generated by the large electrical motors and control systems.

Shore-to-ship power connections, also known as cold ironing, represent a particularly challenging application where cables must deliver substantial power from shore-based electrical systems to docked vessels. These connections allow ships to shut down their auxiliary generators while in port, reducing emissions and noise pollution. However, the electrical interface between shore and ship presents unique challenges, as the cables must accommodate the movement of the ship due to tides and wind while maintaining reliable electrical connection. The fire resistance properties of M2XCH-FFR cables are particularly important in these applications, as any fire in the shore-to-ship connection could potentially spread to either the port facility or the vessel.

Shipbuilding and repair facilities present another demanding application environment, where M2XCH-FFR cables must serve both permanent installations and temporary construction power needs. During ship construction, electrical systems must be installed and tested while the vessel is still under construction, often in environments with significant mechanical vibration from construction activities, welding operations, and material handling equipment. The cables must maintain their electrical integrity despite exposure to construction debris, welding spatter, and the mechanical stresses associated with shipyard operations.

The repair environment presents additional challenges, as existing electrical systems may need to be modified or extended while the ship remains in service. This requires cables that can be installed in confined spaces, often in close proximity to hot surfaces from engines and steam systems. The fire resistance properties of M2XCH-FFR cables are essential in these applications, as any electrical failure during repair operations could result in fire spreading throughout the vessel.

Offshore platforms for oil and gas extraction represent perhaps the most demanding application for marine cables, where the consequences of electrical failure can be catastrophic. These installations must operate reliably in some of the world's harshest environments, with constant exposure to salt spray, extreme weather conditions, and the mechanical stresses associated with platform movement in heavy seas. The electrical systems on these platforms support critical safety systems including fire detection and suppression, emergency lighting, communication systems, and process control equipment that must continue to operate during emergency conditions.

The electromagnetic compatibility requirements are particularly stringent on offshore platforms, where sophisticated control systems must operate reliably despite the presence of large electrical motors, generators, and radio frequency equipment. The copper braided shielding in M2XCH-FFR cables provides essential protection against electromagnetic interference, ensuring that sensitive instrumentation and control systems can operate reliably in this electromagnetically challenging environment.

Wind farms represent a growing application for marine cables, where electrical systems must operate reliably in offshore environments while supporting the generation and transmission of renewable energy. Offshore wind installations present unique challenges, as the electrical systems must withstand the mechanical stresses associated with wind turbine operation while maintaining reliable electrical connection to shore-based electrical grids. The cables must also resist the corrosive effects of salt spray and sea water, making the advanced materials and construction techniques used in M2XCH-FFR cables essential for long-term reliability.

Marine vessel applications encompass a broad range of installations, from commercial cargo ships and passenger ferries to naval vessels and offshore supply boats. Each type of vessel presents unique electrical requirements, but all share common challenges related to the marine environment, confined spaces, and the critical importance of electrical system reliability for safety and operational capability.

Commercial vessels rely on electrical systems for navigation, communication, cargo handling, and passenger comfort systems. The failure of any of these systems can result in significant operational disruptions, potential safety hazards, and substantial economic losses. The fire resistance properties of M2XCH-FFR cables are particularly important in passenger vessel applications, where the safety of hundreds or thousands of passengers depends on the reliable operation of emergency systems during fire conditions.

Naval vessels present even more demanding requirements, as electrical systems must continue to operate reliably during combat conditions, where the vessel may be subjected to shock, vibration, and potential battle damage. The electromagnetic compatibility requirements are particularly stringent, as naval vessels typically carry sophisticated electronic warfare systems, radar equipment, and communication systems that must operate reliably despite the presence of high-power electrical systems and potential electromagnetic interference from enemy sources.

The specific scenarios requiring fire resistance highlight the critical importance of M2XCH-FFR cables in marine safety applications. Emergency power systems must continue to operate during fire conditions to ensure that critical safety systems remain functional when needed most. Fire alarm systems must maintain their ability to detect and report fire conditions even when the fire threatens the cables themselves, requiring exceptional fire resistance properties to ensure reliable operation.

Public address systems play a crucial role in emergency response, providing the means to coordinate evacuation procedures and communicate critical safety information to passengers and crew. The failure of these systems during an emergency could result in panic, confusion, and potentially tragic consequences. The fire resistance properties of M2XCH-FFR cables ensure that these critical communication systems remain operational even when fire threatens the vessel or platform.

Navigation lighting systems must continue to operate during fire conditions to ensure that other vessels can identify and avoid the affected vessel, preventing potential collisions that could compound the emergency situation. The reliable operation of these systems depends on cables that can maintain electrical continuity even under extreme fire conditions, making the fire resistance properties of M2XCH-FFR cables essential for maritime safety.

Conclusion: The Foundation of Maritime Safety and Operational Excellence

The M2XCH-FFR (NOFI) 0.6/1 kV cable represents far more than a simple electrical conductor; it embodies the culmination of decades of engineering innovation, materials science advancement, and safety-focused design philosophy. These cables serve as the invisible nervous system of modern maritime operations, carrying the electrical power that enables everything from navigation and communication to emergency response and life safety systems.

The sophisticated construction of these cables, with their fire-resistant mica tape barriers, cross-linked polyethylene insulation, electromagnetic shielding, and halogen-free outer sheaths, demonstrates the extraordinary engineering challenges involved in creating electrical infrastructure for marine environments. Each component has been carefully selected and precisely manufactured to contribute to the overall safety and reliability of the complete system, recognizing that in marine applications, electrical failure can have consequences far beyond simple operational disruption.

The comprehensive testing and certification standards that govern these cables reflect the maritime industry's commitment to safety and reliability. The rigorous fire performance requirements, environmental safety standards, and electromagnetic compatibility specifications ensure that these cables can perform reliably even under the most challenging conditions. This commitment to excellence is not merely a technical achievement but a moral imperative, as the lives of passengers, crew, and offshore workers depend on the reliable operation of electrical systems in emergency situations.

The diverse applications of M2XCH-FFR cables, from port facilities and shipyards to offshore platforms and marine vessels, demonstrate the versatility and robustness of these specialized electrical conductors. In each application, the cables must meet unique challenges while maintaining the same high standards of safety and reliability that have made them the choice of maritime professionals worldwide.

As the maritime industry continues to evolve, with increasing automation, more sophisticated electronic systems, and growing emphasis on environmental protection, the importance of reliable electrical infrastructure becomes ever more critical. The M2XCH-FFR (NOFI) 0.6/1 kV cable stands ready to meet these challenges, providing the safe, reliable, and environmentally responsible electrical infrastructure that modern maritime operations demand.

In the vast expanse of our oceans, where human ingenuity meets nature's most powerful forces, these remarkable cables serve as the foundation of safety and operational excellence. They represent humanity's commitment to conquering the challenges of the marine environment while maintaining the highest standards of safety and environmental responsibility. As we continue to push the boundaries of maritime technology and explore new frontiers in offshore operations, the M2XCH-FFR cable will continue to serve as the reliable foundation upon which these achievements are built, ensuring that the electrical systems that power our maritime future remain safe, reliable, and ready to meet whatever challenges the ocean may present.
