Powering Maritime Operations Safely: The Critical Role of CJPF96/SC 0.6/1kV Shipboard Power Cables in Marine Environments

Introduction

The maritime industry operates in some of the most challenging electrical environments on Earth, where saltwater corrosion, extreme weather conditions, and confined spaces create unique safety and performance demands. Within this context, electrical infrastructure serves as the nervous system of modern maritime operations, powering everything from navigation systems and cargo handling equipment to life safety systems and crew accommodations. The consequences of electrical failure in maritime environments extend far beyond simple inconvenience, potentially resulting in catastrophic fires, environmental disasters, or loss of life.

Understanding this critical relationship between electrical reliability and maritime safety, engineers have developed specialized cable technologies that can withstand the unique challenges of shipboard and port environments. Among these innovations, the CJPF96/SC 0.6/1kV marine shipboard power cable stands out as a purpose-engineered solution specifically designed for harsh offshore applications, port terminals, and vessel operations where conventional electrical cables would fail to provide adequate safety margins and operational reliability.

This specialized cable represents a convergence of advanced materials science, stringent international safety standards, and decades of maritime engineering experience. Unlike standard industrial cables, the CJPF96/SC incorporates multiple layers of protection against fire, mechanical damage, and environmental degradation, making it an essential component in modern maritime electrical systems where failure is not an option.

Understanding the CJPF96/SC Marine Shipboard Power Cable

Construction and Design Features

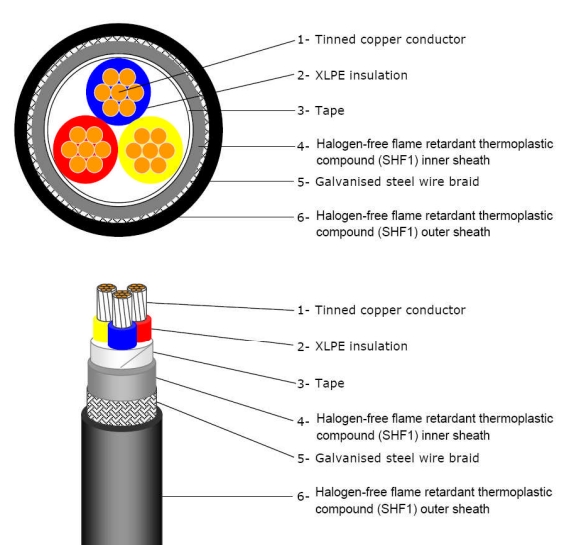

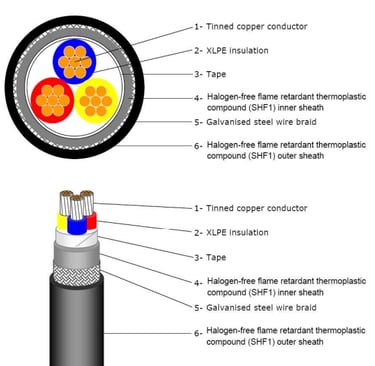

The CJPF96/SC cable's effectiveness stems from its sophisticated multi-layer construction, where each component serves a specific protective function while contributing to the overall system's reliability. This design philosophy reflects the maritime industry's understanding that electrical cables in marine environments must simultaneously address multiple failure modes, from fire propagation to mechanical damage and corrosion.

Conductor Technology and Corrosion Resistance

At the heart of the CJPF96/SC cable lies a tinned Class 2 stranded copper conductor manufactured according to IEC 60228 specifications. This conductor design represents a careful balance between electrical performance and environmental durability. The stranding configuration provides flexibility necessary for installation in confined shipboard spaces while maintaining low electrical resistance for efficient power transmission.

The tinning process involves applying a thin layer of tin to the copper strands, creating a protective barrier against the corrosive effects of saltwater and humid marine atmospheres. This tin coating prevents the formation of copper oxides that would otherwise increase electrical resistance and generate heat under load conditions. The Class 2 stranding specification ensures optimal flexibility for marine applications where cables may experience repeated flexing during vessel operations or port handling activities.

Advanced Insulation Technology

The cable employs cross-linked polyethylene (XLPE) insulation conforming to IEC 60092-351 standards, representing a significant advancement over traditional insulation materials. XLPE insulation undergoes a cross-linking process that creates three-dimensional molecular bonds, dramatically improving thermal stability and electrical performance compared to conventional thermoplastic insulations.

This cross-linked structure enables the cable to operate at higher temperatures without degradation, providing crucial safety margins during overload conditions or in high-temperature engine room environments. The XLPE insulation also exhibits superior dielectric properties, reducing power losses and improving overall system efficiency. Additionally, the material's resistance to environmental stress cracking makes it particularly suitable for maritime applications where cables may be exposed to various chemicals and temperature fluctuations.

Fire Safety Through Advanced Sheathing

The CJPF96/SC incorporates dual layers of halogen-free flame retardant thermoplastic compound (SHF1) serving as both inner and outer sheaths. This design choice reflects the maritime industry's emphasis on fire safety, particularly in enclosed spaces where toxic gas emissions can quickly become life-threatening.

The halogen-free formulation eliminates the production of corrosive and toxic gases during combustion, addressing two critical safety concerns in maritime environments. Traditional halogenated flame retardants, while effective at suppressing flames, produce hydrogen chloride and other toxic gases that can incapacitate crew members and damage electronic equipment. The SHF1 compound provides equivalent flame retardancy while maintaining breathable atmospheres during emergency situations.

Mechanical Protection and Structural Integrity

Between the inner and outer sheaths, the cable features galvanized steel wire braid (GSWB) armor that provides exceptional mechanical protection against impact, abrasion, and crushing forces common in maritime operations. This armor layer addresses the dynamic mechanical stresses encountered in shipboard environments, where cables may be subject to vibrations from machinery, movement from vessel motion, and potential impact from cargo handling operations.

The galvanized steel construction provides corrosion resistance while maintaining the flexibility necessary for cable installation and operation. The braid configuration, as opposed to solid armor, allows for better flexibility while distributing mechanical loads across the cable's surface. This design prevents stress concentration points that could lead to conductor damage or insulation failure under repeated flexing conditions.

Compliance with International Standards

The CJPF96/SC cable's design reflects comprehensive compliance with multiple international standards that govern marine electrical systems. This standards compliance ensures not only technical performance but also regulatory acceptance across global maritime markets.

Fire Performance and Flame Retardancy

The cable meets IEC 60332-3-22 Category A flame retardant requirements, representing one of the most stringent standards for flame propagation resistance. This standard involves testing cable bundles under controlled combustion conditions to verify that flames do not spread beyond specified limits. The Category A classification indicates superior performance in preventing fire propagation, crucial for maintaining escape routes and preventing rapid fire spread in confined shipboard spaces.

The flame retardant performance works through multiple mechanisms. The SHF1 compound contains flame retardant additives that release inert gases during heating, diluting combustible gases and reducing flame intensity. Additionally, the material forms a protective char layer that insulates underlying materials from heat exposure, further slowing flame propagation.

Smoke and Toxicity Management

Compliance with IEC 61034 low smoke density standards ensures that the cable produces minimal smoke during combustion, maintaining visibility for emergency evacuation and firefighting operations. This characteristic proves particularly critical in enclosed shipboard spaces where smoke accumulation can quickly reduce visibility to dangerous levels.

The cable also meets IEC 60754 standards for reduced toxic gas emission, addressing concerns about the health effects of combustion products. This standard limits the production of corrosive and toxic gases that can incapacitate personnel and damage sensitive electronic equipment during fire incidents.

Marine Construction Standards

The cable's construction adheres to IEC 60092-350, 376, and 359 standards that specifically govern marine electrical cable design and performance. These standards address unique maritime requirements including resistance to vibration, flexibility under low temperatures, and performance in high-humidity environments. Compliance with these standards ensures that the cable can reliably operate throughout its design life in maritime conditions.

Key Benefits for Maritime Ports and Offshore Platforms

Enhanced Fire Safety in Critical Environments

The maritime environment presents unique fire safety challenges that distinguish it from terrestrial applications. Ships and offshore platforms operate as isolated systems where fire suppression resources are limited, and evacuation options may be severely constrained. In this context, the CJPF96/SC cable's halogen-free and flame retardant design provides multiple layers of fire safety protection.

The halogen-free formulation eliminates the production of hydrogen halide gases during combustion, which would otherwise create corrosive conditions damaging to electronic equipment and respiratory systems. This characteristic proves particularly valuable in engine rooms and control spaces where sensitive instrumentation must continue operating during emergency situations. The flame retardant properties work through endothermic decomposition processes that absorb heat energy and release water vapor, effectively cooling the combustion zone and preventing flame spread.

Furthermore, the low smoke density characteristics maintain visibility for emergency response activities, while the reduced toxic gas emission protects personnel health during fire incidents. These combined safety features create a comprehensive fire safety system that significantly reduces the risk of fire-related casualties and equipment damage in maritime environments.

Superior Mechanical Durability and Longevity

Maritime operations subject electrical cables to mechanical stresses that rarely occur in fixed installations. The constant motion of vessels, vibrations from machinery, and physical impacts from cargo handling operations create demanding conditions that require robust cable construction.

The galvanized steel wire braid armor in the CJPF96/SC cable provides exceptional resistance to crushing forces, impact damage, and abrasion. This protection proves essential in applications such as crane power feeds, where cables may be dragged across deck surfaces or subjected to pinch points during equipment operation. The armor's flexibility allows for normal cable installation and operation while providing protection against mechanical damage that could compromise electrical safety.

The cable's construction also addresses fatigue resistance, a critical consideration in maritime applications where cables experience repeated flexing cycles due to vessel motion and equipment operation. The stranded conductor design and flexible sheathing materials work together to prevent conductor breakage and insulation cracking under cyclic loading conditions.

Corrosion Resistance in Harsh Marine Atmospheres

The marine environment presents severe corrosion challenges through the combination of saltwater exposure, high humidity, and temperature fluctuations. Standard electrical cables often fail prematurely in these conditions due to conductor oxidation and sheath degradation.

The CJPF96/SC cable addresses these challenges through multiple design features. The tinned copper conductor prevents oxidation that would increase electrical resistance and generate heat under load conditions. The XLPE insulation provides excellent moisture resistance, preventing water ingress that could lead to insulation failure or ground faults. The robust outer sheath protects against UV radiation, ozone, and chemical exposure that could degrade cable materials over time.

These corrosion resistance features translate directly into extended service life and reduced maintenance requirements, critical factors in maritime operations where cable replacement may require vessel dry-docking or platform shutdown.

Electrical Reliability Under Demanding Conditions

The CJPF96/SC cable's XLPE insulation provides superior electrical performance compared to traditional insulation materials. The cross-linked molecular structure creates excellent dielectric properties that maintain stable electrical characteristics across wide temperature ranges and varying humidity conditions.

This electrical stability proves crucial in maritime power distribution systems where load conditions may vary significantly due to operational requirements. The cable's ability to maintain consistent electrical properties under varying environmental conditions ensures reliable power delivery to critical systems including navigation equipment, safety systems, and cargo handling machinery.

The cable's voltage rating of 0.6/1kV makes it suitable for low and medium voltage distribution applications common in maritime installations. This voltage rating provides adequate safety margins for typical shipboard power distribution while maintaining cost-effectiveness compared to higher voltage alternatives.

Typical Applications in Maritime Terminals and Offshore Platforms

Shipboard Power Distribution Systems

Modern vessels require sophisticated electrical distribution systems to support navigation, propulsion, accommodation, and cargo handling systems. The CJPF96/SC cable serves as the backbone of these distribution systems, providing reliable power transmission throughout the vessel's electrical infrastructure.

In shipboard lighting systems, the cable's flame retardant properties provide crucial safety margins in accommodation spaces and working areas where personnel safety depends on maintaining emergency lighting during fire incidents. The cable's mechanical protection ensures continued operation despite vibrations from the vessel's propulsion system and sea conditions.

HVAC systems on ships require robust electrical supplies to maintain habitability and protect sensitive equipment from temperature and humidity extremes. The CJPF96/SC cable's environmental resistance ensures reliable operation of climate control systems even in the challenging conditions of engine rooms and machinery spaces.

Control panel installations benefit from the cable's electromagnetic compatibility characteristics and stable electrical properties. The cable's construction minimizes electrical noise and interference that could affect sensitive control systems, while its mechanical protection prevents damage from maintenance activities in confined spaces.

Port Terminal and Cargo Handling Applications

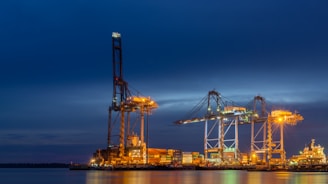

Maritime ports represent complex electrical environments where heavy machinery operates in close proximity to saltwater and corrosive atmospheres. Port cranes, container handling systems, and dockside facilities require electrical cables that can withstand both mechanical abuse and environmental exposure.

The CJPF96/SC cable's armor protection proves essential in crane applications where cables may be subjected to dragging forces, pinch points, and potential impact from cargo operations. The cable's flexibility allows for routing through crane structures while providing protection against mechanical damage that could result in dangerous electrical faults.

Container handling systems require reliable power supplies to maintain operational efficiency and safety. The cable's corrosion resistance ensures continued operation despite exposure to saltwater spray and industrial chemicals, while its flame retardant properties provide safety margins in areas where flammable cargo may be present.

Dockside facilities, including lighting systems, power supplies for visiting vessels, and cargo handling equipment, benefit from the cable's environmental resistance and mechanical protection. The cable's ability to maintain electrical performance in outdoor marine environments reduces maintenance requirements and improves operational reliability.

Offshore Platform and Drilling Operations

Offshore drilling rigs and production platforms operate in some of the most challenging electrical environments, where failure can result in catastrophic consequences. The CJPF96/SC cable's comprehensive protection systems address the unique requirements of these applications.

In drilling operations, the cable provides power for mud pumps, rotary equipment, and control systems that must operate reliably under extreme conditions. The cable's mechanical protection withstands the vibrations and impacts associated with drilling operations, while its fire safety characteristics provide crucial protection in areas where flammable gases may be present.

Floating production, storage, and offloading (FPSO) vessels require electrical systems that can operate reliably while subjected to constant motion and environmental exposure. The CJPF96/SC cable's flexible construction accommodates the dynamic loading conditions while maintaining electrical integrity.

Support vessel operations rely on the cable for power distribution to deck equipment, accommodation systems, and cargo handling facilities. The cable's comprehensive protection systems ensure reliable operation throughout the vessel's operational envelope, from calm seas to severe weather conditions.

Why Choosing the Right Marine Power Cable Matters

Operational Risk Management

The selection of appropriate electrical cables for maritime applications directly impacts operational safety and reliability. Non-marine-rated cables, while potentially less expensive initially, create significant operational risks that can far exceed their initial cost savings.

Fire hazards represent the most serious risk associated with inappropriate cable selection. Standard industrial cables may not meet the flame retardant requirements necessary for confined maritime spaces, potentially contributing to rapid fire spread and toxic gas production. The consequences of fire incidents in maritime environments can include loss of life, environmental damage, and complete loss of vessels or facilities.

System downtime resulting from cable failures can create cascading operational problems. In port terminals, electrical failures can halt cargo operations, resulting in significant economic losses and potential safety hazards. On vessels, electrical failures can compromise navigation systems, safety equipment, and life support systems, creating dangerous situations for crew and passengers.

Maintenance and Lifecycle Considerations

The total cost of ownership for electrical cables in maritime applications extends far beyond initial purchase price. Maintenance requirements, replacement frequency, and operational disruptions associated with cable failures contribute significantly to lifecycle costs.

Marine-rated cables like the CJPF96/SC are designed to provide extended service life in harsh environments, reducing the frequency of replacement and associated maintenance costs. The cable's corrosion resistance and mechanical protection minimize degradation over time, while its compliance with international standards ensures continued regulatory acceptance throughout its service life.

Costly maintenance operations in maritime environments often require specialized equipment and skilled personnel. Reducing maintenance requirements through proper cable selection provides significant cost savings while improving operational reliability. The investment in quality marine-rated cables typically provides positive returns through reduced maintenance costs and improved system reliability.

Regulatory Compliance and Safety Standards

International maritime regulations increasingly emphasize electrical safety and environmental protection. The use of cables that do not meet appropriate marine standards can result in regulatory violations, insurance complications, and potential liability issues.

The CJPF96/SC cable's compliance with IEC marine standards ensures acceptance by regulatory authorities and classification societies worldwide. This compliance eliminates concerns about regulatory approval and provides assurance that the cable meets international safety requirements.

Insurance considerations also favor the use of properly rated marine cables. Insurance companies increasingly require compliance with appropriate safety standards as a condition of coverage, and the use of non-compliant cables can void insurance protection or result in increased premiums.

Advanced Technical Considerations and Future Developments

Electromagnetic Compatibility in Modern Marine Systems

Contemporary maritime operations increasingly rely on sophisticated electronic systems for navigation, communication, and process control. These systems create complex electromagnetic environments that require careful consideration of cable design and installation practices.

The CJPF96/SC cable's construction provides inherent electromagnetic compatibility benefits through its metallic armor layer, which acts as an electromagnetic shield. This shielding capability reduces both electromagnetic emissions from power cables and susceptibility to external electromagnetic interference, contributing to overall system reliability.

As maritime systems become more digitized and interconnected, the importance of electromagnetic compatibility will continue to grow. The cable's design anticipates these requirements by providing robust shielding performance that supports both current and future electronic systems.

Environmental Sustainability and Lifecycle Assessment

The maritime industry faces increasing pressure to reduce environmental impact and improve sustainability. Cable selection plays a role in these efforts through material choices, manufacturing processes, and end-of-life considerations.

The CJPF96/SC cable's halogen-free construction eliminates toxic gas production during combustion, reducing environmental impact during fire incidents. The cable's extended service life also reduces the frequency of replacement, minimizing waste generation and resource consumption over the system's operational life.

Future developments in marine cable technology will likely emphasize recyclability and reduced environmental impact during manufacturing. The cable's design provides a foundation for these improvements while maintaining the safety and performance characteristics essential for maritime applications.

Integration with Smart Ship Technologies

The maritime industry is experiencing a transformation toward smart ship technologies that incorporate Internet of Things (IoT) sensors, artificial intelligence, and advanced data analytics. These technologies create new requirements for electrical infrastructure that must support both traditional power distribution and advanced communication systems.

The CJPF96/SC cable's robust construction and electromagnetic compatibility characteristics position it well for integration with smart ship systems. The cable's ability to maintain stable electrical performance under varying conditions supports the reliable operation of sensitive electronic systems essential for smart ship functionality.

Future cable designs may incorporate integrated monitoring systems that provide real-time information about cable condition and performance. These capabilities would enable predictive maintenance strategies and improve overall system reliability.

Conclusion

The CJPF96/SC 0.6/1kV marine shipboard power cable represents a sophisticated engineering solution specifically designed to address the unique challenges of maritime electrical systems. Through its comprehensive multi-layer construction, stringent standards compliance, and advanced materials technology, this cable provides the reliability, safety, and performance characteristics essential for modern maritime operations.

The cable's halogen-free flame retardant design addresses critical fire safety requirements in confined maritime spaces, while its galvanized steel wire braid armor provides exceptional mechanical protection against the dynamic stresses of shipboard and port terminal environments. The tinned copper conductor and XLPE insulation work together to ensure long-term electrical reliability despite exposure to corrosive marine atmospheres.

For maritime facility managers, marine engineers, and procurement specialists, the selection of appropriate electrical cables represents a critical decision that impacts operational safety, regulatory compliance, and long-term cost-effectiveness. The CJPF96/SC cable's comprehensive protection systems and international standards compliance make it an essential component in modern maritime electrical infrastructure.

As the maritime industry continues to evolve toward more sophisticated and environmentally conscious operations, the importance of reliable electrical infrastructure will only increase. The CJPF96/SC cable's advanced design and proven performance characteristics position it as a cornerstone technology for supporting the future of maritime operations, where safety, reliability, and environmental responsibility must be seamlessly integrated into every aspect of system design and operation.

The investment in certified marine-grade cables like the CJPF96/SC represents more than a technical specification decision; it reflects a commitment to operational excellence, crew safety, and environmental stewardship that defines the highest standards of maritime professionalism. In an industry where failure is not an option, the comprehensive protection systems and proven reliability of the CJPF96/SC cable provide the foundation for safe, efficient, and sustainable maritime operations.
