Port Cable Inspection and Maintenance Guide for Singapore’s Humid and Corrosive Marine Environment

Introduction: Understanding the Critical Role of Port Cable Infrastructure

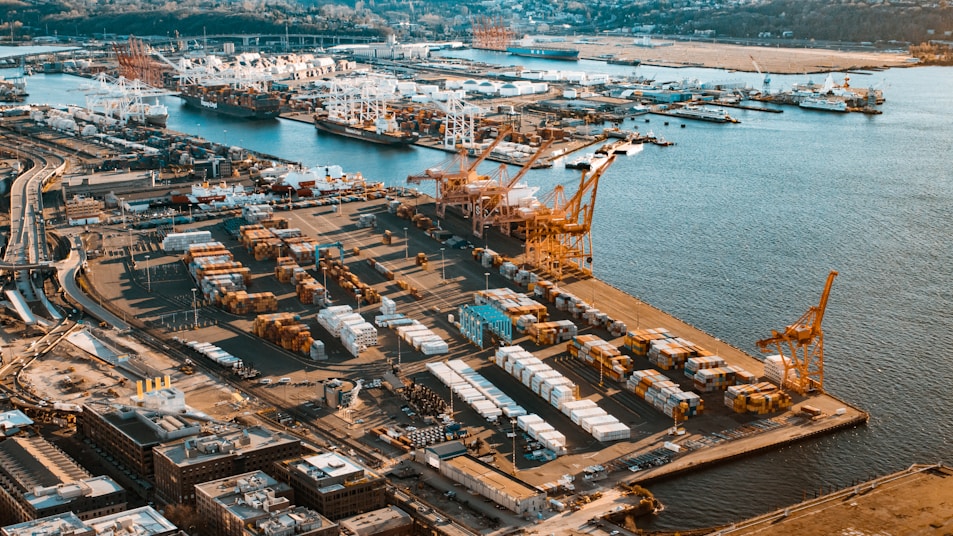

Singapore stands as one of the world's most sophisticated maritime hubs, where millions of containers pass through annually with clockwork precision. Behind this seamless operation lies an intricate network of electrical cables that serves as the nervous system of the entire port complex. These cables are far more than simple electrical conduits—they are the lifelines that power towering container cranes, illuminate vast terminal areas, control automated systems, and provide shore power to massive vessels.

The challenge of maintaining these cables in Singapore's unique environment cannot be understated. Unlike cables in controlled indoor environments, port cables must endure a relentless combination of salt spray, tropical heat, intense ultraviolet radiation, and constant mechanical stress. This creates a perfect storm of conditions that can rapidly degrade even the most robust cable systems if proper maintenance protocols are not followed.

Understanding how to properly inspect, test, and maintain these critical components requires both technical knowledge and practical experience. This comprehensive guide will walk you through the essential steps needed to ensure your port's cable infrastructure remains reliable, safe, and efficient throughout its operational life.

Chapter 1: Decoding Cable Types in Modern Port Operations

Understanding High Voltage Power Distribution Systems

High voltage power cables form the backbone of port electrical infrastructure, carrying substantial electrical loads from substations to major equipment. The most commonly encountered types include N2XSY cables, which feature copper conductors surrounded by cross-linked polyethylene (XLPE) insulation and protected by a polyvinyl chloride (PVC) outer sheath. Think of these cables as the major highways of your electrical system—they carry the heaviest traffic and require the most robust construction.

The aluminum conductor variant, known as NA2XSY, offers similar performance characteristics while providing weight advantages in certain installations. These cables typically operate at voltages ranging from 6.6kV to 22kV, making them suitable for shore-to-ship power systems that allow vessels to shut down their auxiliary engines while berthed, significantly reducing emissions and noise pollution.

Specialized Cables for Mobile Equipment

Port cranes represent some of the most demanding applications for electrical cables anywhere in the industrial world. These massive machines require cables that can withstand millions of cycles of bending, twisting, and mechanical stress while maintaining electrical integrity. Reeling cables, often constructed with polyurethane (PUR) sheaths, are specifically engineered for this purpose.

The key to understanding these cables lies in recognizing that they must balance flexibility with durability. H07BQ-F type cables, for instance, are designed with multiple thin copper strands that allow for repeated flexing without conductor fatigue. The specialized compounds used in their construction resist oils, abrasion, and the mechanical stresses associated with crane operations.

Festoon systems present their own unique challenges, as cables must travel along predetermined paths while supporting their own weight and accommodating the dynamic movements of crane operations. These systems require careful engineering to prevent cable sag, minimize wear at support points, and ensure adequate service loops at connection points.

Communication and Control Networks

Modern port operations depend heavily on sophisticated communication and control systems that coordinate everything from automated gate operations to container tracking systems. These networks rely on specialized instrumentation cables that must maintain signal integrity despite the challenging electromagnetic environment created by high-power equipment and switching operations.

RS485 twisted-pair cables form the backbone of many industrial communication networks, using differential signaling techniques that provide excellent noise immunity. The twisted-pair configuration cancels out electromagnetic interference, while shielding provides additional protection against external noise sources.

Fiber optic cables represent the premium solution for high-speed data transmission in port environments. OM3 and OM4 multimode fibers can support data rates of 10 Gbps and higher over distances typical of port installations, while remaining completely immune to electromagnetic interference.

Chapter 2: Environmental Challenges Unique to Singapore's Maritime Climate

The Salt Air Challenge: Understanding Corrosion Mechanisms

Singapore's location in the heart of Southeast Asia's maritime routes means that port facilities are constantly exposed to salt-laden air that accelerates corrosion processes. Salt acts as a catalyst that dramatically increases the conductivity of moisture, creating ideal conditions for electrochemical corrosion of metallic components.

This process is particularly problematic at cable terminations and gland entries, where different metals may be in contact, creating galvanic cells that drive corrosion. Understanding this mechanism helps explain why proper sealing and the use of appropriate materials are so critical in marine environments.

The microscopic salt particles suspended in the air can penetrate even small gaps in cable protection systems, gradually building up deposits that retain moisture and create localized corrosion cells. This is why visual inspections must pay particular attention to any signs of white crystalline deposits around cable connections and terminations.

Tropical Solar Radiation and Its Effects

Singapore's proximity to the equator means that cables exposed to direct sunlight face intense ultraviolet radiation throughout the year. UV radiation breaks down the polymer chains in cable sheathing materials, causing them to become brittle and crack over time. This process, known as photodegradation, can dramatically reduce the protective properties of cable sheaths.

The combination of high UV levels and elevated temperatures creates a particularly aggressive environment for cable materials. Standard PVC compounds may begin showing signs of degradation within just a few years of exposure, while UV-stabilized materials can maintain their properties for decades under the same conditions.

Understanding the relationship between UV exposure and cable degradation helps explain why proper material selection and installation practices are so important. Cables routed in direct sunlight should specify UV-resistant sheathing materials, while indoor installations may use more cost-effective standard compounds.

Moisture Management in a High-Humidity Environment

Singapore's tropical climate maintains relative humidity levels above 80% for much of the year, creating constant challenges for maintaining dry conditions within cable systems. High humidity alone may not cause immediate problems, but it creates conditions where even small amounts of water ingress can lead to rapid deterioration.

The phenomenon of moisture migration through cable systems is particularly important to understand. Water can enter cable systems through damaged sheathing, improperly sealed terminations, or even through the cable structure itself if hygroscopic materials are present. Once inside, capillary action can carry moisture along the cable for considerable distances, affecting sections that appear externally sound.

Temperature cycling caused by daily heating and cooling creates a pumping action that can draw moisture into cable systems through microscopic openings. This makes proper sealing even more critical in tropical climates than in more temperate regions.

Chapter 3: Establishing Effective Visual Inspection Protocols

Developing a Systematic Observation Approach

Effective cable inspection begins with establishing a systematic approach that ensures consistent coverage of all critical areas. This means developing inspection routes and checklists that guide technicians through a logical sequence of observations, ensuring that nothing is overlooked even during routine checks.

The human eye, when properly trained, can detect many cable problems before they lead to system failures. However, this requires understanding what to look for and recognizing the significance of various visual indicators. Small changes in cable appearance often provide early warning signs of developing problems.

Training inspection personnel to recognize the difference between normal aging and problematic degradation is crucial. Some discoloration and surface changes are normal consequences of environmental exposure, while others indicate serious problems requiring immediate attention.

Identifying External Damage Patterns

Cable damage often follows predictable patterns based on the stresses present in different installation environments. Understanding these patterns helps focus inspection efforts on the most likely problem areas while providing insights into the root causes of damage.

Mechanical damage typically appears as cuts, abrasions, or crushing injuries to the cable sheath. The location and pattern of this damage often reveals its cause—for example, damage concentrated at support points suggests inadequate protection or improper installation practices, while damage along the cable length may indicate contact with sharp edges or abrasive surfaces.

Bending damage presents as flattening or kinking of the cable cross-section, particularly at connection points or where cables navigate tight turns. This type of damage is particularly problematic because it can cause internal conductor damage that is not immediately visible from the outside.

Recognizing Chemical and Environmental Degradation

Chemical degradation of cable materials produces characteristic visual changes that trained observers can learn to recognize. UV degradation typically causes surface chalking, color fading, or the development of a brittle surface layer that may crack or flake away.

Chemical attack from industrial pollutants or cleaning agents may cause swelling, discoloration, or softening of cable sheathing materials. The specific appearance depends on both the cable material and the attacking chemical, but changes in surface texture or flexibility are common indicators.

Biological degradation, while less common, can occur in tropical environments where fungal growth may attack certain cable materials. This typically appears as surface discoloration combined with a soft or spongy texture in affected areas.

Chapter 4: Implementing Comprehensive Self-Testing Programs

Mastering Insulation Resistance Testing Techniques

Insulation resistance testing represents one of the most valuable diagnostic tools available for cable condition assessment. This test applies a high voltage between conductors and between conductors and ground, measuring the resistance of the insulation system. Understanding how to properly perform and interpret these tests is essential for effective cable maintenance.

The test voltage selection depends on the cable's operating voltage and construction. For low voltage cables, test voltages of 500V to 1000V are typically appropriate, while medium voltage cables may require test voltages of 2500V to 5000V. The key principle is to stress the insulation system sufficiently to reveal developing problems without causing damage to healthy cables.

Interpreting insulation resistance results requires understanding both absolute values and trends over time. While minimum acceptable values are specified in various standards, the rate of change in insulation resistance often provides more valuable information about cable condition than single-point measurements.

Temperature has a significant effect on insulation resistance measurements, with resistance typically halving for every 10°C increase in temperature. This makes it important to either normalize measurements to a standard temperature or to track temperature-corrected trends over time.

Advanced Diagnostic Techniques for Comprehensive Assessment

Thermal imaging has revolutionized cable condition monitoring by allowing technicians to identify problems while systems remain energized and under normal operating conditions. Hot spots in cable systems often indicate high resistance connections, overloaded conductors, or developing insulation problems.

Understanding thermal imaging requires recognizing that temperature differences are more significant than absolute temperatures. A connection that operates 20°C hotter than similar connections under the same load likely has a developing problem, even if the absolute temperature seems acceptable.

Partial discharge testing represents an advanced diagnostic technique that can detect developing insulation problems before they cause complete failures. This technique identifies the small electrical discharges that occur within insulation systems as they begin to deteriorate, providing early warning of problems.

Loop impedance testing ensures that protective devices will operate correctly in the event of ground faults or short circuits. This test verifies that the impedance of the fault path is low enough to allow sufficient fault current to flow to trip protective devices within the required time.

Establishing Documentation and Trending Systems

Effective cable maintenance requires systematic documentation of all test results, observations, and maintenance activities. This documentation serves multiple purposes: it provides legal records of compliance with safety standards, enables trend analysis to predict future problems, and helps optimize maintenance intervals and procedures.

Modern asset management systems can integrate test results with maintenance schedules, work orders, and inventory management to create comprehensive cable management programs. QR codes or RFID tags attached to cables enable rapid access to historical data and test results in the field.

Trend analysis of test results often reveals developing problems long before they cause system failures. A gradual decrease in insulation resistance over several years may indicate moisture ingress or chemical attack, allowing proactive replacement before failure occurs.

Chapter 5: Preventive Maintenance Strategies for Maximum Cable Life

Installation Best Practices for Long-Term Reliability

Proper cable installation forms the foundation of long-term reliability and significantly influences maintenance requirements throughout the cable's service life. Understanding installation best practices helps both in specifying new installations and in identifying problems in existing systems.

Cable routing requires careful attention to bending radii, support spacing, and protection from mechanical damage. Most cable manufacturers specify minimum bending radii based on cable diameter, typically ranging from 6 to 12 times the cable diameter depending on construction. Violating these limits can cause internal damage that may not become apparent until years later.

Support systems must accommodate thermal expansion and contraction while preventing excessive mechanical stress. This is particularly important in outdoor installations where temperature variations can cause significant changes in cable length. Proper support design includes expansion loops or flexible mounting systems that accommodate these movements.

Sealing and Environmental Protection Systems

Effective environmental protection requires understanding how moisture and contaminants enter cable systems and implementing multiple barriers to prevent ingress. The concept of defense in depth applies here—multiple independent barriers provide much better protection than relying on a single sealing system.

Cable glands represent critical points in any sealing system, as they must maintain environmental protection while allowing cable passage. Double-compression glands with integral sealing systems provide superior protection compared to single-seal designs, particularly in marine environments.

Heat-shrink sealing systems offer excellent protection for cable joints and terminations when properly installed. The key to success lies in surface preparation, proper heating techniques, and ensuring complete adhesion between the sealing material and cable sheath.

Specialized Maintenance for Mobile Equipment

Mobile equipment presents unique maintenance challenges because cables must withstand millions of movement cycles while maintaining electrical and mechanical integrity. Understanding the specific stresses involved helps develop appropriate maintenance strategies.

Reeling systems require careful attention to cable winding patterns, tension control, and mechanical alignment. Improper winding can cause cable damage through excessive bending or compression, while misalignment can cause uneven wear patterns that reduce cable life.

Festoon systems need regular inspection of support hardware, cable clamps, and conductor bars. Worn components can cause cable damage through increased mechanical stress or poor electrical contact. Lubrication of moving parts and adjustment of cable tension are critical maintenance activities.

Chapter 6: Recognizing Critical Warning Signs and Failure Modes

Understanding Electrical Failure Indicators

Electrical systems often provide early warning signs of developing cable problems through changes in normal operating characteristics. Learning to recognize and interpret these signs enables proactive maintenance that prevents costly failures and safety hazards.

Repeated tripping of protective devices without apparent cause often indicates developing insulation problems or moisture ingress. While initial responses may focus on resetting protective devices, persistent problems require thorough investigation of cable condition and environmental factors.

Voltage fluctuations or power quality problems may indicate high resistance connections or conductor deterioration. These problems often develop gradually, making them difficult to detect without systematic monitoring or testing programs.

Ground fault indicators and residual current devices provide valuable early warning systems for developing insulation problems. However, their effectiveness depends on proper installation, regular testing, and prompt investigation of any alarms or trips.

Physical Deterioration Patterns and Their Significance

Physical inspection often reveals cable problems before they cause electrical failures. Understanding the significance of various physical conditions helps prioritize maintenance activities and prevent serious problems.

Cable swelling or irregular bulging often indicates internal problems such as water ingress, chemical attack, or conductor corrosion. These conditions typically require immediate attention because they indicate fundamental problems with cable integrity.

Surface deposits or discoloration may indicate chemical attack, biological growth, or environmental contamination. While not immediately dangerous, these conditions often accelerate other degradation processes and should be addressed promptly.

Exposed conductors or armoring represent immediate safety hazards that require urgent attention. These conditions create shock and fire hazards while compromising the cable's ability to operate safely under normal conditions.

Conclusion: Building a Culture of Proactive Cable Care

The reliability of Singapore's port operations depends fundamentally on the integrity of its electrical cable infrastructure. This infrastructure faces some of the most challenging environmental conditions found anywhere in the industrial world, making proactive maintenance not just beneficial but essential for safe and reliable operations.

Effective cable maintenance requires combining technical knowledge with systematic implementation of inspection, testing, and maintenance procedures. The concepts and techniques described in this guide provide the foundation for developing comprehensive cable management programs tailored to the specific needs of port environments.

Success in cable maintenance comes from understanding that small investments in routine care and monitoring can prevent much larger costs associated with unexpected failures, emergency repairs, and operational downtime. The marine environment may be harsh, but with proper knowledge and systematic attention to detail, cable systems can provide decades of reliable service.

The key lies in developing a culture where cable care is viewed as an investment in operational reliability rather than merely a maintenance expense. When this perspective takes hold throughout an organization, the result is infrastructure that not only meets today's operational needs but provides a solid foundation for future growth and technological advancement.

Port operators who master these cable maintenance principles will find themselves with more reliable operations, lower maintenance costs, and the confidence that comes from knowing their electrical infrastructure can support their operational goals for years to come.
