Optoelectronic Composite Cable: Hybrid Solution for Power and Data in Harsh Environments
Explore optoelectronic composite cables—hybrid fiber optic and power cables engineered for efficient data and energy transmission. Learn about types, applications, technical specs, and their role in industrial, offshore, and smart infrastructure systems.
BLOGS
6/5/202511 min read
Understanding the Revolutionary Technology Behind Optoelectronic Composite Cables
In the rapidly evolving landscape of modern telecommunications and industrial infrastructure, the demand for efficient, reliable, and space-saving solutions has never been greater. Enter the optoelectronic composite cable, a groundbreaking innovation that represents the convergence of two fundamental technologies: optical fiber communication and electrical power transmission. This hybrid cable technology addresses one of the most persistent challenges in modern engineering - the need to simultaneously transmit high-speed data and deliver electrical power through a single, integrated cable system.
An optoelectronic composite cable, also known as an optical-electric composite cable, is a sophisticated piece of engineering that combines optical fibers for data transmission with copper conductors for power delivery within a single protective structure. This innovative design eliminates the traditional requirement for separate cables for communication and power, creating a streamlined solution that significantly reduces installation complexity, maintenance requirements, and overall system costs.
The importance of optoelectronic composite cables in modern applications cannot be overstated. As industries increasingly rely on remote monitoring systems, smart grid technologies, and offshore installations, the ability to provide both high-bandwidth communication and reliable power delivery through a single cable becomes not just convenient but essential. These cables serve as the nervous system and power grid combined, enabling sophisticated systems to operate in challenging environments where traditional separate cable installations would be impractical or impossible.
The fundamental structure of these cables represents a careful balance of engineering considerations. The optical fibers, typically single-mode or multimode depending on the application, handle data transmission at speeds that can reach terabits per second over long distances. Meanwhile, the copper conductors manage power delivery, with cross-sectional areas designed to handle various voltage and current requirements. The entire assembly is protected by multiple layers of shielding, armor, and waterproofing materials, creating a robust system capable of withstanding harsh environmental conditions.
Comprehensive Analysis of Structural Categories and Cable Types
Understanding the different types of optoelectronic composite cables requires examining their structural design philosophy and intended applications. The engineering approach to these cables varies significantly based on the environmental challenges they must overcome and the performance requirements they must meet.

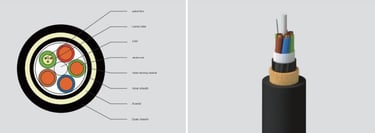

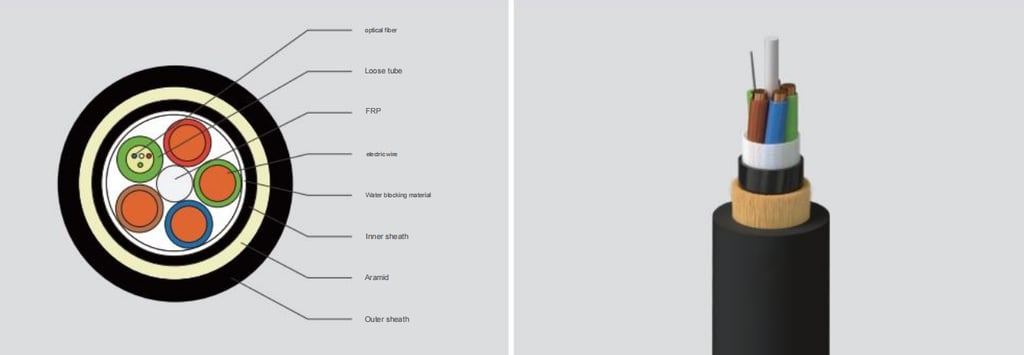

Type A: Loose Tube Structure Design
The loose tube structure represents an elegant engineering solution for applications requiring flexibility and moderate environmental protection. This design philosophy centers around protecting the optical fibers while maintaining the cable's ability to flex and bend during installation and operation. The loose tube structure begins with the optical fiber at its core, which is housed within a protective loose tube that provides a controlled environment for the delicate glass fibers.
The loose tube itself is typically constructed from specialized polymers that resist moisture infiltration while allowing for thermal expansion and contraction. This design prevents the optical fibers from experiencing mechanical stress during temperature fluctuations, which could otherwise lead to signal degradation or fiber breakage. Surrounding the loose tube, Fiber Reinforced Plastic (FRP) elements provide tensile strength without adding significant weight to the cable.
The copper wire conductors in Type A cables are strategically positioned within the cable structure to provide electrical power while maintaining electromagnetic compatibility with the optical transmission system. Water-blocking materials, often in the form of superabsorbent polymers or specialized gels, are distributed throughout the cable to prevent water migration should the outer sheath become compromised.
The inner sheath provides the first line of defense against environmental intrusion, while aramid yarn strength members offer additional tensile reinforcement. The outer sheath, typically constructed from polyethylene or polyurethane compounds, provides the final protective barrier against environmental hazards while maintaining flexibility.
Type A cables excel in applications where lightweight construction and flexibility are paramount. Their relatively simple structure makes them ideal for installations where the cable must navigate complex routing paths or where weight considerations are critical. However, their environmental protection capabilities, while adequate for many applications, may not be sufficient for the most demanding conditions.

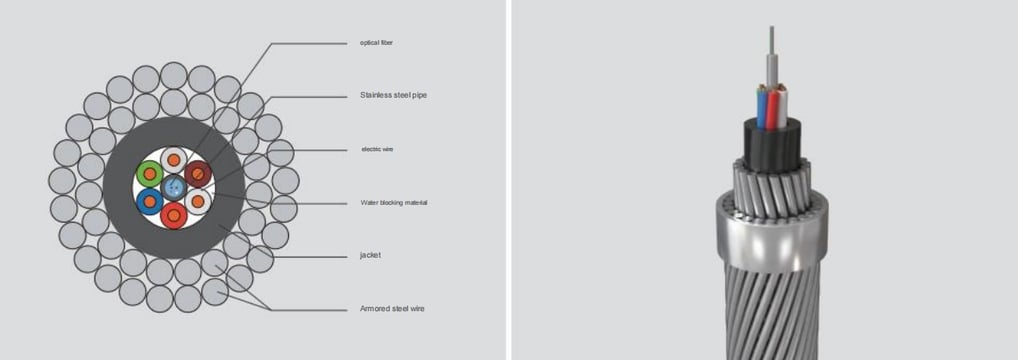

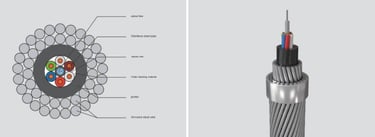

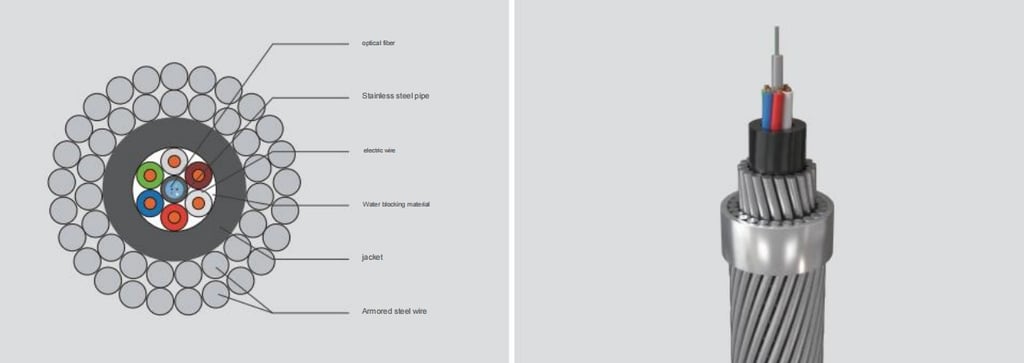

Type B: Stainless Steel Tube Armored Structure
The stainless steel tube armored structure represents the pinnacle of environmental protection and mechanical durability in optoelectronic composite cable design. This sophisticated engineering approach addresses the most challenging installation environments, where cables must withstand extreme mechanical stress, crushing forces, and corrosive conditions.
The foundation of Type B cables begins with optical fibers housed within stainless steel tubes, which provide unparalleled protection against crushing forces and mechanical damage. The stainless steel construction offers several critical advantages: it provides excellent corrosion resistance, maintains structural integrity under extreme pressure, and offers superior protection against rodent damage and accidental impact.
The copper wire conductors in Type B cables are typically larger in cross-sectional area compared to Type A cables, reflecting their intended use in applications requiring higher power transmission capabilities. The integration of these conductors within the armored structure requires careful engineering to prevent galvanic corrosion between dissimilar metals while maintaining electrical performance.
Water-blocking materials in Type B cables are often more sophisticated than those used in Type A designs, incorporating multiple barriers and redundant protection systems. The protective sheath surrounding the core elements provides additional environmental protection, while the steel wire armor offers exceptional tensile strength and crush resistance.
The engineering challenge in Type B cables lies in balancing protection with practicality. While the armored construction provides superior environmental protection, it also increases weight and reduces flexibility compared to Type A designs. This trade-off is carefully considered during the design phase to ensure the cable meets the specific requirements of its intended application.
Diverse Applications Across Modern Industries
The versatility of optoelectronic composite cables has led to their adoption across a wide range of industries and applications, each presenting unique challenges and requirements that these hybrid cables are uniquely positioned to address.
Port and Offshore Communication and Power Systems
Maritime and offshore applications represent one of the most demanding environments for cable technology. In these settings, optoelectronic composite cables must withstand constant exposure to saltwater, extreme weather conditions, and mechanical stresses from wave action and vessel movement. Port facilities require reliable communication systems for cargo handling, security monitoring, and vessel traffic management, while simultaneously needing power delivery for lighting, sensors, and control systems.
Offshore platforms, whether for oil and gas extraction or renewable energy generation, present particularly challenging installation conditions. The cables must maintain signal integrity and power delivery over long distances while submerged in seawater or exposed to harsh marine environments. The integrated design of optoelectronic composite cables eliminates the need for multiple cable runs, reducing installation complexity and maintenance requirements in these difficult-to-access locations.
Surveillance and Sensor Integration in Industrial Zones
Modern industrial facilities increasingly rely on comprehensive monitoring systems that combine high-resolution video surveillance, environmental sensors, and control systems. Traditional approaches require separate cable runs for data transmission and power delivery, creating complex installation challenges and increased vulnerability to system failures.
Optoelectronic composite cables enable the deployment of sophisticated monitoring systems with simplified installation requirements. A single cable run can support multiple high-definition cameras, environmental sensors, and control devices, significantly reducing installation time and costs. The high bandwidth capabilities of the optical fibers support real-time video transmission and data logging, while the copper conductors provide power for all connected devices.
Remote Data Transmission with Power Supply
Remote monitoring applications, such as pipeline monitoring, environmental sensing, and infrastructure surveillance, often require equipment to be installed in locations where traditional power infrastructure is unavailable. Optoelectronic composite cables enable the deployment of sophisticated monitoring systems by providing both communication capabilities and electrical power through a single cable installation.
These applications benefit from the long-distance transmission capabilities of optical fibers, which can maintain signal integrity over many kilometers without requiring signal repeaters. The integrated power delivery eliminates the need for local power generation or battery systems, reducing maintenance requirements and improving system reliability.
Smart Grid and Oilfield Monitoring
The modernization of electrical grids and the increasing complexity of oilfield operations have created demanding requirements for communication and power delivery systems. Smart grid applications require real-time data transmission for grid monitoring and control, while oilfield operations need reliable communication systems for safety monitoring, equipment control, and data logging.
Optoelectronic composite cables provide the high-bandwidth communication capabilities required for smart grid applications while delivering power for sensors, control devices, and communication equipment. In oilfield applications, these cables enable the deployment of comprehensive monitoring systems that can operate reliably in harsh environmental conditions while providing the communication capabilities necessary for safe and efficient operations.
Detailed Technical Specifications and Performance Parameters
Understanding the technical specifications of optoelectronic composite cables requires examining the various product models and their specific performance characteristics. These specifications reflect the careful engineering balance between optical performance, electrical capacity, and mechanical durability.

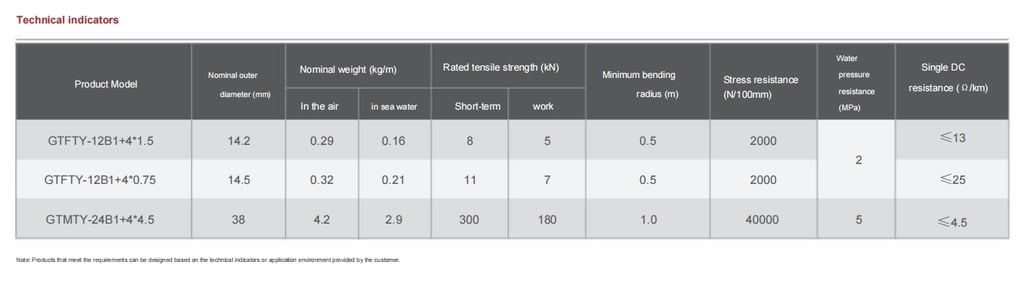

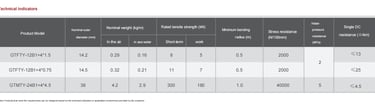

Product Model Specifications and Configurations
The GTFTY-12B1+4×1.5 model represents a balanced approach to optoelectronic integration, incorporating twelve optical fibers with four copper conductors of 1.5 square millimeters cross-sectional area. This configuration provides substantial communication bandwidth through the optical fibers while delivering moderate power capacity through the copper conductors. The twelve-fiber count enables redundant communication paths or supports multiple communication channels, ensuring system reliability and flexibility.
The GTFTY-12B1+4×0.75 model offers a more compact design with the same twelve optical fibers but smaller copper conductors of 0.75 square millimeters. This configuration is optimized for applications where power requirements are modest but communication capabilities remain critical. The reduced copper conductor size results in a lighter, more flexible cable while maintaining adequate power delivery for sensors, control devices, and communication equipment.
The GTMTY-24B1+4×4.5 model represents the high-capacity end of the product range, featuring twenty-four optical fibers and four copper conductors of 4.5 square millimeters cross-sectional area. This configuration provides extensive communication capabilities and substantial power delivery capacity, making it suitable for large-scale installations requiring high bandwidth and significant electrical power.
Physical Dimensions and Weight Characteristics
The nominal outer diameter specifications reflect the careful engineering balance between protective capabilities and installation practicality. The 14.2 millimeter diameter represents a compact design suitable for applications where space constraints are significant. The 14.5 millimeter diameter provides slightly enhanced protection while maintaining reasonable installation flexibility. The 38 millimeter diameter indicates a heavily armored design intended for the most demanding environmental conditions.
Weight specifications are critical for installation planning and structural considerations. The nominal weight in air ranges from 0.29 to 4.2 kilograms per meter, reflecting the significant variation in cable construction and armoring. The weight in seawater, ranging from 0.16 to 2.9 kilograms per meter, demonstrates the buoyancy characteristics that are critical for submarine installations.
Comprehensive Performance Analysis: Electrical and Mechanical Properties
The performance characteristics of optoelectronic composite cables reflect the sophisticated engineering required to integrate optical and electrical transmission capabilities within a single protective structure. These specifications ensure reliable operation across diverse environmental conditions and application requirements.
Tensile Strength and Mechanical Durability
The rated tensile strength specifications demonstrate the cable's ability to withstand installation stresses and operational loads. Short-term tensile strength ratings ranging from 8 to 300 kilonewtons indicate the cable's ability to handle temporary installation loads, such as those encountered during cable pulling operations or emergency loading conditions. Long-term tensile strength ratings of 5 to 180 kilonewtons reflect the cable's ability to support sustained mechanical loads over extended periods.
These tensile strength specifications are achieved through careful integration of strength members, including aramid yarn, steel wire armor, and fiber reinforced plastic elements. The engineering challenge lies in distributing mechanical loads across these strength members while protecting the delicate optical fibers and maintaining electrical performance of the copper conductors.
Flexibility and Installation Characteristics
The minimum bending radius specifications of 0.5 to 1.0 meters reflect the cable's installation flexibility while ensuring protection of the optical fibers. These specifications are critical for installation planning, as they determine the minimum radius for cable routing and the space requirements for cable management systems. The bending radius limitations are primarily driven by the need to prevent optical fiber damage, which can occur when fibers are bent beyond their critical radius.
Crush resistance specifications ranging from 2000 to 40000 newtons per 100 millimeters demonstrate the cable's ability to withstand compressive forces during installation and operation. These specifications are particularly important for buried installations or applications where the cable may be subject to external mechanical loads.
Environmental Protection and Electrical Performance
Water pressure resistance up to 5 megapascals indicates the cable's ability to operate in submarine environments or buried installations where hydrostatic pressure is a concern. This specification is achieved through multiple layers of waterproofing materials and protective sheaths that prevent water infiltration while maintaining cable flexibility.
The DC resistance specifications for single conductors, ranging from ≤4.5 to ≤25 ohms per kilometer, reflect the electrical performance of the copper conductors. These specifications are critical for power delivery calculations and system design, as they determine the voltage drop and power losses over extended cable runs. The variation in resistance values corresponds to the different copper conductor cross-sectional areas used in various cable models.
Strategic Advantages of Integrated Optoelectronic Design
The integration of optical and electrical transmission capabilities within a single cable structure provides numerous advantages that extend beyond simple convenience. These benefits reflect fundamental improvements in system design, installation efficiency, and operational reliability.
System Integration and Complexity Reduction
The most immediate advantage of optoelectronic composite cables is the dramatic reduction in system complexity achieved by eliminating the need for separate optical and electrical cable installations. Traditional approaches require parallel cable runs, separate installation procedures, and independent protection systems. The integrated design reduces these requirements to a single cable installation, simplifying system design and reducing potential failure points.
Installation time reduction represents a significant economic advantage, particularly in challenging environments where cable installation requires specialized equipment and personnel. The elimination of multiple cable runs reduces installation complexity, decreases the required installation time, and minimizes the risk of installation errors. This is particularly valuable in offshore installations where weather windows and equipment availability are critical constraints.
Enhanced Reliability and Environmental Resilience
The integrated protection system of optoelectronic composite cables provides superior environmental resilience compared to separate cable installations. A single protective system protects both optical and electrical transmission capabilities, eliminating the potential for differential environmental effects that could affect separate cables differently. This integrated protection approach ensures that communication and power capabilities remain available simultaneously, preventing system failures that could result from the loss of either capability.
The redundancy inherent in optoelectronic composite cable design provides additional reliability benefits. Multiple optical fibers enable redundant communication paths, while multiple copper conductors can provide backup power delivery or load sharing. This redundancy is particularly valuable in critical applications where system availability is paramount.
Optimization for Long-Distance and Underwater Deployment
The design optimization of optoelectronic composite cables for long-distance and underwater deployment addresses some of the most challenging applications in modern infrastructure. The integration of optical transmission capabilities enables communication over extended distances without signal degradation, while the simultaneous power delivery eliminates the need for intermediate power sources.
Underwater deployment capabilities are enhanced through comprehensive waterproofing systems and pressure-resistant construction. The integrated design eliminates the need for multiple submarine cable installations, reducing installation complexity and environmental impact. The pressure resistance capabilities enable deployment at significant depths, supporting offshore installations and submarine communication systems.
Future Outlook and Technological Evolution
The future of optoelectronic composite cable technology lies in continued innovation addressing emerging applications and evolving performance requirements. As industries increasingly adopt Internet of Things (IoT) technologies, artificial intelligence systems, and renewable energy installations, the demand for integrated communication and power delivery solutions will continue to grow.
Technological advances in optical fiber technology, including improvements in transmission capacity and environmental resilience, will enhance the communication capabilities of future optoelectronic composite cables. Similarly, advances in conductor materials and power delivery systems will improve the electrical performance and efficiency of these integrated systems.
The ongoing development of smart infrastructure systems, including smart cities, autonomous transportation networks, and distributed energy systems, will create new applications for optoelectronic composite cables. These applications will require enhanced integration capabilities, improved environmental resilience, and greater flexibility in system configuration.
Conclusion: The Essential Role of Hybrid Cable Technology
Optoelectronic composite cables represent a fundamental advancement in cable technology, addressing the critical need for integrated communication and power delivery systems across diverse industrial and marine applications. The sophisticated engineering behind these cables demonstrates the successful integration of optical and electrical transmission technologies within protective systems designed for the most challenging environmental conditions.
The performance characteristics and technical specifications of modern optoelectronic composite cables reflect decades of engineering development and refinement. From the lightweight flexibility of loose tube designs to the robust protection of armored configurations, these cables provide solutions for applications ranging from urban infrastructure to deep-sea installations.
The strategic advantages of integrated optoelectronic design extend beyond technical performance to encompass significant improvements in installation efficiency, system reliability, and operational economics. As industries continue to evolve toward more sophisticated monitoring and control systems, the importance of these integrated cable solutions will only increase.
Looking forward, the continued evolution of optoelectronic composite cable technology promises to enable new applications and performance capabilities that will support the next generation of industrial and communication infrastructure. The successful integration of optical and electrical transmission capabilities within these cables demonstrates the potential for continued innovation in addressing the complex challenges of modern engineering applications.
