Optimizing Shipboard Control Systems: FM2XH vs FM2XCH Marine Multi-Core Cable Solutions
Discover the key differences between FM2XH and FM2XCH marine multi-core cables. Learn how to select low-voltage, halogen-free, and EMI-shielded solutions for efficient, fire-safe shipboard control wiring.
BLOGS
5/27/20258 min read
Introduction: The Critical Role of Control Cables in Marine Environments
The maritime industry presents one of the most challenging environments for electrical infrastructure. Ships must operate reliably across vast temperature ranges, from Arctic waters approaching -40°C to tropical climates exceeding 40°C ambient temperature. Meanwhile, the constant exposure to salt spray, UV radiation, mechanical vibration, and the ever-present risk of fire creates a perfect storm of challenges for electrical cables.
Control and signal cables serve as the nervous system of modern vessels, carrying the vital communication signals that coordinate everything from engine management to navigation systems. Unlike power cables that simply deliver electrical energy, control cables must maintain signal integrity while resisting environmental degradation and electromagnetic interference. This is where specialized marine-grade cables like the FM2XH and FM2XCH multi-core systems become essential.
Understanding the fundamental differences between these two cable types requires examining not just their construction, but the underlying principles of electromagnetic compatibility, fire safety, and marine environmental protection that drive their design.
The Science Behind Cable Construction: Building Blocks of Reliability
To appreciate why FM2XH and FM2XCH cables are engineered as they are, we must first understand the role each component plays in the overall system performance.
Conductor Design and Current Carrying Capacity
Both cable types utilize electrolytic copper conductors conforming to IEC 60228 Class 2 specifications. The choice of stranded rather than solid conductors addresses a fundamental challenge in marine applications: flexibility under mechanical stress. When a ship encounters heavy seas, cables throughout the vessel experience constant flexing and vibration. Solid conductors would quickly develop stress fractures, but stranded conductors distribute mechanical stress across multiple wire strands, dramatically improving fatigue resistance.
The annealing process mentioned in the specifications refers to a heat treatment that relieves internal stresses in copper, making it more ductile and less prone to work hardening over repeated flex cycles. This seemingly minor detail becomes crucial when considering that marine cables may experience millions of flex cycles over their operational lifetime.
Insulation Technology: The XLPE Advantage
Cross-linked polyethylene (XLPE) insulation represents a significant advancement over traditional thermoplastic materials. The cross-linking process creates chemical bonds between polymer chains, fundamentally altering the material properties. Unlike thermoplastic insulation that softens when heated, XLPE maintains its structural integrity at elevated temperatures, explaining the impressive 90°C continuous operating temperature rating.
The cross-linked structure also provides superior resistance to environmental stress cracking, a phenomenon where plastics develop microscopic cracks when exposed to chemical agents under mechanical stress. In the marine environment, where cables may encounter cleaning solvents, hydraulic fluids, and salt spray simultaneously, this resistance becomes vital for long-term reliability.

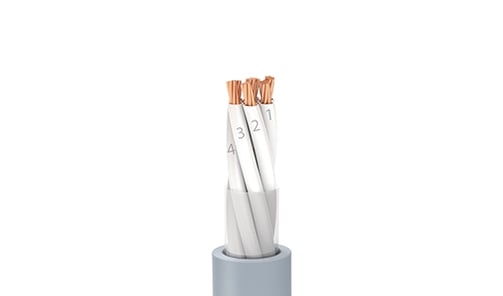

FM2XH MULTI CORE
Understanding Electromagnetic Interference in Marine Systems
The key distinction between FM2XH and FM2XCH cables lies in electromagnetic shielding, a concept that requires understanding electromagnetic interference (EMI) sources aboard ships. Modern vessels contain numerous EMI sources including radar systems, radio transmitters, variable frequency drives for propulsion, and switching power supplies throughout electronic systems.
EMI manifests in two primary forms: conducted interference that travels along conductors, and radiated interference that propagates through space as electromagnetic waves. Unshielded cables like FM2XH rely primarily on proper routing and grounding practices to minimize EMI effects, which works adequately for many control applications where signal levels are relatively high and interference tolerance is reasonable.
However, sensitive systems such as GPS navigation, radar processing, or precision measurement instruments require much higher levels of EMI protection. This is where the copper braided shield in FM2XCH cables becomes essential.
The Engineering Behind Electromagnetic Shielding
The copper braided shield in FM2XCH cables operates on fundamental electromagnetic principles that deserve deeper examination. When electromagnetic waves encounter the conductive shield, they induce eddy currents in the copper braid. These currents create their own electromagnetic field that opposes the original interference, effectively canceling it out through destructive interference.
The specification requiring minimum 90% coverage addresses a critical aspect of shield effectiveness. Any gaps in the braid create potential entry points for electromagnetic energy, and coverage below 90% can result in dramatic reductions in shielding effectiveness. The relationship between coverage and shielding effectiveness is not linear; even small reductions in coverage can lead to significant performance degradation.
The choice of copper for the braided shield reflects careful engineering consideration. Copper provides excellent conductivity for the eddy currents while maintaining reasonable cost and flexibility. Alternative materials like aluminum would reduce cost but compromise conductivity, while silver would improve performance but at prohibitive expense.
Fire Safety: Beyond Basic Flame Retardancy
Marine fire safety represents one of the most critical aspects of shipboard cable design, extending far beyond simple flame retardancy. The halogen-free specification for both FM2XH and FM2XCH cables addresses a sophisticated understanding of fire dynamics in enclosed spaces.
Traditional flame-retardant compounds often contain halogen elements like chlorine or bromine, which are highly effective at suppressing combustion through chemical flame inhibition. However, when these materials burn, they produce hydrogen halide gases (hydrogen chloride, hydrogen bromide) that are not only toxic but also highly corrosive. In the confined spaces of a ship, these gases can cause equipment damage throughout the vessel, even in areas far from the original fire.
The SHF1 (Ship Halogen-Free 1) compound used in the outer sheath represents advanced polymer chemistry designed to achieve flame retardancy through physical rather than chemical mechanisms. These materials work by forming protective char layers when exposed to heat, physically blocking oxygen access to the burning material and absorbing heat through endothermic decomposition reactions.
The IEC 60332-3-22 Category A specification referenced in both cables represents a particularly stringent fire test involving multiple cables installed vertically with forced air flow. This test simulates real-world fire scenarios more accurately than simple single-cable flame tests, ensuring that cables will not contribute to fire propagation even when installed in large bundles.
Environmental Resistance: Combating Nature's Challenges
The marine environment presents a unique combination of stressors that few other applications match. UV radiation at sea level is intensified by reflection from water surfaces, creating conditions that rapidly degrade ordinary polymer materials through photochemical reactions that break down molecular bonds.
The UV resistance specifications (EN 50289-4-17 A&B, ISO 4892-2&3) referenced for both cables involve accelerated aging tests using xenon arc lamps and specific temperature and humidity cycles. These tests simulate decades of natural UV exposure in controlled laboratory conditions, allowing manufacturers to predict long-term performance with confidence.
Ozone resistance (IEC 60811-403) addresses another environmental challenge specific to marine applications. Ozone concentration varies significantly with weather conditions and can reach levels that cause cracking in vulnerable polymer materials. The testing protocol involves exposure to ozone concentrations much higher than typical atmospheric levels, ensuring adequate safety margins for real-world applications.
Temperature Performance: Engineering for Extremes
The specified operating temperature range of -40°C to +90°C encompasses the vast majority of marine operating conditions, but understanding the engineering behind these limits provides insight into proper application practices.
At low temperatures, polymer materials become increasingly brittle, and the minimum installation temperature of -15°C reflects the point below which installation activities should be avoided to prevent mechanical damage during handling. However, once installed, the cables can operate reliably at much lower temperatures because they are no longer subject to bending and flexing during installation.
The upper temperature limit of 90°C accounts for both ambient temperature and self-heating effects from current flow. In control cable applications, current levels are typically low enough that self-heating is negligible, meaning the 90°C rating primarily addresses high ambient temperature conditions such as engine room installations.
Mechanical Design Considerations: Bending Radius and Installation Practices
The minimum bending radius specifications reveal important insights into cable mechanical design. For FM2XH cables, the variable bending radius (4xD for cables ≤25mm, 6xD for cables >25mm) reflects the relationship between cable diameter and internal stress distribution during bending.
Smaller cables can tolerate tighter bends because the neutral axis (the line through the cable cross-section that experiences neither compression nor tension during bending) lies closer to the individual conductor positions. As cable diameter increases, conductors farther from the neutral axis experience higher stress levels, necessitating larger bending radii to prevent damage.
The constant 6xD bending radius for FM2XCH cables reflects the additional constraint imposed by the braided shield. During bending, the shield experiences complex stress patterns as individual braid wires shift position relative to each other. Maintaining adequate bending radius ensures that these stresses remain within acceptable limits and prevents shield damage that could compromise EMI protection.
Application-Specific Selection Criteria
Choosing between FM2XH and FM2XCH cables requires understanding the electromagnetic environment of the specific installation location. Bridge and navigation areas typically contain high-density electronic equipment with potential for both emitting and receiving electromagnetic interference. The precision required for navigation systems means that even small amounts of interference can have serious consequences, making the enhanced EMI protection of FM2XCH cables essential.
Engine rooms present a different challenge profile. While EMI levels may be high due to motor drives and ignition systems, many control functions can tolerate higher noise levels. Temperature considerations become more critical, and the excellent thermal performance of both cable types makes them suitable for these demanding environments.
Communication systems require particularly careful consideration. Modern shipboard communication increasingly relies on digital protocols that can be severely disrupted by EMI. The differential between acceptable analog signal degradation and complete digital system failure means that seemingly minor EMI issues can have disproportionate effects on system performance.
Standards Compliance and Classification Society Requirements
The extensive list of IEC standards compliance for both cable types reflects the international nature of maritime commerce and the need for universal acceptance by classification societies worldwide. IEC 60092 series standards specifically address shipboard electrical installations and provide the technical foundation for classification society rules.
Different classification societies may have specific requirements beyond basic IEC compliance, particularly regarding fire safety and environmental performance. Understanding these requirements early in the design process prevents costly retrofits and ensures smooth approval processes.
The flame retardancy testing protocols deserve special attention because they directly relate to life safety. IEC 60332-1 tests individual cable response to direct flame application, while IEC 60332-3-22 evaluates fire propagation characteristics when multiple cables are installed together. Both tests are necessary because fire behavior can change dramatically when cables are bundled together, as commonly occurs in marine installations.
Future Developments and Emerging Technologies
The marine cable industry continues to evolve in response to changing vessel designs and increasing automation levels. Higher bandwidth requirements for shipboard networks are driving development of specialized data cables with enhanced EMI protection. Integration of power and data transmission in single cable assemblies presents new challenges for EMI management while simplifying installation requirements.
Environmental regulations are becoming increasingly stringent, driving development of bio-based polymer compounds that maintain the performance characteristics of traditional materials while reducing environmental impact. These developments may influence future generations of marine control cables, though the proven performance of current XLPE and halogen-free compounds ensures their continued relevance.
Conclusion: Making Informed Cable Selection Decisions
Understanding the technical foundations behind FM2XH and FM2XCH marine control cables enables informed decision-making that balances performance requirements against cost considerations. The key insight is that cable selection cannot be based solely on basic electrical parameters but must consider the complete operating environment including electromagnetic compatibility, fire safety, environmental exposure, and mechanical stress factors.
For general control applications where EMI is not a primary concern, FM2XH cables provide excellent performance and value. However, for sensitive electronic systems or high-EMI environments, the additional cost of FM2XCH cables is justified by the superior electromagnetic protection they provide.
Both cable types represent mature technologies that have proven themselves in demanding marine applications worldwide. Their comprehensive standards compliance ensures acceptance by classification societies and regulatory authorities, while their robust construction provides the reliability essential for safe vessel operation. Understanding these technical foundations empowers engineers and technicians to make cable selections that optimize both performance and lifecycle cost for their specific applications.

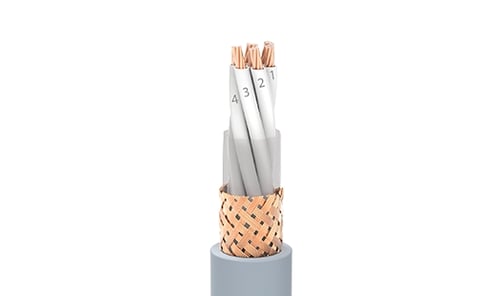

FM2XCH MULTI CORE
