NSHTÖU vs NSHTÖU K: How to Choose the Right Reeling Cable for Your Dynamic Application

Introduction: The Critical Role of Reeling Cables in Industrial Operations

In the demanding world of industrial automation and material handling, reeling cables serve as the vital arteries that keep operations flowing smoothly. These specialized cables must withstand the relentless mechanical stress of constant winding and unwinding while maintaining reliable electrical connectivity. From towering cranes that lift massive loads to sophisticated conveyor systems that move materials across vast facilities, reeling cables operate under some of the most challenging conditions in industrial environments.

The operational demands placed on these cables are extraordinary. They must endure continuous tensile forces as they wind around drums, resist torsional stresses from twisting motions, and maintain their integrity through millions of flex cycles. Environmental factors add another layer of complexity, with cables exposed to temperature extremes, moisture, oils, and chemicals that can degrade lesser materials over time.

When examining cable specifications, engineers often encounter seemingly similar designations that carry subtle but crucial differences. The distinction between NSHTÖU and NSHTÖU K cables represents one such critical decision point. While their names appear nearly identical, understanding their unique characteristics can mean the difference between a system that operates reliably for years and one that fails prematurely, causing costly downtime and safety concerns.

Understanding NSHTÖU: The Workhorse of Dynamic Cable Systems

Definition and Core Function

The NSHTÖU cable stands as a testament to German engineering precision, designed specifically for heavy-duty reeling applications where both tensile and torsional stresses are constant companions. This robust cable serves as the backbone of countless industrial operations, providing reliable power transmission in environments where standard cables would quickly fail.

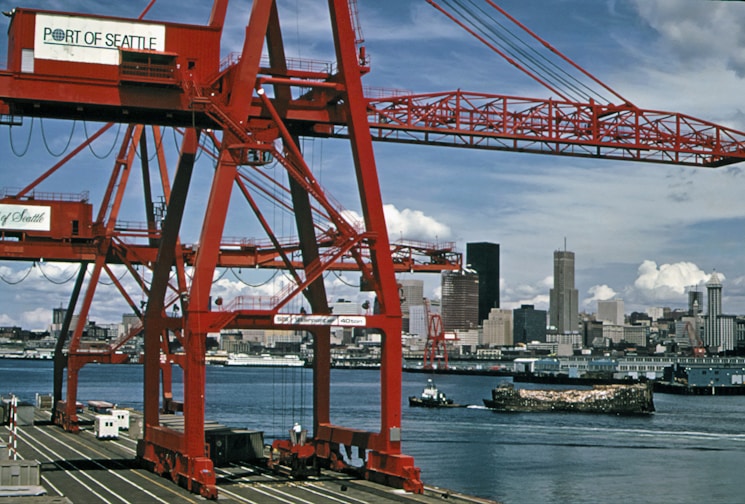

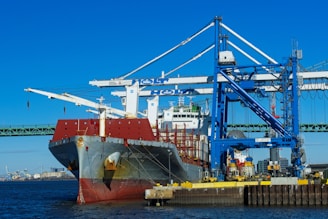

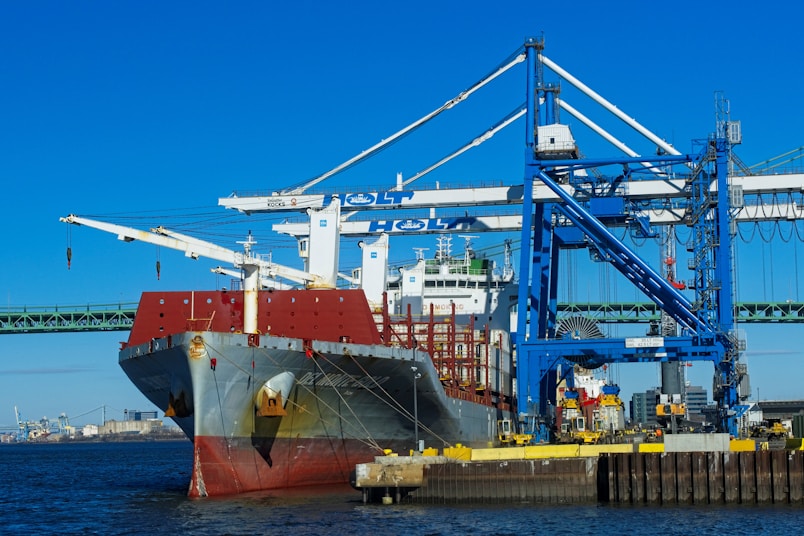

The primary applications for NSHTÖU cables span across diverse industrial sectors. In lifting operations, these cables power the motors and control systems of cranes and hoisting equipment, where failure could result in catastrophic consequences. Material handling systems rely on NSHTÖU cables to maintain continuous operation as they transport goods through manufacturing facilities. The cables excel in applications involving drum winding and drag chain systems, where the constant mechanical stress would quickly destroy conventional cable designs.

What sets NSHTÖU apart is its ability to function reliably across a broad spectrum of environmental conditions. Whether installed in dry warehouse environments, damp processing facilities, or wet outdoor applications, the cable maintains its performance characteristics. This versatility makes it an ideal choice for facilities that experience varying environmental conditions throughout their operational cycles.

Key Structural and Material Highlights

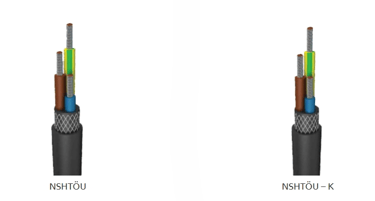

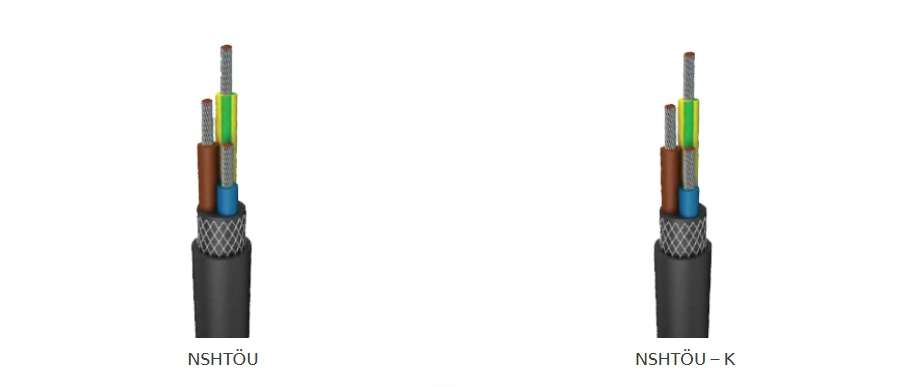

The construction of NSHTÖU cables reflects decades of engineering refinement, with each component carefully selected to contribute to overall performance and longevity. The foundation begins with Class 5 stranded tinned copper conductors, which provide the optimal balance of conductivity and flexibility. The tinning process adds a protective layer that resists corrosion while maintaining excellent electrical properties, ensuring consistent performance over the cable's service life.

The insulation system employs a specialized 3GI3 type HEPR-based elastomer compound that demonstrates exceptional resilience under dynamic conditions. This insulation material resists degradation from repeated flexing while maintaining its dielectric properties across a wide temperature range. The elastomeric nature of the compound allows it to recover from deformation, preventing the cracking and splitting that often plague rigid insulation materials in dynamic applications.

Surrounding the insulated conductors, an inner sheath of GM1b type elastomer compound provides additional protection against mechanical stress and environmental contamination. This layer serves as a barrier against moisture and chemicals while contributing to the cable's overall flexibility and durability.

Perhaps the most critical component for dynamic applications is the anti-torsion textile braided embedded sheath. This reinforcement layer transforms the cable from a simple electrical conductor into a mechanical component capable of withstanding the twisting forces inherent in reeling applications. The textile braiding distributes stress evenly across the cable's cross-section, preventing localized failures that could compromise the entire assembly.

The outer sheath utilizes a 5GM3 type heavy-duty special rubber compound formulated specifically for industrial environments. This final protective layer resists abrasion, cuts, oils, and chemicals while maintaining flexibility across the cable's operating temperature range. The rubber compound's formulation strikes a careful balance between durability and flexibility, ensuring the cable can withstand harsh conditions without becoming too stiff for dynamic applications.

Performance Specifications and Compliance

NSHTÖU cables operate at a rated voltage of 0.6/1 kV, making them suitable for most industrial power and control applications. The voltage rating reflects the cable's ability to maintain insulation integrity under both steady-state and dynamic conditions, with appropriate safety margins built into the design.

Temperature performance represents a critical specification for industrial cables, and NSHTÖU delivers impressive capability across a wide range. For mobile applications involving constant movement, the cable operates reliably from -25°C to +80°C. This range covers most industrial environments, from cold storage facilities to heated manufacturing areas. For fixed installations where the cable remains stationary, the operating range extends from -40°C to +80°C, providing additional cold weather capability for outdoor installations.

The cable's flame retardant properties ensure compliance with safety standards while maintaining flexibility and durability. Oil resistance protects against degradation from hydraulic fluids and lubricants commonly found in industrial environments. These characteristics are verified through rigorous testing protocols that exceed standard requirements.

Dynamic performance specifications reveal the cable's true capabilities. Travel speeds up to 120 meters per minute for horizontal reeling applications demonstrate the cable's ability to handle high-speed operations without compromising reliability. In festoon systems, where the cable supports its own weight between support points, speeds up to 240 meters per minute are achievable. The maximum tensile load of 20 N/mm² provides engineers with clear guidelines for installation and operational parameters.

Compliance with DIN VDE standards ensures the cable meets stringent German engineering requirements for construction, testing, and performance. These standards encompass every aspect of cable design, from material selection to manufacturing processes, providing users with confidence in the cable's reliability and longevity.

Deciphering NSHTÖU K: Enhanced Performance for Demanding Environments

The "K" Factor: What Does it Signify?

The addition of the "K" designation to the NSHTÖU specification represents more than a simple variant; it signifies a purposeful engineering modification designed to address specific operational challenges. The "K" factor indicates specialized material formulations and construction techniques optimized for enhanced performance in colder environments and more demanding dynamic conditions.

While the fundamental cable architecture remains consistent with the standard NSHTÖU design, the NSHTÖU K incorporates subtle but significant modifications in material composition and processing. These changes may not be immediately visible but represent years of development focused on pushing performance boundaries in challenging applications.

The decision to create a "K" variant stems from real-world feedback from industries operating in extreme conditions. Cold storage facilities, outdoor installations in northern climates, and applications involving rapid temperature cycling all presented challenges that demanded enhanced material properties beyond what standard formulations could provide.

Key Distinguishing Features

The most significant difference between NSHTÖU and NSHTÖU K lies in their operating temperature ranges, which reflect fundamental differences in material formulations. The NSHTÖU K demonstrates enhanced cold weather performance, with fixed installation capabilities extending down to -45°C compared to -40°C for standard NSHTÖU. This five-degree improvement may seem modest, but it represents the difference between reliable operation and potential failure in extreme cold conditions.

Interestingly, the mobile application temperature range for NSHTÖU K extends from -25°C to +60°C, showing identical cold weather performance but a reduced upper temperature limit compared to standard NSHTÖU. This trade-off reflects the specialized nature of the "K" formulation, which prioritizes cold weather flexibility and reliability over high-temperature performance. The reduction in maximum operating temperature from +80°C to +60°C for mobile applications indicates material modifications that enhance low-temperature properties while accepting limitations at elevated temperatures.

This temperature characteristic profile makes NSHTÖU K particularly valuable in applications where cold weather operation is critical but extreme heat is not encountered. Refrigerated warehouses, cold storage facilities, outdoor installations in northern climates, and applications involving frequent temperature cycling all benefit from the enhanced cold weather capabilities.

The application focus for NSHTÖU K mirrors that of standard NSHTÖU but with specific emphasis on cold area reliability. Industries such as food processing, pharmaceuticals, and chemical storage that operate refrigerated environments find the enhanced cold weather performance essential for maintaining continuous operations during temperature fluctuations and extreme weather events.

Shared Strengths with NSHTÖU

Despite the specialized nature of the "K" variant, NSHTÖU K maintains all the fundamental strengths that make the standard NSHTÖU effective in dynamic applications. The Class 5 stranded tinned copper conductors provide identical electrical performance and flexibility characteristics. The 3GI3 type HEPR-based elastomer insulation system delivers the same excellent dielectric properties and mechanical resilience that define the product family.

The GM1b type elastomer inner sheath continues to provide robust protection against environmental contamination and mechanical stress. The critical anti-torsion textile braided embedded sheath maintains its role in distributing torsional forces and preventing cable failure under dynamic loading. The 5GM3 type heavy-duty special rubber outer sheath retains its protective capabilities while incorporating the material modifications that enable enhanced cold weather performance.

Electrical specifications remain identical between the two variants, with both maintaining the 0.6/1 kV rated voltage and associated test voltages. Current carrying capacities show no difference, ensuring that NSHTÖU K can serve as a direct replacement for standard NSHTÖU in applications where enhanced cold weather performance is desired.

Dynamic performance characteristics also remain consistent, with both cables capable of the same travel speeds and maximum tensile loads. The 120 m/min horizontal reeling speed and 240 m/min festoon speed capabilities ensure that NSHTÖU K can handle the same demanding dynamic applications as its standard counterpart.

Both variants undergo identical testing protocols and maintain compliance with the same comprehensive VDE standards. This consistency ensures that users can confidently specify either cable knowing that quality, reliability, and performance standards remain uncompromised.

Making the Right Choice: Practical Considerations for Procurement and Engineering

Application Environment Analysis

Selecting between NSHTÖU and NSHTÖU K requires careful analysis of the specific environmental conditions where the cable will operate. Temperature considerations represent the primary decision factor, but the evaluation process should encompass the full range of operational parameters that affect cable performance and longevity.

For applications consistently operating in cold environments, NSHTÖU K provides clear advantages. Refrigerated warehouses maintaining temperatures below -25°C, outdoor installations in regions experiencing extreme winter conditions, and processes involving rapid temperature cycling all benefit from the enhanced cold weather capabilities. The improved low-temperature flexibility ensures reliable operation when standard formulations might become stiff or brittle.

However, temperature considerations extend beyond simple minimum and maximum values. The frequency and rate of temperature changes affect cable performance significantly. Applications involving rapid temperature cycling, such as materials moving between heated and refrigerated areas, place additional stress on cable materials. The specialized formulation of NSHTÖU K provides enhanced resistance to thermal cycling fatigue, potentially extending service life in these demanding applications.

Mechanical stress profiles require equally careful consideration. While both cable types handle heavy mechanical loads effectively, the combination of extreme cold and high dynamic stress creates particularly challenging conditions. The material modifications in NSHTÖU K may provide improved resistance to stress cracking and fatigue failures that can occur when standard materials operate at their environmental limits.

Operating speed and cycle frequency represent additional factors in cable selection. Very high-speed, high-cycle reeling applications generate heat through friction and mechanical working, potentially offsetting some environmental temperature effects. The reduced upper temperature limit for NSHTÖU K mobile applications requires careful evaluation in high-speed applications where cable heating might be a concern.

Cost Versus Performance Analysis

The specialized nature of NSHTÖU K typically results in higher procurement costs compared to standard NSHTÖU. The enhanced material formulations, specialized processing requirements, and potentially lower production volumes all contribute to increased manufacturing costs that are reflected in market pricing. However, the cost evaluation process must extend beyond initial purchase price to encompass total cost of ownership over the cable's service life.

The enhanced performance characteristics of NSHTÖU K can translate into significant operational savings in appropriate applications. Reduced failure rates in cold environments minimize costly downtime and emergency maintenance activities. Extended service life reduces replacement frequency and associated installation costs. Improved reliability enhances safety and reduces the risk of accidents or equipment damage from cable failures.

Maintenance considerations also factor into the cost equation. Cables operating at their environmental limits require more frequent inspection and potentially more aggressive maintenance schedules. The enhanced cold weather capabilities of NSHTÖU K may allow for extended maintenance intervals and reduced inspection frequency in cold environments, offsetting some of the initial cost premium.

Risk assessment represents another crucial element in the cost-performance analysis. Applications where cable failure could result in significant downtime, safety hazards, or product loss justify the additional investment in enhanced performance capabilities. The specialized formulation of NSHTÖU K provides additional reliability margin that may be essential in critical applications.

Consulting with Experts

Given the complexity of modern industrial cable applications and the subtle but important differences between cable variants, consulting with cable manufacturers or specialized suppliers provides valuable insight into optimal selection. These experts can analyze specific application requirements, environmental conditions, and performance expectations to recommend the most appropriate cable specification.

Detailed project specifications should include comprehensive information about operating environment, mechanical stress profiles, electrical requirements, installation constraints, and performance expectations. This information enables experts to perform detailed analysis and modeling to predict cable performance and service life under actual operating conditions.

Manufacturer representatives can also provide valuable information about installation best practices, maintenance requirements, and troubleshooting procedures specific to each cable type. This support extends beyond initial selection to encompass the entire cable lifecycle, ensuring optimal performance and maximum return on investment.

Conclusion: Maximizing Uptime and Efficiency Through Informed Cable Selection

The distinction between NSHTÖU and NSHTÖU K cables illustrates the importance of detailed specification analysis in industrial cable selection. While both cables share the same fundamental design philosophy and construction excellence, the specialized characteristics of NSHTÖU K address specific operational challenges that standard formulations cannot adequately handle.

NSHTÖU remains the preferred choice for general heavy-duty dynamic applications where standard temperature ranges and environmental conditions prevail. Its proven performance, broad temperature range, and cost-effectiveness make it an excellent choice for the majority of industrial reeling applications.

NSHTÖU K serves applications where enhanced cold weather performance is essential for reliable operation. The specialized material formulations provide improved low-temperature flexibility and resistance to thermal cycling fatigue, making it invaluable in refrigerated facilities, cold storage operations, and outdoor installations in harsh climates.

Understanding these nuances enables engineers and procurement professionals to make informed decisions that optimize system performance while managing costs effectively. The proper cable selection leads to enhanced operational reliability, reduced maintenance costs, improved safety, and optimized overall system performance. By carefully evaluating operational environments and specific application requirements, industrial facilities can confidently select the cable that will deliver reliable service under their most challenging conditions.

The investment in proper cable specification pays dividends throughout the system lifecycle, from reduced downtime and maintenance costs to enhanced safety and operational efficiency. In an industrial environment where reliability and performance are paramount, understanding the subtle but crucial differences between cable variants becomes a competitive advantage that directly impacts operational success.
