(N)SHTÖU –V: The Engineering Marvel Solving Vertical Reeling's Most Demanding Challenges
Discover how (N)SHTÖU –V cables revolutionize vertical reeling applications with their unique multi-layer construction, extreme durability, and superior performance in harsh industrial environments. Learn why engineers trust this specialized cable technology.
BLOGS
6/13/202511 min read
Introduction: Understanding the Critical Role of Specialized Vertical Reeling Cables
In the demanding world of industrial lifting, hoisting, and material handling, the failure of a single cable can result in catastrophic consequences that extend far beyond simple equipment downtime. When cranes lift massive loads dozens of meters into the air, when mining equipment operates in corrosive underground environments, or when automated manufacturing systems require precise control under continuous motion, the cables that power and control these operations must perform flawlessly under conditions that would destroy conventional electrical conductors.
The (N)SHTÖU –V cable represents a sophisticated engineering solution specifically developed to address the unique challenges encountered in vertical reeling applications. Unlike standard power cables that primarily handle electrical transmission in stationary installations, this specialized cable must simultaneously manage electrical power delivery, withstand mechanical stresses from constant winding and unwinding operations, resist torsional forces that occur during vertical movement, and maintain reliable performance in environments characterized by moisture, chemicals, and extreme temperatures.
For engineers designing lifting systems, procurement managers specifying critical infrastructure components, and industry experts evaluating reliability requirements, understanding the technical sophistication behind (N)SHTÖU –V cables becomes essential for making informed decisions that directly impact operational safety, system longevity, and total cost of ownership.
Understanding the Demanding Applications That Require (N)SHTÖU –V Technology
To appreciate why (N)SHTÖU –V cables incorporate such complex engineering solutions, we must first examine the harsh realities of their operational environment. These cables serve as the vital link between stationary power sources and mobile equipment that operates under some of the most challenging conditions found in modern industry.

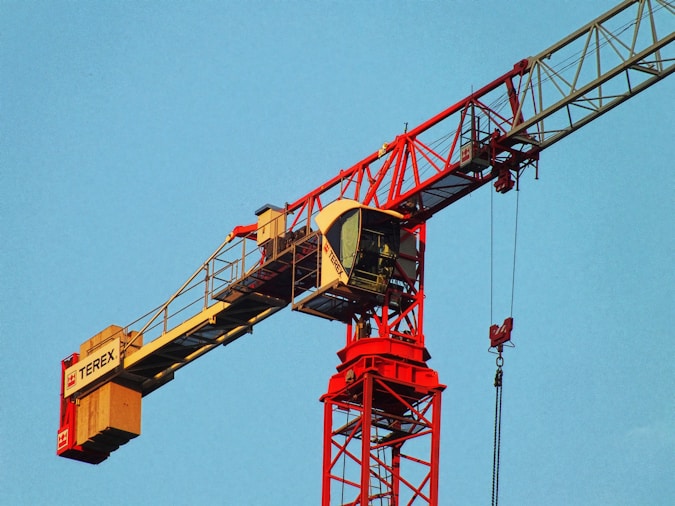

Vertical reeling applications present a unique combination of stresses that conventional cables simply cannot withstand. Consider a tower crane operating on a construction site where the cable must travel vertically over distances exceeding 100 meters while simultaneously handling the electrical demands of powerful lifting motors. As the crane's trolley moves along the jib and the hook block rises and falls, the cable experiences continuous flexing, twisting, and tensile loading. Traditional cables would fail within weeks or even days under such conditions, yet (N)SHTÖU –V cables are engineered to perform reliably for years.
Lifting devices in manufacturing environments present equally demanding challenges. Automated storage and retrieval systems, for instance, require cables that can handle hundreds of cycles per day while maintaining precise electrical control signals. The cable must flex repeatedly as it winds onto drums and spools while carrying both power for drive motors and control signals for positioning systems. Any degradation in electrical performance could result in positioning errors that damage expensive automated equipment or disrupt entire production lines.
Hoisting plants in mining operations represent perhaps the most extreme application environment. These installations must operate continuously in conditions characterized by high humidity, corrosive atmospheres, and temperature extremes. The cables must maintain electrical integrity while being subjected to constant mechanical stress from heavy loads and frequent starting and stopping cycles. Additionally, safety regulations in mining environments demand exceptional reliability, as cable failures can endanger personnel working in confined underground spaces.
Transporting machines for heavy mechanical loads, such as those found in steel mills, shipyards, and large-scale manufacturing facilities, require cables that can handle both the electrical demands of powerful drive systems and the mechanical stresses associated with moving multi-ton loads. These applications often involve continuous operation in industrial environments where exposure to oils, chemicals, and abrasive particles is unavoidable.
The versatility of (N)SHTÖU –V cables extends to their ability to function reliably as both drum cables and drag cables. As drum cables, they must withstand the mechanical stresses associated with winding and unwinding while maintaining their electrical properties through thousands of cycles. As drag cables, they must resist abrasion and mechanical damage while being pulled across floors, through cable trays, and around guide systems.
Perhaps most importantly, these cables must perform reliably across a broad range of environmental conditions. Whether installed in dry warehouse environments, damp outdoor conditions, or wet industrial settings, the cable's performance must remain consistent. This environmental adaptability makes (N)SHTÖU –V cables suitable for applications ranging from outdoor construction equipment to indoor manufacturing systems and everything in between.




The Engineering Excellence Behind Extreme Stress Resistance

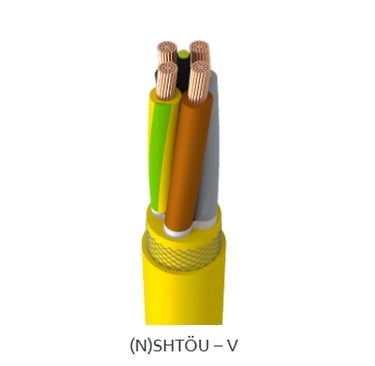

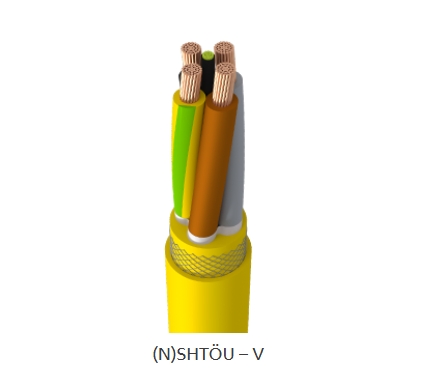

The ability of (N)SHTÖU –V cables to withstand the demanding conditions described above stems from a carefully engineered multi-layer construction where each component serves specific technical functions that work together to create a cable system capable of exceptional performance under stress.
The foundation of this engineering excellence begins with the conductor design. Rather than using solid copper conductors that would quickly fail under repeated flexing, (N)SHTÖU –V cables employ Class 5 stranded tinned copper conductors that represent the optimal balance between electrical performance and mechanical flexibility. The stranding process involves twisting multiple fine copper wires together to create a conductor that can bend repeatedly without work hardening or breaking. The Class 5 designation indicates the finest level of stranding available for power cables, providing maximum flexibility for applications involving continuous movement.
The tinning process, where each individual copper wire is coated with a thin layer of tin, serves multiple critical functions. Tin coating prevents oxidation of the copper conductors, which is particularly important in damp or wet environments where untreated copper would gradually corrode and lose conductivity. Additionally, the tin coating facilitates superior electrical connections during cable termination and helps prevent galvanic corrosion when the cable interfaces with other metallic components in the electrical system.
Between the conductor and insulation, a separator tape may be applied to provide additional mechanical protection and electrical isolation. This separator serves as a barrier that prevents the conductor strands from migrating into the insulation material during flexing operations, which could compromise both electrical and mechanical performance over time.
The insulation system represents one of the most critical innovations in (N)SHTÖU –V cable design. Rather than using conventional PVC or XLPE insulation materials that become brittle under repeated flexing, these cables employ a special HEPR-based elastomer compound engineered to provide exceptional stability under mechanical stress. HEPR, or Hard Ethylene Propylene Rubber, offers superior resistance to thermal aging, ozone exposure, and mechanical deformation compared to conventional insulation materials.
The elastomeric properties of this specialized insulation compound allow it to compress and expand repeatedly without developing cracks or losing its electrical properties. This flexibility is essential in vertical reeling applications where the cable experiences continuous bending as it winds onto drums and spools. The high stability characteristics ensure that the insulation maintains its electrical properties even after thousands of flexing cycles, preventing the gradual degradation that leads to insulation breakdown and cable failure.
At the heart of the cable's mechanical strength lies the central aramid strength member, commonly known by the trade name Kevlar. This aramid fiber core provides exceptional tensile strength while remaining lightweight and flexible. Unlike steel wire rope that might be used for purely mechanical applications, aramid fibers can withstand the continuous flexing associated with reeling operations without developing fatigue failures. The aramid strength member carries the mechanical loads associated with lifting and positioning operations, relieving stress on the electrical conductors and insulation system.
The lay-up configuration, where individual cores are arranged in concentric layers with short lay lengths, represents a sophisticated approach to cable construction that optimizes both electrical and mechanical performance. Short lay lengths reduce the tendency for individual conductors to migrate during flexing operations while ensuring that mechanical stresses are distributed evenly across all conductors. This concentric arrangement also minimizes the cable's overall diameter while maximizing the number of conductors that can be accommodated.
Core identification follows VDE 0293-308 standards, ensuring consistent color coding that facilitates proper installation and maintenance. This standardization is particularly important in complex installations where multiple cables may be present and proper identification is critical for both safety and functionality.
Surrounding the conductor assembly, a special inner sheath made from an elastomer compound that exceeds GM1b specifications provides additional mechanical protection and electrical isolation. This inner sheath serves as a barrier against moisture ingress and provides mechanical cushioning that protects the conductor assembly from damage during installation and operation.
The reinforcement system incorporates an antitorsion textile braided embedded sheath that represents one of the most innovative aspects of (N)SHTÖU –V cable design. This braided reinforcement specifically addresses the torsional stresses that occur when cables are wound onto drums or spools in vertical reeling applications. Without this antitorsion design, repeated winding and unwinding operations would cause the cable to twist, leading to conductor displacement, insulation damage, and eventual failure. The textile braid maintains the cable's structural integrity while allowing the necessary flexibility for reeling operations.
Environmental Resilience: Engineering for Harsh Industrial Conditions
The outer sheath of (N)SHTÖU –V cables represents the final line of defense against the harsh environmental conditions that characterize industrial applications. This specialized rubber-based heavy-duty compound is formulated to provide comprehensive protection against multiple environmental hazards that would quickly degrade conventional cable materials.
Oil resistance represents a critical performance requirement in many industrial applications where hydraulic fluids, lubricating oils, and fuel spills are common occurrences. The specially formulated outer sheath maintains its mechanical and electrical properties even after prolonged exposure to petroleum-based products that would cause conventional cable materials to swell, soften, or degrade. This oil resistance ensures reliable performance in applications such as mobile cranes, manufacturing equipment, and transportation systems where oil exposure is inevitable.
Chemical resistance extends the cable's application range to environments where exposure to industrial solvents, cleaning agents, and process chemicals might occur. The rubber compound formulation resists attack from acids, bases, and organic solvents commonly found in manufacturing environments, ensuring that the cable maintains its protective properties even in chemically aggressive atmospheres.
Abrasion resistance, rated at 5GM3/5GM5 levels, provides exceptional protection against mechanical wear that occurs when cables are dragged across rough surfaces, pulled through cable trays, or subjected to contact with moving equipment. This high level of abrasion resistance is particularly important in applications where cables must be routed through areas with limited protection or where contact with abrasive materials is unavoidable.
Notch resistance prevents the propagation of small cuts or nicks that might occur during installation or operation. In many cable failures, small surface damage gradually propagates under mechanical stress until it compromises the cable's integrity. The notch-resistant formulation of the outer sheath prevents such damage from spreading, significantly extending cable service life.
The flame retardant properties of (N)SHTÖU –V cables, certified to VDE 0482-332-1-2, DIN EN 60332-1-2, and IEC 60332-1 standards, ensure safe operation in environments where fire hazards may exist. These flame retardant characteristics prevent the cable from contributing to fire propagation while maintaining its electrical and mechanical properties under normal operating conditions.
Temperature performance represents another critical aspect of environmental resilience. The cable's ability to operate reliably across temperature ranges from -40°C to +80°C in fixed installations and -25°C to +80°C in mobile applications ensures consistent performance across diverse climatic conditions and industrial environments. This temperature range encompasses everything from outdoor construction equipment operating in arctic conditions to indoor manufacturing systems exposed to process heat.
The conductor operating temperature rating of 90°C provides substantial margin for electrical loading while the short-circuit temperature capability of 250°C ensures that the cable can withstand fault conditions without catastrophic failure. These temperature ratings reflect the superior thermal properties of the specialized insulation and sheath materials used in (N)SHTÖU –V construction.
Technical Performance Advantages That Define Industry Leadership
The electrical performance characteristics of (N)SHTÖU –V cables demonstrate the successful integration of mechanical durability with superior electrical properties. The rated voltage of 0.6/1 kV provides adequate electrical isolation for most industrial control and power applications while the maximum operating AC voltage of 0.7/1.2 kV and DC voltage of 0.9/1.8 kV offer operational flexibility for different system configurations.
The AC test voltage of 3.5 kV ensures that the insulation system provides substantial safety margin above normal operating voltages, reflecting the conservative design approach that prioritizes long-term reliability over minimal material usage. This test voltage capability indicates that the cable can withstand transient overvoltages and electrical stress that might occur during system switching operations or lightning-induced surges.
Compliance with comprehensive testing standards demonstrates the thoroughness of the engineering approach behind (N)SHTÖU –V cables. Construction standards based on DIN VDE 0250-814 ensure compatibility with European electrical systems while general requirements conforming to DIN VDE 0250-1 guarantee basic safety and performance characteristics.
The guide to use standard DIN VDE 0298-3 provides application-specific guidance that helps engineers properly specify and install these specialized cables. Electrical testing according to DIN VDE 0472-501, 502, 503, and 508 verifies insulation resistance, dielectric strength, and other electrical properties critical for safe operation.
Non-electrical testing standards DIN VDE 0472-401, 402, 602, 303, and 615 validate mechanical properties including tensile strength, flexibility, and resistance to environmental stresses. Fire condition testing per DIN VDE 0472-803 and 804 ensures safe performance under emergency conditions.
The mechanical performance capabilities of (N)SHTÖU –V cables reflect their specialized design for demanding applications. Travel speeds up to 180 meters per minute in horizontal festoon systems and 120 meters per minute in vertical applications demonstrate the cable's ability to support high-speed material handling operations without compromising reliability.
The maximum tensile load rating of 30 N/mm² provides substantial mechanical strength for lifting applications while remaining well within the capabilities of the aramid strength member. This tensile strength rating allows engineers to specify (N)SHTÖU –V cables for applications involving significant mechanical loads without requiring additional support cables or complex suspension systems.
Current carrying capacity ratings according to VDE 0298-4 ensure that the cables can handle the electrical demands of industrial equipment while maintaining safe operating temperatures. The minimum bending radius specifications per VDE 0298-3 Table 3 provide installation guidance that prevents mechanical damage during cable routing and termination.
Conclusion: The Engineering Excellence That Defines Reliable Performance
The (N)SHTÖU –V cable represents far more than a simple electrical conductor; it embodies a comprehensive engineering solution that addresses the complex challenges faced by modern industrial applications requiring reliable power and control under extreme conditions. Through the integration of advanced materials science, sophisticated construction techniques, and rigorous testing standards, these cables deliver the combination of flexibility, mechanical strength, and environmental resistance that enables reliable operation in applications where failure is simply not an option.
The multi-layer construction approach, beginning with Class 5 stranded tinned copper conductors and progressing through specialized HEPR insulation, aramid strength members, antitorsion reinforcement, and heavy-duty outer sheaths, creates a cable system where each component contributes to overall performance while working synergistically with other elements to achieve capabilities that exceed the sum of individual parts.
For engineers specifying critical infrastructure components, the comprehensive testing and certification according to international standards provides confidence that (N)SHTÖU –V cables will perform reliably under the demanding conditions that characterize vertical reeling applications. The ability to operate safely at temperatures from -40°C to +80°C, resist chemical and abrasion damage, and withstand mechanical loads up to 30 N/mm² while maintaining electrical integrity through thousands of flexing cycles represents engineering excellence that directly translates to reduced maintenance costs, improved system reliability, and enhanced operational safety.
The versatility of (N)SHTÖU –V cables, demonstrated by their successful application in diverse environments ranging from construction sites to mining operations to manufacturing facilities, reflects the thorough understanding of application requirements that guided their development. Whether serving as drum cables in automated storage systems, drag cables in material handling equipment, or control cables in precision lifting devices, these specialized cables consistently deliver the performance characteristics that enable complex industrial systems to operate safely and efficiently.
As industrial applications continue to demand higher levels of automation, precision, and reliability, the importance of specialized cable technologies like (N)SHTÖU –V will only continue to grow. The investment in advanced materials and sophisticated construction techniques that characterizes these cables represents not just current performance capabilities but a foundation for meeting the even more demanding requirements of future industrial applications where the consequences of failure become increasingly severe and the expectations for reliable performance continue to rise.
