NGRDGÖU Cables: Powering Heavy-Duty Maritime Operations at Singapore Ports

Introduction

Singapore's position as one of the world's busiest maritime hubs presents unique challenges for electrical infrastructure. The Port of Singapore handles over 37 million twenty-foot equivalent units (TEUs) annually, requiring sophisticated electrical systems that can withstand the harsh marine environment while maintaining operational reliability. In this demanding setting, the choice of electrical cables becomes critical to ensuring uninterrupted port operations.

Maritime and port environments present a perfect storm of challenging conditions for electrical equipment. The constant exposure to salt-laden air creates corrosive conditions that can rapidly degrade standard electrical cables. Add to this the mechanical stress from constant movement of cranes, hoists, and material handling equipment, along with exposure to industrial oils, lubricants, and the tropical humidity that characterizes Singapore's climate, and it becomes clear why specialized cable solutions are essential.

NGRDGÖU cables represent a sophisticated engineering solution specifically designed to meet these demanding requirements. These heavy-duty, flexible cables are engineered to provide reliable low-voltage power and control functions in the most challenging industrial environments. Understanding their design, capabilities, and applications helps maritime operators make informed decisions about their electrical infrastructure investments.

Understanding NGRDGÖU Cables: Engineering Excellence in Cable Design

Advanced Cable Construction

The foundation of NGRDGÖU cable performance lies in its carefully engineered construction. At the core, these cables feature flexible class 5 electrolytic annealed copper conductors. This specific conductor design is crucial for maritime applications where cables must repeatedly bend and flex without fatigue failure. The electrolytic annealing process creates a copper structure that maintains excellent electrical conductivity while providing the mechanical flexibility essential for moving equipment.

The class 5 designation refers to the conductor's flexibility rating according to international standards. This classification indicates that the conductor consists of many fine copper strands, creating a highly flexible assembly that can withstand thousands of bending cycles without degradation. This flexibility is essential when cables must move with cranes, hoists, and other mobile equipment that operate continuously in port environments.

Surrounding the copper conductors is a sophisticated insulation system featuring 3GI3 elastomer insulation. This specialized elastomer material provides excellent dielectric properties while maintaining flexibility across a wide temperature range. The elastomer's molecular structure allows it to stretch and recover repeatedly without cracking or losing its insulating properties, making it ideal for applications where cables experience constant mechanical stress.

The outer protective layer consists of 5GM3 elastomer sheathing, which serves as the cable's primary defense against environmental hazards. This sheath is specifically formulated to resist oil, water, and chemical exposure while maintaining flexibility. The material's resistance to industrial oils is particularly important in port environments where hydraulic fluids and lubricants are commonly present.

Additional protective elements include separators between conductors, an inner sheath for enhanced mechanical protection, and core identification systems that comply with VDE (Verband der Elektrotechnik, Elektronik und Informationstechnik) standards. These design elements work together to create a cable system that can withstand the rigorous demands of maritime operations while maintaining safety and reliability.

Compliance and Standards: Meeting International Requirements

NGRDGÖU cables are designed to meet or exceed multiple international standards, ensuring they can be safely deployed in diverse maritime environments. The cables undergo rigorous testing according to DIN VDE (Deutsches Institut für Normung and Verband der Elektrotechnik) and IEC (International Electrotechnical Commission) standards, which cover mechanical, electrical, and fire safety performance.

Fire safety is particularly critical in maritime environments where evacuation options may be limited. These cables meet flame retardant requirements according to EN 60332-1-2, which specifies test methods for vertical flame propagation. This standard ensures that if a fire occurs, the cable will not contribute to flame spread, providing valuable time for emergency response.

The oil resistance testing per IEC 60811-2-1 validates the cable's ability to maintain its properties when exposed to various petroleum-based products commonly found in maritime environments. This testing involves extended exposure to different oils at elevated temperatures to simulate real-world conditions over many years of service.

Key Performance Characteristics: Engineering Specifications That Matter

Electrical Performance Parameters

The electrical performance of NGRDGÖU cables is characterized by their 0.6/1 kV rating, which indicates the cable can operate safely at voltages up to 1000 volts between conductors and 600 volts between any conductor and ground. This voltage rating is ideal for most port equipment, including crane motors, lighting systems, and control circuits.

The cables demonstrate exceptional voltage withstand capability, handling AC voltages up to 1.2 kV and DC voltages up to 1.8 kV during testing. This margin above the rated voltage provides assurance that the cables can handle voltage transients and surges that commonly occur in industrial electrical systems, particularly during motor starting and switching operations.

High dielectric strength is another critical performance parameter, with test voltages reaching 3.5 kV during factory testing. This high dielectric strength ensures reliable insulation performance even in harsh conditions where moisture, salt, and contaminants might otherwise compromise electrical integrity.

Mechanical and Environmental Durability

The operating temperature range of -40°C to +80°C for fixed installations and -25°C to +80°C for mobile applications demonstrates the cable's ability to function across diverse environmental conditions. While Singapore's tropical climate typically doesn't approach the lower temperature limits, the wide temperature range indicates the robust nature of the cable materials and their ability to maintain properties under thermal stress.

Perhaps most impressive is the cable's short-circuit tolerance, with conductor temperatures capable of reaching 250°C during fault conditions while maintaining structural integrity. This capability is crucial for system safety, as it prevents catastrophic cable failure during electrical faults, providing time for protective equipment to operate and isolate the fault.

The mechanical performance specifications for dynamic applications are particularly relevant for port operations. The cables can operate in festoon systems at speeds up to 240 meters per minute, making them suitable for high-speed crane operations. For horizontal reeling applications, the maximum speed rating of 60 meters per minute accommodates most material handling equipment requirements.

Application Scenarios in Singapore's Maritime Sector

Port Crane and Hoisting Equipment Applications

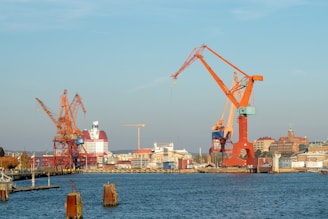

Singapore's container terminals rely heavily on sophisticated crane systems, including ship-to-shore cranes, rubber-tired gantry cranes, and rail-mounted gantry cranes. These massive structures require reliable electrical power for motors, lighting, and control systems, all while operating in constant motion.

NGRDGÖU cables excel in these applications because they can handle the mechanical stress of constant movement while providing reliable power transmission. The cables' flexibility allows them to move with the crane structure without developing fatigue cracks that could lead to electrical failures. This reliability is essential when a single crane failure can disrupt entire terminal operations.

The cables' ability to withstand salt air corrosion is particularly valuable in these exposed applications. Singapore's maritime environment means that electrical equipment is constantly exposed to salt-laden air, which can rapidly corrode standard electrical connections and cable sheaths. The specialized elastomer sheathing of NGRDGÖU cables provides long-term protection against this corrosive environment.

Material Handling and Transport Systems

Modern container terminals utilize complex material handling systems, including conveyor belts, automated guided vehicles, and transfer systems that move containers between different areas of the terminal. These systems require flexible electrical connections that can accommodate movement while maintaining reliable power and control signal transmission.

NGRDGÖU cables integrate seamlessly into chain systems and festoon systems commonly used in these applications. The cables' high flexibility and mechanical durability allow them to follow the movement of conveyor systems and mobile equipment without developing stress points that could lead to premature failure.

The cables' resistance to industrial oils and lubricants is particularly valuable in these applications, where hydraulic systems and mechanical lubricants are commonly used. Accidental contact with these substances will not compromise the cable's performance or safety characteristics.

Shipyard and Dry Dock Operations

Singapore's shipbuilding and repair industry presents unique challenges for electrical cables. Shipyards require portable electrical systems that can be repeatedly moved and reconfigured as work progresses. Dry dock operations involve lifting heavy ship components and require reliable power for cranes and hoisting equipment.

NGRDGÖU cables are designed to handle the repeated bending cycles common in these applications. The cables can be coiled, uncoiled, and repositioned thousands of times without developing fatigue failures. This durability reduces maintenance costs and improves operational reliability in environments where equipment downtime can be extremely expensive.

The cables' flame retardant properties are particularly important in shipyard applications where welding, cutting, and other hot work operations create fire hazards. The cables' ability to resist flame propagation provides an additional safety margin in these high-risk environments.

Advantages for Port and Maritime Operators

The primary advantage of NGRDGÖU cables for maritime operators is their exceptional mechanical durability, which directly translates to reduced maintenance costs and improved operational reliability. Traditional cables may require frequent replacement due to mechanical wear, but NGRDGÖU cables are designed to withstand thousands of bending cycles without degradation.

The extended cable lifespan in harsh wet industrial environments provides significant economic benefits. While NGRDGÖU cables may have a higher initial cost than standard cables, their longevity and reliability often result in lower total cost of ownership over the equipment's operational life. This is particularly important in maritime applications where cable replacement can be complex and expensive due to the need for specialized equipment and potential operational disruptions.

Compliance with international marine safety and quality standards ensures that NGRDGÖU cables can be used confidently in regulated maritime environments. Port operators must comply with various safety regulations, and using properly certified cables helps ensure regulatory compliance while reducing liability risks.

The cables' consistent performance characteristics across their operating range provide predictable system behavior, which is essential for automated port operations. Modern container terminals rely heavily on computer-controlled systems that require reliable electrical connections to function properly.

Technical Considerations and Best Practices

When implementing NGRDGÖU cables in maritime applications, several technical considerations can optimize performance and longevity. Proper installation techniques are crucial, particularly regarding bend radius limitations and support spacing. Even highly flexible cables have minimum bend radius requirements that must be respected to prevent premature failure.

Environmental protection measures, while the cables are designed for harsh environments, additional protection such as cable trays, conduits, or covers can further extend service life in extremely aggressive conditions. This is particularly important in areas with high salt spray exposure or where mechanical damage from cargo handling equipment is possible.

Regular inspection and maintenance protocols should be established to monitor cable condition over time. While NGRDGÖU cables are designed for long service life, periodic visual inspection can identify potential issues before they result in system failures. This proactive approach is particularly valuable in critical applications where cable failure could result in significant operational disruptions.

Future Trends and Developments

The maritime industry continues to evolve, with increasing emphasis on automation, electrification, and environmental sustainability. These trends are driving demand for more sophisticated cable solutions that can handle higher data transmission rates, support renewable energy integration, and provide enhanced monitoring capabilities.

NGRDGÖU cables represent current best practices in heavy-duty maritime cable design, but ongoing research and development efforts continue to push the boundaries of cable performance. Future developments may include enhanced environmental resistance, improved flexibility, and integration of monitoring systems that can provide real-time feedback on cable condition and performance.

The growing emphasis on sustainable port operations is also driving interest in cable solutions that minimize environmental impact throughout their lifecycle. This includes considerations of raw material sourcing, manufacturing processes, and end-of-life recycling options.

Conclusion

NGRDGÖU cables represent a sophisticated engineering solution specifically designed to meet the demanding requirements of Singapore's maritime and port operations. Their combination of electrical performance, mechanical durability, and environmental resistance makes them ideally suited for the challenging conditions encountered in modern port facilities.

For operators seeking reliable, safe, and flexible low-voltage power and control cable solutions, NGRDGÖU cables offer proven performance in demanding industrial environments. Their compliance with international standards, coupled with their exceptional mechanical and electrical characteristics, provides the foundation for reliable port operations in Singapore's competitive maritime environment.

The investment in high-quality cable infrastructure pays dividends through reduced maintenance costs, improved operational reliability, and enhanced safety performance. As Singapore continues to maintain its position as a leading global maritime hub, the infrastructure choices made today will determine operational success for years to come. NGRDGÖU cables provide the electrical backbone necessary to support the sophisticated, high-performance equipment that defines modern port operations.
