(N)GFLGÖU -J/O Flat Rubber Flexible Cable: Engineering Excellence for Maritime Power Systems

Introduction: The Foundation of Maritime Power Distribution

In the bustling maritime landscape of Singapore, where massive container ships dock alongside towering quay cranes and sophisticated gantry systems orchestrate the movement of thousands of containers daily, the reliability of electrical power systems becomes absolutely critical. Behind the scenes of this impressive choreography lies a network of specialized cables that must endure constant movement, harsh environmental conditions, and the demanding operational requirements of modern port facilities.

Flexible flat cables represent a cornerstone technology in maritime power distribution, particularly within festoon systems that supply electricity to moving equipment. These systems, which you might envision as the electrical equivalent of a carefully choreographed dance, must provide uninterrupted power while accommodating the linear movement of cranes, gantries, and loading equipment across significant distances. The challenge lies not merely in delivering power, but in doing so reliably under conditions that would quickly destroy conventional cable designs.

Singapore's strategic position as a global maritime hub places extraordinary demands on its port infrastructure. The nation's shipyard gantries, marine loading equipment, and the countless cranes that define its skyline all depend on electrical systems that must operate flawlessly in tropical heat, corrosive salt air, and under the mechanical stress of constant motion. This environment has driven the development of specialized cable technologies, among which the (N)GFLGÖU -J/O flat rubber flexible cable stands as a testament to engineering excellence.

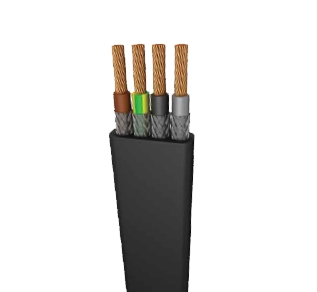

The (N)GFLGÖU -J/O represents a sophisticated solution specifically engineered for dynamic maritime environments. This low-voltage flat rubber flexible cable embodies decades of materials science advancement and electrical engineering expertise, designed to address the unique challenges that maritime applications present. Understanding its design principles and operational characteristics requires us to delve into the fundamental challenges of power transmission in marine environments and explore how modern cable technology rises to meet these demands.

Technical Design and Performance Highlights: Engineering for Excellence

Understanding Cable Construction Fundamentals

The construction of the (N)GFLGÖU -J/O cable reflects a deep understanding of the physics involved in flexible power transmission. At its heart lie conductors made from extra-flexible annealed copper, conforming to Class 6 or Class 5 specifications under IEC 60228 standards. To appreciate why this matters, consider that conventional copper conductors, while excellent for stationary applications, can suffer from metal fatigue when subjected to repeated bending cycles. The annealing process, which involves controlled heating and cooling, restructures the copper's crystalline structure to maximize flexibility while maintaining excellent electrical conductivity.

The choice of conductor class represents a critical engineering decision. Class 6 conductors, with their extremely fine strand construction, offer superior flexibility compared to Class 5, making them ideal for applications where cables must navigate tight bending radii repeatedly. This construction philosophy recognizes that maritime festoon systems subject cables to thousands of bending cycles daily, each potentially contributing to conductor fatigue if the cable design cannot accommodate such stress.

Surrounding these conductors, the insulation and outer sheath utilize a special synthetic thermosetting compound designated as Type 5GM3. This material selection reflects sophisticated polymer chemistry, as thermosetting compounds form cross-linked molecular structures that provide superior mechanical properties compared to thermoplastic alternatives. The 5GM3 compound specifically addresses the multi-faceted challenges of maritime environments, offering resistance to oil contamination, ultraviolet radiation degradation, and ozone attack while maintaining mechanical robustness under stress.

The cable's core identification system follows HD 308 and DIN VDE 0293 standards, ensuring consistent color coding that facilitates proper installation and maintenance. This standardization becomes particularly important in maritime applications where multiple cables may be bundled together, and incorrect identification could lead to serious safety hazards or operational failures.

Electrical and Mechanical Performance Parameters

The (N)GFLGÖU -J/O operates at a rated voltage of 300/500 V, positioning it within the low-voltage category while providing sufficient capacity for most maritime auxiliary systems. The AC test voltage of 2.5 kV demonstrates the cable's ability to withstand electrical stress well beyond its normal operating parameters, providing a safety margin crucial for maritime applications where equipment may experience voltage transients during startup or fault conditions.

Temperature performance specifications reveal the cable's versatility across diverse operating conditions. The fixed installation temperature range of -40°C to +90°C accommodates everything from arctic shipping routes to tropical port operations, while the mobile use specification of -25°C recognizes that moving applications generate additional heat through mechanical friction and electrical resistance. This temperature range reflects careful material selection and construction techniques that maintain cable integrity across thermal cycling.

The cable's flame retardancy certification under IEC 60332-1-2 addresses critical safety concerns in maritime environments. This standard ensures that should a fire occur, the cable will not propagate flames along its length, potentially containing fire damage and providing additional time for evacuation and firefighting efforts. In the confined spaces typical of ship installations or crane control rooms, this characteristic can mean the difference between a contained incident and a catastrophic fire.

Perhaps most impressive is the cable's tensile load resistance of up to 15 N/mm², which translates to exceptional ability to support its own weight plus additional mechanical loads. This specification becomes crucial when cables must span significant distances between festoon support points or when they must support the weight of attached components during movement.

The travel speed capability of 180 m/min represents the cable's ability to function reliably in high-speed festoon applications. To put this in perspective, this speed would allow a crane to traverse the length of a football field in less than two minutes while maintaining stable electrical contact throughout the movement.

Application in Singapore's Maritime Sector: Real-World Performance

Typical Use Cases and Operational Environment

Singapore's maritime infrastructure presents a demanding testing ground for cable technology. The nation's quay cranes, which must position themselves precisely to interface with container ships of varying sizes, require electrical systems that can maintain power delivery while accommodating significant horizontal movement. These cranes often operate continuously, with minimal downtime for maintenance, making cable reliability paramount.

Ship-to-shore gantry cranes represent another critical application area. These massive structures, some reaching heights equivalent to 40-story buildings, must maintain electrical connectivity while moving both horizontally along the dock and vertically to accommodate different vessel configurations. The cables supplying these systems experience complex stress patterns as they navigate the three-dimensional movement requirements of modern cargo handling.

Bulk loading facilities present additional challenges, as they often operate in environments where cables may be exposed to various chemical substances, from petroleum products to industrial minerals. The (N)GFLGÖU -J/O's oil resistance becomes particularly valuable in these applications, where conventional cables might suffer rapid degradation from hydrocarbon exposure.

Offshore platforms and dockyards introduce the additional complexity of wet environments and salt spray exposure. The corrosive nature of marine atmospheres can rapidly degrade cable materials that lack appropriate chemical resistance. The cable's synthetic thermosetting compound sheath provides a barrier against these aggressive conditions, maintaining structural integrity over extended service periods.

Operational Benefits and Performance Advantages

The cable's design philosophy of supporting frequent one-plane bending without conductor fatigue addresses a fundamental challenge in maritime applications. Traditional round cables, when subjected to repeated bending, concentrate stress at specific points, potentially leading to conductor fracture. The flat configuration of the (N)GFLGÖU -J/O distributes bending stress more evenly, significantly extending service life under dynamic conditions.

Stable electrical performance under harsh weather conditions reflects the cable's ability to maintain consistent electrical characteristics despite environmental extremes. Temperature cycling, humidity variation, and corrosive exposure can all affect cable performance, but the (N)GFLGÖU -J/O's material selection and construction techniques minimize these effects.

The extended service life characteristic translates directly to reduced maintenance requirements and operational costs. In maritime applications where downtime can cost thousands of dollars per hour, cable reliability becomes an economic imperative. The ability to maintain consistent performance over years of service, rather than months, provides substantial operational benefits.

Addressing Common Maritime Cable Challenges: Technical FAQ

Environmental Resistance and Durability

Singapore's tropical maritime environment presents a unique combination of challenges that test cable materials to their limits. The combination of high humidity, intense solar radiation, salt spray, and temperature extremes creates conditions that can rapidly degrade inadequately protected cables. The (N)GFLGÖU -J/O's 5GM3 outer sheath represents a sophisticated polymer formulation specifically designed to resist these multiple degradation mechanisms simultaneously.

Ultraviolet radiation, particularly intense in tropical latitudes, can cause polymer chains to break down through photochemical reactions. The 5GM3 compound incorporates UV stabilizers that absorb harmful radiation before it can damage the polymer structure. Similarly, ozone resistance becomes critical in marine environments where electrical equipment may generate ozone, and natural atmospheric ozone concentrations can be elevated.

Oil resistance addresses the reality that maritime environments frequently involve exposure to hydraulic fluids, lubricants, and fuel products. The cable's ability to maintain structural integrity when exposed to these substances prevents premature failure that might otherwise occur in oil-contaminated environments.

Installation and Space Optimization

The flat cable configuration offers significant advantages in the confined spaces typical of maritime installations. Traditional round cables, when bundled together, create air gaps that reduce space efficiency and can trap moisture or contaminants. The flat profile allows for more efficient cable routing and can reduce the overall size of cable trays or conduits required for installation.

This space optimization becomes particularly valuable on vessels where every cubic inch of space carries economic value. The ability to route power cables more efficiently can free up space for cargo or reduce the size of electrical enclosures required for cable management.

The flat configuration also simplifies the design of festoon systems themselves. When cables must move in a single plane, the flat profile naturally aligns with the movement pattern, reducing the tendency for cables to twist or tangle during operation. This alignment reduces mechanical stress on both the cable and the festoon system hardware.

Conductor Flexibility and Fatigue Resistance

The science of conductor fatigue in flexible cables involves understanding how repeated mechanical stress affects metallic conductors at the microscopic level. Each bending cycle creates stress concentrations within the conductor strands, potentially leading to crack initiation and propagation. The extra-flexible annealed copper conductors used in the (N)GFLGÖU -J/O are specifically designed to distribute these stresses more evenly.

The annealing process removes work hardening from the copper, creating a more uniform crystalline structure that can accommodate mechanical deformation without crack formation. Class 6 and Class 5 conductor specifications ensure that individual strands are fine enough to bend readily while maintaining electrical continuity.

The parallel core arrangement within the flat cable contributes to fatigue resistance by ensuring that all conductors experience similar mechanical stress during bending. This balanced stress distribution prevents individual conductors from carrying disproportionate mechanical loads that might accelerate fatigue failure.

High-Speed Operation and Dynamic Performance

The specification for travel speeds up to 180 m/min reflects sophisticated engineering to manage the dynamic forces that occur during high-speed cable movement. At these speeds, cables experience significant inertial forces, wind resistance, and vibration that can affect both electrical performance and mechanical integrity.

The cable's construction must accommodate these dynamic loads while maintaining consistent electrical characteristics. Conductor movement within the insulation, if not properly controlled, can create intermittent connections or electrical noise that might disrupt sensitive control systems. The (N)GFLGÖU -J/O's construction techniques ensure that conductors remain stable within their insulation even under high-speed operation.

Temperature rise during high-speed movement becomes another consideration, as mechanical friction and electrical resistance both generate heat. The cable's temperature rating accounts for these thermal effects, ensuring safe operation even under demanding dynamic conditions.

Fire Safety and Regulatory Compliance

The IEC 60332-1-2 flame propagation standard represents a rigorous test of cable fire performance. This standard evaluates whether a cable, when exposed to a specific flame source, will propagate fire along its length. The test involves exposing a vertical cable sample to a controlled flame and measuring flame spread and burn characteristics.

For maritime applications, flame retardancy becomes particularly critical due to the confined spaces and limited escape routes typical of ship and port installations. The cable's ability to resist flame propagation can provide crucial additional time for evacuation and firefighting efforts in emergency situations.

The synthetic thermosetting compound used in the (N)GFLGÖU -J/O inherently provides better fire resistance than many thermoplastic alternatives. Thermosetting polymers form cross-linked structures that char rather than melt when exposed to high temperatures, creating a protective barrier that can slow fire progression.

Core Configuration Selection: J versus O Versions

The choice between J and O versions reflects fundamental electrical safety considerations. The J version incorporates an earth conductor that provides a path for fault currents to flow safely to ground, enabling protective devices to operate quickly in the event of an insulation failure. This earth connection becomes particularly important in maritime environments where personnel may be working in wet conditions or where metallic equipment structures could become energized during fault conditions.

The O version, lacking an earth conductor, suits applications where earth protection is provided through other means or where the electrical system design does not require individual cable earthing. This choice typically occurs in systems where earth continuity is maintained through equipment mounting arrangements or where the electrical installation utilizes other grounding strategies.

The decision between versions should always involve qualified electrical engineers who can evaluate the specific installation requirements, local electrical codes, and safety considerations relevant to the particular application.

Conclusion: Excellence in Maritime Power Distribution

The (N)GFLGÖU -J/O flat rubber flexible cable represents the culmination of decades of advancement in materials science, electrical engineering, and practical maritime experience. Its sophisticated design addresses the multifaceted challenges of power transmission in dynamic marine environments while providing the reliability and safety characteristics essential for critical port infrastructure.

For Singapore's maritime operations, where efficiency and reliability directly impact global trade flows, the cable's combination of durability, flexibility, and safety provides substantial operational advantages. The ability to maintain consistent electrical performance under extreme environmental conditions, combined with extended service life and reduced maintenance requirements, translates directly to improved operational efficiency and reduced lifecycle costs.

The cable's technical specifications reflect a deep understanding of maritime operational requirements, from the conductor flexibility needed for continuous movement to the environmental resistance required for tropical coastal conditions. This comprehensive approach to cable design ensures that the (N)GFLGÖU -J/O can meet the demanding requirements of modern maritime infrastructure while providing the safety margins essential for critical applications.

Additional Considerations for Maritime Engineers: Optimizing System Performance

Installation Best Practices and System Design

Successful implementation of the (N)GFLGÖU -J/O cable requires careful attention to installation techniques and system design considerations. Proper cable tension management becomes crucial in festoon systems, as insufficient tension can lead to cable sag and potential mechanical damage, while excessive tension can create stress concentrations that reduce service life.

The design of festoon support systems should accommodate the cable's flat profile while providing adequate support intervals to prevent excessive mechanical stress. Support spacing calculations must consider both the cable's mechanical properties and the dynamic loads imposed by system operation.

Connector and termination selection requires particular attention in maritime environments. The cable's performance characteristics can only be fully realized when terminations provide equivalent environmental protection and mechanical reliability. Sealed connectors designed for marine applications, with appropriate IP ratings for water and dust ingress protection, become essential components of the overall system.

Maintenance Strategies and Lifecycle Management

Regular inspection protocols should focus on identifying early signs of mechanical wear, environmental degradation, or electrical performance changes. Visual inspection techniques can identify surface damage, conductor exposure, or signs of chemical attack before they progress to failure conditions.

Electrical testing procedures, including insulation resistance measurements and continuity checks, provide quantitative assessment of cable condition over time. Trending these measurements can identify gradual degradation patterns that might indicate the need for preventive replacement before failure occurs.

The cable's extended service life characteristics should be balanced against the economics of planned replacement strategies. While the (N)GFLGÖU -J/O is designed for long service life, scheduled replacement based on operational hours or calendar time can prevent unexpected failures that might disrupt critical operations.

Through careful attention to these technical details and operational considerations, maritime engineers can fully realize the performance potential of the (N)GFLGÖU -J/O cable, ensuring reliable power transmission that supports the demanding requirements of modern maritime infrastructure. The cable's sophisticated design, combined with proper installation and maintenance practices, provides a foundation for electrical systems that can meet the challenges of Singapore's dynamic maritime environment while delivering the reliability essential for global trade operations.
