NGFLGÖU – CRANEFLEX: The Engineering Behind Dynamic Cables?

The Invisible Backbone of Industrial Motion

Imagine standing in a bustling port, watching massive container gantry cranes effortlessly lift and position cargo containers weighing tens of tons. Picture yourself in a modern skyscraper, riding an elevator that glides silently between floors with precision timing. Consider the countless conveyor belts in manufacturing facilities that move products through complex assembly processes without interruption. What makes these sophisticated systems operate with such remarkable reliability day after day?

The answer lies in an often-overlooked yet absolutely critical component: the specialized power and control cables that serve as the nervous system of these industrial giants. Among these essential components, one cable stands out for its exceptional engineering and performance capabilities – the NGFLGÖU CRANEFLEX cable.

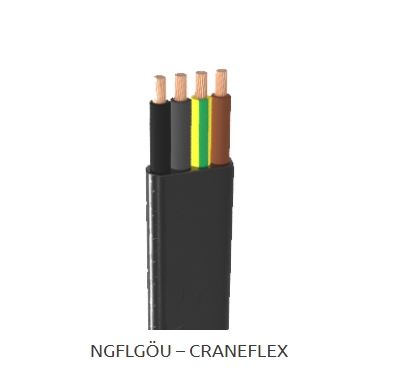

This flat cable represents decades of specialized engineering focused on solving one of the most challenging problems in industrial automation: how to reliably transmit power and control signals in applications where cables must endure constant motion, extreme bending, and harsh environmental conditions. The CRANEFLEX cable's unique design addresses the demanding requirements of dynamic industrial and maritime environments where conventional round cables simply cannot provide the necessary combination of flexibility, durability, and electrical performance.

Understanding the engineering principles behind the CRANEFLEX cable reveals not only the sophisticated technology that powers modern industry but also the critical considerations that engineers must address when designing systems for challenging applications. This exploration will examine the cable's distinctive flat design, its specialized applications in demanding environments, the precise electrical parameters that define its performance, and the rigorous standards that ensure its reliability in critical industrial operations.

Understanding the Strategic Advantages of Flat Cable Design

To appreciate why the CRANEFLEX cable uses a flat configuration rather than the more common round design, we must first understand the fundamental challenges that arise in dynamic industrial applications. When cables are subjected to repeated bending, flexing, and movement, several critical factors come into play that can significantly impact their performance and lifespan.

The flat design of CRANEFLEX cables provides distinct advantages in scenarios where space constraints are paramount. In many industrial applications, the phrase "space is at a minimum" accurately describes the design challenges engineers face. Whether routing cables through narrow elevator shafts, confined crane pedestals, or compact conveyor assemblies, every millimeter of available space must be utilized efficiently. The flat profile allows these cables to fit into spaces where round cables of equivalent electrical capacity simply cannot be accommodated.

Perhaps even more important than space efficiency is the flat cable's superior bending characteristics. The geometry of a flat cable naturally distributes mechanical stress more evenly across its cross-section during bending operations. When a round cable is bent, the stress concentrates at specific points, particularly on the outer radius of the bend, which can lead to conductor fatigue and insulation failure over time. In contrast, the flat design spreads these forces across a wider area, significantly reducing stress concentration and extending the cable's operational life in applications involving continuous flexing.

This bending advantage translates directly into smaller minimum bending radius requirements compared to equivalent round cables. The ability to achieve tighter bends without compromising cable integrity is crucial in applications like festoon systems, where cables must navigate complex paths while maintaining electrical continuity and mechanical integrity throughout their operational life.

Critical Applications Where Performance Cannot Be Compromised

The CRANEFLEX cable finds its most demanding applications in industrial environments where reliability is not just important – it is absolutely critical for operational safety and efficiency. Understanding these applications helps illustrate why such specialized engineering is necessary and how the cable's unique properties address specific operational challenges.

Elevator and Lift Systems: Ensuring Vertical Transportation Safety

In elevator applications, the CRANEFLEX cable serves as the vital link between the elevator car and the building's electrical systems. As the elevator travels up and down the shaft, the cable must maintain perfect electrical continuity while accommodating the constant vertical movement. The flat design proves particularly advantageous in elevator shafts where space is at a premium and where the cable must be routed efficiently alongside other building systems.

The cable's flexibility becomes critical during elevator operation, as it must bend and flex continuously without developing electrical faults or mechanical failures that could compromise passenger safety. The specialized insulation and sheath materials ensure that the cable maintains its electrical properties even after millions of flexing cycles, providing the long-term reliability that elevator systems demand.

Crane Operations: Supporting Heavy Industrial Lifting

Crane applications represent perhaps the most demanding environment for industrial cables. Whether supporting container handling at ports, construction lifting operations, or material handling in manufacturing facilities, crane cables must simultaneously carry high currents for motor operation and delicate control signals for precise positioning – all while enduring constant motion, vibration, and exposure to harsh environmental conditions.

The CRANEFLEX cable's robust construction addresses these challenges through its specialized conductor design and protective sheathing. The cable must maintain electrical integrity while supporting the mechanical stresses associated with crane operation, including the dynamic forces generated during acceleration, deceleration, and load handling operations.

Floor Conveyor Systems: Maintaining Manufacturing Continuity

In modern manufacturing and logistics operations, conveyor systems represent the arteries of production, moving materials and products through complex processes with remarkable precision. The cables serving these systems must provide uninterrupted power and control while accommodating the continuous motion inherent in conveyor operations.

The CRANEFLEX cable's design addresses the unique challenges of conveyor applications, where cables may be subjected to constant flexing as they follow moving conveyor sections or navigate complex routing paths. The cable's ability to maintain electrical performance under these conditions is crucial for maintaining production schedules and preventing costly downtime.

Festoon Systems: Enabling Long-Distance Dynamic Power Transmission

Festoon systems represent one of the most challenging applications for industrial cables, requiring power and signal transmission to machinery that traverses long distances, such as gantry cranes in container terminals or overhead cranes in large manufacturing facilities. In these applications, cables must be suspended and guided along the equipment's travel path while maintaining electrical continuity throughout the full range of motion.

The CRANEFLEX cable's high-speed capability, with travel speeds up to 180 meters per minute in festoon applications, demonstrates its engineering optimization for these demanding dynamic environments. The cable must not only survive the mechanical stresses of high-speed operation but also maintain precise electrical characteristics essential for accurate equipment control and positioning.

The Engineering Excellence Behind Electrical Performance

The electrical parameters of the CRANEFLEX cable represent a carefully balanced engineering solution designed to meet the demanding requirements of dynamic industrial applications. Understanding these parameters provides insight into how the cable achieves its exceptional performance in challenging environments.

Advanced Conductor Design for Maximum Flexibility

The foundation of the CRANEFLEX cable's electrical performance lies in its sophisticated conductor design. The cable utilizes high-purity copper conductors, with tinned conductor options available upon request for applications requiring enhanced corrosion resistance. This conductor treatment becomes particularly important in marine environments or other applications where the cable may be exposed to corrosive substances.

The flexibility classification of the conductors represents a critical engineering consideration. For smaller cross-sections up to 25 square millimeters, the cable employs Class 6 conductors, which provide the extreme flexibility necessary for applications involving frequent bending and flexing. For larger conductor sizes of 25 square millimeters and above, Class 5 conductors are used, still providing excellent flexibility while maintaining the current-carrying capacity required for higher power applications.

The inclusion of suitable tape separation over the conductors serves multiple important functions. This separator helps maintain insulation integrity by preventing conductor movement that could lead to insulation wear, while also providing additional protection against mechanical damage during cable installation and operation.

Specialized Insulation and Sheath Materials

The insulation system of the CRANEFLEX cable employs a 3GI3 type rubber compound specifically formulated to provide exceptional dielectric strength while maintaining flexibility across a wide temperature range. This insulation material must perform dual functions: providing excellent electrical isolation between conductors while maintaining its physical properties under the mechanical stresses of dynamic applications.

The outer sheath utilizes a 5GM3 type elastomer compound that provides robust protection against environmental factors commonly encountered in industrial applications. This sheath material is engineered to resist oil, chemicals, abrasion, and UV exposure while maintaining flexibility even at temperature extremes. The sheath serves as the cable's primary defense against the harsh conditions typical of industrial and maritime environments.

Comprehensive Voltage and Temperature Specifications

The CRANEFLEX cable's voltage ratings reflect its design for versatile power applications. With a rated voltage of 300/500 V and optional 0.6/1 kV configuration, the cable can serve both control and power applications within a single installation. The maximum operating voltages of 0.7/1.2 kV AC and 0.9/1.8 kV DC provide operational headroom that ensures reliable performance even under varying system conditions.

The AC test voltage specification of 3.5 kV demonstrates the cable's insulation integrity under electrical stress conditions that exceed normal operational parameters. This testing requirement ensures that the cable can withstand electrical transients and fault conditions without compromising safety or performance.

Temperature performance specifications reveal the cable's engineered capability to operate across extreme environmental conditions. The conductor operating temperature maximum of 90°C indicates the cable's current-carrying capacity under normal operating conditions, while the short-circuit temperature rating of 250°C provides crucial safety margin during fault conditions.

The differentiation between fixed and mobile temperature ranges acknowledges the different thermal stresses encountered in static versus dynamic applications. The fixed installation range of -50°C to +90°C accommodates extreme static environments, while the mobile range of -35°C to +90°C reflects the practical operating conditions for dynamic applications where the cable's movement helps moderate temperature extremes.

Mechanical Properties: Engineering for Dynamic Performance

The mechanical properties of the CRANEFLEX cable represent some of its most critical engineering achievements, as these characteristics directly determine the cable's ability to survive and perform in demanding dynamic applications.

Tensile Strength: Supporting Operational Stresses

The cable's tensile load specifications provide crucial guidance for system designers working with high-stress applications. The static tensile load rating of 15 N/mm² establishes the cable's ability to support its own weight and moderate pulling forces during installation and stationary operation. However, the dynamic tensile load rating of 30 N/mm² reveals the cable's enhanced capability to withstand the significantly higher forces encountered during operation in moving applications.

This doubled dynamic capacity reflects sophisticated engineering that anticipates the additional stresses generated by acceleration, deceleration, and directional changes common in festoon systems and other dynamic applications. When designing cable systems for applications like long-travel gantry cranes, engineers must carefully calculate the maximum anticipated tensile forces, considering factors including cable length, weight distribution, operational speeds, and the mechanical forces generated during normal operation.

Bending Performance: Optimized for Continuous Flexing

The minimum bending radius specifications, referenced to VDE 0298-3 Table 3, represent one of the CRANEFLEX cable's most significant engineering achievements. The ability to achieve tight bending radii without compromising electrical or mechanical integrity is crucial for applications where space constraints and complex routing requirements must be accommodated.

This superior flexibility results from the combination of the flat cable geometry, specialized conductor stranding, and carefully formulated insulation and sheath materials. The engineering challenge lies in achieving this flexibility while maintaining all other performance parameters, including current-carrying capacity, voltage withstand capability, and long-term reliability.

High-Speed Dynamic Capability

The travel speed specification of 180 meters per minute in festoon applications demonstrates the cable's optimization for high-speed dynamic environments. This capability requires precise engineering of all cable components to ensure that mechanical resonances, conductor fatigue, and insulation wear are minimized even under continuous high-speed operation.

Achieving this performance level requires careful attention to the cable's mass distribution, flexibility characteristics, and the dynamic forces generated during high-speed operation. The cable must maintain electrical continuity and mechanical integrity throughout its operational life, even when subjected to the complex stress patterns generated by high-speed dynamic applications.

Rigorous Standards and Testing: Ensuring Uncompromising Quality

The extensive testing regimen required for CRANEFLEX cables reflects both the critical nature of their applications and the comprehensive approach necessary to validate performance across all operational parameters. Understanding these standards provides insight into the thorough engineering validation that ensures reliable performance in demanding applications.

Construction and General Requirements Standards

The cable's construction follows DIN VDE 0250-809 specifications, which establish the fundamental design requirements for specialized industrial cables. These standards address critical aspects including conductor specifications, insulation requirements, sheath properties, and overall cable construction tolerances that ensure consistent performance across production batches.

General requirements compliance with DIN VDE 0250-1 establishes the broader framework for cable performance, addressing fundamental electrical, mechanical, and environmental performance criteria. The adherence to DIN VDE 0298-3 usage guidelines ensures that the cable's application recommendations are based on established engineering principles and validated performance data.

Comprehensive Electrical Testing

The electrical testing regimen encompasses multiple DIN VDE standards that validate different aspects of the cable's electrical performance. DIN VDE 0472-501 addresses basic electrical properties including conductor resistance and insulation resistance, while DIN VDE 0472-503 and 508 cover more specialized electrical characteristics including dielectric strength and partial discharge performance.

These electrical tests simulate both normal operating conditions and stress conditions that may be encountered during the cable's operational life. The testing protocols ensure that the cable maintains its electrical properties even after exposure to the mechanical stresses, temperature extremes, and environmental conditions typical of dynamic industrial applications.

Mechanical and Environmental Validation

Non-electrical testing under DIN VDE 0472-401, 402, 602, 303, and 615 addresses the mechanical and environmental performance characteristics that are crucial for dynamic applications. These tests evaluate factors including tensile strength, bending performance, abrasion resistance, and chemical compatibility that directly impact the cable's ability to survive in challenging industrial environments.

The inclusion of fire condition testing under DIN VDE 0472-803 and 804 reflects the critical safety considerations in industrial applications. These tests validate the cable's behavior under fire conditions, ensuring that it will not contribute to fire propagation and will maintain its integrity long enough to support emergency shutdown procedures.

Specialized Performance Validation

Flame retardant testing under multiple standards including VDE 0482-332-1-2, DIN EN 60332-1-2, and IEC 60332-1 ensures that the cable meets international safety requirements for fire resistance. This testing is particularly crucial for applications in enclosed spaces like elevator shafts or onboard ships, where fire propagation could create significant safety hazards.

Oil resistance validation under HD/EN/IEC 60811-2-1 and DIN VDE 0473-811-2-1 confirms the cable's ability to maintain its properties when exposed to the industrial oils, greases, and chemical compounds commonly found in heavy machinery and port operations. This resistance prevents the sheath degradation that could compromise the cable's electrical integrity and operational life.

Addressing Critical Application Questions

The practical application of CRANEFLEX cables in challenging industrial environments raises important technical questions that system designers and maintenance engineers must consider. Addressing these questions provides practical insight into the cable's capabilities and limitations in real-world applications.

Longevity in Dynamic Applications

The flat design's contribution to longevity in highly dynamic applications like festoon systems stems from its fundamental geometric advantages in stress distribution. When a cable undergoes repeated bending cycles, the flat structure allows for more uniform stress distribution across the cable's cross-section compared to round cables, where stress tends to concentrate at specific points around the circumference.

This uniform stress distribution significantly reduces mechanical fatigue in the conductors and insulation materials, which translates directly into extended operational life in applications involving millions of bending cycles. In confined spaces where bending radii are necessarily tight, this advantage becomes even more pronounced, as the flat cable can achieve the required flexibility without exceeding the mechanical stress limits of its materials.

Chemical and Environmental Resistance

The 5GM3 type elastomer compound sheath provides comprehensive protection against the broad range of oils, greases, and chemical compounds commonly encountered in heavy industrial and port environments. This resistance encompasses petroleum-based oils, synthetic lubricants, hydraulic fluids, and many industrial cleaning compounds that could otherwise cause sheath swelling, cracking, or degradation.

This chemical resistance is particularly crucial in port operations where cables may be exposed to saltwater, fuel spills, hydraulic fluid leaks, and various cargo-related chemicals. The sheath's ability to maintain its integrity under these conditions ensures that the underlying insulation remains protected, preventing electrical faults that could compromise both equipment operation and personnel safety.

Mechanical Design Considerations for High-Stress Applications

The tensile load specifications provide essential engineering data for designing cable support systems in high-stress applications. The higher dynamic load capacity of 30 N/mm² compared to the static rating of 15 N/mm² reflects the cable's engineered capability to handle the additional forces generated by operational movement, acceleration, and deceleration.

For long-travel applications, engineers must consider not only the static weight of the cable but also the dynamic forces generated during operation. These calculations must account for the cable's distributed mass, the acceleration and deceleration forces during equipment movement, and any additional loads imposed by the cable support and guidance systems. Proper engineering ensures that operational forces remain well within the cable's design limits to prevent premature failure.

Safety Enhancement Through Fire Resistance

The comprehensive flame retardancy standards compliance provides multiple layers of safety protection, particularly important in enclosed or critical environments. The cable's ability to resist flame propagation means that in the event of a fire, the cable will not act as a pathway for fire spread, significantly enhancing overall system safety.

This fire resistance is achieved through specialized formulations of both the insulation and sheath materials that are designed to self-extinguish when the ignition source is removed. The testing standards ensure that this performance is maintained even under the elevated temperatures and reduced oxygen conditions that may be encountered during actual fire scenarios.

Temperature Performance in Extreme Environments

The cable's performance across extreme temperature ranges results from the carefully engineered properties of both the insulation and sheath materials. The 3GI3 rubber insulation and 5GM3 elastomer sheath are formulated to maintain their critical properties across the full operational temperature range, ensuring consistent electrical and mechanical performance regardless of environmental conditions.

At low temperatures, the materials resist becoming brittle or cracking, which could compromise both electrical integrity and mechanical flexibility. At high temperatures, the materials maintain their structural integrity and electrical properties without excessive softening or degradation. This temperature stability is essential for applications like outdoor maritime operations or cold storage facilities where temperature swings can be extreme and unpredictable.

The Engineering Legacy of Specialized Cable Design

The CRANEFLEX cable represents a sophisticated engineering solution to the complex challenges of modern industrial automation and motion control systems. Its development reflects the evolution of industrial technology from simple mechanical systems to the complex, precisely controlled operations that characterize today's manufacturing, logistics, and maritime industries.

The cable's specialized design addresses fundamental engineering challenges that cannot be solved through conventional cable designs. The flat geometry, advanced materials, and comprehensive performance specifications result from decades of engineering refinement focused on meeting the specific demands of dynamic industrial applications. This specialization ensures that critical industrial systems can operate with the reliability and precision that modern industry demands.

The comprehensive testing and standards compliance demonstrate the thorough engineering validation necessary for applications where failure is not acceptable. In systems like elevator controls, crane operations, or port container handling, cable failure can result in significant safety hazards, operational disruptions, and economic losses. The rigorous qualification process ensures that the CRANEFLEX cable can provide the long-term reliability that these applications require.

Perhaps most importantly, the CRANEFLEX cable exemplifies the critical role that specialized components play in enabling the complex systems that drive modern industry. While these cables may remain largely invisible to the casual observer, they serve as the essential nervous system that enables the precise control and reliable operation of the machinery that moves containers in ports, transports people in buildings, and manufactures the products that define modern life.

The engineering principles embodied in the CRANEFLEX cable – attention to application-specific requirements, materials science innovation, comprehensive testing validation, and long-term reliability focus – represent the foundation of successful industrial automation. As industrial systems continue to evolve toward greater automation, higher speeds, and more demanding operational requirements, the importance of specialized components like the CRANEFLEX cable will only continue to grow.

Understanding these engineering principles provides valuable insight not only into cable technology but into the broader challenges and solutions that characterize modern industrial engineering. The CRANEFLEX cable, though often unseen and unnoticed, plays a vital role in ensuring the efficiency, safety, and reliability of the sophisticated machinery that powers our interconnected industrial world.
