Navigating Safety and Performance: An In-Depth Look at M2X 0.6/1kV Maritime Cables

Introduction: Powering Singapore's Maritime Lifeline

The Unseen Grid: Why Cables Matter in Marine Environments

The maritime industry operates in one of the most demanding electrical environments on Earth. Unlike terrestrial installations where cables might face predictable conditions, marine environments subject electrical infrastructure to a relentless combination of salt spray, humidity, temperature fluctuations, and mechanical stress. In Singapore's bustling maritime sector, which handles over 37 million TEUs annually and serves as a critical transhipment hub for global trade, the reliability of electrical systems can mean the difference between smooth operations and costly downtime.

Marine electrical requirements extend far beyond simple power distribution. Modern ports and vessels depend on sophisticated control systems, navigation equipment, communication networks, and safety systems that all require uninterrupted power supply. The corrosive nature of salt water, combined with Singapore's tropical climate where humidity levels regularly exceed 80%, creates an environment where standard electrical cables would quickly degrade, leading to system failures that could compromise both safety and operations.

Introducing the M2X 0.6/1kV Cable

The M2X 0.6/1kV cable represents a specialized solution engineered specifically for the demanding requirements of maritime applications. This cable is designed for fixed wiring installations in switchboards, control panels, and other electrical enclosures where reliability and safety are paramount. What sets the M2X cable apart from conventional power cables is its Low Smoke, Zero Halogen (LSOH) construction, which has become a cornerstone of modern marine safety protocols.

The designation "0.6/1kV" refers to the cable's voltage rating, indicating it can safely operate at 600V to earth and 1000V between phases. This rating makes it suitable for the majority of electrical distribution systems found in maritime applications, from lighting circuits to motor control systems. The M2X designation itself indicates its compliance with specific marine cable standards, ensuring it meets the stringent requirements for shipboard and port installations.

Singapore's Maritime Edge: The Role of Advanced Cabling

Singapore's position as the world's second-largest container port and a major maritime services hub depends heavily on the reliability of its electrical infrastructure. The Port of Singapore Authority manages one of the most technologically advanced port systems globally, with automated container handling systems, sophisticated traffic management, and integrated communication networks that all rely on robust electrical connections. Advanced cabling solutions like the M2X 0.6/1kV cable play a crucial role in maintaining the high standards of safety and efficiency that have made Singapore a preferred destination for international shipping.

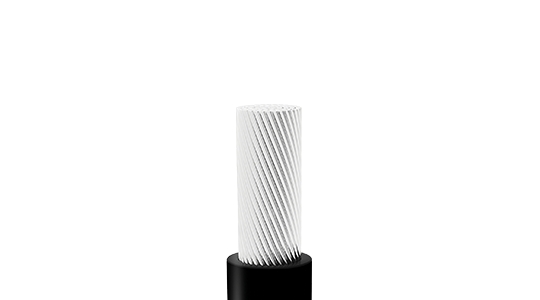

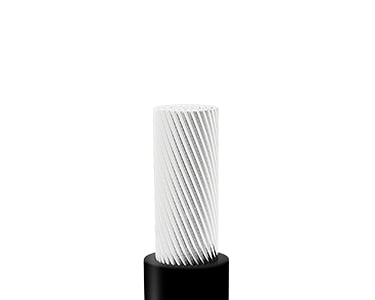

The Anatomy of Reliability: M2X 0.6/1kV Cable Structure

Core Strength: The Conductor

The foundation of any electrical cable lies in its conductor, and the M2X 0.6/1kV cable employs electrolytic, stranded, annealed bare copper wire that conforms to IEC 60228 standards. This specification ensures optimal electrical conductivity while maintaining the flexibility necessary for marine installations. The use of electrolytic copper is particularly important because this grade of copper achieves conductivity levels of at least 100% IACS (International Annealed Copper Standard), meaning it offers minimal resistance to electrical current flow.

The stranded construction, typically classified as Class 5 under IEC 60228, provides superior flexibility compared to solid conductors. This flexibility becomes crucial when installing cables in the confined spaces typical of marine environments, where cables must often navigate around machinery, through tight conduits, and around sharp corners. The annealing process, which involves controlled heating and cooling of the copper, relieves internal stresses and ensures the conductor maintains its flexibility over time, even when subjected to vibration and thermal cycling.

Many M2X cables feature tinned copper conductors, where a thin layer of tin is applied to the copper strands. This tinning process serves multiple purposes in marine applications. The tin coating provides enhanced corrosion resistance, particularly important in environments where moisture ingress might occur. Additionally, tinning improves the conductor's ability to make reliable connections with terminals and junction boxes, as tin forms more stable electrical connections than bare copper in the presence of moisture.

The Protective Shield: Insulation

The insulation system of the M2X 0.6/1kV cable utilizes a halogen-free, flame-retardant, cross-linked polyolefin compound designated as HF90. This advanced insulation material represents a significant evolution from traditional PVC insulation systems, offering superior performance characteristics that are particularly valuable in marine applications.

Cross-linking is a chemical process that creates bonds between polymer chains, resulting in a three-dimensional network structure. This cross-linked structure provides several advantages over thermoplastic insulation materials. First, it offers superior thermal stability, maintaining its insulating properties even when exposed to elevated temperatures that might be encountered in engine rooms or electrical panels. The cross-linked structure also provides better mechanical properties, including improved resistance to stress cracking and environmental stress.

The halogen-free composition of the HF90 insulation is crucial for marine safety applications. Traditional PVC insulation contains chlorine, which can release toxic hydrogen chloride gas when heated or burned. The halogen-free formulation eliminates this safety concern while maintaining excellent electrical insulation properties. The flame-retardant characteristics are achieved through the addition of aluminum trihydrate or similar compounds that release water vapor when heated, helping to cool the material and dilute flammable gases.

Color coding follows standard maritime practices, with black, red, and blue typically used for three-phase identification. Additional colors may be available for specific applications, allowing for clear identification of different circuits and reducing the risk of installation errors.

The Power It Handles

The 0.6/1kV voltage rating of the M2X cable indicates its suitability for medium-voltage applications common in maritime installations. The dual voltage rating reflects the cable's ability to operate safely at 600V between any conductor and earth, and 1000V between any two conductors. This rating system, common in international standards, ensures the cable can handle the voltage stresses encountered in both single-phase and three-phase systems.

The test voltage of 3.5kV represents the electrical stress the cable can withstand during factory testing, providing a safety margin well above the normal operating voltage. This high test voltage demonstrates the cable's robust dielectric strength and provides confidence in its long-term reliability. The dielectric strength of the insulation system is particularly important in marine applications where cables may be exposed to moisture, which can reduce the breakdown voltage of inferior insulation systems.

Beyond Specifications: Safety and Durability Standards

Prioritizing Safety: The LSOH Advantage

The Low Smoke, Zero Halogen (LSOH) characteristics of the M2X 0.6/1kV cable represent one of its most important safety features. In marine environments, where evacuation routes may be limited and emergency response can be challenging, the behavior of cables during fire incidents becomes critical to life safety.

Halogen content testing according to IEC 60754/1-2 ensures that the cable materials release minimal quantities of halogen gases when exposed to fire conditions. Traditional PVC cables can release significant amounts of hydrogen chloride gas, which is not only toxic but also highly corrosive to electronic equipment and metal structures. The halogen-free construction of the M2X cable eliminates this concern, making it safer for both personnel and equipment.

Smoke emission testing per IEC 61034/1-2 measures the optical density of smoke produced when cable materials burn. In enclosed spaces like ship compartments or port control rooms, dense smoke can quickly obscure vision and impede evacuation efforts. The low smoke emission characteristics of LSOH cables can be literally life-saving, maintaining visibility that allows personnel to locate emergency exits and firefighting equipment to locate and suppress fires effectively.

Flame retardancy testing according to IEC 60332/1-2 and IEC 60332/3-22 Category A ensures that the cable will not contribute to fire propagation. The single-cable flame test (IEC 60332/1-2) verifies that an individual cable will not sustain combustion when the ignition source is removed. The bundle test (IEC 60332/3-22 Cat A) is even more stringent, testing the behavior of multiple cables installed together, which more closely represents actual installation conditions.

Built to Last: Resilience in Harsh Environments

The temperature rating of -40°C to +90°C for the M2X 0.6/1kV cable demonstrates its ability to perform reliably across the full range of conditions encountered in maritime applications. In Singapore's tropical climate, where ambient temperatures can exceed 35°C and equipment compartments may reach much higher temperatures, the +90°C rating provides adequate thermal margin. The low-temperature rating ensures reliable operation even in refrigerated cargo areas or during transit through colder climates.

The wide temperature range capability stems from the cross-linked polyolefin insulation system, which maintains its flexibility and electrical properties across temperature extremes. This is particularly important for cables that may experience thermal cycling, such as those connected to equipment that operates intermittently or cables routed through areas with varying thermal conditions.

Ozone resistance testing according to IEC 60811/403 addresses a specific degradation mechanism that can affect cables in marine environments. Ozone, formed by electrical discharges and present in seawater spray, can cause cracking and degradation of cable materials over time. The ozone resistance of the M2X cable ensures long-term reliability even when exposed to outdoor conditions or areas with high ozone concentrations.

The minimum bending radius of 4 times the cable diameter (4 x D) reflects the cable's flexibility while ensuring that the internal structure is not damaged during installation. This specification is particularly important in marine applications where cables must often be routed through tight spaces and around obstacles. A smaller bending radius allows for more flexible installation while maintaining the integrity of the conductor and insulation systems.

Conforming to Excellence: International Standards

The M2X 0.6/1kV cable's construction according to IEC 60092/353 ensures compliance with international standards for shipboard electrical installations. This standard covers construction requirements, materials specifications, and testing procedures specifically developed for the marine environment. Compliance with IEC 60092/353 provides assurance that the cable will perform reliably in the unique conditions encountered aboard ships and in port facilities.

The comprehensive testing requirements of IEC 60092/350-360 series standards ensure that every aspect of cable performance has been evaluated under conditions representative of actual service. These tests include electrical performance verification, mechanical property assessment, environmental resistance testing, and fire performance evaluation. The rigorous testing protocols provide confidence in the cable's ability to maintain performance throughout its service life.

The M2X cable's compatibility with other recognized marine cable types such as MX, LKEM-HF, and HFF-CX facilitates integration into existing electrical systems and ensures that maintenance and replacement procedures remain straightforward. This compatibility is particularly important in retrofit applications where new cables must work alongside existing installations.

Where M2X Cables Make an Impact in Singapore

Within the Port: Powering Shore-Side Operations

Singapore's port operations represent one of the most demanding applications for electrical infrastructure. The Port of Singapore Authority operates multiple container terminals, each equipped with sophisticated automated systems that require reliable power distribution. M2X 0.6/1kV cables play a crucial role in these installations, providing power to automated stacking cranes, container handling equipment, and control systems that manage the flow of cargo through the port.

Shore-to-ship power connections, also known as cold ironing, represent another critical application for M2X cables. These systems allow ships to shut down their main engines while berthed, connecting to shore power for hotel loads and essential systems. The reliability of these connections is crucial for reducing emissions and noise in port areas while ensuring that ships maintain essential power for safety and comfort systems.

The extensive warehouse and logistics facilities within Singapore's port complex also depend on robust electrical infrastructure. These facilities house sophisticated inventory management systems, automated storage and retrieval systems, and climate control equipment that all require reliable power distribution. The LSOH characteristics of M2X cables are particularly valuable in these applications, where fire safety is critical for protecting both personnel and valuable cargo.

Onboard and Ashore: Shipyards and Marine Vessels

Singapore's shipbuilding and ship repair industry represents another significant application area for M2X cables. The city-state hosts some of the world's largest shipyards, where vessels ranging from container ships to offshore platforms are constructed and maintained. These facilities require extensive electrical infrastructure to support welding equipment, material handling systems, and environmental control systems.

Onboard vessels, M2X cables serve critical functions in power distribution to essential systems. Engine room installations require cables that can withstand elevated temperatures and mechanical vibration while maintaining reliable electrical connections. Bridge and navigation equipment installations demand cables that provide stable power supply to sensitive electronic systems that are crucial for safe navigation.

Crew accommodation areas present unique challenges for electrical installations, requiring cables that meet both safety and comfort standards. The LSOH characteristics of M2X cables are particularly important in these applications, where the safety of personnel is paramount. The cables must provide reliable power to lighting, ventilation, communication, and emergency systems while minimizing fire and smoke hazards.

Critical Enclosures & Emergency Systems

Emergency power systems represent perhaps the most critical application for M2X cables in maritime installations. These systems must operate reliably when main power is lost, providing power to emergency lighting, communication systems, fire suppression equipment, and navigation aids. The robust construction and proven reliability of M2X cables make them ideal for these life-safety applications.

Control panels and switchboards in maritime applications often operate in challenging environments where space is limited and access for maintenance is restricted. The flexibility and compact design of M2X cables facilitate installation in these confined spaces while providing the reliability necessary for critical control functions. The clear identification provided by standard color coding helps ensure that maintenance personnel can quickly identify and service the correct circuits.

Communication and navigation equipment installations require cables that provide stable power supply while minimizing electromagnetic interference. The carefully engineered construction of M2X cables helps ensure that power distribution systems do not interfere with sensitive electronic equipment that is crucial for safe navigation and communication.

Conclusion: Charting a Safer Course for Singapore's Maritime Future

The M2X Promise

The M2X 0.6/1kV cable represents more than just an electrical component; it embodies a commitment to safety, reliability, and performance that is essential for modern maritime operations. Through its advanced LSOH construction, robust temperature rating, and compliance with international standards, the M2X cable delivers on its promise of enhanced safety and unwavering reliability. The combination of flexible installation characteristics and long-term durability makes it an ideal choice for the demanding requirements of Singapore's maritime industry.

Contributing to Singapore's Vision

Singapore's continued growth as a global maritime hub depends on the reliability and safety of its electrical infrastructure. The M2X 0.6/1kV cable plays a crucial role in building the resilient systems that underpin the efficiency and safety of port operations, shipbuilding, and vessel operations. By providing a foundation of reliable electrical distribution, these cables contribute to Singapore's reputation for operational excellence and safety leadership in the maritime industry.

A Foundation for Innovation

As the maritime industry continues to evolve with new technologies such as autonomous vessels, shore power systems, and advanced port automation, the importance of reliable electrical infrastructure becomes even more critical. High-standard cabling solutions like the M2X 0.6/1kV cable provide the fundamental building blocks that enable these technological advances. The proven performance and safety characteristics of these cables ensure that Singapore's maritime industry can continue to lead in adopting new technologies while maintaining the highest standards of safety and reliability.

The investment in quality electrical infrastructure, exemplified by the adoption of advanced cables like the M2X 0.6/1kV, represents a strategic decision that pays dividends in operational reliability, safety performance, and long-term cost effectiveness. As Singapore continues to strengthen its position as a leading maritime hub, the role of such high-performance electrical components becomes increasingly important in maintaining the competitive edge that has made Singapore a preferred destination for international maritime operations.
