MVCECH Marine Cables: Engineering Excellence for Medium Voltage Shipboard and Offshore Power Systems
Comprehensive technical guide to MVCECH medium voltage marine cables (3.6kV to 24kV), covering construction, applications, environmental resistance, and compliance with IEC marine standards for shipboard and offshore installations.
BLOGS
5/26/202515 min read
Introduction
The maritime industry's evolution toward more sophisticated electrical systems has created an unprecedented demand for reliable, high-performance medium voltage cables capable of withstanding the harsh marine environment. At the forefront of this technological advancement stands the MVCECH cable series, a comprehensive range of medium voltage marine cables engineered specifically for shipboard and offshore power distribution applications.
The MVCECH series represents a culmination of decades of marine electrical engineering expertise, addressing the unique challenges posed by saltwater exposure, extreme temperature variations, mechanical stress, and the critical safety requirements inherent in marine installations. These cables serve as the electrical backbone for modern vessels and offshore platforms, where power system reliability directly correlates with operational safety and economic viability.
Understanding the importance of these cables requires recognizing that marine electrical systems operate under conditions far more demanding than their terrestrial counterparts. The combination of corrosive salt air, constant vibration, limited installation space, and the absolute necessity for fire safety creates a complex engineering challenge. The MVCECH series addresses these challenges through advanced materials science, meticulous construction techniques, and strict adherence to international marine electrical standards.
The significance of MVCECH cables extends beyond mere power transmission. In marine environments, electrical failures can lead to catastrophic consequences, including loss of propulsion, navigation system failures, or fire hazards that pose immediate threats to crew and vessel safety. This reality underscores why marine cables must exceed the performance standards of conventional industrial cables, incorporating specialized features such as enhanced flame retardancy, low smoke emission, and superior environmental resistance.
Application Scenarios
Ship Propulsion Systems and Power Distribution Networks
Modern marine vessels rely extensively on electrical power systems for propulsion, navigation, and auxiliary functions. The MVCECH cable series finds its primary application in ship propulsion systems, where it connects medium voltage generators to propulsion motors, bow thrusters, and other high-power equipment. These applications demand cables that can handle substantial electrical loads while maintaining reliability in the face of constant mechanical stress from ship movement and vibration.
In ship power distribution networks, MVCECH cables form the arterial system that delivers electrical power throughout the vessel. From the main switchboard to distribution panels, these cables must navigate through confined spaces, often following complex routing paths around structural elements, pipe systems, and other shipboard equipment. The flexibility characteristics of MVCECH cables, with their carefully engineered bending radii, enable installation in these challenging spaces without compromising electrical performance or mechanical integrity.
The marine environment presents unique challenges for electrical systems, particularly in terms of space constraints and accessibility. Unlike land-based installations where cables can often be routed through dedicated cable trays or conduits with ample clearance, shipboard installations frequently require cables to follow tight bends around structural members or through limited opening sizes. The MVCECH series addresses these challenges with optimized bending radius specifications that balance mechanical flexibility with electrical performance.
Offshore Platforms and Marine Renewable Energy
The offshore energy sector has emerged as one of the most demanding applications for marine cables, with offshore oil and gas platforms, wind farms, and other renewable energy installations requiring power systems that can operate reliably for decades in harsh marine environments. MVCECH cables play a crucial role in these applications, providing power distribution for drilling equipment, processing facilities, and support systems.
Offshore wind turbines present particularly challenging application scenarios for marine cables. These installations require power transmission from individual turbines to collection points and ultimately to onshore grid connections. The cables must withstand not only the corrosive marine environment but also the dynamic loading conditions created by wind-induced turbine movement and wave action on support structures.
The importance of environmental resistance becomes paramount in offshore applications, where cable replacement or repair operations are extremely costly and logistically complex. MVCECH cables incorporate advanced material formulations specifically designed to resist the degrading effects of ultraviolet radiation, ozone exposure, and salt spray that characterize offshore environments.
Environments Requiring Advanced Safety Characteristics
Marine applications universally require superior fire safety characteristics due to the confined nature of ships and offshore platforms, where fire evacuation options are limited. The MVCECH series incorporates halogen-free materials throughout its construction, significantly reducing the production of toxic gases in fire situations. This characteristic is particularly critical in passenger vessels, cruise ships, and offshore accommodation platforms where large numbers of people may be present.
The flame retardant properties of MVCECH cables extend beyond simple fire resistance to include controlled flame spread characteristics. In marine applications, preventing fire propagation along cable routes is essential for maintaining escape routes and protecting critical systems. The cables' compliance with IEC 60332 standards ensures that they will not contribute to fire spread, even when installed in cable-dense areas common in marine electrical installations.
Low smoke emission characteristics represent another critical safety feature for marine applications. In fire situations aboard ships or offshore platforms, smoke can quickly obscure vision and impede evacuation efforts. MVCECH cables are formulated to produce minimal smoke when exposed to fire, helping to maintain visibility in emergency situations and reducing the risk of smoke inhalation injuries.
UV, Ozone, and Environmental Resistance Applications
Marine environments subject cables to intense ultraviolet radiation, particularly in exposed deck installations and offshore applications where cables may be routed externally. The MVCECH series incorporates UV-resistant compounds in its outer sheath formulation, tested according to rigorous standards including EN 50289-4-17 and ISO 4892 series specifications. This resistance ensures long-term performance in applications such as deck lighting systems, external equipment connections, and exposed cable runs.
Ozone resistance represents another critical characteristic for marine cables, as ozone concentrations can be elevated in marine environments, particularly around electrical equipment that generates ozone as a byproduct of operation. The MVCECH series demonstrates superior ozone resistance performance according to IEC 60811-403 standards, ensuring that cable insulation and sheathing materials will not degrade under prolonged ozone exposure.
Oil resistance capabilities make MVCECH cables suitable for installation in engine rooms, fuel handling areas, and other locations where exposure to petroleum products is likely. This resistance is particularly important in marine applications where hydraulic fluids, lubricating oils, and fuel oils are commonly present and may come into contact with electrical cables.


Electrical Parameters by Voltage Grade
MVCECH 3.6/6 (7.2) kV Series Characteristics
The MVCECH 3.6/6 kV series represents the entry level of the medium voltage range, designed for applications requiring reliable power distribution at modest voltage levels. With a rated voltage of 3.6/6 kV and test voltage capability of 12.5 kV, this series provides adequate safety margins for typical marine power distribution applications while maintaining cost-effectiveness for budget-conscious installations.
The temperature performance range of -40°C to +90°C makes this series suitable for applications in extreme climate conditions, from Arctic operations to tropical marine environments. This temperature range encompasses the vast majority of marine operating conditions while providing safety margins for unusual operating scenarios or equipment malfunction situations.
Bending radius specifications of 12 times the cable diameter for single-core installations and 9 times the diameter for three-core configurations provide installation flexibility while ensuring that cable performance is not compromised by excessive mechanical stress. These specifications represent a careful balance between installation convenience and long-term reliability, allowing for practical installation in confined marine spaces while preventing damage to internal cable components.
MVCECH 6/10 (12) kV Series Performance
The MVCECH 6/10 kV series addresses mid-range voltage applications common in larger marine installations and offshore platforms. The rated voltage of 6/10 kV with test voltage capability of 21 kV provides enhanced electrical performance for applications requiring higher power transmission capacity or longer cable runs where voltage drop considerations become significant.
This voltage class finds particular application in ship propulsion systems where medium voltage motors are employed for main propulsion or major auxiliary systems such as bow thrusters, cargo pumps, or air conditioning compressors. The increased voltage capability allows for more efficient power transmission with reduced current levels, resulting in smaller conductor sizes and reduced installation weight – considerations that are particularly important in marine applications where weight and space are at premium.
The maintained temperature range of -40°C to +90°C ensures consistent performance across the same environmental conditions as the lower voltage series, providing system compatibility and standardized installation procedures across voltage classes. This consistency simplifies maintenance procedures and spare parts inventory management for marine operators.
MVCECH 8.7/15 (17.5) kV Series Applications
The MVCECH 8.7/15 kV series serves higher power applications where voltage levels approach the upper range of typical marine electrical systems. With rated voltage of 8.7/15 kV and test voltage capability of 30.5 kV, this series addresses the needs of large marine installations, offshore drilling platforms, and marine renewable energy systems where substantial power transmission capabilities are required.
Applications for this voltage class include main propulsion motor feeds in large commercial vessels, high-power thruster systems, major processing equipment on offshore platforms, and primary power distribution circuits in large marine installations. The enhanced voltage capability allows for efficient power transmission over longer distances, reducing power losses and enabling centralized power generation with distributed loads.
The electrical performance characteristics of this series make it suitable for applications involving variable frequency drives and other power electronic equipment commonly found in modern marine electrical systems. The cable's electromagnetic interference shielding capabilities become particularly important at these voltage levels where harmonic distortion and electromagnetic interference can affect sensitive electronic equipment.
MVCECH 12/20 (24) kV Series Capabilities
The MVCECH 12/20 kV series represents the high-end voltage capability of the MVCECH family, designed for the most demanding marine electrical applications. With rated voltage of 12/20 kV and test voltage capability of 42 kV, this series addresses applications in large offshore installations, major marine renewable energy projects, and specialized marine applications requiring maximum power transmission capability.
This voltage class finds application in grid connection systems for offshore wind farms, main power distribution circuits in large offshore platforms, and high-power industrial processes in marine environments such as deep-sea mining operations or large-scale aquaculture installations. The high voltage capability enables efficient power transmission over substantial distances, making it suitable for applications where power generation and consumption points are widely separated.
The enhanced insulation system required for this voltage class incorporates advanced materials and construction techniques that provide superior electrical performance while maintaining the environmental resistance and safety characteristics essential for marine applications. The test voltage capability of 42 kV provides substantial safety margins for long-term reliability in demanding marine operating conditions.
Marine-Specific Challenges and Technical Solutions
Environmental Degradation Resistance Strategies
Marine environments present a unique combination of degradation mechanisms that can significantly impact cable performance and service life. The combination of saltwater exposure, ultraviolet radiation, ozone concentration, and temperature cycling creates challenges that require sophisticated material science solutions to address effectively.
The ultraviolet resistance capabilities of MVCECH cables result from careful selection of polymer materials and the incorporation of UV stabilizing additives that prevent molecular degradation when exposed to intense solar radiation. The testing protocols specified in EN 50289-4-17 A&B and ISO 4892-2&3 simulate accelerated aging conditions that approximate decades of natural UV exposure, providing confidence in long-term performance capabilities.
Ozone resistance represents a particular challenge in marine environments where electrical equipment operation can elevate local ozone concentrations. The cable materials' compliance with IEC 60811-403 standards ensures that prolonged ozone exposure will not cause cracking, hardening, or other degradation mechanisms that could compromise cable integrity or electrical performance.
Salt spray resistance involves both the selection of materials that are inherently resistant to chloride attack and the implementation of barrier systems that prevent salt penetration to sensitive cable components. The halogen-free polyolefin outer sheath provides excellent barrier properties while maintaining flexibility and mechanical durability under marine operating conditions.
Fire Safety and Emergency Response Considerations
The confined nature of marine installations creates unique fire safety challenges that require cable systems to provide superior performance in fire scenarios. Traditional cable materials that may be acceptable for land-based installations can become serious hazards in marine environments where evacuation options are limited and where fire suppression may be complicated by vessel stability concerns.
The halogen-free characteristics of MVCECH cables eliminate the production of corrosive hydrogen halide gases that can cause severe respiratory irritation and equipment damage in fire situations. This characteristic is particularly important in marine applications where electronic navigation and communication equipment must continue to operate during emergency situations to coordinate evacuation and rescue operations.
Flame retardancy performance goes beyond simple ignition resistance to include controlled flame spread characteristics that prevent fire propagation along cable routes. The compliance with IEC 60332-1-2 for single cable flame spread and IEC 60332-3-22 Category A for cable bundle flame spread ensures that MVCECH cables will not contribute to fire development even when installed in high cable density areas common in marine electrical installations.
Low smoke emission characteristics provide crucial advantages in fire emergency situations where visibility maintenance can be critical for successful evacuation operations. The smoke emission performance tested according to IEC 61034-1-2 standards ensures that MVCECH cables produce minimal optical obscuration when exposed to fire conditions, helping to maintain visibility in escape routes and work areas.
Electromagnetic Compatibility and Interference Control
Modern marine installations incorporate increasingly sophisticated electronic systems for navigation, communication, and process control that can be susceptible to electromagnetic interference from power cables carrying substantial electrical currents. The electromagnetic compatibility performance of power distribution cables becomes crucial for maintaining the reliability of these sensitive electronic systems.
The copper braided screen system employed in MVCECH cables provides 90% coverage for optimal electromagnetic interference shielding effectiveness. This high coverage percentage ensures that electromagnetic fields generated by current flow in the cable conductors are effectively contained, preventing interference with nearby electronic equipment while also providing protection against external electromagnetic interference that could affect cable performance.
The shielding effectiveness performance compliance with DIN EN 50147-1 standards ensures quantifiable electromagnetic interference control performance that can be incorporated into system-level electromagnetic compatibility analyses. This standardized performance data enables electrical system designers to predict and control electromagnetic interference levels in complex marine electrical installations.
The availability of enhanced shielding options, including tinned copper braiding for improved corrosion resistance, provides flexibility for applications in particularly challenging electromagnetic environments or where enhanced durability is required for extended service life in aggressive marine conditions.
Installation Flexibility and Space Optimization
Marine installations present unique challenges in terms of available space and access for cable installation and maintenance operations. The confined nature of ship compartments and offshore platform structures requires cable systems that can be installed efficiently in tight spaces while maintaining performance and reliability characteristics.
The optimized bending radius specifications of MVCECH cables represent a careful engineering balance between installation flexibility and long-term reliability. The 9xD bending radius for three-core cables and 12xD for single-core cables allows for practical installation in confined spaces while ensuring that mechanical stress levels remain within acceptable limits for long-term service.
The availability of enhanced flexibility options, including Class 5 conductor construction, provides additional installation advantages for applications requiring frequent flexing or installation in extremely confined spaces. These enhanced flexibility options can be crucial for applications involving movable equipment connections or installations where space constraints require unusually tight bending configurations.
Weight considerations become particularly important in marine applications where vessel stability and payload capacity can be affected by electrical system weight. The optimized construction of MVCECH cables provides necessary electrical and mechanical performance while minimizing weight through efficient materials utilization and construction techniques.
Corrosion Resistance and Service Life Extension
The marine environment presents numerous corrosion mechanisms that can affect cable performance and service life. Salt spray, elevated humidity, temperature cycling, and chemical exposure from cleaning compounds and maintenance materials all contribute to potential corrosion issues that must be addressed through careful material selection and construction techniques.
The availability of tinned copper conductors and braiding materials provides enhanced corrosion resistance for applications in particularly aggressive marine environments. The tin coating acts as a sacrificial barrier that prevents copper corrosion while maintaining excellent electrical conductivity characteristics essential for power transmission performance.
The copper tape core screen provides corrosion resistance advantages compared to alternative screening materials while maintaining optimal electrical performance characteristics. Copper's natural corrosion resistance in marine environments, combined with its excellent electrical conductivity, makes it the preferred choice for critical electrical functions in marine cable applications.
The halogen-free materials used throughout MVCECH cable construction provide inherent corrosion resistance while eliminating the potential for halogen-induced corrosion that can occur with traditional cable materials in marine environments. This material selection contributes to extended service life and reduced maintenance requirements in demanding marine operating conditions.
Conclusion
The MVCECH marine cable series represents a comprehensive solution to the complex challenges inherent in marine and offshore electrical installations. Through sophisticated materials science, advanced construction techniques, and rigorous compliance with international marine electrical standards, these cables provide the reliability, safety, and performance characteristics essential for critical marine power systems.
The versatility of the MVCECH series, spanning voltage ranges from 3.6/6 kV to 12/20 kV, enables standardization across diverse marine electrical applications while providing the specific performance characteristics required for each voltage class. This standardization simplifies system design, installation procedures, and maintenance operations while ensuring consistent performance across the entire voltage range.
The safety characteristics of MVCECH cables, including halogen-free construction, flame retardancy, and low smoke emission performance, address the unique fire safety challenges of marine environments where evacuation options are limited and where fire suppression operations may be complicated by vessel or platform stability considerations. These characteristics can be crucial for protecting human life and preserving critical marine assets in emergency situations.
The environmental resistance capabilities of MVCECH cables, including UV resistance, ozone resistance, and corrosion resistance, ensure reliable long-term performance in the harsh conditions characteristic of marine and offshore installations. These capabilities translate directly into reduced maintenance requirements, extended service life, and improved system reliability for critical marine electrical systems.
The electromagnetic compatibility performance of MVCECH cables addresses the increasing complexity of modern marine electrical systems where sophisticated electronic equipment must coexist with high-power electrical distribution systems. The effective electromagnetic interference control provided by the cable shielding system helps ensure the reliable operation of sensitive electronic equipment essential for safe and efficient marine operations.
As the marine industry continues to evolve toward more sophisticated electrical systems, renewable energy integration, and enhanced safety requirements, the MVCECH cable series provides the technological foundation necessary to support these developments. The combination of proven performance, comprehensive standards compliance, and advanced materials science makes MVCECH cables an essential component of modern marine electrical infrastructure, supporting the safe and efficient operation of vessels and offshore installations worldwide.
The continued development and refinement of marine cable technology, as exemplified by the MVCECH series, represents an ongoing commitment to improving the safety, reliability, and efficiency of marine electrical systems. As marine operations expand into increasingly challenging environments and as electrical system complexity continues to increase, the importance of high-performance marine cables will only continue to grow, making the MVCECH series an invaluable asset for marine electrical system designers, installers, and operators worldwide.
Cable Design and Construction Overview
Conductor Technology and Performance

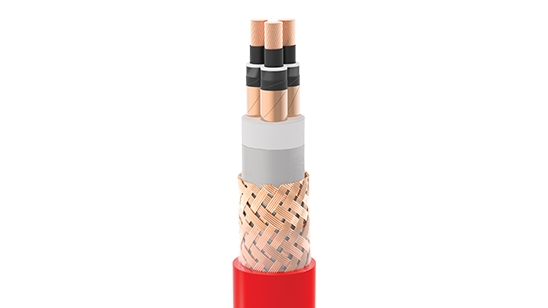

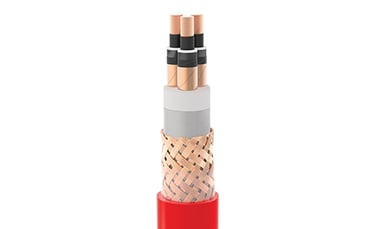

The foundation of any high-performance electrical cable lies in its conductor design, and the MVCECH series employs electrolytic copper conductors manufactured according to IEC 60228 Class 2 specifications. This classification ensures optimal electrical conductivity while providing sufficient mechanical flexibility for marine installation requirements. The use of stranded, annealed copper construction provides the necessary balance between electrical performance and mechanical durability essential for marine applications.
The availability of Class 5 conductors on request represents an important flexibility option for applications requiring enhanced mechanical performance. Class 5 conductors, with their finer stranding, offer superior flexibility characteristics that can be crucial in applications involving frequent flexing or installation in extremely confined spaces. This option demonstrates the MVCECH series' adaptability to specific application requirements while maintaining standardized performance characteristics.
Tinned copper conductor options provide enhanced corrosion resistance for applications in particularly aggressive marine environments. The tin coating acts as a barrier against corrosive elements commonly found in marine atmospheres, extending conductor life and maintaining electrical performance over extended service periods. This option is particularly valuable in applications involving direct exposure to salt spray or in areas with elevated humidity and temperature conditions.
Advanced Insulation System Design
The insulation system of MVCECH cables represents a sophisticated approach to medium voltage electrical insulation, employing HF HEPR (High Frequency Halogen-Free Ethylene Propylene Rubber) compound as the primary insulation material. This material selection provides superior electrical properties while maintaining the halogen-free characteristics essential for marine fire safety requirements.
The incorporation of semiconductive layers both above and below the primary insulation creates a sophisticated electrical field control system that enhances the cable's voltage handling capabilities and long-term reliability. These semiconductive screens serve to distribute electrical stress uniformly across the insulation surface, preventing the formation of electrical stress concentrations that could lead to premature insulation failure.
The copper tape core screen provides an additional layer of electrical protection while contributing to the cable's electromagnetic interference shielding capabilities. This metallic screen serves multiple functions, including electrical field grading, fault current handling capacity, and electromagnetic compatibility performance enhancement. The use of copper tape rather than alternative screening materials ensures optimal electrical conductivity and corrosion resistance in marine environments.
Mechanical Protection and Environmental Barriers
The bedding compound used in MVCECH cables provides crucial mechanical protection for the underlying electrical components while maintaining the halogen-free characteristics essential for marine safety requirements. This bedding layer serves as a cushioning medium that distributes mechanical stresses and prevents damage to the core during cable bending and installation operations.
The electrolytic copper braided screen represents a critical component of the MVCECH design, providing 90% coverage for optimal electromagnetic interference shielding performance. This high coverage percentage ensures effective shielding against electromagnetic interference that could affect sensitive electronic equipment commonly found in modern marine installations. The availability of tinned copper wire braid options enhances corrosion resistance for applications in particularly aggressive marine environments.
The outer sheath construction employs halogen-free, flame retardant, UV resistant polyolefin compounds designated as SHF1, with SHF2 options available for applications requiring enhanced performance characteristics. This outer sheath serves as the primary environmental barrier, protecting the cable's internal components from moisture ingress, chemical attack, and mechanical damage while providing the fire safety characteristics essential for marine applications.
Standards Compliance and Quality Assurance
The MVCECH series demonstrates comprehensive compliance with international marine electrical standards, particularly the IEC 60092 series that governs marine electrical installations. Construction standards compliance with IEC 60092-354 ensures that the cables meet the specific mechanical and electrical requirements for marine applications, while testing and material standards compliance with IEC 60092-350-360 guarantees consistent quality and performance characteristics.
Flame retardancy compliance with IEC 60332-1-2 and IEC 60332-3-22 Category A standards ensures that MVCECH cables will not contribute to fire spread in marine installations. These standards define specific test conditions and performance criteria that simulate real-world fire scenarios, providing confidence that the cables will perform as expected in emergency situations.
Halogen content compliance with IEC 60754-1-2 standards ensures that MVCECH cables will not produce significant quantities of corrosive or toxic gases when exposed to fire. This characteristic is particularly important in marine applications where escape routes may be limited and where sensitive electronic equipment must continue to operate during emergency situations.
Smoke emission compliance with IEC 61034-1-2 and DIN EN 50268-1-2 standards ensures minimal smoke production during fire exposure, helping to maintain visibility and reduce inhalation hazards in confined marine spaces. This performance characteristic can be critical for successful evacuation operations and emergency response efforts.
