Maximizing Marine Automation Reliability with MGCH and MGCH-FFR Signal Cables for Shipboard and Port Control

Introduction

The maritime industry operates in one of the most challenging environments on Earth, where control systems must function reliably despite constant exposure to saltwater, vibration, electromagnetic interference, and extreme weather conditions. At the heart of these complex automation systems lies a critical yet often overlooked component: the signal cable. These cables serve as the nervous system of modern vessels and port facilities, carrying vital communication signals between programmable logic controllers (PLCs), sensors, actuators, and monitoring systems.

In maritime applications, the failure of a single signal cable can cascade into system-wide malfunctions, potentially compromising vessel safety, cargo operations, or environmental protection measures. This reality has driven the development of specialized marine-grade cables, particularly the MGCH (Marine Grade Control Halogen-free) and MGCH-FFR (Fire and Flame Resistant) series, which represent the pinnacle of maritime signal transmission technology.

The significance of these cables extends beyond mere signal transmission. They form the backbone of integrated control systems that manage everything from engine room automation to sophisticated cargo handling operations. Understanding their construction, capabilities, and proper application is essential for marine engineers, system integrators, and facility managers who depend on uninterrupted control system performance in demanding marine environments.

Critical Application Scenarios in Maritime Operations

Shipboard Automation Systems: The Digital Nerve Center

Modern vessels are essentially floating cities with complex interconnected systems requiring precise coordination. In engine control rooms, MGCH cables facilitate critical communication between central control units and distributed sensors monitoring engine performance, fuel systems, and cooling circuits. The high-vibration environment of a ship's engine room presents unique challenges that standard industrial cables simply cannot withstand over extended periods.

Consider the ballast system of a large container vessel, where precise control of water distribution determines the ship's stability and fuel efficiency. MGCH cables connect ballast tank sensors to the central control system, transmitting real-time data about water levels, pump status, and valve positions. The electromagnetic interference (EMI) protection provided by the cable's comprehensive shielding ensures that these critical signals remain clean and accurate, even when routing through areas dense with electrical equipment and power cables.

Navigation aid systems represent another critical application where signal integrity can mean the difference between safe passage and maritime disaster. MGCH cables connect radar systems, GPS receivers, and autopilot equipment to the bridge control systems. The cables' superior dielectric properties maintain signal fidelity across long cable runs, while their halogen-free construction ensures that any fire event won't compromise visibility or create toxic hazards for the crew.

The robust construction of MGCH cables makes them particularly suitable for PLC-to-actuator connections in shipboard automation. These connections must withstand not only the constant vibration of ship operations but also the thermal cycling that occurs as vessels move between different climate zones. The cable's XLPE or PE insulation maintains its dielectric properties across the full operating temperature range of -40°C to +90°C, ensuring consistent performance from Arctic waters to tropical ports.

Port Crane and Container Handling Equipment: Precision Under Pressure

Port operations demand exceptional precision and reliability, as delays in cargo handling translate directly to economic losses and supply chain disruptions. Container cranes and rubber-tired gantry cranes (RTGs) represent some of the most demanding applications for signal cables, combining high mechanical stress with the need for precise control feedback.

In these applications, MGCH cables must route along crane booms and trolley systems that are in constant motion. The cables experience repeated bending cycles as cranes extend and retract, while simultaneously maintaining signal integrity for position feedback systems, load monitoring, and safety interlocks. The mechanical design of MGCH cables, with their optimal conductor stranding and protective bedding layers, ensures reliable performance throughout millions of bend cycles.

The electromagnetic environment of port facilities presents additional challenges. High-power motor drives, frequency converters, and welding equipment create significant EMI that can disrupt control signals. The comprehensive shielding system of MGCH cables, featuring copper braided screens with up to 100% coverage in EMC variants, provides exceptional protection against both radiated and conducted interference. This protection is crucial for maintaining the precision required in container positioning systems, where tolerances are measured in centimeters.

Distributed control architecture in modern port equipment relies heavily on reliable signal transmission between remote I/O modules and central control systems. MGCH cables enable this distributed approach by providing dependable communication paths that can span hundreds of meters without signal degradation. The low-capacitance design of these cables minimizes signal delay and cross-talk, critical factors in maintaining the rapid response times required for efficient cargo handling operations.

Hazardous and Fire-Risk Areas: Safety Through Advanced Materials

Maritime environments inherently carry significant fire risks due to the presence of fuel systems, electrical equipment, and cargo that may include hazardous materials. In these critical areas, the MGCH-FFR variant provides an additional layer of safety through its fire-resistant construction and halogen-free compound formulation.

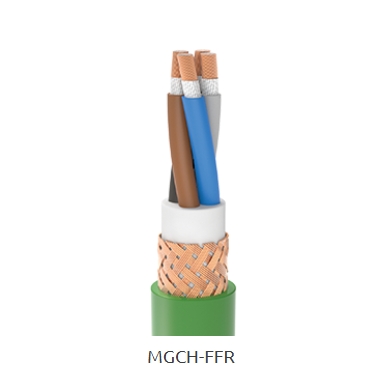

The MGCH-FFR cable incorporates a mica tape separator that maintains circuit integrity even when exposed to fire conditions. This fire resistance capability, certified to IEC 60331 standards, ensures that critical safety systems continue to operate during fire events, providing precious time for evacuation procedures and fire suppression activities. In engine rooms where fire suppression systems must coordinate with ventilation controls and emergency shutdown procedures, this continued operation capability can be life-saving.

The halogen-free construction of both MGCH and MGCH-FFR cables addresses a critical safety concern in enclosed maritime spaces. Traditional PVC-based cables, when exposed to fire, release hydrogen chloride and other toxic gases that can quickly incapacitate personnel and severely reduce visibility. The thermoplastic polyolefin compounds used in MGCH cables produce significantly lower smoke density and no halogenated gases when exposed to fire, maintaining visibility and reducing toxic exposure risks for crew members.

Compliance with international marine safety standards such as IEC 60332 for flame retardation and IEC 61034 for smoke density ensures that these cables meet the stringent requirements of major ship classification societies including ABS, DNV GL, and Lloyd's Register. This compliance is not merely regulatory checkbox-ticking but represents a fundamental commitment to maritime safety that can mean the difference between a contained incident and a catastrophic loss.

Technical Excellence: Understanding Construction and Performance Parameters

Conductor Design and Corrosion Resistance

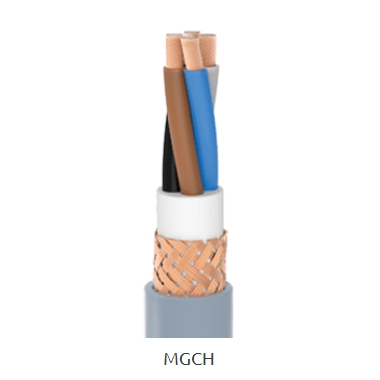

The foundation of any signal cable's performance lies in its conductor design, and MGCH cables employ electrolytic copper conductors that meet IEC 60228 Class 2 specifications. This stranding class provides an optimal balance between flexibility and current-carrying capacity, essential for applications that require both mechanical durability and electrical performance. The option for tinned copper conductors provides additional corrosion resistance, particularly important in marine environments where salt spray and humidity create aggressive corrosive conditions.

The annealed copper construction ensures maximum conductivity while maintaining the flexibility necessary for installation in complex routing scenarios typical of marine applications. The stranding pattern is optimized to minimize the skin effect at higher frequencies, important for maintaining signal integrity in digital communication systems and high-frequency sensor applications.

Understanding the conductor's role in the overall electromagnetic compatibility (EMC) performance of the cable system is crucial. The conductor spacing and insulation thickness are carefully engineered to maintain consistent impedance characteristics, minimizing reflections and signal distortion that could compromise system performance. This attention to transmission line characteristics becomes increasingly important as marine control systems adopt higher-speed digital communication protocols.

Insulation Systems: Balancing Performance and Durability

The insulation system of MGCH cables represents a sophisticated balance of electrical, mechanical, and chemical properties. The HF HEPR (High Frequency Halogen-free Ethylene Propylene Rubber) compound provides excellent dielectric properties across a wide frequency range, crucial for applications involving both low-frequency control signals and higher-frequency communication protocols.

The dielectric constant and loss factor of the insulation material directly impact signal propagation characteristics, particularly in longer cable runs common in large vessels and port facilities. The HEPR formulation used in MGCH cables maintains stable dielectric properties across the full operating temperature range, ensuring consistent signal timing and amplitude regardless of ambient conditions.

The mechanical properties of the insulation system contribute significantly to the cable's overall durability. The elastic modulus and elongation characteristics of the HEPR compound provide excellent resistance to mechanical stress while maintaining flexibility for installation. The insulation's resistance to compression set ensures that the cable maintains its electrical properties even after prolonged exposure to mechanical loading, such as when cables are clamped or routed through tight spaces.

Chemical resistance is another critical aspect of the insulation system. Marine environments expose cables to a wide range of potentially harmful substances, from fuel oils and hydraulic fluids to cleaning chemicals and saltwater. The HEPR formulation resists degradation from these substances, maintaining its protective properties throughout the cable's service life.

Shielding Technology: Electromagnetic Compatibility Excellence

The electromagnetic environment of modern vessels and port facilities is increasingly complex, with high-power motor drives, radio communication equipment, and electronic control systems all contributing to a challenging EMI landscape. The shielding system of MGCH cables provides comprehensive protection through a multi-layered approach that addresses both low-frequency magnetic fields and high-frequency electromagnetic radiation.

The copper braided screen, with its 90% minimum coverage, provides excellent protection against magnetic fields and low-frequency interference. The braided construction offers flexibility while maintaining electrical continuity even when the cable is flexed during installation or service. For applications requiring maximum EMI protection, the EMC variant of MGCH cables incorporates an additional copper tape layer that provides 100% coverage, creating a complete Faraday cage around the signal conductors.

The effectiveness of the shielding system depends not only on its construction but also on proper termination and grounding practices. The shield must maintain electrical continuity throughout the cable run and be properly connected to the equipment ground system at both ends. The tinned copper drain wire included in MGCH cables facilitates this connection, providing a low-impedance path for shield currents and simplifying installation procedures.

Understanding the frequency-dependent characteristics of the shielding system is important for system designers. At low frequencies, the magnetic shielding effectiveness depends primarily on the shield's thickness and permeability. At higher frequencies, the electrical continuity and coverage become more critical. The comprehensive shielding design of MGCH cables provides effective protection across the full frequency spectrum encountered in marine applications.

Environmental Protection: Outer Sheath Performance

The outer sheath of MGCH cables represents the first line of defense against the harsh marine environment. The halogen-free thermoplastic polyolefin compound is specifically formulated to resist UV radiation, saltwater exposure, and the wide temperature variations encountered in marine service. This compound meets the demanding requirements of HD 604 standards, ensuring long-term performance in outdoor marine applications.

UV resistance is particularly important for cables exposed to sunlight on deck areas or in port facilities. The polyolefin formulation includes UV stabilizers that prevent polymer degradation even after prolonged exposure to intense sunlight. This protection maintains the sheath's mechanical properties and prevents cracking that could allow moisture ingress.

The flame retardant properties of the outer sheath contribute to overall fire safety while maintaining the halogen-free characteristics essential for marine applications. The compound's formulation achieves flame retardation through intumescent additives that expand when heated, creating a protective char layer that slows flame propagation. This approach avoids the use of halogenated flame retardants that would produce toxic gases when burned.

Oil resistance is another critical property of the outer sheath, as marine cables frequently come into contact with fuel oils, hydraulic fluids, and lubricants. The polyolefin formulation resists swelling and softening when exposed to these substances, maintaining the cable's protective integrity throughout its service life.

Addressing Common Maritime Signal Cable Challenges

Signal Instability and Electromagnetic Interference

Signal instability in shipboard control systems often stems from inadequate electromagnetic compatibility design, and understanding the sources and mechanisms of EMI is crucial for effective mitigation. In marine environments, EMI sources include everything from main propulsion motors and bow thrusters to radio communication equipment and radar systems. The broad frequency spectrum of these sources requires a comprehensive approach to EMI protection.

The shielding system of MGCH cables provides protection through multiple mechanisms. At low frequencies, typically below 1 MHz, magnetic field coupling is the primary concern. The copper braided screen acts as a magnetic shield, providing attenuation proportional to its thickness and conductivity. At higher frequencies, electric field coupling becomes dominant, and the shield acts as a Faraday cage, preventing electromagnetic radiation from reaching the signal conductors.

Ground loops represent another common source of signal instability that proper cable design can help mitigate. When signal cables are routed between equipment connected to different ground points, circulating currents can flow through the cable shield, creating noise and potentially damaging equipment. The design of MGCH cables, with their comprehensive shielding and drain wire system, facilitates proper grounding practices that minimize ground loop effects.

Signal integrity also depends on the cable's electrical characteristics, particularly its capacitance and impedance. The precise spacing of conductors and the dielectric properties of the insulation in MGCH cables are engineered to provide consistent impedance characteristics that minimize signal reflections and distortion. This becomes increasingly important as marine control systems adopt higher-speed digital communication protocols that are more sensitive to transmission line effects.

Fire Safety and Toxic Gas Emission

The confined spaces typical of marine environments make fire safety a paramount concern, and the choice of cable materials can significantly impact both fire propagation and personnel safety during fire events. Traditional PVC-based cables, when exposed to fire, undergo thermal decomposition that produces hydrogen chloride gas and dense black smoke. In the confined spaces of a ship's interior, these products of combustion can quickly create life-threatening conditions.

The halogen-free construction of MGCH and MGCH-FFR cables addresses this safety concern through careful material selection. The thermoplastic polyolefin compounds used in these cables produce primarily water vapor and carbon dioxide when burned, dramatically reducing toxic gas emission. The absence of halogens eliminates the formation of corrosive gases that can damage electrical equipment and pose additional hazards during firefighting operations.

Smoke density is another critical factor in fire safety, as dense smoke can impair visibility and hinder evacuation efforts. The low smoke emission characteristics of MGCH cables, certified to IEC 61034 standards, ensure that visibility is maintained during fire events. This property is particularly important in escape routes and critical control areas where personnel must be able to navigate safely and operate emergency equipment.

The fire resistance capability of MGCH-FFR cables provides an additional safety margin by maintaining circuit integrity during fire exposure. This capability enables critical safety systems to continue operating during the early stages of a fire, providing time for automatic fire suppression systems to activate and for personnel to reach safety. The mica tape separator in these cables maintains insulation integrity even when the polymer materials begin to degrade, ensuring continued signal transmission.

Mechanical Durability in Dynamic Applications

The mechanical stresses encountered in marine applications are both severe and complex, combining static loading from cable weight and support systems with dynamic stresses from vessel motion and equipment operation. Understanding these stress mechanisms is essential for proper cable selection and installation practices.

Flexing fatigue represents one of the most common failure modes for cables in marine applications. As vessels move through waves or as port equipment operates, cables experience repeated bending cycles that can lead to conductor fatigue and insulation cracking. The construction of MGCH cables, with their optimized conductor stranding and flexible insulation system, is specifically designed to withstand millions of flex cycles without degradation.

The minimum bending radius specification of 8 times the overall diameter provides guidance for installation practices, but understanding the relationship between bend radius and cable life is important for long-term reliability. Tighter bend radii create higher stress concentrations in the cable construction, accelerating fatigue processes and reducing service life. Proper installation practices, including the use of appropriate cable supports and bend radius control, are essential for achieving the full potential of the cable design.

Vibration is another significant mechanical stress in marine applications, particularly in engine rooms and on equipment with rotating machinery. The multi-strand construction of MGCH cable conductors distributes stress across multiple current paths, reducing the likelihood of complete conductor failure even if individual strands break due to vibration fatigue. The bedding layer between the insulated conductors and the shield provides additional mechanical protection and helps maintain the cable's structural integrity under vibrational stress.

Temperature cycling represents an additional mechanical stress that can lead to cable degradation over time. As vessels move between different climate zones or as equipment operates through heating and cooling cycles, the cable materials experience thermal expansion and contraction. The material selection and construction techniques used in MGCH cables minimize the stresses associated with thermal cycling, ensuring long-term reliability across the full operating temperature range.

Standards Compliance and Classification Society Requirements

The maritime industry operates under a complex framework of international standards and classification society requirements that ensure safety and reliability across the global fleet. Understanding these requirements and their implications for cable selection is crucial for marine engineers and system designers.

The IEC 60332 series of standards addresses flame retardation characteristics, with different test methods applicable to single cables and cable bundles. MGCH cables comply with both IEC 60332-1 (single cable test) and IEC 60332-3 Category A (bundled cable test), ensuring that they will not propagate flame under either installation scenario. This dual compliance provides flexibility in installation practices while maintaining safety standards.

The IEC 60754 standards address halogen content and corrosive gas emission, critical factors in marine fire safety. Compliance with these standards ensures that MGCH cables will not contribute to the formation of corrosive gases that can damage equipment and create additional hazards during fire events. The quantitative limits specified in these standards provide measurable criteria for material selection and quality control.

Ship classification societies such as ABS, DNV GL, and Lloyd's Register have additional requirements that go beyond basic IEC standards. These requirements often address specific aspects of marine service, such as resistance to saltwater corrosion, UV exposure, and the mechanical stresses associated with vessel operation. Compliance with classification society requirements is often mandatory for commercial vessels and provides assurance of suitability for marine service.

The testing requirements associated with these standards are comprehensive, covering not only the cable's performance under normal operating conditions but also its behavior under fault conditions and emergency scenarios. Understanding these test requirements helps in selecting appropriate cables for specific applications and in establishing proper installation and maintenance practices.

Optimizing PLC Communication Systems

The efficiency of programmable logic controller (PLC) communication in marine applications depends heavily on the electrical characteristics of the signal transmission medium. MGCH cables are specifically designed to optimize these characteristics, providing reliable communication paths for both discrete control signals and sophisticated digital communication protocols.

Capacitance is one of the most critical electrical parameters affecting PLC communication performance. High cable capacitance can cause signal distortion, increased power consumption, and reduced communication speed. The conductor spacing and insulation thickness in MGCH cables are optimized to minimize capacitance while maintaining adequate insulation strength. This low-capacitance design enables longer cable runs without signal degradation and supports higher communication speeds required by modern PLC systems.

Cross-talk between conductors in multi-conductor cables can cause false signals and communication errors in PLC systems. The construction of MGCH cables includes proper conductor spacing and shielding arrangements that minimize cross-talk between adjacent conductors. The overall shield provides additional protection against external interference while the conductor arrangement minimizes mutual coupling between signal pairs.

Signal delay and timing accuracy become increasingly important as PLC systems adopt more sophisticated communication protocols. The dielectric properties of the insulation material directly affect signal propagation velocity, and the consistent dielectric characteristics of MGCH cables ensure predictable signal timing. This predictability enables system designers to account for propagation delays in their control algorithms and maintain synchronization across distributed control systems.

The impedance characteristics of the cable also affect signal integrity, particularly for digital communication signals with fast rise times. Impedance discontinuities caused by variations in cable construction or termination practices can cause signal reflections that degrade communication performance. The precise manufacturing tolerances maintained in MGCH cable production ensure consistent impedance characteristics throughout the cable length, minimizing reflection-related signal degradation.

Conclusion and Strategic Recommendations

The selection of appropriate signal cables represents a critical decision point in the design and implementation of maritime control systems. MGCH and MGCH-FFR cables provide a comprehensive solution to the unique challenges of marine environments, combining superior electromagnetic compatibility, fire safety, and mechanical durability in a single product line.

The technical excellence of these cables extends beyond their individual performance characteristics to their contribution to overall system reliability and safety. The comprehensive shielding system ensures clean signal transmission in electromagnetically challenging environments, while the halogen-free construction provides enhanced fire safety without compromising performance. The robust mechanical design enables reliable operation in the dynamic stress environment typical of marine applications.

For system designers and marine engineers, the choice between MGCH and MGCH-FFR variants should be based on the specific risk profile of the application. Standard MGCH cables provide excellent performance for general shipboard and port applications, while MGCH-FFR cables should be specified for critical safety systems and areas with elevated fire risk. The additional cost of fire-resistant construction is justified by the enhanced safety margins and potential life-saving capabilities during emergency situations.

Installation practices play a crucial role in realizing the full potential of these advanced cable designs. Proper routing, support, and termination practices are essential for maintaining the cable's performance characteristics throughout its service life. The minimum bending radius specifications, grounding requirements, and environmental protection measures specified by the manufacturer should be strictly observed to ensure optimal performance and longevity.

Looking toward the future, the increasing sophistication of marine control systems and the growing emphasis on environmental protection and crew safety will continue to drive demand for advanced cable technologies. MGCH and MGCH-FFR cables represent the current state of the art in marine signal transmission, providing the foundation for reliable, safe, and efficient maritime operations in an increasingly complex technological environment.

The investment in high-quality signal cables pays dividends throughout the life cycle of marine systems, reducing maintenance costs, improving system reliability, and enhancing safety margins. For marine operators, port authorities, and system integrators, the specification of MGCH and MGCH-FFR cables represents a commitment to operational excellence and safety that aligns with the highest standards of maritime professionalism.
