MarineFlex YOZp 0.6/1 kV: Advanced Flexible Power Cabling Solutions for Demanding Maritime Environments

Introduction: Meeting the Electrical Challenges of Modern Maritime Operations

The maritime industry faces increasingly complex electrical demands as ports modernize and vessels become more sophisticated. From automated container terminals handling millions of tons of cargo annually to advanced shipboard systems managing everything from navigation to propulsion, reliable electrical infrastructure forms the backbone of maritime operations. Understanding these electrical challenges requires examining the unique environment in which marine cables must operate.

Maritime electrical systems operate under conditions that would challenge even the most robust terrestrial installations. Salt-laden air creates corrosive environments that can rapidly degrade standard electrical components, while constant vibration from machinery, wave action, and cargo handling equipment subjects cables to mechanical stresses unknown in land-based applications. Temperature fluctuations, from sub-zero conditions in northern ports to tropical heat in equatorial waters, further complicate the electrical environment. These factors combine to create a demanding operational context where cable failure can result in costly downtime, safety hazards, and operational disruptions.

The importance of reliability, safety, and flexibility in marine cable systems cannot be overstated. In port environments, electrical failures can halt crane operations, affecting global supply chains and causing significant economic losses. Aboard vessels, electrical system failures can compromise navigation, communication, and safety systems, potentially endangering lives and property. This reality has driven the development of specialized marine cables that can withstand these harsh conditions while maintaining the flexibility required for installation in the constrained spaces typical of maritime infrastructure.

MarineFlex YOZp 0.6/1 kV represents a sophisticated solution designed specifically for fixed installations in these challenging maritime environments. This cable system addresses the unique requirements of marine applications through careful engineering of every component, from conductor materials to outer sheath composition. By understanding how each element contributes to overall performance, engineers and procurement professionals can make informed decisions about electrical infrastructure investments that will serve reliably for decades in marine service.

Cable Design and Structure: Engineering Excellence for Marine Applications

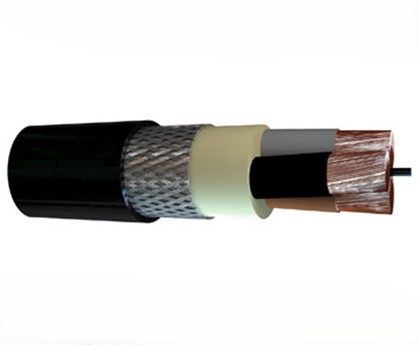

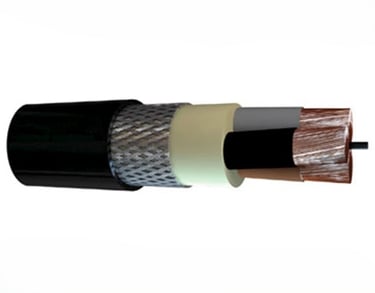

The foundation of any reliable marine cable system lies in its fundamental design and construction. The MarineFlex YOZp 0.6/1 kV achieves its superior performance through a carefully engineered multi-layer structure that addresses each challenge present in marine environments. This systematic approach to cable design ensures that every component works in harmony to deliver consistent performance under demanding conditions.

Conductor Core: The Heart of Electrical Performance

The conductor core represents the most critical component of any power cable, and the MarineFlex YOZp 0.6/1 kV employs flexible Class 5 stranded copper conductors manufactured to IEC 60228 standards. This specification is significant because it defines the construction requirements for electrical conductors used in cables, ensuring consistent performance across different manufacturers and applications. Class 5 conductors feature the finest stranding available in standard power cable construction, with individual wire diameters small enough to provide exceptional flexibility while maintaining excellent electrical conductivity.

The choice of stranded construction over solid conductors becomes particularly important in marine applications where cables must navigate tight bends around machinery, through narrow conduits, and around structural obstacles common in ships and port facilities. Each strand in a Class 5 conductor can flex independently, distributing mechanical stress across the entire conductor cross-section and preventing the fatigue failures that might occur with less flexible conductor designs. This flexibility becomes crucial during installation, where cables may need to be routed through complex paths with multiple direction changes.

Tinned copper construction provides enhanced corrosion resistance essential for marine conditions. The tin coating acts as a protective barrier between the copper conductor and the surrounding environment, preventing the formation of copper oxides that can increase electrical resistance and create heat buildup. In marine environments where humidity levels remain consistently high and salt contamination is inevitable, this corrosion protection significantly extends cable service life. The tinning process also improves the bonding between conductor strands and surrounding insulation materials, creating a more robust overall cable structure.

Insulation System: Ensuring Electrical Integrity and Safety

The insulation system in the MarineFlex YOZp 0.6/1 kV utilizes Cross-linked Polyethylene (XLPE) technology, which represents a significant advancement over traditional thermoplastic insulation materials. XLPE undergoes a chemical cross-linking process during manufacturing that creates a three-dimensional polymer network with superior thermal and dielectric properties. This molecular structure allows XLPE to maintain its insulating properties at elevated temperatures while providing excellent resistance to electrical stress.

The thermal stability of XLPE insulation becomes particularly important in marine applications where cables may be installed in engine rooms, near heated machinery, or in areas with limited ventilation. Unlike thermoplastic materials that can soften and deform under heat, XLPE maintains its structural integrity at the rated operating temperature of 90°C, ensuring consistent electrical performance throughout the cable's service life. This thermal stability also contributes to the cable's ability to carry higher current loads without degradation, maximizing the electrical capacity available for critical marine systems.

Dielectric stability refers to the insulation's ability to maintain its electrical properties under varying voltage conditions and environmental stresses. Marine electrical systems often experience voltage transients from starting motors, switching operations, and power system disturbances. XLPE insulation provides excellent dielectric strength, meaning it can withstand these voltage stresses without breakdown or degradation. The material's low dielectric constant and loss factor also minimize power losses, contributing to overall system efficiency.

Core identification follows HD 308 S2 standards, which specify color coding and marking requirements for multi-core cables. This standardization ensures that electrical technicians can quickly and accurately identify individual conductors during installation and maintenance operations. In marine environments where work may be performed under challenging conditions or emergency situations, clear conductor identification becomes a critical safety feature that helps prevent wiring errors and reduces maintenance time.

Shielding and Mechanical Protection: Defending Against Interference and Physical Stress

The MarineFlex YOZp 0.6/1 kV incorporates tinned copper wire braiding that serves dual purposes: electromagnetic interference (EMI) shielding and mechanical protection. EMI shielding becomes increasingly important in modern marine applications where sensitive electronic equipment operates alongside high-power electrical systems. Navigation equipment, communication systems, and automated control devices all rely on precise electronic signals that can be disrupted by electromagnetic interference from power cables.

The braided shield construction provides superior EMI protection compared to foil or spiral-wrapped alternatives. The overlapping wire pattern creates a continuous conductive path that effectively contains electromagnetic fields generated by the power conductors while simultaneously preventing external electromagnetic interference from reaching the cable cores. This bidirectional protection ensures that the cable both performs reliably and does not interfere with nearby sensitive equipment.

Mechanical protection becomes equally important in marine environments where cables face constant vibration, potential impact damage, and flexing stresses. The braided shield construction distributes mechanical loads across the entire cable circumference, preventing stress concentrations that could lead to armor damage or conductor failure. In applications such as shipboard installations where cables may be subjected to engine vibration, wave-induced vessel motion, and thermal expansion cycles, this mechanical protection significantly extends cable service life.

The optimization for vibration resistance involves careful consideration of braid pitch, wire diameter, and weave pattern. These parameters are engineered to provide maximum mechanical protection while maintaining cable flexibility. The result is a cable that can withstand the constant low-level vibration common in marine environments without developing fatigue-related failures that might compromise electrical performance or safety.

Outer Sheath: Environmental Protection and Safety

The outer sheath of the MarineFlex YOZp 0.6/1 kV consists of a flame-retardant, halogen-free polyolefin compound specifically formulated for marine service. This material selection addresses multiple environmental challenges simultaneously while meeting strict safety requirements for marine applications. The flame-retardant properties ensure that the cable will not contribute to fire propagation, a critical safety consideration in the enclosed spaces common aboard vessels and in port facilities.

Halogen-free construction becomes particularly important in marine fire safety applications. When traditional halogenated materials burn, they release toxic and corrosive gases that can quickly make enclosed spaces uninhabitable and damage sensitive electronic equipment. The halogen-free polyolefin compound used in the MarineFlex YOZp 0.6/1 kV produces minimal smoke and non-toxic gases if exposed to fire, providing additional time for personnel evacuation and emergency response.

The sheath material provides excellent resistance to oil, ultraviolet radiation, salt mist, and moisture, addressing the primary environmental challenges present in marine service. Oil resistance prevents degradation from hydraulic fluids, fuel spills, and lubricants commonly found in marine environments. UV resistance ensures that cables remain stable when exposed to sunlight during installation or in outdoor applications. Salt mist resistance prevents the material degradation that can occur from constant exposure to salt-laden air, while moisture resistance maintains electrical integrity in high-humidity conditions.

The black sheath color provides UV protection through the inclusion of carbon black, which absorbs ultraviolet radiation and prevents polymer degradation. This coloration also meets marine industry standards for visibility and identification, ensuring that electrical personnel can easily distinguish power cables from other system components during maintenance and emergency operations.

Performance Characteristics: Engineered for Marine Service Excellence

Understanding the performance characteristics of the MarineFlex YOZp 0.6/1 kV requires examining how each specification contributes to reliable operation in marine environments. These characteristics are not arbitrary numbers but carefully engineered parameters that ensure safe, reliable performance under the specific conditions encountered in maritime applications.

The voltage rating of 0.6/1 kV indicates that this cable is designed for low voltage marine systems, with 0.6 kV representing the voltage between any conductor and ground, while 1 kV represents the voltage between any two conductors. This rating makes the cable suitable for most shipboard distribution systems, port facility power distribution, and marine equipment power supplies. The voltage level is particularly appropriate for applications such as lighting systems, motor control circuits, and auxiliary power distribution where reliability is essential but ultra-high voltage capability is not required.

The test voltage of 3.5 kV ensures dielectric integrity through rigorous factory testing that exceeds normal operating conditions. This test voltage represents more than three times the rated operating voltage, providing substantial safety margin for voltage transients and ensuring that the insulation system can withstand the electrical stresses encountered in marine service. The test is performed on every cable length during manufacturing, guaranteeing that each installation receives cable with proven dielectric performance.

Operating temperature range from -40°C to +70°C with installation capability down to -20°C addresses the extreme temperature conditions encountered in marine service. The lower temperature limit ensures that cables remain flexible and maintain electrical properties in arctic conditions or refrigerated cargo areas. The upper temperature limit provides adequate thermal margin for operation in tropical climates, engine rooms, and other elevated temperature environments common in marine applications.

The maximum conductor temperature of 90°C represents the thermal limit for continuous operation and directly impacts the cable's current-carrying capacity. This temperature rating allows the cable to carry higher currents than cables with lower temperature ratings, maximizing the electrical capacity available for critical marine systems. The XLPE insulation system maintains its electrical and mechanical properties at this temperature, ensuring long-term reliability under full load conditions.

Fire Safety and Environmental Standards: Meeting Maritime Safety Requirements

Fire safety represents one of the most critical aspects of marine cable design, as fires in the enclosed spaces common aboard vessels and in port facilities can quickly become life-threatening emergencies. The MarineFlex YOZp 0.6/1 kV meets rigorous flame retardancy standards including IEC 60332-1 and IEC 60332-3-22 Category A compliance, which represent different aspects of fire performance testing.

IEC 60332-1 specifies the test method for determining the flame propagation characteristics of a single insulated wire or cable when exposed to a small flame source. This test ensures that the cable will not continue burning after the ignition source is removed, preventing the cable itself from becoming a source of fire propagation. The test involves exposing a vertical cable sample to a standardized flame for a specific duration and measuring the extent of damage after the flame is removed.

IEC 60332-3-22 Category A addresses the flame propagation characteristics of bunched cables, which more accurately represents real-world installation conditions where multiple cables are installed together in cable trays, conduits, or other groupings. This test is more stringent than single-cable testing because it considers the potential for fire to spread between adjacent cables. Category A represents the highest performance level in this test series, ensuring that even large bundles of cables will not propagate flame beyond specified limits.

The halogen-free and low-smoke emission characteristics provide additional safety benefits in marine applications where personnel evacuation routes may be limited. When exposed to fire, halogen-free materials produce significantly less smoke than traditional PVC-based cables, maintaining visibility for emergency evacuation and firefighting operations. The absence of halogenated compounds also eliminates the production of corrosive hydrogen halide gases that can damage sensitive electronic equipment and create toxic environments.

Compliance with IEC 60092 series marine standards ensures that the cable meets the specific requirements for shipboard cabling applications. This standard series addresses the unique challenges of marine electrical installations, including vibration resistance, moisture protection, and fire safety requirements that exceed those specified for land-based applications. The IEC 60092 series is recognized by maritime classification societies worldwide and forms the basis for electrical system approval in commercial vessel applications.

Application Scenarios in Port and Marine Installations

The versatility of the MarineFlex YOZp 0.6/1 kV makes it suitable for a wide range of applications in port and marine installations, each presenting unique challenges that the cable's design addresses. Understanding these application scenarios helps engineers and procurement professionals identify where this cable technology can provide the greatest benefit.

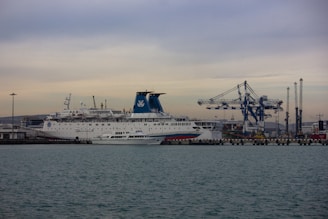

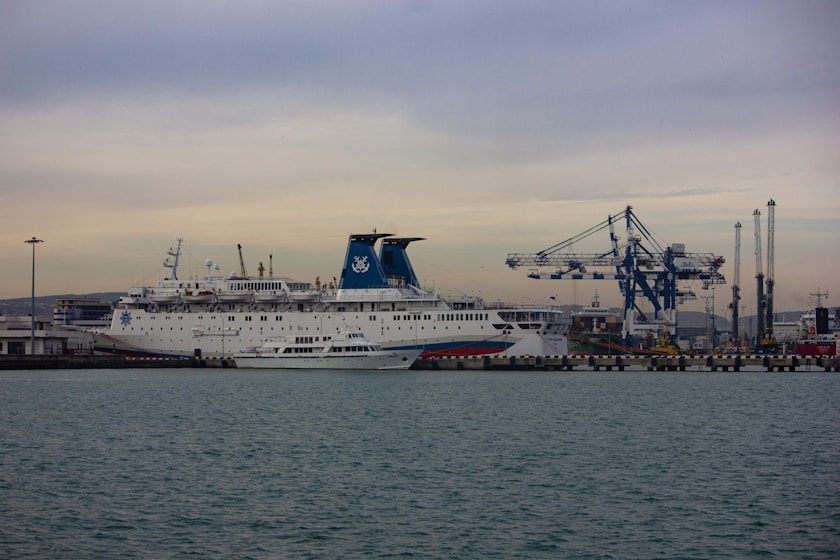

Power supply systems for port cranes represent one of the most demanding applications for marine cables. Container cranes operate continuously in harsh coastal environments, handling containers weighing up to 40 tons while subjected to salt spray, temperature variations, and constant vibration. The cables providing power to these cranes must maintain reliable electrical connection while accommodating the mechanical stresses imposed by crane movement and load cycles. The flexible construction of the MarineFlex YOZp 0.6/1 kV allows it to flex repeatedly without fatigue failure, while the corrosion-resistant materials ensure long-term reliability in the salt-laden port environment.

Lighting systems in port facilities require cables that can withstand outdoor exposure while providing reliable illumination for safety and security operations. Port lighting operates continuously, often in locations where maintenance access is difficult or dangerous. The UV-resistant outer sheath and moisture protection of the MarineFlex YOZp 0.6/1 kV ensure that lighting circuits remain operational without frequent maintenance interventions. The flame-retardant properties also provide additional safety in areas where flammable materials may be present.

Control panel applications in port facilities often involve complex routing through crowded equipment areas where cable flexibility becomes essential. Control systems for cargo handling equipment, security systems, and port management infrastructure require reliable data and power connections that can be installed in tight spaces without damage. The enhanced flexibility of the MarineFlex YOZp 0.6/1 kV allows installation in these challenging environments while maintaining the electrical performance required for sensitive control equipment.

Shipboard fixed installations in engine rooms present extreme environmental challenges including high temperatures, vibration, oil contamination, and limited installation space. Engine room electrical systems must operate reliably despite these harsh conditions, as electrical failures can compromise propulsion, navigation, and safety systems. The XLPE insulation system provides thermal stability for high-temperature operation, while the oil-resistant outer sheath prevents degradation from hydraulic fluids and lubricants commonly found in engine rooms.

Distribution networks aboard vessels require cables that can accommodate the complex routing necessary to connect electrical equipment throughout the ship while maintaining reliability during vessel motion and thermal cycling. The flexible construction of the MarineFlex YOZp 0.6/1 kV allows it to accommodate vessel flexing and thermal expansion without developing mechanical stress that could lead to failure. The EMI shielding ensures that power distribution cables do not interfere with sensitive navigation and communication equipment.

Installation in narrow ducts, cable trays, and high-vibration zones represents common challenges in both port and shipboard applications. Traditional rigid cables may be difficult to install in these environments and may develop fatigue failures from constant vibration. The enhanced flexibility of the MarineFlex YOZp 0.6/1 kV allows easier installation in constrained spaces while the mechanical protection provided by the braided shield ensures long-term reliability in high-vibration applications.

Advantages in Maritime Operations: Delivering Value Through Superior Performance

The MarineFlex YOZp 0.6/1 kV provides several key advantages that translate directly into operational benefits for maritime facilities and vessels. These advantages stem from the cable's sophisticated design and represent tangible improvements in installation efficiency, system reliability, and total cost of ownership.

Extra flexibility for easier routing in congested cable zones addresses one of the most common challenges in marine electrical installations. Ships and port facilities often have limited space for cable routing, with electrical systems sharing space with piping, ventilation ducts, and structural elements. The enhanced flexibility of the MarineFlex YOZp 0.6/1 kV allows cables to be routed through complex paths with tight bends and multiple direction changes without requiring expensive intermediate junction boxes or custom routing solutions. This flexibility also reduces installation time and labor costs, as electricians can more easily manipulate the cable during installation.

The flexibility advantage becomes particularly apparent when comparing installation requirements with traditional marine cables. Standard marine cables may require pulling lubricants, specialized pulling equipment, and careful attention to minimum bend radius requirements that can complicate installation in tight spaces. The MarineFlex YOZp 0.6/1 kV can be installed with standard electrical tools and techniques, reducing the specialized equipment and expertise required for successful installation.

Corrosion-resistant materials extend service life in humid, salty environments, addressing one of the primary failure modes for electrical equipment in marine service. The tinned copper conductors and corrosion-resistant sheath materials prevent the gradual degradation that can increase electrical resistance, create heat buildup, and ultimately lead to system failure. This corrosion resistance translates directly into reduced maintenance requirements and extended replacement intervals, providing significant cost savings over the cable's service life.

The economic impact of corrosion resistance extends beyond simple material costs to include reduced downtime, maintenance labor, and system reliability improvements. When cables fail due to corrosion, the resulting downtime can be extremely costly in maritime operations where vessel schedules and port operations are tightly coordinated. The enhanced corrosion resistance of the MarineFlex YOZp 0.6/1 kV reduces the likelihood of unexpected failures and provides more predictable maintenance schedules.

Enhanced fire safety becomes critical for enclosed marine spaces where fire can quickly become life-threatening and where evacuation options may be limited. The flame-retardant, halogen-free construction provides multiple layers of fire protection, from preventing flame propagation to minimizing smoke and toxic gas production. This enhanced safety profile can reduce insurance costs, improve regulatory compliance, and most importantly, protect personnel and assets in emergency situations.

The fire safety advantages also extend to equipment protection, as the low-smoke, non-corrosive properties of the halogen-free materials help preserve sensitive electronic equipment that might otherwise be damaged by corrosive gases produced by burning cables. This protection can prevent secondary damage that might otherwise extend the impact of a fire incident.

Conclusion: A Comprehensive Solution for Maritime Electrical Challenges

The MarineFlex YOZp 0.6/1 kV represents a comprehensive approach to addressing the unique challenges of marine electrical installations through careful engineering of every component and characteristic. This cable system demonstrates how sophisticated materials science and engineering design can create solutions that not only meet current maritime electrical requirements but also provide the reliability and safety margins necessary for critical marine applications.

The cable's combination of flexible construction, corrosion-resistant materials, and enhanced fire safety creates a solution that addresses the three primary concerns of marine electrical installations: reliability, safety, and installation efficiency. By incorporating Class 5 stranded tinned copper conductors, XLPE insulation, braided shielding, and halogen-free flame-retardant sheath materials, the MarineFlex YOZp 0.6/1 kV provides superior performance across all these criteria.

For engineers and procurement professionals managing port infrastructure or vessel electrical systems, the MarineFlex YOZp 0.6/1 kV offers a proven solution that can reduce installation costs, extend service life, and improve system reliability. The cable's compliance with international marine standards ensures compatibility with existing systems and regulatory requirements, while its superior performance characteristics provide margin for future system upgrades and expanded electrical demands.

The investment in high-quality marine cables like the MarineFlex YOZp 0.6/1 kV represents a strategic decision that affects long-term operational costs, system reliability, and safety performance. While the initial cost may be higher than standard cables, the total cost of ownership advantages through reduced maintenance, extended service life, and improved reliability make this an economically sound choice for critical marine applications.

As maritime operations continue to evolve with increasing automation, electrification, and efficiency demands, the electrical infrastructure supporting these operations must provide the reliability and performance necessary to meet these challenges. The MarineFlex YOZp 0.6/1 kV cable system provides the foundation for reliable electrical systems that can support current operations while providing the flexibility and capacity for future expansion and modernization.
