Introduction: The Foundation of Maritime Electrical Infrastructure

In the modern maritime industry, reliable electrical power infrastructure forms the backbone of efficient port operations and vessel systems. As global environmental regulations tighten and operational efficiency becomes increasingly critical, the selection of appropriate electrical cables for fixed installations has never been more important. This comprehensive examination focuses on three specialized marine cable types that serve as the foundation for contemporary port and vessel electrical systems: MGG, MGH, and MGH-FFR cables.

The maritime environment presents unique challenges that conventional terrestrial cables simply cannot withstand. Salt spray, extreme temperature variations, mechanical stress from heavy equipment, and the constant threat of fire in confined spaces demand specialized solutions. Shore power systems, commonly known as cold ironing or alternative maritime power (AMP), have emerged as a crucial technology for reducing emissions while vessels remain at berth. These systems require robust, reliable cabling that can maintain electrical integrity under demanding conditions while meeting stringent safety standards.

Fixed installation cables in marine applications serve multiple critical functions beyond simple power transmission. They must maintain circuit integrity during emergency situations, resist environmental degradation over extended periods, and provide the mechanical durability necessary for installations subject to vibration, movement, and physical stress. Understanding the specific characteristics and applications of MGG, MGH, and MGH-FFR cables enables engineers and project managers to make informed decisions that ensure both operational reliability and regulatory compliance.

Application Scenarios: Where Marine Fixed Installation Cables Excel

Shore Power Supply Systems and Cold Ironing Infrastructure

Shore power systems represent one of the most significant developments in sustainable port operations. When vessels connect to shore-based electrical supply instead of running their auxiliary engines, emissions are dramatically reduced, noise pollution decreases, and fuel consumption drops substantially. This process, technically known as cold ironing or alternative maritime power, requires sophisticated electrical infrastructure capable of delivering high-voltage power safely and reliably.

The electrical pathway from the port's main distribution system to the vessel connection point involves multiple cable segments, each with specific requirements. Primary distribution cables must handle substantial power loads while maintaining efficiency over considerable distances. These installations typically require cables rated for 0.6/1 kV operation, with the capability to withstand continuous exposure to marine environmental conditions. The selection between MGG, MGH, and MGH-FFR cables depends on specific installation requirements, environmental exposure levels, and safety considerations.

Connection points at berths experience particularly challenging conditions. These locations combine mechanical stress from ship movement, exposure to salt spray and weather, and the need for frequent connection and disconnection cycles. The cable installation design must accommodate these factors while maintaining electrical safety standards and operational reliability. Cable routing through conduits, cable trays, and underground installations requires careful consideration of mechanical protection, thermal management, and accessibility for maintenance.

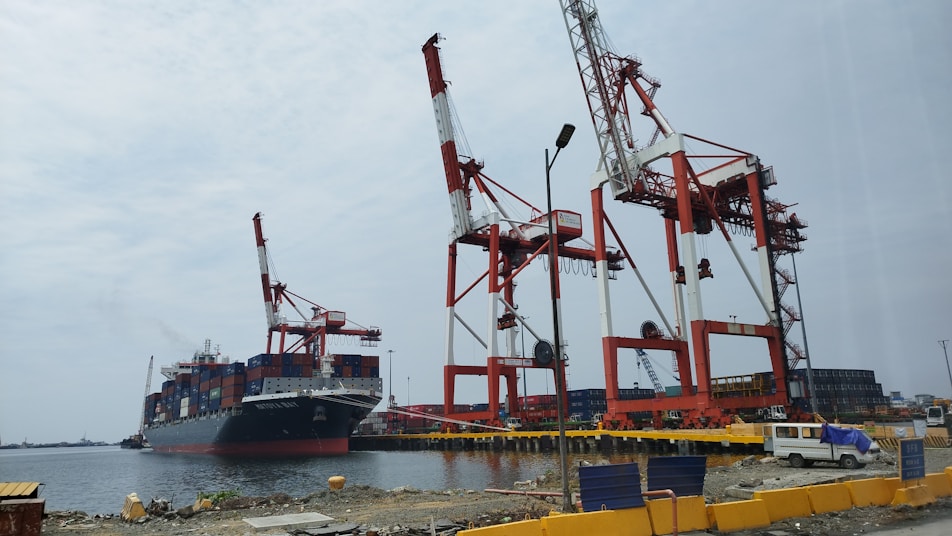

Fixed Equipment Supply in Container Terminal Operations

Modern container terminals rely on sophisticated mechanical systems that demand reliable electrical power supply. Quay cranes, which can lift containers weighing up to 65 tons, require substantial electrical power delivered through robust cable systems. These massive structures operate continuously, subjecting their power supply cables to constant mechanical stress, vibration, and environmental exposure.

Rubber-tired gantry cranes (RTGs) and rail-mounted gantry cranes present additional challenges for fixed installation cables. These systems often involve hybrid power arrangements where fixed electrical supply supplements or replaces diesel generators. The transition from mobile to fixed power supply has created new requirements for cable systems that can handle high power loads while maintaining flexibility for equipment movement and positioning.

Terminal infrastructure extends beyond crane operations to include lighting systems, control networks, and auxiliary equipment installations. These applications often require cable installations in cable trays, underground conduits, and overhead routing systems. Each installation method presents specific requirements for mechanical protection, environmental resistance, and fire safety performance. The choice between different cable types must consider factors such as installation method, environmental exposure, and safety requirements specific to each application area.

Offshore Platforms and Shipboard Fixed Installations

Offshore platforms represent some of the most demanding environments for electrical cable installations. These structures experience extreme weather conditions, constant salt spray exposure, and mechanical stress from wave action and platform movement. Power distribution systems on offshore platforms must maintain operational capability under these conditions while meeting stringent safety requirements for fire resistance and emergency evacuation procedures.

Shipboard fixed installations present unique challenges related to space constraints, weight considerations, and the need for cables to maintain functionality during emergency situations. Engine room installations require cables capable of operating in high-temperature environments while maintaining fire resistance properties. Accommodation areas demand low-smoke, halogen-free cables that will not compromise passenger safety during fire emergencies.

The integration of shore power connection capabilities on vessels has created new requirements for shipboard electrical systems. These installations must accommodate the interface between shore-based power supply and shipboard distribution systems, requiring cables that meet both marine classification society requirements and international shore power standards.

Cable Types and Electrical Characteristics: Technical Deep Dive

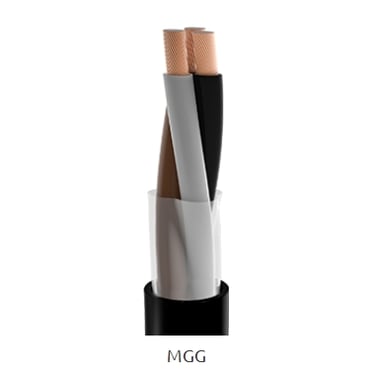

MGG: The Versatile Standard for Marine Fixed Installations

MGG cables represent the foundational solution for marine fixed installation applications where standard environmental resistance and flame retardation properties are sufficient. The construction philosophy behind MGG cables centers on providing reliable electrical performance while maintaining cost-effectiveness for applications that do not require enhanced fire resistance or halogen-free properties.

The conductor construction utilizes electrolytic, stranded, annealed copper wire conforming to IEC 60228 Class 2 specifications. This construction provides the optimal balance between electrical conductivity and mechanical flexibility necessary for fixed installations. The stranded configuration allows for easier installation in conduits and cable trays while maintaining the low electrical resistance essential for efficient power transmission. When applications require enhanced corrosion resistance, tinned copper conductors are available to provide additional protection against the corrosive marine environment.

The insulation system employs HF HEPR (Heat and Flame Resistant Halogenated Ethylene Propylene Rubber) compound, which provides excellent electrical insulation properties across the specified temperature range of -40°C to +90°C. This temperature range encompasses the extreme conditions encountered in marine applications, from arctic operations to tropical port facilities. The HEPR insulation maintains its electrical properties throughout this temperature range while providing the mechanical flexibility necessary for installation and long-term service.

The outer sheath construction utilizes a chloroprene-based compound that provides flame retardant, UV resistant, and oil resistant properties. This sheath designation SE1 indicates compliance with specific marine cable standards for environmental resistance. The chloroprene base polymer provides excellent resistance to salt water, oils, and the wide range of chemicals encountered in marine environments. UV resistance ensures that cables exposed to sunlight during installation or service will not experience degradation of their protective properties.

MGG cables are rated for 0.6/1 kV operation with a test voltage of 3.5 kV, providing substantial safety margin for typical marine electrical system applications. The flame retardation properties meet IEC 60332/1 and IEC 60332/3 Category A requirements, ensuring that cable installations will not propagate fire or contribute significantly to fire load in the event of electrical faults.

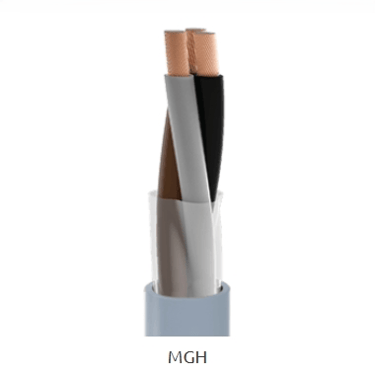

MGH: Enhanced Durability for Demanding Applications

MGH cables advance beyond the standard MGG design to provide enhanced environmental resistance and halogen-free construction. The transition from halogenated to halogen-free materials represents a significant advancement in marine cable technology, addressing both environmental concerns and enhanced safety requirements for occupied spaces.

The conductor construction remains consistent with MGG cables, utilizing stranded annealed copper wire to IEC 60228 Class 2 specifications. This consistency ensures that electrical performance characteristics remain comparable between cable types, allowing engineers to focus on environmental and safety requirements when selecting between options.

The insulation system continues to employ HF HEPR compound, maintaining the proven electrical and thermal performance characteristics established in MGG cables. However, the bedding layer transitions to a halogen-free compound, beginning the process of eliminating halogenated materials from the cable construction. This transition provides environmental benefits while maintaining the mechanical and electrical performance required for marine applications.

The most significant advancement in MGH construction involves the outer sheath material. The thermoplastic polyolefin-based compound designated HM4/SHF1 provides halogen-free, flame retardant, and UV resistant properties while meeting HD 604 specifications. This material system eliminates the environmental and toxicity concerns associated with halogenated compounds while maintaining or improving mechanical and environmental resistance properties.

Halogen content testing to IEC 60754/1-2 specifications ensures that MGH cables meet stringent requirements for halogen-free classification. This testing verifies that the cable will not release significant quantities of corrosive or toxic gases during combustion, making MGH cables suitable for applications where personnel safety during fire emergencies is a primary concern.

Smoke density testing to IEC 61034/1-2 specifications ensures that MGH cables produce minimal smoke during combustion. Low smoke generation is crucial for maintaining visibility during emergency evacuation procedures and reducing the respiratory hazards associated with cable fires in enclosed spaces.

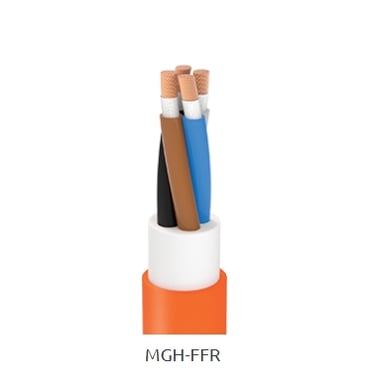

MGH-FFR: Maximum Fire Safety for Critical Applications

MGH-FFR cables represent the pinnacle of marine cable fire safety technology, incorporating advanced fire-resistant construction while maintaining halogen-free properties. These cables are specifically designed for applications where maintaining circuit integrity during fire conditions is essential for safety systems, emergency equipment, or evacuation procedures.

The conductor construction maintains consistency with MGG and MGH cables, ensuring electrical compatibility across the product range. However, MGH-FFR cables introduce a critical additional component: mica tape separation between the conductor and insulation. This mica tape serves as a fire-resistant barrier that maintains electrical integrity even when the organic insulation materials are compromised by fire conditions.

Mica, a naturally occurring mineral, possesses exceptional fire resistance properties that make it ideal for this application. When exposed to fire, mica maintains its structural integrity and electrical insulation properties at temperatures that would completely destroy organic insulation materials. The tape construction allows for flexible installation while providing comprehensive coverage of the conductors.

The insulation and bedding systems remain consistent with MGH cables, utilizing HF HEPR insulation and halogen-free bedding compounds. This consistency ensures that normal operating characteristics remain comparable between MGH and MGH-FFR cables, with the enhanced fire resistance representing an additional safety feature rather than a compromise in standard performance.

The outer sheath construction advances beyond standard MGH specifications to incorporate fire-resistant properties in addition to halogen-free, flame retardant, and UV resistant characteristics. This enhanced outer sheath provides additional protection for the internal fire-resistant components while maintaining the environmental resistance properties required for marine applications.

Fire resistance testing to IEC 60331 specifications verifies that MGH-FFR cables can maintain circuit integrity for specified periods during fire exposure. This testing involves subjecting complete cable samples to flame exposure while monitoring electrical continuity, ensuring that critical circuits will continue to function during fire emergencies when evacuation systems, emergency lighting, and fire suppression equipment must remain operational.

The combination of halogen-free construction and fire resistance creates cables that provide maximum safety for personnel during fire emergencies. The absence of halogenated materials eliminates the production of corrosive and toxic gases, while the fire-resistant construction ensures that critical safety systems continue to function when they are needed most.

Environmental and Mechanical Considerations: Engineering for Marine Durability

Marine environments present a unique combination of challenges that require careful consideration during cable selection and installation design. Salt mist exposure creates ongoing corrosive conditions that can compromise cable integrity over time. The combination of salt, moisture, and oxygen creates an aggressive environment that attacks both metallic and organic materials through electrochemical and chemical degradation processes.

UV exposure from intense sunlight, particularly in tropical and subtropical port locations, can cause photochemical degradation of cable jacket materials. This degradation process can result in cracking, embrittlement, and loss of mechanical properties that compromise the cable's protective functions. The UV resistance properties of MGG, MGH, and MGH-FFR cables ensure that extended exposure to sunlight will not compromise cable integrity or safety performance.

Oil resistance becomes particularly important in port environments where hydraulic fluids, lubricants, and fuel oils are commonly present. Container handling equipment, ships, and port machinery create numerous opportunities for oil exposure that can cause swelling, softening, or chemical degradation of cable jacket materials. The oil-resistant properties of these marine cables ensure that accidental exposure will not compromise cable integrity or create safety hazards.

Mechanical protection requirements vary significantly depending on installation method and location. Cable tray installations require cables capable of supporting their own weight over extended spans while resisting damage from adjacent cables or maintenance activities. The minimum bending radius specification of six times the overall cable diameter ensures that installation practices do not create stress concentrations that could compromise electrical or mechanical integrity.

Direct burial installations require additional consideration for soil conditions, groundwater exposure, and potential mechanical damage from excavation or ground settling. While direct burial is less common for the voltage ratings typical of these cables, understanding soil chemistry and drainage conditions becomes critical for long-term reliability when this installation method is employed.

Conduit installations provide mechanical protection but create requirements for cable pulling forces and heat dissipation. Fill ratios must be carefully calculated to ensure that installation forces do not exceed cable specifications and that thermal dissipation is adequate for the intended electrical loads. The flexible construction of these cables facilitates installation in complex conduit routing while maintaining electrical and mechanical integrity.

Vibration resistance becomes particularly important for installations on mobile equipment or structures subject to mechanical stress. Quay cranes, ship-to-shore cranes, and offshore platforms experience continuous vibration that can cause fatigue failure in cables that are not properly designed or installed. The stranded conductor construction and flexible insulation and jacket materials provide the mechanical resilience necessary for these demanding applications.

white and blue boat on dock during night time
white and blue boat on dock during night time

Frequently Asked Questions: Practical Selection Guidance

What distinguishes MGG from MGH cables in practical port applications?

The fundamental distinction between MGG and MGH cables lies in their environmental impact and safety characteristics rather than basic electrical performance. MGG cables utilize chloroprene-based jacket materials that contain halogens, while MGH cables employ halogen-free thermoplastic polyolefin compounds. This difference becomes critically important in enclosed spaces, passenger areas, or locations where personnel safety during fire emergencies is a primary concern.

From a practical installation perspective, both cable types provide comparable electrical performance, environmental resistance, and mechanical durability. The selection decision typically centers on regulatory requirements, safety policies, and environmental considerations specific to the installation location. Many modern port facilities specify halogen-free cables as standard practice to minimize environmental impact and enhance personnel safety.

When should engineers specify MGH-FFR over standard MGH cables?

MGH-FFR cables should be specified when maintaining circuit integrity during fire conditions is essential for safety systems or emergency equipment operation. Critical applications include emergency lighting systems, fire alarm circuits, emergency communication systems, and fire suppression equipment power supplies. The fire-resistant construction ensures that these vital systems continue to function when they are most needed.

Additionally, MGH-FFR cables are often required in enclosed technical spaces, passenger areas, or locations where evacuation routes could be compromised by cable fires. The combination of low smoke, halogen-free, and fire-resistant properties provides maximum protection for personnel during emergency situations.

How do these cables perform in outdoor quay installations?

All three cable types—MGG, MGH, and MGH-FFR—are specifically designed for outdoor marine applications and provide excellent performance in quay environments. The UV resistance properties ensure that extended exposure to intense sunlight will not compromise cable integrity. Salt mist resistance prevents corrosive degradation, while oil resistance protects against contamination from port equipment and vessels.

MGH and MGH-FFR cables offer enhanced durability for particularly harsh outdoor environments, with their advanced jacket materials providing superior long-term performance under extreme conditions. The halogen-free construction also provides environmental benefits for outdoor installations where cable materials might eventually require disposal or recycling.

What classification society approvals are available for these cables?

MGG, MGH, and MGH-FFR cables can be manufactured to meet the requirements of major marine classification societies including DNV (Det Norske Veritas), ABS (American Bureau of Shipping), Lloyd's Register, Bureau Veritas, and others. These approvals ensure compliance with international standards for shipboard installations and offshore platform applications.

Classification society approval involves comprehensive testing and evaluation of cable materials, construction methods, and performance characteristics. This approval process ensures that cables meet the stringent safety and reliability requirements for marine applications where failure could have serious consequences for personnel safety or environmental protection.

How should these cables be installed in shore power connection projects?

Shore power installations typically involve multiple cable segments with different installation requirements and performance needs. Primary distribution cables from the port's electrical supply to the distribution panels often utilize cable tray or underground conduit installations. These segments typically specify MGG or MGH cables depending on environmental exposure and safety requirements.

Connection segments from distribution panels to ship connection points experience more challenging conditions including potential mechanical stress, frequent connection cycles, and direct environmental exposure. These segments often specify MGH or MGH-FFR cables to provide enhanced durability and safety performance.

Critical sections such as those passing through occupied buildings, control rooms, or confined spaces typically require MGH-FFR cables to ensure fire safety and personnel protection. The installation design should consider cable routing, mechanical protection, thermal management, and accessibility for maintenance throughout the entire power delivery path.

Conclusion: Strategic Cable Selection for Maritime Excellence

The selection of appropriate fixed installation cables represents a critical decision point that influences both immediate operational success and long-term system reliability in marine applications. MGG, MGH, and MGH-FFR cables each serve specific roles within the comprehensive spectrum of marine electrical infrastructure requirements, from basic power distribution to life-safety critical applications.

Understanding the relationship between environmental exposure, mechanical requirements, fire safety needs, and regulatory compliance enables engineers to make informed decisions that optimize both performance and cost-effectiveness. The evolution from MGG through MGH to MGH-FFR represents advancing levels of environmental responsibility and safety performance, allowing project designers to match cable specifications precisely to application requirements.

As the maritime industry continues to evolve toward greater environmental responsibility and enhanced safety standards, the importance of proper cable selection becomes increasingly critical. Shore power systems, automated terminal operations, and advanced vessel electrical systems all depend on reliable, durable cable installations that can perform consistently under demanding conditions while meeting stringent safety and environmental requirements.

The investment in appropriate cable selection pays dividends throughout the system lifecycle through reduced maintenance requirements, enhanced safety performance, and reliable operation under challenging conditions. By aligning cable specifications with specific application requirements, marine electrical installations can achieve optimal performance while meeting the demanding standards that ensure safe and efficient maritime operations.
